Entrapping electrode materials within ultrathin carbon nanotube network for flexible thin film lithium ion batteries

Abstract

A novel design of a flexible thin film electrode for lithium ion batteries is reported. We employ ordered carbon nanotube (CNT) film, directly pulled from aligned CNT arrays, as a flexible skeleton. The functional electrode material is introduced by a one-step spray-painting approach. The electrode is self-sustained as a result of the strong interactions among CNTs. In such an electrode configuration, the CNT network acts as micro electron pathways and its excellent mechanical properties also ensure flexibility. The electrodes fabricated in this way are electrochemically and mechanically superior in comparison with those prepared by the traditional slurry cast method. A full battery that contains a LiFePO₄ cathode and a Li₄Ti₅O₁₂ anode exhibits a high areal capacity over 200 μA h cm⁻², a stable output voltage of 1.82 V, excellent reversibility, high flexibility, and light polarization in both flat and bent conditions. As a result, we suggest such electrodes hold great promise for thin film lithium ion batteries to satisfy energy storage demand in revolutionary portable electronics.

---

Introduction

The rapid growth of the consumer electronic market boosts an explosive number of innovative designs for portable electronics.^1–3 The emergence of ultrathin and bendable smart electronics cannot be fulfilled until all components, for instance, the energy storage device, evolve into new configurations that are compatible with such revolutionary appearances.⁴ The lithium ion battery (LIB) has dominantly powered portable electronics because of its high energy density, high power density, and long-term reliability.^5–7 The future generation portable electronics demand the battery to be seamlessly integrated into the system with limited space and thus trigger new challenges in the electrode design.^8–10 It is of great importance to develop a new scheme of LIBs that are highly portable, compact, and viable in versatile shapes.

In conventional LIBs, the battery electrode is composed of an active material blended with a conductive agent and mechanically bound to metal foils by an organic binder. Typically, the metal foil and the organic binder weigh 25–30% of the total mass of a battery.^11,12 To improve the portability and reduce the thickness in the arrangement of a thin film battery, it is essential to reduce these two electrochemically inactive components. One effective strategy is to devise novel synthetic routes that are able to directly integrate functional materials on carbonaceous material based conductive agents, e.g., carbon fiber, graphene, and carbon nanotube (CNT).^13–15 The direct growth/deposition of electrode materials decreased the necessity of an organic binder and led to a great number of binder-free electrodes.^13–20 Furthermore, low dimensional carbonaceous materials were able to evolve into a 3D conductive network that simultaneously served as conductive agent and current collector.^21,22 Even though a large number of examples have been reported in recent years, the obstacle still remained on how to effectively control the thickness of the electrode and interface newly developed methods to industry-level manufacturing.

The direct usage of commercial battery materials would accelerate the shift of manufacturing from classical batteries to thin film batteries for emerging portable electronics. Herein, we directly utilized the commercial LiFePO₄ (LFP) and Li₄Ti₅O₁₂ (LTO) powders as the active material to fabricate electrodes for thin film LIBs. CNT film, simply drawn from super-aligned CNT arrays, was employed as the conducting agent.²³ The enthusiasm of such choice was originally from the remarkable electrical and mechanical properties of CNTs.^24,25 Indeed, these slender CNT films consisted of continuous CNT yarns with diameters of 40–50 nm arranged in a parallel fashion, offering an ideal precursor for constructing an ultrathin conductive network in the electrode without any interruption. We utilized a spray-painting technique, which had shown a great range of applications in forming depositions on various substrates, to fabricate electrodes.²⁶ The electrode structure comprised alternating CNT layers and electrode material layers. As ethanol, the spray medium, evaporized, the composite electrode strengthened itself by the strong interaction among CNTs. As a matter of fact, electrode materials were tightly confined in such a CNT network. Thus, these electrodes were free of organic binders and metal foils and held great potential to meet the critical requirement in volume for future portable electronics.

Experimental

Electrode preparation

LiFePO₄ (Tianjiao Chemical co., Shenzhen, China) and Li₄Ti₅O₁₂ (Reshine, China) powders were used as purchased. First, 1000 mg LFP (LTO) powder was loaded in 100 mL ethanol. By ultrasonication in a tip-sonicator for 30 minutes, the powder was dispersed. The suspension was then immediately transferred into a painter for the subsequent spray-painting process. CNT films, directly drawn from super-aligned CNT arrays grown on an 8 inch Si wafer, were crossly stacked on a 3.5 cm × 3.5 cm Teflon square frame and used as the substrate. Details for preparing CNT films can be found in early publications.²³ LFP or LTO powders were then sprayed on cross-stacked CNT films with a gentle nitrogen flow. Each spray-painting step took 2 minutes for LTO and 4 minutes for LFP and consumed 10 mL of the suspension. The dependence of painting time and mass loading is shown in Fig. S1a.† Between each spray-painting, the sample was covered with a cross-stacked CNT film; in the meantime, the suspension was ultrasonicated for another 2 minutes to keep the powder from precipitating. This process was repeated five times and completed by placing another cross-stacked CNT film on the top. Photographs of thin film electrodes are shown in Fig. S1.† Classical electrodes were prepared by mixing LFP and LTO powders with Super P and PVDF at a weight ratio of 8 : 1 : 1 in N-methylpyrrolidone (NMP) as control samples. The resulted slurry was cast on Al or Cu foils and dried overnight in a vacuum oven at 120 °C.

Morphological, mechanical, and electrochemical characterization

The microstructure of LFP/CNT and LTO/CNT was observed using a scanning electron microscope (FEI, Sirion 200, 10 kV) and a transmission electron microscope (FEI, Tecnai G2F20, 200 kV). Tensile tests were carried out on an Instron 5848 microtester with a strain rate of 5% min⁻¹. The tensile direction was 0° and 90° to the cross-stacked CNTs for LFP/CNT and LTO/CNT electrodes. Classical LFP and LTO electrodes were directly peeled off from metal foils for tensile testing. Half-cell samples were assembled in a dry-argon filled glove-box (M. Braun inert gas systems Co. Ltd.) in accordance with 2016 arrangement using Li foils as the counter electrode and 1 M LiPF₆ in an EC/DEC (1 : 1 v/v) mixture as the electrolyte. Galvanostatic tests were carried out over 2.5–4.2 V for LFP and 1.0–2.5 V for LTO using a Land battery tester (Wuhan Land Electronic Co., China). CV measurements were performed using a potentiostat/galvanostat instrument over the same voltage range (Princeton PARStat 2273). Scan rates were 0.2 mV s⁻¹ and 0.5 mV s⁻¹ for each type of electrode. The CV profiles of the full battery were also collected in the 2016 arrangement with a voltage range of 1.0–2.5 V at scan rates of 0.2 mV s⁻¹, 0.5 mV s⁻¹, and 1 mV s⁻¹.

Full battery preparation

The full battery was prepared by choosing LFP/CNT as the cathode and LTO/CNT as the anode. The film electrode was cut into 3 cm × 3 cm squares from the Teflon frame with an infrared laser. The slim electrode was carefully folded twice and placed on a 1.5 cm-wide CNT buckypaper strip. Ethanol was used to densify and stick the slim electrode on the CNT buckypaper. A small amount of 10 wt% PVDF in NMP was applied on the surface of the electrode to glue it with the Celgard 2400 separator. Ni slabs, equipped with heat sensitive tape, were point-welded with CNT buckypaper. The Ni slab ensured an airtight sealing with Al laminated foil and acted as positive and negative poles for the battery. The Al foil package was finally sealed inside the glove box, in which a few drops of LiPF₆ electrolyte were added. The battery was kept still for 12 hours before electrochemical tests were carried out on the Land system.

Results and discussion

Sample morphology and microstructure

The spray-on fabrication process is illustrated in Fig. 1a. The prerequisite of the spray-painting approach was to make suspensions of LFP and LTO, which were implemented by dispersing the powder in ethanol with tip-ultrasonication for 30 minutes. Subsequently, the as-prepared suspension was loaded in a nebulizer and sprayed on a cross-stacked CNT film serving as a substrate under a nitrogen flow. Another layer of cross-stacked CNT film was coated on the top, and the suspension was sprayed again. Thus, the total thickness of an electrode was easily tuned by varying the number of repetitions of such processes. In this article, the spray-painting process was carried out five times for an LFP/CNT or LTO/CNT electrode with an average thickness of 10 μm. With painting time of 4 minutes and 2 minutes for each layer of LFP and LTO, respectively, the mass ratio of CNT in such thin electrodes was less than 5% using the areal density of 2 μg cm⁻² for a single-layered CNT film (Fig. S1†).²⁷

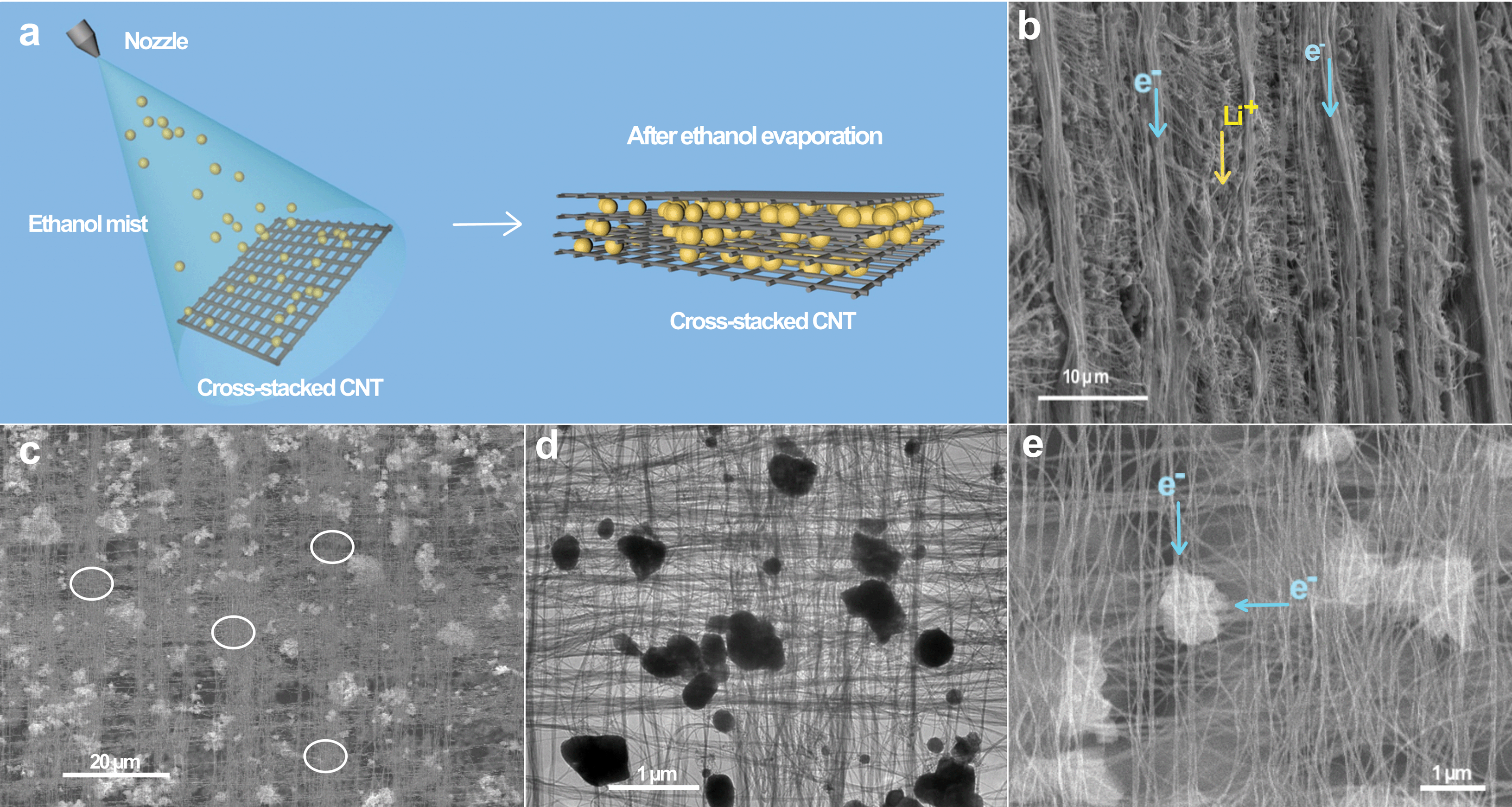

Fig. 1 (a) Schematic illustration of LFP/CNT and LTO/CNT thin film electrode fabrication by spray-painting. (b) Typical cross-sectional SEM image of an LFP/CNT electrode revealed a lasagna-like microstructure. The sample was folded twice and placed on a CNT buckypaper. Cyan and yellow arrows indicate possible electron and ion paths. (c) Typical top view SEM image of an LFP/CNT electrode. White circles suggest possible regions where inter-layer CNTs are cross-linked. (d) TEM image of a single-layer LFP/CNT. (e) SEM top view image at high magnification show LFP particles confined in the CNT network. The conductivity was isotropic. Possible pathways of electron delivery are indicated with cyan arrows.

The microstructures of both LFP/CNT and LTO/CNT were investigated by scanning electron microscopy (SEM) and transmission electron microscopy (TEM). Both top view and cross-sectional images revealed similar morphology of all electrodes (Fig. 1b to e). A cross-sectional SEM image of an LFP/CNT sample suggested that typical electrodes resembled a lasagna-like structure, in which LFP layers alternated with CNT layers (cf. Fig. 1b). The top view microstructure was exemplified by an LFP/CNT sample in Fig. 1c and d. Flexible CNT film blanket covered the whole layer of LFP. The contact of LFP with CNT was established, even though the diameter distribution for commercial powders was quite wide. It is worth noting that spray-painted particles did not completely occupy the CNT film but left a great deal of empty voids where CNT yarns were able to connect with those from adjacent layers (cf. white circles in Fig. 1c). The evaporation of ethanol led to the densification of CNT yarns, and due to the lateral van der Waals interactions, this process was not reversible. Indeed, the abovementioned interactions were so strong that raw CNT yarns processed with an ethanol shrinking approach exhibited excellent mechanical properties.²⁸ In this case, ethanol evaporation induced such inter-layer van der Waals interactions, and as a matter of fact, the fluffy CNT film was turned into a compact structure. The electrode was freestanding by the mechanical support from CNTs. This step also greatly decreased the thickness of electrodes. Consequently, LFP/LTO particles were confined in such CNT films, and served two functions: a conductive network and a flexible but firm structural scaffold. The electrode did not need any binders and was integrated with current collectors that were composed of CNT yarns. Further morphological information can be seen in Fig. S2.†

The performance of the electrode was fundamentally determined by its microstructure. Commonly, the electrochemical limitation lay in two aspects, the electronic transfer and the ionic transfer. With respect to the active material in this electrode configuration, the electronic transfer was obviously facilitated by those CNT yarns that approached particles from all directions. Fig. 1e revealed that particles with typical sizes in commercial powders were grabbed by a large amount of CNT yarns. Embedding with guest particles will not hamper the electrical properties of such CNT yarns.²⁹ In fact, these yarns are important micro pathways for electrons to reduce the internal resistance. According to a previous study, the conductivity was isotropic for cross-stacked CNT films.³⁰ The electrons can be equally delivered from horizontal and vertical directions, as shown in Fig. 1e. This isotropic conductive network holds particular importance for alleviating the issue of polarization. Concerning the ionic transfer in this type of electrode, the CNT network, made from cross stacking of ordered CNT films, explicitly possessed a significant amount of pores with a variety of diameters (Fig. 1b, c and e). This feature offered little barrier to wetting by the electrolyte. Therefore, the electrode design by entrapping commercial LFP and LTO powders within CNT films should benefit both electron and ion transfers. We expected each layer in such lasagna-like electrodes to exhibit the same electrochemical properties because of the similar structure and the same fabrication process.

Electrochemical and mechanical characterizations

To evaluate the merit as an electrode of thin film LIBs, galvanostatic characterizations were carried out to investigate the specific capacity of LFP/CNT and LTO/CNT. These tests were performed in a 2016 half-cell arrangement using Li foils as the counter electrode. For comparison, LFP and LTO slurries, made by mixing LFP or LTO powder, super P, and polyvinylidene fluoride (PVDF) at a weight ratio of 8 : 1 : 1, were also prepared. The slurry was casted on metal current collectors to make control samples. As shown in Fig. 2a and b, 0.1 C test revealed 150 and 151 mA h g⁻¹ specific capacities of LFP/CNT and LTO/CNT electrodes, respectively, at the 10^th cycle (here 1/n C denotes that n hours were required to charge or discharge the electrode to its nominal specific capacity). Although both values were lower than the theoretical values for fully charged/discharged states, they all exhibited good reversibility for 50 cycles and no obvious capacity decay was recorded. The remarkable capacity retention of LFP/CNT and LTO/CNT electrodes was indicative of the excellent mechanical properties resulting from the robust CNT network. In contrast, electrodes made from the slurry cast method delivered lower specific capacities, 131 mA h g⁻¹ for LFP and 134 mA h g⁻¹ for LTO, at 0.1 C rate. In addition, classical LFP electrodes showed fast capacity decay in 50 cycles. For the rate test, the specific capacities of either LFP/CNT or LTO/CNT were higher than those of classical LFP or LTO electrodes at all rates, reflecting the efficient ion and electron transport in the CNT network (Fig. 2c and d). The different electrode materials led to the difference in the rate performance. The specific capacity decreased when the current density increased for all the kinds of LFP electrodes. In contrast, both LTO/CNT and classical LTO electrodes revealed almost constant specific capacities at various rates up to 5 C (cf. Fig. 2d). This behavior can be ascribed to the high ionic conductivity of LTO, which has been exploited in ultrahigh-rate energy storage devices.^31,32 The cycle and rate tests suggested the superiority of the lasagna-like electrode structure, which could be ascribed to the advantage of optimized electron and ion transfers. Another reason could arise from the mechanical properties of the CNT network. According to the tensile test results (Fig. 3), LFP/CNT and LTO/CNT electrodes provided tensile strengths of 2.49 MPa and 2.16 MPa, respectively, whereas classical LFP and LTO electrodes fractured at 0.25 MPa and 0.12 MPa, respectively.

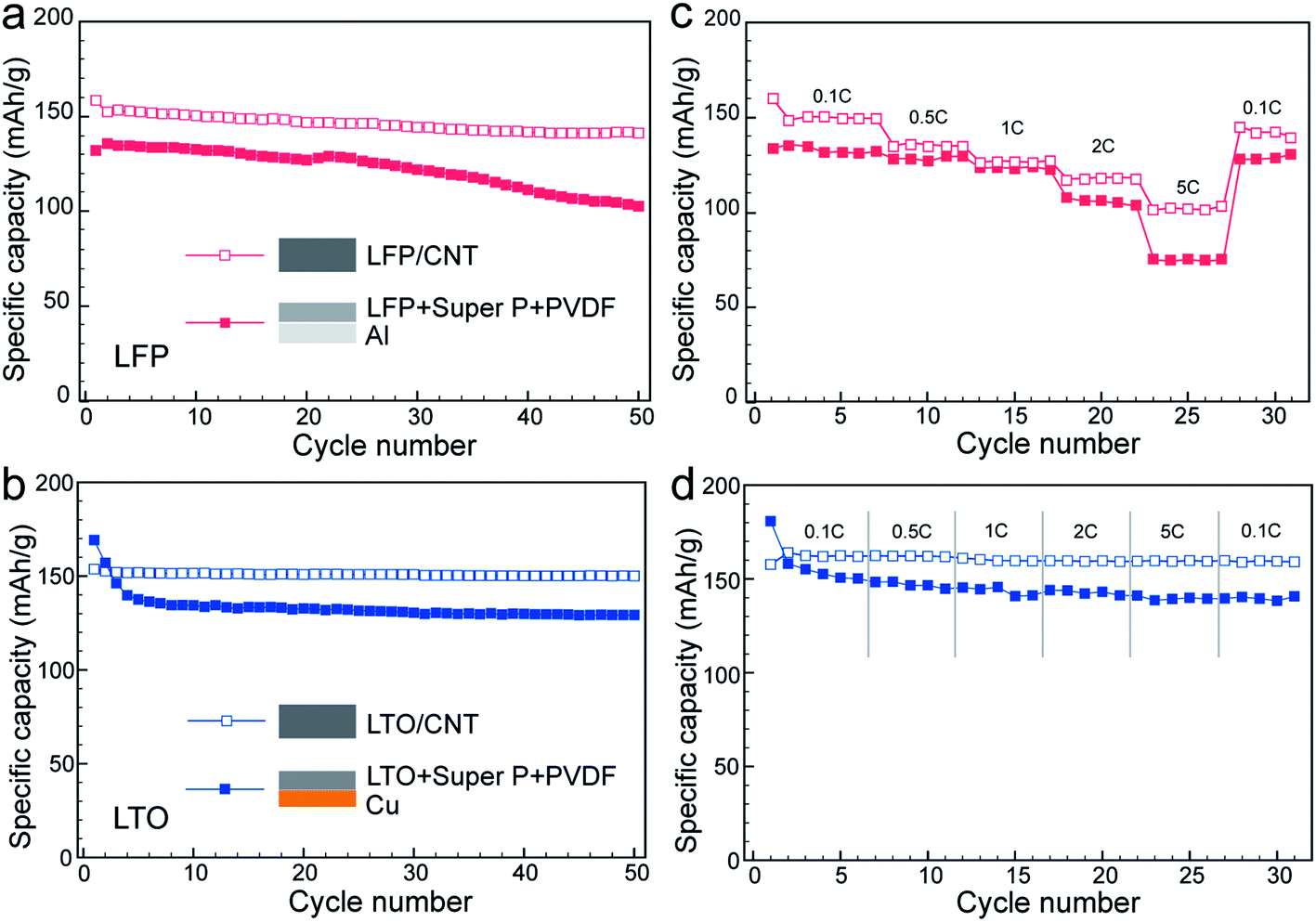

Fig. 2 Electrochemical characterizations carried out in half-cell arrangement for LFP/CNT and LTO/CNT electrodes. (a) & (b) Galvanostatic measurements of LFP/CNT and LTO/CNT at 0.1 C rate. (c) & (d) Rate performance measurements up to 5 C rate. All results were compared with classical LFP or LTO electrodes prepared by the slurry cast method.

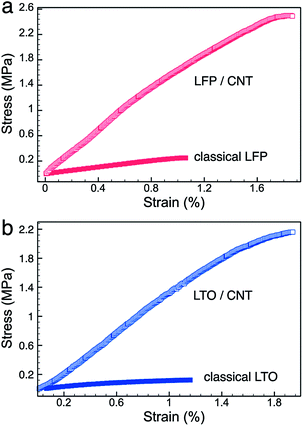

Fig. 3 Stress–strain curves of (a) LFP/CNT and classical LFP electrodes, and (b) LTO/CNT and classical LTO electrodes.

Cyclic voltammetry (CV) provided further information for LFP/CNT and LTO/CNT electrodes. Fig. 4a and b show CV profiles recorded at 0.2 mV s⁻¹ scan rate. The cathodic and anodic peaks, corresponding to lithiation and delithiation processes, occurred at 3.25 and 3.65 V for LFP/CNT, and at 1.43 and 1.75 V for LTO/CNT, respectively. No additional cathodic and anodic peaks were observed other than the characteristic signals corresponding to the electrochemical reactions with Li⁺ of these well-known materials. This observation also proved that CNT itself did not involve any electrochemical process but only acted as a spectator component in such a voltage range. CV profiles of classical LFP and LTO electrodes made from the slurry cast method were also plotted in Fig. 4 for comparison. It is clear that electrodes prepared by this traditional method exhibited a similar electrochemical behavior. However, the separation between cathodic and anodic peaks increased and was further pronounced when the scan rate was increased to 0.5 mV s⁻¹ (Fig. S3†). The separation between the cathodic and anodic peaks indicated the extent of polarization, which usually resulted in energy loss due to the hysteresis in each charging/discharging cycle. By entrapping powders of active materials inside a cross-stacked CNT network, the polarization issue has been properly addressed, and this is of great importance for the practical applications of batteries.

Fig. 4 CV profiles of LFP/CNT (a) and LTO/CNT (b) electrodes at a 0.2 mV s⁻¹ scan rate. The smaller separation between cathodic and anodic peaks suggested a low degree of polarization and faster kinetics in LFP/CNT and LTO/CNT electrodes.

Full battery evaluation

The full battery was also assembled to probe the viability of this lasagna-like electrode in thin film batteries. In this full-cell assembly, LFP/CNT acted as the cathode while LTO/CNT was the anode. A Celgard 2400 separator and an electrolyte of 1 M LiPF₆ in ethylene carbonate (EC) and diethyl carbonate (DEC) (1 : 1) were used. To fabricate full-cell batteries, such LFP/CNT and LTO/CNT electrodes were folded into squares with a length of 1.5 cm, and then placed on CNT buckypaper strips with a size of 3 cm × 1.5 cm. The CNT buckypaper was 40 μm thick and composed of hundreds of CNT films aligned in the same direction. By gently dropping ethanol, the electrodes were densified and firmly attached to the CNT buckypaper without the application of any glue. The CNT buckypaper showed a sheet resistance as low as 5 Ω per square. Cross-sectional SEM images revealed that the total thickness of the full-cell assembly was around 100 μm, including the polymer separator and CNT buckypaper strips. Noticeably, this value was not thicker than carbon conductive tape (Fig. 5a and b, and S4†). The galvanostatic characterizations were carried out at an areal current density of 100 μA cm⁻², and the charge/discharge voltage profiles are shown in Fig. 5c. The narrow gap between voltage plateaus at 1.90 and 1.82 V was implicit of light polarization, which can be attributed to the effective ionic and electronic pathways established by the CNT network. The cell potential at 1.82 V was in good agreement with the electromotive forces of LFP and LTO occurring at 3.4 and 1.5 V, vs. Li⁺/Li, respectively.^33–35 Thus, this output is quite reasonable and is demonstrated by powering a red LED bulb (Fig. 5d). An illuminated LED plugged on a bent battery in Fig. 5e indicated that this assembly can work under different circumstances where unconventional shapes or flexible structures are demanded. This also demonstrated the mechanical robustness of these thin film electrodes that resulted from the CNT network.

Fig. 5 (a) & (b) Side views of an LFP/LTO battery in SEM. The entire thickness of the battery was not greater than that of carbon conductive tape, which is placed in parallel to the sample in (a). The scale bar in (b) corresponds to 20 μm. (c) Voltage profiles of a charging/discharging process for a full battery between 1.2 and 2.6 V. Charged LFP/LTO batteries powered a red LED in flat (d) and bent conditions (e). The battery in (e) was mounted on a 10 mm test tube. (f) Galvanostatic measurements at 100 μA cm⁻² current density. Inset: photograph of a sample before packaging. (g) Measurements at 1000 μA cm⁻² current density for both charging and discharging. Coulombic efficiencies were plotted as solid rhomboids in (f) and (g).

The cyclic stability was assessed by long-term galvanostatic cycles. At an areal current density of 100 μA cm⁻², this thin-film battery can deliver 220 μA h cm⁻² at the 10^th cycle, corresponding to 65 mA h g⁻¹ based on the total mass of the electrodes and the separator (Fig. 5f). The areal capacity decreased to 202 μA h cm⁻² after 30 cycles, corresponding to a 91% capacity retention. The columbic efficiency was maintained above 97% throughout the measurement. When the current density increased to 1000 μA cm⁻², the areal capacity decreased to 130 μA h cm⁻². Because little capacity fading was monitored in the half-cell rate test of the LTO/CNT electrodes, we postulate that the LFP cathode served as a rate-limiting factor in the full battery. The capacity retention was also remarkable in high areal current density measurements. In Fig. 5g, the full battery still delivered a reversible capacity of 125 μA h cm⁻² after 50 cycles at an areal current density of 1000 μA cm⁻², corresponding to a capacity retention of 96%. CV tests at scan rates ranging from 0.2 mV s⁻¹ to 1 mV s⁻¹ verified the cyclic stability at high current densities (Fig. S5†). The results of electrochemical characterizations suggested that the CNT network was capable of holding LFP and LTO powders. Under bent conditions, the full battery sample revealed almost the same performance. A sample bent by 180° was still able to deliver over 200 μA h cm⁻² (Fig. S6†). SEM images revealed similar microstructures for a bent battery after cycle tests in comparison with as-prepared samples (cf. Fig. S7† & 1). More importantly, powder fall-off was not observed according to post-cycle SEM observation. Therefore, the lasagna-like electrode showed great viability under various mechanical deformations and maintained its mechanical and electrochemical properties.

All above-mentioned areal specific capacities were presented by samples that contained only one cell. The fabrication process that took advantage of the spray-painting technique was very easy to scale-up and was able to offer stable quality of the electrodes. As a matter of fact, multiple cells can be prepared in each batch. To increase the areal density, three LFP/LTO cells were connected in parallel and sealed in the same way. A specific capacity around three times (650 μA h cm⁻² vs. 220 μA h cm⁻²) that of a single LFP/LTO cell was delivered under a current density of 1000 μA cm⁻² (Fig. S8†). Accordingly, this thin-film approach is capable of satisfying a large variety of battery modules for high capacity (in parallel) or high voltage (in serial) applications but in the same time with little volume occupation.

Conclusions

In conclusion, we have demonstrated the fabrication of LFP/CNT and LTO/CNT thin-film electrodes with tunable thickness to address the challenges in energy storage for next-generation portable electronics. Functional electrode materials are successfully confined in an isotropic 3D conductive network and immobilized by cross-linked CNTs due to the strong van der Waals interactions. Therefore, the total volume of the electrode is reduced by the removal of binders and metal current collectors. The full battery delivers a reversible areal capacity over 200 μA h cm⁻², which corroborates superior ion and electron transfers in such lasagna-like electrodes design. The CNT scaffold also guarantees the stable capacity for delivery under high current densities and the viability of thin film electrodes under mechanical deformations. The compactness for the whole battery suggests great promise in satisfying the critical requirement of space in ultra portable electronics. Finally, the strategy of electrode design in this work suggests a new platform that is available for making a rich variety of flexible thin film batteries. The process of fabrication is potentially scalable since it uses commercial electrode materials and only involves a one-step spray-painting process in low-cost and low-toxicity ethanol.

Acknowledgements

The authors are grateful for the financial support from the National Basic Research Program of China (Grant no. 2012CB932301), the NSFC (Grant nos 51102146, 51102144, and 51102147), and the Chinese Postdoctoral Science Foundation (Grant no. 2012M520261). The authors also thank Dr. Lina Zhang for her help with acquiring SEM and TEM images.
