Wei Yuana,
Pei-Yang Gub,
Cai-Jian Lub,
Ke-Qin Zhang*a,
Qing-Feng Xu*b and
Jian-Mei Lu*b
aNational Engineering Laboratory for Modern Silk, College for Textile and Clothing Engineering, Soochow University, Suzhou 215123, P.R. China. E-mail: kqzhang@suda.edu.cn
bCollege of Chemistry, Chemical Engineering and Materials Science, Key Laboratory of Absorption Technology for Wastewater Treatments in Petroleum and Chemical Industry, Soochow University, Suzhou 215123, P.R. China. E-mail: xuqingfeng@suda.edu.cn; lujm@suda.edu.cn
First published on 1st April 2014
Porous fibers are capable of large amounts of oil adsorption, owing to their extremely large surface area. The novel aggregation-induced-emission (AIE)-active polymer was synthesized by anchoring AIE-active initiators to the end of polymer chains through atom transfer radical polymerization. The porous fibers based on the synthesized AIE-active PMMA were fabricated through the electrospinning technique. The obtained porous fiber shows exceptional fluorescence; green fluorescence in the porous fiber can be switched off and on by the adsorption and desorption of silicon or bean oil. The fluorescence quenching phenomenon is due to the aggregation state change of the AIE molecules accompanying polymer swelling during the cyclic oil adsorption. Such fluoresent porous fibers can be used to improve the process of oil adsorption, which could have promising applications in the areas of self-cleaning materials, ultra-highly sensitive sensors and biomaterials.
In our previous studies,23 AIE-active polymers were synthesized by anchoring AIE-active initiators to the end of polymer chains through atom transfer radical polymerization (ATRP). Commonly used polymers are polystyrene (PS), polymethyl methacrylate (PMMA) and poly(2-hydroxyethyl methacrylate) (PHEMA). The fluorescence of the AIE-active polymers quenched when they were dissolved in organic solvent solution, but recovered as the polymers aggregated. The obtained AIE-active polymers are a viable candidate to use in the preparation of fluorescent fibers via electrospinning. Literature reports that during the process of electrospinning,24,25 the high voltage-induced fluid jet forming between the electrodes is thermodynamically unstable due to solvent evaporation and moisture in surrounding environment. Porous fibers can generally be induced by the phase separation because the volatile solvent evaporates rapidly. In this study, electrospinning was utilized to fabricate novel fluorescent porous fiber via phase separation from AIE-active polymers.
Studies of porous fibers used for oil adsorption have revealed that use of porous structures enhances the capacity of oil adsorption.26,27 However, the mechanism of oil adsorption and desorption in porous fibers is unclear. Tracing the fluorescence of AIE-active polymers in fluorescent porous fibers is a feasible model to uncover the process of oil adsorption–desorption in porous fibers. Changes in the fluorescence of porous fibers may provide meaningful indications on the interface of oil and AIE-polymers, which can be used to reveal the mechanism of oil adsorption in porous fibers.
![]() | ||
Fig. 1 (a) Formula of TPP-NI. (b) Scheme of a synthetic route to polymer. (c) Absorption and emission spectra of the AIT-active PMMA. |

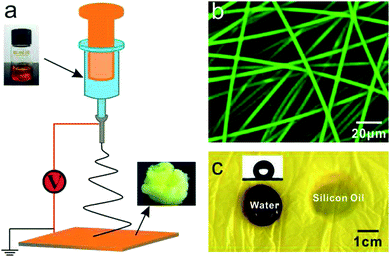

Then, following preparation, the AIE-active PMMA powder with a molecular weight of 50000 was dissolved in N,N-dimethylformamide (DMF) with weight ratio of 30 wt%. The solution was subsequently loaded into a 5 ml glass syringe and converted to fibers through the electrospinning method, as illustrated in Fig. 2a. The mass-produced PMMA porous fibers were deposited on the collector to form a nonwoven yellow membrane, as shown in Fig. S1.† The average diameter of the PMMA porous fibers is 4.2 ± 0.56 μm under certain electrospinning conditions (Fig. S2†), which emit significant yellow-green fluorescence with a 488 nm wavelength excitation. Fig. 2b shows the fluorescent PMMA porous fibers under laser confocal microscope. The three-dimensional image reconstructed from the confocal scans reveals that the fluorescent fibers are arranged in a disordered fashion (Fig. S3†). The fibrous membrane exhibited hydrophobicity with a contact angle of 135°, while the silicon oil immediately adsorbed, as shown in Fig. 2c.

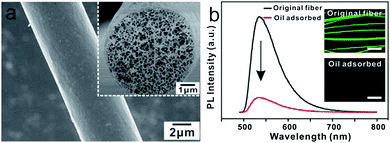

The PMMA fiber was spun from the highly volatile DMF solution, which exhibited smooth surface and highly porous nanostructures, as shown in Fig. 3a. It was noted that the photoluminescence (PL) intensity of the porous PMMA fibers dramatically decreased by a factor of 7.5 with oil adsorption. The images in Fig. 3b, taken under microscope, show the fibers with fluorescent quenching.

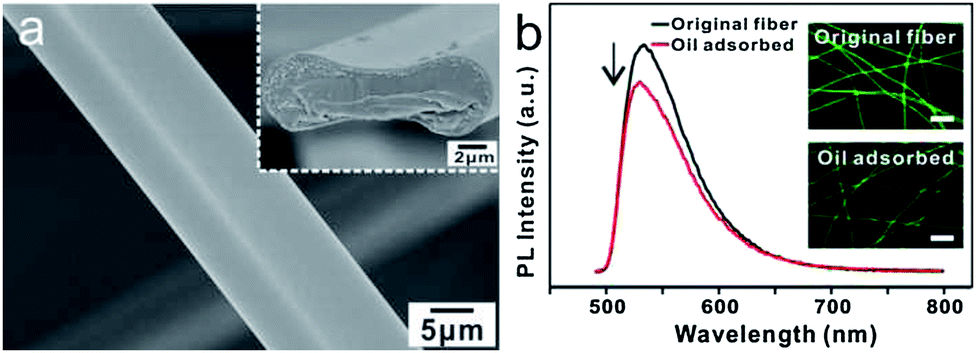

The experiments were conducted to understand the mechanisms of fluorescent quenching in PMMA porous fibers after oil adsorption. The PMMA solid fibers were fabricated as shown in Fig. 4a; the resultant fibers, electrospun from a highly volatile solvent (tetrahydrofuran (THF), boiling point of 66 °C), had a smooth surface and solid core, as reported in literature.25 More information on solid PMMA fibers can be found in the supplementary materials (Fig. S4†). The PL intensity of the solid fibers decreased by approximately 20% after the oil adsorption. Fig. 4b depicts the change in fluorescence before and after oil adsorption, given equal exposure time.

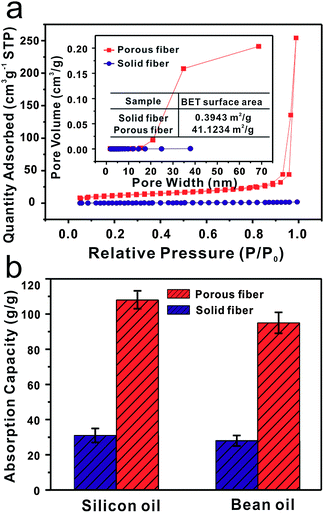

It is clear that the structures of two fibers are entirely different. The specific surface area and porosity of the porous PMMA fibers are dramatically larger than the solid fibers. The measurements were done by nitrogen physical adsorption method, as shown in Fig. 5a. According to the International Union of Pure and Applied Chemistry (IUPAC) classification,25,28 the adsorption–desorption isotherms of porous fiber can be categorized as type II with a distinct hysteresis loop characteristic of mesopores (2–50 nm pore width) and macropores (>50 nm). The porous fibers have a maximum nitrogen adsorption capacity of 254.33 cm3 g−1, which is approximately 141 times greater than that of the solid fibers (Fig. S5†). The porous fibers have a specific surface area of 41.1234 m2 g−1, approximately 100 times greater than the specific surface area of solid fibers (0.3943 m2 g−1). The pore size distributions of the fibers were measured by employing the Barrett–Joyner–Halenda (BJH) method, and clearly illustrate that porous fiber pore sizes are in the range of 15–70 nm. Fig. 5b shows the oil adsorption capacity of two types of fibers, measured using silicon and bean oils. As expected, the porous fibers show much higher capacity for oil adsorption than solid fibers. The porous fibers' silicon and bean oil adsorption capacities are 108 and 95 g g−1 respectively. These adsorption capacity values are nearly three times higher than the capacity of the solid fibers. This ability is due to the porous fibers' ability to draw the oil into the interior pores of the fibers in addition to voids between the fibers.

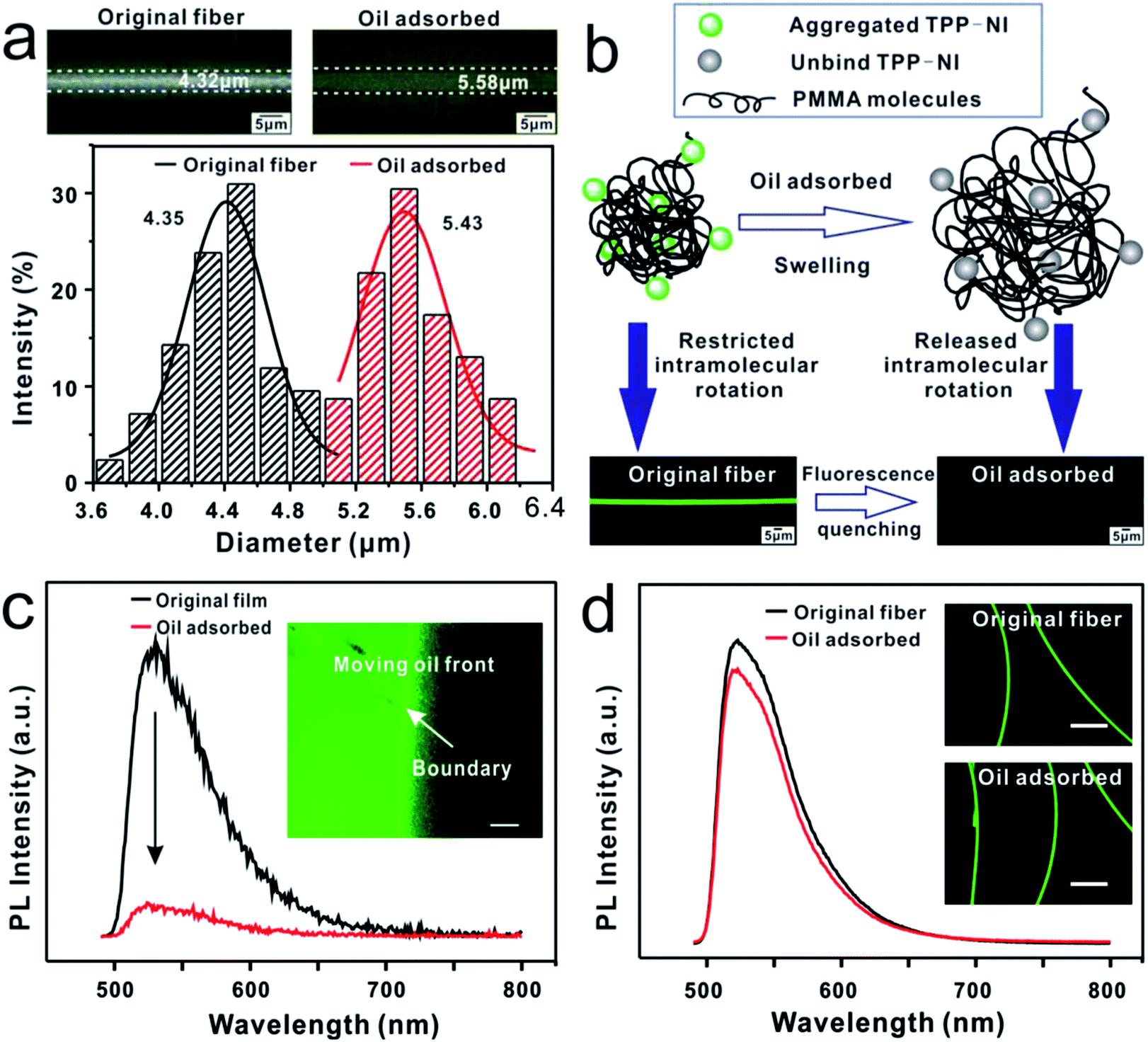

Based on the above results, a possible model of the oil adsorption-induced fluorescence quenching mechanism displayed by PMMA porous fibers can be proposed. We hypothesize that the swelling of porous fibers changes the aggregation state of the AIE molecules, causing fluorescence quenching to occur due to the higher oil adsorption capacity of the porous fibers. Fig. 6a shows a single PMMA porous fiber during oil adsorption, observed under an optical microscope. The superfluous silicon oil was dropped onto the fiber, and the size of the fiber was measured after 30 minutes. The original diameter of the fiber was approximately 4.32 μm, while the diameter of the fiber after oil adsorption increased to 5.58 μm, based on measurements from the microscopic images. Subsequently, the diameters of 50 different fibers were measured before and after oil adsorption, as shown in Fig. 6a. The average diameter of the original fiber is 4.35 ± 0.27 μm, while after oil immersion, fibers swell to an average diameter of 5.43 ± 0.24 μm (enlargement of 20%). Simultaneously, the intensity of the bright field images dims due to the fluorescence quenching.
Fig. 6b illustrates that the fluorescence quenching mechanism of porous fiber is due to the changes in the molecular aggregation state, which is disentangled as the swelling of the porous fibers after the oil adsorption. The intramolecular rotation behavior of AIE moiety (TPP-NI) anchored at the end of PMMA macromolecular chains was restricted by PMMA chains. The spatial constraint of the AIE molecules' rotation, restriction of intramolecular rotations (RIR),29–31 is responsible for the AIE effect. The swelling of PMMA porous fibers caused by the penetration of oil molecules provides substantial space to allow for the unbinding of the intramolecular rotations of moieties. Under such circumstances, the photon energy absorbed by the AIE molecules is converted into kinetic energy (rotation and vibration) instead of being used to excite the electrons to a higher energy level.32,33 This energy conversion causes the significant fluorescence quenching. Fluorescence lifetime imaging microscopy (FLIM) was used to monitor the fluorescence decays of PMMA porous fibers before and after oil adsorption. As shown in Fig. S6a and b,† the fluorescence intensity of PMMA porous fibers decreased dramatically after oil adsorption. The color change in the FLIM images (Fig. S6c and d†) implies a decrease in the fluorescence lifetime of PMMA porous fibers after oil adsorption. The decay profiles shown in Fig. S6e† perfectly fit a tri-exponential function. A decrease of lifetime (by 2.00 ns) was observed with oil adsorption, consistent with the decrease in emission intensity compared with that of the PMMA porous fibers before oil adsorption (2.69 ns).
To further prove the above mechanism, we fabricated solid and porous films, shown in Fig. S7a and S8,† respectively. As expected, the oil is unable to permeate into the solid film, and its PL intensity and fluorescent image (Fig. S7b†) are unchanged before and after oil adsorption; the porous film has a similar fluorescence quenching behavior when immersed into oil. The PL intensity rapidly decreased by a factor of 8 after oil adsorption. It was noted that the front of the moving oil boundary can be clearly observed, strongly contrasting the fluorescent emission, as shown in the Fig. 6c insert. These results reveal that with exposure to oil, the contacting surface area of the porous fiber and film is a critical factor in the quick swelling and fluorescence quenching effects observed after oil adsorption.
Pure PMMA solution was mixed with the fluorescent molecules (TPP-NI). The porous PMMA/TPP-NI composite fibers were electrospun; more information on this process can be found in the supplementary materials (Fig. S9†). As expected, the porous PMMA/TPP-NI composite fibers adsorb oil quickly, swelling. In contrast, the PL intensity of the porous PMMA/TPP-NI composite fibers decreased slightly and the corresponding fluorescent images were almost unchanged after the oil adsorption, as shown in Fig. 6d. The distinct differences in the post-oil adsorption luminescence performances between the AIE-active PMMA porous fibers and PMMA/TPP-NI porous composite fibers further verifies the above-mentioned fluorescence quenching mechanism, revealing that the AIE-active PMMA porous fibers could be used as a material for oil sensors.
PMMA porous fibers have proven their capability for oil adsorption. However, the porous fibers should show repeated performance of good adsorption behaviour before it can be used for practical applications. Fig. 7a shows the process of oil adsorption and desorption in PMMA porous fibers. 80 ml deionized water mixed with rhodamine B and 20 ml silicon oil were loaded in a 100 ml beaker. Following this step, 0.2 g PMMA porous fibers in nonwoven fabric form were immersed into the mixture. The porous fibers adsorbed the oil quickly and swelled within a few minutes. To retain the porous structure of the fibers and extract the oil, the oil and fibers were subjected to centrifugation at a speed of 10000 rpm (details in ESI, Fig. S10†). The volume of the recycled oil was 19 ml, as measured by a graduated flask. Fig. 7c shows the cyclic silicon oil adsorption and desorption performance of PMMA porous fibers. For the first four cycles, the recovered volume was nearly the same as the adsorbed amount after each cycle. Although the fibers were squeezed by centrifugal force, the porous structures were undamaged, as shown in Fig. S11.† For each cycle up to the 4th cycle, the squeezed fibers swelled immediately after oil adsorption (Fig. S12†). However, after 5 cycles, the oil adsorption capacity of the porous fibers gradually decreased because the porous structure was destroyed by repeated centrifugation, as shown in Fig. S13† (after 5 cycles) and Fig. S14† (after 6 cycles). For each cycle after 7 cycles, the oil adsorption capacity of the porous fibers became almost unchanged, keeping a volume of approximately 7 ml (similar to the adsorption capacity of the solid fibers).
Fig. 7b shows the switchable fluorescence of PMMA porous fibers based on the oil adsorption and desorption. The fluorescence of PMMA porous fibers can be tuned off by oil adsorption, as shown in Fig. 7b. It is notable that after oil is desorbed from pores of PMMA fibers by centrifugation, the fluorescence can be tuned on. Observations made during the fluorescence quenching mechanism described previously (Fig. 6b) indicate that the swelling PMMA fibers changed to the original state and restricted the intramolecular rotation of AIE moiety again, inducing the fluorescence to turn on. Fig. 7d shows images and records of the cyclic PL intensity and fluorescence of PMMA porous fibers based on oil adsorption and desorption. The porous fibers showed three states during each cycle of oil adsorption and desorption: the initial state, the state after oil adsorption, and the state after oil desorption with centrifugation. The PL intensity of the non-woven PMMA porous fibers was initially extremely strong, and the fluorescence under UV light was bright yellow-green. The intensity decreased 7.5 times after oil adsorption and the fluorescence almost disappeared. The PL intensity of the PMMA porous fibers dramatically increased after oil desorption. Before completing 5 adsorption–desorption cycles, the switchable fluorescence (off/on) of PMMA porous fibers performed well each time. However, after 5 cycles, the PL intensity of the porous fibers after oil adsorption gradually increased, and the definition of the corresponding fluorescent pictures gradually improved. This effect was due to the damaged porous structure of the fibers as a result of multiple centrifugation processes. The destroyed porous fibers behave like solid fibers. On the 10th adsorption–desorption cycle, the fluorescent picture of PMMA porous fibers was clearly captured, showing a bright yellow-green color. The reversible fluorescence of PMMA porous fibers shows that these fibers are promising for practical application as a material for oil adsorption sensors, as they are able to retain their porous structure.
Footnote |
† Electronic supplementary information (ESI) available: Massively-produced PMMA fibers, three-dimensional reconstructions of the fluorescent image of PMMA porous fibers, size distributions of porous and solid PMMA fibers, nitrogen adsorption–desorption isotherms and pore size distribution curves of PMMA solid fibers, fluorescence lifetime imaging microscopy analysis of PMMA porous fibers before and after oil adsorption, SEM images and PL spectra of PMMA solid film before and after oil immersion, SEM images of PMMA porous film, SEM images of PMMA/TPP-NI composite porous fiber, detailed experimental procedures of oil recycle from PMMA porous fibers after oil adsorption by centrifugation. See DOI: 10.1039/c4ra01865f |
