Template-free syntheses of CdS microspheres composed of ultrasmall nanocrystals and their photocatalytic study†
Received
24th February 2014
, Accepted 4th April 2014
First published on 8th April 2014
Abstract
Template-free CdS microspheres composed of nanocrystals have been successfully synthesized by a one-pot solvothermal method using 4,4′-dipyridyldisulfide (DPDS = (C5H4N)2S2)) as a temperature controlled in situ source of S2− ions without (S1–S3) and with the use of capping agent (S4). The powder X-ray diffraction measurements of all four (S1–S4) samples revealed the cubic structure of the CdS microspheres and SEM analyses showed almost spherical morphology of the CdS microspheres with a broad size range of 0.5 to 2 μm. TEM analyses of the samples S3 and S4 revealed that the CdS microspheres are composed of assembled CdS nanocrystals of ultrasmall (2–5 nm) size. Optical investigation of the samples (S1–S4) showed blue-shift in the UV-vis absorption maxima compared to that of bulk CdS due to quantum confinement effects. Photocatalytic investigation of the uncapped (S3) and mercaptoethanol (MCE)-capped (S4) CdS microspheres for degradation of methyl orange (MO) revealed that the rate of photocatalytic activity of S3 is much higher than that of S4 under both UV and natural sunlight irradiation. The relatively lower activity of S4 has been attributed to the presence of MCE capping agents which acts as a barrier for the interaction of MO molecules with the CdS nanocrystals. The proposed mechanism for the formation of CdS microspheres and their photocatalytic activity has also been presented.
1. Introduction
Ultra small semiconducting nanocrystals with the diameter of about 2 nm are attracting increasing attention due to their size dependent unique optical, electrical, catalytic properties.1–10 Among the various semiconductor nanomaterials, CdS with a direct band gap of 2.42 eV has attracted much attention due to its diverse applications in photodetectors,11 light emitting diodes,12 solar cells,13 photocatalysis14 and so on. It has been well established that the properties of nanomaterials depend on their crystallite's size, morphology and structure.15 Therefore, controlling the size and morphology of nanomaterials is crucial for modifying their properties. In this context, extensive efforts have been made by researchers to control the size, shape and morphology of CdS nanomaterials and a variety of morphologies, such as, spheres,16 rods,17 triangles,18 hexagons,19 etc., have been reported. Literature survey revealed that the formation of these morphologies has been mostly driven by self-assembly processes and assisted by surfactant molecules/capping agents.20–23 On the contrary, it is quite challenging to develop template or capping agent-free routes for the preparation of CdS nanostructures with controlled morphologies.
Syntheses of CdS nanostructures have been reported by using variety of organosulfur compounds, such as, thiourea, thioacetamide, L-cysteine, etc., as in situ source of S2− ions.20,24,25 We have been attempting to prepare CdS nanostructures with controlled morphology by adopting controllable synthetic reactions at appropriate temperature without the use of surfactant or template molecule. In this context, we recently demonstrated the controlled synthesis and photocatalytic activity of CdS microspheres composed of CdS nanocrystals by employing 4,4′-dipyridyldisulfide (DPDS = (C5H4N)2S2) as a temperature controlled in situ source of S2− ions without the use of surfactant/template molecule.26 In continuation of our efforts to synthesize template-free, CdS nanostructures, here, we present the syntheses, characterization and photocatalytic activity of CdS microspheres composed of ultrasmall (∼2 nm) CdS nanocrystals prepared by using DPDS as temperature controlled in situ source of S2− ions without the use of any template/capping agent (S1–S3). As mentioned before, the capping agents play an important role on the structure and properties of resulting nanostructures.27–29 In order to understand the effect of capping agent on the formation and the photocatalytic activity of CdS microspheres, we have also prepared mercaptoethanol (MCE) capped CdS microspheres (S4). Photocataytic investigation of both uncapped (S3) and MCE-capped (S4) CdS microspheres for degradation of MO under both UV and natural sunlight irradiation revealed higher photocatalytic activity of S3 compared to that of S4. The relatively lower photocatalytic activity of S4 has been attributed due to the effect of MCE capping agents which acts as a barrier for the interaction of MO molecules with the CdS nanocrystals. The syntheses procedure followed here is quite unique, it does not require the use of noxious sulfide sources and it can be carried out in air with high yield and almost uniform morphology of CdS microspheres.
2. Experimental
All the starting materials were commercially available and used as received without further purification. Cd(NO3)2·4H2O and 4,4′-dipyridyl disulphide (DPDS) were purchased from Sigma-Aldrich Chemical co. Methyl orange (MO) was purchased from Alfa Aesar. Dimethylformamide (DMF) and Ethanol were purchased from Merck and used as received.
2.1 Syntheses of CdS microspheres
The CdS microspheres (S1–S4) were synthesized using solvothermal method. To a DMF (2 mL) solution of Cd(NO3)2·4H2O (0.061 g, 0.2 mmol), ethanolic solution (1 mL) of DPDS (0.044 g, 0.2 mmol) was added. The mixture with the solvent ratio 2
:
1 was stirred for 15 min and then taken in a 23 mL PTFE lined acid digestion bomb and heated at 120 °C for 12 h. After being cooled to room temperature the product was filtered and washed with ethanol few times and dried under vacuum. Greenish-yellow powder of CdS microspheres, S1 has been isolated (yield: 85%). The CdS microspheres, S2 and S3 were prepared by following the similar procedure, except that the reaction temperature was maintained at 130 °C and 140 °C, respectively (yield: 82%) (S2), 80% (S3). The MCE-capped CdS microspheres, S4 was prepared similar to that of S3, (at 140 °C) except that, the synthesis was carried out in the presence of 5 equivalents (1 mmol, 70.13 μL) of mercaptoethanol (yield: 84%).
2.2 Characterization
The powder X-ray diffraction (XRD) patterns were recorded on a PANalytical's X'PERT PRO diffractometer. Scanning electron microscopy (SEM) images were recorded using JEOL JSM-6610LV SEM with Energy Dispersive Spectroscopy (EDS) facility. Field-Emission SEM (FESEM) images were recorded on a Carl zeiss ultra 55 FE SEM. Transmission electron microscopy (TEM), high-resolution TEM (HRTEM) and selected area electron diffraction (SAED) measurements were recorded using JEOL JEM-2100F Field Emission TEM. UV-vis spectra were recorded on a Perkin Elmer Model Lambda 900 spectrophotometer. Thermogravimetric analyses (TGA) of the samples were carried out on Mettler Toledo TGA850 instrument. Fourier-transform infrared (FT-IR) measurements were recorded on Bruker TENSOR-27 spectrometer.
2.3 Photocatalytic tests
The photocatalytic activity of the CdS microspheres for the photocatalytic degradation of an aqueous solution of MO was carried out as follows: the as-prepared sample of CdS microsphere (S3/S4) (15 mg) was suspended in a solution of MO (5.0 × 10−5 M in 50 mL H2O) in a beaker at ambient temperature. A 400 W high pressure mercury lamp was used as the UV-vis light source. The lamp was equipped with double walled quartz for constant water circulation which acts as a water filter to remove the heating effects. The setup was kept in the laboratory constructed irradiation box which has opening from top side. The distance between the UV light source and the beaker was maintained at 13 cm. Before irradiation, the suspension was stirred well in the dark for 30 minutes to establish an adsorption–desorption equilibrium between the CdS microspheres and MO then the photocatalytic reaction was initiated. The reaction was started after the intensity of the mercury lamp became stable. At regular time intervals, aliquots of the sample were withdrawn and the catalyst was separated through centrifugation and analyzed for MO dye concentration. The same experiment was repeated for the sample S3/S4 under sunlight on a clear day. The experiment was performed during the time interval of 10:30 am to 12 noon. The setup was kept in a place where the mixture was exposed to direct sunlight. The percentage degradation of MO dye was determined using the following relation.30
where, Ci and Cf are the initial and final concentrations of MO, respectively.
3. Results and discussion
3.1 Characterization
The CdS microspheres, S1–S4 composed of CdS nanocrystals were synthesized by solvothermal route. The XRD patterns of the as-prepared samples of CdS microspheres, S1–S4 are shown in Fig. 1. The diffraction peaks are observed at 2θ = 26.48°, 43.98° and 51.92° which are assigned due to (111), (220), and (311) planes of cubic or ZB structure of CdS (JCPDS reference code: 10-454). The broadness of the diffraction peaks indicate the finite size of these crystallites. No additional diffraction peaks corresponding to either Cd(NO3)2 or any other impurities were detected suggesting the purity of the materials. The calculated value of the mean crystallite size (D) using the Debye–Scherrer equation, D = 0.94λ/B
cos
θ (where, D = crystallite size, λ = wavelength of X-ray (1.540598 Å), B = value of full width at half maximum (FWHM) and θ is the Bragg's angle) are 2.22, 2.40, 2.47 and 2.00 nm for S1, S2, S3 and S4 respectively.
 |
| Fig. 1 (a) XRD patterns of the as-prepared CdS microspheres prepared at temperature of 120° (S1), 130° (S2), 140° (uncapped, S3) and 140 °C (MCE-capped, S4). (b) EDS spectra of the as-prepared samples of S3 (a) and S4 (b). | |
The composition of the as-prepared samples (S1–S4) was determined by energy dispersive X-ray spectroscopy (EDX). As shown in Fig. 1b only peaks due to Cd2+ and S2− were observed for uncapped sample S3. While the MCE-capped sample, S4 shows additional peaks due to oxygen and carbon atoms of MCE capping agent (Fig. 1b). The quantitative analyses confirmed the atom ratio of Cd2+/S2− to be 1
:
1. Also, the elemental mapping confirmed the homogeneous distribution of Cd2+ and S2− elements in the CdS microsphere of 1 and 2 (Fig. 2). Furthermore, FT-IR spectra of the samples S1–S3 show only stretching bands due to solvent molecules (DMF and H2O) and that of S4 shows additional stretching bands at 2928, 2540, 1104, 1017, 695 cm−1 corresponding to C–H, S–H, C–O, C–C, and C–S stretching frequencies of MCE capping agent, respectively (Fig. S1 and S2, ESI†). Therefore, the above mentioned analyses confirmed the formation of CdS microspheres without (S3) and with MCE-capping agent (S4).
 |
| Fig. 2 EDX elemental mapping images for microsphere S3 (a–c) and S4 (d–g); the elemental mapping shows the homogeneous distribution of Cd and S elements in the CdS microsphere of S3 and S4. | |
The morphology of the as-prepared samples S1–S4 was examined by SEM and TEM analyses. As shown in Fig. 3 the SEM images of all the four samples show the presence of almost uniform solid spheres with diameters in the broad range of 0.5 to 2.5 μm (Fig. 3). The broad size distribution of CdS microspheres is due to self-agglomeration of nanocrystals. Therefore, the SEM images show the size of agglomerates of CdS nanocrystals and not the crystallite size. However, FESEM image of the CdS microspheres, S3 and S4 unveiled the presence of nanocrystals (Fig. 4). Furthermore, the precise value of the crystallite's size was determined using TEM analyses. Fig. 5 shows low-magnification bright-field TEM image of a single CdS microsphere, of S3 whose size is about 200 nm. Furthermore, the TEM image of a selected region on the surface of the microsphere shows the presence of CdS nanocrystals whose crystallite size lie in the range of 2–6 nm (insets of Fig. 5a), which is in near agreement with the crystallite's size value calculated from XRD (ca. 2.2 nm). The diffraction planes obtained from the SAED pattern match well with the XRD patterns and the HRTEM image shows structurally uniform lattice fringes of CdS nanocrystals, suggesting crystalline nature of the CdS material (Fig. 5b and c). The calculated fringe spacing of 0.34 nm corresponds to the (111) lattice plane of the cubic CdS. Fig. 6 shows low-magnification bright-field TEM image of MCE-capped CdS microspheres, S4, with a size distribution of about 1.5–2 μm. The TEM image of a selected region on the surface of the microsphere shows the presence of ultra-small CdS nanocrystals whose crystallite's size lie in the range of 2–5 nm (inset (a) of Fig. 6), which is in near agreement with the value of crystallite size calculated from XRD (ca. 2.0 nm). The diffraction planes obtained from the SAED pattern match with the XRD patterns and the HRTEM image shows structurally uniform lattice fringes of CdS nanocrystals, suggesting crystalline nature of the CdS material (inset (b) and (c) of Fig. 6). The calculated fringe spacing of 0.35 nm corresponds to the (111) lattice plane of the cubic CdS. Hence, the above mentioned data clearly supports the formation of CdS microspheres composed of CdS nanocrystals.
 |
| Fig. 3 SEM images of the as-prepared CdS microspheres prepared at (a) 120 °C (S1), (b) 130 °C (S2, inset shows magnified image of a microsphere showing the presence of CdS nanocrystals), (c) 140 °C (S3) and (d) 140 °C with MCE-capping agent (S4). | |
 |

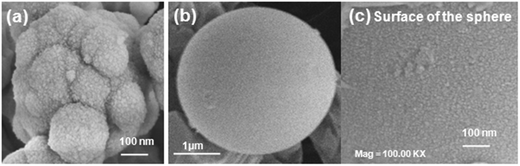

| Fig. 4 FESEM images of a CdS microsphere, S3 (a) and S4 (b and c) showing the presence of nanocrystals. | |
 |
| Fig. 5 (a) TEM image of the sample S3 showing the single CdS microsphere (insets: magnified images showing the presence of CdS nanocrystals), (b) and (c) shows the SAED pattern and the lattice fringe of CdS respectively. | |
 |
| Fig. 6 TEM image of MCE-capped CdS microspheres, S4 showing the CdS microspheres, inset (a) magnified image of a microsphere showing the presence of CdS nanocrystals, insets (b) and (c) show the SAED pattern and lattice fringe of CdS respectively. | |
3.2 Formation mechanism of CdS microspheres
The formation of CdS microspheres can be explained as shown in Scheme 1. In situ generation of S2− ions by the S–S bond cleavage of DPDS linker at temperatures above 120 °C, followed by reaction with Cd2+ ions to form CdS nanocrystals. The self-aggregation of these nanocrystals to form CdS microspheres as depicted in Scheme 1. Here, DPDS molecule acts as a clean source of S2− ions which are released in a controlled fashion by in situ S–S bond cleavage. Therefore, the formation of CdS microspheres, S1–S4 can be explained by considering self-aggregation of individual CdS nanocrystals due to surface energy minimization as shown in Scheme 1.31
 |
| Scheme 1 The proposed mechanism for the formation of CdS microspheres. | |
3.3 Optical properties
The room temperature UV-vis absorption spectra of CdS microspheres S1–S4 dispersed in DMF is shown in Fig. 7. The spectra show sharp band edge absorptions in the visible-light region with a well defined absorption feature with absorption maximum at 444, 450, 435 and 347 nm, for S1, S2, S3, and S4, respectively. The blue shift in the absorption edge of the samples, in comparison with that of bulk CdS (515 nm) can be attributed due to quantum confinement effect.32 Similar observation of blue-shift in the absorption edge has been reported for CdS microspheres, suggesting that the UV-vis absorption mainly depends on the size of the primary particles and the hierarchical CdS microspheres exhibit the activity of their nanoscale building blocks.33 The values of direct band gap energy (Eg) for the CdS microspheres was estimated from a plot of (αhν)2 versus photon energy (hν) using the relationship: αhν = A(hv − Eg)n where, hν = photon energy, A = constant, α = absorption coefficient, α = 4πk/λ; k is the absorption index, λ is the wavelength, n = 1/2 for the allowed direct band gap.34 The direct band gap values estimated by extrapolating the absorption edge by a linear fitting method were 3.55, 2.93, 3.23 and 2.83 eV for sample S1, S2, S3 and S4, respectively (see Fig. S3–S6, ESI†).
 |
| Fig. 7 (a) UV-vis absorption spectra of the CdS microspheres S1–S4. | |
3.4 Photocatalytic activity
In order to determine the potential applications of as-prepared CdS microspheres we investigated their photocatalytic activity for degradation of MO in aqueous solution under UV and natural sunlight irradiation. To eliminate the possibility of decoloration triggered by UV/sunlight, blank experiments were performed in the absence of the catalyst which showed negligible degradation of MO indicating the necessity of catalyst for the degradation process. Fig. 8a and b show the changes in the optical absorption spectra of MO at different time intervals under UV light irradiation catalyzed by CdS microspheres, S3. As the irradiation time increases the concentration of the MO decreases, at the end of 160 min the %degradation of MO was found to be 90.55% and 75.66% catalyzed by un-capped (S3) and MCE-capped (S4) CdS microspheres, respectively, (Fig. 8c and d) suggests higher photocatalytic performance of S3 over S4.
 |
| Fig. 8 Time-dependent UV-vis absorption spectra for degradation of MO (5.0 × 10−5 M in 50 mL H2O) using CdS (15 mg) microspheres (15 mg S3) (a) and S4 (b) under UV light, (c) percentage conversion of MO with time (d) plot of ln(Co/C)with time. | |
Similar reactivity trend has been observed for the photocatalytic degradation of MO carried out under natural sunlight irradiation. As shown in the Fig. 9(a) and (b), at the end of 30 min the %degradation of MO catalyzed by S3 and S4 are 86% and 40%, respectively, indicating faster catalytic degradation under natural sunlight compared to those of UV light irradiation.
 |
| Fig. 9 Time-dependent UV-vis absorption spectral changes for aqueous MO solution catalyzed by CdS microspheres, S3 (a) and S4 (b) under natural sunlight; (c) percentage conversion of MO with time. (d) Plot of ln(Co/C) with time. | |
The kinetics of photocatalytic degradation of organic pollutants using semiconducting materials can be best described by pseudo first order reaction, ln(Co/Ct) = kappt (where, Co is the concentration of the dye after adsorption in darkness for 30 min, and Ct is the concentration of the dye at given interval of time t). The plot of ln(Co/C) vs. t (Fig. 8(d) and 9(d)) represents a straight line and the slope of which upon linear regression equals first order rate constant kapp.35 The calculated values of kapp for photodegredation of MO catalyzed by S3 and S4 under UV and natural sunlight irradiation are listed in the Table 1. From the kapp values it is obvious that the catalytic activity of S3 is much higher than that of S4 under both UV light and natural sunlight irradiation. This difference in the photocatalytic activity can be ascribed due to the presence of capping agents in case of sample S4 which interfere with the interaction of MO molecules with the CdS nanocrystals resulting in lower activity compared to uncapped CdS microspheres, S3.
Table 1 The calculated values of rate constant (kapp) for photodegradation reaction of MO under UV and sunlight
S no. |
Catalyst and light source |
Overall rate of the reaction (m−1) |
1 |
S3, sunlight |
7.1 × 10−2 |
2 |
S3, UV light |
1.4 × 10−2 |
3 |
S4, sunlight |
0.759 × 10−2 |
4 |
S4, UV light |
0.725 × 10−2 |
3.5 Proposed mechanism for the degradation of the MO
The general mechanism of photocatalysis involves photoabsorption of a semiconducting material (SCM) leading to excitation of the electrons from the valence band (VB) to the conduction band (CB), to generate electron–hole (eCB−/hVB+) pair (eqn (1)).36 |
CdS + hv → (eCB−)CdS + (hVB+)CdS
| (1) |
Then the photogenerated electron–hole pair migrates to the surface of the catalyst (CdS) and react with the adsorbed species on the surface (eqn (2)–(5)). The transfer of the photogenerated electrons to the other species is crucial as it inhibits the recombination of the electrons and the holes hence increasing the activity of the photocatalyst.
|
O2 + CdS(eCB−) → O2˙−
| (2) |
|
O2 + 2(eCB−)CdS + 2H+ → H2O2
| (3) |
|
(eCB−)CdS + O2˙− + 2H+ → HO˙ + HO−
| (4) |
|
H2O + (hVB+)CdS → HO˙ + H+
| (5) |
As mentioned above the rate of photocatalytic degradation of MO is higher under natural sunlight irradiation compared to that of UV light irradiation (Table 1). This higher catalytic rate can be attributed considering the operation of a dye sensitized photocatalytic process. In this case the MO dye molecules are excited by the visible light and they act as photosensitizers.37,38
Thus the reactive species (O2˙−, ˙OH) produced as shown in the eqn (2)–(5) can then react with MO to form the degradation products via several possible pathways as has been proposed before (eqn (6) and (7)) see Scheme S1, ESI†.39–41
|
 | (6) |
|
MOads˙+ → degradation product
| (7) |
The observed difference in the photocatalytic activity of uncapped, S3 and MCE-capped, S4 microspheres can be explained as follows. The CdS nanocrystals in both S3 and S4 are quite active and can produce the electron–hole pairs under UV/sun light irradiation but their contact with air is obstructed by the presence of MCE-capping agents in case of S4. The MCE capping agents acts as a physical barrier and restricts the free access of MO molecules to catalytically active CdS nanocrystals in S4. Whereas, in the case of uncapped sample, S3 the MO molecules can easily access to the surface of CdS nanocrystals and can interact with the charge carriers (electrons and holes) which is a crucial step in the degradation process. Therefore, in case of S4 relatively less number of MO molecules are in contact with the surface of the CdS nanocrystals and resulting in lower catalytic efficiency.
It is worth mentioning that, the absorption edge of MO shows blue shift to shorter wavelength as shown in Fig. 8b. This phenomenon indicates that MO molecules have been oxidized, and converted into smaller molecules with lower degree of π–π conjugation during the course of photocatalysis. The λmax of the absorption spectra of these molecules produced during the degradation of MO is shorter than that of original MO molecules. Further oxidation gives rise to opening of aromatic rings leading consequently to degradation of MO to CO2 and H2O (Scheme S1, ESI†).
4. Conclusions
A one pot solvothermal method for synthesizing template-free CdS microspheres composed of ultrasmall (∼2 nm) CdS nanocrystals without (S1–S3) and with the use of MCE-capping agent (S4) has been developed. 4,4′-Dipyridyldisulfide (DPDS) has been found to be a very useful temperature controlled in situ source of S2− ions for the formation of CdS nanocrystals. A possible mechanism has also been proposed wherein self-aggregation of individual CdS nanocrystals led to the formation of microspheres. Photocatalytic investigation of both uncapped (S3) and MCE-capped (S4) CdS microspheres revealed very good photocatalytic activity for degradation of MO under UV and natural sunlight irradiation. It is interesting to note that the photocatalytic activity of uncapped CdS microspheres is much higher than that of MCE-capped CdS microspheres. Thus the influence of capping agent on the photocatalytic performance of CdS microspheres under UV and natural sunlight irradiation has been studied. The difference in the photocatalytic performance has been attributed due to the presence of capping agents in S4 which acts as a barrier for the interaction of MO molecules with the CdS nanocrystals. The excellent photocatalytic activity of S3 under natural sunlight implies its potential application in the degradation of the dyes especially in water purification technology.
Acknowledgements
CMN gratefully acknowledges the financial support from the Department of Science and Technology (DST), Government of India (Fast Track Proposal). Thanks are also due to Prof. M. K. Surappa, director IIT Ropar for his encouragement.
References
- A. P. Alivisatos, Science, 1996, 271, 933–937 CAS.
- M. A. El-Sayed, Acc. Chem. Res., 2004, 37, 326 CrossRef CAS PubMed.
- M. J. Bowers II, J. R. McBride and S. J. Rosenthal, J. Am. Chem. Soc., 2005, 127, 15378 CrossRef PubMed.
- X. Chen, A. C. Samia, Y. Lou and C. Burda, J. Am. Chem. Soc., 2005, 127, 4372 CrossRef CAS PubMed.
- R. Jose, N. U. Zhanpeisov, Y. B. Hiroshi Fukumura and M. Ishikawa, J. Am. Chem. Soc., 2006, 128, 629 CrossRef CAS PubMed.
- S. Sapra, S. Mayilo, T. A. Klar, A. L. Rogach and J. Feldmann, Adv. Mater., 2007, 19, 569 CrossRef CAS.
- R. Jose, Z. Zhelev, R. Bakalova, Y. Baba and M. Ishikawa, Appl. Phys. Lett., 2006, 89, 013115 CrossRef PubMed.
- A. Nag and D. D. Sarma, J. Phys. Chem. C, 2007, 111, 13641 CAS.
- A. Puzder, A. Williamson, F. Gygi and G. Galli, Phys. Rev. Lett., 2004, 92, 217401 CrossRef.
- J. R. I. Lee, R. W. Meulenberg, K. M. Hanif, H. Mattoussi, J. E. Klepeis, L. J. Terminello and T. van Buuren, Phys. Rev. Lett., 2007, 98, 146803 CrossRef.
- T. Y. Wei, C. T. Huang, B. J. Hansen, Y. F. Lin, L. J. Chen, S. Y. Lu and Z. L. Wang, Appl. Phys. Lett., 2010, 96, 13508 CrossRef PubMed.
- A. K. Rath, S. Bhaumik and A. J. Pal, Appl. Phys. Lett., 2010, 97, 113502 CrossRef PubMed.
- P. V. Kamat, Acc. Chem. Res., 2012, 45, 1906 CrossRef CAS PubMed.
- T. Zhai, X. Fang, L. Li, Y. Bando and D. Golberg, Nanoscale., 2010, 2, 168 RSC.
- X. Li, Y. Xi, C. Hu and X. Wang, Mater. Res. Bull., 2013, 48, 295 CrossRef CAS PubMed.
- S. Rengaraj, S. Venkataraj, S. H. Jee, Y. Kim, C. W. Tai, E. Repo, A. Koistinen, A. Ferancova and M. Sillanpaa, Langmuir, 2011, 27, 352 CrossRef CAS PubMed.
- T. Zhai, X. Fang, Y. Bando, B. Dierre, B. Liu, H. Zeng, X. Xu, Y. Huang, X. Yuan, T. Sekiguchi and D. Golberg, Adv. Funct. Mater., 2009, 19, 2423 CrossRef CAS.
- N. Pinna, K. Weiss, H. S. Kongehl, W. Vogel, J. Urban and M. P. Pileni, Langmuir, 2001, 17, 7982 CrossRef CAS.
- J. H. Warner and R. D. Tilley, Adv. Mater., 2005, 17, 2997 CrossRef CAS.
- F. Chen, R. Zhou, L. Yang, N. Liu, M. Wang and H. Chen, J. Phys. Chem. C, 2008, 112, 1001 CAS.
- F. Gao, Q. Y. Lu, X. K. Meng and S. Komareni, J. Phys. Chem. C, 2008, 112, 13359 CAS.
- C. W. Ge, M. Xu, J. H. Fang, J. P. Lei and H. X. Ju, J. Phys. Chem. C, 2008, 112, 10602 CAS.
- C. C. Kang, C. W. Lai, H. C. Peng, J. J. Shyue and P. T. Chou, ACS Nano, 2008, 2, 750 CrossRef CAS PubMed.
- M. Gea, Y. Cuib, L. Liua and Z. Zhou, Appl. Surf. Sci., 2011, 257, 6595 CrossRef PubMed.
- C. Wei, W. Zang, J. Yin, Q. Lu, Q. Chen, R. Liu and F. Gao, ChemPhysChem, 2013, 14, 591 CrossRef CAS PubMed.
- C. M. Nagaraja and M. Kaur, Mater. Lett., 2013, 111, 230 CrossRef CAS PubMed.
- N. Zhiqiang and L. Yadong, Chem. Mater., 2014, 26, 72 CrossRef.
- N. C. Sagaya Selvam, J. J. Vijaya and L. J. Kennedy, Ind. Eng. Chem. Res., 2012, 51, 16333 CrossRef.
- K. R. Kahsar, D. K. Schwartz and J. W. Medlin, ACS Catal., 2013, 3, 2041 CrossRef CAS.
- A. N. Okte and O. Yilmaz, Appl. Catal., B, 2008, 85, 92 CrossRef CAS PubMed.
- G. Lin, J. Zheng and R. Xu, J. Phys. Chem. C, 2008, 112, 7363 CAS.
- H. Weller, Angew. Chem., Int. Ed., 1993, 32, 41 CrossRef.
- Y. Xu, C. Song, Y. Sun and D. Wang, Mater. Lett., 2011, 65, 1762 CrossRef CAS PubMed.
- F. Yang, N. N. Yan, S. Huang, Q. Sun, L. Z. Zhang and Y. Yu, J. Phys. Chem. C, 2012, 116, 9078 CAS.
- C. Dong, M. Zhong, T. Huang, M. Ma, D. Wortmann, M. Brajdic and I. Kelbassa, ACS Appl. Mater. Interfaces, 2011, 3, 4332 CAS.
- H. Zhang and Y. Zhu, J. Phys. Chem. C, 2010, 114, 5822 CAS.
- H. Gülce, V. Eskizeybek, B. Haspulat, F. Sarı, A. Gülce and A. Avcı, Ind. Eng. Chem. Res., 2013, 52, 10924 CrossRef.
- R. Vinu, S. Polisetti and G. Madras, Chem. Eng. J., 2010, 165, 784 CrossRef CAS PubMed.
- P. Raja, A. Bozzi, H. Mansilla and J. Kiwi, J. Photochem. Photobiol., A, 2005, 169, 271 CrossRef CAS PubMed.
- M. Stylidi, D. I. Kondarides and X. E. Verykios, Appl. Catal., B, 2004, 47, 189 CrossRef CAS PubMed.
- A. H. Boonstra and C. A. H. A. Mutsaers, J. Phys. Chem., 1975, 79, 1940 CrossRef CAS.
