Sol-gel entrapped visible light photocatalysts for selective conversions

Abstract

A general method to heterogenize, stabilize and significantly enhance the activity of selective visible light photocatalysts for aerobic oxidation of glycerol is devised. The new method makes use of the sol–gel encapsulation of photocatalytic species in silica-based matrices to afford leach-proof catalysts capable to afford valued products at low cost with little or no waste generation. In particular, the photocatalytic selective conversion of glycerol is performed in water solvent under ambient conditions with molecular oxygen as oxidant and visible light as the driving energy source, thereby meeting all requirements for a green chemical process. Entrapment of the semiconductor-based photocatalyst inside the transparent porous silica matrix enhances substrate adsorption, thus improving its local concentration and favoring reaction with the photogenerated active species.

---

Semiconductor-based photocatalysis, especially using the semiconductor TiO₂, is generally a non-selective process suitable for degradation of organics, rather than for organic synthesis,¹ even though some progress towards more selective photosynthetic processes using modified titania has been achieved.² Further progress on semiconductor-based photocatalysis highlights that the appropriate choice of semiconductors (e.g., tuning the structure, morphology and interface composition) and optimization of reaction parameters are able to promote the occurrence of photocatalytic organic synthesis with high selectivity.³

Recently, in the context of this progress, flower-like Bi₂WO₆ has been identified as a highly selective visible light photocatalyst toward aerobic selective oxidation of glycerol to dihydroxyacetone (DHA),⁴ using oxygen as oxidant in water at room temperature and atmospheric pressure. Besides meeting all requirements for a truly green chemical process, the method suggests the promising potential applications of semiconductor Bi₂WO₆-based photocatalysis in the field of biomass conversion to value-added fine chemicals under mild conditions.^3,5

Sol–gel silica is transparent to both visible and UV light radiation, and the sol–gel encapsulation is known to chemically and physically stabilize the entrapped species.⁶ Such a heterogenization strategy via sol–gel silica encapsulation provides a tunable control of microscopically confined environment surrounding the entrapped photoactive species, thereby tuning the efficiency and selectivity of photocatalytic processes.^7,8 Hence, in principle, entrapment of photocatalysts in transparent SiO₂ glasses might be desirable to stabilize, recover and reuse the entrapped photocatalyst. In particular, the entrapment within sol–gel silica can largely increase the surface area of catalyst, which would increase the adsorption capacity of catalyst toward reactant inside the sol–gel silica cages that consequently could contribute to the enhanced photoactivity. Yet, so far, only a few reports exist concerning sol–gel entrapped photocatalysts, even if a broad photochemistry of sol–gel doped glasses has been developed since the late 1980s.⁷

Two typical examples of entrapped photocatalysts are sodium decatungstate supported on sol–gel silica employed in the oxidation of glycerol under UV light irradiation;⁸ and silica-entrapped H₄SiW₁₂O₄₀ UV light photocatalyst used for the aerobic oxidation of various primary and secondary benzylic alcohols into the corresponding carbonyl compounds.⁹ However, to the best of our knowledge, no encapsulation of visible light photocatalyst has been previously reported for selective oxidation of glycerol. To develop highly photoactive visible-light-driven semiconductor-based photocatalyst is far more desirable than that of UV light photocatalyst, from a viewpoint of efficient and sustainable use of solar energy for practical applications. Herein, we report a simple and feasible method to directly transform flower-like Bi₂WO₆ into an entrapped sol–gel catalyst with enhanced photoactivity, retaining the high selectivity. The resulting silica-entrapped Bi₂WO₆ can be used as visible light photocatalyst for the aerobic selective conversion of glycerol to related products, such as dihydroxyacetone and glyceraldehyde, in water under ambient conditions. The as-obtained results are not trivial because reactivity, compared to the non-entrapped photocatalyst, in general is altered and can be greatly enhanced.

Data in Table 1 show that the two silica-entrapped Bi₂WO₆ catalysts are highly active, despite with remarkable differences in selectivity. Results are indeed impressive because now 8 mg of entrapped catalyst are enough to catalyze the reaction at noticeable extent. We are dealing indeed with 8 mg of silica-entrapped catalysts whose content of visible-light-photoactive bismuth tungstate (Bi₂WO₆) varies between 5 and 10% in weight. Hence, even using 1/20 and 1/10 the amount of 8 mg of non-entrapped Bi₂WO₆ used in previous work,⁴ the conversion of glycerol over silica-entrapped Bi₂WO₆(1) and Bi₂WO₆(2) proceeds up to 41% and 58%, respectively, under visible light irradiation for 10 h.

Table 1 Photocatalytic selective oxidation of glycerol over non-entrapped Bi₂WO₆ and over silica-entrapped Bi₂WO₆ catalyst under the irradiation of visible light in water^a

Photocatalyst	Time (h)	Conversion (%) glycerol	Selectivity (%)
			Dihydroxyacetone	Glyceraldehyde	Others
a Reaction conditions: 0.1 mmol glycerol, 1.5 mL H2O, T = 25 °C, visible light >420 nm. For purposeful comparison, the amount of non-entrapped Bi2WO6 used for photocatalytic oxidation of glycerol is the same as that of Bi2WO6 in silica-entrapped Bi2WO6 namely 0.8 mg for Bi2WO6(2) and 0.4 mg for Bi2WO6(1).
Bi2WO6(1)	2	11	63	28	9
	4	20	62	27	11
	6	28	58	25	17
	8	35	55	24	21
	10	41	53	24	23
Non-entrapped Bi2WO6(1)	2	3	95	5	0
	4	5	93	7	0
Bi2WO6(2)	2	16	97	3	0
	4	29	95	5	0
	6	40	94	5	1
	8	50	92	6	2
	10	58	91	6	3
Non-entrapped Bi2WO6(2)	2	6	95	5	0
	4	9	93	7	0

---

A direct comparison of glycerol conversion over 8 mg of silica-entrapped Bi₂WO₆(2) (10% w/w catalyst loading, the photoactive Bi₂WO₆ is 0.8 mg) and 0.8 mg of non-entrapped Bi₂WO₆ [Bi₂WO₆(2)] under visible light irradiation of 4 h clearly shows that the photoactivity for glycerol conversion over silica-entrapped Bi₂WO₆(2) is indeed greatly enhanced. That is, under visible light irradiation for 4 h using one tenth the amount of non-entrapped Bi₂WO₆, the conversion of glycerol reaches 29%, which is more than 3 times higher than that over non-entrapped Bi₂WO₆.⁴

In addition, it is worth noting that the catalyst of higher loading Bi₂WO₆(2) retains the original high selectivity to DHA of the non-entrapped Bi₂WO₆ photocatalyst.⁴ However, this is not the case for the silica-entrapped catalyst Bi₂WO₆(1) with lower loading of Bi₂WO₆. This means that the loading amount of bismuth wolframate entrapped within silica alters not only the photoactivity but also the selectivity of the entrapped catalyst (see below for our tentative explanation of this finding).

The XRD patterns in Fig. 1 show that crystalline, well characterized Bi₂WO₆ crystals are encapsulated within the silica xerogels in both cases of 5% w/w and 10% w/w catalyst loading, suggesting that the silica encapsulation does not destroy the crystalline phase structure of Bi₂WO₆ (JCPDS no. 73-1126).

Fig. 1 XRD patterns of the samples of silica-entrapped Bi₂WO₆.

The SEM pictures of the silica-entrapped Bi₂WO₆ samples, as shown in Fig. 2, suggest that, due to the encapsulation of silica, the flower-like structure of non-entrapped Bi₂WO₆ cannot be directly observed. In its place, matrix particles made of amorphous silica are clearly observed. The ground granules obtained from grinding a sol–gel monolith, furthermore, have the irregular shape, angular geometry and multiple cracks, which are typical of silica xerogel particles.¹⁰

Fig. 2 Typical SEM pictures of the samples of silica-entrapped Bi₂WO₆(1) (left) and Bi₂WO₆(2) (right).

Fig. 3 shows the TEM images of sol–gel entrapped Bi₂WO₆(2) sample. It can be seen that, during the entrapping process, the flower-like superstructure of original Bi₂WO₆ is destroyed. However, the basic unit comprising superstructure of flower-like Bi₂WO₆ is still retained.⁴ Also, the silica encapsulating shell for sol–gel entrapped Bi₂WO₆(2) sample can be clearly distinguished. The bottom image shows the outcome of electron diffraction of regions, from which it is seen that the crystalline structure of Bi₂WO₆ is clearly retained upon the sol–gel encapsulation, where the sol–gel silica shows its amorphous nature.

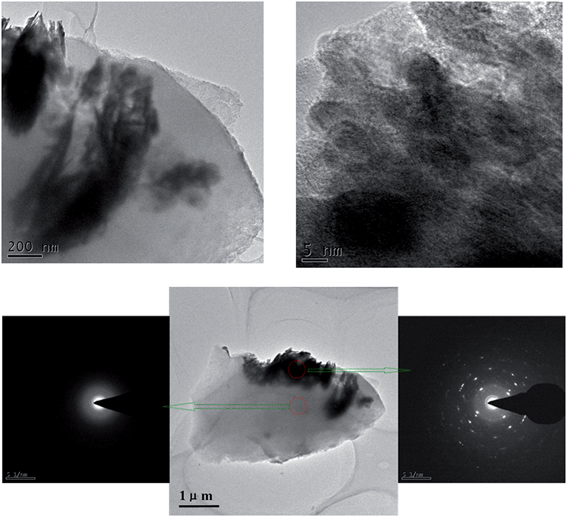

Fig. 3 Top: TEM pictures of the samples of silica-entrapped Bi₂WO₆(2). Bottom: images showing the outcome of electron diffraction of different sample regions.

The optical properties, as reflected by the UV-visible diffuse reflectance spectra (DRS) of the samples of two entrapped catalysts in Fig. 4, clearly show that the materials can be band-gap-photoexcited by visible light irradiation, but at different extent because of their difference in optical absorption. As expected, due to the higher loading of photoactive Bi₂WO₆ for silica-entrapped Bi₂WO₆(2), the latter catalyst sample has stronger light absorption intensity than Bi₂WO₆(1) in both the UV and visible light regions.

Fig. 4 The UV-visible diffuse reflectance spectra (DRS) of the samples of silica-entrapped Bi₂WO₆.

The photoluminescence (PL) spectra are often employed to study surface processes involving the electron–hole fate of the semiconductor. Following the electron–hole pairs recombination after a photocatalyst is irradiated, photons are emitted, which results in PL signal. As shown in Fig. 5, the PL intensity obtained over silica-entrapped Bi₂WO₆(2) is clearly weaker than that of Bi₂WO₆(1), thus suggesting the longer lifetime of photogenerated charge carriers. Thus, the presence of different amounts of SiO₂ affects the PL intensity for SiO₂-entrapped Bi₂WO₆, thereby contributing to the photoactivity difference between two different samples, i.e., silica-entrapped Bi₂WO₆(1) and silica-entrapped Bi₂WO₆(2).

Fig. 5 The photoluminescence (PL) spectra of the samples of silica-entrapped Bi₂WO₆ and non-entrapped Bi₂WO₆ with an excitation wavelength of 340 nm.

Notably, the photoluminescence (PL) spectra in Fig. 5 clearly show that: (i) the PL intensity of silica-entrapped Bi₂WO₆ is much lower than that of non-entrapped Bi₂WO₆, indicating that the sol–gel silica encapsulation contributes to the improved separation of photogenerated electron–hole pairs of Bi₂WO₆ under visible light irradiation; (ii) the confinement of Bi₂WO₆ nanocrystals resulting from sol–gel silica encapsulation leads to the significantly different PL emission profiles, suggesting that the synergistic interaction between silica and Bi₂WO₆ influences the spatial transfer kinetics (in addition to improving the lifetime of photogenerated electron–hole pairs).

Together, these factors already mentioned above may account for the difference in both photoactivity and selectivity in the aerobic oxidation of glycerol over silica-entrapped Bi₂WO₆ with different amounts of silica and non-entrapped Bi₂WO₆. Under visible light irradiation, holes and electrons generated inside the Bi₂WO₆ crystalline phase diffuse to the surface of the inner porosity of the silica cages, where they can react with the incoming organic molecules. In brief, the combined effects of semiconductor confinement in the silica cages^6,8–10 and synergistic interaction of Bi₂WO₆ with the SiO₂ cage play a crucial role in affecting the selectivity and activity for oxidation of glycerol.

Table 2 shows the data based on the analysis of N₂ adsorption–desorption isotherms of silica-entrapped catalyst Bi₂WO₆(1) and Bi₂WO₆(2), and non-entrapped Bi₂WO₆. Bi₂WO₆(1) has huge specific surface area (ca. 964 m² g⁻¹) along with significant specific pore volume (ca. 0.56 cm³ g⁻¹). For the higher loading sample, i.e., silica-entrapped Bi₂WO₆(2), the surface area is reduced to ca. 517 m² g⁻¹ and the pore volume is ca. 0.30 cm³ g⁻¹. Comparison to non-entrapped Bi₂WO₆, with low surface area of ca. 31 m² g⁻¹ and pore volume of ca. 0.16 cm³ g⁻¹, clearly shows that the sol–gel entrapment significantly increases the surface area of the samples.

Table 2 Textural properties of non-entrapped Bi₂WO₆, silica-entrapped Bi₂WO₆(1) and Bi₂WO₆(2) based on the N₂ adsorption–desorption isotherms

Sample	SBET (m^2 g^−1)	Total pore volume (cm^3 g^−1)	Average pore size (nm)
Non-entrapped Bi2WO6	31	0.16	5 and 42
Bi2WO6(1)	964	0.56	2
Bi2WO6(2)	517	0.30	2

---

Adsorption experiments in the dark shown in Fig. 6 indeed confirm that samples of silica-entrapped Bi₂WO₆ have enhanced adsorption capacity toward glycerol as compared to the non-entrapped Bi₂WO₆.⁴ Such an enhanced adsorption capacity reminds one that glycerol can be easily adsorbed and concentrated at the surface of the silica sol–gel cages, with their numerous silanol groups. The very same cages entrap the photocatalytic crystallites and act as chemical sponges that adsorb and concentrate reactants at their surface.¹¹ The adsorbed glycerol molecules further react at the surface of entrapped Bi₂WO₆ to be oxidized by the positive holes to form the corresponding intermediate, which further reacts with oxygen or activated oxygen to produce DHA and other related products.⁴

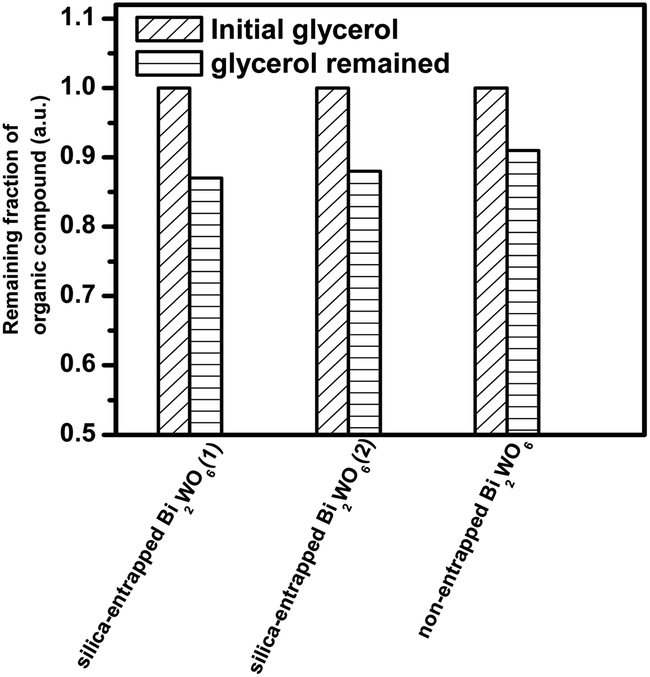

Fig. 6 Remaining fraction of glycerol after the adsorption–desorption equilibrium in the dark over silica-entrapped Bi₂WO₆(1), silica-entrapped Bi₂WO₆(2), and non-entrapped flower-like Bi₂WO₆.

However, it should be noted that the surface area is not the only factor that determines the overall photoactivity and selectivity in the photocatalytic oxidation of glycerol. The sample of silica-entrapped Bi₂WO₆(1) has much higher surface area and pore volume than silica-entrapped catalyst Bi₂WO₆(2). But the photoactivity of Bi₂WO₆(1) is lower than Bi₂WO₆(2). This can be attributed to the higher amount loading of photoactive Bi₂WO₆ photoactive species in the silica-entrapped Bi₂WO₆(2), which has a higher visible light absorption capacity and longer lifetime of photogenerated electron–hole pairs, that are the crucial factors determining the overall efficiency of photocatalytic process.

In addition, as discussed above, with the variation of loading amount of photoactive Bi₂WO₆ ingredients in the silica matrix, the selectivity is also affected, suggesting that a synergy interaction between the silica matrix and photoactive Bi₂WO₆ exists in the silica-entrapped Bi₂WO₆ photocatalysts. Silanols at the surface of the sol–gel silica cages favour adsorption of glycerol, enhancing its local concentration and thus easing its reaction with photogenerated active charge carriers including activated molecular oxygen at the cage surface. However, when an insufficient amount of photoactive Bi₂WO₆ is encapsulated, the glycerol molecules are preferentially adsorbed through their more reactive and less hindered primary hydroxyl groups, thereby affording considerable formation of glyceraldehyde (Table 1). In contrast, when a sufficient amount of encapsulated Bi₂WO₆ is available for reactivity at the sol–gel cages, glycerol is again preferentially oxidised at the secondary OH group, showing the remarkable effect of both the encapsulating silica matrix and loading of photoactive Bi₂WO₆ species on selectivity toward selective photocatalytic oxidation of glycerol. This effect, we argue, is due to the templating action of the dopant species during the sol–gel hydrolytic polycondensation, in which the dopant species dictate the size and the shape of the encapsulating silica cage in the final xerogel.¹²

In conclusion, we have shown that the sol–gel encapsulation of flower-like Bi₂WO₆ microparticles in SiO₂ xerogels leads to the formation of excellent visible-light-driven photocatalytic materials with great potential to act as solar energy transfer materials. The transparent, stabilizing and high surface area of the encapsulated silica matrix allows light penetration, promoting the efficiency of the photogenerated electron–hole separation and enhancing adsorption capacity toward glycerol. As a result, the photoactivity in the aerobic selective oxidation of glycerol under visible light irradiation over silica-entrapped Bi₂WO₆ is greatly enhanced. The synergy between the silica matrix and photoactive entrapped Bi₂WO₆ allows the tunable control of both activity and selectivity for photocatalytic oxidation of glycerol under visible light irradiation.

Glycerol demonstrated herein is just one example of a biomass-derived chemical suitable for chemical upgrade.^13,14 Many other biomass molecules could react, including organic molecules that are not water soluble, and be readily converted to value-added fine chemicals using this SiO₂ xerogels trapped semiconductor composite photocatalyst. Further work is in progress to expand the scope of this simple and feasible method.

Experimental section

The catalyst hydrothermal sol–gel synthesis starts from flower-like Bi₂WO₆ prepared following the published procedure.⁴ In detail, the simple hydrothermal synthesis starts with sonication of Bi(NO₃)·5H₂O (0.98 g) in 40 mL of 0.3 M HNO₃ aqueous solution. Then, 20 mL of 0.05 M Na₂WO₄·2H₂O solution was added with vigorous stirring and a white precipitate was formed. Subsequently, a NaOH solution (20 mL, 0.2 M) was added under stirring, mixing the resulting solution for 24 h. This mixture was then transferred to a 100 mL Parr autoclave and maintained at 160 °C for 8 h. The resulting sample was recovered by filtration, washed by water, and fully dried at 60 °C in oven to get the final flower-like Bi₂WO₆ samples.

Two sol–gel entrapped catalysts were prepared using TEOS (tetraethylorthosilicate, Si(OCH₃)₄) as silica precursor. In one typical preparation, 150 mg of flower-like Bi₂WO₆ was suspended in 1 mL H₂O and the suspension was kept stirring for 30 minutes. The required amount of TEOS (0.025 mol for the 10 wt% catalyst and 0.05 mol for the 5 wt% catalyst) was added to an aqueous solution of HCl 0.05 N and stirred for 30 minutes. After this pre-hydrolysis step, the suspension of Bi₂WO₆ was added and the resulting mixture was kept under mechanical stirring for 30 minutes, after which an aliquot of NaOH 1 N (0.1 mL for 10 wt% and 0.18 mL for 5 wt%) was added. Gelification rapidly occurred.

The resulting alcogel was left in a closed vessel for 24 h after which the vessel was opened and left for 3 days at room temperature and pressure (ambient conditions). The doped silica glass monolith thereby obtained was mildly powdered in a mortar and used as such. The sol–gel encapsulated catalyst sample Bi₂WO₆(1) has a 5% w/w catalyst loading, and Bi₂WO₆(2) has a 10% w/w catalyst loading. To check the materials synthesis reproducibility, similar catalysts (not shown) were prepared also in China using the same methodology. Almost identical results were obtained both for the materials and their synthetic application, confirming full reproducibility of both sol–gel materials synthesis and hydrothermal synthesis of flower-like Bi₂WO₆.

The morphology information was determined by a field-emission scanning electron microscope (FESEM, FEI Nova NANOSEM 230). Transmission electron microscopy (TEM) images were collected using a JEOL model JEM 2010 EX microscope at an accelerating voltage of 200 kV. The crystalline structure of the catalysts was determined by powder X-ray diffraction (XRD), using Ni-filtered Cu Kα radiation in the 2θ range from 5° to 80° with a scan rate of 0.08° per second. The optical properties of the catalysts were analyzed by UV-vis diffuse reflectance spectroscopy (DRS) using a Cary-500 spectrophotometer over a wavelength range of 230–800 nm, during which BaSO₄ was employed as the internal reflectance standard. Nitrogen adsorption–desorption isotherms and the Brunauer–Emmett–Teller (BET) surface area were collected at 77 K using Micromeritics ASAP 2010 equipment. The photoluminescence (PL) spectra were measured on an Edinburgh FL/FS900 spectrophotometer. For the PL analysis of solid samples of Bi₂WO₆, the excitation wavelength is 340 nm. The PL spectra are often employed to study surface processes involving the electron–hole fate of semiconductor. With the electron–hole pairs recombination after a semiconductor photocatalyst is irradiated, photons are emitted, thus resulting in PL. Thus, the PL analysis reflects the fate of electron–hole pairs photogenerated from semiconductor Bi₂WO₆ encapsulated into the sol–gel silica matrix.

The aerobic oxidation of glycerol in water was carried out in a 10 mL Pyrex glass bottle under the irradiation of visible light using a 300 W Xe arc lamp with a UV cutoff filter (λ > 420 nm). In a typical process, a mixture of 8 mg solid catalyst and 0.1 mmol of glycerol were added to 1.5 mL water. The mixture, saturated with pure molecular oxygen from a gas cylinder, was transferred into a 10 mL Pyrex glass bottle and stirred for 10 min. After the reaction, the mixture was centrifuged at 12 000 rpm for 20 minutes to separate and remove the catalyst particles. The remaining solution was analyzed with a Shimadzu Liquid Chromatograph (DGU-20A3, equipped with a 512 Diode Array Detector and a C18 analysis column).
