L-proline catalyzed multicomponent reactions: facile access to 2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione derivatives

Abstract

A series of 2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione derivatives has been synthesized from the three component reactions of 2-hydroxy-1,4-naphthoquinone, aldehydes, and aminopyrazoles in the presence of a catalytic amount of L-proline. This domino reaction proceeds smoothly in good to excellent yields and offers several advantages including no column chromatography, a simple reaction procedure, metal-free reaction conditions and being applicable to a broad range of aldehydes.

---

Introduction

Synthesis of diverse polycyclic heterocycles from readily available starting materials in a cost and time effective manner has remained useful in organic synthesis owing to their widespread applications in pharmaceuticals, agrochemicals and in materials sciences.¹ Multicomponent reactions (MCRs), where three or more reactants are mixed in a single pot to generate a product incorporating most of the atoms of the starting materials,² are considered as one of the best tools for the easy access to diverse heterocycles under Pot Atom and Step Economic (PASE)³ conditions. Organocatalysis in multicomponent reactions makes the process greener as it works under the metal-free conditions and avoids the toxicity associated with metals. Considering this fact, in recent times, organo catalyzed MCRs have become very popular in organic synthesis.⁴

Recently we have, reported the virtue of imidazole as organocatalyst in MCRs for the synthesis of diverse carbo and heterocycles.⁵ We also have demonstrated a three component reaction of 4-hydroxycoumarin, aldehyde and aminopyrazole for the construction of a series of fused dihydroypyridines.⁶ MCRs using amino pyrazoles have become very popular strategy for the construction of functionalized polycyclic heterocycles.⁷ Similar to aminopyrazoles, 2-hydroxy-1,4-naphthoquinone is also a widely used starting material in MCRs.⁸ Considering their usefulness and potent bioactivities we wanted to explore further these two substrates in our MCRs. In continuation of our ongoing research on MCRs,⁹ we wished to develop a simple and useful three component reaction of aminopyrazole, 2-hydroxy-1,4-naphthoquinone and aldehyde using readily available organocatalyst for the synthesis of polycyclic N-heterocycles as shown in Scheme 1.

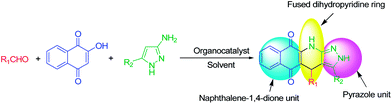

Scheme 1 Synthesis of polycyclic N-heterocycles using three component reactions.

L-proline is one of the cheap, readily available and most explored organocatalyst both in two and multicomponent reactions.¹⁰ Due to the presence of a basic secondary amine and an acidic carboxylic group, proline can catalyze a wide range of reactions. Thus, we envisioned that L-proline will also act as an efficient organocatalyst in our proposed MCRs.

Pyrazolo[3,4-b]quinoline derivatives (A) posses a wide range of medicinal properties such as antiviral,¹¹ antibacterial,¹² antimicrobial,¹³ oncogenic Ras inhibiting,¹⁴ and cyclooxygenase inhibiting activities.¹⁵ In addition, these compounds exhibit luminescence¹⁶ and fluorescence¹⁷ properties. Considering their wide spread applications, development of new and efficient methods for the access of these classes of compounds have lot of significance. Recently Li et al.¹⁸ have reported a microwave assisted methodology for the synthesis of benzo[h]pyrazolo[3,4-b]quinolines in acetic acid. They have successfully converted the resulting benzoquinoline products into quinoxaline-fused benzo[h]isoxazolo[5,4-b]quinolines by reacting with benzene-1,2-diamine under microwave irradiation. On the other hand, a few methods employing various catalysts such as molecular iodine,¹⁹ diammonium hydrogen phosphate²⁰ and InCl₃²¹ are also known in the literature for synthesis of 4-aryl-3-methyl-1-phenyl-1H-benzo[h]pyrazolo[3,4-b]quinoline-5,10-diones (a 1,4-diketone derivative) by the three component condensation of 3-methyl-1-phenyl-1H-pyrazol-5-amine, aldehydes and 2-hydroxynaphthalene-1,4-dione. Nageswar et al.²² have recently synthesized pyrazolo[3,4-b]quinoline derivatives by one pot three component reaction of aldehyde, aminopyrazole, and 1,3-cyclohexanedione using polyethylene glycol (PEG)-400 as reaction medium. Interestingly, all the above mentioned reported protocols describe the synthesis of Pyrazolo[3,4-b]quinoline derivatives with a fused pyridine ring (A), and our objective is to access 2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione derivatives (B) with a fused dihydropyridine ring from the three component reaction of 2-hydroxy-1,4-naphthoquinone, aldehyde, and aminopyrazole using metal-free environmentally benign reaction conditions (Fig. 1).

Fig. 1 Structural correlation of A and B.

Result and discussion

Initially the reaction of 4-chlorobenzaldehyde (1.0 mmol), 2-hydroxy-1,4-naphthoquinone (1.0 mmol) and 3-amino-5-methylpyrazole (1.0 mmol) was studied without using any catalyst in ethanol. At room temperature, the above combination did not provide the expected three component product even after 24 h stirring. Interestingly, when the same set of reactants in ethanol was refluxed in absence of any catalyst for 9 hours, the desired three component product 1c was obtained in 15% only (Table 1, entry 2). The compound 1c was fully characterized by IR, ¹H, ¹³C NMR and elemental analysis. Encouraged by this result, we shifted our attention towards optimization of the reaction conditions using various catalysts for the same model reaction in ethanol as solvent under reflux conditions. Basic organocatalysts such as DBN, Et₃N, and DABCO were screened under the similar reaction conditions to find the optimum yield and reaction time. The results are summarized in Table 1 (entries 3–5). Interestingly, L-proline (20 mol%) showed the best result among all the screened catalysts. Next, to find the best solvent for this transformation the same reaction was also screened in various solvents such as EtOH, CH₃CN, DMF, CH₂Cl₂ and THF (Table 1, entries 6 and 9–12) in the presence of 20 mol% L-proline. Among all these solvents, EtOH was found to be the best solvent for this transformation.

Table 1 Optimisation of reaction conditions

Entry	Catalyst	Mole%	Solvent	Time (h)	Yield^a
a Isolated yield.b Reaction performed at room temperature.
1	—	—	EtOH	24	NR^b
2	—	—	EtOH	9	15
3	DBN	20	EtOH	12	28
4	DABCO	20	EtOH	9	35
5	Et3N	20	EtOH	9	80
6	L-Proline	20	EtOH	9	88
7	L-Proline	10	EtOH	9	75
8	L-Proline	30	EtOH	9	89
9	L-Proline	20	CH3CN	9	68
10	L-Proline	20	DMF	9	64
11	L-Proline	20	CH2Cl2	9	Trace
12	L-Proline	20	THF	9	60

---

To check the generality and versatility of this method, a study on the substrate scope was carried out under the optimized reaction conditions and the results are summarized in Table 2. It can be found from the results that a wide range of aldehydes are suitable for this multicomponent reaction. Aromatic aldehydes tethered with both electron-donating and electron-withdrawing substituents like F, Cl, Br, Me, NO₂, OMe, OH, CH(Me)₂ afforded the desired products (1b–1n) in very good yields with both 3-amino-5-methylpyrazole and 3-aminopyrazole. To extend the utility of this method, aliphatic aldehyde such as butanal and heteroaromatic aldehyde i.e. furfuraldehyde were also tested and the corresponding products (1o and 1p) were obtained in good yields (Table 2).

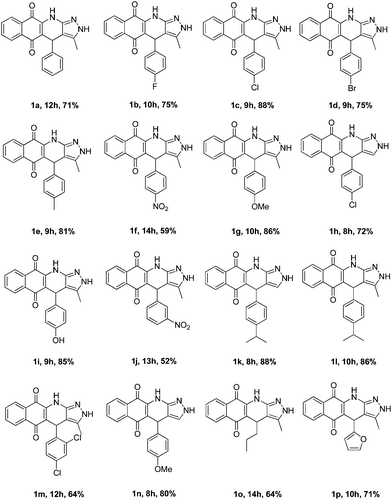

Table 2 Synthesis of 2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-diones

---

The plausible mechanism of this reaction is shown in Scheme 2. We believe the mechanism goes via domino Aldol reaction–Michael addition–N-cyclization–tautomerism sequence to give the final product 1 regioselectively. Interestingly, we have not isolated the ortho isomer as mentioned by Li et al.¹⁸ It is evident from the fact that no reaction was observed when the product obtained from the above reaction was treated with o-phenylenediamine. This presumably can be an indirect evidence for the regioselectivity observed in this reaction.

Scheme 2 Proposed mechanism for the synthesis of 2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-diones.

Conclusion

We have developed a facile and efficient one-pot, three component reaction for the synthesis of functionalized polycyclic N-heterocycles using readily available L-proline as organo catalyst. This domino reaction proceeded smoothly in good to excellent yields and offered several advantages including short reaction time, simple experimental procedure, no column chromatography, and no toxic by-product. Due to the presence of NH and C=O functionality in these molecules they can serve as organic ligands for the formation of metal complexes as well as further functionalization of these molecules is feasible, and work in this direction is ongoing in our laboratory and will be reported in due course.

Experimental

General information

All reagents and chemicals required for the reactions were procured from commercial sources and used without further purification. IR spectra were recorded in Shimadzu FTIR spectrophotometer. ¹H NMR spectra and ¹³C NMR spectra were recorded on 500, 400 and 300 MHz spectrometer in DMSO-d6 using TMS as internal reference. Elemental analyses were carried out in a Perkin Elmer 2400 automatic CHN analyzer or Elementer Vario EL III. All new compounds were characterized by recording melting point without correction, ¹H NMR, ¹³C NMR and elemental analysis.

Typical experimental procedure for the synthesis of 1c. To a stirred mixture of 4-chlorobenzaldehyde (1 mmol) and 2-hydroxy-1,4-naphthoquinone (1 mmol) in ethanol (5 ml), was added L-proline (0.2 mmol) and the reaction mixture was stirred under reflux conditions for 30 minutes. Then 3-amino-5-methylpyrazole (1 mmol) was added to it. The resulting mixture was stirred until the reaction was completed as indicated by TLC. The resulting solid was collected by filtration and washed with ethanol to afford the product. The resulting product was pure enough for characterization.

3-Methyl-4-phenyl-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1a). Yield: 71%. Brown solid. m.p. 292–294° C. IR (KBr): 3421, 3411, 3071, 2909, 1667, 1607, 1550, 1510, 1429, 1384, 1319, 1273, 1207, 1154, 1051, 957, 742 cm⁻¹. ¹H NMR (300 MHz, DMSO-d₆): δ = 12.10 (s, 1H, NH), 10.20 (s, 1H, NH), 8.05–7.70 (m, 5H, ArH), 7.50–7.30 (m, 4H, ArH), 5.40 (s, 1H, CH), 2.01 (s, 3H, CH₃) ppm. ¹³C NMR (75 MHz, DMSO-d₆): δ = 181.7, 181.3, 147.1, 146.9, 142.0, 137.0, 135.6, 133.5, 131.2, 130.3, 128.9, 126.6, 126.3, 114.7, 103.5, 80.1, 36.4, 10.3 ppm. Anal. calcd for C₂₁H₁₅N₃O₂ (341.36): C, 73.89; H, 4.43; N, 12.31; found: C, 73.93. H, 4.45; N, 12.38%.

4-(4-Fluorophenyl)-3-methyl-1H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1b). Yield: 75%. Dark purple solid. m.p. 299–301 °C. IR (KBr): 3435, 3419, 3024, 2950, 2867, 1670, 1611, 1551, 1344, 1224, 1156, 957, 793, 607 cm⁻¹. ¹H NMR (400 MHz, DMSO-d₆): 12.10 (s, 1H, NH), 10.20 (s, 1H, NH), 8.0 (d, J = 7.6 Hz, 1H, ArH), 7.84 (d, J = 7.6 Hz, 1H, ArH), 7.83–7.70 (m, 2H, ArH), 7.29–7.25 (m, 2H, ArH), 7.0 (t, J = 7.6 Hz, 2H, ArH), 5.36 (s, 1H, CH), 1.94 (s, 3H, CH₃) ppm. ¹³C NMR (75 MHz, DMSO-d₆): δ = 180.8, 180.5, 145.2, 143.5, 141.0, 135.5, 134.7, 132.6, 130.3, 129.3, 129.2, 125.7, 125.4, 114.9, 114.6, 102.9, 35.2, 9.4 ppm. Anal. calcd for C₂₁H₁₄FN₃O₂ (359.35): C, 70.19; H, 3.93; N, 11.69. Found: C, 70.14; H, 3.96; N, 11.75%.

4-(4-Chlorophenyl)-3-methyl-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1c). Yield: 88%. Reddish brown solid. m.p. 298–300 °C. IR (KBr): 3455, 3420, 3024, 1670, 1609, 1561, 1352, 1250, 1170, 957, 785 cm⁻¹. ¹H NMR (300 MHz, DMSO-d₆): δ = 12.10 (s, 1H, NH), 10.25 (s, 1H, NH), 8.0 (d, J = 7.6 Hz, 1H, ArH), 7.88–7.71 (m, 3H, ArH), 7.40 (d, J = 9.0 Hz, 2H, ArH), 7.20 (d, J = 7.5 Hz, 2H, ArH), 5.45 (s, 1H, CH), 1.93 (s, 3H, CH₃) ppm. ¹³C NMR (125 MHz, DMSO-d₆): δ = 181.2, 180.9, 146.9, 145.7, 141.5, 136.0, 135.2, 133.0, 132.9, 131.4, 130.8, 130.2, 126.2, 125.9, 119.3, 114.1, 103.0, 36.1, 9.9 ppm. Anal. calcd for C₂₁H₁₄ClN₃O₂ (375.81): C, 67.12; H, 3.75; N, 11.18. Found: C, 67.16; H, 3.72; N, 11.26%.

4-(4-Bromophenyl)-3-methyl-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1d). Yield: 75%. Purple solid. m.p. 305–307 °C. IR (KBr): 3302, 3290, 3059, 2972, 1662, 1613, 1556, 1516, 1432, 1384, 1344, 1273, 1204, 1147, 1085, 1051, 904, 760 cm⁻¹. ¹H NMR (400 MHz, DMSO-d₆): δ = 12.10 (s, 1H, NH), 10.23 (s, 1H, NH), 8.02 (d, J = 7.2 Hz, 1H, ArH), 7.99–7.73 (m, 3H, ArH), 7.40 (d, J = 8.4 Hz, 2H, ArH), 7.21 (d, J = 8.0 Hz, 2H, ArH), 5.34 (s, 1H, CH), 1.96 (s, 3H, CH₃) ppm. ¹³C NMR (100 MHz, DMSO-d₆): δ = 181.7, 181.3, 147.4, 145.5, 142.0, 135.6, 133.5, 133.4, 131.9, 131.2, 130.7, 126.6, 126.3, 119.7, 114.5, 103.4, 36.5, 10.3 ppm. Anal. calcd for C₂₁H₁₄BrN₃O₂ (420.26): C, 60.02; H, 3.36; N, 10.00. Found: C, 60.08; H, 3.32; N, 10.09%.

3-Methyl-4-p-tolyl-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1e). Yield: 81%. Purple solid. m.p. 289–291 °C. IR (KBr): 3450, 3432, 3012, 1665, 1610, 1512, 1355, 1260, 1180, 958 cm⁻¹. ¹H NMR (300 MHz, DMSO-d₆): δ = 12.03 (s, 1H, NH), 10.12 (s, 1H, NH), 8.10–7.70 (m, 4H, ArH), 7.11 (d, J = 8.1 Hz, 2H, ArH), 7.00 (d, J = 7.8 Hz, 2H, ArH), 5.35 (s, 1H, CH), 2.25 (s, 3H, CH₃), 1.93 (s, 3H, CH₃) ppm. ¹³C NMR (125 MHz, DMSO-d₆): δ = 181.2, 181.0, 144.8, 141.3, 136.0, 135.2, 135.1, 133.0, 132.9, 130.7, 129.1, 127.8, 126.1, 125.9, 114.9, 103.6, 35.9, 21.0, 9.9 ppm. Anal. calcd for C₂₂H₁₇N₃O₂ (355.39): C, 74.35; H, 4.82; N, 11.82. Found: C, 74.42; H, 4.79; N, 11.90%.

3-Methyl-4-(4-nitrophenyl)-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1f). Yield: 59%. Dark purple solid. m.p. 277–279 °C. IR (KBr): 3215, 3210, 3025, 2965, 1678, 1611, 1592, 1518, 1345, 1249, 988 cm⁻¹. ¹H NMR (300 MHz, DMSO-d₆): δ 12.10 (s, 1H, NH), 10.30 (s, 1H, NH), 8.40 (d, J = 8.4 Hz, 2H, ArH), 8.11 (d, J = 9.0 Hz, 1H, ArH), 8.02 (d, J = 9.0 Hz, 1H, ArH), 7.85–7.66 (m, 2H, ArH), 7.56 (d, J = 9.0 Hz, 2H, ArH), 5.50 (s, 1H, CH), 1.98 (s, 3H, CH₃) ppm. ¹³C NMR (75 MHz, DMSO-d₆): δ = 180.7, 180.3, 154.4, 145.6, 141.5, 134.8, 132.4, 132.4, 130.3, 128.8, 128.3, 125.8, 125.4, 123.5, 112.9, 101.8, 36.3, 9.4 ppm. Anal. calcd for C₂₁H₁₄N₄O₄ (386.36): C, 65.28; H, 3.65; N, 14.50. Found: C, 65.34; H, 3.62; N, 14.59%.

4-(4-Methoxyphenyl)-3-methyl-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1g). Yield: 86%. Purple solid. m.p. 269–271 °C. IR (KBr): 3435, 3419, 3024, 2956, 1670, 1609, 1570, 1528, 1326, 1214, 957, 785 cm⁻¹. ¹H NMR (300 MHz, DMSO-d₆): δ = 12.10 (s, 1H, NH), 10.25 (s, 1H, NH), 8.0 (d, J = 7.2 Hz, 1H, ArH), 7.90–7.70 (m, 3H, ArH), 7.14 (d, J = 8.4 Hz, 2H, ArH), 6.76 (d, J = 8.4 Hz, 2H, ArH), 5.25 (s, 1H, CH), 3.75 (s, 3H, OCH₃), 1.95 (s, 3H, CH₃) ppm. ¹³C NMR (75 MHz, DMSO-d₆): δ = 180.8, 180.5, 157.3, 145.3, 140.6, 139.4, 135.2, 134.6, 132.5, 132.4, 130.2, 128.4, 125.6, 125.3, 114.6, 113.4, 103.2, 54.8, 34.9, 9.3 ppm. Anal. calcd for C₂₂H₁₇N₃O₃ (371.39): C, 71.15; H, 4.61; N, 11.31. Found: C, 71.10; H, 4.63; N, 11.40%.

4-(4-Chlorophenyl)-2H-benzo[g]pyrazolo[3,4-b]quinoline 5,10(4H,11H)-dione (1h). Yield: 72%. Reddish brown solid. m.p. 282–284 °C. IR (KBr): 3246, 3202, 3078, 2909, 1672, 1609, 1553, 1510, 1432, 1384, 1326, 1238, 1207, 1172, 1113, 1038, 960, 760 cm⁻¹. ¹H NMR (400 MHz, DMSO-d₆): δ = 12.20 (s, 1H, NH), 10.20 (s, 1H, NH), 8.05 (d, J = 7.2 Hz, 1H, ArH), 7.89–7.71 (m, 3H, ArH), 7.48 (s, 1H, ArH), 7.20 (d, J = 8.8 Hz, 2H, ArH), 7.12 (d, J = 8.4 Hz, 2H, ArH), 5.50 (s, 1H, CH) ppm. ¹³C NMR (100 MHz, DMSO-d₆): δ = 181.8, 181.2, 147.8, 142.4, 135.6, 133.5, 133.4, 131.3, 131.2, 129.8, 129.0, 126.7, 126.3, 113.9, 106.2, 80.7, 36.4 ppm. Anal. calcd for C₂₀H₁₂ClN₃O₂ (361.78): C, 66.40; H, 3.34; N, 11.61. Found: C, 66.34; H, 3.37; N, 11.71%.

4-(4-Hydroxyphenyl)-3-methyl-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1i). Yield: 85%. Blue solid. m.p. 276–278 °C. IR (KBr): 3440, 3430, 3031, 2956, 1668, 1608, 1509, 1464, 1371, 1287, 955 cm⁻¹. ¹H NMR (300 MHz, DMSO-d₆): δ = 12.10 (s, 1H, NH), 10.10 (s, 1H, NH), 9.12 (bs, 1H, OH), 8.0 (d, J = 7.5 Hz, 1H, ArH), 7.90–7.70 (m, 3H, ArH), 7.01 (d, J = 8.4 Hz, 2H, ArH), 6.58 (d, J = 8.4 Hz, 2H, ArH), 5.35 (s, 1H, CH), 1.93 (s, 3H, CH₃) ppm. ¹³C NMR (100 MHz, DMSO-d₆): δ = 180.6, 179.9, 157.7, 153.1, 151.7, 137.6, 135.9, 135.1, 132.9, 132.1, 129.3, 128.8, 128.4, 127.5, 126.7, 120.3, 115.2, 35.9, 14.8 ppm. Anal. calcd for C₂₁H₁₅N₃O₃ (357.36): C, 70.58; H, 4.23; N, 11.76. Found: C, 70.64; H, 4.20; N, 11.85%.

3-Methyl-4-(3-nitrophenyl)-1H-benzo [g] pyrazolo [3,4-b]quinoline-5,10(4H,11H)-dione (1j). Yield: 52%. Reddish brown solid. m.p. 265–267 °C. IR (KBr): 3436, 3420, 3100, 3031, 1663, 1609, 1510, 1467, 1345, 1272, 1149, 1101, 956, 849, 790, 601 cm⁻¹. ¹H NMR (400 MHz, DMSO-d₆): δ = 12.14 (bs, 1H, NH), 10.31 (bs, 1H, NH) 8.10 (s, 1H, ArH), 8.0 (d, J = 7.6 Hz, 1H, ArH), 7.97 (d, J = 8.0 Hz, 1H, ArH), 7.83 (d, J = 7.6 Hz, 1H, ArH) 7.79–7.72 (m, 3H, ArH), 7.51 (t, J = 7.6 Hz, 1H, ArH), 5.55 (s, 1H, CH), 1.93 (s, 3H, CH₃) ppm. ¹³C NMR (100 MHz, DMSO-d₆): δ = 180.7, 180.3, 149.1, 147.6, 141.4, 135.9, 134.7, 134.4, 132.5, 132.4, 130.3, 129.6, 125.7, 125.4, 121.9, 120.9, 112.9, 102.1, 35.9, 9.4 ppm. Anal. calcd for C₂₁H₁₄N₄O₄ (386.36): C, 65.28; H, 3.65; N, 14.50. Found: C, 65.22; H, 3.68; N, 14.60%.

4-(4-Isopropylphenyl)-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1k). Yield: 88%. Dark brown solid. m.p. 266–268 °C. IR (KBr): 3420, 3405, 3090, 2953, 1662, 1609, 1563, 1525, 1507, 1410, 1351, 1204, 1101, 1060, 954, 829, 760 cm⁻¹. ¹H NMR (400 MHz, DMSO-d₆): δ = 12.20 (bs, 1H, NH), 10.20 (bs, 1H, NH), 8.0 (d, J = 6.8 Hz, 1H, ArH), 7.85 (d, J = 6.4 Hz, 1H, ArH), 7.78–7.70 (m, 1H, ArH), 7.41 (s, 1H, ArH), 7.18–7.01 (m, 5H, ArH), 5.20 (s, 1H, CH), 2.76–2.74 (m, 1H, CH), 1.10 (d, J = 6.8 Hz, 6H, CH₃) ppm. ¹³C NMR (100 MHz, DMSO-d₆): δ = 181.8, 181.3, 146.6, 146.3, 142.2, 135.6, 133.5, 133.4, 131.2, 127.8, 127.3, 127.0, 126.6, 126.4, 114.7, 106.8, 36.3, 33.9, 24.8 ppm. Anal. calcd for C₂₃H₁₉N₃O₂ (369.42): C, 74.78; H, 5.18; N, 11.37. Found: C, 74.72; H, 5.20; N, 11.46%.

4-(4-Isopropylphenyl)-3-methyl-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1l). Yield: 86%. White solid. m.p. 291–293 °C. IR (KBr): 3447, 3421, 3051, 2958, 1665, 1534, 1342, 1267, 1151, 959, 788, 724, 613 cm⁻¹. ¹H NMR (300 MHz, DMSO-d₆): δ = 12.04 (bs, 1H, NH), 10.13 (bs, 1H, NH), 8.0 (d, J = 6.9 Hz, 1H, ArH), 7.85 (d, J = 7.2 Hz, 1H, ArH), 7.80–7.70 (m, 2H, ArH), 7.15 (d, J = 7.8 Hz, 2H, ArH), 7.07 (d, J = 8.1 Hz, 2H, ArH) 5.31 (s, 1H, CH), 2.70 (m, 1H, CH), 1.98 (s, 3H, CH₃), 1.12 (d, J = 6.9 Hz, 6H) ppm. ¹³C NMR (100 MHz, DMSO-d₆): δ = 180.7, 180.5, 145.6, 145.3, 144.6, 140.9, 135.2, 134.6, 132.5, 130.3, 127.2, 125.9, 125.6, 125.4, 114.4, 103.2, 35.3, 32.9, 23.8, 9.4 ppm. Anal. calcd for C₂₄H₂₁N₃O₂ (383.44): C, 75.18; H, 5.52; N, 10.96. Found: C, 75.12; H, 5.55; N, 10.06%.

4-(2,4-Dichlorophenyl)-3-methyl-1H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1m). Yield: 64%. White solid. m.p. 313–315 °C. IR (KBr): 3277, 3183, 3091, 2965, 1672, 1613, 1560, 1538, 1510, 1437, 1338, 1275, 1213, 1083, 1038, 1013, 920, 848, 783 cm⁻¹. ¹H NMR (500 MHz, DMSO-d₆): δ = 12.10 (bs, 1H, ArH), 10.25 (bs, 1H, ArH), 8.0 (d, J = 7.2 Hz, 1H, ArH), 7.80–7.72 (m, 3H, ArH), 7.48 (s, 1H, ArH), 7.26 (d, J = 8.4 Hz, 1H, ArH), 7.23 (d, J = 8.0 Hz, 1H, ArH), 5.71 (s, 1H, CH), 1.93 (s, 3H, CH₃) ppm. ¹³C NMR (125 MHz, DMSO-d₆): δ = 181.1, 180.8, 145.6, 144.1, 142.1, 136.2, 135.2, 133.0, 132.9, 132.6, 132.3, 131.4, 130.7, 128.6, 128.2, 126.2, 125.9, 113.6, 102.3, 33.7, 9.9 ppm. Anal. calcd for C₂₁H₁₃Cl₂N₃O₂ (410.25): C, 61.48; H, 3.19; N, 10.24. Found: C, 61.41; H, 3.21; N, 10.35%.

4-(4-Methoxyphenyl)-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1n). Yield, 80%. Brown solid. m.p. 232–234 °C. IR (KBr): 3283, 3254, 2972, 1672, 1613, 1560, 1541, 1510, 1437, 1338, 1275, 1213, 1088, 1041, 923, 836, 780 cm⁻¹. ¹H NMR (500 MHz, DMSO-d₆): δ = 12.30 (s, 1H, NH), 10.20 (s, 1H, NH), 8.0 (d, J = 9.0 Hz, 1H, ArH), 7.84 (d, J = 8.0 Hz, 1H, ArH), 7.70–7.60 (m, 2H, ArH), 7.41 (s, 1H, ArH), 7.12 (d, J = 8.5 Hz, 2H, ArH), 6.74 (d, J = 8.5 Hz, 2H, ArH), 5.39 (s, 1H, CH), 3.63 (s, 3H, OCH₃) ppm. ¹³C NMR (125 MHz, DMSO-d₆): δ = 181.4, 180.9, 157.8, 141.5, 140.8, 135.1, 135.1, 132.9, 130.8, 130.5, 128.5, 126.1, 125.9, 114.5, 114.0, 106.4, 55.4, 35.5 ppm. Anal. calcd for C₂₁H₁₅N₃O₃ (357.36): C, 70.58; H, 4.23; N, 11.76. Found: C, 70.52; H, 4.26; N, 11.86%.

3-Methyl-4-propyl-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1o). Yield: 64%. White solid. m.p. 218–220 °C. IR (KBr): 3210, 3188, 2961, 1683, 1653, 1573, 1453, 1340, 1262, 726, 619 cm⁻¹. ¹H NMR (300 MHz, DMSO-d₆): δ = 12.10 (s, 1H, NH), 10.23 (s, 1H, NH), 8.0 (d, J = 6.9 Hz, 1H, ArH), 7.96 (d, J = 6.3 Hz, 1H, ArH), 7.80–7.70 (m, 2H, ArH), 5.35 (s, 1H, CH), 1.95 (s, 3H, CH₃), 1.30–0.80 (m, 7H, 2CH₂, and CH₃) ppm. ¹³C NMR (100 MHz, DMSO-d₆): δ = 181.9, 181.2, 147.4, 142.8, 135.5, 133.5, 133.3, 131.1, 126.5, 126.4, 115.2, 102.7, 80.1, 30.0, 18.9, 15.0, 10.6 ppm. Anal. calcd for C₁₈H₁₇N₃O₂ (307.35): C, 70.34; H, 5.58; N, 13.67. Found: C, 70.41; H, 5.61; N, 13.77%.

3-Methyl-4-(furan-2-yl)-2H-benzo[g]pyrazolo[3,4-b]quinoline-5,10(4H,11H)-dione (1p). Yield: 71%. White solid. m.p. 246–248 °C. IR (KBr): 3258, 3170, 3023, 2962, 2902, 1663, 1616, 1600, 1543, 1502, 1424, 1371, 1213, 1145, 1061, 964, 842, 813, 752 cm⁻¹. ¹H NMR (300 MHz, DMSO-d₆): δ = 12.15 (s, 1H, NH), 10.25 (s, 1H, NH), 8.02 (d, J = 7.5 Hz, 1H, ArH), 7.93 (d, J = 7.2 Hz, 1H, ArH), 7.86–7.74 (m, 2H, ArH), 7.74 (d, J = 7.2 Hz, 1H, ArH), 6.26 (dd, J = 3.0, 1.8 Hz, 1H, ArH), 6.04 (d, J = 3.0 Hz, 1H, ArH), 5.45 (s, 1H, CH), 2.10 (s, 3H, CH₃) ppm. ¹³C NMR (100 MHz, DMSO-d₆): δ = 180.7, 180.4, 157.6, 141.5, 141.1, 134.8, 134.1, 132.6, 132.5, 130.3, 126.8, 125.8, 125.5, 111.4, 110.3, 104.4, 100.4, 29.4, 9.4 ppm. Anal. calcd for C₁₉H₁₃N₃O₃ (331.32): C, 68.88; H, 3.95; N, 12.68. Found: C, 68.82; H, 3.98; N, 12.79%.

Acknowledgements

L.H.C and T.P gratefully acknowledge financial support from the Department of Science and Technology India, with Sanction No. SR/FT/CS-042/2009 and SR/FT/CS-08/2010 respectively for carrying out this work. S.K and S.P are grateful to CSIR and UGC respectively for their research fellowships (SRF). Authors are also grateful to IIT Guwahati, Bose Institute, Kolkata and SAIF, Panjab University for providing analytical facilities for characterization of compounds.

References and notes

1. (a) J. Yu, F. Shi and L.-Z. Gong, Acc. Chem. Res., 2011, 44, 1156; (b) M. S. Singh, G. C. Nandi and T. Chanda, RSC Adv., 2013, 3, 14183; (c) A. Ulaczyk-Lesanko and D. G. Hall, Curr. Opin. Chem. Biol., 2005, 9, 266; (d) Z. Xu, M. Ayaz, A. A. Cappelli and C. Hulme, ACS Comb. Sci., 2012, 14, 460; (e) L.-Q. Lu, J.-R. Chen and W.-J. Xiao, Acc. Chem. Res., 2012, 45, 1278; (f) I. S. Pereteanu and T. J. J. Muller, Org. Biomol. Chem., 2013, 11, 5127; (g) V. Tyagi, S. Khan, V. Bajpai, H. M. Gauniyal, B. Kumar and P. M. S. Chauhan, J. Org. Chem., 2012, 77, 1414; (h) B. A. Dreikorn and G. L. Durst, Synthesis and Chemistry of Agrochemicals IV, ACS Symp. Ser., 1995, 584, 354; (i) G. Zeni and R. C. Larock, Chem. Rev., 2006, 106, 4644.
2. (a) J. Zhu and H. Bienayme, Multicomponent Reactions, Wiley-VCH, Weinheim, 2005; (b) D. Tejedor and F. Garcia-Tellado, Chem. Soc. Rev., 2007, 36, 484; (c) D. M. D'Souza and T. J. J. Mueller, Chem. Soc. Rev., 2007, 36, 1095; (d) A. Domling, Chem. Rev., 2006, 106, 17; (e) B. B. Toure and D. G. Hall, Chem. Rev., 2009, 109, 4439; (f) E. Ruijter, R. Scheffelaar and R. V. A. Orru, Angew. Chem., Int. Ed., 2011, 50, 6234; (g) N. R. Candeias, F. Montalbano, P. M. S. D. Cal and P. M. P. Gois, Chem. Rev., 2010, 110, 6169.
3. (a) B. M. Trost, Science, 1991, 254, 1471; (b) B. Jiang, T. Rajale, W. Wever, S.-J. Tu and G. Li, Chem. – Asian J., 2010, 5, 2318; (c) P. A. Clarke, A. V. Zaytsev and A. C. Whitwood, Synthesis, 2008, 3530; (d) F. Shi, D. X. Zhou, S. J. Tu, C. M. Li, L. J. Cao and Q. Q. Shao, J. Heterocycl. Chem., 2008, 45, 1305; (e) P. A. Clarke, S. Santos and W. H. C. Martin, Green Chem., 2007, 9, 438.
4. (a) D. Enders, C. Grondal and M. R. M. Hüttl, Angew. Chem., Int. Ed., 2007, 46, 1570; (b) C. Graaff, E. Ruijter and R. V. A. Orru, Chem. Soc. Rev., 2012, 41, 3969; (c) S. Verma, S. Kumar, S. L. Jain and B. Sain, Org. Biomol. Chem., 2011, 9, 6943.
5. M. N. Khan, S. Pal, S. Karamthulla and L. H. Choudhury, RSC Adv., 2014, 4, 3732.
6. S. Pal, M. N. Khan, S. Karamthulla and L. H. Choudhury, RSC Adv., 2013, 3, 15705.
7. (a) S. Fustero, M. Sanchez-Rosello, P. Barrio and A. Simon-Fuentes, Chem. Rev., 2011, 111, 6984; (b) V. A. Chebanov, K. A. Gura and S. M. Desenko, Top. Heterocycl. Chem., 2010, 23, 41; (c) A. U. Sadek, R. A. Mekheimer, T. M. Mohamed, M. S. Moustafa and M. H. Elnagdi, Beilstein J. Org. Chem., 2012, 8, 18; (d) W. S. Bremner and M. G. Organ, ACS Comb. Sci., 2007, 9, 14; (e) V. A. Chebanov, V. E. Saraev, S. M. Desenko, V. N. Chernenko, I. V. Knyazeva, U. Groth, T. N. Glasnov and C. Oliver Kappe, J. Org. Chem., 2008, 73, 5110; (f) A. Rahmati, T. Kenarkoohi and H. R. Khavasi, ACS Comb. Sci., 2012, 14, 657; (g) H. Chen and D. Shi, J. Comb. Chem., 2010, 12, 571; (h) R. Aggarwal, V. Kumar, R. Kumar and S. P. Singh, Beilstein J. Org. Chem., 2011, 7, 179.
8. (a) M. R. Zanwar, V. Kavala, S. D. Gawande, C.-W. Kuo, T.-S. Kuo, M.-L. Chen, C.-H. He and C.-F. Yao, Eur. J. Org. Chem., 2013, 8288; (b) M. B. Teimouri and H. R. Khavasi, Tetrahedron, 2007, 63, 10269; (c) K. Kobayashi, H. Shimizu, A. Sasaki and H. Suginome, J. Org. Chem., 1993, 58, 4614; (d) M. Dabiri, Z. N. Tisseh and A. Bazgir, Dyes Pigm., 2011, 89, 63; (e) Y. Duan, X. Wang, X. Xu, Z. Kang, M. Zhang, L. Song and H. Deng, Synthesis, 2013, 45, 2193; (f) S. Kanchithalaivan, S. Sivakumar, R. R. Kumar, P. Elumalai, Q. N. Ahmed and A. K. Padala, ACS Comb. Sci., 2013, 15, 631.
9. (a) S. Karamthulla, S. Pal, M. N. Khan and L. H. Choudhury, RSC Adv., 2013, 3, 15576; (b) S. Pal, M. N. Khan, S. Karamthulla, S. J. Abbas and L. H. Choudhury, Tetrahedron Lett., 2013, 54, 5434; (c) S. Pal, V. Singh, P. Das and L. H. Choudhury, Bioorg. Chem., 2013, 48, 8; (d) S. Pal, L. H. Choudhury and T. Parvin, Mol. Diversity, 2012, 16, 129; (e) M. N. Khan, S. Pal, T. Parvin and L. H. Choudhury, RSC Adv., 2012, 2, 12305.
10. (a) C. M. Marson, Chem. Soc. Rev., 2012, 41, 7712; (b) S. K. Panday, Tetrahedron: Asymmetry, 2011, 22, 1817; (c) Y. Li, H. Chen, C. Shi, D. Shi and S. Ji, J. Comb. Chem., 2010, 12, 231; (d) B. List, P. Pojarliev, W. T. Biller and H. J. Martin, J. Am. Chem. Soc., 2002, 124, 829; (e) A. Bogevig, N. Kumaragurubaran, K. Juhl, W. Zhuang and K. A. Jorgensen, Angew. Chem., Int. Ed, 2002, 41, 1790.
11. S. Radl, V. Zikan and F. Smejkal, Collect. Czech. Chem. Commun., 1985, 50, 1057.
12. (a) S. T. Selvi, V. Nadaraj, S. Mohan, R. Sasi and M. Hema, Bioorg. Med. Chem., 2006, 14, 3896; (b) S. F. Thakor, D. M. Patel, M. P. Patel and R. G. Patel, Saudi Pharm. J., 2007, 15, 48.
13. (a) O. A. El-Sayed and H. Y. Aboul-Enein, Arch. Pharm., 2001, 334, 117; (b) M. A.-S. Amin, M. M. Ismail, S. E.-S. Barakat, A. A.-A. Abdul-Rahman, A. H. Bayomi and K. M. A. El-Gamal, Bull. Pharm. Sci., Assiut Univ., 2004, 27, 237.
14. R. Wolin, D. Wang, J. Kelly, A. Afonso, L. James, P. Kirschmeier and A. T. McPhail, Bioorg. Med. Chem. Lett., 1996, 6, 195.
15. Z. Terashita, K. Naruo, O. Uchikawa and A. Nakanishi, PCT Int. Appl. 078705, 2002, Chem. Abstr., 2002, 137, 294966.
16. E. Gondek, I. V. Kityk, J. Sanetra, P. Szlachcic, P. Armatys, A. Wisla and A. Danel, Opt. Laser Technol., 2006, 38, 487.
17. P. Cywinski, B. Wandelt and A. Danel, Adsorpt. Sci. Technol., 2004, 22, 719.
18. B. Jiang, G. Zhang, N. Ma, F. Shi, S.-J. Tu, P. Kaur and G. Li, Org. Biomol. Chem., 2011, 9, 3834.
19. L. Wu, L. Yang, F. Yan, C. Yang and L. Fang, Bull. Korean Chem. Soc., 2010, 31, 1051.
20. L.-Q. Wu, R.-Y. Dong, C.-G. Yang and F.-L. Yan, J. Chin. Chem. Soc., 2010, 57, 19.
21. J. M. Khurana, A. Chaudhary, B. Nand and A. Lumb, Tetrahedron Lett., 2012, 53, 3018.
22. K. Karnakar, S. Narayana Murthy, K. Ramesh, G. Satish, J. Babu, J. B. Nanubolu and Y. V. D. Nageswar, Tetrahedron Lett., 2012, 53, 2897.

---

Footnote

† Electronic supplementary information (ESI) available: ¹H NMR and ¹³C NMR spectra for all the products are available. See DOI: 10.1039/c4ra00876f

---
