A highly efficient iron doped BaTiO₃ nanocatalyst for the catalytic reduction of nitrobenzene to azoxybenzene

Abstract

In the present study, we report an efficient and high yielding catalytic reduction of nitrobenzene in the presence of 2-propanol or molecular H₂ over Fe doped BaTiO₃ nanocatalysts. This method provides 100% conversion of nitrobenzene with 93% and 95% AOB yield with 2-propanol and molecular H₂ under the described experimental conditions, thus leading to efficient synthesis of azoxybenzene from nitrobenzene. The optimum Fe content to obtain high azoxybenzene yields was 2.5% and 10% in the presence of 2-propanol and molecular H₂ respectively.

---

Azoxy compounds are versatile organic compounds that have received considerable attention due to their physiological activity and their applications as liquid crystalline materials.^1–4 Azoxybenzene has been used in dyes, analytical reagents, reducing agents, stabilizers, food additives, pigments, and polymerization inhibitors.^5–8

The synthesis of azoxybenzene is carried out through the oxidation of aromatic amines and reduction of nitro compounds by using various stoichiometric reagents.^9–23 Due to environmental concern associated with homogeneous routes using stoichiometric routes it is desired to develop an alternative, efficient, reusable solid phase catalyst for the direct conversion of nitrobenzene to azoxybenzene. To date, very few catalytic routes are reported on reduction of nitrobenzene to azoxybenzene.^24,25 However, known catalysts for hydrogenation reactions are less active and selective. Thus, a synthetic method that can differentiate and catalyze a selective reduction of nitrobenzene using a simple, inexpensive catalyst would be valuable and have potential synthetic applications. Recently, Zhu et al.²⁶ reported that gold nanoparticles supported on TiO₂ nanocrystals painted H-titanate nanofibers could selectively reduce nitrobenzene to azoxybenzene under visible light irradiation. In the present study we report selective reduction of nitrobenzene in presence of either 2-propanol and molecular H₂ over Fe doped BaTiO₃ catalysts.

Although Perovskite type mixed oxides have been used previously for a variety of reactions including oxidation of CO²⁷ and NH₃,²⁸ and NO_x decomposition.²⁹ Their application for catalytic reduction of nitrobenzene is still unexplored. Hence in the present manuscript we describe the development of solid phase, reusable and robust catalyst with high catalytic activity and selectivity for the selective reduction of nitrobenzene to azoxybenzene. The catalysts were thoroughly characterized using electron microscopy, XRD, FT-IR, (see, Fig. S2, ESI†) N₂ physisorption methods (see, Table S1, ESI†).

The indexed PXRD patterns of BaTi_1−xFe_xO₃ (0.0 ≤ x ≤ 0.3) powders calcined at 850 °C for 4 h (Fig. S1, ESI†) showed BaTiO₃ (BTO) phase (JCPDS no. 031-0174) with cubic symmetry and space group, Pm3̄m. XRD patterns of the Fe doped samples were matched with the XRD of the BTO sample and shows doping at B site. Trace amounts of BaCO₃ was observed as impurity in the catalysts. The formation of BaCO₃ phase might be due to the reaction between BaO and CO₂ produced at the elevated temperature during calcinations.

Transmission electron microscopic images of the catalysts (Fig. 1) illustrates a narrow distribution of particle sizes, in the range of 40–50 nm for BaTiO₃ (Fig. 1A) and in the range of 30–40 nm for Fe doped BaTiO₃ catalysts (Fig. 1B–D). The particles are spherical in shape and are agglomerated. The particle size estimated from TEM reasonably agree (see, Table S2, ESI†) with those obtained from XRD (30 to 60 nm) using Scherrer equation. There is a decrease in the average particle size for Fe doped BTO catalysts with increase in Fe content in the catalysts, could be due to the particle growth hindrance caused by oxygen vacancies, lattice distortion as well as internal stress arising from the substitution of Ti with Fe as described by Wei et al.³⁰ Fig. 1E shows a typical lattice image of a 50 nm nanocrystalline grain of BTO catalyst (Fig. 1A). Clear lattice fringes with d₁₁₀ = 0.28 nm reveal that well-crystallized BTO nanoparticles are formed. The surrounding edges of the particle are very smooth and no surface steps were observed. Fig. 1F shows a surface profile HRTEM image of a 50 nm BTO grain (Fig. 1A). It is noticed that the surface facets are parallel to the (100) and (110) planes. Small islands of 3–4 atom layer thickness were frequently observed around the edge of the particle. The contrast variations across Fig. 1F are due to the thickness variations associated with the fine-scale surface facets and surface roughness.

Fig. 1 TEM images of (a) BTO (b) BTO-Fe-2.5 (c) BTO-Fe-5 (d) BTO-Fe-30 (e) lattice image of a 50 nm nanocrystalline grain of BTO (f) surface profile HRTEM image of 50 nm BTO grain.

X-ray photoelectron spectra (XPS) spectra of the Fe 2p region (Fig. S3, ESI†) showed very less intense peaks for BTO-Fe-2.5 and BTO-Fe-5 indicating the high dispersion of Fe particles. BTO-Fe-10 catalyst showed Fe 2p_3/2 broad peak at 713.9 eV and Fe 2p_1/2 at 726.5 eV which was due to Fe³⁺. With further increase in the Fe content all the catalysts showed broad peaks for Fe 2p_3/2 with maxima between 709.25 and 710.52 indicating the presence of both Fe²⁺/Fe³⁺in the catalysts.

The detailed investigation on the optimization of the reaction conditions and discussion is provided in ESI (see, pages S6–S8†). The catalytic reduction performed on pure BTO catalyst in presence of 2-propanol (Table 1, entry 1) showed 99% conversion of nitrobenzene (NB) and 56.4% AOB yield. Whereas, the reaction conducted on the Fe doped catalysts showed 100% NB conversion on the catalysts with Fe content from 2.5 to 15% (BTO-Fe-2.5 to BTO-Fe-15). The decrease in conversion on BTO-Fe-20 and BTO-Fe-30 catalyst is due to presence of iron in its oxidized state as the reaction is conducted in the absence of H₂. This is clearly understood as the reaction results obtained in H₂ atmosphere showed 100% conversion on all the catalysts (see, Table 2, entries 2–7). The maximum yield of 93% AOB was obtained on BTO-Fe-2.5 catalyst and was higher than that of other catalysts indicating 2.5% Fe is the optimal amount to obtain maximum AOB yield. The reduction in AOB yield with increase in Fe content in the catalysts is due to formation of other reduction products like azobenzene and aniline via side reactions (see Scheme 1).

Table 1 Catalytic reduction of nitrobenzene in presence of 2-propanol^a

Ent.	Catalyst	Yield (%)			Conversion (%)	Selectivity (%) AOB
		AOB	AB	AN
a Reaction conditions: nitrobenzene (20 mmol), KOH pellets (20 mmol), catalyst (150 mg) and 2-propanol (20 ml), refluxed for 2–6 h at 80 °C; AOB – azoxybenzene, AB – azobenzene, AN – aniline, conversion %= ((Ci − Cf)/Ci) × 100; (Ci & Cf) – initial and final amount of nitrobenzene (mol%), yield% = (%conversion of nitrobenzene × %selectivity of product)/100.
1	BTO	56.4	21.8	20.8	99	57
2	BTO-Fe-2.5	93	0	7	100	93
3	BTO-Fe-5	82	0	18	100	82
4	BTO-Fe-10	81	0	19	100	81
5	BTO-Fe-15	80	0	20	100	80
6	BTO-Fe-20	56	0.92	35	92	61
7	BTO-Fe-30	59	1	28	88	67
8	BaFeO3	38.8	8.61	31.7	79	49
9	BaO–TiO2–Fe2O3	36.5	9.12	35.8	82	44.5

---

Table 2 Catalytic reduction of Nitrobenzene in presence of H₂^a

Ent.	Catalyst	Yield (%)			Conversion (%)	Selectivity (%) AOB
		AOB	AB	AN
a Reaction conditions: nitrobenzene (20 mmol), KOH pellets (20 mmol), catalyst (150 mg) and 2-propanol (20 ml), refluxed for 2–6 h at 80 °C, %selectivity = (mole% of desired product/mole% of all products) × 100.
1	BTO	64	0	26	90	71
2	BTO-Fe-2.5	92	4	4	100	92
3	BTO-Fe-5	93	0	7	100	93
4	BTO-Fe-10	95	0	5	100	95
5	BTO-Fe-15	86	0	14	100	86
6	BTO-Fe-20	85	0	15	100	85
7	BTO-Fe-30	87	0	13	100	87
8	Fe(NO3)3·9H2O	58	6	24	88	66

---

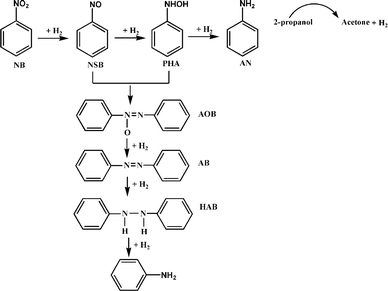

Scheme 1 Reaction pathway for the catalytic reduction of nitrobenzene to azoxybenzene.

For comparison purpose, catalytic reduction of nitrobenzene was also studied on the respective mixed oxide and perovskite such as BaO–TiO₂–Fe₂O₃ and BaFeO₃ catalysts in the presence of 2-propanol. The conversion and yields obtained on these catalysts (see entries 8 and 9 in Table 1) are low compared to all the catalysts in the present study. This result clearly demonstrates the effect of Fe doping in the BaTiO₃ matrix in the catalytic reduction of nitrobenzene.

Molecular H₂ has been employed as the hydrogen source, and the catalytic reduction was performed at atmospheric pressure, (see Table 2). The conversion as well as yield indeed is improved in the presence of H₂ atmosphere. 100% conversion was achieved on all the catalysts (see Table 2, entries 2–7). A maximum AOB yield of 95% was obtained on BTO-Fe-10 catalyst (see entry 4 in Table 2). The better results obtained in the presence of H₂ atmosphere could be due to active metal i.e. iron remain in reduced state under reaction conditions.

For the sake of comparison the catalytic reduction also conducted with homogeneous Fe(NO₃)₃ (150 mg) in the presence of H₂ and the results are presented in Table 2 (entry 8). The conversion of nitrobenzene and selectivity of AOB were found to be lesser compared to Fe supported on BaTiO₃. This result clearly indicates the influence of BaTiO₃ support for Fe for the conversion of nitrobenzene. Optimum content of Fe found to be 2.5 wt% on BaTiO₃ for the conversion of nitrobenzene with 2-propanol. The optimum contents of Fe is found to be 10 wt% on BaTiO₃ for the conversion of nitrobenzene using molecular hydrogen as reducing agent.

From the above results it can be understood that Fe doped catalysts exhibits similar or higher NB conversion, in particular, significantly higher yields towards AOB was achieved than on pure BTO catalyst.

The possible reaction pathways are outlined in Scheme 1. The two reaction routes possible in the catalytic reduction of nitrobenzene are direct route and condensation route. Direct route involves the formation of aniline as the major product. And the condensation route involves a condensation reaction between formed intermediates of nitrosobenzene (NSB) and phenyl hydroxylamine (PHA) leads to the formation of azoxybenzene. The formation of dimeric products of AOB and AB are mainly favoured by a basic reaction environment. Azoxybenzene is easily converted into azobenzene and hydrazobenzene (HAB) which can be subsequently hydrogenolysed to AN at atmospheric pressure. From the above results it can inferred that the Fe on BaTiO₃ is promoting the reductive coupling between NSB and PHA to selectively form the AOB. Whereas, the pure BaTiO₃, BaO–TiO₂–Fe₂O₃, BaFeO₃ and Fe(NO₃)₃·9H₂O are less selective towards AOB formation.

Conclusions

In conclusion, we have developed a highly efficient catalytic system consisting of Fe doped BaTiO₃, for the catalytic reduction of nitrobenzene to azoxybenzene using either 2-propanol or molecular H₂ as hydrogen source and KOH as promoter. This is the first demonstration of the selective catalytic reduction of nitrobenzene to azoxybenzene over solid phase perovskite catalysts using both 2-propanol and molecular H₂ as hydrogen source. This method provides 100% conversion with 93% AOB yield with 2-propanol and 100% conversion with 95% AOB yield with molecular H₂ thus leading to efficient synthesis of azoxybenzene from nitrobenzene. These results indicate that these materials provide great promise towards the important goal of developing improved catalysts for selective catalytic reduction.
