A series of interdigitated Cd(II) coordination polymers based on 4,6-dibenzoylisophthalic acid and flexible triazole ligands

Xiaofei Zhua, Ning Wang*b, Xiaoyan Xiea, Ruibin Houa, Defeng Zhoua, Yafeng Lic, Jun Hua, Xinyuan Lia, He Liua and Wang Niea
aSchool of Chemistry and Life Science, Changchun University of Technology, Changchun, Jilin 130012, China
bSchool of Materials Science and Engineering, Nanyang Technological University, Singapore 639798, Singapore. E-mail: edowise@126.com; Fax: +65 6790 9081; Tel: +65 82567206
cSchool of Chemical Engineering, Changchun University of Technology, Changchun, Jilin 130012, China

Received 10th January 2014 , Accepted 11th February 2014

First published on 14th February 2014


Abstract

A series of Cd(II) coordination polymers has been obtained through hydrothermal self-assembly. During self-assembly, the flexibility and the length of the ligands play an important role in the construction of interdigitated molecular structures, which supports an alternative approach for designing such networks with the use of spacers.


The design and synthesis of novel coordination polymers (CPs) have attracted more and more attention for their potential applications in fluorescence imaging, nonlinear optics, magnetism and catalysis.1 As an important class of materials in this field, entangled CPs in particular have attracted great interest due to their intriguing structures and special properties.2 Up to now, some reviews about entangled systems have been written by Robson, Batten, Ma, Ciani and Leigh.3 Robson and his co-workers were the first to describe interdigitation, where side arms of the ligand are necessary for the construction of the entangled system.3a Moreover, some other terminologies, such as polycatenation, polythreading, polyknotting and polymeric chains, have also been defined.3c In principle, the entanglement can be driven by carefully selecting the coordination geometry of the metal centers and the organic ligands with flexible coordination modes.4 In the past few decades, much effort has been devoted to the design and synthesis of novel entangled networks.5 However, it still remains a challenge to clarify which factor controls the construction of the entangled system.

According to the literature,6 multi-carboxylate aromatic ligands have been widely used due to their flexible coordination modes. In this regard, 4,6-dibenzoylisophthalic acid (H2L)7 should be a good candidate for the construction of entangled CPs. To begin with, the two carboxylate groups of H2L can bridge metal ions to form various frameworks through its versatile coordination modes. Then, a bulky benzoyl group on the benzene ring can rotate around the C–C bond to generate various geometric conformations. Last but not least, flexible non-covalent interactions can be expected, i.e. hydrogen bonds, π⋯π stacking and X–H⋯π (X = C, N, O) interactions, due to the carbonyl groups and the middle benzene ring, which is expected to play an important role in the guidance of the entangled self-assembly. On the other hand, flexible N-donor ligands with excellent coordination abilities have also been proven to be suitable for the construction of entangled networks.8

Herein, we try to utilize H2L and flexible N-donor ligands, 1,6-di(1H-1,2,4-triazol-1-yl)hexane (L1), 1,4-bis(pyridin-4-ylmethyl)piperazine (L2) and 1,3-bis((1H-1,2,4-triazol-1-yl)methyl)benzene (L3) (Scheme S1), to assemble entangled coordination polymers with Cd(II) ions under hydrothermal conditions. Three new coordination polymers, namely, [Cd(L)(L1)] (1), [Cd(L)(L2)] (2) and [Cd(L)(L3)] (3),1 have been successfully synthesized and characterized.9 Both 1 and 2 feature a 2D → 3D interdigitated network with a 44-sql topology proven by single-crystal X-ray diffraction analyses (Table S2), whilst 3 exhibits a 36-hxl topological network without any interdigitation. Additionally, the fluorescence properties of 1–3 were also studied in detail.

Complex 1 crystallizes in the triclinic space group P[1 with combining macron]. The asymmetric unit of 1 comprises one crystallographically independent Cd(II) ion, one L2− anion and one L1 ligand. As shown in Fig. 1a, the Cd1 ion is coordinated by four O atoms (O1, O2#1, O3, and O4) from the three L ligands (Cd–O 2.220(2)–2.493(2) Å) and two N atoms (N1 and N4) from the two L1 ligands (Cd–N 2.285(4)–2.295(5) Å), forming a distorted CdN2O4 octahedral geometry. Viewing it along the a-axis, the Cd ions of 1 are connected by μ31111-bridging L2− linkers to generate a 1D {CdL} chain with an adjacent Cd⋯Cd distance of 4.439 and 7.329 Å (Fig. 1b and S3). L1 ligands link the neighboring chains into a 2D layered structure with a 44-sql topology (Fig. 1c).10 Interestingly, the bulky benzoyl groups of the L2− anions act as lateral arms projecting beyond both sides of the layers. And, thanks to these bulky benzoyl groups, the adjacent 2D sheets of 1 interdigitate to generate a 2D → 3D interdigitation network (Fig. 1d). Moreover, the weak C20–H20⋯O6 hydrogen bonding interactions should be helpful to guide the self-assembly, and stabilize the 3D supramolecular architecture of 1.


image file: c4ra00246f-f1.tif
Fig. 1 (a) Coordination environment of the Cd ion of 1. Symmetry codes: #1, 1 − x, 1 − y, 1 − z. (b) View of the 1D {Cd(L)}n chain of 1. (c) Schematic depiction of the 44-sql layer of 1. (d) The 3D supramolecular structure of 1 contains a feature of 2D → 3D interdigitation. The C20–H20⋯O6 hydrogen bonding interactions are shown by dashed red lines.

With regard to compound 2, due to the more rigid L2, a different framework was obtained. 2 crystallizes in the monoclinic space group P21/c. The asymmetric unit of 2 contains one crystallographically independent Cd(II) ion, one L2− anion and two half-L2 molecules. Similar to compound 1, the Cd1 ion is six-coordinated by four O atoms (O1, O2, O3#1, and O4#2) from the three L ligands (Cd–O 2.227(3)–2.408(3) Å) and two N atoms (N1 and N4) from the two L2 ligands (Cd–N 2.311(4)–2.330(4) Å), forming a distorted CdN2O4 octahedral geometry (Fig. S1a). The Cd ions of 2 are also connected by L2− linkers to form 1D {CdL}n chains, which are further linked by L2 ligands to generate a 2D layered structure with a 44-sql topology (Fig. S1b and S1c).10 However, different to 1, the layers of 2 are alternately arranged in an ABA fashion (Fig. S1d). As the lateral arms of the bulky benzoyl groups project beyond both sides of the layers, the 2D layers of 2 interdigitate with each other to generate a 2D → 3D interdigitation (Fig. S1d). Meanwhile, the weak C31–H31a⋯O6 hydrogen bonds should also be helpful to guide and stabilize the 3D supramolecular architecture of 2.

L3 is shorter and more rigid than both L1 and L2, which may be not helpful to guide the interdigitation of compound 3. In the crystal structure of 3, the asymmetric unit contains one crystallographically independent Cd(II) ion, two half-L2− anions and two half-L3 molecules. The Cd ions are six-coordinated by four O atoms (O1, O2, O3, and O4#1) and two N atoms (N1 and N4) to generate a distorted CdN2O4 octahedral geometry and are then connected by the L2− linkers to form 1D {CdL}n chains (Fig. S2a and S2b). It is worth noting that although similar coordination environments of Cd ions and 1D {CdL}n chains to those of compounds 1 and 2 can be found in 3 (Fig. S3), the significantly different framework was formed after self-assembly. In 3, 1D {CdL}n chains are connected by L3 molecules to form a 2D layered structure with a 36-hxl topology (Fig. 2a).10 As the flexibility was reduced gradually from L1 to L3, the tilt angles of the L2− anions (opposed to the plane of the 2D layer) decreased steadily from 1 to 3 (Fig. 3). Thus, no interdigitation of the 2D sheets can be found in compound 3 (Fig. 2b). This result indicates that the entanglement of the framework can be efficiently adjusted by intentionally designing the flexibility of the bridging ligands.


image file: c4ra00246f-f2.tif
Fig. 2 (a) Schematic depiction of the 36-hxl layer of 3. (b) View of the 3D supramolecular structure of 1 based on C25–H25a⋯O6 hydrogen bonding interactions (dashed black lines).

image file: c4ra00246f-f3.tif

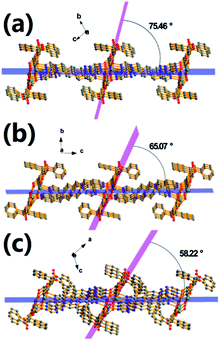

Fig. 3 View of the tilt angles of the H2L molecules in (a) 1, (b) 2 and (c) 3.

The purity of the title compounds was characterized by powder X-ray diffraction (PXRD) (Fig. S4–S6). The experimental PXRD patterns corresponded well with the results simulated from the single crystal data, indicating high purity of the synthesized samples. Thermogravimetric analysis was carried out for compounds 1–3, in order to investigate their thermal stability (Fig. S7). The experiments were performed under a N2 atmosphere with a heating rate of 10 °C min−1. All of the three samples exhibit a similar thermal decomposition process with only one decomposition step, and the organic groups start to decompose gradually from 287 °C for 1, 284 °C for 2 and 265 °C for 3.

The solid-state fluorescence spectra of 1–3 (Fig. 4) and the free ligands H2L, L1, L2 and L3 (Fig. S8) were recorded at room temperature. The main emission bands of the free ligands H2L, L1, L2 and L3 are at 454 (λex = 373 nm), 445 (λex = 327 nm), 461 (λex = 327 nm), and 458 nm (λex = 372 nm), respectively. These emission bands can be assigned to the π* → n or π* → π transitions as previously reported. The emission spectra of compounds 1–3 exhibit emission maxima at 500 nm (λex = 350 nm), 522 nm (λex = 350 nm) and 508 nm (λex = 380 nm), respectively. The emission bands of compounds 1–3 are similar to those of the free ligands. Since the Zn(II) and Cd(II) ions are difficult to oxidize or to reduce due to their d10 configuration, the emissions of compounds 1–3 are neither metal-to-ligand charge transfer (MLCT) nor ligand-to-metal charge transfer (LMCT) in nature.11 Thus, the emission may be assigned to the transitions of both H2L and N-donor ligands. Compared with the emission spectra of H2L and N-donor ligands, red shifts of the emission bands for 1–3 have been observed, probably due to the deprotonated effect and the coordination interactions of H2L and N-donor ligands to Cd(II) ions.11,12


image file: c4ra00246f-f4.tif
Fig. 4 Emission spectra of 1–3 in the solid state at room temperature.

Conclusions

In summary, three Cd(II) coordination polymers have been synthesized under hydrothermal conditions in the presence of H2L and flexible N-donor ligands. Both 1 and 2 feature a 2D → 3D interdigitated network with a 44-sql topology under the guidance of flexible L1 and L2. In comparison, compound 3 shows a 36-hxl topological framework without any interdigitation due to the lower flexibility of L3. It can be deduced that the length and flexibility of the ligands can significantly influence the interdigitation level of the crystal structure. In other words, the more flexible and longer the ligands, the more able they are to obtain interdigitated structures. This observation provides an alternative approach to the systematic assembly of interdigitated structures for coordination polymers.

Acknowledgements

This work was supported by the NNSFC (no. 20871023), the Jilin Provincial Science Research Foundation of China (no. 20101549), and the XiaoNei Foundation of Changchun University of Technology. The 12th Five-Year Plan for Science & Technology Research was sponsored by the Department of Education of Jilin Province (no. 130 and 146, 2013).

Notes and references

  1. (a) N. W. Ockwig, O. Delgado-Friedrichs, M. O'Keeffe and O. M. Yaghi, Acc. Chem. Res., 2005, 38, 176 CrossRef CAS PubMed; (b) Y. Cui, Y. Yue, G. Qian and B. Chen, Chem. Rev., 2011, 112, 1126 CrossRef PubMed; (c) C. Wang, T. Zhang and W. Lin, Chem. Rev., 2011, 112, 1084 CrossRef PubMed; (d) M. Kurmoo, Chem. Soc. Rev., 2009, 38, 1353 RSC; (e) M. Yoon, R. Srirambalaji and K. Kim, Chem. Rev., 2011, 112, 1196 CrossRef PubMed.
  2. (a) X. H. Bu, M. L. Tong, H. C. Chang, S. Kitagawa and S. R. Batten, Angew. Chem., Int. Ed., 2004, 43, 192 CrossRef CAS PubMed; (b) M. H. Zeng, W. X. Zhang, X. Z. Sun and X. M. Chen, Angew. Chem., Int. Ed., 2005, 44, 3079 CrossRef CAS PubMed; (c) H. Wu, H. Y. Liu, Y. Y. Liu, J. Yang, B. Liu and J. F. Ma, Chem. Commun., 2011, 47, 1818 RSC; (d) J. Yang, J. F. Ma, S. R. Batten and Z. M. Su, Chem. Commun., 2008, 44, 2233 RSC; (e) D. Sun, L. L. Han, S. Yuan, Y. K. Deng, M. Z. Xu and D. F. Sun, Cryst. Growth Des., 2013, 13, 377 CrossRef CAS.
  3. (a) S. R. Batten, B. F. Hoskins and R. Robson, Chem. – Eur. J., 2000, 6, 156 CrossRef CAS PubMed; (b) J. Yang, J. F. Ma and S. R. Batten, Chem. Commun., 2012, 48, 7899 RSC; (c) L. Carlucci, G. Ciani and D. M. Proserpio, Coord. Chem. Rev., 2003, 246, 247 CrossRef CAS; (d) L. Carlucci, G. Ciani and D. M. Proserpio, CrystEngComm, 2003, 5, 269 RSC; (e) J. E. Beves, B. A. Blight, C. J. Campbell, D. A. Leigh and R. T. McBurney, Angew. Chem., Int. Ed., 2011, 50, 9260 CrossRef CAS PubMed.
  4. (a) Y. L. Gai, F. L. Jiang, L. Chen, Y. Bu, M. Y. Wu, K. Zhou, J. Pan and M. C. Hong, Dalton Trans., 2013, 42, 9954 RSC; (b) Y. H. Luo, F. X. Yue, X. Y. Yu, L. L. Gu, H. Zhang and X. Chen, CrystEngComm, 2013, 15, 8116 RSC; (c) J. Yang, J. Liu, X. Wang, X. Chi, J. Zhang, H. Zhang, D. Xiao and Q. Luo, CrystEngComm, 2013, 15, 10435 RSC; (d) X. He, X. P. Lu, Y. Y. Tian, M. X. Li, S. Zhu, F. Xing and R. E. Morris, CrystEngComm, 2013, 15, 9437 RSC.
  5. (a) B. Xu, Z. Lin, L. Han and R. Cao, CrystEngComm, 2011, 13, 440 RSC; (b) B. Xu, J. Lü and R. Cao, Cryst. Growth Des., 2009, 9, 3003 CrossRef CAS; (c) J. K. Sun, Q. X. Yao, Y. Y. Tian, L. Wu, G. S. Zhu, R. P. Chen and J. Zhang, Chem. – Eur. J., 2012, 18, 1924 CrossRef CAS PubMed; (d) X. L. Wang, C. Qin, E. B. Wang, Y. G. Li, Z. M. Su, L. Xu and L. Carlucci, Angew. Chem., Int. Ed., 2005, 44, 5824 CrossRef CAS PubMed.
  6. (a) S. Leininger, B. Olenyuk and P. J. Stang, Chem. Rev., 2000, 100, 853 CrossRef CAS PubMed; (b) D. Yuan, D. Zhao, D. Sun and H. C. Zhou, Angew. Chem., Int. Ed., 2010, 49, 5357 CrossRef CAS PubMed; (c) D. Zhao, D. Yuan, D. Sun and H. C. Zhou, J. Am. Chem. Soc., 2009, 131, 9186 CrossRef CAS PubMed; (d) G. Férey, C. Serre, C. Mellot-Draznieks, F. Millange, S. Surblé, J. Dutour and I. Margiolaki, Angew. Chem., 2004, 116, 6456 CrossRef; (e) S. C. Manna, S. Mistri and A. D. Jana, CrystEngComm, 2012, 14, 7415 RSC.
  7. (a) D. Du, Z. Jiang, C. Liu, A. M. Sakho, D. Zhu and L. Xu, J. Organomet. Chem., 2011, 696, 2549 CrossRef CAS; (b) Y. H. Luo, F. X. Yue, X. Y. Yu, X. Chen and H. Zhang, CrystEngComm, 2013, 15, 6340 RSC; (c) Y. Pang, D. Tian, X.-F. Zhu, Y.-H. Luo, X. Zheng and H. Zhang, CrystEngComm, 2011, 13, 5142 RSC.
  8. (a) J. K. Sun, Q. X. Yao, Z. F. Ju and J. Zhang, CrystEngComm, 2010, 12, 1709 RSC; (b) Y. Q. Lan, S. L. Li, J. S. Qin, D. Y. Du, X. L. Wang, Z. M. Su and Q. Fu, Inorg. Chem., 2008, 47, 10600 CrossRef CAS PubMed; (c) B. F. Hoskins, R. Robson and D. A. Slizys, J. Am. Chem. Soc., 1997, 119, 2952 CrossRef CAS; (d) D. Sun, Z. H. Yan, Y. K. Deng, S. Yuan, L. Wang and D. F. Sun, CrystEngComm, 2012, 14, 7856 RSC.
  9. A typical synthesis method: a mixture of CdCl2·2.5H2O (22.8 mg, 0.1 mmol), H2L (37.4 mg, 0.1 mmol), N-donor ligands (22.3 mg for L1, 26.8mg for L2 and 24.3 mg for L3, 0.1 mmol) and H2O (10 mL) was stirred for 30 min, and the pH of the mixture was adjusted to 5.5 with 0.1 mol L−1 NaOH solution. Then it was sealed in a 23 mL Teflon reactor and heated at 160 °C for 72 h. After cooling to room temperature at a rate of 3 °C h−1, colorless crystals were isolated by filtration, washed with water, and air-dried. For 1: about 60% yield based on Cd. Anal. Calcd for C32H28CdN6O6 (705.01): C, 54.52; H, 4.00; N, 11.92%. Found: C, 54.61; H, 3.93; N, 11.85%. IR (KBr, cm−1): 3061 (w), 2940 (w), 2865(w), 1671 (s), 1600 (s), 1476 (w), 1428 (m), 1382 (s), 1346 (s), 1250 (m), 1136 (w), 1011 (w), 918 (w), 885 (m), 816 (m), 761 (m), 710 (m), 671(w), 621 (w), 524 (w), 482 (w). For 2: about 42% yield based on Cd. Anal. Calcd for C38H32CdN4O6 (753.08): C, 60.60; H, 2.96; N, 7.44%. Found: C, 60.68; H, 3.03; N, 7.35%. IR (KBr, cm−1): 3040 (w), 2941 (w), 2813 (w), 1668 (s), 1617 (s), 1578 (w), 1480 (m), 1402 (s), 1346 (m), 1261 (w), 1135 (w), 1061 (w), 1009 (w), 947 (m), 914 (m), 850 (m), 801 (m), 693 (m), 540(w), 488 (w). For 3: about 55% yield based on Cd. Anal. Calcd for C34H24CdN6O6 (725.00): C, 56.33; H, 3.34; N, 11.59%. Found: C, 56.41; H, 3.43; N, 11.65%. IR (KBr, cm−1): 3437 (W), 3110 (w), 1669 (s), 1598 (s), 1521 (s), 1433 (m), 1381 (s), 1261 (m), 1132 (w), 1014 (w), 976 (w), 886 (m), 815 (m), 734 (m), 671 (m), 526 (w).
  10. (a) V. A. Baltov, Multipurpose crystallochemical analysis with the program package TOPOS, IUCr CompComm Newsletter, 2006, 4–38 Search PubMed; (b) M. O'Keeffe and S. T. Hyde, Zeolites, 1997, 19, 370 CrossRef.
  11. (a) T. L. Hu, R. Q. Zou, J. R. Li and X. H. Bu, Dalton Trans., 2008, 20, 1302 RSC; (b) L. F. Ma, Q. L. Meng, C. P. Li, B. Li, L. Y. Wang, M. Du and F. P. Liang, Cryst. Growth Des., 2010, 10, 3036 CrossRef CAS; (c) L. F. Ma, C. P. Li, L. Y. Wang and M. Du, Cryst. Growth Des., 2010, 10, 2641 CrossRef CAS.
  12. F. F. Li, J. F. Ma, S. Y. Song, J. Yang, Y. Y. Liu and Z. M. Su, Inorg. Chem., 2005, 14, 9374 CrossRef PubMed.

Footnote

Electronic supplementary information (ESI) available: Materials and general methods, single-crystal X-ray crystallography, Fig. S1–S8 and Tables S1–S6. CCDC 975867 (1), 890982 (2) and 975868 (3). For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c4ra00246f
