Cooperative effect in organocatalytic intramolecular hydroamination of unfunctionalized olefins

Yu-Mei Wang, Ting-Ting Li, Gong-Qing Liu, Li Zhang, Lili Duan, Lin Li and Yue-Ming Li*
College of Pharmacy and Tianjin Key Laboratory of Molecular Drug Research, Nankai University, 94 Weijin Road, Tianjin 300071, People's Republic of China. E-mail: ymli@nankai.edu.cn; Fax: +86 22 23507760; Tel: +86 22 23504028

Received 26th November 2013 , Accepted 21st January 2014

First published on 23rd January 2014


Abstract

The cooperative effect in organocatalytic hydroamination of unfunctionalized olefins was reported. In the presence of 3-hydroxy-2-naphthoic acid, N-benzyl 4-penten-1-amines and 5-hexen-1-amines produced the intramolecular cyclization products in good isolated yields.


Nitrogen-containing heterocyclic compounds are paramount in medicinal chemistry,1 and different methods have been developed for the preparation of nitrogen-containing heterocycles.2 These methods include electrophile-induced cyclization of N-protected pent-4-en-1-amines or pent-4-en-1-imines with bromine3 or PhSeBr.4 The thus obtained functionalized heterocycles could be converted to 2-methylpyrrolidines upon LiAlH4 (ref. 3) or tributylstannane5 reduction. Similarly, ring expansion of substituted aziridines6 or azetidines7 furnished a variety of substituted pyrrolidines and piperidines in good to excellent yields.

Among the variety of methods developed, intramolecular hydroamination of C[double bond, length as m-dash]C double bonds should be one of the most straightforward ones for the formation of C–N bonds and N-containing heterocycles.8 This has been realized by using organolanthanides or other rare earth metal,9 group-IV metal,10 noble metal such as palladium,11 platinum,12 silver,13 gold,14 rhodium,15 iridium16 and ruthenium17 compounds as well as some first row transition metal compounds18 as catalysts. In addition, Brønsted acids were also used to promote the intramolecular hydroamination of several unfunctionalized olefins bearing amide functional groups. Using triflic or sulphuric acid as catalyst, intramolecular hydroamination of N-tosylamides proceeded readily, giving the corresponding N-tosyl pyrrolidines and piperidines in high yields,19 and triflic acid was effective for intermolecular hydroamination of unfunctionalized C[double bond, length as m-dash]C bonds as well.20 The rate determining step was the formation of a carbocation intermediate via proton transfer to the C[double bond, length as m-dash]C double bond, and the hydroamination product was produced by trapping the intermediate with sulfonamide nitrogen. Based on this rationale, perfluorous sulfonic acid21 or heteropoly acids22 were also used to promote hydroamination of unfunctionalized olefins bearing electron deficient nitrogen atoms. In contrast, Brønsted acid-promoted electron rich nitrogen sources-involved intramolecular hydroamination of unfunctionalized olefins were rare.23 In this communication, we wish to report the effect of cooperative catalysis on organocatalytic hydroamination of N-alkyl amino alkenes.

Benzoic acid in combination with palladium compounds has been reported to promote hydroamination of alkynes.24 In our course of searching for new catalyst systems for intramolecular hydroamination of unfunctionalized olefins bearing electron-rich amino groups, we found that aromatic acids alone could also promote the hydroamination of electron-rich amine substrate N-benzyl-2,2-diphenyl-4-penten-1-amine (1a). In the presence of 20 mol% of salicylic acid, 58% of 1a was converted to hydroamination product N-benzyl 2-methyl-4,4-diphenylpyrrolidine (2a) after 24 hours (Scheme 1).


image file: c3ra47060a-s1.tif
Scheme 1 Salicylic acid promoted hydroamination.

Encouraged by this result, the reaction was further studied to get detailed understanding of the reaction. Table 1 summarised the results from different solvents. These results indicated that high temperature was generally needed for an efficient hydroamination reaction, and polar solvents such as THF, DMSO or 1,4-dioxane would interact efficiently with the catalyst which would in turn affect its interaction with the substrates (entries 2, 6, and 7), and these solvents were generally unsuitable for the reaction. Xylene was found to be a suitable solvent (entry 4) for the reaction possibly due to the high boiling point of the solvent which could ensure a high temperature required for the reaction. The amount of salicylic acid also showed some impact on the reaction (entries 4, and 8–12) and 20 mol% of catalyst was enough to promote the reaction (entry 11).

Table 1 Solvent effect in salicylic acid-promoted hydroaminationa
Entry Solvent T (°C) Conversionb (%)
a Reaction time: 24 hours.b Based on crude NMR analysis of the reaction mixture.c NR = no reaction.d Amount of salicylic acid: 5 mol%.e Amount of salicylic acid: 10 mol%.f Amount of salicylic acid: 15 mol%.g Amount of salicylic acid: 40 mol%.h Amount of salicylic acid: 60 mol%.
1 EDC 90 19
2 THF 70 NRc
3 Benzene 90 Trace
4 Xylene 130 91
5 Toluene 120 58
6 DMSO 130 19
7 1,4-Dioxane 100 14
8d Xylene 130 26
9e Xylene 130 63
10f Xylene 130 86
11g Xylene 130 90
12h Xylene 130 91


As a bifunctional molecule, salicylic acid could work differently to promote the reaction. While the carboxyl group would act as a Brønsted acid, the hydroxyl group could act either as a hydrogen bond donor (H atom) or as a hydrogen bond acceptor (O atom). To study the role of hydroxyl group in the reaction and to find a suitable organocatalyst for the intramolecular hydroamination of 1a, Brønsted acids with different functional groups were tested, and the results were summarised in Table 2.

Table 2 Intramolecular hydroamination of 1a with different acidsa
Entry Catalyst R Yield (%) Entry Catalyst Yield (%)
a Reaction conditions: solvent = xylene (reflux), reaction time = 24 hours, catalyst loading = 20 mol%.
1 image file: c3ra47060a-u1.tif o-OH 91 15 image file: c3ra47060a-u6.tif Trace
2 o-OMe Trace 16 image file: c3ra47060a-u7.tif (R)-: 77
3 o-SH 52 17 (S)-: 85
4 o-COOH 33% 18 image file: c3ra47060a-u8.tif 47
5 H 13 19 image file: c3ra47060a-u9.tif 5
6 m-OH 27
7 p-OH 21
8 image file: c3ra47060a-u2.tif H 9
9 p-SO3H 9
10 image file: c3ra47060a-u3.tif NH2 No reaction
11 OH 22
12 image file: c3ra47060a-u4.tif   19
13 image file: c3ra47060a-u5.tif 1-OH 17
14 3-OH 99


As indicated in Table 2, a significant cooperative effect was observed in the reaction, i. e., both the hydroxyl group and the carboxyl group were important, and they acted cooperatively to promote the intramolecular hydroamination of 1a. Carboxyl group or hydroxyl group alone was not powerful enough to promote the reaction as indicated by the results from benzoic acid (entry 5) and phenol (entry 8). Results from o-, m- and p-hydroxybenzoic acids (entries 1, 6 and 7) indicated that the distance between hydroxyl group and carboxyl group was also a very important factor governing the reaction. Further, the acidity of the Brønsted acid seemed also to be a crucial factor for the reaction, and sulfonic acids (entries 9–12) didn't show any beneficial effects on the reaction. The use of weaker Brønsted acid allows the presence of an acid base equilibrium that preserves some free acid as well as free amino group in the reaction system, and the use of a strong Brønsted acid would force the equilibrium completely towards the deprotonated species and the ammonium would not be able to undergo any hydroamination reaction. This is also the reason why previous reports mainly focused on amide substrates. Results from salicylic acid (entry 1) and o-anisic acid (entry 2) indicated that the hydroxyl group acted as a hydrogen bond donor in the reaction, and changing the hydrogen bond donor (OH in salicylic acid, entry 1) to hydrogen bond acceptor (OMe in o-anisic acid, entry 2) led to a sharp drop of the reactivity. After a thorough survey of the available acids, 3-hydroxy-2-naphthoic acid (entry 14) was found to be an ideal catalyst for intramolecular hydroamination of 1a.

Reactions of different naphthoic acid isomers (Table 2, entries 13 and 14) also showed a stereo demanding feature of the reaction. While 3-hydroxy-2-naphthoic acid (3) led to complete conversion of the substrate 1a, 1-hydroxy-2-naphthoic acid (4) gave only 17% conversion of the substrate under otherwise identical conditions. We reasoned that during the reaction, carboxyl group would act as an acid to activate the C[double bond, length as m-dash]C double bond, and hydroxyl group will bring the amino group to the reaction centre through hydrogen bond. Due to the 1,8-repulsion of 1-hydroxy-2-naphthoic acid (4), the hydrogen bond between N-substituted amino groups and 4 may not be strong enough to initiate a reaction. In the case of compound 3, the 3-hydroxy group was open to the substrates, and the access of N-substituted amino groups was not affected (Fig. 1).


image file: c3ra47060a-f1.tif
Fig. 1 Low catalytic activity of 1-hydroxy-2-naphthoic acid caused by 1,8-repulsion.

After establishing a general procedure for intramolecular hydroamination of 1a, the scope of the substrates was studied. The reactions were carried out in xylene at refluxing temperature, 20 mol% of 3-hydroxy-2-naphthoic acid (3) was used as catalyst, and the results were summarised in Table 3.

Table 3 Intramolecular hydroamination of unfunctionalized olefins catalysed by 3-hydroxy-2-naphthoic acida

image file: c3ra47060a-u10.tif

Entry Substrate R1 n R2 Yieldb (%)
a Catalyst loading = 20 mol%.b Isolated yields.c Reaction time = 72 hours.d NR = no reaction.
1 1a Ph 1 Bn 92
2 1b Ph 1 4-MeBn 90
3 1c Ph 1 4-MeOBn 83
4 1d Ph 1 4-FBn 92
5 1e Ph 1 4-ClBn 87
6 1f Ph 1 4-O2NBn 58
7 1g Ph 1 iBu 70
8 1h Ph 1 nBu 65
9c 1i Ph 2 Bn 63
10c 1j Ph 2 4-MeBn 60
11c 1k Ph 2 4-MeOBn 61
12c 1l Ph 2 4-FBn 58
13c 1m Ph 2 4-ClBn 58
14 1n Me 1 Bn 46
15c 1o Me 2 Bn 46
16 1p –(CH2)5 1 Bn 67
17 1q Ph 1 Ts NRd
18 1r H 1 nBu NR
19 1s H 1 Bn NR


As indicated in Table 3, both 2-methylpyrrolidines and 2-methylpiperdines could be prepared via intramolecular hydroamination of the open chain aminoolefins. Thorpe–Ingold effect was observed in the reaction,25 and substrates without substituents on the main chain failed to react (entries 19 and 20). N-substituted 5-hexen-1-amines (entries 9–13, and entry 15) generally showed low reactivity comparing to their 4-penten-1-amine counterparts (entries 1–8), possibly due to the unfavourable entropy nature of the reaction.

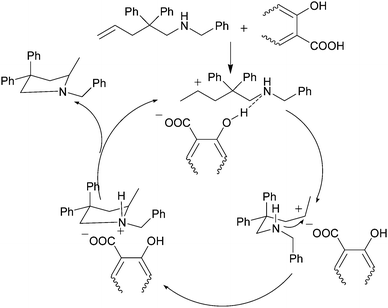

On the basis of the current results, a tentative reaction mechanism was drawn in Scheme 2. At room temperature, carboxyl group and amino group would interact with each other through electrostatic interaction,19 and no reaction would occur at this stage. This also accounts for the high temperature needed for Brønsted acid-catalysed hydroamination reactions. At high temperature, interaction of free carboxyl group with C[double bond, length as m-dash]C double bond leads to the activation of the latter, and nucleophilic attack of amino group on the activated C[double bond, length as m-dash]C double bond produced the hydroamination product. N-tosyl amide (entry 18 of Table 3) failed to react, possibly due to the weak hydrogen bond between the catalyst hydroxyl group and the substrate amide as well as the low nucleophilicity of the nitrogen atom.


image file: c3ra47060a-s2.tif
Scheme 2 A tentative mechanism of the reaction.

In summary, cooperative effect played an important role in 3-hydroxy-2-naphthoic acid-catalysed hydroamination of unfunctionalized olefins. Carboxyl group activated the C[double bond, length as m-dash]C double bond, and hydroxyl group was responsible for bringing the amino group to the reaction centre. The current work would shed light on the design of organocatalysts for intramolecular hydroamination of unfunctionalized olefins.

Acknowledgements

We acknowledge the financial support from National Natural Science Foundation of China (NSFC 20972072, NSFC 21272121).

Notes and references

  1. (a) B. Alcaide, P. Almendros and C. Aragoncillo, Curr. Opin. Drug Discovery Dev., 2010, 13, 685–697 CAS; (b) K. Salat, A. Moniczewski and T. Librowski, Mini-Rev. Med. Chem., 2013, 13, 335–352 CAS; (c) A. Verma, M. R. Yadav, R. Giridhar, N. Prajapati, A. C. Tripathi and S. K. Saraf, Comb. Chem. High Throughput Screening, 2013, 16, 345–393 CAS.
  2. (a) H. Kiyota, in Bioactive Heterocycles I, ed. S. Eguchi, 2006, pp. 181–214 Search PubMed; (b) K. C. Majumdar, S. Muhuri, R. U. Islam and B. Chattopadhyay, Heterocycles, 2009, 78, 1109–1169 CAS; (c) R. Ferraccioli, Synthesis-Stuttgart, 2013, 45, 581–591 CAS.
  3. N. de Kimpe, M. Boelens, J. Piqueur and J. Baele, Tetrahedron Lett., 1994, 35, 1925–1928 CAS.
  4. N. De Kimpe and M. Boelens, J. Chem. Soc., Chem. Commun., 1993, 916–918 CAS.
  5. D. De Smaele and N. De Kimpe, J. Chem. Soc., Chem. Commun., 1995, 2029–2030 CAS.
  6. M. D'Hooghe, W. Aelterman and N. De Kimpe, Org. Biomol. Chem., 2009, 7, 135–141 CAS.
  7. W. Van Brabandt, R. Van Landeghem and N. De Kimpe, Org. Lett., 2006, 8, 1105–1108 CAS.
  8. (a) M. Nobis and B. Driessen-Holscher, Angew. Chem., Int. Ed., 2001, 40, 3983–3985 CrossRef CAS; (b) J. F. Hartwig, Pure Appl. Chem., 2004, 76, 507–516 CrossRef CAS; (c) T. E. Muller, K. C. Hultzsch, M. Yus, F. Foubelo and M. Tada, Chem. Rev., 2008, 108, 3795–3892 Search PubMed; (d) J. Hannedouche and E. Schulz, Chem. – Eur. J., 2013, 19, 4972–4985 CAS.
  9. (a) S. Hong and T. J. Marks, Acc. Chem. Res., 2004, 37, 673–686 CAS; (b) K. C. Hultzsch, D. V. Gribkov and F. Hampel, J. Organomet. Chem., 2005, 690, 4441–4452 CAS.
  10. (a) I. Bytschkov and S. Doye, Eur. J. Org. Chem., 2003, 935–946 CrossRef CAS; (b) A. V. Lee and L. L. Schafer, Eur. J. Inorg. Chem., 2007, 2243–2255 CAS; (c) G. F. Zi, J. Organomet. Chem., 2011, 696, 68–75 CAS.
  11. (a) M. Meguro and Y. Yamamoto, Tetrahedron Lett., 1998, 39, 5421–5424 CAS; (b) M. Kawatsura and J. F. Hartwig, J. Am. Chem. Soc., 2000, 122, 9546–9547 CAS; (c) U. Nettekoven and J. F. Hartwig, J. Am. Chem. Soc., 2002, 124, 1166–1167 CAS; (d) A. M. Johns, M. Utsunomiya, C. D. Incarvito and J. F. Hartwig, J. Am. Chem. Soc., 2006, 128, 1828–1839 CAS; (e) F. E. Michael and B. M. Cochran, J. Am. Chem. Soc., 2006, 128, 4246–4247 CAS.
  12. (a) J. J. Brunet, M. Cadena, N. C. Chu, O. Diallo, K. Jacob and E. Mothes, Organometallics, 2004, 23, 1264–1268 CrossRef CAS; (b) C. F. Bender and R. A. Widenhoefer, J. Am. Chem. Soc., 2005, 127, 1070–1071 CAS; (c) D. Karshtedt, A. T. Bell and T. D. Tilley, J. Am. Chem. Soc., 2005, 127, 12640–12646 CAS.
  13. X. Giner and C. Najera, Synlett, 2009, 3211–3213 CAS.
  14. (a) C. F. Bender and R. A. Widenhoefer, Chem. Commun., 2006, 4143–4144 CAS; (b) C. Brouwer and C. He, Angew. Chem., Int. Ed., 2006, 45, 1744–1747 CAS; (c) X. Q. Han and R. A. Widenhoefer, Angew. Chem., Int. Ed., 2006, 45, 1747–1749 CAS.
  15. (a) M. Beller, H. Trauthwein, M. Eichberger, C. Breindl, J. Herwig, T. E. Muller and O. R. Thiel, Chem. – Eur. J., 1999, 5, 1306–1319 CrossRef CAS; (b) M. Utsunomiya, R. Kuwano, M. Kawatsura and J. F. Hartwig, J. Am. Chem. Soc., 2003, 125, 5608–5609 CrossRef CAS PubMed; (c) X. Q. Shen and S. L. Buchwald, Angew. Chem., Int. Ed., 2010, 49, 564–567 CrossRef CAS PubMed.
  16. (a) R. Dorta, P. Egli, F. Zurcher and A. Togni, J. Am. Chem. Soc., 1997, 119, 10857–10858 CrossRef CAS; (b) J. R. Zhou and J. F. Hartwig, J. Am. Chem. Soc., 2008, 130, 12220–12221 CAS; (c) K. D. Hesp, S. Tobisch and M. Stradiotto, J. Am. Chem. Soc., 2010, 132, 413–426 CAS.
  17. (a) H. Schaffrath and W. Keim, J. Mol. Catal. A: Chem., 2001, 168, 9–14 CAS; (b) M. Utsunomiya and J. F. Hartwig, J. Am. Chem. Soc., 2004, 126, 2702–2703 CAS; (c) C. S. Yi and S. Y. Yun, Org. Lett., 2005, 7, 2181–2183 CAS.
  18. (a) A. Zulys, M. Dochnahl, D. Hollmann, K. Lohnwitz, J. S. Herrmann, P. W. Roesky and S. Blechert, Angew. Chem., Int. Ed., 2005, 44, 7794–7798 CAS; (b) M. Dochnahl, J. W. Pissarek, S. Blechert, K. Lohnwitz and P. W. Roesky, Chem. Commun., 2006, 3405–3407 RSC; (c) J. G. Taylor, N. Whittall and K. K. Hii, Org. Lett., 2006, 8, 3561–3564 CAS; (d) H. Ohmiya, T. Moriya and M. Sawamura, Org. Lett., 2009, 11, 2145–2147 CAS; (e) L. Zhou, D. S. Bohle, H. F. Jiang and C. J. Li, Synlett, 2009, 937–940 CAS; (f) M. Dochnahl, K. Lohnwitz, A. Luhl, J. W. Pissarek, M. Biyikal, P. W. Roesky and S. Blechert, Organometallics, 2010, 29, 2637–2645 CAS; (g) W. D. Rao, P. Kothandaraman, C. B. Koh and P. W. H. Chan, Adv. Synth. Catal., 2010, 352, 2521–2530 CAS; (h) A. Luhl, H. P. Nayek, S. Blechert and P. W. Roesky, Chem. Commun., 2011, 47, 8280–8282 Search PubMed; (i) G. Q. Liu and Y. M. Li, Tetrahedron Lett., 2011, 52, 7168–7170 CAS; (j) J. Jenter, A. Luhl, P. W. Roesky and S. Blechert, J. Organomet. Chem., 2011, 696, 406–418 CAS; (k) A. Mukherjee, T. K. Sen, P. K. Ghorai, P. P. Samuel, C. Schulzke and S. K. Mandal, Chem. – Eur. J., 2012, 18, 10530–10545 CAS; (l) B. W. Turnpenny, K. L. Hyman and S. R. Chemler, Organometallics, 2012, 31, 7819–7822 CAS.
  19. B. Schlummer and J. F. Hartwig, Org. Lett., 2002, 4, 1471–1474 CAS.
  20. D. C. Rosenfeld, S. Shekhar, A. Takemiya, M. Utsunomiya and J. F. Hartwig, Org. Lett., 2006, 8, 4179–4182 CAS.
  21. (a) Y. Yin and G. Zhao, Chimica Oggi/Chemistry Today, 2007, 25, 42–45 Search PubMed; (b) Y. Yin and G. Zhao, J. Fluorine Chem., 2007, 128, 40–45 CAS.
  22. (a) L. Yang, L. W. Xu and C. G. Xia, Tetrahedron Lett., 2008, 49, 2882–2885 CAS; (b) N. Lingaiah, N. S. Babu, K. M. Reddy, P. S. S. Prasad and I. Suryanarayana, Chem. Commun., 2007, 278–279 CAS.
  23. (a) L. Ackermann and A. Althammer, Synlett, 2008, 995–998 CrossRef CAS PubMed; (b) J. G. Taylor, L. A. Adrio and K. K. Hii, Dalton Trans., 2010, 39, 1171–1175 CAS.
  24. (a) I. Kadota, A. Shibuya, L. M. Lutete and Y. Yamamoto, J. Org. Chem., 1999, 64, 4570–4571 CrossRef CAS; (b) L. M. Lutete, I. Kadota, A. Shibuya and Y. Yamamoto, Heterocycles, 2002, 58, 347–357 CAS.
  25. (a) R. M. Beesley, C. K. Ingold and J. F. Thorpe, J. Chem. Soc., Trans., 1915, 107, 1080–1106 CAS; (b) J. Kaneti, A. J. Kirby, A. H. Koedjikov and I. G. Pojarlieff, Org. Biomol. Chem., 2004, 2, 1098–1103 CAS; (c) M. R. Crimmin, M. Arrowsmith, A. G. M. Barrett, I. J. Casely, M. S. Hill and P. A. Procopiou, J. Am. Chem. Soc., 2009, 131, 9670–9685 CAS.

Footnote

Electronic supplementary information (ESI) available. See DOI: 10.1039/c3ra47060a

This journal is © The Royal Society of Chemistry 2014
