Caesalpinimin A, a novel rearranged furanoditerpene with an unprecedented carbon skeleton from the seeds of Caesalpinia minax Hance

Jian-Long Zhang a, Hai-Yan Tiana, Nan-Hao Chenb, Xiang-Yang Baia, Juan Lia, Rong-Rong Zhanga, Rui-Bo Wu*b and Ren-Wang Jiang*a
aCollege of Pharmacy, Jinan University, Guangzhou 510632, P.R. China. E-mail: trwjiang@jnu.edu.cn; Fax: +86-20-85221559; Tel: +86-20-85221016
bSchool of Pharmaceutical Sciences, Sun Yat-sen University, Guangzhou 510006, P.R. China. E-mail: ruibowu@gmail.com

Received 8th November 2013 , Accepted 7th January 2014

First published on 8th January 2014


Abstract

Caesalpinimin A (1), a novel cassane furanoditerpene with an unprecedented carbon skeleton containing a spiro-A/B ring system was isolated from the seeds of Caesalpinia minax. The complete structure and absolute configuration were elucidated by spectroscopic methods and computational analysis.


Cassane furanoditerpenes are intriguing natural products in the context of structural diversity and broad biological activities. They are mainly distributed in the genera Caesalpinia and Pterodon, and characterized by a molecular skeleton constructed from fusion of three cyclohexane rings and a furan ring.1 Some previously isolated cassane furanoditerpenes were reported to show significant antiviral,1 anti-cancer,2 anti-inflammatory, anti-analgesic,3 and plant growth regulation4 activities.

Caesalpinia minax Hance, a member of the genus Caesalpinia, is a prickly scandent shrub distributing widely in the tropics and subtropics. The seeds of this plant (called ‘ku-shi-lian’ in Chinese), have been used as Chinese folk medicine for the treatment of common cold, rheumatism, fever and prostatitis.5,6 During our previous investigation on the active constituents of C. minax from Guangxi province of China, we identified some rearranged cassane diterpenoids with novel carbon skeletons, such as spirocaesalmin with a spiro-CD ring system7 and macrocaesalmin possessing a ten-membered macrocyclic 1,5-diketone ring.8 In our continuous search for structurally unique and biologically interesting cassane furanoditerpene, caesalpinimin A (1), a novel rearranged furanoditerpene (Fig. 1) with an unprecedented carbon skeleton featuring a spiro-A/B ring system, was isolated from this plant collected in Guangdong province (yield 0.000068%). Herein, we describe the isolation, structural elucidation and biological activities of 1.


image file: c3ra46502k-f1.tif
Fig. 1 Chemical structure of 1.

The molecular formula of 1 was established as C24H32O9 deduced from the pseudomolecular ion peak at m/z 487.1920 [M + Na]+ in the positive HRESIMS, indicating nine degrees of unsaturation. The UV spectrum showed the maximum absorptions at 213 and 258 nm, indicating the existence of conjugated system. The IR bands at 3573 and 1737 cm−1 implied the existence of hydroxyl and carbonyl groups, respectively.

The 1H-NMR spectrum showed two adjacent protons on a furan ring at δH 6.41 (1H, d, J = 1.8 Hz, H-15) and 7.21 (1H, d, J = 1.8 Hz, H-16), five signals at δH 0.91 (3H, s, H-19), 1.35 (3H, s, H-18), 1.21 (3H, s, H-20), 1.28 (3H, t, J = 7.1 Hz, 17-OCH2CH3), and 2.08 (3H, s, 7-OAc) ascribable to three tertiary methyls, one primary methyl and one acetoxy methyl, five oxygenated protons at δH 5.68 (1H, t, J = 5.9 Hz, H-2), 5.32 (1H, t, J = 10.8 Hz, H-7), 4.26 and 4.13 (1H each, m, 17-OCH2CH3), 3.80 (1H, dd, J = 11.6, 10.8 Hz, H-6), and an aldehyde proton at δH 9.85 (1H, s, H-1). The 13C NMR and DEPT spectra revealed that 1 possessed 24 carbons, comprising five methyls, three methylenes (including one oxygenated carbon at δC 61.2), three sp2 methine carbons (including one aldehyde carbonyl at δC 203.5, and two olefinic carbons at δC 107.9 and 141.5), six sp3 methine carbons (including three oxygenated carbons at δC 96.8, 78.0, and 72.8), four sp2 quaternary carbons (including two ester carbonyls at δC 173.3 and 172.2, and two olefinic carbons at δC 149.5 and 112.3), three sp3 quaternary carbons (including one oxygenated carbon at δC 92.4). These observations, together with molecular formula, indicated that 1 should be a cassane furanoditerpene.9

The more downfield nature of H-2 and C-2 relative to H-6 and C-6 indicates that C-2 is connected to two oxygen atoms to form a hemiketal structure. The full assignments and connectivities were determined by 1H–1H COSY, HSQC, and HMBC spectra.

Analysis of 1H–1H COSY spectrum revealed four spin systems (H-2 ↔ H-3, H-6 ↔ H-7 ↔ H-8 ↔ H-9 ↔ H-11, H-8 ↔ H-14, and H-15 ↔ H-16) which were shown in bold face in Fig. 2. The B, C and D rings were established by comparison with those of the known compound caesalpinin MG (2) (Scheme 1),10 which was also isolated from this plant along with 1. The 1H–1H COSY correlation between the methylene (δH 4.13 and 4.26) and the primary methyl (δH 1.28), along with the HMBC correlation between the methylene and C-17 suggested the formation of an ethyl ester functional group, and the HMBC correlation H-14 (δH 3.42) → C-17 (δC 173.3) indicated the location of the ethyl ester at C-14.


image file: c3ra46502k-f2.tif

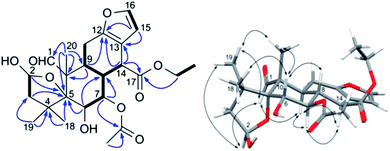

Fig. 2 1H–1H COSY (bold), selected HMBC (arrows) and ROESY correlations (double arrows) correlations of 1.

image file: c3ra46502k-s1.tif
Scheme 1 Plausible biogenetic pathway of 1.

The HSQC spectrum revealed that the signal at δH 5.32 (H-7) corresponds to the proton attached to the carbon at δC 78.0 (C-7), and the HMBC spectrum showed that H-7 was correlated to C-6, C-8 and C-21 (carbonyl group), which established that an acetoxyl group was attached at C-7. Similarly, the characteristic aldehyde proton (H-1) showed HSQC correlation to δC 203.5, and the HMBC spectrum showed that H-1 was correlated to C-10, C-20, C-5 and C-9, which established the location of the aldehyde group at C-10. The HMBC correlations of H-2, H-3, H-6 and H-7 to C-5 (δC 92.4), and the absence of correlation between H-2 and C-10 indicated a five membered furan ring A was connective to ring B via a spiro atom (C-5). Thus, the spiro-A/B ring system was established, and 1 was inferred to be an unprecedented cassane furanoditerpene with 5/6/6/5 ring system including a spiro-A/B rings.

The relative configuration of 1 was established by ROESY experiment. The ROESY spectrum showed NOE correlations (Fig. 2) between H-1 (δH 9.85) and H-9 (δH 2.38), H-9 and H-7 (δH 5.32), and H-7 and H-14 (δH 3.42), indicating these protons were in the same α-orientation. Furthermore, the NOE correlations between H3-20 (δH 1.21) and H-6 (δH 3.80), and H-6 and H-8 (δH 2.53) suggested those protons were all β-oriented. In addition, NOE correlation between H-2 (δH 5.68) and H-1 revealed that H-2 approached to the aldehyde group in the same direction, and the ring A was nearly vertical to ring B. Based on the above observations, the relative configuration of 1 was established as 2R*, 5R*, 6S*, 7R*, 8R*, 9S*, 10R*, and 14S*.

Since 1 was established to have an unprecedented carbon skeleton, some further evidences were necessary to confirm its structure and absolute configuration. However, a single crystal could not be obtained despite many attempts. We decided to theoretically calculate the 1H and 13C NMR of 1 by density functional theory (DFT) with Gaussian 09 package.11

To obtain a reasonable starting structure and coarsely exclude energetic unreasonable conformation for 1, a conformational search using molecular mechanics calculations was performed with Discovery Studio 2.5 Client.12 Then several minimum geometries were fully optimized at the B3LYP/6-31+G (d, p) level in the gas phase, and the most stable conformer for 1 was obtained by further frequency calculations. As recommended by a recent review paper,13 the NMR shielding constants for C/H atoms of 1 were computed using the GIAO technique at the mPW1PW91-SCRF/6-311+G (2d, p) level of theory using the PCM solvent continuum model and chloroform as the solvent. The calculated chemical shifts of 1 (Table 1) were obtained after corrections using the slope and intercept by linear regression analysis. The largest deviation and average error were only 4.3/1.4 and 0.51/0.12 ppm (similar to those of reported deviations14) for 13C and 1H NMR data, respectively as compared with the experimental results, confirming that the proposed structure was reasonable and the NMR data were corrected assigned.

Table 1 Experimental NMR chemical shifts for 1 in CDCl3 and its calculated NMR data (δ in ppm, J in Hz)a
No. Hexptlb Hcalcd Cexptlc Ccalcd
a Largest deviation ΔδH = 0.51 ppm. Largest deviation ΔδC = 4.3 ppm (Δδ = |δcalcdδexptl|). Linear fitting formula for 13C NMR and 1H NMR are δ = (185.14356 − σ)/1.04687 and δ = (31.4236 − σ)/1.03503 respectively, while the R values for two fitting are 0.9989 and 0.9819.b In 300 MHz.c In 75 MHz.
1 9.85 (1H, s) 10.00 203.5 205.1
2 5.68 (1H, t, 5.9) 5.55 96.8 97.0
3 2.01 (1H, m) 2.01 51.6 51.4
2.25 (1H, m) 2.08
4   47.3 51.2
5   92.4 90.6
6 3.80 (1H, dd, 11.6, 10.8) 3.83 72.8 73.2
7 5.32 (1H, t, 10.8) 4.81 78.0 82.3
8 2.53 (1H, m) 2.71 38.2 40.5
9 2.38 (1H, td, 11.7, 4.9) 2.40 35.5 36.9
10   55.4 57.4
11 1.89 (1H, dd, 16.2, 4.9) 1.99 22.1 22.1
2.24 (1H, m) 2.34
12   149.5 149.3
13   112.3 112.8
14 3.42 (1H, d, 7.8) 3.58 45.7 44.9
15 6.10 (1H, d, 1.8) 6.20 107.9 106.5
16 7.21 (1H, d, 1.8) 7.21 141.5 139.7
17   173.3 173.1
18 1.35 (3H, s) 1.31 24.2 22.6
19 0.91 (3H, s) 0.84 30.2 27.4
20 1.21 (3H, s) 1.20 9.45 8.8
7-OAc 2.08 (3H, s) 2.31 20.7 19.8
  172.2 170.2
17-OCH2CH3 4.13 (1H, m) 3.95 61.2 61.5
  4.26 (1H, m) 4.02
17-OCH2CH3 1.28 (3H, t, 7.1) 1.29 14.2 12.4
6-OH 4.00 (1H, d, 11.6)


The absolute configuration of 1 was further established by comparison of experimental and calculated ECD spectra (time-dependent DFT (TD-DFT)).15 The ECD spectra of the two possible enantiomers at the PBE0/6-311++G (2d, 2p) level were shown in Fig. 3. The calculated ECD spectrum of the enantiomer with configurations of 2R, 5R, 6S, 7R, 8R, 9S, 10R, and 14S (A, Fig. 3) showed a well match with the experimental spectrum, unambiguously proving that it was the most reasonable absolute configuration. Moreover, we analyzed the frontline molecule orbital of compound 1 (shown in Fig. 4). The bigger Cotton effect, which showed a negative peak at ∼225 nm for compound 1, was originated from the π(HOMO) → π*(LUMO) excitation because the theoretically predicted HOMO–LUMO gap is 5.42 eV that corresponds ∼229 nm for the predicted λ. Similarly, the smaller Cotton effect (the small negative peak around 300 nm) was assigned to the n → π* transitions.


image file: c3ra46502k-f3.tif

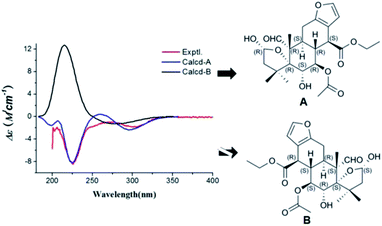

Fig. 3 Determination of the absolute configuration of 1 by comparison of the calculated CD spectra with the experimental one (UV-shift = −4 nm, σ = 0.32 ev were assigned to match the experimental spectra band with SpecDis).16

image file: c3ra46502k-f4.tif
Fig. 4 The HOMO–LUMO plot of compound 1.

Normally, cassane furanoditerpene are characterized by a molecular skeleton constructed from the fusion of three cyclohexane rings and a furan ring. Compound 1 is a novel cassane furanoditerpene with an unprecedented carbon skeleton containing a spiro-A/B ring. The possible biogenetic pathway was proposed as shown in Scheme 1. Compound 1 might be generated from caesalpinin MG (2),10 which could be converted to the key precursor a with ortho-dihydroxyl groups at C-1 and C-2 through a series of hydroxylation, deacetylation, and transesterification as shown in Scheme 1.17 After undergoing an oxidation procedure, the intermediate b with two aldehyde groups was formed.18 Finally, 1 would be yielded through a key intramolecular hemiacetal formation by condensation of hydroxyl and aldehyde groups,19 which was further verified by theoretical studies. The computational relative free energy profile for the last step of the plausible biogenetic pathway was shown in Fig. 5. All structures were optimized at B3LYP/6-31+G (d, p) level and the subsequent frequency calculation were carried out at four different theory levels. The results indicated that the reaction was thermodynamically and kinetically reasonable in the gas phase model, as it is about 12 k cal mol−1 exothermicity and 36 k cal mol−1 reaction barrier at M06-2X/6-311+G** level. Therefore the intramolecular hemiacetal formation was feasible to occur with enzyme catalysis in vivo.


image file: c3ra46502k-f5.tif

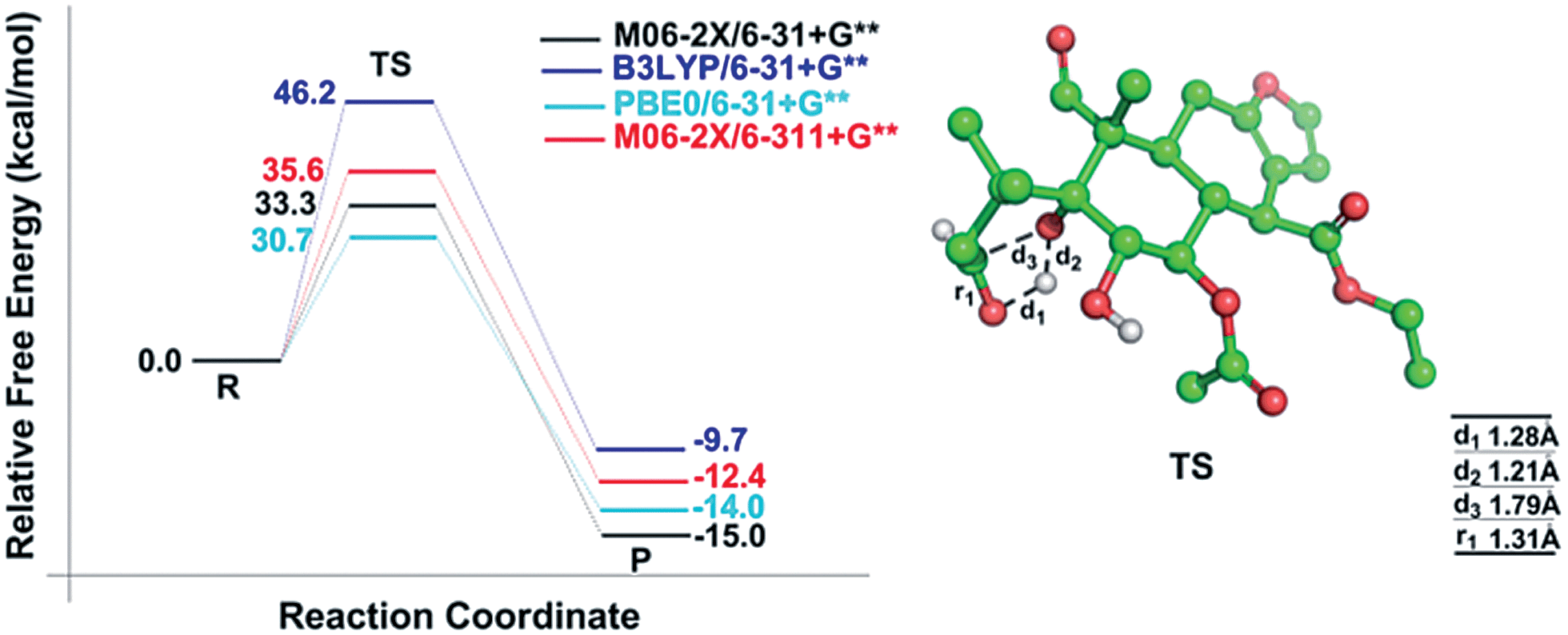

Fig. 5 Energy profiles for the intra-molecular hemiacetal formation step of the biosynthesis pathway. R means reactant state, TS means transition state and P indicates product state. The imaginary frequency of the TS is −1808.2561 cm−1 at M06-2X/6-311+G** level.

Because of the pronounced treatment effect of Caesalpinia minax on prostatitis,6 compound 1 was evaluated for COX-2 inhibitory activity using an enzyme immunoassay (EIA) kit (catalog no. 56131, Cayman Chemical, Ann Arbor, MI). It showed an IC50 value of 4.0 μM. In addition, the cytotoxic activities of compound 1 were evaluated in DU145 and PC3 (both prostate) cancer cells using the reported MTT assay method.20 Compound 1 only exhibited weak cytotoxic activities against these cells with IC50 values over 50 μM. Thus, compound 1 might be a potential anti-inflammatory agent targeting the COX-2 enzyme with low toxicity.

In summary, compound 1 was the first example of cassane furanoditerpene with an unusual 5/6/6/5 tetracyclic carbon skeleton bearing a spiro-A/B rings. The isolation and structure elucidation of 1 has added an active entity to a diverse and complex array of cassane furanoditerpene family. Especially, the complete structure and absolute configurations have been assigned by both spectroscopic methods and computational analysis. Moreover, the plausible biogenetic pathway was reasonably proposed, and the key procedure of this pathway was also certified by computational method. Further investigations regarding compound 1's effects on COX-2 mediated functional gene expression and signaling pathway are in progress.

Acknowledgements

This work is dedicated to Prof. Xin-Sheng Yao on the occasion of his 80th birthday, and was financially supported by the National Science Foundation of China (21203257 and 21272289) and Guangdong high level talent scheme (R.W.J.)

Notes and references

  1. R. W. Jiang, S. C. Ma, P. P. H. But and T. C. W. Mak, J. Nat. Prod., 2001, 64, 1266–1272 CrossRef CAS PubMed.
  2. D. P. Ashok, J. F. Alan, W. Lee, Z. Gary, R. Rex, F. B. Mark, F. Leo and K. J. Randall, Tetrahedron, 1997, 53, 1583–1592 CrossRef.
  3. M. M. M. Rubinger, D. Pilo-Veloso, G. M. Stefani, D. L. F. Alves and C. R. J. Maltha, J. Braz. Chem. Soc., 1991, 2, 124–127 CrossRef CAS PubMed.
  4. J. D. Antonio, C. A. B. Luiz, P. V. Dorila and L. F. A. Dalton, J. Nat. Prod., 1996, 59, 770–772 CrossRef.
  5. Dictionary of Chinese Traditional Medicine, Shanghai People's Publishing House, Jiangsu New Medical College, 1977, p. 1289 Search PubMed.
  6. M. J. Gong, Y. Y. Xie and Z. J. Zou, World Journal of Integrated Traditional and Western Medicine, 2011, 6, 938–939 Search PubMed.
  7. R. W. Jiang, S. C. Ma, P. P. H. But and T. C. W. Mak, J. Chem. Soc., Perkin Trans. 1, 2001, 2920–2923 RSC.
  8. R. W. Jiang, P. P. H. But, S. C. Ma, W. C. Ye, S. P. Chan and T. C. W. Mak, Tetrahedron Lett., 2002, 43, 2415–2418 CrossRef CAS.
  9. R. W. Jiang, S. C. Ma, Z. D. He, X. S. Huang, P. P. H. But, H. Wang, S. P. Chan, V. E. C. Ooi, H. X. Xu and T. C. W. Mak, Bioorg. Med. Chem., 2002, 10, 2161–2170 CrossRef CAS.
  10. S. K. Kalauni, S. Awale, Y. Tezuka, A. H. Banskota, T. Z. Linn and S. Kadota, Chem. Pharm. Bull., 2005, 53, 214–218 CrossRef CAS.
  11. Gaussian 09, revision A.1, Gaussian, Inc., http://www.gaussian.com Search PubMed.
  12. Discovery Studio 2.5 Guide, Accelrys Inc., San Diego, 2009, http://www.accelrys.com Search PubMed.
  13. M. W. Lodewyk, M. R. Siebert and D. J. Tantillo, Chem. Rev., 2012, 112, 1839–1862 CrossRef CAS PubMed.
  14. (a) A. Zheng, L. Chen, J. Yang, Y. Yue, C. Ye, X. Lu and F. Deng, Chem. Commun., 2005, 2474–2476 RSC; (b) J. X. Pu, S. X. Huang, J. Ren, W. L. Xiao, L. M. Li, R. T. Li, L. B. Li, T. G. Liao, L. G. Lou, H. J. Zhu and H. D. Sun, J. Nat. Prod., 2007, 70, 1706–1711 CrossRef CAS PubMed; (c) M. W. Lodewyk and D. J. Tantillo, J. Nat. Prod., 2011, 74, 1339–1343 CrossRef CAS PubMed.
  15. L. B. Dong, J. Yang, J. He, H. R. Luo, X. D. Wu, X. Deng, L. Y. Peng, X. Cheng and Q. S. Zhao, Chem. Commun., 2012, 48, 9038–9040 RSC.
  16. T. Bruhn, A. Schaumloffel, Y. Hemberger and G. Bringmann, Chirality, 2013, 25, 243–249 CrossRef CAS PubMed.
  17. (a) S. R. Peter, W. F. Tinto, S. Mclean, W. F. Reynolds and M. Yu, J. Nat. Prod., 1997, 60, 1219–1221 CrossRef CAS; (b) T. Z. Linn, S. A. Awale, Y. Tezuka, A. H. Banskota, S. K. Kalauni, F. Attamimi, J. Ueda, P. B. S. Asih, D. Syafrudedin, K. Tanaka and S. Kadota, J. Nat. Prod., 2005, 68, 706–710 CrossRef CAS PubMed.
  18. (a) H. O. House, J. H. C. Lee, D. Van Derveer and J. E. Wissinger, J. Org. Chem., 1983, 48, 5285–5288 CrossRef CAS; (b) E. P. Balskus, J. Me'ndez-Andino, R. M. Arbit and L. A. Paquette, J. Org. Chem., 2001, 66, 6695–6704 CrossRef CAS PubMed.
  19. L. Zhang, Y. Shen, H. J. Zhu, F. Wang, Y. Leng and J. K. Liu, J. Antibiot., 2009, 62, 239–242 CrossRef CAS PubMed.
  20. T. Mosmann, J. Immunol. Methods, 1983, 65, 55–63 CrossRef CAS.

Footnotes

Electronic supplementary information (ESI) available: 1D and 2D NMR, MS, UV, IR, and ECD spectra of caesalpinimin A (1) and detailed experimental procedures, as well as the optimized Z-matrixes for all computational models. See DOI: 10.1039/c3ra46502k
These authors contributed equally to this work.
