N-Heterocyclic carbene palladium complex supported on ionic liquid-modified graphene oxide as an efficient and recyclable catalyst for Suzuki reaction

Siyavash Kazemi Movahed, Rahele Esmatpoursalmani and Ayoob Bazgir*
Shahid Beheshti University, Tehran, Islamic Republic of Iran. E-mail: a_bazgir@sbu.ac.ir; Fax: +98 21 22431661; Tel: +98 21 2990 3104

Received 23rd October 2013 , Accepted 4th February 2014

First published on 6th February 2014


Abstract

An N-Heterocyclic carbene palladium complex immobilized on graphene oxide (GO) with an ionic liquid framework (NHC-Pd/GO-IL) was synthesized by the modification of GO through a silylation reaction. The obtained catalyst displayed a high activity toward the Suzuki reaction in EtOH–H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1).


The interest in ionic liquids (ILs) has increased dramatically in the past decade due to their unique properties such as low vapour pressure, low toxicity, high chemical and thermal stabilities, and wide liquid range and favourable solvating properties.1 Mehnert et al. described the concept of supported ionic liquid catalysis, which involves the treatment of a monolayer of a covalently attached ionic liquid on the surface of silica gel with an additional ionic liquid.2 These layers serve as the reaction phase in which the homogeneous catalyst is dissolved. When ionic-liquid-supported (ILS) catalysts are used for organic reactions that are carried out in a homogeneous system, they may have a similar or even higher catalytic activity and selectivity, compared to the homogeneous parent catalyst system. The active species – although the resulting material is a solid – is dissolved in the ionic liquid and acts like a homogeneous catalyst.3 Several studies have successfully confined various ionic liquid phases to the surface of different supports and applied them in some catalytic processes.4

Recently, graphene which is a single layer of sp2 carbon atoms bonded in a hexagonal lattice has attracted great attention from scientists all over the world. The extraordinary properties of these exfoliated graphene sheets, such as their extremely large surface area,5 fast charge mobility,6 remarkably high mechanical strength and Young's modulus,7 excellent chemical stability8 and low manufacturing cost make graphene a promising candidate to disperse or immobilize catalytically active species for heterogeneous catalysis.9 Recently, the silylation modification technique on graphene oxide was reported and can provide graphene nanocomposites with catalytic activities.10

Aryl–aryl bond formation via the palladium-catalyzed Suzuki cross coupling reaction is one of the most important tools of modern organic synthesis. The Suzuki cross coupling reaction is one of the most general and powerful tools for the synthesis of pharmaceuticals, herbicides, polymers, liquid crystals, natural products, ligands for catalysis and advanced materials.11

Herein, we report a novel protocol for the Suzuki cross coupling catalyzed by an N-heterocyclic carbene palladium complex immobilized on GO with an ionic liquid framework (NHC-Pd/GO-IL). Additionally, the effects of solvent polarity, base, and temperature on the yield and recycling potential of the catalyst have all been assessed.

The process for the preparation of the NHC-Pd/GO-IL nanocomposite is schematically described in Scheme 1. First, the reaction of a sub-stoichiometric amount of Pd(OAc)2 with an excess of imidazolium ionic liquid (IL) afforded the N-heterocyclic carbene palladium complex (NHC-Pd)-imidazolium ionic liquid (IL). In order to graft the NHC-Pd-IL onto the surface of the graphene oxide, a reaction of the NHC-Pd complex in the IL and graphene oxide was carried out in EtOH under reflux conditions for 12 h.


image file: c3ra46056h-s1.tif
Scheme 1 Schematic description for the preparation of NHC-Pd/GO-IL.

The NHC-Pd/GO-IL nanocomposite was characterized by FT-IR, SEM, TEM, Raman, XPS, TGA and EDS mapping measurements. The FT-IR spectra of GO and the NHC-Pd/GO-IL nanocomposite are shown in (Fig. 1). In the spectrum of GO, strong absorption bands at 1732, 1068 and 3428 cm−1 correspond to the stretching vibrations of C[double bond, length as m-dash]O, C–O (epoxy) and O–H, respectively. The peaks at 1623 and 1286 cm−1 correspond to the vibration of the carboxyl groups.12 The FT-IR spectrum of NHC-Pd/GO-IL exhibited three new peaks around 1567, 1036 and 751 cm−1, compared with the FT-IR spectroscopy of GO. These peaks corresponded to the ring vibration of the imidazole,13 and stretching vibrations of Si–O and Si–O–C, respectively, and provide direct evidence for the successful silylanization of GO.14


image file: c3ra46056h-f1.tif
Fig. 1 FTIR spectra of GO and the NHC-Pd/GO-IL nanocomposite.

A scanning electron microscopy (SEM) image of the GO displayed two-dimensional structures with a crumpling feature (Fig. 2a). The density and distribution of the NHC-Pd and IL groups on the NHC-Pd/GO-IL nanocomposite were evaluated by quantitative energy dispersive X-ray spectroscopy (EDS) mapping. As can be seen in Fig. 2b–d, rather than only being located at the edges of the graphene sheets, the elements N, Pd and Si were found to be uniformly dispersed on the whole surface of the NHC-Pd/GO-IL nanocomposite indicating the homogeneous distribution of the NHC-Pd and IL groups.


image file: c3ra46056h-f2.tif
Fig. 2 SEM image of (a) NHC-Pd/GO-IL, and corresponding quantitative EDS elemental mapping of (b) N, (c) Pd and (d) Si.

The Raman spectra of GO and NHC-Pd/GO-IL (Fig. 3) show an obvious blue shift of the G band from 1588.52 to 1594.83 cm−1, probably due to the gradually increased compressive local stress induced by the attached NHC-Pd and IL on the surface of graphene oxide.15


image file: c3ra46056h-f3.tif
Fig. 3 Raman spectra of GO and NHC-Pd/GO-IL nanocomposite.

The electronic properties of the nanocomposite were probed by X-ray photoelectron spectroscopy (XPS) analysis. As shown in Fig. 4, the peaks corresponding to Cl 2p & 2s, N 1s, Pd 3s & 3p & 3d, and Si 2s & 2p can be clearly observed in the XPS full spectrum. A pronounced peak at 101.9 eV (in the Si 2p XPS spectrum) which corresponds to the bonding energy of Si–O–C can be easily observed. The N 1s spectra could be divided into two peaks, one peak at 399.2 eV ascribed to sp2 nitrogen in the aromatic ring of the NHC-Pd(II) complex and another peak at 401.2 eV attributed to the quaternary nitrogen of the IL.16 By integrating the area in the XPS the ratio of sp2 nitrogen[thin space (1/6-em)]:[thin space (1/6-em)]quaternary nitrogen was found to be 1[thin space (1/6-em)]:[thin space (1/6-em)]9 which supported the hypothetical ratio used for the preparation of the catalyst NHC-Pd/GO-IL nanocomposite. The XPS spectrum of the Pd 3d core level region for the NHC-Pd/GO-IL nanocomposite displays main peaks at 337.7 and 342.9 eV which can be attributed to the binding energy of Pd 3d5/2 and Pd 3d3/2, respectively. These values correspond to the Pd(II) binding energies of the NHC-Pd(II) complex. Additionally, the formation of the NHC-Pd complex was confirmed by the Pd 3d5/2 binding energy values changing from 338.8 eV to 337.7 eV after the ionic liquid was reacted with Pd(OAc)2.13


image file: c3ra46056h-f4.tif
Fig. 4 Full range XPS spectrum (a), and the Si 2p (b), N 1s (c), Pd 3d (d) core level region XPS spectra of the NHC-Pd/GO-IL nanocomposite.

Thermogravimetric analysis (TGA) was further used to study the composition of the NHC-Pd/GO-IL nanocomposite. TGA plots of GO and NHC-Pd/GO-IL nanocomposite are shown in Fig. 5. For GO, the weight lost was about 57.7% at temperatures below 154 °C, due to pyrolysis of the labile oxygen-containing functional groups. In contrast, the NHC-Pd/GO-IL nanocomposite showed good thermal stability. The total weight lost was only 6.8% at temperatures below 169 °C.


image file: c3ra46056h-f5.tif

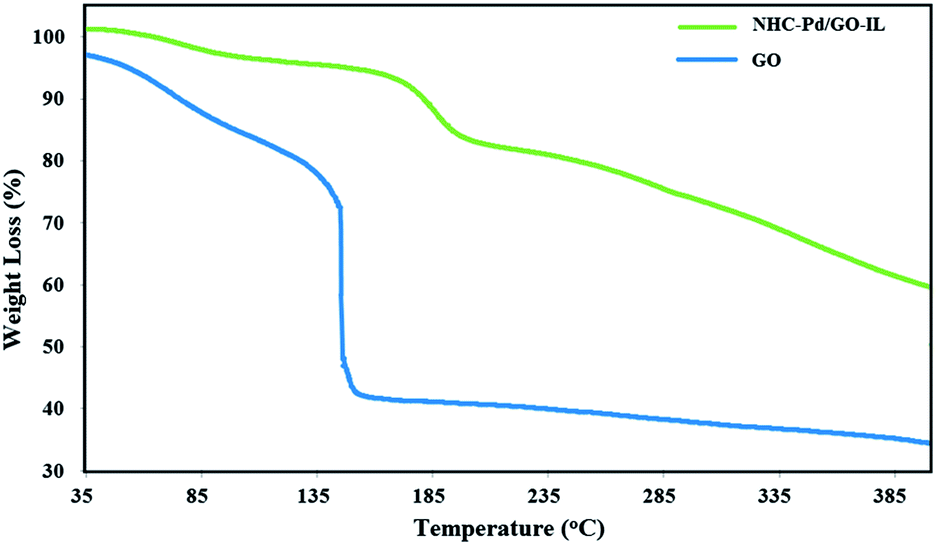

Fig. 5 TGA plots of GO and the NHC-Pd/GO-IL nanocomposite.

The catalytic activity of the NHC-Pd/GO-IL nanocomposite as a precatalyst was then tested in the Suzuki reaction. To optimize the reaction conditions, phenyl boronic acid and phenyl iodide were selected as model substrates in the presence of various bases and solvents (Table 1). By using H2O as the solvent, the reaction was tested employing various bases such as K2CO3, Et3N, K3PO4, and KOH at 60 °C (Table 1, entries 1–4). A superior yield was obtained when K2CO3 was used as the base (Table 1, entry 1). Then, different solvents such as EtOH, MeOH, CH2Cl2, CH3CN and EtOH–H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1) were screened in the model reaction using K2CO3 as base (Table 1, entries 5–9). It was found that the reaction using EtOH–H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1) after 2.5 h resulted in a higher yield. The effect of NHC-Pd/GO-IL loading was also investigated under the optimum reaction conditions (Table 1, entries 5, 10 and 11). It was found that when the amount of NHC-Pd/GO-IL increased from 0.02 to 0.05 and 0.1 mol%, the yields increased from 42 to 58 and 98%, respectively. It was found that 0.1 mol% NHC-Pd/GO-IL is sufficient to push this reaction forward (Table 1, entry 5). To optimize the reaction temperature, we also performed several experiments at 50 °C, 60 °C and 70 °C in the presence of K2CO3 in EtOH–H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1) using 0.1 mol% NHC-Pd/GO-IL (Table 1, entries 5, 12 and 13). As can be seen from Table 1, the most suitable reaction temperature is 60 °C.

Table 1 Screening of the reaction conditionsa

image file: c3ra46056h-u1.tif

Entry Solvent Base Temp (°C) Yield (%)
a Phenyl iodide (1.0 mmol), phenyl boronic acid (1.3 mmol), base (3.0 mmol), NHC-Pd/GO-IL (0.1 mol% Pd), 60 °C, 2.5 h and solvent (2 ml). GC yield, n-dodecane was used as an internal standard.b Catalyst (0.02 mol% Pd).c Catalyst (0.05 mol% Pd).
1 H2O K2CO3 60 76%
2 H2O Et3N 60 Trace
3 H2O K3PO4 60 15%
4 H2O KOH 60 36%
5 H2O–EtOH (1[thin space (1/6-em)]:[thin space (1/6-em)]1) K2CO3 60 98%
6 EtOH K2CO3 60 64%
7 MeOH K2CO3 60 22%
8 CH2Cl2 K2CO3 Reflux Trace
9 CH3CN K2CO3 60 Trace
10b H2O–EtOH (1[thin space (1/6-em)]:[thin space (1/6-em)]1) K2CO3 60 42%
11c H2O–EtOH (1[thin space (1/6-em)]:[thin space (1/6-em)]1) K2CO3 60 58%
12 H2O–EtOH (1[thin space (1/6-em)]:[thin space (1/6-em)]1) K2CO3 50 81%
13 H2O–EtOH (1[thin space (1/6-em)]:[thin space (1/6-em)]1) K2CO3 70 98%


With the optimized reaction conditions in hand, we next examined the scope and limitations of the Suzuki reaction with various types of iodo-, bromo-, and chloroaryl derivatives and arylboronic acids (Table 2).

Table 2 NHC-Pd/GO-IL nanocomposite catalyzed Suzuki reactiona

image file: c3ra46056h-u2.tif

Entry Aryl halide Aryl boronic acid Product Yieldb
a Reaction conditions: aryl halide (1.0 mmol), aryl boronic acid (1.3 mmol), K2CO3 (3.0 mmol), NHC-Pd/GO-IL (0.1 mol% Pd), 60 °C, 2.5 h and EtOH–H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1) (2 ml).b Isolated yield by column chromatography.c TBAB (1 mmol), catalyst (0.2 mol% Pd) and 90 °C, 12 h.
1 image file: c3ra46056h-u3.tif image file: c3ra46056h-u4.tif image file: c3ra46056h-u5.tif 98%
2 1a image file: c3ra46056h-u6.tif image file: c3ra46056h-u7.tif 98%
3 image file: c3ra46056h-u8.tif 2a 3b 98%
4 image file: c3ra46056h-u9.tif 2a image file: c3ra46056h-u10.tif 82%
5 image file: c3ra46056h-u11.tif 2a image file: c3ra46056h-u12.tif 61%
6 image file: c3ra46056h-u13.tif 2a image file: c3ra46056h-u14.tif 98%
7 image file: c3ra46056h-u15.tif 2a 3a 92%
8 image file: c3ra46056h-u16.tif 2a 3b 85%
9 image file: c3ra46056h-u17.tif 2a 3e 94%
10 image file: c3ra46056h-u18.tif 2a image file: c3ra46056h-u19.tif 98%
11 image file: c3ra46056h-u20.tif 2b image file: c3ra46056h-u21.tif 93%
12c image file: c3ra46056h-u22.tif 2a 3a 42%
13c image file: c3ra46056h-u23.tif 2a 3b 57%
14c image file: c3ra46056h-u24.tif 2a 3e 69%
15c image file: c3ra46056h-u25.tif 2a 3f 74%


It can be seen from Table 2 that the Suzuki reaction proceeded in good yields with most substrates. Aryl bromides and iodides bearing electron-donating and electron-withdrawing groups reacted well and gave good yields. The hindered substrates such as 2-iodo-1,3,5-trimethylbenzene converted to the corresponding product with a moderate yield (Table 2, entry 5). Unfortunately, the catalytic system was less effective for the reaction of aryl chlorides and moderate yields were obtained in the presence of tetra butyl ammonium bromide (TBAB) (Table 2, entries 13–15).

The reusability of the NHC-Pd/GO-IL nanocomposite was examined in the Suzuki reaction of phenyl boronic acid with phenyl iodide. It was found that recovery can be successfully achieved in five successive reaction runs (Table 3).

Table 3 Reusability of the NHC-Pd/GO-IL nanocomposite in the Suzuki reaction of phenyl boronic acid with phenyl iodidea
a Phenyl iodide (1.0 mmol), phenyl boronic acid (1.3 mmol), K2CO3 (3.0 mmol), NHC-Pd/GO-IL (0.1 mol% Pd), 60 °C, 2.5 h and EtOH–H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1) (2 ml).b GC yield, n-dodecane was used as an internal standard.
Reaction cycle 1st 2nd 3rd 4th 5th
Yieldb (%) 98 97 95 92 90


The heterogeneous nature of the precatalysis was proved using a hot filtration test and AAS analysis. To determine whether the catalyst was actually functioning in a heterogeneous manner or whether it was merely a reservoir for more active soluble palladium species, we performed a hot filtration test in the Suzuki reaction of phenyl boronic acid with phenyl iodide after ∼50% of the coupling reaction had completed. The hot filtrates were then transformed to another flask containing K2CO3 (3 equiv.) in EtOH–H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1) at 60 °C. Upon further heating of the catalyst-free solution for 3 h, no considerable progress (∼5% by GC analysis) was observed. Moreover, AAS of the same reaction solution at the midpoint of completion indicated that no significant quantities of palladium were lost to the reaction liquors during the process.

A TEM image of the fresh NHC-Pd/GO-IL nanocomposite displays a crumpled and layer like structure without any nanoparticles (Fig. 6a). As shown in Fig. 6b and c, well distributed fine Pd nanoparticles (Pd NPs) with sizes of less 5 nm dispersed on the GO-IL sheets can be observed after one and three runs of the recycled NHC-Pd/GO-IL nanocomposite. This is in agreement with the previously reported results that the formation of Pd nanoparticles as an active spices were evolved during the catalytic reaction. The formation of Pd nanoparticles during the Suzuki reaction is supposed to be due to the reduction of Pd(II) by phenyl boronic acid.21 To demonstrate this assumption, TEM images after experiments without boronic acid (PhI and K2CO3) and without all reagents (only the K2CO3) show that the Pd nanoparticles are not formed during these experiments (Fig. S1a and b, ESI).


image file: c3ra46056h-f6.tif
Fig. 6 TEM images of (a) the fresh NHC-Pd/GO-IL nanocomposite, (b) the NHC-Pd/GO-IL reused after one run and (c) the NHC-Pd/GO-IL reused after three runs.

The imidazolium IL plays an important role in improving the dispersibility of Pd NPs and preventing the aggregation or agglomeration of Pd NPs on the GO-IL sheets.17 Additionally, Pd NPs are not found outside of the GO-IL sheets.

Table 4, compares the efficiency of the NHC-Pd/GO-IL nanocomposite (time, yield, reaction conditions) with efficiencies of other reported heterogeneous palladium catalysts in the Suzuki reaction. It is clear from Table 4 that our method is simpler, more efficient, and less time consuming for the Suzuki reaction.

Table 4 Comparison of efficiency of various heterogeneous palladium catalysts in Suzuki reaction
Catalyst Conditions Yield Time Ref.
NHC-Pd/GO-IL (0.1–0.2 mol%) K2CO3, EtOH–H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1), 60–90 °C 42–98 (%) 2.5–12 h This work
NHC-Pd/SBA-16-IL (0.01 mol%) K3PO4, EtOH–H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1), 50 °C 87–99 (%) 5–10 h 13
GO-NHC-Pd2+ (0.25 mol%) K2CO3 EtOH–H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1), 80 °C 23–96 (%) 1–24 h 17
MPS-NHC-Pd (1–2 mol%) K2CO3, DMF–H2O (2[thin space (1/6-em)]:[thin space (1/6-em)]1), 50–100 °C 31–99 (%) 0.5–24 h 18
Pd@PMO-IL (0.1–1 mol%) K2CO3, H2O, 60–90 °C 60–99 (%) 2–20 h 19
Pd NPs-IP-IL (1 mol%) Na2CO3, H2O, 100 °C 6–99 (%) 2.5–10 h 20


Conclusions

We have demonstrated for the first time that an ionic liquid supported on graphene by grafting an N-heterocyclic carbene palladium complex on the surface of graphene oxide modified with ionic liquid is an effective and powerful support for the immobilization and stabilization of Pd nanoparticles for the Suzuki reaction. The nanocomposite shows good catalytic activity for the Suzuki coupling of a variety of activated and deactivated aryl halides with aryl boronic acids. Leaching tests such as hot filtration and AAS analysis indicate that the catalytic reaction is mainly heterogeneous in nature. The reusability of this catalyst is high and the catalyst can be reused several times without a significant decrease in its catalytic activity. Furthermore, the TEM image of the recovered catalyst showed the presence of well-distributed Pd NPs on the GO-IL sheets without any aggregation. Further applications of the catalytic system in other palladium catalyzed reactions are under investigation in our laboratory.

Notes and references

  1. N. Liu, F. Luo, H. Wu, Y. Liu, C. Zhang and J. Chen, Adv. Funct. Mater., 2008, 18, 1518 CrossRef CAS PubMed.
  2. C. P. Mehnert, R. A. Cook, N. C. Dispenziere and M. Afeworki, J. Am. Chem. Soc., 2002, 124, 12932 CrossRef CAS PubMed; C. P. Mehnert, E. J. Mozeleski and R. A. Cook, Chem. Commun., 2002, 3010 RSC.
  3. L.-L. Lou, K. Yu, F. Ding, W. Zhou, X. Peng and S. Liu, Tetrahedron Lett., 2006, 47, 6513 CrossRef CAS PubMed; M. Gruttadauria, S. Riela, P. L. Meo, F. D'Anna and R. Noto, Tetrahedron Lett., 2004, 45, 6113 CrossRef PubMed; R. Ciriminna, P. Hesemann, J. J. E. Moreau, M. Carraro, S. Campestrini and M. Pagliaro, Chem. - Eur. J., 2006, 12, 5220 CrossRef PubMed; B. Ni and A. D. Headley, Chem. - Eur. J., 2010, 16, 4426 CrossRef PubMed; K. V. S. Ranganath, S. Onitsuka, A. K. Kumar and J. Inanaga, Catal. Sci. Technol., 2013, 3, 2161 Search PubMed.
  4. Y. Gu and G. Li, Adv. Synth. Catal., 2009, 351, 817 CrossRef CAS PubMed; H. Li, P. S. Bhadury, B. Song and S. Yang, RSC Adv., 2012, 2, 12525 RSC.
  5. M. D. Stoller, S. Park, Y. Zhu, J. An and R. S. Ruoff, Nano Lett., 2008, 8, 3498 CrossRef CAS PubMed.
  6. K. I. Bolotin, K. J. Sikes, Z. Jiang, M. Klima, G. Fudenberg, J. Hone, P. Kima and H. L. Stormer, Solid State Commun., 2008, 146, 351 CrossRef CAS PubMed.
  7. C. Lee, X. D. Wei, J. W. Kysar and J. Hone, Science, 2008, 321, 385 CrossRef CAS PubMed.
  8. D. Li, M. B. Muller, S. Gilje, R. B. Kaner and G. G. Wallace, Nat. Nanotechnol., 2008, 3, 101 CrossRef CAS PubMed.
  9. R. X. Huang, X. Qi, F. Boey and H. Zhang, Chem. Soc. Rev., 2012, 41, 666 RSC.
  10. W. Zhang, S. Wang, J. Ji, Y. Li, G. Zhang, F. Zhang and X. Fan, Nanoscale, 2013, 5, 6030 RSC; Y. Li, Q. Zhao, J. Ji, G. Zhang, F. Zhang and X. Fan, RSC Adv., 2013, 3, 13655 RSC.
  11. N. Miyaura and A. Suzuki, Chem. Rev., 1995, 95, 2457 CrossRef CAS; J. Hassan, M. SRvignon, C. Gozzi, E. Schulz and M. Lemaire, Chem. Rev., 2002, 102, 1359 CrossRef PubMed; V. Farina, Adv. Synth. Catal., 2004, 346, 1553 CrossRef PubMed; F. Bellina, A. Carpita and R. Rossi, Synthesis, 2004, 2419 Search PubMed; F.-S. Han, Chem. Soc. Rev., 2013, 42, 5270 RSC; H. Li, C. C. C. Johansson Seechurn and T. J. Colacot, ACS Catal., 2012, 2, 1147 CrossRef; S. Kotha, K. Lahiri and D. Kashinath, Tetrahedron, 2002, 58, 9633 CrossRef.
  12. Q. Chen, L. Zhang and G. Chen, Anal. Chem., 2012, 84, 171 CrossRef CAS PubMed.
  13. H. Yang, X. Han, G. Li and Y. Wang, Green Chem., 2009, 11, 1184 RSC.
  14. S. Hou, S. Su, M. L. Kasner, P. Shah, K. Patel and C. J. Madarang, Chem. Phys. Lett., 2010, 501, 68 CrossRef CAS PubMed.
  15. Q. Zhao, D. Chen, Y. Li, G. Zhang, F. Zhang and X. Fan, Nanoscale, 2013, 5, 882 RSC.
  16. Z. Li, J. Liu, Z. Huang, Y. Yang, C. Xia and F. Li, ACS Catal., 2013, 3, 839 CrossRef CAS; G. Buscemi, M. Basato, A. Biffis, A. Gennaro, A. A. Isse, M. M. Natile and C. Tubaro, J. Organomet. Chem., 2010, 695, 2359 CrossRef PubMed; S. Souto, M. Pickholz, M. C. dos Santos and F. Alvarez, Phys. Rev. B: Condens. Matter Mater. Phys., 1998, 57, 2536 CrossRef.
  17. N. Shang, S. Gao, C. Feng, H. Zhang, C. Wang and Z. Wang, RSC Adv., 2013, 3(44), 21863 RSC.
  18. D.-H. Lee, J.-H. Kim, B.-H. Jun, H. Kang, J. Park and Y.-S. Lee, Org. Lett., 2008, 10, 1609 CrossRef CAS PubMed.
  19. B. Karimi, D. Elhamifar, J. H. Clark and A. J. Hunt, Chem. - Eur. J., 2010, 16, 8047 CrossRef CAS PubMed.
  20. X. Yang, Z. Fei, D. Zhao, W. H. Ang, Y. Li and P. J. Dyson, Inorg. Chem., 2008, 47, 3292 CrossRef CAS PubMed.
  21. M. T. Reetz and E. Westermann, Angew. Chem., Int. Ed., 2000, 39, 165 CrossRef CAS; J. Nasielski, N. Hadei, G. Achonduh, E. A. B. Kantchev, C. J. O'Brien, A. Lough and M. G. Organ, Chem. - Eur. J., 2010, 16, 10844 CrossRef PubMed; N. T. S. Phan, M. V. D. Sluys and C. W. Jones, Adv. Synth. Catal., 2006, 348, 609 CrossRef PubMed; N. Marion and S. P. Nolan, Acc. Chem. Res., 2008, 41, 1440–1449 CrossRef PubMed.

Footnote

Electronic supplementary information (ESI) available. See DOI: 10.1039/c3ra46056h
