Dan Wang,
Yali Guo,
Weisheng Liu and
Wenwu Qin*
Key Laboratory of Nonferrous Metal Chemistry and Resources Utilization of Gansu Province and State Key Laboratory of Applied Organic Chemistry, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou 730000, P. R. China. E-mail: qinww@lzu.edu.cn; Fax: +86-931-8912582; Tel: +86-931-8912582
First published on 25th November 2013
Fluorescent Ni@SiO2–CDs magnetic nanocomposite powder was prepared and its photoluminescence properties characterized. The photoluminescence properties are quite different in solid state and in ethanol solution.
When it comes to the synthetic aspects, a lot of methodologies to synthesize CDs have been reported, mainly including two types,“top-down” and “bottom-up” approaches.6 In the top-down methods CDs are prepared from larger carbon materials, like graphite, carbon nanotubes, carbon soot, and graphite oxide. In contrast for the bottom-up approach CDs are made from molecular precursors such as citric acid, glucose and resin.7
Magnetic nanoparticles are of increasing interest because of their special magnetic properties and high catalytic activity. Therefore, they have found various biomedical applications, in magnetic resonance imaging (MRI), bioseparation, targeted delivery, and stem cell labeling.8 Coating fluorescent CDs over magnetic nanoparticles provide even more attractive composite systems with magnetic, optical and biomedical applications. Among all these magnetic materials, nano-sized nickel remains one of the most important metals due to its potential applications, especially as catalysts, magnetic sensors, conducting materials and multilayered ceramic capacitors.9 The nickel nanoparticles were prepared by a modified polyol process,10,11 and then, they were coated with silica shells by the Stöber method using tetraethyl orthosilicate (TEOS) as a silica source in water to yield Ni@SiO2 shell particles.12–18 In recent years, some research papers have focused on the syntheses, preparation of novel hybrids composed of carbon dots and inorganic nanoparticle cores (e.g. iron oxide, zinc oxide, silica, titania). Combining fluorescence carbon dots with metal nanoparticles that have magnetic, optical or mechanical properties can yield hybrid materials which combine magnetic and optical responses on a single platform.19,20
In the present work, we report a Ni@SiO2 shell nanoreactor framework as an excellent magnetic model system. After the Ni@SiO2 magnetic nanoparticles were prepared via a sol–gel process, CDs were linked to the surface of Ni@SiO2 in only one simple step. The synthesized Ni@SiO2–CDs nanocomposites offer not only magnetic properties, but also optical properties. The photoluminescence properties were studied both in the solid sate and in ethanolic solution.
Histograms of the instrument response functions (using a LUDOX scatter) and sample decays were recorded until they typically reached 5.0 × 103 counts in the peak channel. Obtained histograms were fitted as sums of the exponentials, using Gaussian-weighted nonlinear least squares fitting based on Marquardt–Levenberg minimization implemented in the software package of the instrument. The fitting parameters (decay times and preexponential factors) were determined by minimizing the reduced chi-square χ2. An additional graphical method was used to judge the quality of the fit that included plots of surfaces (“carpets”) of the weighted residuals vs. channel number. All curve fittings presented here had χ2 values <1.1.
As revealed by transmission electron microscopy (TEM), Fig. 1a demonstrates the prepared CDs have an average diameter of about 6 nm. The morphology of prepared nickel nanoparticles is irregularly spherical with an average diameter of about 40 nm (Fig. 1b). A selected area electron diffraction (SAED) pattern (Fig. S1†) shows two rings that related to the (111) plane and (220) plane. Through silica coating of nickel nanoparticles in the ethanol–ammonia mixture, the TEM image of Ni@SiO2 nanoparticles revealed a smooth surface spherical structure and a clear core–shell structure with the average size of about 60 nm. However, when CDs were linked to the surface of Ni@SiO2, it can be seen clearly that the surface of Ni@SiO2–CDs was not smooth (Fig. 1c, d, e and f).
![]() | ||
Fig. 1 TEM of CDs, Ni, Ni@SiO2, Ni@SiO2–CDs. (a) CDs; (b) nickel nanoparticles; (c and d) Ni@SiO2; (e and f) Ni@SiO2–CDs. |
The X-ray diffraction (XRD) pattern is presented in Fig. S2.† Diffraction peaks at 44.6°, 51.9°, 76.4° are ascribed to the (111), (200), (220) of Ni in Ni magnetic nanoparticles (Fig. S2a†). There are two additional diffraction peaks at 33.2° and 59.4° which exist in the XRD pattern of Ni, we consider that they are the peaks of by-products NiO.23 As shown in Fig. S2b,† the diffraction peak at 23.2° of Ni@SiO2 is attributed to Si. XRD of Ni@SiO2–CDs exhibits a typical pattern of nickel at 44.6°, 51.9° shown in Fig. S2c,† indicating that CDs have been linked to the Ni@SiO2. The XPS analysis of the Ni@SiO2–CDs, shown in Fig. S3,† reveals five atom peaks at 104.5, 287.4, 403.7, 534.5, 851.9 eV, attributed to Si, C, N, O, and Ni atoms, respectively. At room temperature, magnetic properties of Ni, Ni@SiO2 and Ni@SiO2–CDs nanostructures have also been studied (shown in Fig. 2). The saturation magnetization (Ms) of the Ni@SiO2 was at 7.9 emu g−1 less than that of the nickel nanoparticles (10.6 emu g−1), which might be due to the decrease in the density of Ni in the obtained nanocomposites after coating of the SiO2. However after immobilization of the CDs, the saturation magnetization (Ms) of the Ni@SiO2–CDs is decreased clearly. The saturation magnetization (Ms) of the Ni@SiO2–CDs was 1.4 emu g−1. The lower value of Ni@SiO2–CDs modified nanoparticles might be explained either by a more defected magnetic structure compared to the naked magnetic particles or by a diminished relative weight of the magnetic material in the sample.24 On placing a magnet beside the solution of the Ni and Ni@SiO2, the materials were quickly attracted to the side of the vial within a few seconds and the solution became transparent, which illustrated their magnetic nature. However, this phenomenon of the Ni@SiO2–CDs was not observed clearly. The coercive force at 300 K is different due to their reduced size and dimensionality compared to bulk materials.12
IR spectra of CDs, nickel nanoparticles, Ni@SiO2, Ni@SiO2–CDs are shown in Fig. S4.† The vibration bands at 463.21 and 798.09 cm−1 of Ni@SiO2 are ascribed to the Ni–O–Si vibrations and the characteristic absorption band of SiO2. In the IR spectra of Ni@SiO2–CDs, the vibration band at 3332.98 cm−1 is attributed to δOH vibrations. Furthermore, for Ni@SiO2–CDs, a new sharp peak appeared at 1578.04 cm−1 indicating that the –NH2 based on CDs should be coated at the surface of Ni@SiO2. The vibration band at 1578.04 cm−1 is assigned to the scissoring bending vibration of N–H.
Fig. S5† shows the UV/vis absorption spectra of CDs in ethanol solution. The absorption spectrum in ethanol exhibits two bands at 255 nm and 360 nm, shown in Fig. S5a.† The absorption spectrum is similar to that of the CDs reported in the literature.6,20,25
It has been reported that the fluorescence emission spectra and photoluminescent intensity of CDs depend on the excitation wavelength.6,22,25 The photoluminescent properties of Ni@SiO2–CDs were examined in the solid state and in ethanolic solution at several excitation wavelengths shown in Fig. 3. It can be seen that, the photoluminescent emission spectra and photoluminescent intensity of Ni@SiO2–CDs in ethanol are strongly excitation wavelength dependent. The emission bands are bathochromically shifted with an increase of the excitation wavelength, which is shown clearly in Fig. 3a. The strongest PL emission band with a maximum at 437 nm was observed with an excitation wavelength of 360 nm. Further increase of the excitation wavelength at λex > 360 nm results in the decrease of the photoluminescent intensity, in accordance with the typical photoluminescent features of CDs. The mechanism of the PL behavior of carbon dots is very complicated and has not yet been clearly reported. The plausible reasons for the PL behavior are the presence of different particle sizes and the distribution of the different surface energy traps of the carbon dots .25 The difference in the position of emission peak is due to the variation in size of the carbon dots. The intensity of the PL depends on the number of particles excited at a particular wavelength.
![]() | ||

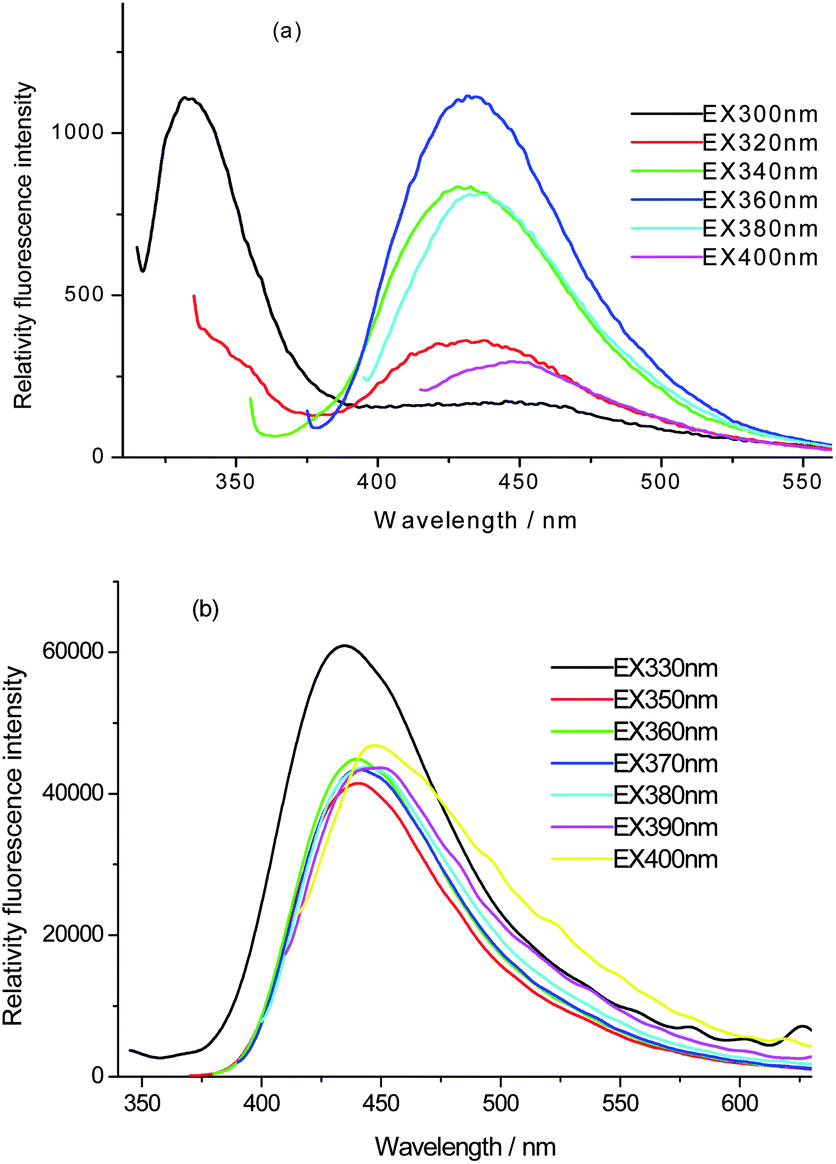

Fig. 3 (a) Fluorescence emission spectra of Ni@SiO2–CDs in ethanol. (b) Fluorescence emission spectra of Ni@SiO2–CDs in the solid state. |
Owing to their small size, the as-prepared nano CDs are normally gel-like. To the best of our knowledge, the photoluminescence properties in the solid state have not been reported yet. Unlike the photoluminescent intensity that is strongly excitation wavelength dependent in ethanol, the photoluminescent intensity in the solid state is almost the same with increasing excitation wavelength even at λex > 360 nm. The red shift of the emission bands in the solid state is not clearly seen in Fig. 3b. This finding may be due to different particle sizes of CDs in ethanolic solution and in the solid state. The quantum yields (ϕf) of the as-synthesized CDs and Ni@SiO2–CDs are about 0.09 ± 0.01 and 0.25 ± 0.05, respectively.
The fluorescence decays for the Ni@SiO2–CDs and CDs in the solid state and in ethanol were studied in order to gain some insight into the excited state properties shown in Fig. 4 and Fig. S6–S10 and Table S1.†
![]() | ||
Fig. 4 The decay curves of Ni@SiO2–CDs in the solid state and in ethanol solution collected at 440 nm when excited at 360 nm. |
The fluorescence decay of Ni@SiO2–CDs in the solid state at λex = 330 nm can be described as bi-exponential function with the contributions of the τ1 (∼3.0 ns) and τ2 (∼9.0 ns) components ∼25% and ∼75%, respectively. Unlike the steady-state photoluminescent spectra of Ni@SiO2–CDs which depend on the excitation wavelength. It is interesting to note that the time constants τ1 (∼3.0 ns, 25%) and τ2 (∼9.0 ns, 75%) obtained at the excitation wavelength 360 nm are almost the same as those obtained at 330 nm.
In ethanol, at the excitation of λex = 330 nm, the fluorescence decays for Ni@SiO2–CDs clearly show tri-exponential behavior at . The fast component (τ1 ≈ 1.0 ns) has an amplitude of about 17%, whereas the contributions of the τ2 (∼5.0 ns) and τ3 (∼11.0 ns) components are about 50% and 33%, respectively. The change of the excitation wavelength to 360 nm does not induce a change in the fluorescence decay. The decay times are similar to those obtained at 330 nm. The fluorescence decays of Ni@SiO2–CDs in ethanol are complicated probably due to the involvement of different particle sizes of Ni@SiO2–CDs in solution and in the solid state. In ethanol, the decay has at least three different particle sizes.
For CDs in ethanol, a tri-exponential function (∼1.0 ns, ∼5.0 ns and ∼13.0 ns) was used to fit the decay at all three emission wavelengths. The decay times are similar to those reported in the literature.26 The shorter decay time (τ1 ≈ 1.0 ns) has the lowest contribution (<5%) when excited at 330 nm.
In general, the decay profiles are complicated due to the involvement of at least two different emitting electronic states, and the likely presence of different particle sizes of CDs in Ni@SiO2–CDs samples. The photophysical results are in accordance with the steady state measurements.
Footnote |
† Electronic supplementary information (ESI) available. See DOI: 10.1039/c3ra45310c |
