Ostwald-ripening and particle size focussing of sub-10 nm NaYF₄ upconversion nanocrystals

Abstract

We have studied the growth behaviour of sub-10 nm NaYF₄ upconversion nanocrystals of the hexagonal β-phase and the cubic α-phase. Ostwald-ripening of such particles in oleic acid/octadecene solvent results in broadening of the particle size distribution if the colloid contains particles of one crystal phase only. Narrow size distributions are formed only if β-phase particles grow in the presence of an excess of α-phase particles. Such binary mixtures of α-phase and β-phase particles form intrinsically when colloids of α-phase particles are heated for a sufficiently long time, because seeds of the β-phase nucleate in the solution after some time at high temperatures. Since the number of seeds determines the final size of the β-phase product, control of the nucleation is crucial for controlling the final particle size. We show that the number of β-phase seeds strongly depends on the composition of the α-phase known to form solid solutions Na_1−xYF_4−x in the range from x = 0 to x = 4/9. Sodium-deficient α-phase particles form a negligible number of β-phase seeds whereas α-phase particles with high sodium content yield a very large number of seeds. By taking advantage of this dependence and modifying the synthesis of the α-phase particles accordingly, small phase-pure β-NaYF₄:Yb,Er particles with a size smaller than 6 nm can be prepared in oleic acid/octadecene just as well as much larger particles.

---

Introduction

Upconversion nanocrystals have applications in biological labelling/sensing and imaging,^1–10 photodynamic therapy,^1,11 spectral conversion in solar cells,^12,13 3D optical displays,^14–17 optical storage,¹⁸ lasing^19,20 and security printing.^21–24 A variety of synthetic methods have been described for producing solvent-dispersible sodium rare-earth tetrafluoride nanocrystals with controlled size, shape and capping ligands. Most of these procedures are based on thermal decomposition,^25–31 co-precipitation,^32–41 or solvothermal methods.^4,16,42–49 In many of these methods oleic acid containing solvent mixtures have been used yielding nanocrystals of high quality and with very narrow particle size distributions.^{4,6,10,17,21–27,29,32–34,37,41,44} The formation of upconversion particles of the hexagonal β-phase has already been proved to be affected by several synthesis parameters, such as the concentration of sodium salts,^{25,27,31,32,41,44,46,48,49} the concentration of metal oleates,³¹ the choice of the fluoride source,⁴³ the doping level^17,48 and the choice of the solvent mixture.^{27,28,32,34,44} Most synthesis procedures for the β-phase NaYF₄, NaYbF₄, NaErF₄, and NaYF₄:Yb,Er yield monodisperse particles with a mean size between 15 and 100 nm.^6,17,27 This is in contrast to other NaREF₄ (RE = rare-earth) nanomaterials^50,51 such as, for example, NaGdF₄, NaEuF₄, NaTbF₄, NaSmF₄ (group II materials, according to Mai²⁷), where similar reaction conditions yield particles in the sub-10 nm size regime. In fact, sub-10 nm particles NaYF₄:Yb,Er were successfully prepared by replacing part of the yttrium by gadolinium^17,52,53 and by doping NaYF₄ with Eu and Tb.⁵⁴ To the best of our knowledge, however, only two papers report on the successful synthesis of nearly monodisperse β-NaYF₄:Yb,Er particles with sizes below 10 nm without additional doping.^32,55 The smallest NaYF₄:Yb,Er particles with diameters down to 4.5 nm were described by Ostrowski et al.³²

Studies that unravel the parameters which determine the final size of β-NaREF₄ nanocrystals are complicated by the fact that not only particles of the hexagonal β-phase but also those of the cubic α-phase can nucleate and grow during the decomposition of the molecular precursors. For several synthesis procedures it has been shown that α-phase particles are formed as the first product which subsequently convert to pure β-phase particles as the final material.^25,44,56,57 The question then is by what mechanism nearly monodisperse β-phase particles can grow from small α-phase particles as the Ostwald-ripening of small particles in the absence of additional monomer precursors should yield broad size distributions.^58–60 Narrow particle size distributions usually result from focussing of the size distribution which requires that a high supersaturation of monomers is maintained during particle growth.^58,61 The latter requires a high production rate of monomers in solution, which is achieved in thermal decomposition methods for NaREF₄ nanocrystals by employing metal trifluoroacetates as thermally labile precursors for the fluoride and metal ions.^25–31 Mai et al. thoroughly investigated the reaction mechanisms for this method and showed that also in this case α-phase NaYF₄ nanocrystals are formed as the first product.^25,27 Zhang et al. introduced a variation of the co-precipitation method using lanthanide chlorides, NaOH, and NH₄F as precursors.^33,34 In their method the precursors are not injected into a hot solution but the reactants are combined at room temperature and subsequently heated. Nevertheless, β-NaYF₄ nanocrystals of uniform size distribution are obtained. Similar to Mai et al. they showed that the synthesis of β-NaYF₄ nanocrystals occurs via an intermediate formation of small α-phase particles which are subsequently converted to larger β-phase nanocrystals.^25,34 Furthermore, Mai et al. have shown that β-phase particles with narrow particle size distributions are even obtained if the α-phase particles are isolated, purified and heated in oleic acid/octadecene in the absence of any additional precursor.^25,62 The latter result raises the question whether the β-phase particles grow at all by Ostwald-ripening, that is, by the exchange of monomers. To investigate this issue we have recently studied the growth behaviour of particle mixtures containing small α-NaYF₄ and small α-NaGdF₄ particles as well as mixtures containing small α-NaEuF₄ and small α-NaGdF₄ particles.^51,56 Luminescence spectroscopy and EPR measurements show that the resulting monodisperse particles of β-NaGdF₄:Eu and β-NaYF₄:Gd mainly contain isolated dopant ions. The small NaEuF₄ and NaGdF₄ particles used as a source for the dopant ions were therefore not incorporated into the final β-phase particles as whole building blocks. Instead, the separation of the dopant ions in the crystal lattice of the product indicates that the small particles dissolve during particle growth, in accord with the mechanism of Ostwald-ripening. NaGdF₄ and NaEuF₄ have the additional advantage that not only small particles of the α-phase but also small particles of the β-phase can be prepared, allowing study of the growth behaviour of small particles of both phases separately. The results show that the small β-phase particles behave as expected for Ostwald-ripening, that is, they show broadening of the size distribution. Closer inspection of the particle growth by TEM reveals a weak broadening of the size distribution in the case of the α-phase particles, too, but only at early growth stages, before seeds of the β-phase nucleate in solution.^25,51 After nucleation of these β-phase seeds, the α-phase particles rapidly dissolve whereas the β-phase seeds rapidly increase in size.^51,63 This observation can be explained by a higher solubility of the thermodynamically less stable α-phase. The release of monomers during the fast dissolution of the α-phase results in a monomer concentration so high that particles of the less soluble β-phase grow under the conditions of monomer supersaturation. Numerical simulations based on the LSW-theory of Ostwald-ripening confirm this model and show that the Ostwald-ripening of such binary particle mixtures in fact results in fast dissolution of the α-phase and focussing of the particle size distribution of the β-phase.⁶³

In the present paper we have extended our study on the growth behaviour of small NaREF₄ nanocrystals to the upconversion material NaYF₄:Yb,Er and its undoped host lattice NaYF₄. Again, purified α-phase particles were used as single-source precursors to prepare the final particles. The latter are thereby formed in the absence of any molecular precursors apart from the monomers exchanged among the particles during Ostwald-ripening. This “clean” reaction solely based on Ostwald-ripening makes it easier to identify the conditions required to obtain β-phase particles of small size. In contrast to our earlier work on NaSmF₄, NaEuF₄, NaGdF₄, and NaTbF₄, this paper is focussed on the different compositions of the cubic α-phase known to form solid solutions Na_1−xYF_4−x in the range from x = 0 to x = 4/9. We have therefore varied the ratio of sodium and rare-earth metal in the synthesis of the α-phase particles accordingly and have used the resulting particles, after washing and redispersing them in pure oleic acid/octadecene solvent, to prepare β-phase particles. We show that the ratio of sodium and rare-earth metal is one of the key parameters determining the final size of the β-phase particles, since the ratio affects the number of β-phase seeds that nucleate during Ostwald-ripening of the α-phase particles. By adjusting this parameter we are able to reproducibly prepare β-NaYF₄:Yb,Er particles in oleic acid/octadecene with a size smaller than 6 nm.

Experimental

Materials

Sodium oleate (82%, Sigma-Aldrich), ammonium fluoride (98%, Sigma-Aldrich), oleic acid (90%, Alfa Aesar), octadecene (90%, Alfa Aesar) and hydrated rare-earth chlorides of YCl₃, YbCl₃ and ErCl₃ (99.9%, Treibacher Industrie AG) were used as received.

Rare-earth oleates

The rare-earth oleates were prepared by reacting solutions of the corresponding rare-earth chlorides with sodium oleate, as given in the literature.⁶⁴ In a typical preparation of yttrium oleate, 60 mmol yttrium chloride (18.2 g) and 180 mmol sodium oleate (54.8 g) were dissolved in 120 ml ethanol, 80 ml water and 210 ml hexane. The resulting turbid solution was heated for 14 h under reflux (at about 60 °C). The transparent organic phase containing the yttrium oleate was separated at room temperature and the hexane was removed with a rotavap, yielding yttrium oleate. Ytterbium oleate and erbium oleate were prepared analogously.

Synthesis of small cubic phase nanocrystals

The synthesis of the sub-10 nm particles of α-NaREF₄ (RE = Y, Yb and Er) is based on the reaction of rare-earth oleates, sodium oleate and NH₄F in a mixture of oleic acid and octadecene, similar to the procedure given by Liu et al.⁴¹ In our case, the rare-earth oleate and the sodium oleate were combined in different molar ratios of 1 to x, x ranging from 5/9 to 8. Oleic acid and octadecene were added to the metal oleates (10 ml of each solvent per 1 mmol of rare-earth oleates) and the mixture was degassed on a vacuum Schlenk-line (1 mbar) for 1 h at 100 °C under vigorous stirring. Then 3 + x mmol of NH₄F was added and the apparatus was cycled three times between nitrogen and vacuum. The reaction mixture was heated at 200 °C for 60 min under nitrogen flow and vigorous stirring and thereafter allowed to cool at room temperature. When an excess of sodium oleate and ammonium fluoride was used, sodium fluoride was formed as a by-product which was removed by centrifugation. The clear supernatant was merged with an equal volume of ethanol leading to precipitation of the nanoparticles, which were separated by centrifugation. The particles were purified by redispersing the precipitate in hexane (3 ml hexane per 1 mmol rare-earth oleates), followed by precipitation with ethanol and separation by centrifugation.

Yb,Er-doped up-conversion nanoparticles were prepared similarly by using yttrium, ytterbium and erbium in the usual molar ratio of 0.78 : 0.20 : 0.02.

Synthesis of hexagonal phase nanocrystals

For the preparation of β-NaREF₄ particles (RE = Y, Yb, Er), small α-phase particles were dissolved in a mixture of oleic acid and octadecene (2 ml of oleic acid and 2 ml of octadecene per 1 mmol of cubic phase particles). The mixture was degassed on a vacuum Schlenk-line (1 mbar) for 1 h at 100 °C under vigorous stirring. The resulting clear colloidal solution was heated at 300 °C for different periods of time under nitrogen flow and vigorous stirring. During the growth reaction several samples (each 5 ml) were taken with a glass syringe and injected into a cooled mixture of hexane and ethanol (2 ml of hexane and 4 ml of ethanol per ml sample). The precipitated nanocrystals were separated by centrifugation and purified as given above for particles of the cubic phase.

Instrumentation

TEM-images were recorded with a JEM 2100 electron microscope (JEOL) operated at 200 kV. Size histograms of the samples were derived from TEM images using the software Image-J.⁶⁵ In the case of rod-shaped particles, the length and the width of each particle were determined from the TEM images and used to calculate the volume of each particle assumed to have cylindrical shape. The diameter of a sphere with identical volume was then calculated from this value and used for the histogram. X-ray powder diffraction measurements were performed on an X'Pert Pro Diffractometer (Panalytical) with Bragg–Brentano geometry using Cu K_α (λ = 1.5406 Å) radiation (40 kV, 40 mA) and a 2θ step size of 0.0334°. The XRD data of all samples were analyzed by the Rietveld method using the software FullProf (version July 2011. LLB, Juan Rodriguez Carvajal, Saclay France).⁶⁶ The elemental composition of samples was determined by X-ray fluorescence analysis (XFA) using a 1 kW AXIOS^mAX X-ray fluorescence spectrometer (Panalytical).

Results and discussion

The growth behaviour of sub-10 nm NaYF₄;Yb,Er upconversion nanocrystals was studied by redispersing small particles of the cubic α-phase and the hexagonal β-phase in oleic acid/octadecene solvent and heating the resulting colloids at 300 °C. The α-phase nanocrystals were purified before further use by re-dispersing the particles in hexane and precipitating the nanocrystals again with ethanol. Different molar ratios of sodium oleate, rare-earth oleate and ammonium fluoride were used in the synthesis of the α-phase starting material, as it is well known that the cubic phase of bulk NaYF₄, NaYbF₄ and NaErF₄ forms solid solutions allowing to adjust the composition Na_1−xREF_4−x between x = 0 and x = 4/9.^67,68

To obtain sub-10 nm NaYF₄:Yb,Er particles of the hexagonal β-phase as starting material we tested a procedure analogous to the one used in our previous paper for the synthesis of small particles of β-NaSmF₄, β-NaEuF₄, β-NaGdF₄ and β-NaTbF₄. In the case of NaYF₄, NaYbF₄ and NaErF₄, however, this method yields nanocrystals of the α-phase. Therefore, we used a new synthesis procedure based on α-phase particles with high sodium content as the precursor material. The details of this synthesis method will be given below.

TEM images of three different starting materials are displayed in the upper part of Fig. 1. The figure shows small α-NaYF₄:Yb,Er particles prepared with an excess of sodium and fluoride (molar ratio of 2.5 : 1 : 4 with respect to sodium oleate, rare-earth oleate and ammonium fluoride), small sodium-deficient particles of the cubic α-phase with nominal composition Na₅Y₉F₃₂:Yb,Er, as well as small NaYF₄:Yb,Er particles of the hexagonal β-phase. Before heating to 300 °C all materials show mean particles sizes well below 10 nm and narrow size distributions (Fig. 1, upper part). After heating (lower part), broad size distributions are observed for α-Na₅Y₉F₃₂:Yb,Er and β-NaYF₄:Yb,Er particles but a narrow size distribution is observed in the case of α-NaYF₄:Yb,Er as the starting material. The corresponding XRD data and size histograms are displayed in Fig. S1 and S2, respectively (ESI†). The XRD data show that the crystal structure of the α-NaYF₄:Yb,Er particles changes from cubic (α-phase) to hexagonal (β-phase) during heating whereas no phase transition is observed for the β-phase and the sodium-deficient α-phase material. The histograms show that nearly monodisperse particles are only obtained when the phase transition is also observed. The growth of the other two materials yields the broad size distributions expected for Ostwald-ripening in the absence of additional monomers. These observations are in accord with our earlier results for NaSmF₄, NaEuF₄, NaGdF₄ and NaTbF₄ nanocrystals where narrow size distributions also require that a transition from the α-phase to the β-phase takes place.⁵¹

Fig. 1 Upper row: TEM-images of sub-10 nm nanocrystals of α-NaYF₄:Yb,Er, α-Na₅Y₉F₃₂:Yb,Er, and β-NaYF₄:Yb,Er (from left to right). Lower row: particles of the upper row after Ostwald-ripening in oleic acid/octadecene for 80 min at 300 °C. Particles with narrow size distribution are only obtained by heating α-NaYF₄:Yb,Er particles, the only case where Ostwald-ripening is accompanied by a transition from the α-phase to the β-phase.

The conversion of small α-NaYF₄:Yb,Er particles to larger particles of the β-phase is shown in more detail in Fig. 2 where the mean sizes of the α-phase and the β-phase particles as well as the molar fractions of the two phases are plotted versus reaction time. The figure is based on Rietveld fits of the XRD data of NaYF₄:Yb,Er samples taken after different times of growth at 300 °C (see Fig. S3 and S4† for the XRD data and a selection of Rietveld fits). First weak reflexes of the hexagonal β-phase can be identified in the XRD data after 60 min of heating at 300 °C. This delayed nucleation of the β-phase was investigated by Mai et al. and was attributed to a high activation energy barrier for the transition of the α-phase to the β-phase.^25,27 The figure shows that the particles of the α-phase rapidly dissolve as soon as a sufficient number of β-phase particles nucleated in solution. The rapid dissolution is accompanied by a fast increase of the molar fraction of the β-phase as also observed by other groups.^{25,27,31,42,63} Obviously, the monomers released by the rapidly dissolving α-phase particles are consumed by the β-phase seeds. In fact, the numerical simulations mentioned above show that the thermodynamically less stable α-phase itself act as monomer reservoir which releases monomers at a high rate.^58,61 The simulations not only reproduce the strong focussing of the size distribution observed for all these systems but also the temporal evolution of the mean particle sizes and molar fractions.⁶³

Fig. 2 Ostwald-ripening of sub-10 nm nanocrystals of α-NaYF₄:Yb,Er in oleic acid/octadecene at 300 °C. The figure displays the temporal evolution of the mean size of the α-phase particles (filled stars), the mean size of β-phase particles nucleating in the solution (open cubes) and the molar fractions of the two phases (circles and lines). A molar ratio of 2.5 : 1 : 4 (Na-oleate : RE-Oleate : NH₄F) was used in the synthesis of the α-phase particles.

Small particles of undoped NaYF₄ show a growth behaviour analogous to that given in Fig. 2 for the doped material confirming that doping is not a key factor for obtaining narrow size distributions (Fig. S5†). Fig. 3 shows that heating of undoped particles of α-NaErF₄, α-NaYbF₄ or α-NaYF₄ particles in oleic acid/octadecene yields in fact narrow size distributions in all cases whereas broad size distributions are observed for the corresponding sodium-deficient systems α-Na₅Er₉F₃₂, α-Na₅Yb₉F₃₂, and α-Na₅Y₉F₃₂ where no phase transition occurs (see also Fig. S6 and S7†). Obviously, the sodium content of the cubic material affects the nucleation of β-phase seeds in all cases. We therefore studied the influence of the molar ratio of NaF and rare-earth trifluoride by varying the molar ratios of sodium oleate, rare-earth oleate and ammonium fluoride from 8 : 1 : 11 to 0.56 : 1 : 3.56 in the synthesis of the α-phase starting material. After heating the three components in oleic acid/octadecene at 200 °C the resulting α-phase upconversion particles were precipitated with ethanol and thereafter washed by re-dispersing the precipitate in hexane, adding again ethanol and isolating the particles by centrifugation. The XRD data of the resulting powders show the expected signals of the α-phase in all cases but no signals of NaF indicating that the latter is mostly removed by the washing sequence (Fig. S8†). The composition of the different α-phase particles was determined by X-ray fluorescence analysis (XRF). In Fig. 4 the ratio of sodium to rare-earth metal in the purified particles, as determined by XRF, is plotted versus the ratio of sodium to rare-earth oleate employed in the synthesis of the particles. The figure shows that α-phase particles prepared with a low ratio of sodium to rare-earth oleate display the expected sodium-deficient composition. If the particles are prepared with a high ratio of sodium to rare-earth oleate, the α-phase particles contain up to 20% excess sodium with respect to the expected 1 : 1 ratio of sodium to rare-earth metal. This excess of sodium, however, can be reduced by extensive washing of the particles (Fig. 4). Since extensive washing also negatively affects the dispersibility of the particles we assign this additional sodium to the presence of sodium oleate in the ligand shell of the particle surface or as ad-atoms on the particle surface.⁶⁹

Fig. 3 Upper row: TEM-images of the polydisperse α-phase products obtained by heating sub-10 nm particles of α-Na₅Y₉F₃₂, α-Na₅Yb₉F₃₂, and α-Na₅Er₉F₃₂ at 300 °C in oleic acid/octadecene (from left to right). Lower row: nearly monodisperse β-phase products obtained by heating sub-10 nm particles of α-NaYF₄, α-NaYbF₄, and α-NaErF₄ at 300 °C in oleic acid/octadecene (from left to right). The sub-10 nm particles of α-Na₅RE₉F₃₂ and α-NaREF₄ were prepared by employing Na-OA, RE-OA and NH₄F in a molar ratio of 5:9:32 and 2.5:1:4, respectively.

Fig. 4 X-ray fluorescence (XRF) analysis data of α-NaYF₄:Yb,Er particles prepared with different amounts of sodium oleate (Na-OA), rare-earth oleate (RE-OA) and ammonium fluoride (NH₄F) before (filled circles) and after (open circles) washing. The ratio of sodium to rare-earth metal in the particles, as determined by XRF, is plotted versus the ratio of sodium to rare-earth oleate employed in the synthesis of the particles.

The purified α-phase particles were then re-dispersed in oleic acid/octadecene solvent and heated to 300 °C. The conversion of the α-phase to the β-phase with time is shown in Fig. 5 for the different α-phase materials. The figure shows that with increasing sodium-deficiency of the α-phase the delay of the conversion to the β-phase also increases. Highly sodium-deficient α-phase particles (5 : 9 : 32 molar ratio of Na-OA, RE-OA and NH₄F) do not convert to the β-phase even after 4 hours of heating, as already shown in Fig. 3. This increasing delay shows that the sodium content of the α-phase particles affects the nucleation of the β-phase seeds, because the dissolution of the α-phase does not start before the first β-phase seeds have formed (see also Fig. 2 and S5†). This is even more evident when the sizes of the resulting β-phase particles are compared, because the size of the particles is inversely proportional to the number of seeds formed. Fig. 6 and 7 show that the particle size of the nearly monodisperse β-phase systematically decreases with increasing sodium content of the α-phase particles (see also Fig. S9–S11†). In fact, β-phase NaYF₄:Yb,Er particles with a mean size as small as 5.3 nm can be reproducibly prepared in gram amounts by heating α-phase particles prepared with a high molar ratio of 8 : 1 : 11 (Na-OA : RE-OA : NH₄F). Similar results were obtained for undoped NaYF₄ (see Fig. S14–S17†). Note that in our case the particles are synthesized in the absence of oleylamine which is often used to favour the formation of the cubic α-phase. The small β-phase upconversion particles prepared in this way were used for the Ostwald-ripening experiments shown in Fig. 1. When the ratio of the three components is reduced to 2 : 1 : 5, the resulting α-phase particles yield β-phase particles with a mean size of 22 nm. If the ratio is further reduced, also the particle size of the β-phase increases further, but at very low sodium contents the conversion to the β-phase becomes incomplete and finally does not take place anymore. Note that according to the phase diagrams of bulk NaYF₄, NaYbF₄ and NaErF₄, the cubic α-phase is stable for compositions ranging from NaYF₄ to Na_5/9YF_32/9 whereas the β-phase is only stable in a narrow range close to the 1 : 1 composition given by the formula NaYF₄.^67,70 Strongly sodium-deficient α-phase particles should therefore not contain enough sodium fluoride to completely convert to the β-phase. For this reason we have also studied the conversion of the α-phase particles in the presence of additional sodium oleate and NH₄F in solution. A rather large amount of 0.6 mmol of Na-OA and 0.6 mmol of NH₄F per 1 mmol of nanoparticles in oleic acid/octadecene was used in these experiments which exceeded the amount of Na-OA contained in the ligand shell in all cases (Fig. 4). The result is that in the presence of additional sodium oleate and fluoride, complete conversion to the pure β-phase is observed in all cases, even for the highly sodium-deficient Na_5/9YF_32/9 particles. In addition, the resulting particle sizes are slightly affected. Fig. 7 shows that the size of the β-phase product particles strongly varies with the composition of the α-phase particles used for their synthesis (compositions are measured by XRF, see Fig. 4) but also that the presence of additional sodium oleate and NH₄F in the solvent results in β-phase particles which are slightly smaller than those prepared in the absence of sodium oleate and NH₄F (see also Fig. S12 and S13†). The latter indicates that the additional sodium and fluoride ions also slightly influence the nucleation of the β-phase seeds in solution. This weaker effect is similar to the results published by Sui et al. showing that the size of the final β-phase particles is affected by the amount of metal oleates present during the thermal decomposition of metal trifluoroacetates.³¹

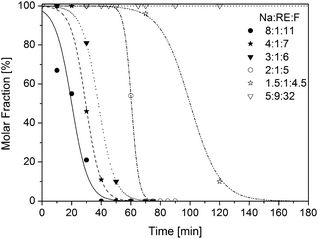

Fig. 5 Conversion of different α-NaYF₄:Yb,Er particles to β-NaYF₄:Yb,Er particles with time. With increasing sodium deficiency of the α-phase particles the conversion to the β-phase is increasingly delayed. Highly sodium-deficient α-phase particles do not convert to the β-phase within 4 hours of heating. The molar ratios (Na-OA : RE-OA : NH₄F) given in the diagram refer to the ratios used in the synthesis of the α-phase particles.

Fig. 6 β-NaYF₄:Yb,Er particles with different mean size prepared by Ostwald-ripening of purified α-NaYF₄:Yb,Er particles in oleic acid/octadecene at 300 °C. The number of β-phase seeds nucleating during Ostwald-ripening of the α-phase particles depends on the molar ratio of sodium oleate (Na-OA), rare-earth oleate (RE-OA) and ammonium fluoride (NH₄F) employed in the synthesis of the α-phase particles. The molar ratio (Na-OA : RE-OA : NH₄F) is given in each TEM-image. The different mean sizes of the β-NaYF₄:Yb,Er particles are also given in Fig. 7, overview TEM-images and size histograms are shown in the ESI.†

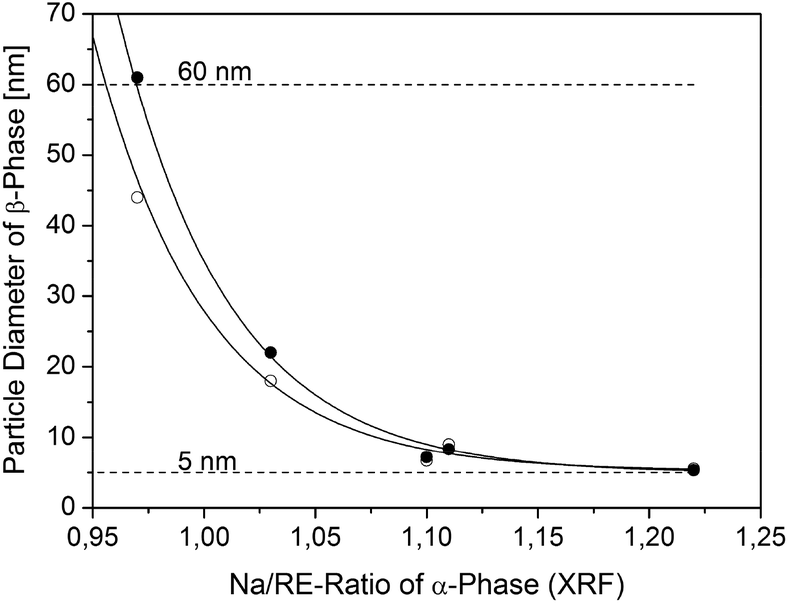

Fig. 7 Mean size of nearly monodisperse β-NaYF₄:Yb,Er particles prepared by heating α-phase particles with different compositions in oleic acid/octadecene at 300 °C. The Na : RE-ratio of the α-phase particles was determined by X-ray fluorescence spectroscopy (XRF). The α-phase particles were heated either in the presence (open circles) or in the absence (filled circles) of additional sodium oleate and NH₄F in the solvent.

Conclusion

In conclusion our results show that the size of β-NaYF₄:Yb,Er upconversion particles prepared in oleic acid/octadecene strongly depends on the composition of intermediately formed α-NaYF₄:Yb,Er particles. The ratio of sodium to rare-earth metal in the α-phase is one of the key parameters determining the number of β-phase seeds nucleating during Ostwald-ripening of the α-NaYF₄:Yb,Er particles. The size of β-NaYF₄:Yb,Er upconversion particles can therefore be varied by adjusting this parameter allowing, for instance, to reproducibly prepare phase-pure β-NaYF₄:Yb,Er particles in oleic acid/octadecene with a mean diameter smaller than 6 nm.

Acknowledgements

We thank H. Eickmeier for the TEM investigations.
