Luminescence behaviour in acetonitrile and in the solid state of a series of lanthanide complexes with a single helical ligand

Abstract

Luminescence mechanisms of Eu^III, Tb^III, Gd^III and Nd^III complexes with a hexadentate ligand (abbreviated to EuL, TbL, GdL, and NdL, respectively), which have two bipyridine moieties bridged by an ethylenediamine unit, have been examined. Our molecular design is that each complex forms a single helical polar structure based on the chelate ring to retain solubility in solutions. EuL and NdL show comparably bright emission from ff transitions both in acetonitrile solution and in the solid state. To understand the mechanism of the emission in detail, the energy level of the triplet (T) state of the ligand L has been estimated based on the phosphorescence measurements of GdL, because Gd^III shows no ff emission. The donor level of the T state of L and the acceptor level of Eu^III or Nd^III can overlap, indicating that the excited photon localized on L has been used for the efficient ff emission, while not for ππ* emission. For TbL, the luminescence quantum yield is significantly dependent on temperature and the state: in the solid state of TbL, the quantum yield of ff emission is over 90% at 77 K, while no luminescence is observed at room temperature, and in solution TbL shows no emission. This observation suggests that the emissive f-level of Tb^III and the energy donor level of the excited T state of L are in thermal equilibrium. The described lanthanide complexes are stable and retain their molecular structure even in solutions and show characteristic luminescence behaviour based on the energy relaxation process of each lanthanide ion. Furthermore the Ho^III complex with L (HoL) has been prepared and its structure has been analyzed. HoL has a twisted arrangement of the bipyridine moiety surrounding Ho^III due to the small ionic radius of Ho^III.

---

Introduction

Highly luminescent lanthanide (Ln) complexes have attracted much attention because they are applied to functional materials such as OLEDs,^1–6 solar cell systems,^7,8 and sensors in solutions.^9–13 Recently, intensive work has focused on the Ln complexes with organic ligands which exhibit significant luminescent properties.^14,15

The spectral feature of their luminescence originating from ff-electronic transitions of Ln complexes, generally, is specifically compared with that of fluorescence or phosphorescence of neat organic compounds;^16,17 the ff emission of the Ln ion appears as narrow bands because of the inner-core transitions being shielded from the outer-sphere, and has been induced by the photo-excitation of π-electronic systems of the organic ligand moieties via an intramolecular energy transfer.^18–21 In other words, for these Ln complexes, the π-electronic moieties of the ligands act as photo-antennae and as energy donors, and a splitter of the f-level of Ln^III as an acceptor in the complexes. The energy differences between the energy donor and the acceptor based on molecular design affect directly the efficiency of ff-emissions. For instance, there are a number of papers that describe Ln complexes with an organic ligand showing over 50% or 100% efficiency in the luminescence.¹⁶

These ligands also exert structural effects on the properties of the Ln complexes. For instance, such structural modifications lead to the tuning of luminescence efficiency and the band appearances of the ff emission.^22–26 Moreover, the enhanced ff emission may be induced, if the ligands act as a shield from the outer-sphere with a stable structure in solution^23,27–30 or in the solid state.^24,31–35

A chelate effect provides a fundamental but most useful technique to design stable metal complexes, and the coordination number of the chelate ring contributes to the stability constant of the coordination in solution. There are some manuscripts for metal complexes, e.g. Co, Cu, Fe, Zn, Ag, Eu ions, with a hexadentate ligand forming the helicate molecular structure.^36–38 It is well known that Constable and Tocher et al. reported various metal complexes having d- or f-block ions with a helicate of a polypyridyl ligand. In their evolution of the molecular preparation,³⁸ for instance, six pyridine moieties in the ligand were demonstrated to have the ability to form a single-helical structure by coordinating with a Eu ion.

Our approach is to understand the emission mechanism of a series of lanthanide (Eu, Gd, Tb, and Nd) complexes, in view of photochemistry to realize the efficient luminescent principle in the solid state and in solution. In this strategy, we designed a new hexadentate ligand to wind the Ln ion, and the formed complex would retain the strong dipole moment to dissolve into solution with emitting ability (Fig. 1). The target complexes would have five pentagonal-chelate-rings in a molecule to retain their stability in solution, the so called chelate effect. It is expected that the molecular structure with the organic ligand would form a co-planar structure, and both sides of the structure would give two exchangeable/flexible sites.

Fig. 1 Strategy to design a helical molecular structure that retains a strong dipole moment to induce the ff-emission of Ln complexes. In this figure, EnT means the intramolecular energy transfer.

In the present study, electronic transitions of a series of new Ln complexes (abbreviated to LnL, Ln = Nd, Eu, Gd, Tb and Ho shown in Fig. 2) have been discussed. In particular, we have focused on the emission properties of the Eu and Tb complexes both in solution and the solid state. Here, we use a hexadentate ligand L having two bipyridine (abbreviated to bpy) moieties bridged by an ethylenediamine unit (abbreviated to en) designed based on the above strategy. Two bpy moieties may also act as photo-antennae to transport the excitation energy for the Ln excitation. The en group prevents conjugation of two bpy in LnL, and the excited state of the π electronic system of the bpy can be treated as the same as those of simple bpy derivatives. The X-ray structural analysis of a series of LnL (Ln = Nd, Eu, Gd, Tb and Ho) complexes was also performed to support spectral discussion concerning the molecular structure.

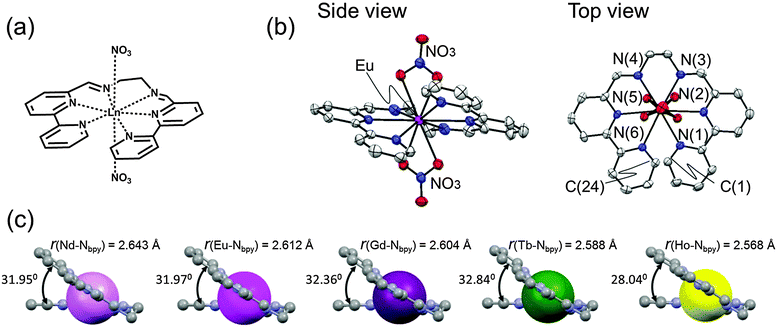

Fig. 2 Top: molecular structure of LnL (a) and the ORTEP drawing of EuL with 70% probability thermal ellipsoids (b) obtained from the single crystal X-ray analysis. Hydrogen atoms, PF₆⁻ and acetonitrile are omitted for clarity. Bottom: (c) side views to compare the dihedral angles among two bipyridine moieties and averaged binding distances between a Ln ion and nitrogen atoms localized on bpy moieties for a series of LnL (Ln = Nd, Eu, Gd, Tb and Ho). Gray: carbon, blue: nitrogen, red: oxigen, lilac: neodimium, pink: europium, violet: gadrinium, green: terbium and yellow: hormium. For each of the illustrations, LnL has no NO₃⁻ for clarity.

Results and discussion

1. Structural analyses

We have thus synthesized a new ligand L containing two bpy moieties and a series of LnL (Nd, Eu, Gd, Tb and Ho complexes with L are abbreviated to NdL, EuL, GdL, TbL and HoL, respectively).

The single crystal structures of LnL have been determined by the single crystal X-ray diffraction analyses. Fig. 2 and Fig. S3 (ESI‡) show the molecular structure of EuL and the comparison of those of NdL, GdL, TbL and HoL. In EuL, six nitrogen atoms of L coordinate to the centre metal Eu, and form five pentagonal-chelate rings equatorially. Each bpy moiety keeps coplanar, and two terminated-pyridine rings take the face-to-face conformation each other in a van der Waals distance, r(C(1)–C(24)) = 3.178 Å in EuL. Furthermore, two nitrate anions bind to the Eu from both apical sites, and the Eu ion has a total coordination number of ten. From the comparison of the molecular shape of a series of LnL (Ln = Nd, Eu, Gd, Tb and Ho), it is found that L can form the same molecular structure with other Ln ions (Fig. S3, ESI‡ and Table 1). These metal ions are in the order corresponding to the ionic radii and atomic number, i.e., the ionic radius of Nd^III is larger than that of Ho^III known as the lanthanide contraction. The interatomic distance shows the average value of four Ln–N_bpy distances, r(Ln–N_bpy), of each complex (Tables S1 and S2, ESI‡). It is worth noting that the lanthanide contraction affects the length of Ln–N_bpy bonding and the distance of the terminal pyridyl group in the bpy skeleton based on the periodicity of Ln ionic radii. The dihedral angle among two bpy moieties of the complex increases periodically with increasing atomic numbers. It is reflected in their electronic repulsion among the terminal pyridyl group in the bpy skeleton, due to the changes in distances of the Ln–N_bpy bonding. In the case of HoL, the dihedral angle does not show periodicity, because of the distortion of bpy skeletons.

Table 1 Crystallographic data for LnL

Ln	Nd	Eu	Gd	Tb	Ho
a R 1 = Σ||Fo| − |Fc||/Σ|Fo|. b wR2 = {Σ[w(Fo^2 − Fc^2)^2]/Σ[w(Fo^2)^2]}^1/2.
Formula	C26H23F6N9NdO6P	C26H23EuF6N9O6P	C26H23F6GdN9O6P	C26H23F6N9O6PTb	C28H26F6HoN10O6P
Formula weight	846.74	854.46	859.75	861.42	908.49
Crystal size (mm)	0.13 × 0.09 × 0.02	0.15 × 0.11 × 0.08	0.18 × 0.16 × 0.10	0.22 × 0.10 × 0.08	0.13 × 0.09 × 0.02
Crystal system	Triclinic	Triclinic	Triclinic	Triclinic	Triclinic
Space group	P1̄	P1̄	P1̄	P1̄	P1̄
a (Å)	8.949(2)	8.9999(9)	9.0151(7)	9.0172(11)	9.961(3)
b (Å)	12.231(3)	12.2528(12)	12.2140(9)	12.2389(15)	13.593(4)
c (Å)	16.394(4)	16.2526(16)	16.1835(12)	16.133(2)	13.751(4)
α (°)	112.158(2)	112.3060(10)	112.0360(10)	112.0540(10)	68.307(3)
β (°)	104.132(2)	104.4460(10)	104.2970(10)	104.2690(10)	86.035(3)
γ (°)	92.428(3)	91.8160(10)	91.8260(10)	91.6220(10)	87.405(3)
V (Å^3)	1593.4(7)	1589.6(3)	1585.2(2)	1584.7(3)	1725.5(9)
Z value	2	2	2	2	2
D calcd (Mg m^−3)	1.765	1.785	1.801	1.805	1.749
μ (Mo Kα) (mm^−1)	1.770	2.114	2.234	2.373	2.428
F(000)	838	844	846	848	896
λ (Mo Kα) (Å)	0.71073	0.71073	0.71073	0.71073	0.71073
Temperature (K)	100	100	100	100	100
R 1 (I > 2.00σ(I))	0.0308	0.0349	0.0325	0.0294	0.0378
wR2^b (I > 2.00σ(I))	0.0823	0.0947	0.0821	0.0807	0.0845
Goodness of fit	1.055	1.082	1.061	1.073	1.072
Largest peak and hole (e Å^−3)	2.110, −1.090	2.639, −1.439	2.311, −1.227	2.870, −1.409	3.002, −1.530

---

In a unit cell of EuL, there are two molecules having chiralities; a right- and a left-handed isomer (Fig. 3(a)). A couple of hexafluorophosphate and acetonitrile is also included in the unit cell of EuL (Fig. S4(a), ESI‡). As shown in Fig. 3(b), the molecular packing of EuL suggests that two isomers between the neighboring unit cells interact through the intermolecular ππ interaction of their bpy skeletons at the distance of 3.59–3.83 Å. This interaction results in the formation of their independent column-like structure as shown in Fig. S4(b) and (c) (ESI‡), which is supported by the existence of PF₆⁻ ions and acetonitrile molecules.

Fig. 3 (a) Two isomers in a unit cell of EuL, having left-handed (gold) and right-handed (silver) isomers obtained from X-ray single crystal structural analysis. (b) Molecular packing of EuL projected from along the b-axis. (Hydrogen atoms, PF₆⁻ and acetonitrile are omitted for clarity).

X-ray structure analysis reveals that all complexes are isostructural with each lanthanide counterpart, and the Nd, Eu, Gd, and Tb complexes are isomorphous with each other. Remarkably, the detailed crystallographic analysis clarified the void spaces in these complexes, which are placed around the inversion centre of the unit cell as shown in Fig. S5 and Table S3 (ESI‡), originating from the desolvation of one acetonitrile. This means that 1.5 acetonitrile molecules were in an asymmetric unit and totally three acetonitrile molecules were in the unit cell before desolvation occurred. In this case, the space group of the initial crystal should have lower symmetry, P1, compared to that of the desolvated crystal, P1̄, because acetonitrile is not a symmetric molecule. The channel structure of the solvents makes it possible to desolvate easily from the crystal.

Among those complexes, HoL is the only one complex that has two molecules of acetonitrile in an asymmetric unit, meaning that there are totally four acetonitrile molecules in a unit cell.

2. Luminescence properties of LnL

To discuss the luminescence spectra of LnL, the electronic absorption spectra should be observed, because they generally give much information on the electronic and molecular structure. Fig. 4 shows the electronic spectra localized on the ligand moieties of EuL, GdL and TbL in the solid state and in acetonitrile. All complexes LnL show the ππ* absorption bands of the ligand mainly at 280, 305 and 330 nm in the solid state. Their corresponding bands appear at 275, 315 and 330 nm, respectively, in solution. This observation suggests that a series of LnL form molecular structures similar to those in solution and similar molecular arrangements in the solid state. ESI-TOF-MS spectra of these complexes in acetonitrile show a molecular ion for each LnL unit (Fig. S2, ESI‡). The shape of the broadened absorption band in the solid state compared with that in the solution is attributed to the intermolecular interaction as above mentioned. The electronic absorption bands of EuL are observed in acetonitrile, and the band at 330 nm can be ascribed as the lowest ππ* transition experimentally. The ππ* electronic absorption bands of NdL and HoL also appear at exactly corresponding positions of those of EuL (Fig. S6, ESI‡). Additionally, NdL or HoL shows sharp absorption bands originating from the ff-transitions of Nd^III or Ho^III as shown below.

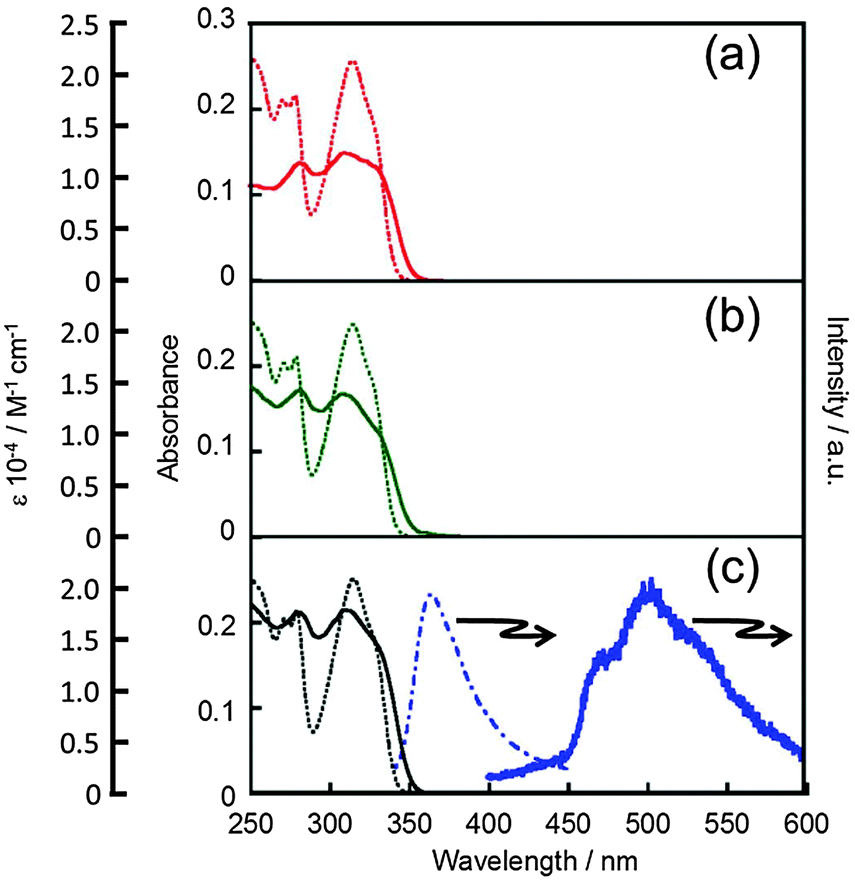

Fig. 4 Electronic spectra of EuL (a), TbL (b), and GdL (c) localized on the π electronic systems. Absorption spectra in acetonitrile (dotted line) and in the solid state (solid line) use the left vertical scales; emission spectra in the solid state at rt (dotted-dash) and 77 K (thick) the right one (λ_ex = 330 nm).

To estimate the energy donor level of L of LnL, luminescence spectra of GdL have been examined, since a split upper f-level of Gd^III, ⁶P_J, locates in the vacuum ultra violet region meaning that Gd^III shows no ff emission. Emission bands of GdL are observed at 361 (27 500) and ca. 500 nm (as a broadened band 21 700–16 600 cm⁻¹) mainly, at rt and 77 K, respectively (Fig. 4c).

The former transition and latter are assigned to the fluorescence ¹S and phosphorescence T band, respectively, localized on the bpy moiety of GdL. It means that the excited T level of L is suitable to act as an energy donor to Eu^III or Tb^III. The complex, EuL or TbL (also, NdL), shows no ππ* emissions, because the excited ligand-centred photon prevails for energy transfer to Eu^III or Tb^III relative to the ππ* relaxations. It is notable that these ff emission properties of our present systems are unique, because the complexes have no ππ* emission due to the efficient intramolecular energy transfer from L to Ln^III.

The luminescence spectra of EuL and TbL in acetonitrile and in the solid state are shown in Fig. 5. EuL in the solid state at rt shows the ff emission of the trivalent Eu ion at 580, 595, 615, 650 and 685 nm, which is assigned to the ⁵D₀ → ⁷F₀, ⁵D₀ → ⁷F₁, ⁵D₀ → ⁷F₂, ⁵D₀ → ⁷F₃ and ⁵D₀ → ⁷F₄ transitions, respectively. These bands of EuL appear at the same position at 77 K. These corresponding bands are also observed at almost the same position in acetonitrile. Each excitation spectrum monitored at the ff emission band position reproduces well each electronic absorption spectrum assigned to the lowest excited state of L (Fig. S7, ESI‡).

Fig. 5 Luminescence spectra of EuL ((a) and (b)) and TbL ((c) and (d)). (a) and (c) are in acetonitrile at rt, and (b) and (d) in the solid state at rt and 77 K (λ_ex = 330 nm).

Absolute luminescence quantum yields Q^L_Ln and luminescence lifetimes τ_obs of EuL and TbL are estimated and the values are given in Table 2. The τ_obs values for ff-emissions of EuL in the solid state and in acetonitrile as well as TbL in the solid state at 77 K are closer to each other in the 1.27–1.55 ms range (Fig. S8, ESI‡). The Q^L_Ln values of EuL in the solid state preserve over 50% at ambient and low temperatures. Furthermore, the Q^L_Ln value of EuL in acetonitrile is 12%, which is not all that high while enough to discuss photoproperties even in solutions as same as those of other systems.³⁹

Table 2 Luminescence lifetimes τ_obs (amplitude) and absolute luminescence quantum yields Q^L_Ln of ff emissions of LnL (Ln = Eu and Tb)

		Temp.	τ obs [ms] (amp.)	Q ^LLn [%]
a The values of Ln emission were based on the ligand excitation.
EuL	In the solid state	rt	1.27 (1.0)	52.6 (±1.4)
		77 K	1.35 (1.0)	63.5 (±2.7)
	In acetonitrile	rt	1.55 (1.0)	12.0 (±0.5)
TbL	In the solid state	rt	0.0153 (0.96)	1.0 (±0.2)
			0.00234 (0.04)
		77 K	1.49 (1.0)	91.5 (±1.4)
	In acetonitrile	rt	n.d.	≈0

---

It is generally known that the ff emissions of Tb^III show thermal sensitivity, which is caused by the thermal equilibrium on the energy transfer pathway between the T level of L and the energy acceptor level of Tb^III.⁴⁰ It is noteworthy that TbL also leads to the efficient luminescence of TbL at 77 K. Luminescence bands of TbL in acetonitrile appear at 490, 545, 587 and 623 nm, which are assigned to the ⁵D₄ → ⁷F₆, ⁵D₄ → ⁷F₅, ⁵D₄ → ⁷F₄ and ⁵D₄ → ⁷F₃ transitions, respectively (Fig. 5c). These band positions are almost the same as those in the solid state (Fig. 5d). Based on the estimation of Q^L_Ln values of TbL (Table 2), the values at ambient temperature both in the solid state and in acetonitrile show negligible low values. While it is significant that at 77 K in the solid state, the Q^L_Ln value of TbL drastically increases over 90%. As far as we know, this value is the remarkably high value of quantum yields in Tb complexes,^16a,41 and thus drastic thermal effect on the value is unusual. The energy relaxation mechanism of TbL is shown in Fig. 6; the T level of L acts as an energy donor via intersystem crossing after the internal conversion. That is, this thermal sensing effect of TbL is caused by the equilibrium between the emissive level of Tb^III and the energy donating level of L. Also, it is known that molecular oxygen acts as a quencher for the aromatic triplet excited state and similarly affects the lanthanide luminescence.⁴² Thus, the significantly low Q^L_Ln value of TbL in acetonitrile might be affected by such oxygen molecule effects with thermal relaxation.

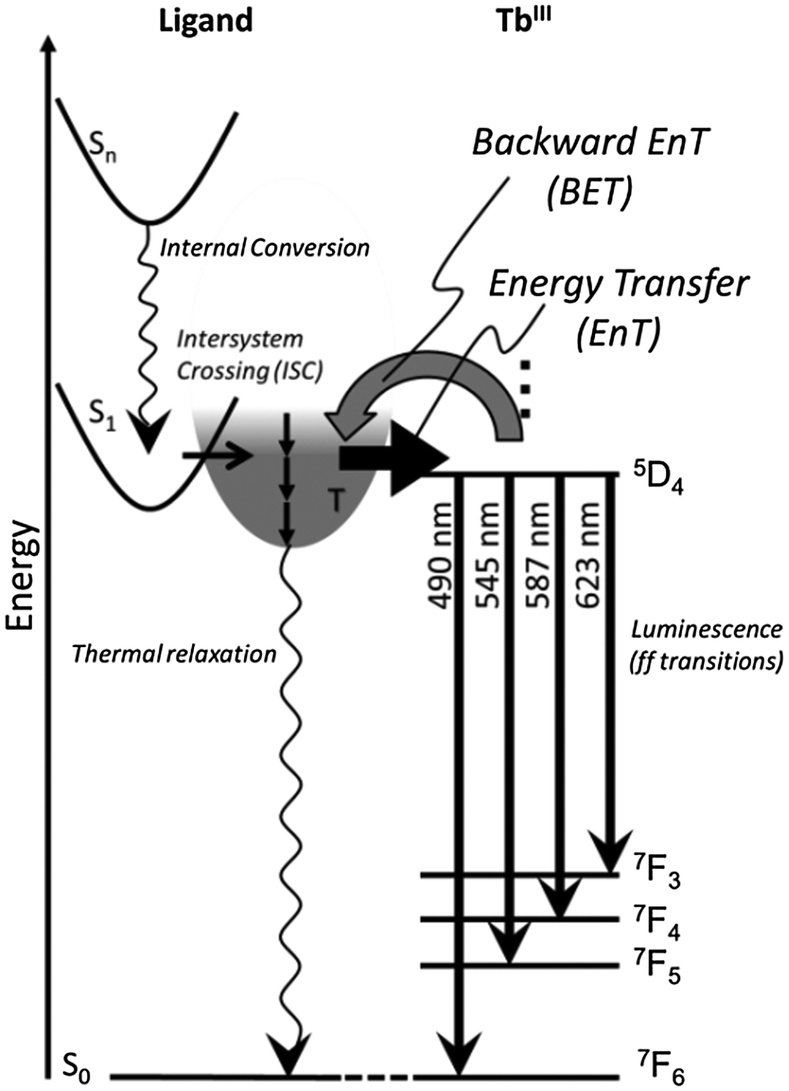

Fig. 6 Schematic representation of a plausible energy diagram of the electronic transitions of TbL.

Emission and excitation spectra of NdL under various conditions are shown in Fig. 7 and Fig. S9 (ESI‡), respectively. The ff emission bands of Nd^III appearing at 906, 1055 and 1345 nm are assigned to the ⁴F_3/2 → ⁴I_9/2, ⁴F_3/2 → ⁴I_11/2 and ⁴F_3/2 → ⁴I_13/2 transition, respectively. Former two transitions are divided into two or more by the Stark effect. The emission efficiency is quite low and it is difficult to estimate a quantitative value. However, it is found that the ligand L also acts as an energy donor and sensitizes the ff emissions of Nd^III in the NIR region, since the excitation spectrum shows good correspondence with the absorption bands of L, not ff transitions of Nd^III (Fig. 8a and b). In the solid state, the ff-absorption bands of NdL in the visible-NIR region appear at 468 (the ⁴I_9/2 → ⁴G_9/2 transition), 526 (⁴I_9/2 → ⁴G_7/2), 584 (⁴I_9/2 → ⁴G_5/2), 626 (⁴I_9/2 → ²H_11/2), 679 (⁴I_9/2 → ⁴F_9/2), 739 (⁴I_9/2 → ²H_9/2), 800 (⁴I_9/2 → ⁴S_3/2) and 874 (⁴I_9/2 → ⁴F_3/2) nm. Corresponding ff-absorption bands of NdL in the solid state were clearly observed in acetonitrile.

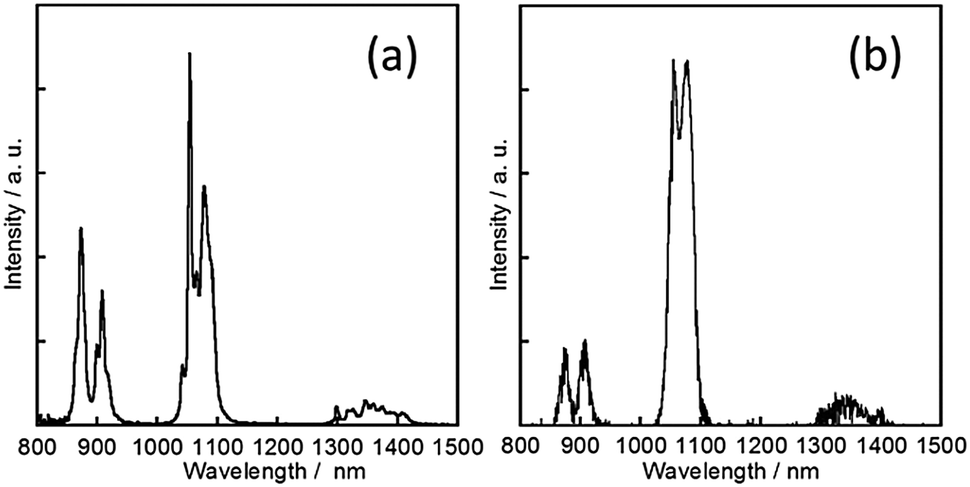

Fig. 7 Luminescence spectra of NdL (a) in the solid state and (b) in acetonitrile (λ_ex = 330 nm).

Fig. 8 Electronic absorption spectra of NdL ((a) and (b)) and HoL ((c) and (d)) in acetonitrile (upper) and in the solid state (bottom) (* due to apparatus).

HoL also shows the bands at 420 (⁵I₈ → ⁵G₅), 450 (⁵I₈ → ⁵G₆), 472 (⁵I₈ → ³K₈), 486 (⁵I₈ → ⁵F₂), 537 (overlap of ⁵I₈ → ⁵F₄ and ⁵I₈ → ⁴S₂) and 644 (⁵I₈ → ⁵F₅) nm in acetonitrile and in the solid state (Fig. 8c and d). Due to small differences among the split f-levels of Ho^III, thermo-relaxation prevails over photo-relaxation (luminescence).

Energy diagrams of the relaxation process of EuL, GdL and NdL are illustrated in Fig. S10 (ESI‡). The phosphorescence band position and width of GdL refer to the energy donor level against Ln ions. Since the structural analyses and the electronic absorption spectra localized on L for these complexes are in accordance with each other, it is considered that the donor level of L (triplet) of all complexes exists at the same energy level. The acceptor level of Eu^III is more overlapped with the donor (Fig. S10(a), ESI‡) than that of Nd^III (Fig. S10(c), ESI‡). These differences of EuL and NdL would affect the luminescence efficiencies.

Conclusions

The above presented new organic ligand forms stable Ln complexes with Nd, Eu, Gd, Tb and Ho. All of them formed a similar helical molecular structure in the crystalline state. Based on the above spectral results, TbL is preferred to thermal energy relaxation, since the thermal equilibrium between the energy donor and the acceptor level has been more preferential than the vibration effect of intermolecular interactions among neighbouring complexes. Furthermore, in solution, the ff-emission property of EuL is still present although it is less pronounced than in the solid state. This seems to be due to its stable molecular structure. Also NdL shows the respective ff-emission in the NIR region even in solution, despite its low efficiency probably due to its electronic structure. All complexes LnL with ff-emission properties do not show ππ* luminescence, meaning that the photo-antenna acts efficiently.

Experiments

Materials and synthesis

Synthesis of ligand (L). Most reagents and spectra-grade solvents were used without further purification. Bipyridine-6-aldehyde was obtained by mixing 6-bromo-bipyridine 2.10 g (8.93 mmol; Isotech Laboratories, Inc.) and 1.6 M n-hexane solution of n-butyl-lithium 6.80 ml (10.9 mmol) in THF at −80 °C for 30 min, then stirred for 1 h after addition of dimethylformamide⁴³ (0.670 mg, 3.64 mmol, 40.8% yield). ¹H-NMR (500.00 MHz, CDCl₃); δ 10.2 (s, 1H), 8.72 (d, ³J = 4.1 Hz, 1H), 8.64 (m, 1H), 8.57 (d, ³J = 8.2 Hz, 1H), 8.00 (m, 2H), 7.86 (m, 1H), 7.23 (m, 2H), 7.38 (m, 1H).

The hexadentate ligand L was prepared by the reaction of bipyridine-6-aldehyde 200 mg and ethylene-diamine (Kanto Chemicals Co., Inc.) in methanol (160 mg, 0.408 mmol, 74.9% yield). ¹H-NMR (500.00 MHz, CDCl₃); δ 8.64 (d, ³J = 4.1 Hz, 2H), 8.53 (s, 2H), 8.41 (dd, ³J = 7.8 and 7.3 Hz, 4H), 8.04 (d, ³J = 6.9 Hz, 2H), 7.80 (t, ³J = 7.8 Hz, 2H), 7.73 (m, 2H), 7.23 (m, 2H), 4.10 (s, 4H). ¹H-NMR chart of above compounds are shown in Fig. S1 (ESI‡).

Synthesis procedure for Ln complexes with L. Lanthanide complexes with L, LnL (Ln = Nd, Eu, Gd, Tb and Ho), were obtained by the reaction between L and lanthanide nitrate n-hydrate in methanol. For the crystallization, one nitrate anion was exchanged with PF₆⁻ by the NH₄PF₆ addition into their solution. The results of elemental analyses and ESI-TOF-MS (Fig. S2, ESI‡) for the complexes are summarized below.
NdL. 50.4 mg (0.115 mmol) Nd(NO₃)₃·6H₂O, 45.0 mg (0.115 mmol) L and NH₃PF₆ 18.7 mg (0.115 mmol). Yield 77.2 mg (80.1%). Elemental analysis, calcd for [Nd(L)(NO₃)₂](PF₆) (C₂₄H₂₀N₈O₆NdPF₆); C 35.78, H 2.50, N 13.91; found; C 35.48, H 2.56, N 14.07; MS (ESI-TOF, acetonitrile); m/z, 657.94 [M − PF₆⁻]⁺ (calcd 658.06).
EuL. 51.3 mg (0.115 mmol) Eu(NO₃)₃·6H₂O, 45.0 mg (0.115 mmol) L and NH₃PF₆ 18.7 mg (0.115 mmol). Yield 51.3 mg (55%). Elemental analysis, calcd for [Eu(L)(NO₃)₂](PF₆) (C₂₄H₂₀N₈O₆EuPF₆); C 35.44, H 2.48, N 13.78; found; C 35.27, H 2.62, N 13.70; MS (ESI-TOF, acetonitrile); m/z, 668.97 [M − PF₆⁻]⁺ (calcd 669.07).
GdL. 121 mg (0.270 mmol) Gd(NO₃)₃·6H₂O, 105.6 mg (0.270 mmol) L and NH₃PF₆ 44.0 mg (0.270 mmol). Yield 58.4 mg (31%). Elemental analysis, calcd for [Gd(L)(NO₃)₂](PF₆) (C₂₄H₂₀N₈O₆GdPF₆); C 35.21, H 2.46, N 13.69; found; C 35.12, H 2.68, N 13.62; MS (ESI-TOF, acetonitrile); m/z, 674.06 [M − PF₆⁻]⁺ (calcd 674.08).
TbL. 52.1 mg (0.115 mmol) Tb(NO₃)₃·6H₂O, 45.0 mg (0.115 mmol) L and NH₃PF₆ 18.7 mg (0.115 mmol). Yield 68.3 mg (62%). Elemental analysis, calcd for [Tb(L)(NO₃)₂](PF₆) (C₂₄H₂₀N₈O₆TbPF₆); C 35.14, H 2.46, N 13.66; found; C 35.26, H 2.70, N 13.50; MS (ESI-TOF, acetonitrile); m/z, 675.02 [M − PF₆⁻]⁺ (calcd 675.08).
HoL. 50.7 mg (0.115 mmol) Ho(NO₃)₃·5H₂O, 45.0 mg (0.115 mmol) L and NH₃PF₆ 18.7 mg (0.115 mmol). Yield 79.4 mg (80.4%). Elemental analysis, calcd for [Ho(L)(NO₃)₂](PF₆)·H₂O (C₂₄H₂₂N₈O₇HoPF₆); C 34.14, H 2.63, N 13.27; found; C 33.95, H 2.93, N 13.19; MS (ESI-TOF, acetonitrile); m/z, 680.97 [M − PF₆⁻]⁺ (calcd 681.08).

Instrumentation

Electronic absorption and luminescence spectra were recorded on a Shimadzu UV3101PC and a Horiba Jobin-Ybon Fluorolog 3-22. The NIR emission was detected by the attachment C1452-AU on the above apparatus. The emission decay curves were measured using a Quantaurus-Tau C11367-12 (Hamamatsu Photonics K. K.) excited by a Xenon flash lamp with a band-path filter (λ_ex = 340 nm). The fluorescence quantum yields were measured using The C9920-02 Absolute PL Quantum Yield Measurement System (Hamamatsu Photonics K. K.).⁴⁴

Electrospray ionization time of flight (ESI-TOF) mass spectra and elemental analyses for CHN were recorded on a LCT ESI-TOF spectrometer (Micromass), and MICRO CORDER (J-SCIENCE LAB), respectively.

X-ray crystallography

X-ray structural data for LnL (Ln = Nd, Eu, Gd, Tb and Ho) were collected on a Bruker Smart APEX-II CCD diffractometer equipped with graphite monochromated Mo Kα radiation at 100 K. The data were collected to a maximum 2 h value of 55° and processed using the Bruker Apex2 software package.⁴⁵ The structures were solved by direct methods and refined by full-matrix least-squares calculations using SHELX-97.⁴⁶ All non-hydrogen atoms were refined anisotropically, and all hydrogen atoms were located at idealized positions. Summaries of the fundamental crystal data and experimental parameters used to determine the structures of complexes LnL are given in ESI.‡ CCDC 919427 for EuL, 919428 for GdL, 919429 for HoL, 919430 for NdL and 919431 for TbL.
