Modeling, synthesis and NMR characterization of novel chimera compounds targeting STAT3

Abstract

Signal Transducer and Activator of Transcription 3 (STAT3) is a cytoplasmic factor that mediates intracellular signaling commonly generated at cell surface receptors and transmits it to the nucleus. In previous research studies we synthesized several molecules inhibiting STAT3 and among them oxadiazole MD77 and pyridazinone I showed an interesting activity. For the first one, a direct inhibition mechanism was determined, while I interfered within the STAT3 pathway at a different level. In order to discover novel compounds possibly endowed with an improved activity, we decided to merge their scaffolds on the basis of their calculated conformational properties. Therefore we designed and synthesized the chimera diastereomers 3-oxo-N-(4-(trifluoromethyl)phenyl)-2,3,4,4a,5,6-hexahydrobenzo[h]cinnoline-6-carboxamide (1, 2) and 3-oxo-N-(4-(trifluoromethyl)phenyl)-2,3,5,6-tetrahydrobenzo[h]cinnoline-6-carboxamide (3) as racemate and their enantiomeric separation was performed. Modeling studies and theoretical prediction of [α]_D values were carried out beside NMR studies which allowed us to assign 1 and 2 relative configurations.

---

Introduction

STATs (Signal Transducers and Activators of Transcription) are latent cytoplasmic proteins transducing signals through the cytoplasm and acting as transcription factors in the nucleus, regulating cell growth and survival.¹ They are constituted by several structurally and functionally conserved domains: among them, the Src homology 2 (SH2) domain is essential for the STAT activation cascade. STAT3, a member of the STAT family, has been found constitutively activated in a wide variety of human solid and blood tumors and the suppression of deregulated STAT3 activation leads to cancer cell apoptosis with tumor regression, slightly affecting normal cells.²

In previous research studies focused on the discovery of new inhibitors targeting aberrant STAT3 signaling, we described the oxadiazole MD77,³ a direct STAT3 SH2 domain inhibitor (IC₅₀ value 17.7 μM, by Alpha-Screen based assay) and the pyridazinone I,⁴ exhibiting good inhibitory activity (46% STAT3 inhibition at 2 μM concentration, by dual luciferase assay), but unable to bind the SH2 domain (Chart 1).

Chart 1

Docking studies performed on MD77 showed that, in the best scored pose of the STAT3–MD77 complex, it maintained the same geometry shown to be preferred in water solution, established by molecular modeling calculations, and characterized by torsional angles τ₁ − τ₄ more or less deviated from planarity.³ In this pose MD77 showed a series of interactions with suitable functional groups in the SH2 domain involving its various molecular portions, among which the p-trifluoromethylphenyl moiety engaged in several hydrogen bonds. As far as pyridazinone I is concerned, an important requisite for inhibitory activity versus STAT3 seems to be the planar or almost planar arrangement of the polycyclic system, that presents only one geometry significantly populated, in complete agreement with that described in a previous paper and obtained with a molecular mechanics approach.⁵

The main degree of conformational freedom in I is represented by the N2 side chain, able to assume two almost isoenergetic orientations, that, however, does not seem to exert a significant effect on the activity.

Taking into account the biological results of these previously studied molecules, and their geometrical features determined by molecular modeling calculations, we have chemically merged their scaffolds aided by molecular modeling calculations in order to identify new molecules endowed with enhanced activity against STAT3. Their synthesis was planned to verify if the MD77p-trifluoromethylphenyl moiety, which plays a crucial role for the binding to the target, could address the pyridazinone nucleus in proximity of the dimerization interface. This approach started from the above stated consideration concerning the almost planar conformation of the tricyclic moiety. Therefore, the chimeras 1–3 (Chart 2) were designed introducing on the central ring of I the p-trifluoromethylphenyl moiety of MD77 in a position able to maintain its original orientation within the protein binding pocket.

Chart 2

Here we report the synthesis of 1–3, the complete exploration of their conformational space performed through theoretical calculations, the racemate separations, the NMR characterization as well as the results of the biological assays.

Chemistry

Starting from the commercially available α-phenylglutaric anhydride, by treatment with polyphosphoric acid, the racemic acid 4 was obtained (Scheme 1). The carboxylic group of 4 was condensed with 4-(trifluoromethyl)aniline, in the presence of the coupling agent TBTU (O-(benzotriazol-1-yl)-N,N,N′,N′-tetramethyluronium tetrafluoborate), to obtain the amide 5. Aldol condensation between 5 and glyoxylic acid, followed by dehydration, led to the α,β-unsaturated acid 6.

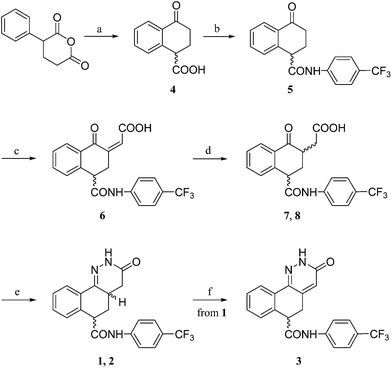

Scheme 1 Reagents and conditions: (a) PPA, 100/110 °C, 30 min; (b) 4-(trifluoromethyl)aniline, CH₂Cl₂, TBTU, N-methlymorphine upto pH = 7, rt, 24 h; (c) CHO–COOH, NaOH, H₂O, EtOH, rt, 1 h; (d) Zn, CH₃COOH, H₂O, rt, 20 min; (e) NH₂NH₂·H₂O, EtOH, reflux, 2 h; (f) Sodium 3-nitrobenzenesulfonate, NaOH, H₂O, reflux, 30 min.

Reduction of the double bond by zinc in acetic acid gave a mixture of the two diastereoisomers 7 and 8, which were not separated and directly cyclized with hydrazine monohydrate to give the diastereoisomers 1 and 2 which were separated by flash chromatography. Dehydrogenation of the dihydropyridazinonic ring of 1 was carried out with sodium 3-nitrobenzenesulfonate to give 3 while 2 did not react under the same conditions. The relative configurations of 1 and 2 were assigned by means of NOESY experiments.

Finally, in order to perform the biological evaluation of the single enantiomeric entities, we separated the racemates 1, 2 and 3 by means of a chiral semi-preparative HPLC.

Computational studies

The modeling studies on the diastereoisomers 1 and 2, and on compound 3 were carried out with the Gaussian09 program package using the B3LYP exchange–correlation functional at the 6-311+G(d,p) level.⁶ The studies were performed on the stereoisomers 1a, 2a and 3a. The discussion is referred to them but it also applies to their enantiomers 1b, 2b and 3b, whose conformers are mirror images of those of 1a–3a. The degrees of conformational freedom were considered, namely inversion of the central hexacyclic ring and rotation along the single bond connecting the amide carbonyl group to this ring, with energy minimization and optimization of all the possible starting geometries. After the optimization in vacuo, a further optimization was performed at the same level as above using a polarizable continuum solvent model (PCM), choosing chloroform, dimethyl sulfoxide, or methanol as the solvent, for 1a, 2a and 3a, respectively. Fig. 1 shows the minimum energy conformations of each compound together with the corresponding relative energy and the percentage contribution to the overall population at 298 K. A very different conformational behaviour was found between the two diastereoisomers 1a and 2a. In fact, whereas in 1a the trifluoromethylphenylamido chain almost exclusively (99.9%) prefers the pseudo-axial orientation, in its diastereoisomer 2a the opposite pseudo-equatorial orientation is largely preferred (96.2%). Compound 3a closely resembles 1a in the preference for the pseudo-axial orientation, though in a lesser percentage (89.4%).

Fig. 1 Three-dimensional plots of the populated conformers of compounds 1a (1a-A,B,C), 2a (2a-A,B,C,D) and 3a (3a-A,B,C,D,E) with their relative energy (kcal mol⁻¹) and population percentages.

Then, in an attempt to suggest the absolute configuration of these compounds, the specific optical rotation of each conformer of compounds 1a–3a was predicted using DFT calculations at the same level as above.⁷ The calculated [α]_D for each conformer was weighted averaged on the basis of its percentage contribution to the overall population and yielded a positive value for 2a as well as for 3a ([α]_D = +375 and +387, respectively) whereas the value obtained for 1a was too low for a reliable prediction. The largely positive values predicted for 2a and 3a, compared with the largely positive rotation values of the first eluted enantiomer of 2 and the second eluted enantiomer of 3 (see Experimental), allows us to suggest that the former has the (6R,4aR) configuration and the latter the (6R) configuration whereas no prediction seems possible for the enantiomers of 1.

¹H-NMR studies

Racemic compounds 1, 2 and 3 were submitted to high field NMR spectroscopy (see Experimental) in order to get experimental data on their 3D structure. In particular for each compound ¹H resonances were assigned and coupling constants measured. They are reported in Tables 1 and 2 together with the theoretical chemical shifts and coupling constants calculated for each optimized conformation of 1a–3a and averaged on the basis of the population percentages reported in Fig. 1.

Table 1 Experimental and calculated selected ¹H NMR chemical shifts (ppm) of compounds 1, 2 and 3

H	1 Exp.^a	1 Calcd	2 Exp.^b	2 Calcd	3 Exp.^c	3 Calcd
a CDCl3, 298 K. b DMSO-d6, 308 K. c CD3OD, 298 K. d The indexes ax and eq are referred to the most stable conformer of each compound.
6	3.99	3.83	3.97	3.52	4.09	3.56
5ax^d	1.89	1.71	1.95	2.07	3.20	2.93
5eq^d	2.84	2.85	2.29	2.08	3.26	3.47
4a	3.01	2.80	2.98	2.69	—	—
4	—	—	—	—	6.83	6.78
4ax^d	2.23	2.00	2.36	2.16	—	—
4eq^d	2.71	2.47	2.52	2.47	—	—

---

Table 2 Experimental and calculated selected ¹H NMR coupling constants (Hz) of compounds 1, 2 and 3

J	1 Exp.^a	1 Calcd	2 Exp.^b	2 Calcd	3 Exp.^c	3 Calcd
a CDCl3, 298 K. b DMSO-d6, 308 K. c CD3OD, 298 K.
6,5ax	4.8	5.1	12.5	10.2	5.4	6.1
6,5eq	2.3	2.5	4.0	3.8	4.8	2.9
5ax,5eq	13.0	11.8	12.5	11.6	16.4	14.5
5ax,4a	13.0	11.1	12.5	10.4	—	—
5eq,4a	5.0	4.8	4.0	4.9	—	—
5ax,4	—	—	—	—	1.8	2.2
5eq,4	—	—	—	—	1.0	0.5
4a,4ax	16.0	13.4	16.0	13.5	—	—
4a,4eq	6.5	6.1	6.6	6.1	—	—
4ax,4eq	16.0	15.2	16.0	15.1	—	—

---

NOESY experiments were also performed to confirm the 1 and 2 relative configurations. In fact for the (6R,4aR)/(6S,4aS) configuration (Fig. 2B), a 2.6 Å calculated distance between the C-6 and C-4a protons should account for a NOE contact. On the contrary, this should not be observable for the (6R,4aS)/(6S,4aR) configuration (Fig. 2A) that showed a 3.8 Å calculated distance. Actually, the comparison of the NOESY spectrum of 1 with the corresponding spectrum of 2 (see Fig. S1a and S1b, ESI† section) clearly showed an intense cross peak only between H-6 and H-4a of 2 whose configuration was therefore ascertained to be (6R,4aR)/(6S,4aS). Consequently 1 resulted to be unambiguously the (6R,4aS)/(6S,4aR) isomer.

Fig. 2 Chemical structures of compounds 1a and 2a and their corresponding preferred conformers. In the 3D-plot of 2a a double arrow highlights the proximity of H-6 and H-4a that explains the NOESY observed cross-peak.

Biological evaluation

The STAT3 inhibitory activity was evaluated at 10 μM and 50 μM concentrations through a modified procedure of dual luciferase assay⁸ in human colorectal carcinoma cells HCT-116, characterized by uncontrolled expression of STAT3. The results are expressed as percentage inhibition after 24 h treatment with the test compounds and Cryptotanshinone⁹ (a natural phenanthrene-quinone derivative) which was used as the control (Table 3).

Table 3 Dual luciferase assay results of compounds 1–3

Compound	% inh. [10 μM]	% inh. [50 μM]
1	−3	6
(+)-1	9	35
(−)-1	9	14
2	−6	3
(+)-2a	−8	12
(−)-2b	1	16
3	2	7
(+)-3a	−2	24
(−)-3b	2	30
Cryptotanshinone	78	85

---

At the lower concentration none of the compounds showed any significant activity, while at 50 μM concentration the best derivative was (+)-1, which however was less active than cryptotanshinone (35% and 85%, respectively). Also, the AlphaScreen-based assay¹⁰ did not reveal any strong interaction of the chimeras with the STAT3 SH2 domain (% inhibition < 5), though they are incorporating the trifluoromethyl moiety that, in the case of MD77, cooperates in the binding to this domain.

Conclusion

During our studies, which aimed at the discovery of new potential STAT3 inhibitors, MD77 and I emerged as interesting molecules able to interfere in a different manner within the STAT3 pathway. These compounds were chemically merged leading to the chimeras1, 2 and 3, by utilizing the moieties identified as important for the STAT3 activity.

The computational analysis on 1–3 revealed a very different conformational behavior of these compounds. In fact, while in 1 the trifluoromethylphenylamido chain almost exclusively prefers the pseudo-axial orientation, in 2 the opposite pseudo-equatorial orientation is largely preferred. Compound 3 closely resembles 1 in the preference for the pseudo-axial orientation, though in a lesser percentage. This geometrical diversity encouraged the synthetic efforts, in particular the orientation of the p-trifluoromethylphenyl group with respect to the tricyclic moiety in 2 that seems comparable with the orientation of the same group with respect to the chlorophenyl oxadiazole moiety in MD77. Thus, the chimeras were synthesized and their racemate resolved.

Then, high field NMR spectroscopy and NOESY experiments were performed to give experimental support to the calculations and unambiguously assign the 1 and 2 relative configurations. The vicinal J_6,5ax coupling constant of 1 and 2 (Table 2) is in complete agreement with, respectively, an axial and equatorial orientation of the trifluoromethylphenylamido chain. The combination of the observed J_6,5 and J_5,4a in the two diastereoisomers is compatible with the assignment of the (6R,4aS)/(6S,4aR) relative configuration to 1 and the (6R,4aR)/(6S,4aS) to 2. Moreover, the intense cross-peak between H-6 and H-4a, observed only in the NOESY spectrum of 2, supports again its relative configuration, that makes these two hydrogens oriented on the same face of the molecule and relatively close (2.6 Å from the theoretical calculations) and not the diastereoisomeric (6R,4aS)/(6S,4aR) configuration, that makes them trans-oriented and more spaced (3.8 Å).

Finally, both the racemates and each single enantiomer of the new compounds were submitted to biological evaluation that did not bring about the identification of an advanced chemical lead, in spite of the presence in the molecules of moieties that have been shown suitable in other substrates. This indicates that the portions of MD77 not included in the chimera compounds seem to play a specific role that probably should not be neglected.

Experimental

General

Unless otherwise noted the materials were obtained from commercial suppliers (as starting reagents reported in Scheme 1) and used without purification. Commercial plates on aluminium-backed Silica Gel 60 plates (0.2 mm, Merck) were used for analytical TLC to follow the course of the reaction and to check the product purity. Silica gel 60 (Merck 40–63 μM) was used for flash chromatography to purify intermediates and final compounds. The purity of final compounds was determined by HPLC analysis and was ≥95%. Melting points were determined on a Buchi 510 capillary melting point apparatus and are uncorrected. ¹H NMR spectra were recorded on a Bruker AVANCE-500 spectrometer operating at 500.13 MHz; the chemical shifts are reported as δ (ppm) using the solvent as the internal standard. The enantiomeric separations of compounds 1 and 3 were performed by a chiral semi-preparative HPLC Chiralcel ODH (5 μm, 250 × 4.6 mm). The enantiomeric separation of compound 2 was performed by a chiral semi-preparative HPLC Chiralpak AD (5 μm, 250 × 4.6 mm). Optical rotation values of the enantiomers were registered on a Perkin Elmer instrument (Mod 343) at 589 nm and 25 °C. The structures of all compounds were consistent with their analytical and spectroscopic data.

4-Oxo-1,2,3,4-tetrahydronaphthalene-1-carboxylic acid 4. A mixture of α-phenylglutaric anhydride (0.5 g, 2.69 mmol) and 2 g of polyphosphoric acid was heated at 100–110 °C for 15 min. 1 g of polyphosphoric acid was added and the mixture was heated for 15 min at the same temperature. The solution appeared as a dense brown oil. The mixture was cooled with an ice bath, treated with water and extracted with ethyl acetate (3 × 2 mL). The organic phase was firstly treated with 1 N NaOH (2 mL) and then the collected alkaline aqueous solution was acidified with 6 N HCl (1 mL) and extracted with ethyl acetate (3 × 1 mL). The organic layer was dried over anhydrous Na₂SO₄ and evaporated under reduced pressure to afford 4 as a brown oil (90% yield). ¹H NMR (CDCl₃) 2.38 (dddd, 1H, J = 13.8, J = 12.0, J = 4.8 and J = 4.8 Hz, CH), 2.52 (dddd, 1H, J = 13.8, J = 4.8, J = 4.8 and J = 4.8 Hz, CH), 2.65 (ddd, 1H, J = 17.4, J = 4.8 and J = 4.8 Hz, CH), 2.92 (ddd, 1H, J = 17.4, J = 12.0 and J = 4.8 Hz, CH), 3.99 (dd, 1H, J = 4.8 and J = 4.8 Hz, CH), 7.37 (dd, 1H, J = 7.50 and J = 1.0 Hz, ArH), 7.39 (ddd, 1H, J = 7.50, J = 7.50 and J = 1.0 Hz, ArH), 7.53 (ddd, 1H, J = 7.50, J = 7.50 and J = 1.5 Hz, ArH), 8.06 (dd, 1H, J = 7.50 and J = 1.5 Hz, ArH).

4-Oxo-N-(4-(trifluoromethyl)phenyl)-1,2,3,4 tetrahydro-naphthalene-1-carboxamide 5. To a solution of compound 4 (0.2 g, 1.05 mmol) in dichloromethane (6 mL) the coupling agent TBTU (0.46 g, 1.42 mmol), N-methylmorpholine (up to pH = 7) and 4-(trifluoromethyl)aniline (0.4 mL, 3.21 mmol) were added. The resulting mixture was stirred at room temperature for 24 h. The product was extracted with dichloromethane (3 × 2 mL). The organic layer was washed first with 1 N HCl (1 × 2 mL), then with a saturated solution of sodium hydrogencarbonate (1 × 2 mL) and finally with brine (1 × 2 mL). The organic phase was dried over anhydrous Na₂SO₄, filtered and concentrated in vacuo. The residue was purified by flash chromatography (cyclohexane–ethyl acetate 7 : 3) to afford the intermediate 5 (62% yield). ¹H NMR (CD₃OD) 2.43–2.48 (m, 2H, CH₂), 2.64 (ddd, 1H, J = 17.5, J = 6.0 and J = 6.0 Hz, CH), 2.96 (ddd, 1H, J = 17.5, J = 14.0 and J = 6.2 Hz, CH), 4.13 (dd, 1H, J = 5.7 and J = 5.7 Hz, CH), 7.36 (dd, 1H, J = 7.50 and J = 1.0 Hz, ArH), 7.42 (ddd, 1H, J = 7.50, J = 7.50 and J = 1.0 Hz, ArH), 7.57 (ddd, 1H, J = 7.50, J = 7.50 and J = 1.5 Hz, ArH), 7.60 (d, 2H, J = 8.6 Hz, ArH), 7.80 (d, 2H, J = 8.6 Hz, ArH), 8.03 (dd, 1H, J = 7.50 and J = 1.5 Hz, ArH).

(Z)-2-(1-Oxo-4-(4-(trifluoromethyl)phenylcarbamoyl)-3,4-dihydronaphthalen-2(1H)-ylidene)acetic acid 6. A solution of NaOH (0.26 g, 6.53 mmol) in water (3.1 mL) and ethanol (1.63 mL) was added dropwise to an ice-cooled solution of compound 5 (0.44 g, 1.33 mmol) and glyoxylic acid (0.49 g, 5.27 mmol) in water (1.8 mL). This solution was stirred at room temperature for 1 h and then ethanol was removed under reduced pressure. The obtained aqueous mixture was acidified with 6 N HCl and the precipitate was filtered, washed with 6 N HCl (1 × 1 mL) and dried to give a yellow residue. The crude solid was purified by flash chromatography (dichloromethane–methanol 9 : 1 with 0.02 mL of acetic acid) to provide compound 6 (47% yield). ¹H NMR (CD₃OD) 3.16 (ddd, 1H, J = 16.6, J = 4.8 and J = 2.7 Hz, CH), 4.13 (dd, 1H, J = 16.6 and J = 4.0 Hz, CH), 4.22 (dd, 1H, J = 4.8 and J = 4.0 Hz, CH), 6.91 (br s, 1H, =CH), 7.46 (dd, 1H, J = 7.50 and J = 1.0 Hz, ArH), 7.48 (ddd, 1H, J = 7.80, J = 7.50 and J = 1.1 Hz, ArH), 7.56 (d, 2H, J = 8.5 Hz, ArH), 7.61 (ddd, 1H, J = 7.50, J = 7.50 and J = 1.4 Hz, ArH), 7.70 (d, 2H, J = 8.5 Hz, ArH), 8.07 (dd, 1H, J = 7.8 and J = 1.4 Hz, ArH).

2-(1-Oxo-4-(4-(trifluoromethyl)phenylcarbamoyl)-1,2,3,4-tetrahydronaphthalen-2-yl)acetic acids 7, 8. Compound 6 (0.173 g, 0.44 mmol) and zinc dust (0.34 g, 0.52 mmol) in acetic acid (4.95 mL) and water (1.24 mL) were heated at 60 °C for 20 min. Then the reaction mixture was cooled to room temperature and the amount of zinc was filtered off. The mixture of diastereoisomers 7 and 8 (91% yield) was extracted with ethyl acetate (3 × 2 mL); the organic layer was dried over anhydrous Na₂SO₄ and the solvent was evaporated under reduced pressure. The mixture was not separated and used without further purification. ¹H NMR (CD₃OD) 2.36 (ddd, 1H, J = 12.7, J = 12.7 and J = 12.7 Hz, 1H, CH), 2.47 (ddd, 1H, J = 12.7, J = 4.3 and J = 4.3 Hz, 1H, CH), 2.51 (dd, 1H, J = 16.8 and J = 6.4 Hz, CH), 2.95 (dd, 1H, J = 16.8 and J = 5.7 Hz, CH), 3.13 (dddd, 1H, J = 12.7, J = 5.7, J = 6.4 and J = 4.3 Hz, CH), 4.27 (dd, 1H, J = 12.0 and J = 4.3 Hz, CH), 7.38–7.43 (m, 2H, ArH), 7.57 (ddd, 1H, J = 7.50, J = 7.50 and J = 1.5 Hz, ArH), 7.64 (d, 2H, J = 8.5 Hz, ArH), 7.86 (d, 2H, J = 8.5 Hz, ArH), 8.02 (dd, 1H, J = 7.8 and J = 1.5 Hz, ArH).

3-Oxo-N-(4-(trifluoromethyl)phenyl)-2,3,4,4a,5,6-hexahydro-benzo[h]cinnoline-6-carboxamide 1, 2. To a mixture of diastereoisomers 7 and 8 (0.15 g, 0.38 mmol) in ethanol (4 mL), hydrazine monohydrate (0.09 mL, 1.93 mmol) was added dropwise and the obtained yellow solution was refluxed for 2 h. After evaporation of the solvent, the reaction mixture was extracted with ethyl acetate (5 × 1 mL). The organic layer was dried over anhydrous Na₂SO₄, filtered and the solvent was evaporated under reduced pressure. The two diastereoisomers 1 and 2 (64% yield; diastereomeric ratio 1 : 2 = 8 : 2) were separated by flash chromatography (dichloromethane–methanol 9.8 : 0.2). Compound 1 (yellow solid): mp 230.2–232.4 °C. ¹H NMR (CDCl₃) 1.89 (ddd, 1H, J = 13.0, J = 13.0 and J = 4.8 Hz, CH), 2.23 (dd, 1H, J = 16.0 and J = 16.0 Hz, CH), 2.71 (dd, 1H, J = 16.0 and J = 6.5 Hz, CH), 2.84 (ddd, 1H, J = 13.0, J = 5.0 and J = 2.3 Hz, CH), 3.00 (dddd, J = 16.0, J = 13.0, J = 6.5 and J = 5.0 Hz, 1H, CH), 3.99 (dd, 1H, J = 4.8 and J = 2.3 Hz, CH), 7.10 (br s, 1H, NH), 7.34 (dd, 1H, J = 7.0 and J = 1.9 Hz, ArH), 7.42–7.52 (m, 6H, ArH), 8.23 (dd, 1H, J = 7.4 and J = 1.9 Hz, ArH), 8.52 (br s, 1H, NH). The enantiomeric separation of 1 was performed by a chiral semi-preparative HPLC: Chiralcel ODH (5 μm, 250 × 4.6 mm), hexane–ethanol (85 : 15), 0.8 mL min⁻¹, UV 254 nm; t_R(1) = 10.564 min (49.92%). (+)-1: [α]²⁵_D = +16 (c 0.0016, CH₃OH); t_R(2) = 12.503 min (50.08%) (−)-1: [α]²⁵_D = −16 (c 0.0016, CH₃OH). Compound 2 (white solid): mp (277.1–279.8 °C). ¹H NMR (DMSO-d₆) 1.95 (ddd, 1H, J = 12.5, J = 12.5 and J = 12.5 Hz, 1H, CH), 2.29 (ddd, 1H, J = 12.5, J = 4.0 and J = 4.0 Hz, CH), 2.36 (dd, 1H, J = 16.0 and J = 16.0 Hz, CH), 2.52 (dd, 1H, J = 16.0 and J = 6.6 Hz, CH), 2.98 (dddd, J = 16.0, J = 12.5, J = 6.6 and J = 4.0 Hz, 1H, CH), 3.97 (dd, 1H, J = 12.5 and J = 4.0 Hz, CH), 7.16 (dd, 1H, J = 7.20 and J = 1.0 Hz, ArH), 7.34 (ddd, 1H, J = 7.80, J = 7.20 and J = 1.0 Hz, ArH), 7.37 (ddd, 1H, J = 7.20, J = 7.20 and J = 1.8 Hz, ArH), 7.73 (d, 2H, J = 8.5 Hz, ArH), 7.92 (d, 2H, J = 8.5 Hz, ArH), 8.08 (dd, 1H, J = 7.8 and J = 1.8 Hz, ArH). The enantiomeric separation of 2 was performed by a chiral semi-preparative HPLC: Chiralpak AD (5 μm, 250 × 4.6 mm), hexane–ethanol (85 : 15), 0.8 mL min⁻¹, UV 254 nm; t_R(1) = 14.970 min (49.68%). 2a: [α]²⁵_D = +264 (c 0.0012, DMSO); t_R(2) = 19.781 min (50.32%). 2b: [α]²⁵_D = −287 (c 0.0012, DMSO).

3-Oxo-N-(4-(trifluoromethyl)phenyl)-2,3,5,6-tetrahydro-benzo[h]cinnoline-6-carboxamide 3. A mixture of compound 1 (0.050 g, 0.13 mmol), sodium m-nitro-benzenesulfonate (0.029 g, 0.13 mmol), and NaOH (0,021 g, 0.52 mmol) in water (1 mL) was refluxed for 30 min. After cooling, the reaction mixture was extracted with ethyl acetate (3 × 1 mL) and the organic layer was dried over anhydrous Na₂SO₄, filtered and the solvent was evaporated under reduced pressure. The obtained residue was purified by flash chromatography (dichloromethane–methanol 9.7 : 0.3) to afford 3 as a yellow solid (85% yield). Sublimation was performed at 333.4–338.7 °C. ¹H NMR (CD₃OD) 3.20 (ddd, 1H, J = 16.4, J = 5.4 and J = 1.8 Hz, CH), 3.26 (ddd, 1H, J = 16.4, J = 4.8 and J = 1.0 Hz, CH), 4.09 (dd, J = 5.4 and J = 4.8 Hz, 1H, CH), 6.83 (br s, 1H, CH), 7.38–7.44 (m, 3H, ArH), 7.57 (d, 2H, J = 8.5 Hz, ArH), 7.71 (d, 2H, J = 8.5 Hz, ArH), 8.14 (m, 1H, ArH). The enantiomeric separation of compound 3 was performed by a chiral semi-preparative HPLC: Chiralcel ODH (5 μm, 250 × 4.6 mm), hexane–ethanol (80 : 20), 0.8 mL min⁻¹, UV 254 nm; t_R(1) = 8.244 min (50.3%) 3b: [α]²⁵_D = −210 (c 0.0016, CH₃OH); t_R(2) = 8.968 min (49.7%) 3a: [α]²⁵_D = +194 (c 0.0016, CH₃OH).

NMR spectroscopy

NMR spectra were recorded at 298 K or 308 K (DMSO-d₆ spectra) with a Bruker AVANCE-500 spectrometer operating at 500.13 MHz for ¹H, using a 5 mm single pulsed field gradient (z-PFG) broadband reverse probe. Chemical shifts are reported on the δ (ppm) scale and are relative to chloroform (7.24 ppm), DMSO (2.51 ppm) or methanol (3.30 ppm) signals. Compounds (about 5 mg) were dissolved in 0.5 mL of CDCl₃ (1), DMSO-d₆ (2) or CD₃OD (3) under N₂, and their assignments were given by a combination of 1D and 2D COSY experiments, using standard Bruker pulse programs. Z-PFGs were used to obtain ¹H–¹H COSY spectra. The pulse width was 7.50 μs (90°) for ¹H. Typically 32 768 data points were collected for one-dimensional spectra. The spectral width was 11.45 ppm (5733 Hz) for ¹H NMR (digital resolution: 0.17 Hz per point). 2D experimental parameters were as follows. For ¹H–¹H correlations: relaxation delay 2.0 s, 1024 × 1024 data point matrices (512 experiments to 1024 zero filling in F₁, 1024 in F₂), 2 or 16 transients in each experiment for COSY and NOESY respectively, spectral width 11.15 ppm (5580.37 Hz). The NOESY spectra were generated with a mixing time of 1.0 s and acquired in the TPPI mode. There were no significant differences in the results obtained at different mixing times (0.5–1.5 s). All 2D spectra were processed with the Bruker software package.

Computational methods

All calculations were performed using the Gaussian09 program package,⁶ at the B3LYP/6-311+G(d,p) level. Theoretical values of the [α]_D were obtained at the same level of theory specifying appropriate keywords (polar and cphf) into the Gaussian input. GIAO NMR¹¹ calculations were carried out at the B3LYP/6-311+G(d,p) level. The coupling constants were calculated with Ramsey's nonrelativistic approach¹² and were weight-averaged on the basis of the population percentages.

Biological assays

Dual luciferase assay. Cell culture: the cancer cell lines were obtained from American Type Culture Collection. Human breast cancer cell lines (MDA-MB-468, MDA-MB-231) and human colon cancer cell line (SW620) were maintained in RPMI 1640 (Gibco/BRL). Human colon cancer cell line (HCT-116) was maintained in McCoy's 5A (Gibco/BRL). All culture media were supplemented with 10% heat-inactivated fetal bovine serum (Gibco/BRL). Cell cultures were maintained at 37 °C under a humidified atmosphere of 5% CO₂ in an incubator. Transient transfection and dual-luciferase assays:⁸ HCT-116 cells were seeded at a density of 10 × 10⁵ cells in 100 mm² culture plate. The cells were co-transfected with pSTAT3-TA-Luc (27 μg per plate) and internal control plasmid pRL-TK (9 μg per plate) containing the Renilla luciferase gene. All plasmids used in this experiment were purchased from Promega. The transfection was carried out using TransFectin (Bio-Rad) according to the manufacturer's protocol. After 5 h of transfection, the cells were trypsinized and seeded onto sterilized black bottom 96-well plates at a density of 1 × 10⁴ cells per well. On the following day, cells were treated with test compounds and incubated for 24 h. Firefly and Renilla luciferase activities were measured using a dual-light reporter gene assay kit (Promega) on Wallac Victor2 (Perkin-Elmer, Inc., Wellesley, MA). Renilla luciferase activity was determined to calibrate the transfection efficiency and cytotoxicity of chemicals. Relative STAT3 activity was calculated by dividing the firefly luciferase activity with Renilla luciferase activity in each transfection experiment. The values of STAT3 inhibitory activity were the means of 3 experiments and the maximum deviation from the mean was less than 10%.

AlphaScreen-based Assay. AlphaScreen® is a bead-based nonradioactive assay system for detecting biomolecular interactions in a microtiter plate format. Binding of biological partners brings donor and acceptor beads into close proximity and as result, a fluorescent signal between 520 and 620 nm is produced. The AlphaScreen-based assays¹⁰ were performed in a final reaction volume of 25 μL of the assay buffer containing 10 mM HEPES–NaOH (pH 7.4), 50 mM NaCl, 1 mM EDTA (pH 8.0), 0.1% NP-40, and 10 ng μL⁻¹ BSA in a 96-well microtiter plate at 25 °C. Phospho-Tyr (pTyr) peptide probes used in this study were 5-carboxyfluorescein (FITC)-GpYLPQTV for STAT3, FITC-GpYDKPHVL for STAT1, and FITC-PSpYVNVQN for Grb2. Firstly, 75 nM of each SH2-containing protein was incubated with the test compound for 15 min. Each protein sample was then incubated for 90 min with 50 nM of its corresponding FITC-pTyr peptide, and mixed with streptavidin coated donor beads and anti-FITC acceptor beads simultaneously before detection at 570 nm using EnVison Xcite (PerkinElmer).
