Synthesis and structural investigation of R₂Si (R = Me, Ph) bridged di-N-heterocyclic carbenes

Abstract

Functionalization of the C4 carbon of an imidazol-derived N-heterocyclic carbene (NHC) may allow fine-tuning of the electronic and steric properties of the C2 carbene center. A facile route to silyl-functionalized di-N-heterocyclic carbenes (Di-NHCs) is described. Treatment of the polymeric lithiated NHC, {Li(IPr^H)}_n (1) (Li(IPr^H) = {(N-2,6-iPr₂C₆H₃)₂CHCLi}C:) with a dichlorosilane affords monomeric silyl-functionalized Di-NHCs, R₂Si(IPr^H)₂ (R = Ph, 2; Me, 3). Interestingly, silyl-functionalized mono-NHC, Ph₂(Cl)Si(IPr^H) (4) with a pendant chloro-substituent can also be exclusively isolated maintaining the reactants 1 and Ph₂SiCl₂ ratio. NHCs 2 and 4 readily form copper complexes, Ph₂Si{(IPr^H)CuCl}₂ (5) and Ph₂(Cl)Si{(IPr^H)CuCl} (6), on reaction with CuCl. Straightforward conversion of an NHC to a Di-NHC (2 or 3) via C4 functionalization is reported for the first time. Molecular structures of 2, 4, 5 and 6 have been established by single crystal X-ray diffraction studies.

---

Introduction

N-heterocyclic carbenes (NHCs), which were originally considered as simple phosphine mimics, have established exceptional applications beyond ligands in organometallic and transition metal catalysis.^1–5 The utility of NHCs has expanded from the stabilization of elusive compounds with a low-valent main group element³ or complexes with a metal in the high-oxidation state² to the pharmaceuticals⁴ and materials science.⁵ The success of NHCs as ligands in catalysis is largely attributed to their strong σ-donor properties and relatively high covalent contribution to the metal–C_(carbene) bond.⁶ A very small modification in the structure may have a significant impact on the properties of an NHC and hence derived metal complexes as well as related species.⁷ A unique structural feature allows fine-tuning of NHCs in more ways, therefore a variety of NHCs with variable structural and electronic properties has been prepared.⁸ Interesting poly-NHCs featuring two or more carbene functionalities have been reported; however, a majority of them is linked via the nitrogen atom of the imidazol ring.^9–14 In addition to their applications as ligands in catalysis,⁹ such poly-NHCs have shown their potential as building-blocks to design a new class of structurally dynamic materials.¹⁴

Among available methods of fine-tuning, functionalization of NHCs impacts the properties as well as allows access to a new class of NHCs.^15–22 The prospect of direct access to functionalized NHCs from an NHC, with p-block moieties in particular, is enormous as it enables the synthesis of new ligands. Functionalization of an imidazol-2-ylidene with a phosphaalkene was first observed by Gates et al. to yield a 4-phosphino-substituted NHC (Scheme 1, I).¹⁶ Bertrand et al. developed a method for the preparation of 4-substituted imidazol-2-ylidenes (Scheme 1, II) by deprotonation of a C2-substituted imidazolium salt.¹⁷ Formation of II presumably occurs via 1,3 rearrangement of an imidazol-4-ylidene (mesoionic carbene) intermediate. Nevertheless, stable metal-free imidazol-4-ylidenes have also been reported by the same group.²³ Functionalization of an NHC has also been achieved with a silylene (IPr)SiCl₂, when treated with adamantyl azide (Scheme 1, III).¹⁸ Robinson et al. revealed a facile route to a lithiated NHC, Li(IPr^H) (1) (Li(IPr^H) = {(N-2,6-iPr₂C₆H₃)₂CHCLi}C:),¹⁹ which has facilitated the access to new molecular scaffolds with interesting properties and applications.²⁰

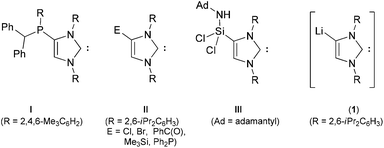

Scheme 1 C4 functionalized mono-NHCs.

Treatment of an NHC-precursor, 1-methyl-3-tert-butyl-imidazol-2-thione (Scheme 2, IV), with nBuLi in the presence of a phosphine affords phosphino-bridged di-thiones (V).²² Interestingly, in contrast to the established protocol to NHCs,²⁴ reaction of (V) with potassium metal does not yield the expected phosphino-bridged Di-NHC (VI) but an imidazolium phosphanide zwitterion (VII).²² Silyl-functionalized mono-NHCs (Scheme 1, II and III) can be prepared starting from an NHC (Scheme 1);^17–19 however, to the best of our knowledge no Di-NHC has been synthesized so far. Therefore, we became interested in developing a protocol for synthesis of Di-NHCs via direct C4-functionalization of an NHC.

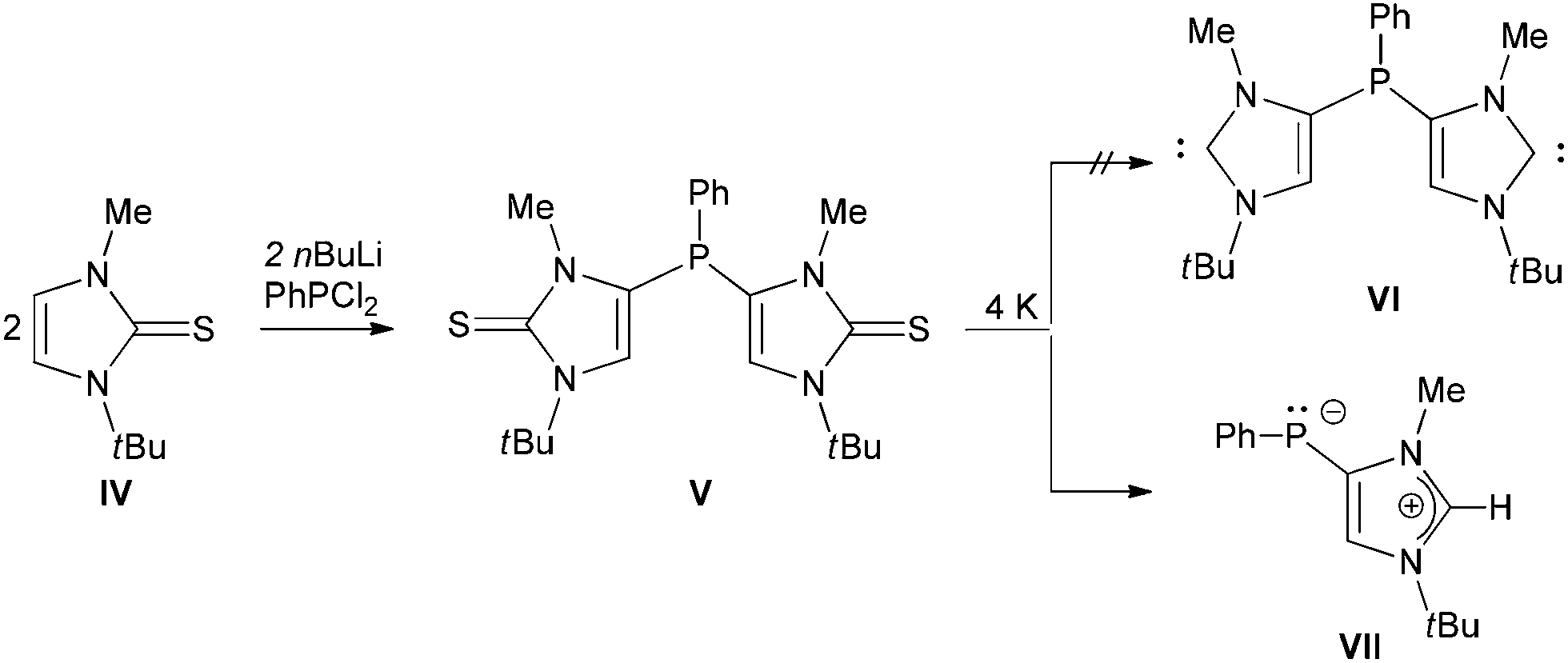

Scheme 2 Reaction of di-thione (V) with potassium metal.

Herein, we report a straightforward route to C4-bridged Di-NHCs, R₂Si(IPr^H)₂ (R = Ph, 2; Me, 3) and a copper complex Ph₂Si{(IPr^H)CuCl}₂ (5) (Schemes 3 and 4). A Similar protocol also allows access to silyl-functionalized mono-NHC, Ph₂(Cl)Si(IPr^H) (4) with a pendant chloro-substituent.

Scheme 3 Reaction synthesis of NHDCs 2 and 3 and mono-NHC 4.

Scheme 4 Synthesis of NHC copper complexes (5) and (6).

Results and discussion

Di-NHCs 2 and 3 have been prepared (Scheme 3) in almost quantitative yield on treatment of {Li(IPr^H)}_n (1) with an appropriate dihalosilane. Silyl-functionalized mono-NHC, Ph₂(Cl)Si(IPr) (4) is also accessible on treatment of 1 with one equiv. of Ph₂SiCl₂ (Scheme 3) in 82% yield. Compounds 2–4 are colorless crystalline solids, which are soluble in common organic solvents (benzene, toluene, and THF). They are stable under an inert atmosphere of nitrogen or argon gas. The EI-mass spectrum of 2 exhibits the molecular ion peak at 956.6 amu. A comparison of the NMR spectral data of 2–4 with those of the unfunctionalized NHC, IPr (IPr = {(N-2,6-iPr₂C₆H₃)CH}₂C:) exhibits significant differences. For instance, imidazol back-bone protons (NCH) of 2 appear as a singlet at δ 7.65 ppm (in C₆D₆), which are shifted by δ 1.03 ppm down field when compared with IPr (δ 6.62 ppm in C₆D₆).²⁵ This significant chemical shift may be attributed due to the presence of electron withdrawing phenyl groups on the silicon atom. As expected, NCH protons of 3 exhibit a singlet at δ 7.16 ppm (in THF-d₈), which are shifted slightly up field than those of IPr (δ 7.18 ppm, in THF-d₈). The ¹H NMR spectrum of 2 shows a remarkably high field signal for two isopropyl groups (δ 0.65 ppm, 12H, HCMe₂), which may be inferred as the shielding contributions from the π-current density of adjacent phenyl substituents of the SiPh₂ moiety. This is consistent with the solid state structure of 2 and thus the structure is maintained in the solution state. This feature is not available in 3, therefore HCMe₂ protons appear in the expected region. The ¹³C NMR spectrum of 2 and 3 each exhibits resonances consistent with their ¹H NMR spectral data. Each of the NHCs 2 and 3 shows a signal at δ 225.19 and 225.12 ppm for the carbene carbon atom. Each of the compounds 2 (δ −31.17) and 3 (δ −22.14 ppm) exhibits a signal in the ²⁹Si{¹H} NMR spectrum, which is consistent with those observed for four-coordinate organosilicon compounds.^17–19,26 The ¹H and ¹³C NMR signals of 4 are fully in agreement with its solid state structure. Compound 4 exhibits a signal at δ −9.19 ppm in the ²⁹Si{¹H} NMR spectrum.^26a

The molecular structure of 2 was established by a single crystal X-ray diffraction study, which clearly reveals the formation of a Di-NHC (Fig. 1). Compound 2 crystallizes in the monoclinic space group P2₁/c. The silicon atom in 2 is four-fold coordinated and bridges two flanking NHC moieties. Each of the imidazol-rings features a delocalized π-electron system with short single and long double bonds. The N1–C2–N3 bond angle of 101.65(13) further supports the carbene character of the C2 carbon.⁸ The Si1–C4 (imidazol) and Si1–C59 (Ph) (av. 1.87 Å) bond lengths are equal to the sum of the covalent radii of Si and C.²⁷

Fig. 1 Molecular structure of Di-NHC 2. Isopropyl groups and hydrogen atoms have been omitted for clarity; anisotropic displacement parameters are depicted at the 50% probability level. Selected bond lengths [Å] and angles [°]: N1–C2 1.367(2), N1–C5 1.385(2), N3–C2 1.3669(19), C4–C5 1.358(2), Si1–C4 1.8791(16), Si1–C59 1.8760(17); N1–C2–N3 101.65(13), N3–C4–C5 103.50(13), C4–Si1–C59 107.08(7), C4–Si1–C9 104.24(7).

Compound 4 crystallizes in the triclinic space group P1̄. The molecular structure of 4 shows functionalization of the C4 carbon atom with Si(Cl)Ph₂ (Fig. 2). The Si1–Cl1 bond length of 2.0701(8) Å is consistent with those measured for the compounds with four coordinate silicon atoms.^26a,27 The four-fold coordinated silicon atom adopts a distorted tetrahedral geometry.

Fig. 2 Molecular structure of mono-NHC 4. Hydrogen atoms have been omitted for clarity; anisotropic displacement parameters are depicted at the 50% probability level. Selected bond lengths [Å] and angles [°]: N1–C2 1.3732(19), N1–C5 1.3799(19), N3–C2 1.3678(19), C4–C5 1.355(2), Si1–Cl1 2.0701(8), Si1–C4 1.8575(15), Si1–C36 1.8562(16); N1–C2–N3 100.79(12), N3–C4–C5 103.82(12), C4–Si1–C36 117.75(7), C4–Si1–Cl1 101.93(6).

NHCs 2 and 4 each reacts with CuCl and affords complexes Ph₂Si{(IPr^H)CuCl}₂ (5) and Ph₂(Cl)Si{(IPr^H)CuCl} (6), respectively (Scheme 4). Complexes 5 and 6 are colorless crystalline solids, soluble in THF and CH₂Cl₂, and stable under an inert gas atmosphere. Formation of 5 and 6 is supported by the appearance of the corresponding molecular ion peak in the EI-mass spectrum. The ¹H NMR spectrum of each of compounds 5 and 6 shows signals for NHC moieties. Appearance of a new signal in the ¹³C NMR spectrum of 5 at δ 186.3 ppm is assigned for the carbene carbon atom (C–Cu). Complexes 5 and 6 show a ²⁹Si{¹H} NMR resonance at δ −30.10 and −10.95 ppm.^17–19,26

Complex 5 crystallizes in the orthorhombic space group Pna2₁.²⁵ The molecular structure of 5 reveals that each of the carbene centers coordinates to a CuCl moiety (Fig. 3). The Cu–C_(carbene) bond length of 1.886 Å (av.) and slightly distorted linear geometry with C–Cu–Cl angles of 174.14° (av.) are consistent with those of reported NHC-copper complexes.^17b,28 The Cu–Cl bond length of 2.11 Å (av.) may be assigned for the terminal CuCl.^17b,28 The four-fold coordinated silicon atom adopts distorted tetrahedral geometry with a significant decrease in the C4–Si1–C9 bond angle of 98.63(14). The molecular structure of 6 is shown in Fig. 4. Complex 6 crystallizes in the monoclinic space group P2₁/c. The copper atom in 6 features a distorted linear geometry with C2–Cu1–Cl1 bond angle of 174.02(5)°. As expected for both complexes 5 and 6, the N–C–N bond angle increases by 2.9° (av.) on coordination of the carbene carbon to CuCl.

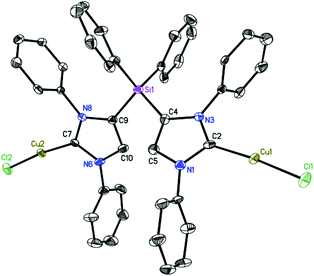

Fig. 3 Molecular structure of dicopper complex 5. Isopropyl groups and hydrogen atoms have been omitted for clarity; anisotropic displacement parameters are depicted at the 50% probability level. Selected bond lengths [Å] and angles [°]: Cu1–C2 1.898(5), Cu1–Cl1 2.1116(15), Cu2–C7 1.875(5), Cu2–Cl2 2.1152(14), N1–C2 1.362(6), N1–C5 1.367(7), N3–C2 1.350(6), C4–C5 1.350(7), Si1–C4 1.888(5), Si1–C59 1.858(5); C2–Cu1–Cl1 174.84(15), N1–C2–N3 104.5(4), N3–C4–C5 104.6(4), C4–Si1–C59 108.9(2), C4–Si1–C9 98.63(14).

Fig. 4 Molecular structure of complex 6. Hydrogen atoms have been omitted for clarity; anisotropic displacement parameters are depicted at the 50% probability level. Selected bond lengths [Å] and angles [°]: Cu1–C2 1.8779(16), Cu1–Cl2 2.1076(5), N1–C2 1.3610(19), N1–C5 1.376(2), N3–C2 1.357(2), C4–C5 1.360(2), Si1–Cl1 2.0527(6), Si1–C4 1.8615(16), Si1–C36 1.8623(17); C2–Cu1–Cl2 174.02(5), N1–C2–N3 103.73(12), N3–C4–C5 104.31(13), C4–Si1–C36 106.12(7), C4–Si1–Cl1 110.09(5).

Experimental

General

All synthesis and manipulations were carried out under an inert atmosphere of dry argon gas using Schlenk line techniques or Glove-box. C₆D₆ and THF-d₈ were dried over K-benzophenone ketyl and distilled under dry argon atmosphere prior to use. CD₂Cl₂ was dried over CaH₂ and distilled under dry argon prior to use. All other solvents were dried and purified by a MBRAUN solvent purification system (MB SPS 800). ¹H, ¹³C, and ²⁹Si NMR spectra were recorded using a Bruker Avance III 300 spectrometer. EI-mass spectra were recorded with MAT 95 (70 eV). Elemental analyses were performed at the Institute for Inorganic Chemistry, Universität Göttingen. Ph₂SiCl₂ and Me₂SiCl₂ were distilled prior to use. Anhydrous CuCl (Aldrich) was used as received. Compound {Li(IPr^H)}_n (1) was prepared according to the reported method.^19a

Synthesis of Ph₂Si(IPrH)₂ (2). To a 100 mL toluene suspension of Li(IPr^H) (1) (6.38 g, 16.17 mmol) was added a 40 mL toluene solution of Ph₂SiCl₂ (2.04 g, 8.08 mmol) at −78 °C with constant stirring. The resulting reaction mixture was brought to room temperature and stirred overnight. During this time the yellowish reaction mixture turned to brown suspension. The reaction mixture was further stirred at 90 °C for 4 h. Filtration through Celite afforded a wine red solution. Removal of the volatiles under vacuum gave a brownish solid. The resulting solid was re-dissolved in a 30 mL n-hexane–toluene (2 : 1) mixture and stored at 4 °C for two days to yield colorless crystals of Ph₂Si(IPr^H)₂ (2). Yield: 6.48 g, 84%. Anal calcd for C₆₆H₈₀N₄Si (957): C 82.79, H 8.42, N 5.85; found C 82.72, H 8.44, N 5.66. ¹H NMR (300 MHz, C₆D₆, 25 °C): δ 0.65 (d, 12H, J = 6.82 Hz, HCMe₂); 1.19 (d, 12H, J = 6.97 Hz, HCMe₂); 1.22, 125 (dd, 24H, J = 6.74 Hz, 6.79 Hz, HCMe₂); 2.64 (sept, 4H, J = 6.79 Hz, HCMe₂); 3.14 (sept, 4H, J = 6.90 Hz, HCMe₂); 6.76 (d, 4H, J = 7.76 Hz, m-C₆H₃); 6.91 (d, J = 7.45 Hz, m-C₆H₃); 7.00 (m, 6H, o-, p-C₆H₅); 7.10–7.19 (m, 4H, m-C₆H₅); 7.29 (t, 4H, p-C₆H₃); 7.65 (s, 2H, NCH) ppm. ¹³C{¹H} NMR (75 MHz, C₆D₆, 25 °C): δ 21.02, 24.10, 24.23, 26.18 (HCMe₂); 28.62, 29.01 (HCMe₂); 122.84, 123.70, 130.10, 134.54, 136.54, 138.19, 139.12 (CHCH, C₆H₃, C₆H₅), 146.02 (ipso-C₆H₃), 225.19 (NCN) ppm. ²⁹Si{¹H} NMR (59 MHz, C₆D₆, 25 °C): δ −31.17 ppm. EI-MS: m/z (%): 956.6 (85) [M⁺], 387.4 (100) [IPr^H+].

Ph₂Si(IPr^H)₂ (2). ¹H NMR (300 MHz, THF-d₈, 25 °C): δ 0.52 (d, 12H, J = 6.83 Hz, HCMe₂); 0.96 (d, 12H, J = 6.77 Hz, HCMe₂); 1.17, 1.19 (dd, 24H, J = 6.95, 6.87 Hz, HCMe₂); 2.41 (sept, 4H, J = 6.77 Hz, HCMe₂); 2.95 (sept, 4H, J = 6.89 Hz, HCMe₂); 6.73 (d, 4H, J = 7.76 Hz, m-C₆H₃); 6.94 (d, J = 7.35 Hz, m-C₆H₃); 7.01 (m, 6H, o-, p-C₆H₅); 7.12–7.21 (m, 4H, m-C₆H₅); 7.46 (s, 2H, NCH) ppm. ¹³C{¹H} NMR (75 MHz, THF-d₈, 25 °C): δ 21.88, 24.35, 25.10, 25.22 (HCMe₂); 29.82, 30.11 (HCMe₂); 123.89, 124.50, 124.76 128.99, 129.95, 130.71, 135.75, 137.86, 139.47, 140.34 (C₆H₃, C₆H₅), 147.11, 147.35 (ipso-C₆H₃), 226.31 (NCN) ppm.

Synthesis of Me₂Si(IPr^H)₂ (3). Compound 3 was prepared in 79% yield adopting a similar method as described for the compound 2, using (1) (2.23 g, 5.65 mmol) and Me₂SiCl₂ (0.35 mL, 2.90 mmol). Anal. calcd for C₅₆H₇₆N₄Si (833): C 80.71, H 9.19, N 6.72; found C 79.98, H 9.09, N 6.39. ¹H NMR (300 MHz, THF-d₈, 25 °C): δ −0.30 (s, 6H, SiMe₂), 1.04 (d, 12H, J = 6.94 Hz, HCMe₂); 1.11 (d, 12H, J = 6.67 Hz, HCMe₂); 1.16, 1.18 (dd, 24H, HCMe₂); 2.62 (sept, 4H, J = 6.83 Hz, HCMe₂); 2.82 (sept, 4H, J = 6.91 Hz, HCMe₂); 7.16 (s, 2H, NCH), 7.22 (m, 8H, m-C₆H₃); 7.35 (m, 4H, p-C₆H₃). ppm. ¹³C{¹H} NMR (75 MHz, THF-d₈, 25 °C): δ 0.49 (SiMe₂), 22.76, 24.37, 24.66, 25.49 (HCMe₂); 29.65, 29.82, 30.10 (HCMe₂); 123.08, 124.33, 124.49, 124.61, 129.78, 129.94, 130.20, 131.71, 134.06, 139.58, 140.23, 140.88 (C₆H₃), 147.05, 147.32, 147.62 (ipso-C₆H₃), 225.12 (NCN) ppm. ²⁹Si{¹H} NMR (59 MHz, THF-d₈, 25 °C): δ −22.14 ppm.

Synthesis of Ph₂(Cl)Si(IPr^H) (4). To a toluene suspension of (1) (1.87 g, 4.74 mmol) was added a 50 mL toluene solution of Ph₂SiCl₂ (1 mL, 4.74 mmol) at −78 °C. The reaction mixture was brought to room-temperature and stirred overnight. Filtration through Celite afforded yellowish solution. Removal of all the volatiles under vacuum yielded a yellow solid. Colorless crystals of 4 (2.36 g, 82%) were recovered after one week on storage of a saturated toluene solution at −25 °C. ¹H NMR (300 MHz, THF-d₈, 25 °C): δ 0.74 (d, 6H, J = 6.86 Hz, HCMe₂), 1.06 (d, 6H J = 6.79 Hz, HCMe₂), 1.18 (d, 6H, J = 6.85 Hz, HCMe₂), 1.22 (d, 6H, J = 6.94 Hz, HCMe₂), 2.52 (sept, 2H, J = 6.85 Hz, HCMe₂), 2.87 (sept, 2H, J = 6.92 Hz, HCMe₂), 7.06 (d, 2H, J = 7.80 Hz, m-C₆H₃), 7.25–7.44 (m, 15H, C₆H₅, C₆H₃, NCH) ppm. ¹³C{¹H} NMR (75 MHz, THF-d₈, 25 °C): δ 21.25, 24.02, 24.28, 26.05 (HCMe₂), 28.99, 29.52 (HCMe₂), 123.51, 123.89, 125.83, 126.58, 128.68, 129.23, 129.35, 129.46, 131.43, 132.63, 135.57, 136.34, 138.57, 139.51 (C₆H₃, C₆H₅), 146.35, 146.83 (ipso-C₆H₃), 225.88 (NCN) ppm. ²⁹Si{¹H}-NMR (59 MHz, THF-d₈, 25 °C): δ −9.19 ppm.

Synthesis of Ph₂Si{(IPr^H)CuCl}₂ (5). To a Schlenk flask containing 2 (0.52 g, 0.54 mmol) and anhydrous CuCl (0.11 g, 1.11 mmol) was added 20 mL of THF. Resulting suspension was stirred overnight at room temperature. Removal of the volatiles under vacuum afforded off-white solid, which was washed with (2 × 20 mL) n-hexane. The residue was dissolved in 5 mL of CH₂Cl₂ and combined with 10 mL of n-hexane. The solution was stored at −35 °C to obtain colorless crystals of 5 in 81% (0.51 g) yield. Anal. calcd for C₆₆H₈₀N₄Cl₂Cu₂Si (1155): C 68.61, H 6.98, N 4.85; found C 67.55, H 6.85, N 4.91. ¹H NMR (300 MHz, CD₂Cl₂, 25 °C): δ 0.50 (d, 12H, J = 6.63 Hz, HCMe₂); 1.14 (d, 12H, J = 6.79 Hz, HCMe₂); 1.31 (m, 24H, HCMe₂); 2.18 (sept, 4H, J = 6.77 Hz, HCMe₂); 2.64 (sept, 4H, J = 6.88 Hz, HCMe₂); 6.85 (m, 8H, m-C₆H₃); 7.08 (t, 4H, J = 7.70 Hz, p-C₆H₃); 7.19 (t, 2H, J = 7.79 Hz, p-C₆H₅); 7.31 (t, 2H, J = 6.99 Hz, m-C₆H₅); 7.41 (d, 4H, J = 7.76 Hz, o-C₆H₅); 7.50 (s, 2H, NCH); 7.61 (t, 2H, J = 7.77 Hz, m-C₆H₅) ppm. ¹³C{¹H} NMR (75 MHz, CD₂Cl₂, 25 °C): δ 21.42, 24.44, 24.90, 27.21 (HCMe₂); 29.18, 29.39 (HCMe₂); 124.27, 124.90, 126.49, 128.72, 129.58, 131.17, 131.26, 131.33, 134.27, 134.48, 134.88, 136.48, 145.69, 146.02 (C₆H₅, C₆H₃), 186.27 (NCN) ppm. ²⁹Si{¹H} NMR (59 MHz, CD₂Cl₂, 25 °C): δ −30.10 ppm. EI-MS: m/z: 1154.3 (M⁺), 1054.5 (M⁺ − CuCl), 956.6 (M⁺ − 2CuCl).

Synthesis of Ph₂(Cl)Si{(IPr^H)CuCl} (6). To a 100 mL Schlenk flask containing 4 (360 mg, 0.6 mmol) and anhydrous CuCl (60 mg, 0.6 mmol) was added 50 mL toluene and stirred overnight. Filtration through Celite afforded yellowish solution, which was concentrated (20 mL) under vacuum and stored at 0 °C to yield colorless crystals of 7 (335 mg, 80%). Anal. calcd for C₄₀H₄₆N₂Cl₂Cu (704.33) C 66.51, H 6.44, N 3.98; found C 66.95, H 6.25, N 3.88. ¹H NMR (300 MHz, THF-d₈, 25 °C): δ 0.75 (d, 6H, J = 6.81 Hz, HCMe₂), 1.26 (d, 6H, J = 3.99 Hz, HCMe₂), 1.28 (d, 6H, J = 4.07 Hz, HCMe₂), 1.32 (d, 6H, J = 6.88 Hz, HCMe₂), 2.41 (sept, 2H, J = 6.81 Hz, HCMe₂), 2.69 (sept, 2H, J = 6.90 Hz, HCMe₂), 7.19 (d, 2H, J = 7.83 Hz, m-C₆H₃), 7.35–7.52 (m, 15H, C₆H₅, C₆H₃), 7.89 (s, 1H, NCH) ppm. ¹³C{¹H}-NMR (75 MHz, THF-d₈, 25 °C): δ 22.20, 24.13, 24.34, 24.91 (HCMe₂), 25.10, 27.07, 29.92, 30.14 (HCMe₂), 125.05, 125.08, 125.79, 129.35, 129.45, 131.41, 131.56, 131.70, 135.96, 137.38 (C₆H₅, C₆H₃), 146.64, 147.02 (ipso-C₆H₃), 186.82 (NCN) ppm. ²⁹Si{¹H}-NMR (59 MHz, THF-d₈, 25 °C) δ −10.95 ppm. MS (EI): m/z: 703.9 (M), 603.1 (M − CuCl), 387.28 (IPr).

X-ray crystallography

Suitable single crystals were selected from the mother liquor in the Schlenk flask and covered with perfluorinated polyether oil on a microscope slide, which was cooled with a nitrogen gas flow using the X-Temp2 device.²⁹ The diffraction data of compound 2 were collected at 100 K on a Bruker D8 three circle diffractometer equipped with a SMART APEX II CCD detector and a microfocus source³⁰ with INCOATEC Quazar mirror optics (λ = 0.71073 Å). The diffraction data for compounds 4, 5, and 6 were collected at 100 K on a Bruker TXS-Mo rotating anode with mirror optics and a Smart Apex II Ultra detector. The data were integrated with SAINT³¹ and a multi-scan absorption correction with SADABS³² was applied.

The structures were solved by direct methods (SHELXS-97)³³ and refined against all data by full-matrix least-squares methods on F² (SHELXL2013)^34,35 within the SHELXLE GUI.³⁶ The hydrogen atoms were refined isotropically on calculated positions using a riding model with their U_iso values constrained to 1.5U_eq of their pivot atoms for terminal sp³ carbon atoms and 1.2 times for all other carbon atoms. All non-hydrogen-atoms were refined with anisotropic displacement parameters. Disordered moieties were refined using distance restraints (SAME) and anisotropic displacement parameter restraints (SIMU and RIGU).³⁵

Crystal data for 2. C_72.44H_87.36N₄Si, M_r = 1042.19, 0.1 × 0.1 × 0.07 mm, a = 13.646(2), b = 20.372(2), c = 22.809(3) Å, α = 90.00, β = 95.89(2), γ = 90.00°, V = 6307.3(13) ų, Z = 4, ρ_calcd. = 1.098 Mg m⁻³, μ(Mo-K_α) = 0.081 mm⁻¹, 2θ_max = 52.1°, 102 837 reflections measured, 12 433 independent (R_int = 0.0485), R₁ = 0.0449 [I > 2σ(I)], wR₂ = 0.1170 (all data), residual density peaks: 0.343 to −0.259 e Å⁻³.

Crystal data for 4. C₄₆H₅₃ClN₂ Si, M_r = 697.44, 0.19 × 0.134 × 0.09 mm, a = 10.900(2), b = 11.162(2), c = 18.612(3) Å, α = 78.13(2), β = 95.89(3), γ = 65.94(2)°, V = 2010.3(7) ų, Z = 2, ρ_calcd. = 1.152 Mg m⁻³, μ(Mo-K_α) = 0.152 mm⁻¹, 2θ_max = 55.0°, 55 303 reflections measured, 9200 independent (R_int = 0.0418), R₁ = 0.0410 [I > 2σ(I)], wR₂ = 0.1034 (all data), residual density peaks: 0.354 to −0.346 e Å⁻³.

Crystal data for 5. C₆₉H₈₆Cl₈Cu₂N₄Si, M_r = 1410.18, 0.368 × 0.190 × 0.964 mm, a = 24.735(3), b = 11.999(2), c = 23.789(2) Å, α = 90.00, β = 90.00, γ = 90.00°, V = 7060.5(16) ų, Z = 4, ρ_calcd. = 1.327 Mg m⁻³, μ(Mo-K_α) = 0.964 mm⁻¹, 2θ_max = 52.7°, 226 192 reflections measured, 14 390 independent (R_int = 0.0340), R₁ = 0.0352 [I > 2σ(I)], wR₂ = 0.0968 (all data), residual density peaks: 0.824 to −0.561 e Å⁻³.

Crystal data for 6. C₄₆H₅₃Cl₂CuN₂Si, M_r = 796.43, 0.235 × 0.196 × 0.150 mm, a = 11.380(2), b = 15.471(2), c = 24.575(3) Å, α = 90.00, β = 98.03(2), γ = 90.00°, V = 4301.9(11) ų, Z = 4, ρ_calcd. = 1.230 Mg m⁻³, μ(Mo-K_α) = 0.692 mm⁻¹, 2θ_max = 52.8°, 97 304 reflections measured, 8799 independent (R_int = 0.0519), R₁ = 0.0288 [I > 2σ(I)], wR₂ = 0.0740 (all data), residual density peaks: 0.367 to −0.272 e Å⁻³.

Conclusions

In conclusion, we have reported a convenient method which allows direct functionalization of an NHC to afford Di-NHCs 2 and 3 in high yield. Mono-NHC 4 with a pendant chloro-substituent is also accessible using a similar protocol. Compound 4 offers new promises to prepare novel hybrid ligands by further functionalization. Di-NHCs (2 and 3), mono-NHC (4), and copper complexes (5 and 6) are fully characterized. We believe that this method can be applied to other new functionalized Di-NHCs with different bridging moieties, such as VI. Investigation on potential application of Di-NHCs as ligands in homogeneous catalysis and as organocatalysts is currently under way to examine the scope of new Di-NHC scaffolds.

Acknowledgements

The authors are thankful to Prof. Dr Dietmar Stalke for his generous support and encouragement.
