Jakub
Wojtaszak
,
Krzysztof
Mierzwicki
,
Sławomir
Szafert
,
Nurbey
Gulia
and
Jolanta
Ejfler
*
Department of Chemistry, University of Wrocław, 14 F. Joliot-Curie, 50-383 Wrocław, Poland. E-mail: jolanta.ejfler@chem.uni.wroc.pl; Tel: +48 (71) 375 73 10
First published on 20th November 2013
The reaction of MgBu2, ZnEt2 or Ca(OiPr)2 with 2 eq. of three-coordinating N-[methyl(2-hydroxy-3,5-dimethylphenyl)]-N-methyl-N-methyl-1,3-oxolaneamine (mpoa-H) or N-[methyl(2-hydroxy-3,5-di-tert-butylphenyl)]-N-methyl-N-methyl-1,3-oxolaneamine (tbpoa-H) gave neutral, monomeric [Mg(mpoa)2], [Zn(mpoa)2], [Zn(tbpoa)2], and [Ca(tbpoa)2] as white powders in 58–90% yields. The resulting aminophenolates were characterized in solution by NMR showing, in the case of [Zn(tbpoa)2], interesting dynamics. [Zn(tbpoa)2] and [Ca(tbpoa)2] were characterized by X-ray crystallography to show the Zn atom to be pseudo-octahedrally coordinated and the Ca atom in six-coordination mode. The new homoleptic complexes were tested in the polymerization of lactide with an external alcohol to reveal stable behaviour (during the polymerization process) only in the case of [Zn(tbpoa)2]. The high activity of the catalyst was correlated with a ligand flexibility that was further supported by theoretical studies.
Excellent reviews have recently appeared, describing the most effective method for the synthesis of PLAs, i.e. ring-opening polymerization (ROP) of lactides catalyzed by metal alkoxides.4 A wide variety of different kinds of complexes have been used for this purpose, comprising not only compounds of biologically benign metals like lithium, sodium, magnesium, zinc, calcium, and iron, but also more or even highly toxic ones like aluminum, tin, lead, bismuth, and lanthanides. Nevertheless, since it is practically unviable to completely remove catalyst residues from the polymer, which is important for biomedical applications and green packages, the most interesting remain environmentally friendly non-toxic catalysts.
Among the galore of tested catalysts, the so-called well-defined heteroleptic catalysts of LnM-OR type possess a great advantage owing to their ability to facilitate ring-opening polymerization with control of both molecular weight and polymer microstructure. For a specific “single-site” LnM-OR catalyst, the relative rate of ROP correlates well with an M–O bond polarity. For example, for a given ligand environment, the relative rate of ROP changes in the order Ca+2 > Mg+2 > Zn+2.5 An excellent study of a family of “single-site” divalent metal initiators supported by β-diketiminate, trispyrazolylborate or amino/imino-phenolate6 ligands, which included derivatives based on Zn, Mg, Ca, and Sn, has been reported.7 Such initiators illustrate the anticipated trends in polymerization rates, correlating well with the size of an initiating group and the electronic properties of ancillary ligand substituents.8
For the above mentioned LnM-OR initiators, it is important to modify a metal coordination sphere by an ancillary ligand with sufficient steric bulk to prevent bischelation, which process is considered to represent a deactivation pathway by the formation of inactive ML2 compounds.9 Therefore, homoleptic metal complexes have not been qualified as potentially effective initiators for ROP of lactides. However, the efficacy of ligands stabilizing heteroleptic LnM-OR (M = Ca, Mg, Zn) complexes is arguable due to high lability of such species. This seems especially apparent for initiators derived in situ from organometallic LnM-R precursors. It also seems difficult to ensure the stability of such compounds towards an excess of external alcohol in the case of iROP (immortal ROP).
An increasing demand for highly active, non-toxic, colourless, inexpensive, and stable complexes which can be easily handled is forcing the development of an alternative to single-site initiators. Among those, very attractive are catalytic systems for the monomer activated pathway based on homoleptic compounds of ML2 type combined with an external alcohol.10 In this regard, the recent study on homoleptic magnesium and zinc catalyst supported by bulky N,O-donor ligands is very promising.11 As we have recently reported, the aminophenolate ligands are able to form homoleptic zinc and magnesium monomers, which combine great potential as active catalysts in the ROP of lactide with an acceptable stability.12 Additionally, our studies indicate the dynamic behavior of these coordinatively saturated complexes in solution, which can be crucial for both stability and catalytic activity in ML2/ROH systems.
A more in-depth mechanistic understanding of the activation process of aminophenolate complexes in lactide polymerization as well as the way in which the structural “perturbations” of the active centre and reaction conditions influence their catalytic activity constitutes the aim of the current research. Herein we have described the synthesis and characterization of magnesium, calcium, and zinc complexes supported by the aminophenolate ligands with hemilabile arms containing additional ether O-donor and their application as initiators for lactide polymerization. The study extensively correlates the experimental outcomes with DFT calculations to rationalize the results.
1H and 13C NMR spectra were detected in the temperature range from 233 K to 333 K using Bruker ESP 300E or 500 MHz spectrometers. Chemical shifts are reported in parts per million and referenced to the residual solvent signal. The weights and number-average molecular weights of PLAs were determined by gel permeation chromatography (GPC) using a HPLC-HP 1090 II with a DAD-UV/Vis and an RI detector HP 1047A and polystyrene calibration. Microanalyses were conducted with an ARL Model 3410+ICP spectrometer (Fisons Instruments) and a VarioEL III CHNS (in-house).
Fig. 1 Schematic structure (with numbering of selected atoms; H atoms omitted except for the CH protons of dioxolane rings) of [ML2] complexes (M = Ca, Mg, Zn). |
Since the X-ray data showed two slightly different isomers for the zinc complex, both structures were considered in subsequent studies. In the first stage, geometry optimization and vibrational analysis were performed at the TPSS-D3/def2-SVPD level18–20 with respective default auxiliary basis sets,21 where TPSS-D3 means the meta-GGA functional with Grimme's D3 dispersion correction.22 Though for like-charged species (for example two ligands in considered [ML2] complexes) the Coulombic repulsion is usually dominant, as was recently shown by Grimm et al., going from point charges model to real ions one should also take into account London dispersion attraction. In some cases the dispersion not only overcomes electrostatic repulsion but also the entropy penalty of complex formation.22 Therefore the dispersion correction seems to be important not only for quantitative but even for correct qualitative description of such molecules. All the vibration frequencies in each studied complex were real. This proves that the obtained structures are true minima. Such calculated molecules were reoptimized at the TPSS-D3/def2-TZVPPD level20,23 (with respective auxiliary basis sets taken from TURBOMOLE library). This functional was chosen because – as we found – for the considered molecules it gives results which are quite close to MP2 ones. The NMR results suggested that for the zinc complex, depending on temperature, dioxolane arms can be bound or non-bound. Therefore we optimized these molecules with different dioxolane ring positions and found additional isomers.
Isotropic 1H chemical shifts were computed (with the Gaussian 09 package) as a difference between chemical shieldings of reference hydrogen atom in tetramethylsilane (TMS, optimized at the TPSS-D3/def2-TZVPPD level of theory) and proton chemical shieldings in considered complexes. All these values were obtained using the gauge independent atomic orbital (GIAO) method24 for the gas-phase geometries. We employed WP04 functional, proposed recently by Wiitala et al.25 and 6-31G(d,p) basis set. ChemCraft package has been used to visualize some of the results.26
Aminophenolates mpoa-H and N-[methyl(2-hydroxy-3,5-di-tert-butylphenyl)]-N-methyl-N-methyl-1,3-dioxolaneamine (tbpoa-H) were prepared according to modified Mannich condensation27 using respective disubstituted phenol, paraformaldehyde, and 2-methylaminomethyl-1,3-dioxolane as described in previous literature12 and in the Experimental section. Next, both ligands were used for complex syntheses. In the first thrust, a solution of mpoa-H was slowly treated with 2.5 M solution of MgBu2 (0.5 eq.) in hexanes at room temperature to give a white solid of [Mg(mpoa)2] in 90% yield (after recrystallization from toluene) as shown in Scheme 1.
Analogous reactions of mpoa-H or tbpoa-H with ZnEt2 (1 M solution in hexanes) or tbpoa-H with Ca(OiPr)2 gave analytically pure [Zn(mpoa)2], [Zn(tbpoa)2], and [Ca(tbpoa)2] in 84–58% yield as white solids. Only in the case of [Ca(tbpoa)2] a longer reaction time and an elevated temperature were applied. Compounds with a tbpoa ligand are well soluble in toluene, CH2Cl2 or THF, while the solubility of aminophenolates with methyl substituents [Mg(mpoa)2] and [Zn(mpoa)2] appear much poorer in these solvents. All compounds are insoluble in aliphatic hydrocarbons.
The complexes were characterized by 1H and 13C NMR spectroscopy, which showed complicated dynamics in solution. Magnesium compound exhibited (both in 1H and 13C NMR spectra) multiple signals of the OCHO group of the dioxolane ring. In the proton spectrum there were two broad signals positioned at δ: 5.69 and 5.49 ppm. Also the 13C spectrum showed two signals of OCHO carbon, which were located at δ: 101.8 and 102.9 ppm. Moreover, the signal of the neighbouring methylene N–CH2–CH protons appeared as a multiplet in the δ range: 3.40–3.28 ppm. The results suggest the coordination of just one dioxolane arm to the metal center in [Mg(mpoa)2] or the so-called “gorilla” effect (quick coordination and decoordination of both dioxolane rings interchangeably). Interestingly, in [Zn(mpoa)2] the 1H NMR spectrum showed just one well resolved triplet of the OCHO group at δ: 5.25 ppm and the neighbouring methylene N–CH2–CH signal appeared as a doublet at δ: 2.63 ppm. Also the 13C NMR spectrum of [Zn(mpoa)2] exhibited a single peak of the OCHO group at δ: 102.9 ppm. This might be an effect of a slightly higher ionic radius of Zn(II) compared to Mg(II), which enables a better coordination of both dioxolane rings.28 An exchange of the substituents in the phenolic part of the aminophenolate ligand for larger the tBu group resulted in a “tighter” arrangement around the metal center, which affected its coordination mode. In [Zn(tbpoa)2], once again the 1H and 13C NMR spectra showed multiple signals for the OCHO group. The proton spectrum showed two broadened signals at δ: 5.22 and 5.13 ppm and a multiplet of the adjacent methylene N–CH2–CH group in the δ range: 2.53–2.25 ppm. Interestingly the signal of the methylene N–CH2–Ar protons in [Zn(tbpoa)2] appeared as a pair of doublets, which might suggest that they became diastereotopic as shown in Fig. 2. The effect is similar to that observed for [Mg(mpoa)2] and suggests a similar “gorilla” mechanism.
The other explanation could be stereochemistry at the N centers (the possible isomers for [Zn(tbpoa)2] are SS, RR and R,S). This could be supported by the appearance of two signals of the methyl N–CH3 groups in 13C NMR at δ: 42.7 and 43.8 ppm. This observation indicates that decoordination of the dioxolane moiety causes stronger coordination of an N arm of the aminophenolate ligand. In order to better understand the nature of the phenomenon, a variable temperature NMR experiment was performed in d8-toluene as shown in Fig. 3. Noticeably, signals of all the methylene and methine groups coalesce at 333 K. This nice triplet of the methine group can be observed, which proves the existence of pendant dioxolane ring. It is worth mentioning that such bond-dangling quick (on the NMR time scale) exchange of the coordination mode may have important implications on the catalytic properties of this complex. Although some other isomers are possible for [Zn(tbpoa)2] arising from different coordinations of dioxolane rings or from the general geometry around the central atom, there was no indication of those in the NMR or X-ray data (similarly as for [Ca(tbpoa)2]).
Fig. 3 Variable temperature 1H NMR spectra for [Zn(tbpoa)2]. The signal of methane OCHO proton of the internal standard (free tbpoa-H) was marked with bC. |
In [Ca(tbpoa)2], despite the larger tBu substituent at the phenolic moiety, the larger ionic radius of the calcium ion enabled octahedral coordination. The 1H NMR spectra showed a single broadened signal of the OCHO proton at δ: 5.20 ppm and a multiplet in the δ range: 2.78–2.54 ppm indicating some dynamics. A single signal was observed for the OCHO group in 13C NMR for [Ca(tbpoa)2] at δ: 103.7 ppm.
[Zn(tbpoa)2]·CH2Cl2 | [Ca(tbpoa)2]·C6H5CH3 | |
---|---|---|
Molecular formula | C41Cl2H66N2O6Zn | C47H72CaN2O6 |
Molecular weight | 819.23 | 801.15 |
Temp. of collection (K) | 100(2) | 100(2) |
Crystal system | Monoclinic | Triclinic |
Space group | C2/c | P |
a [Å] | 18.403(4) | 10.293(3) |
b [Å] | 19.279(4) | 15.167(4) |
c [Å] | 25.718(5) | 16.176(4) |
α [°] | 90 | 81.41(3) |
β [°] | 110.61(2) | 74.00(3) |
γ [°] | 90 | 71.62(3) |
V [Å3] | 8540(3) | 2298.2(11) |
Z | 8 | 2 |
d c [g cm−3] | 1.274 | 1.158 |
μ [mm−1] | 0.746 | 0.184 |
Crystal dimensions [mm] | 0.33 × 0.20 × 0.03 | 0.24 × 0.18 × 0.15 |
Θ Range [°] | 2.61 ≤ Θ ≤ 25.04 | 2.78 ≤ Θ ≤ 28.62 |
Range/indices (h,k,l) | −19,21; −22,22; −30,30 | −13,13; −20,20; −21,21 |
No. of reflections | 43167 | 20255 |
No. of unique data | 7540 | 10595 |
No. of observed data | 4984 [I > 2σ(I)] | 4007 [I > 2σ(I)] |
No. refined parameters | 489 | 508 |
R int | 0.0695 | 0.0688 |
R indices [I > 2σ(I)] | R 1 = 0.0765 | R 1 = 0.0688 |
wR2 = 0.1994 | wR2 = 0.1393 | |
R indices (all data) | R 1 = 0.1143 | R 1 = 0.1862 |
wR2 = 0.2274 | wR2 = 0.1799 | |
Goodness of fit | 1.048 | 0.900 |
Largest diff. peak hole [e Å−3] | 1.607, −0.716 | 0.812, −0.598 |
Interatomic distances and angles have been provided in Table 2 and a view of each structure is given in Fig. 4 and 5.
Fig. 4 The view of [Zn(tbpoa)2]·CH2Cl2 molecule (solvated CH2Cl2, H-atoms and methyl group carbons from tBu substituents were omitted for clarity; atoms with superscript a are symmetry related, see Table 2 caption). |
Fig. 5 The view of [Ca(tbpoa)2]·C6H5CH3 molecule (solvated toluene, H-atoms and methyl group carbons from tBu substituents were omitted for clarity). |
Atoms | Angles | ||
---|---|---|---|
a Atoms N(2), O(4), and O(5) are related to N(1), O(1), and (O2), respectively, by symmetry operation: 1 − x, y, 1.5 − z. b Values in parentheses are for the non-bonding interactions. | |||
N(1)–M–N(2)a | 147.4(2) | 148.5(3) | 100.04(9) |
N(1)–M–O(1) | 96.20(16) | 96.25(17) | 78.70(9) |
N(1)–M–O(2) | (71.03)b | (71.68)b | 68.74(9) |
N(1)–M–O(4)a | 98.99(16) | 100.0(2) | 171.73(9) |
N(1)–M–O(5)a | (82.01)b | (84.32)b | 91.64(9) |
N(2)a–M–O(1) | 98.99(16) | 100.0(2) | 165.81(10) |
N(2)a–M–O(2) | (82.01)b | (84.32)b | 86.71(9) |
N(2)a–M–O(4)a | 96.20(16) | 96.25(17) | 80.16(9) |
N(2)a–M–O(5)a | (71.03)b | (71.68)b | 67.07(9) |
O(1)–M–O(2) | (151.07)b | (159.58)b | 105.68(9) |
O(1)–M–O(4)a | 123.8(2) | 117.1(4) | 103.14(9) |
O(1)–M–O(5)a | (84.52)b | (81.87)b | 98.77(10) |
O(2)–M–O(4)a | (84.52)b | (81.87)b | 103.07(9) |
O(2)–M–O(5)a | (68.34)b | (80.60)b | 144.36(9) |
O(4)a–M–O(5)a | (151.07)b | (159.58)b | 96.01(9) |
The zinc and calcium solvates [Zn(tbpoa)2]·CH2Cl2 and [Ca(tbpoa)2]·toluene crystallize in C2/c (monoclinic) and P (triclinic) space groups, respectively. No internal or external hydrogen bonds were observed for both structures. There are two independent molecules of [Zn(tbpoa)2]·CH2Cl2 in the unit cell, each lying at the two fold axis. In both, zinc(II) centers possess analogous four coordinated arrangement, where each metal is surrounded by two pairs of N,O atoms from two aminophenolates.12b,29
Nevertheless, a closer look at the positions of the cis-sited dioxolane substituents shows that although the arms are dangling they remain in close proximity to the metal center to form a pseudooctahedral arrangement. Interestingly, the dioxolane O atoms being closer to the metal atoms differ significantly in the M–O distance of 3.007(4) and 2.725(5) Å. The pseudooctahedral arrangement is further supported by the bond angles around the metal centers, as shown in Table 2. Also here the O–M–O angles formed by O atoms from dioxolane rings are markedly different for the two independent molecules (68.3 vs. 80.6°). The observations – although made for a solid state – support the NMR data, which showed important dynamics of the ligands in [Zn(tbpoa)2]. The Zn(1)–N(1) and Zn(2)–N(2) distances of 2.092(4) and 2.106(4) Å and Zn(1)–O(1) and Zn(2)–O(2) distances of 1.923(4) and 1.933(5) Å are similar to those found in Zn(tbpca)2 (L = N-[methyl(2-hydroxy-3,5-di-tert-butylphenyl)]-N-methyl-N-cyclohexylamine; Zn–O(1) = 1.909(2) and Zn–N(1) = 2.130(2) Å), [Zn(L)]·H2O (L = 1-ethyl-4,7-bis(3-tert-butyl-5-methoxy-2-hydroxybenzyl)-1,4,7-triazacyclononane; Zn–O = 1.963(1) and 1.934(1) Å; Zn–N = 2.113(1) and 2.277(1) Å)27 and [ZnL2] (L = N-(2-hydroxy-5-nitrobenzyl)-(R)-a-methylbenzylamine; Zn–O = 1.935(2) and 1.933(2) Å; Zn–N = 2.0426(19) and 2.0458(19) Å).29
Although the solid structure of [Ca(tbpoa)2]·C6H5CH3 is also a molecular monomer, it substantially differs from that of [Zn(tbpoa)2]·CH2Cl2. As has already been revealed by the NMR data, both dioxolane rings in [Ca(tbpoa)2]·C6H5CH3 are coordinated to the metal center and remain in trans arrangement. The Ca–O(2) and Ca–O(5) distances are 2.401(2) and 2.377(3) Å, respectively. The nitrogen atoms are cis one to the other and so are the phenoxo oxygens. The Ca–N(1) and Ca–N(2) distances are 2.608(3) and 2.666(3) Å and Ca–O(1) and Ca–O(4) are 2.189(3) and 2.210(2) Å. The octahedron around the central atom is substantially distorted, which can be concluded from the bond angles in Table 2.
Regardless of its low solubility, the magnesium complex [Mg(mpoa)2] was reacted with 50 equiv. of L-LA and BzOH (BzOH = benzyl alcohol) was added (1 eq.). It achieved high conversion in 15 min and gave out polymers with moderate Mw = 8700 and PDI = 1.1. The polymerization process is living and polymer chains are terminated by aminophenolate and hydroxyl groups. The polymerization results and NMR study are consistent with the DFT study (see below), indicating a possibility of equilibrium of five and six coordinated magnesium species. Usually an octahedral environment of magnesium atoms is preferred and therefore a coordination gap (after decoordination of a hemilabile arm) is immediately substituted by lactide, which is the first step in the polymerization process. These structural perturbations caused rending of one aminophenolate ligand as a polymer end-group.
Experimental results showed [Zn(tbpoa)2] to be an efficient and the most interesting initiators for the polymerization of L-LA. Representative results are collected in Table 3. The choice of the propargyl alcohol was determined by the possibility of conducting synthesis of end-functionalized oligomers, which could later be applied as building blocks in molecular engineering.
Entry | ROH | [I]/[L-LA]/ROH | Time [min] | C [%] | M n,calcb [g mol−1] | M n,obsc [g mol−1] | M w/Mnd |
---|---|---|---|---|---|---|---|
Reaction conditions: Vsolvent = 25 mL, toluene; T = 58 °C.a Obtained from 1H NMR.b Calculated from Mn,theo = [L-LA]0/[ROH]0 × C% × 144.13 + MROH unless otherwise specified.c Determined by GPC calibrated versus polystyrene standards and corrected by a factor of 0.58 according to literature recommendations.30d Obtained from GPC. | |||||||
1 | HCCCH2OH | 1/5/1 | 2 | 98 | 762 | 908 | 1.081 |
2 | HCCCH2OH | 1/10/1 | 5 | 92 | 1382 | 1280 | 1.012 |
3 | HCCCH2OH | 1/20/1 | 15 | 99 | 2881 | 3333 | 1.083 |
4 | HCCCH2OH | 1/30/1 | 20 | 99 | 4337 | 4912 | 1.040 |
5 | HCCCH2OH | 1/50/1 | 30 | 98 | 7118 | 7612 | 1.081 |
6 | C18H37OH | 1/30/1 | 45 | 94 | 4335 | 4530 | 1.031 |
Based on the narrow PDI values (1.012–1.083) complex [Zn(tbpoa)2] behaves in a controlled manner. The linear relationship between the Mn and the conversion exhibited by [Zn(tbpoa)2] implies the living character of the polymerization process as shown in Fig. 6.
Fig. 6 Polymerization of L-LA catalyzed by [Zn(tbpoa)2] in toluene at 58 °C. The relationship between Mn (blue line) or PDI (red line) vs. the initial molar ratio [L-LA]0/[ROH]0. |
The end-group analysis is demonstrated by the 1H NMR spectrum of the PLA produced by initiators [Zn(tbpoa)2]/ROH (ROH – propargyl alcohol, octadecanol) indicated that polymer chains are terminated by hydroxyl and appropriate ester groups as demonstrated in Fig. 7.
The polymerization conditions essentially determine the activity of [Zn(tbpoa)2], which is in agreement with theoretical calculations. At room temperature either the closed structure or the structure with one pendant dioxolane arm is dominant. The latter form after the coordination of lactide molecules shows low polymerization activity. Instead, the change of conditions to a fully open structure (both dioxolane arms pendant) and the addition of lactide creates an active complex. As proven by theoretical calculations, there is no big difference which – of the many possible open conformations – is formed after the dioxolane arms decoordinate, since they all easily transform into each other. The most important thing is to keep those reaction conditions that retain open forms. The shutter of hemilabile arms at room temperature gave stable and easy to store slipping catalysts.
ΔE(ML-L) = −(E(ML2) − E(ML+) − E(L−)) |
ΔE(M-L) = −(E(ML+) − E(M2+) − E(L−)) |

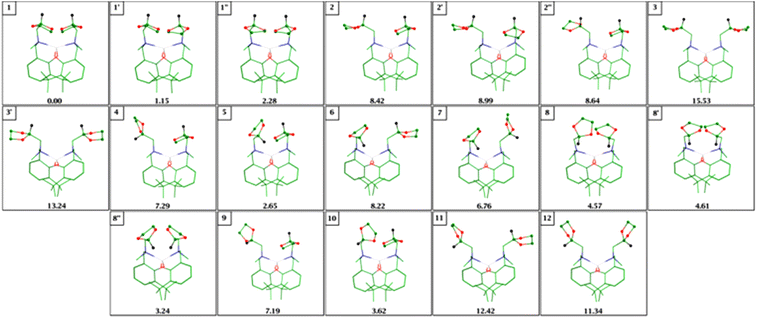

To calculate these values, in the first place we performed a gas-phase geometrical optimization. The optimized structures are shown in Fig. 8 and the major conformers are marked 1 and 8′.
Although 8′ has a structure which is close to the crystallographic one (or rather its mirror image), we found two similar lower energy conformers: 8 and 8′′, which differ mainly in dioxolane rings arrangement (pseudo-rotation of this ring; see ESI† for more detailed explanation).
Unlike Ca and Mg, which prefer octahedral arrangement, zinc is usually tetrahedrally coordinated. The analysis of the optimized geometrical parameters (Table 1S in ESI†) of calcium and magnesium complexes show that Ca and Mg cations are 6-coordinated and they are surrounded by six (four O and two N) nearest neighbors in a distorted octahedral arrangement. On the other hand, the optimized Zn initiator appeared to have octahedral or rather pseudo-octahedral coordination, but the analysis of M–N and M–O distances (see Table 4 and 1S†), as well as ionic radii (0.74 Å, 4-coordinated ion; 0.88 Å, 6-coordinated ion) led to the conclusion that its structure more closely resembles a distorted tetrahedron. Calculated and experimentally measured M–N and M–O (phenyl oxygen) distances are the smallest in the Zn complex and the largest in the Ca one. These results are consistent with ionic radii of Ca (1.14 Å, 6-coordinated ion), Mg (0.86 Å, 6-coordinated ion), and Zn (0.74 Å, 4-coordinated ion) cations.
ML2 | ML+ | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molecule (for M) [e] | ΔE(ML-L) [kcal mol−1] | q(M) [e] | q(OPh) [e] | q(OOx) [e] | q(N) [e] | Natural electron configurations (for M) [e] | r(M–OOx) r(M–OPh) r(M–N) [Å] | ΔE(M-L) [kcal mol−1] | q(M) [e] | q(OPh) [e] | q(OOx) [e] | q(N) [e] | Natural electron configurations |
a Contributions of dioxolane-, amine-, and phenyl-fragments to the total interaction energies. b Free anion L (in complex geometry) partial NPA charges. | |||||||||||||
[Ca(tbpoa)2] | 192 (24, 22, 147)a | 1.80 | −0.92 (−0.78)b | −0.63 (−0.51)b | −0.49 (−0.38)b | 4s(0.12), 3d(0.08), 4d(0.01) | 2.408 | 352 (31, 36, 284)a | 1.83 | −0.95 | −0.67 | −0.51 | 4s(0.05), 3d(0.13) |
2.204 | |||||||||||||
2.683 | |||||||||||||
[Mg(tbpoa)2] | 217 (20, 31, 167) | 1.83 | −0.97 (−0.77) | −0.60 (−0.50) | −0.52 (−0.38) | 3s(0.14), 3p(0.01), 3d(0.02) | 2.172 | 418 (34, 49, 335) | 1.82 | −1.01 | −0.65 | −0.55 | 3s(0.17), 3p(0.01) |
1.970 | |||||||||||||
2.300 | |||||||||||||
[Zn(tbpoa)2] (1) | 213 (14, 36, 163) | 1.76 | −0.98 (−0.80) | −0.53 (−0.52) | −0.56 (−0.38) | 4s(0.23), 4p(0.01), 3d(9.98), 4d(0.01) | 2.675 | 459 (21, 47, 391) | 1.38 | −0.87 | −0.51 | −0.53 | 4s(0.61), 4p(0.03), 3d(9.98) |
1.952 | |||||||||||||
2.153 | |||||||||||||
[Zn(tbpoa)2] (8) | 216 (3, 38, 175) | 1.77 | −0.97 (−0.79) | −0.57 (−0.51) | −0.55 (−0.37) | 4s(0.21), 4p(0.01), 3d(9.98), 4d(0.02) | 4.094 | 443 (2, 51, 391) | 1.43 | −0.86 | −0.57 | −0.53 | 4s(0.56), 4p(0.02), 3d(9.98) |
1.912 | |||||||||||||
2.117 |
Table 4 presents also ML-L and M-L interaction energies for the ML2 complexes ad ML+ ions (M = Ca, Mg, Zn). The lowest ΔE(ML-L) and ΔE(M-L) values have been found for calcium. In the case of magnesium, ΔE(MgL-L) is over 20 kcal mol−1 larger than for the Ca complex. The ΔE(Mg-L) value is much greater than that for ΔE(Ca-L) and reaches 62 kcal mol−1. But the difference between ΔE(MgL-L) and ΔE(ZnL-L) seems to be too small to explain why in contrast to the zinc complex the magnesium initiator loses one ligand during the polymerization process. There may be different reasons for this: (i) in the Mg-complex both ligands have conformations that are significantly distinct from those for Zn initiator (Fig. S1†), which may facilitate the incorporation of one ligand into the growing polymer and (ii) one should remember that structures of these molecules in solution are not necessarily the same as in crystal. As mentioned before the changes observed in NMR signals for the Zn complex can be interpreted as a rotation of dioxolane rings and hence the lack of coordination to the metal cation. It can be seen from Fig. 9 that interconversion between closed 1 and half-opened complex 2 though it is not energetically favorable is possible.
Fig. 9 TPSS-D3/TZVPPD energy profile for the transition between 1 and 3. In () and [ ] parentheses are values calculated in dichloromethane and toluene, respectively. All values in kcal mol−1. |
Opening of the second dioxolane arm is also possible with an even slightly smaller barrier. The influence of solvents on calculated relative energies is not very significant (in all cases obtained values were smaller). For the fully opened complex we found additional lower energy conformer 3′ (Fig. 8). 3 and 3′ differ mainly in the distance of aromatic rings (see Fig. 2S and Table 2S†). Interestingly, the energy difference between 3 and 3′ decreases going from gas phase to toluene (ε = 2.4) and next to dichloromethane (ε = 8.9). In the case of the magnesium complex such an opening of dioxolane arms is probably less favorable. To confirm this supposition we estimated the contributions of individual fragments of the ligand (dioxolane ring, amine part, and phenyl ring) to the total interaction energy (see Fig. 3S in ESI† for more detailed explanation). From Table 4, the contribution of dioxolane ring–metal interaction to the ligand–metal interaction energy is less than 7% for Zn and 9–13% for Mg and Ca. As expected, the phenyl ring oxygen–metal interaction is the largest part of the ΔE(M-L) and it grows going from Ca to Mg and to the Zn complex. These values are so large mainly due to the strong attractive Coulombic interaction, and the observed trend is consistent with decreasing M–OPh distances. A similar trend is observed for the amine part–metal interaction, which is understandable, taking into account the fact that zinc prefers coordination to “softer” atoms like nitrogen.
In all considered complexes the ΔE(ML-L) is much smaller than ΔE(M-L). It is worth noting that ΔE(M-L) − ΔE(ML-L) difference is the smallest for CaL2 (∼160 kcal mol−1), medium for MgL2 (∼201 kcal mol−1), and the largest for ZnL2 molecules (∼227–246 kcal mol−1). Because magnesium complex loses only one ligand during polymerization, a calculated larger ΔE(M-L) − ΔE(ML-L) value for Mg in comparison to Ca is consistent with experimental observations.
Table 4 lists also partial NPA charges and metal cation natural electron configurations for the ML2 complexes and ML+ ions. It is evident from this table that the most (negative) charge is transferred to Zn and most of the additional electron density goes into the 3s and 4s orbitals for magnesium and zinc, respectively. For the calcium complex a significant portion of the electron density transferred to the metal ion resides in the 4s and 3d orbitals (Zn loses some electron density in this orbital). In all cases, the presence of the metal cation affects the electron density distribution of neighboring N and O atoms. As one can guess, the smallest change of this distribution is observed for dioxolane oxygen atoms coordinated to the zinc.
For the Zn-complex, analysis of the experimental 1H NMR spectrum indicates two signals of the methine protons of dioxolane rings, which appear at 5.22 and 5.13 ppm. But from theoretical calculations we obtained two much more distant values: 5.26 ppm (conformer 1) and 5.76 ppm (conformer 8). This may mean that instead of form 8 (or rather, as it was mentioned before, its mirror image form) some other conformer(s) is(are) present in solution. As mentioned before the solution NMR studies indicate that bound and non-bound dioxolane rings can readily exchange. Rotation of these groups may lead to interconversion of 1 and 8. Fig. 10 shows such a possible rotational path which passes through several minima.
Fig. 10 TPSS-D3/TZVPPD energy profile for the transition between 1 and 8. In () and [ ] parentheses are values calculated in dichloromethane and toluene, respectively. All values in kcal mol−1. |
It should be stressed that this is only one of the possible rotational paths since this complex is quite flexible. During the optimization we have obtained nineteen structures for the Zn-complex (Fig. 8). The overall shape of these molecules is dependent on the combined effects of such factors as the arrangement of dioxolane groups and distances between the phenyl rings. The conformational flexibility of dioxolane and other five-membered ring molecules is a very well-known fact.31–33 Therefore, in addition to the rotations of dioxolane ring around the N28–C33 (N72–C77) and C33–C36 (C77–C80) bonds it was important to consider pseudorotational motions.34,35 In this way, we obtained, for example, two additional conformers of 1 and 8 (Fig. 8; see also Table 2S† for selected geometrical parameters of all Zn-complex conformers). The energy differences between 1, 1′, and 1′′ molecules are rather small and do not exceed 3 kcal mol−1. In the case of 8, 8′, and 8′′ they are even smaller. Since the reported in literature values of the pseudorotation barrier for different oxolanes are rather small, probably a multitude of conformers coexists at room temperature.31,32,36,37 A similar difference in relative energies was found for two other conformers: 3 and 3′. However, as mentioned before, in contrast to 1, 1′, and 1′′ or 8, 8′, and 8′′, they differ in the mutual arrangement of aromatic rings. In higher energy conformer 3 these rings are closer to each other than in 3′.
In Table 5 methine protons H45 and H81 (Fig. 1) chemical shifts for all conformers which we found are reported.
δ(H45) | δ(H81) | ||
---|---|---|---|
[Ca(tbpoa)2] | 5.70 | 5.70 | |
[Mg(tbpoa)2] | 6.45 | 6.45 | |
[Zn(tbpoa)2] | |||
1 | 5.26 | 5.26 | |
1′ | 5.26 | 5.39 | |
1′′ | 5.40 | 5.40 | |
2 | 5.21 | 5.26 | |
2′ | 5.18 | 5.38 | |
2′′ | 5.18 | 5.23 | |
3 | 5.21 | 5.21 | |
3′ | 5.23 | 5.23 | |
4 | 5.54 | 5.27 | |
5 | 5.86 | 5.31 | |
6 | 6.53 | 5.25 | |
7 | 6.57 | 5.81 | |
8 | 5.94 | 5.70 | |
8′ | 5.76 | 5.76 | |
8′′ | 6.44 | 6.44 | |
9 | 5.46 | 5.31 | |
10 | 5.27 | 5.23 | |
11 | 5.38 | 5.24 | |
12 | 5.42 | 5.42 |
Our calculations show that the lowest energy forms of the zinc initiator (1, 1′, 1′′, 5, 8, 8′, and 8′′) have both dioxolane arms closed. However, the comparison of experimental and calculated 1H chemical shifts may suggest rather the presence of some half-opened or fully opened structures in solution. In the opened 3, 3′, 11, and 12 forms the chemical shifts for H45 and H81 have the values of 5.21–5.42 ppm. For half-opened molecules 2, 2′, 2′′ signals in the similar range (5.18–5.38 ppm) have been observed. Although, for other conformers H45 and/or H81 chemical shifts have larger values, nevertheless, their presence in solution cannot be ruled out.
Footnote |
† Electronic supplementary information (ESI) available: Additional tables and figures of DFT calculations. CCDC 962645 and 969646. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c3dt52868e |
