Magnetic blocking in extended metal atom chains: a pentachromium(II) complex behaving as a single-molecule magnet

Abstract

Compound [Cr₅(tpda)₄Cl₂] (H₂tpda = N²,N⁶-di(pyridin-2-yl)pyridine-2,6-diamine), an Extended Metal Atom Chain complex featuring two quadruply-bonded {Cr₂} units, exhibits field-induced slow relaxation of its magnetization arising from the terminal chromium(II) ion and provides the first example of a chromium(II)-based Single-Molecule Magnet.

---

Individual molecules with a directionally-bistable magnetic moment, called Single-Molecule Magnets (SMMs),¹ are considered the smallest, chemically-tuneable components for spin-based devices.²

In the simplest case, a SMM possesses a ground state with a large total spin (S_T) and an easy-axis (z) magnetic anisotropy, which partially lifts the 2S_T + 1-fold degeneracy of the ground state in zero magnetic field. Such zero-field splitting (zfs) is described by the Hamiltonian Ĥ_zfs = DŜ_T,z² + Ĥ′, where the first term (with D < 0) is dominant and causes the M_S = ±S_T states to lie lowest in energy. If magnetization relaxation occurs by a multistep Orbach process, magnetic blocking is observed at temperatures such that k_BT ≪ U, where U is the total energy splitting of the multiplet. However, nondiagonal terms in the Hamiltonian (Ĥ′), like rhombic or higher-order transverse anisotropies, can mix wavefunctions with the same |M_S|, thereby opening new pathways for relaxation via quantum tunnelling.¹ Their effect increases with decreasing S_T, thus explaining why slow relaxation of the magnetization is comparatively less frequent in mononuclear than in polynuclear complexes, where higher S_T can be reached.

SMM behaviour was indeed found in a variety of mononuclear species containing 3d,^3–5 5d,⁶ 4f^7a,b or 5f^7c ions, but the relaxation mechanisms often deviate from the above-described scheme. First, most of these systems feature an unquenched orbital angular momentum and consequently do not exhibit spin-only‡ magnetism.^3,7 More unexpectedly, magnetic blocking can arise in individual Kramers ions (e.g. Co²⁺, Dy³⁺) with a predominantly easy-plane magnetic anisotropy.⁸ Here, magnetization relaxation occurs via non-Orbach mechanisms that produce a distinct curvature in an Arrhenius plot. Unlike tunnelling effects, they result in non-physical values of the activation barrier when a linear fit is attempted over high-temperature data.^8a Examples of spin-only‡ mononuclear species relaxing via a genuine overbarrier process are found in Jahn–Teller distorted Mn³⁺ complexes.⁵

Although isoelectronic with Mn³⁺, Cr²⁺ has been rarely used in molecular magnetism primarily because of its propensity toward oxidation.⁹ We herein report the SMM properties of a Cr²⁺-based complex belonging to the popular class of Extended Metal Atom Chains (EMACs). EMACs have been extensively studied in the past as molecular wires and as benchmark systems for understanding metal–metal interactions.¹⁰ In an EMAC, an array of metal ions is kept aligned in a string by four oligopyridylamide (or related) ligands. The compound [Cr₅(tpda)₄Cl₂] (1, H₂tpda = N²,N⁶-di(pyridin-2-yl)pyridine-2,6-diamine) was the focus of a particularly lively debate regarding bond delocalization.^11,12 From X-ray structural and magnetic data it was finally shown that 1 and related pentachromium(II) strings are unsymmetrical in the solid state and contain two diamagnetic pairs of quadruply-bonded metals plus one terminal high-spin Cr²⁺ ion^13,14 (Fig. 1).

Fig. 1 Molecular structure of 1 in 1·4CHCl₃·2Et₂O, as reported by Cotton et al.^12b Colour code: orange = Cr, green = Cl, grey = C, blue = N, light grey = H. Diamagnetic pairs of chromium(II) ions are highlighted using thick bonds.

Such a bonding scheme is evident from the Cr⋯Cr distances found in 1·4CHCl₃·2Et₂O: (from Cr1 to Cr5) 2.598(3), 1.872(2), 2.609(2) and 1.963(3) Å.^12b As a consequence, these compounds and the related tri-,^15a–c hepta-^15d and nonachromium(II)^15e species have an S_T = 2 ground state. On account of the negative D parameter and small rhombicity reported for [Cr₃(dpa)₄Cl₂]·CH₂Cl₂ (2·CH₂Cl₂, Hdpa = dipyridin-2-ylamine),^15c we have carried out a complete magnetic susceptibility study on 1·4CHCl₃·2Et₂O. Our data show field-induced slow relaxation of the magnetization compatible with an Orbach mechanism, thereby bridging both EMAC and SMM research fields.

1·4CHCl₃·2Et₂O was synthesised as originally reported by Peng's group¹¹ and isolated as large, deep-brown crystals by vapour diffusion of diethyl ether into a chloroform solution of the complex. The compound was checked by Matrix-Assisted Laser Desorption/Ionization Time-of-Flight and Electrospray Ionization mass spectrometries as well as by single-crystal X-ray diffraction, elemental analysis and IR spectroscopy (see ESI†). Unless kept in contact with the mother solution, crystals of 1·4CHCl₃·2Et₂O progressively lose lattice solvent molecules. To avoid large uncertainties in molecular mass, the sample used for magnetic characterization was subject to prolonged vacuum pumping in order to remove all volatiles. However, wet crystals displayed the same static and dynamic magnetic properties as this vacuum-treated sample (see ESI†). The χT product measured at 1 kOe (Fig. 2) amounts to 2.89 cm³ K mol⁻¹ at 300–320 K and is virtually temperature independent down to 100 K, but decreases significantly at a lower temperature reaching 2.21 cm³ K mol⁻¹ at 1.85 K. The room temperature value is close to the expectation for an S_T = 2 spin with g = 1.963, in agreement with g < 2.00 for high-spin chromium(II).¹⁶

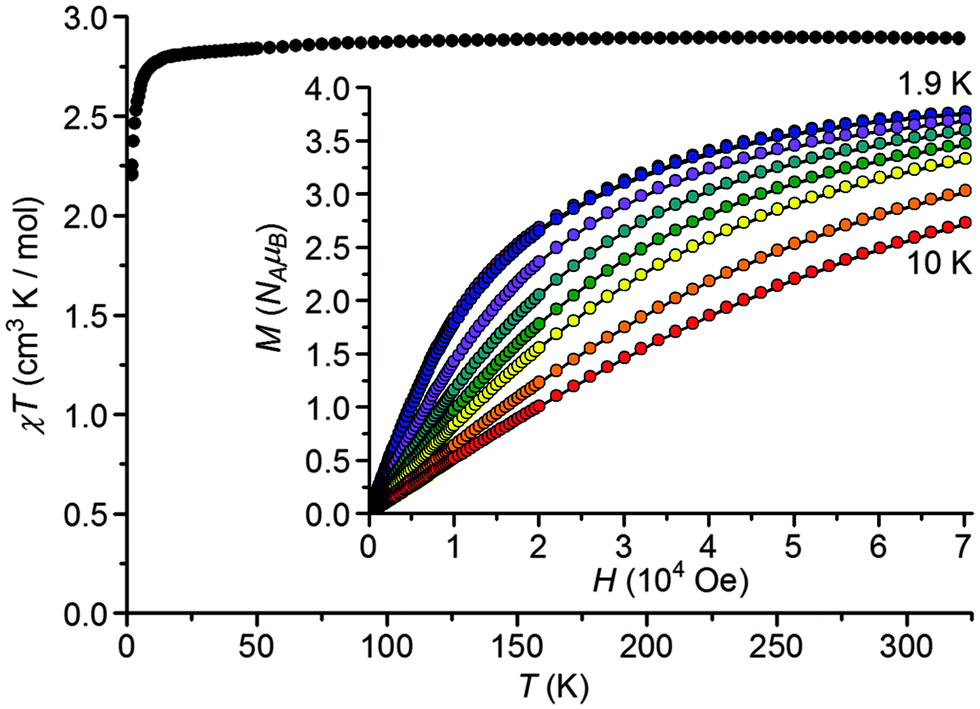

Fig. 2 χT versus T plot for 1 at 1 kOe. The inset presents M versus H data measured at eight different temperatures (1.9, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0 and 10.0 K), along with the best-fit curves with the parameters reported in the text.

To better probe the ground state properties, the isothermal magnetization was measured up to 70 kOe at temperatures ranging from 1.9 to 10 K (Fig. 2). Although the magnetization does not reach saturation in the H and T range explored, its highest measured value (3.77 N_Aμ_B) is close to the saturation magnetization for an S_T = 2 state with g = 2 (i.e. 4 N_Aμ_B). When plotted as a function of H/T (see ESI†), the curves display a pronounced nesting which hints to deviations from the Brillouin function. Such a behaviour was modelled by introducing magnetic anisotropy effects, through spin Hamiltonian Ĥ_zfs and assuming an isotropic g factor. Setting S_T = 2 and Ĥ′ = 0, M versus H data could be accurately fitted with D = −1.510(6) cm⁻¹ (D/k_B = −2.173(9) K) and g = 1.9731(8). Imposing a positive D parameter resulted in a much worse fit. W-band (ν ≈ 94 GHz) EPR spectroscopy (Fig. 3) confirmed the spin value and the easy-axis anisotropy, with only very weak rhombicity. Best simulations¹⁷ were obtained using spin Hamiltonian Ĥ_EPR = μ_BŜ_T·g·Ĥ + DŜ_T,z² + E(Ŝ_T,x² − Ŝ_T,y²) with parameters: g_x = g_y = 1.990(3), g_z = 1.975(2), D = −1.53(1) cm⁻¹ (D/k_B = −2.20(1) K) and |E/D| = 6(2) × 10⁻³. It is to be stressed that, even if |D| ≈ hν and the simplification induced by the high field limit is not yet reached, the temperature dependence of the spectrum is only compatible with a negative D value (see ESI†). The very small rhombicity and the easy-axis anisotropy are consistent with the environment of the terminal chromium(II) ion, which features a square-pyramidal coordination sphere (CrN₄Cl) with the four basal nitrogen donors at 2.13(1) Å, the apical chloride ion at 2.46 Å and the N–Cr–N angles in the range 87.5–90.9° (Fig. 1). Significantly, the anisotropy parameters are comparable with those found in 2·CH₂Cl₂ by high-frequency EPR (D = −1.643(1) cm⁻¹ or D/k_B = −2.364(1) K, E = 0.0339(4) cm⁻¹ or E/k_B = 0.0488(6) K)^15c and are consistently reproduced by Angular Overlap Model calculations (see ESI†).

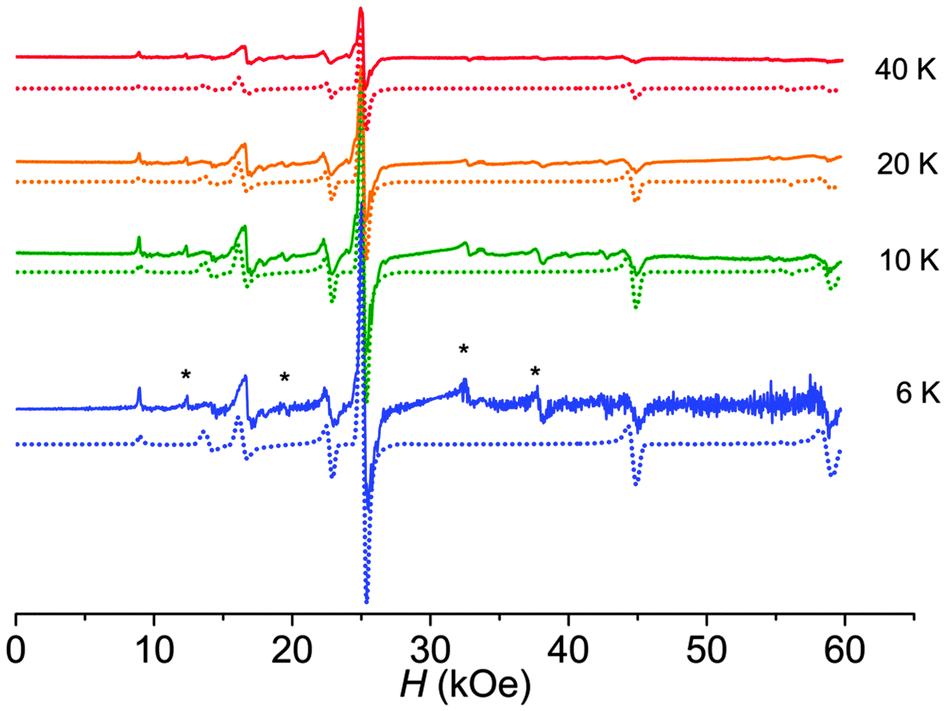

Fig. 3 Experimental (continuous lines) and best simulation (dotted lines) W-band EPR spectra of 1. The asterisks mark spurious signals arising from incomplete powder averaging due to the preparation of the sample (see ESI†).

In spite of the small spin value (S_T = 2), the significant easy-axis anisotropy of 1 induces in-field slow relaxation of the magnetization at low temperature. The alternating current (ac) magnetic susceptibility of 1 was investigated in the 1.8–15 K temperature range and with frequencies up to 10 000 Hz (see ESI†). In zero static field, simple paramagnetic behaviour was observed in the probed range of frequency and temperature. Application of a static field was however effective in slowing down the relaxation leading to the appearance of an out-of-phase signal. The optimal field of 2.5 kOe was located in a preliminary scan from 0 to 10 kOe at 1.8 K and was used for temperature dependent studies. The analysis of the resulting χ′(ν) and χ′′(ν) curves from 1.8 to 4.8 K was based on the generalized Debye model¹⁸ and provided the temperature dependence of the relaxation time τ. A semi-logarithmic plot of τ versus T⁻¹ evidences a thermally-activated relaxation mechanism with an effective barrier U_eff/k_B = 9.2(5) K (Fig. 4) and an attempt time τ₀ = 2.2(5) × 10⁻⁶ s. Within experimental error, U_eff equals the total splitting of the S_T = 2 multiplet (U/k_B = (|D|/k_B)S_T² = 8.81(6) K). This suggests that in-field relaxation follows an overbarrier Orbach mechanism¹ and that ±M_S states are not heavily admixed, in spite of the small and integer S_T value. The residual mixing is however enough to produce fast relaxation in zero field. To the best of our knowledge, this represents the first example of a chromium(II)-based SMM. In this respect, the string-like structure of 1 and the arrangement of the tpda²⁻ ligands enforce the metal ions in an almost perfectly axial environment which is suitable for SMM behaviour.

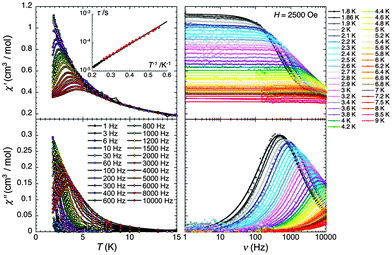

Fig. 4 Temperature (left) and frequency (right) dependence of the real (χ′, top) and imaginary (χ′′, bottom) parts of the ac susceptibility, between 1 and 10 000 Hz and between 1.8 and 9 K, respectively, for 1 in 2500 Oe dc field. While solid lines on the left-hand figures are visual guides, the solid curves on the right-hand figures provide the best fit using the generalized Debye model.¹⁸ Inset: τ versus T⁻¹ plot for 1 in 2500 Oe dc field. The relaxation time (τ) has been estimated from the generalized Debye fit of the χ′ versus ν (red dots) and χ′′ versus ν (black dots) data between 1.8 and 4.8 K. Solid line is the best fit to the Arrhenius law.

In our ongoing efforts we are now looking for more examples of Cr²⁺-based SMM-EMACs through variation of the axial ligands and of the chain length. In addition, we are exploring the magnetization dynamics of EMACs containing heavier and more anisotropic transition-metal ions, like Ru²⁺.¹⁹

We thank Italian MIUR for funding through a FIRB project (RBAP117RWN). Financial support from University of Bordeaux, the ANR, the Région Aquitaine, CNRS and Ente CRF is also gratefully acknowledged. We are indebted to Prof. R. Sessoli and Dr G. Poneti (Università degli Studi di Firenze) for carrying out preliminary magnetic measurements.

Notes and references

1. D. Gatteschi, R. Sessoli and J. Villain, Molecular Nanomagnets, Oxford University Press, Oxford, UK, 2006.
2. (a) F. Zu, Z. Liu, K. Yao, G. Gao, H. Fu, S. Zhu, Y. Ni and L. Peng, Sci. Rep., 2014, 4, 4838; (b) S. Thiele, F. Balestro, R. Ballou, S. Klyatskaya, M. Ruben and W. Wernsdorfer, Science, 2014, 344, 1135–1138.
3. (a) J. M. Zadrozny, D. J. Xiao, M. Atanasov, G. J. Long, F. Grandjean, F. Neese and J. R. Long, Nat. Chem., 2013, 5, 577–581; (b) J. M. Zadrozny, M. Atanasov, A. M. Bryan, C.-Y. Lin, B. D. Rekken, P. P. Power, F. Neese and J. R. Long, Chem. Sci., 2013, 4, 125–138; (c) M. Atanasov, J. M. Zadrozny, J. R. Long and F. Neese, Chem. Sci., 2013, 4, 139–156.
4. (a) J. M. Zadrozny and J. R. Long, J. Am. Chem. Soc., 2011, 133, 20732–20734; (b) J. Vallejo, I. Castro, R. Ruiz-García, J. Cano, M. Julve, F. Lloret, G. De Munno, W. Wernsdorfer and E. Pardo, J. Am. Chem. Soc., 2012, 134, 15704–15707; (c) J. M. Zadrozny, J. Liu, N. A. Piro, C. J. Chang, S. Hill and J. R. Long, Chem. Commun., 2012, 48, 3927–3929.
5. J. Vallejo, A. Pascual-Álvarez, J. Cano, I. Castro, M. Julve, F. Lloret, J. Krzystek, G. De Munno, D. Armentano, W. Wernsdorfer, R. Ruiz-García and E. Pardo, Angew. Chem., Int. Ed., 2013, 52, 14075–14079.
6. (a) K. S. Pedersen, M. Sigrist, M. A. Sørensen, A.-L. Barra, T. Weyhermüller, S. Piligkos, C. Aa. Thuesen, M. G. Vinum, H. Mutka, H. Weihe, R. Clérac and J. Bendix, Angew. Chem., Int. Ed., 2014, 53, 1351–1354; (b) J. Martínez-Lillo, T. F. Mastropietro, E. Lhotel, C. Paulsen, J. Cano, G. De Munno, J. Faus, F. Lloret, M. Julve, S. Nellutla and J. Krzystek, J. Am. Chem. Soc., 2013, 135, 13737–13748.
7. (a) H. L. C. Feltham and S. Brooker, Coord. Chem. Rev., 2014, 276, 1–33; (b) D. N. Woodruff, R. E. P. Winpenny and R. A. Layfield, Chem. Rev., 2013, 113, 5110–5148; (c) J. J. Baldoví, S. Cardona-Serra, J. M. Clemente-Juan, E. Coronado and A. Gaita-Ariño, Chem. Sci., 2013, 4, 938–946.
8. (a) E. Lucaccini, L. Sorace, M. Perfetti, J.-P. Costes and R. Sessoli, Chem. Commun., 2014, 50, 1648–1651; (b) S. Gómez-Coca, A. Urtizberea, E. Cremades, P. J. Alonso, A. Camón, E. Ruiz and F. Luis, Nat. Commun., 2014, 5, 4300.
9. (a) P. A. Lay and A. Levina, in Comprehensive Coordination Chemistry II, ed. J. A. McCleverty and T. J. Meyer, Elsevier, Amsterdam, The Netherlands, 2004, vol. 4, pp. 313–413; (b) T. Mallah, S. Thiébaut, M. Verdaguer and P. Veillet, Science, 1993, 262, 1554–1557; (c) C. Bellitto, F. Federici and S. A. Ibrahim, Chem. Mater., 1998, 10, 1076–1082.
10. (a) V. P. Georgiev, P. J. Mohan, D. DeBrincat and J. E. McGrady, Coord. Chem. Rev., 2013, 257, 290–298; (b) Multiple Bonds Between Metal Atoms, ed. F. A. Cotton, C. A. Murillo and R. A. Watson, Springer, New York, USA, 2006; (c) J. F. Berry, Struct. Bond., 2010, 136, 1–28.
11. H.-C. Chang, J.-T. Li, C.-C. Wang, T.-W. Lin, H.-C. Lee, G.-H. Lee and S.-M. Peng, Eur. J. Inorg. Chem., 1999, 1243–1251.
12. (a) F. A. Cotton, L. M. Daniels, T. Lu, C. A. Murillo and X. Wang, J. Chem. Soc., Dalton Trans., 1999, 517–518; (b) F. A. Cotton, L. M. Daniels, C. A. Murillo and X. Wang, Chem. Commun., 1999, 2461–2462.
13. J. F. Berry, F. A. Cotton, C. S. Fewox, T. Lu, C. A. Murillo and X. Wang, Dalton Trans., 2004, 2297–2302.
14. W.-Z. Wang, R. H. Ismayilov, G.-H. Lee, Y.-L. Huang, C.-Y. Yeh, M.-D. Fu, C.-H. Chen and S.-M. Peng, New J. Chem., 2012, 36, 632–637.
15. (a) R. Clérac, F. A. Cotton, L. M. Daniels, K. R. Dunbar, C. A. Murillo and I. Pascual, Inorg. Chem., 2000, 39, 748–751; (b) J. F. Berry, F. A. Cotton, T. Lu, C. A. Murillo, B. K. Roberts and X. Wang, J. Am. Chem. Soc., 2004, 126, 7082–7096; (c) J. Wang, Z. Wang, R. J. Clark, A. Ozarowski, J. van Tol and N. S. Dalal, Polyhedron, 2011, 30, 3058–3061; (d) R. H. Ismayilov, W.-Z. Wang, G.-H. Lee, C.-H. Chien, C.-H. Jiang, C.-L. Chiu, C.-Y. Yeh and S.-M. Peng, Eur. J. Inorg. Chem., 2009, 2110–2120; (e) R. H. Ismayilov, W.-Z. Wang, R.-R. Wang, C.-Y. Yeh, G.-H. Lee and S.-M. Peng, Chem. Commun., 2007, 1121–1123.
16. (a) A.-L. Barra, A. Døssing, T. Morsing and J. Vibenholt, Inorg. Chim. Acta, 2011, 373, 266–269; (b) J. Telser, L. A. Pardi, J. Krzystek and L.-C. Brunel, Inorg. Chem., 1998, 37, 5769–5775.
17. S. Stoll and A. Schweiger, J. Magn. Reson., 2006, 178, 42–55.
18. (a) K. S. Cole and R. H. Cole, J. Chem. Phys., 1941, 9, 341–352; (b) C. Dekker, A. F. M. Arts, H. W. de Wijn, A. J. van Duyneveldt and J. A. Mydosh, Phys. Rev. B: Condens. Matter Mater. Phys., 1989, 40, 11243–11251.
19. C. Yin, G.-C. Huang, C.-K. Kuo, M.-D. Fu, H.-C. Lu, J.-H. Ke, K.-N. Shih, Y.-L. Huang, G.-H. Lee, C.-Y. Yeh, C.-H. Chen and S.-M. Peng, J. Am. Chem. Soc., 2008, 130, 10090–10092.

---

Footnotes

† Electronic supplementary information (ESI) available: Synthetic details, additional magnetic characterization data, details of Angular Overlap Model calculations. See DOI: 10.1039/c4cc06693f

‡ The term “spin only” is used here for metal centers with no first-order orbital angular momentum; in such systems, orbital contributions to magnetic behaviour can nevertheless arise via second-order spin–orbit coupling.

---
