Electronic coupling mediated by furan, thiophene, selenophene and tellurophene in a homologous series of organic mixed valence compounds

Abstract

Charge delocalization in the mixed-valent monocationic forms of phenothiazine-decorated chalcogenophenes is explored by cyclic voltammetry, optical absorption and EPR spectroscopy. Single units of furan, thiophene, selenophene and tellurophene are found to mediate electronic coupling between the phenothiazines attached to their 2- and 5-positions roughly equally well. Electronic communication seems to occur mostly through the butadiene-like backbone of the chalcogenophenes.

---

The ability of π-conjugated oligomers and polymers to become highly conducting upon oxidation is of key importance for various (opto)electronic applications.¹ Numerous studies have investigated charge delocalization and charge transport phenomena in oxidized oligo- and polythiophenes.² Lately there has been increasing interest in oligomers and polymers of the other chalcogenophenes, in particular selenophene,³ but also furan and tellurophene.⁴ However, despite important recent progress, the synthesis of oligofurans and oligotellurophenes remains nontrivial.⁵ From a fundamental perspective and with the application potential of furan- or tellurophene-based materials in mind, it seemed worthwhile to explore to what extent an unpaired electron can delocalize over individual chalcogenophene units with the heteroatoms varying along the series O, S, Se, Te. Charge transport in oligomers and charge delocalization in monomers are different issues, but in order to tailor the properties of an oligomer or polymer it seems desirable to understand the electronic structure of its monomeric building blocks as detailed as possible.

Mixed valence compounds have been frequently employed for exploration of charge delocalization phenomena, and both metal-based as well as purely organic redox-active units have been used for this purpose.⁶ A considerable number of thiophene-bridged mixed valence compounds have been studied,⁷ but selenophene, furan, and tellurophene bridges have received little to no attention.^7k,8 A very recent study reported that oligofurans can mediate stronger electronic coupling between ferrocenyl redox units than oligothiophenes.^8a We are unaware of prior comparative studies of charge delocalization encompassing the entire chalcogenophene series (Scheme 1).

Scheme 1 Molecular structure of the systems investigated in this study.

Our study is based on four isostructural compounds with phenothiazine (PTZ) groups attached at the 2- and 5-positions of furan (1), thiophene (2), selenophene (3), and tellurophene (4). An X-ray crystal structure of the selenophene compound is shown in Fig. 1. The structure of the thiophene analogue (2) had been previously reported.^7m Synthetic procedures and product characterization data are given in the ESI.†

Fig. 1 X-ray crystal structure of compound 3.

Cyclic voltammetry reveals two essentially reversible oxidation waves in the potential range between 0 and 0.6 V vs. Fc⁺/Fc for all four compounds (Fig. 2), corresponding to consecutive one-electron oxidation of both PTZ moieties. Chalcogenophene-based oxidations are expected at much higher potentials.⁹ In CH₃CN with 0.1 M TBAPF₆ the splitting between peak potentials (ΔE) increases along the chalcogenophene series, ranging from 216 mV for furan to 291 mV for tellurophene (Table 1). Using these ΔE values one calculates comproportionation constants (K_c = 10^ΔE/59mV) between 4.5 × 10³ and 8.6 × 10⁴ in CH₃CN (Table 1). In general, ΔE and K_c are governed by several factors including electrostatic and ion pairing effects, as well as the strength of electronic interaction (H_AB) between the two redox centers.¹⁰ Electrostatic and ion pairing effects often dominate, and therefore conclusions about H_AB based on electrochemical data should be made with caution.^8b In the present case the observed increase of ΔE and K_c along the series of chalcogenophenes 1–4 is difficult to reconcile with electrostatics because the distance between redox centers is not decreasing along this series.

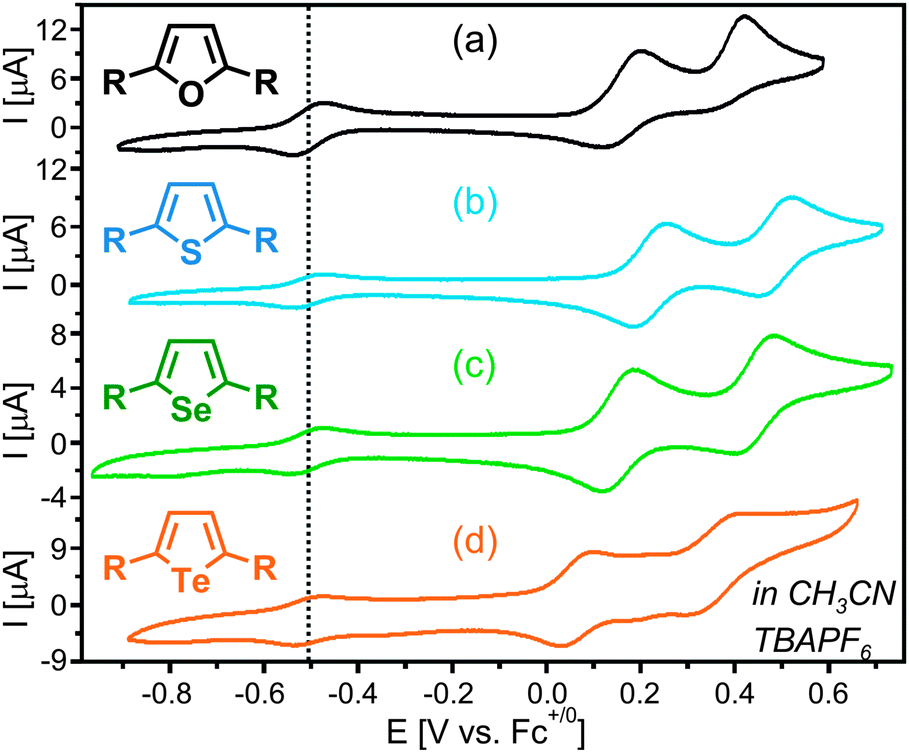

Fig. 2 Cyclic voltammograms recorded in CH₃CN with 0.1 M TBAPF₆. The scan rate was 100 mV s⁻¹.

Table 1 Differences in electrochemical potentials for one-electron oxidation of the two PTZ units and comproportionation constants in CH₃CN with 0.1 M TBAPF₆

Compd	ΔE [mV]	K c
1	216	4.5× 10^3
2	267	3.4× 10^4
3	283	6.3× 10^4
4	291	8.6× 10^4

---

While 4 × 10⁻⁵ M solutions of the charge-neutral forms of 1–4 in CH₃CN are essentially colorless (dotted black traces in Fig. 3), oxidation with Cu(ClO₄)₂ produces new absorptions in the near-infrared and visible spectral ranges. In all four cases the lowest-energy absorption band is centered around 14 500–15 000 cm⁻¹, reaching its maximum intensity after addition of 1 equivalent of Cu(II) oxidant (red traces, bands marked with asterisks) from which we conclude that these bands are due to the mixed-valent 1⁺–4⁺ species. As frequently observed, addition of a second equivalent of Cu(ClO₄)₂ oxidant is unable to quantitatively convert the mono- to the dications.^6f However, the abovementioned low-energy bands clearly lose intensity when more than 1 equivalent of oxidant is added, and for 2²⁺–4²⁺ a new absorption band around 19 500 cm⁻¹ becomes detectable (dash-dotted black traces). In the case of molecule 1 addition of a second equivalent of oxidant rapidly leads to sample decomposition.

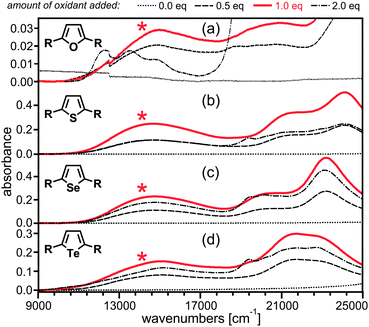

Fig. 3 Absorption spectra recorded in absence and in presence of various amounts of Cu(ClO₄)₂ oxidant in CH₃CN. The asterisks mark the IVCT band.

By analogy to many previously investigated bis(triarylamines) and related organic mixed valence compounds we associate the low-energy absorptions of 1⁺–4⁺ (marked by the red asterisks) with intervalence charge transfer (IVCT) bands.^{6b,f,h,7g,j,k,p,s,11} The optical absorption spectra with properly determined extinction coefficients were fitted to a sum of Gaussian functions in order to estimate the dipole moment (μ_ge) associated with the IVCT transition (Fig. S1 in the ESI†). Eqn (1) requires ν_max (the energetic position of the absorption band maximum) and ε(ν) input values in units of cm⁻¹ and M⁻¹ cm⁻¹, respectively, and yields the transition dipole moment in units of Debyes (D).¹²

The μ_ge values for the furan-, thiophene-, selenophene-, and tellurophene-based compounds (1⁺, 2⁺, 3⁺, 4⁺) are between 3.4 and 4.7 D (Table 2). Eqn (2) relates μ_ge to the electronic coupling matrix element H_AB which quantifies the strength of the electronic interaction between the two redox centers.¹³

Table 2 Geometrical N–N distances, energetic positions of IVCT absorption band maxima, dipole moments associated with the IVCT transitions, and electronic coupling matrix elements characterizing the interaction between PTZ redox units

Compd	d NN [Å]	ν max [cm^−1]	μ ge [D]	H AB [cm^−1]
a Determined by molecular modeling. b Determined from X-ray crystal structures.^7m
1^+	4.58^a	14 970	3.4	3580
2^+	5.16^b	14 560	4.7	4125
3^+	5.16^b	14 660	4.3	3815
4^+	5.32^a	15 020	3.8	3325

---

In eqn (2), e is the elemental charge and R is the effective charge transfer distance. In compounds 1–4 the N–N distance is expected to vary between 4.58 and 5.32 Å based on molecular modeling and X-ray crystal structure data (Table 1). Prior studies of mixed-valent bis(triarylamine) cations and dinitroaromatic anions have reached the conclusion that R is equal to roughly 2/3 of the geometrical N–N distance (d_NN) in these systems.¹⁴ Therefore it seems plausible to assume that R ≈ 2/3·d_NN for 1⁺–4⁺, and this leads to estimates for the electronic coupling matrix elements in the range from ∼3300 to ∼4100 cm⁻¹ (Table 2). For comparison, the structurally related N,N,N′,N′-tetraanisyl-p-phenylenediamine cation has H_AB = 3240 cm⁻¹.^11a The solvent dependence of the IVCT band is relatively weak, ν_max red-shifts between ∼500 and ∼1500 cm⁻¹ when changing from CH₃CN to CH₂Cl₂ (Fig. S2, ESI†).

The EPR spectra of 1⁺–4⁺ in CH₃CN indicate that the unpaired electron spin interacts with the nuclear spins of ¹⁴N and ¹H (solid traces in Fig. 4). Simulation of the experimental spectra (dotted traces in Fig. 4) yields the gyromagnetic factors g, and the hyperfine coupling constants reported in Table 3. All EPR spectra are centered at values of the gyromagnetic factors g ranging from 2.0024 to 2.0032, typical for organic radicals. The simulations indicate an interaction of the unpaired electron with two equivalent nitrogen nuclei (a_N ranging from 4.2 to 5.2 G), and two equivalent hydrogen nuclei (a_H varying from 3.6 to 4.8 G) for the two chalcogenophene H-atoms. Nitrogen hyperfine coupling constants (a_N) between 4.2 and 5.2 G for 1⁺–4⁺ are compatible with complete delocalization of the unpaired electron over two N nuclei on the EPR timescale. In the case of 4⁺ the presence of an impurity somewhat complicates analysis of the EPR data (see ESI† for details) but reliable parameters can nevertheless be determined. For 1⁺–3⁺ there is no indication for hyperfine interaction with the chalcogenophene heteroatom. For 4⁺ interaction of the unpaired electron with the tellurium atom cannot be rigorously excluded (see ESI†).

Fig. 4 Solid lines: experimental X-band EPR spectra recorded for the monocationic forms in CH₃CN. Dotted lines: simulated spectra. See ESI.†

Table 3 EPR gyromagnetic factors and hyperfine coupling constants for compounds 1⁺–4⁺

Compd	g	a N [G]	a H [G]
1^+	2.0032	4.2	4.8
2^+	2.0032	4.8	3.9
3^+	2.0024	4.9	3.6
4^+	2.0030	5.2	4.0

---

The combined data sets from cyclic voltammetry, optical absorption, and EPR spectroscopy are in line with strong charge delocalization in 1⁺–4⁺. ΔE and K_c increase systematically along the chalcogenophene series (Table 1), but for μ_ge and H_AB this trend is not followed (Table 2). The optical absorption data rather suggests that furan and tellurophene mediate electronic coupling somewhat less well than thiophene and selenophene, but the differences are relatively small when considering the uncertainty associated with the procedure used for determination of μ_ge and H_AB. We are therefore lead to the conclusion that single units of furan, thiophene, selenophene, and tellurophene mediate electronic coupling between two amine redox centers similarly well. This is consistent with a picture in which the electronic communication between the 2- and 5-positions of a chalcogenophene is mostly mediated by the butadiene backbone of the heterocycle, and the EPR data is compatible with this view. A recent study of ferrocene-based mixed valence compounds has reached the same conclusion for phosphole bridges.¹⁵

We have conducted the first comparative study of charge delocalization across single units of the entire chalcogenophene series, and our findings are relevant in the greater context of molecular electronics,¹⁶ for instance for the design of new chalcogenophene-based charge-conducting oligomers and polymers.

Funding from the Swiss NSF through grant number 200021_146231/1 is gratefully acknowledged. CGP acknowledges the Swiss NSF for a R'Equip grant for the EPR spectrometer.
