Electron-donor function of methanofullerenes in donor–acceptor bulk heterojunction systems

Abstract

Electron-donor function of methanofullerenes (MFs) in bulk heterojunction systems is demonstrated by the combination of MFs with the electron-transporting π-system that has a much higher electron affinity than MFs.

---

Fullerene derivatives have been well-recognized as electron-accepting materials and extensively used in donor–acceptor linked systems in order to investigate a photoinduced charge-separation process in the molecular level.¹ This fundamental aspect is extended to the photon-to-current conversion process in bulk composite devices. In fact, organic photovoltaics (OPVs) have become an active area of research in both academia and industry in recent years.² The most efficient organic layers for OPVs are based on the concept of bulk heterojunctions (BHJs), which are composed of a blend of electron-donor (p-type) and electron-acceptor (n-type) materials.³ Methanofullerene derivatives represented by [6,6]-phenyl-C_x-butyric acid methyl ester (x = 61: PC₆₁BM, x = 71: PC₇₁BM) have been employed as typical acceptor semiconductors in such systems (Fig. 1).⁴ On the other hand, the hole-transporting characteristics of the methanofullerenes in bulk heterojunction films remain unclear, although there have been several reports suggesting that fullerene derivatives participate in not only electron transportation but also hole transportation in donor polymer–PC₆₁BM blend films.^5,6 Considering that PC₆₁BM shows ambipolar charge-transport characteristics,⁷ it should also be able to function as a donor semiconductor when combined with acceptor materials whose low-lying lowest unoccupied molecular orbital (LUMO) energy levels are much lower than that of PC₆₁BM. Nevertheless, the use of fullerene derivatives as donor materials is limited to the combination of fullerene (C₆₀)/perfluorinated phthalocyanine derivatives in vacuum-deposited bilayer OPV devices.^8,9 In addition, the confined interfaces between the donor and acceptor materials in such bilayer systems hinder spectroscopic investigations.

Fig. 1 Chemical structures of the compounds used in this study.

In order to realize BHJ systems that employ PC₆₁BM as the donor material, it is necessary to use acceptor materials with low LUMO energy levels, high electron mobilities, and good solubilities. Recently, we developed a new electron-transporting π-conjugated compound (BCN-HH-BCN) that meets these criteria (Fig. 1).¹⁰ We envisioned that using BCN-HH-BCN in combination with PC₆₁BM should allow the electron-donor function and hole-transporting characteristics of PC₆₁BM in blend films to be elucidated. In this communication, we systematically investigated the material properties, the photovoltaic characteristics of BHJ solar cells based on PC₆₁BM and BCN-HH-BCN, and the charge carrier dynamics in the corresponding blend films.

Previously, the electrochemical properties of BCN-HH-BCN were investigated by cyclic voltammetry measurements performed in a fluorobenzene solution.¹⁰ On the basis of its half-wave reduction potential (−0.67 V vs. Fc/Fc⁺) and considering that the energy level of ferrocene/ferrocenium (Fc/Fc⁺) is −4.8 eV below the vacuum level, the LUMO energy level of BCN-HH-BCN was estimated to be −4.1 eV. Although this method is widely used for estimating HOMO and LUMO energies, the values determined by this method are for isolated single molecules in solution only. In addition, these values depend on a number of factors such as different approximations of the formal potential of Fc/Fc⁺.¹¹ Recently, low-energy inverse photoemission spectroscopy (LEIPS) has been demonstrated. It involves the use of irradiating electrons with kinetic energies lower than the damage threshold of organic materials.^12a The photon energy falls in the near-ultraviolet range, allowing one to use a multilayer bandpass filter for photon detection. This leads to an overall energy resolution of 0.3 eV or better. In this study, we applied this new technique to determine the LUMO energy level of BCN-HH-BCN in the solid state. Fig. 2(a) shows the LEIP spectra of BCN-HH-BCN and PC₆₁BM obtained at a photon energy of 5.0 eV. On the basis of the onset energy with respect to the vacuum level, the electron affinity of BCN-HH-BCN in the solid state is determined to be −4.45 eV (see also Fig. S1 in the ESI†). Since the electron affinity of PC₆₁BM was recently determined to be −3.81 eV by the same technique,^12b as shown in Fig. 2(a), the LUMO energy level of BCN-HH-BCN is 0.64 eV lower than that of PC₆₁BM.

Fig. 2 (a) LEIP spectra of BCN-HH-BCN (blue) and PC₆₁BM (red).^12b (b) Energy level diagrams for BCN-HH-BCN and PC₆₁BM. The HOMO and LUMO energy levels were determined by the PESA and LEIPS, respectively.

The ionization potentials (IPs) of BCN-HH-BCN and PC₆₁BM films were measured by photoelectron spectroscopy in air (PESA). The IP for BCN-HH-BCN was determined to be −6.64 eV, which is 0.56 eV lower than that of PC₆₁BM (Fig. S2, ESI†). On the basis of these results, the energy levels of BCN-HH-BCN and PC₆₁BM were unambiguously determined and are depicted in Fig. 2(b); it can be inferred that BCN-HH-BCN is a good candidate for an acceptor material to cause the donor function of PC₆₁BM.

The local hole mobility of PC₆₁BM was investigated by flash-photolysis time-resolved microwave conductivity (FP-TRMC).¹³ As shown in Fig. S3(a) (ESI†), the photoconductivity transient of a PC₆₁BM film prepared by the drop casting of a PC₆₁BM solution in tetrahydrofuran (THF) and excited at 355 nm displays a maximum ϕΣμ of 2.6 × 10⁻⁵ cm² V⁻¹ s⁻¹, where ϕ and Σμ denote the charge carrier generation yield and the sum of the hole and electron mobilities (Σμ = μ⁺ + μ⁻), respectively. Upon the addition of tetracyanoethylene (TCNE) in the blend ratio of PC₆₁BM/TCNE = 1 : 0.1 by weight, the maximum ϕΣμ was increased to 3.2 × 10⁻⁵ cm² V⁻¹ s⁻¹. This is due to electron transfer from PC₆₁BM to TCNE, which acts as a strong electron acceptor against not only donor polymers (e.g., poly(3-hexylthiophene))^14a but also PC₆₁BM.^6a Concomitantly, the photocurrent, measured using a comb-type interdigitated Au electrode on glass, increased by 65%, as shown in Fig. S3(b) (ESI†). Because the amount of TCNE added is low (10%) and since TCNE lacks an effective electron transporting pathway, the increases in both the FP-TRMC and the photocurrent transients are most likely because of the photogenerated holes in PC₆₁BM. By estimating ϕ using a previously reported procedure,^14b the local hole mobility of PC₆₁BM is found to be 8 × 10⁻³ cm² V⁻¹ s⁻¹. Meanwhile, the electron mobility in pristine PC₆₁BM, obtained in the same fashion, was 0.02 cm² V⁻¹ s⁻¹ and in agreement with that reported previously (0.04–0.3 cm² V⁻¹ s⁻¹) using pulse radiolysis TRMC.^7b The fact that the hole mobility of PC₆₁BM is lower than its electron mobility as well as its deep LUMO is indicative of the primary n-type nature of PC₆₁BM; this property is the reason it is commonly used in OPVs and field-effect transistors. However, PC₆₁BM is potentially able to serve as a donor in combination with a much stronger electron acceptor.

In order to investigate the photovoltaic properties of a blend of PC₆₁BM and BCN-HH-BCN, a conventional BHJ solar cell was fabricated. The current density–voltage (J–V) characteristics of the device were evaluated under air mass 1.5 global (AM1.5G) simulated solar illumination with an irradiation intensity of 100 mW cm⁻². The configuration of the cell was as follows: glass/indium tin oxide (ITO)/poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate)(PEDOT:PSS)/active layer/Al. The conditions for fabricating the active layer were optimized and found that an active layer could be prepared by spin coating an o-dichlorobenzene solution of the PC₆₁BM/BCN-HH-BCN (2 : 1 weight ratio) blend in a nitrogen atmosphere without thermal annealing (see the ESI†). Under these optimized conditions, the OPV device exhibited a short-circuit current (J_SC) of 1.73 mA cm⁻², an open-circuit voltage (V_OC) of 0.45 V, a fill factor (FF) of 0.27, and a PCE of 0.21% (Fig. 3(a)). The photocurrent action spectrum of the external quantum efficiency (EQE) of the device was measured to reveal its photoresponse against different wavelengths. As shown in Fig. 3(b), the EQE spectrum of the device exhibited a broad response in the range of 300–750 nm. This profile resembled well the absorption spectrum of a PC₆₁BM/BCN-HH-BCN (2 : 1) blend film (Fig. S4(a), ESI†). On the basis of the absorption spectra of PC₆₁BM and BCN-HH-BCN in the solid state (Fig. S4(b), ESI†), it can be said that the photoresponses of the device in the short-wavelength region of approximately 400 nm and the long-wavelength region extending from 500 to 750 nm are mainly derived from PC₆₁BM and BCN-HH-BCN, respectively. This indicates that, on being photoexcited, both PC₆₁BM and BCN-HH-BCN contributed to the photocurrent generated. Furthermore, as shown in Fig. 3(a), the PCE was improved to 0.34% for the OPV device based on PC₇₁BM and BCN-HH-BCN (2 : 1): a J_SC of 2.17 mA cm⁻², a V_OC of 0.53 V, and a FF of 0.29. The EQE spectrum of the PC₇₁BM-containing device showed a higher efficiency in the visible region than that of the PC₆₁BM-containing device (Fig. 3(a)), reflecting the relatively high absorbance of PC₇₁BM (Fig. S4(a), ESI†). In addition, hole-only devices with a structure of ITO/PEDOT:PSS/PC₆₁BM or PC₇₁BM/Au showed that the space-charge-limited current (SCLC) hole mobility of PC₇₁BM (1.6 × 10⁻⁶ cm² V⁻¹ s⁻¹) was slightly higher than that of PC₆₁BM (1.4 × 10⁻⁶ cm² V⁻¹ s⁻¹) (Fig. S5, ESI†). This result also supports the improved performance of the PC₇₁BM-containing device.

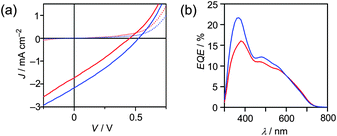

Fig. 3 (a) J–V curves of the OPV device based on PC₆₁BM–BCN-HH-BCN (red) and PC₇₁BM–BCN-HH-BCN (blue) under AM1.5G illumination (100 mW cm⁻²) and in the dark (dotted lines). (b) EQE spectra of the OPV device based on PC₆₁BM–BCN-HH-BCN (red) and PC₇₁BM–BCN-HH-BCN (blue).

We measured the transient absorption spectra (TAS) of the PC₆₁BM–BCN-HH-BCN blend film to elucidate its charge generation dynamics. As shown in Fig. 4(a), 0.1 ns after the laser excitation, a sharp absorption peak was observed at approximately 700 nm. In addition, a broad absorption band was observed extending from 900 to 1200 nm. The absorption band at 700–900 nm disappeared gradually and instead an absorption band was observed at approximately 1100 nm at 1 ns after the excitation. In order to assign these absorption bands, we measured the absorption spectra of the BCN-HH-BCN singlet excitons, triplet excitons, and radical anions separately (see the ESI†). Consequently, we found that the BCN-HH-BCN radical anions, singlet excitons, and triplet excitons exhibit absorption bands at 720, 950, and 1100 nm, respectively. As reported previously, PC₆₁BM radical cations exhibit an absorption band at 890 nm.^6a On the basis of this fact, the transient spectrum at 0.1 ns could be replicated by summing the individual spectrum of the PC₆₁BM radical cations, the BCN-HH-BCN radical anions, and the BCN-HH-BCN triplet excitons, as shown in Fig. 4(b). This finding clearly shows that PC₆₁BM radical cations and BCN-HH-BCN radical anions are generated in the blend upon photoexcitation. On the other hand, the transient spectrum at 1 ns was almost identical to the absorption spectrum of the BCN-HH-BCN triplet excitons. This triplet formation cannot be ascribed to the intersystem crossing because BCN-HH-BCN singlet excitons disappeared in 2 ps in PC₆₁BM–BCN-HH-BCN films. Rather, it is ascribed to the triplet formation through the charge recombination of PC₆₁BM radical cations and BCN-HH-BCN radical anions. This is probably because BCN-HH-BCN triplet excitons are more stable than both PC₆₁BM radical cations and BCN-HH-BCN radical anions. The triplet energy (E_T) of BCN-HH-BCN is roughly estimated to be 1.1 eV, assuming that the difference in the energies of singlet and triplet excitons is 0.7 eV, which is the typical value for small molecules.¹⁵ On the other hand, the triplet energy of PC₆₁BM is reported to be 1.5 eV.¹⁶ The energy of the charge-separated states (E_CT) was estimated to be 1.63 eV from the HOMO (PC₆₁BM) and LUMO (BCN-HH-BCN) levels shown in Fig. 2(b). We, therefore, conclude that PC₆₁BM radical cations and BCN-HH-BCN radical anions are generated in the blend but are converted to the more stable BCN-HH-BCN triplet states by charge recombination. This formation of the triplet states is consistent with the relatively low device performance of the PC₆₁BM–BCN-HH-BCN solar cells.

Fig. 4 (a) TAS of the PC₆₁BM–BCN-HH-BCN blend film 0.1 ns (black) and 1 ns (red) after laser excitation at 600 nm. The laser fluence was set to 30 μJ cm⁻². (b) The simulation of TAS. The open circles indicate the spectrum measured 0.1 ns after excitation. The red solid line indicates the spectrum simulated by summing the individual absorption spectrum of the transient species: PC₆₁BM radical cations (red dashed line), BCN-HH-BCN radical anions (blue dashed line), and BCN-HH-BCN triplet excitons (green dashed line).

In summary, we unambiguously determined the molecular properties of PC₆₁BM and BCN-HH-BCN in the solid state. The results obtained suggest that PC₆₁BM should function as a donor semiconductor when paired with a strong acceptor BCN-HH-BCN. As a consequence, BHJ solar cells based on a combination of PC_xBM (x = 61 or 71) and BCN-HH-BCN showed photovoltaic characteristics. The transient absorption measurements of the blend film suggested the formation of PC₆₁BM radical cations and BCN-HH-BCN radical anions. The most notable point in this study is that methanofullerene derivatives can contribute to hole transportation as p-type materials in BHJ systems, which provides important insights into the precise molecular design of semiconducting materials and/or new donor–acceptor systems.

This work was supported by the funding program, JST, JSPS, and MEXT, Japan. We thank Prof. Y. Murata and Dr A. Wakamiya of Kyoto University for PESA measurements.

Notes and references

1. H. Imahori and S. Fukuzumi, Adv. Funct. Mater., 2004, 14, 525; D. M. Guldi, B. M. Illescas, C. M. Atienza, M. Wielopolski and N. Martin, Chem. Soc. Rev., 2009, 38, 1587; F. D'Souza and O. Ito, Chem. Commun., 2009, 4913.
2. Y. Li, Acc. Chem. Res., 2012, 45, 723; A. Green, K. Emery, Y. Hishikawa, W. Warta and E. D. Dunlop, Prog. Photovoltaics, 2013, 21, 1.
3. G. Yu, J. Gao, J. C. Hummelen, F. Wudl and A. J. Heeger, Science, 1995, 270, 1789; M. Hiramoto, H. Fujiwara and M. Yokoyama, Appl. Phys. Lett., 1991, 58, 1062.
4. M. M. Wienk, J. M. Kroon, W. J. H. Verhees, J. Knol, J. C. Hummelen, P. A. van Hal and R. A. J. Janssen, Angew. Chem., Int. Ed., 2003, 42, 3371; Y. He and Y. Li, Phys. Chem. Chem. Phys., 2011, 13, 1970; Y. Matsuo, Chem. Lett., 2012, 41, 754.
5. C. Melzer, E. J. Koop, V. D. Mihailetchi and P. W. M. Blom, Adv. Funct. Mater., 2004, 14, 865; S. M. Tuladhar, D. Poplavskyy, S. A. Choulis, J. R. Durrant, D. D. C. Bradley and J. Nelson, Adv. Funct. Mater., 2005, 15, 1171; A. Gadisa, K. Tvingstedt, K. Vandewal, F. Zhang, J. V. Manca and O. Inganäs, Adv. Mater., 2010, 22, 1008.
6. (a) S. Yamamoto, J. Guo, H. Ohkita and S. Ito, Adv. Funct. Mater., 2008, 15, 2555; (b) S. Yamamoto, H. Ohkita, H. Benten and S. Ito, Adv. Funct. Mater., 2012, 22, 3075.
7. (a) T. D. Anthopoulos, C. Tanase, S. Setayesh, E. J. Meijer, J. C. Hummelen, P. W. M. Blom and D. M. de Leeuw, Adv. Mater., 2004, 16, 2174; (b) M. P. de Haas, J. M. Warman, T. D. Anthopoulos and D. M. de Leeuw, Adv. Funct. Mater., 2006, 16, 2274.
8. Q. L. Song, H. B. Yang, Y. Gan, C. Gong and C. M. Li, J. Am. Chem. Soc., 2010, 132, 4554; J. L. Yang, P. Sullivan, S. Schumann, I. Hancox and T. S. Jones, Appl. Phys. Lett., 2012, 100, 023307.
9. Metal-doped C₆₀ can also function as a donor: M. Kubo, K. Iketaki, T. Kaji and M. Hiramoto, Appl. Phys. Lett., 2011, 98, 073311.
10. Y. Ie, K. Nishida, M. Karakawa, H. Tada, A. Asano, A. Saeki, S. Seki and Y. Aso, Chem.–Eur. J., 2011, 17, 4750.
11. C. M. Cardona, W. Li, A. E. Kaifer, D. Stockdale and G. C. Bazan, Adv. Mater., 2011, 23, 2367.
12. (a) H. Yoshida, Chem. Phys. Lett., 2012, 539–540, 180; (b) H. Yoshida, MRS Proc., 2012, 1493, 295.
13. A. Saeki, Y. Koizumi, T. Aida and S. Seki, Acc. Chem. Res., 2012, 45, 1193.
14. (a) A. Saeki, S. Seki, Y. Koizumi, T. Sunagawa, K. Ushida and S. Tagawa, J. Phys. Chem. B, 2005, 109, 10015; (b) Y. Yasutani, A. Saeki, T. Fukumatsu, Y. Koizumi and S. Seki, Chem. Lett., 2013, 42, 19.
15. A. Köhler and H. Bässler, Mater. Sci. Eng., R, 2009, 66, 71.
16. S. Cook, H. Ohkita, J. R. Durrant, Y. Kim, J. J. Benson-Smith, J. Nelson and D. D. C. Bradley, Appl. Phys. Lett., 2006, 89, 101128.

---

Footnote

† Electronic supplementary information (ESI) available: LEIP, PESA, TRMC, SCLC, and UV-vis measurements; detailed measurement conditions. See DOI: 10.1039/c4cc00940a

---
