Well-defined molecular uranium(III) chloride complexes

Abstract

The first anhydrous molecular complexes of uranium(III) chloride, soluble in polar aprotic solvents, are reported, including the structures of the dimeric [UCl₃(py)₄]₂ and the trimetallic [UCl(py)₄(μ-Cl)₃U(py)₂(μ-Cl)₃UCl₂(py)₃].

---

The binary salt, UCl₃, was first prepared by Péligot in 1842 en route to his landmark isolation of uranium metal.¹ His synthesis required reducing UCl₄ at 500 °C with dihydrogen. Despite the central importance of transition, main group, and f-block metal chlorides as starting materials in inorganic and organometallic synthesis, no simple procedure for the synthesis of a well-defined, anhydrous,^2,3 and polar aprotic solvent soluble UCl₃ starting material has yet been reported. While in situ methods for the reduction of UCl₄ to UCl₃ have been developed, the indeterminate nature of the U(III) species and the introduction of by-products that are potentially incompatible with subsequent reactions or efficient work-up have prevented their widespread adoption.^4–6 In fact, the recent growth of trivalent uranium chemistry can be directly linked to the ground-breaking, robust methods for the synthesis of well-defined, soluble, molecular UBr₃ and UI₃ complexes, originally developed by Sattelberger and Clark.^7–15

The development of protocols for the preparation of well-defined UCl₃ precursors provides an alternative halide partner in salt metathesis reactions that produce more readily removed salt by-products, especially when the transmetallation reagents are limited to lithium salts. Additionally, it has been noted that the difficulty in removing alkali metal iodide salts can cause problems in subsequent synthetic procedures due to the propensity of I⁻ to act as a reductant toward uranium(V) and (VI) species.¹⁶ Chloride is also a much more efficient bridging ligand due to its less nephelauxetic character than bromide or iodide. Therefore, UCl₃ precursors may be efficient starting materials for building clusters via hydrolysis^17–19 – necessary for modelling uranium waste stream products and biological waste remediation chemistry.^20,21 Most importantly, from a synthetic perspective, uranium metal is not readily available outside the United States. The development of methods to access trivalent uranium from natural abundance or depleted UO₃ (the immediate precursor to UCl₄)¹⁰ allows for the ongoing research efforts of groups outside of the US. Herein, we report straightforward methods for the synthesis of [UCl₃(py)₄]₂ and [UCl(py)₄(μ-Cl)₃U(py)₂(μ-Cl)₃UCl₂(py)₃].

The mild reducing conditions employed for the synthesis of [MoCl₃(THF)₃] from [MoCl₄(THF)₂], either with Zn or Sn metal at room temperature,^22,23 suggested that a similar strategy may be applicable for the synthesis of a solvated UCl₃ complex. Initial studies indicated that while Sn shot led to no reduction of [UCl₄] in 1,4-dioxane at room temperature, Mg metal leads to the gradual (2 weeks) conversion of green [UCl₄] to a blue suspension. For comparison, Kiplinger has recently reported the synthesis of the uranium(IV) dimer [UCl₄(1,4-dioxane)]₂ as a yellow/orange powder.²⁴ Since [MgCl₂(1,4-dioxane)₂] is also insoluble in 1,4-dioxane, direct identification of the product is not possible, but elemental analysis suggests the formula [UCl₃(1,4-dioxane)₂]₂·[MgCl₂(1,4-dioxane)₂]. Identification and purification of the solvated UCl₃ were performed by dissolution in pyridine to give a deep purple solution, followed by fractional crystallization from Et₂O/pyridine at −35 °C.

Optimization of this procedure was achieved by heating the 1,4-dioxane suspension of [UCl₄] and Mg turnings to 100 °C for 3 days (Scheme 1). The blue suspension can be separated from the remaining Mg turnings by decantation onto a glass frit. Dissolution of the blue powder in pyridine (∼25 mL per 400 mg of UCl₄), followed by filtration to remove a fine, pale green powder (may be the result of ether cleavage or incomplete reduction; however, the identity of this side-product is unknown), and precipitation with 1.4 equivalents of hexane (v/v of pyridine) lead to the isolation of [UCl₃(py)₄]₂, 1, in 72% yield as small purple/black crystals (1 is vacuum sensitive and pyridine incorporation should be confirmed by elemental analysis, the box-scale procedure leads to the isolation of 1 in 41% yield and precisely four equivalents of py per U). The UV/vis/NIR spectrum (Fig. 1, black trace) of a 0.01 M solution of 1 clearly indicates trivalent uranium and the absence of tetravalent uranium. The spectrum of 1 is quite similar to that reported for the in situ prepared “UCl₃(THF)_x” in THF.⁴¹H NMR spectroscopy of 1 in pyridine-d₅ with a hexamethylbenzene standard confirms the formula ratio of four pyridines per uranium. However, due to rapid solvent exchange, no peaks associated with bound pyridine can be observed. Most importantly, complex 1 can serve as a synthetic precursor. Hence, the reaction of 1 with 3.0 equivalents of NaN(SiMe₃)₂ in THF affords the previously reported [U(N(SiMe₃)₂)₃(py)] in 78% yield.²⁵

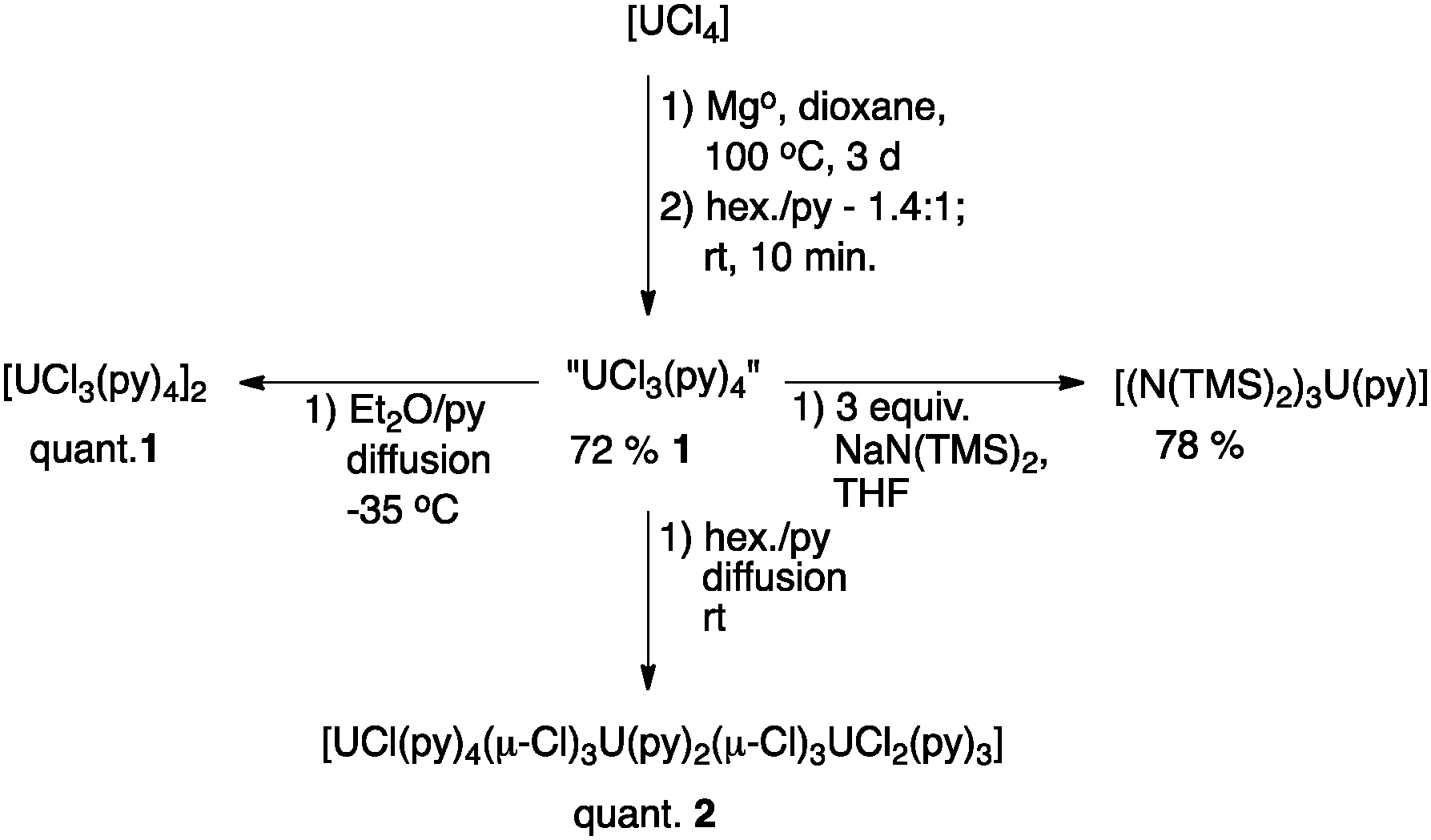

Scheme 1 Synthetic procedures for [UCl₃(py)₄]₂ and [UCl(py)₄(μ-Cl)₃U(py)₂(μ-Cl)₃UCl₂(py)₃].

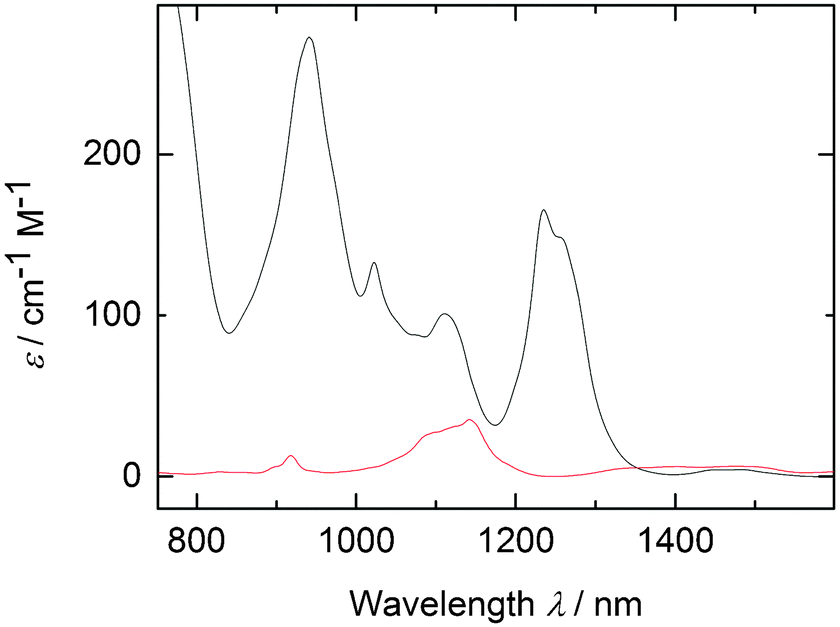

Fig. 1 Absorption spectra of [UCl₃(py)₄], 0.01 M in py (black), and of [UCl₄], 0.01 M in THF (red), [UCl₄] is poorly soluble in py.

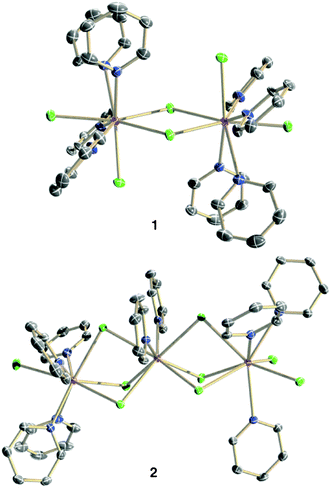

Fig. 2 Molecular structures of 1 (in crystals of 1·4C₅H₅N) and of 2. Thermal ellipsoids set at 50% probability. Hydrogen atoms and co-crystallized solvent are removed for clarity; U: pink, Cl: green, N: blue, C: dark-grey.

The solid-state molecular structure of 1 was determined by an X-ray diffraction study of crystals 1·4C₅H₅N grown by the diffusion of diethyl ether into a pyridine solution of 1 at −35 °C (Fig. 2). Crystals prepared in this manner grow as thin layered plates necessitating the acquisition of data on two layers and the solution of the structure as a non-merohedral twin. This solution reveals 1 to be a chloride-bridged dimer in the solid-state with a U₂Cl₂ diamond core structural motif. The U⋯U distance is 4.71 Å and the U–Cl–U angle is 108.9°. The bridging U–Cl distances are 2.935(2) and 2.853(2) Å (2.936(2) and 2.862(2) Å) (two independently refined UCl₃(py)₄ fragments per asymmetric unit), whereas the terminal U–Cl bond lengths are 2.734(2), 2.759(2), 2.740(2), and 2.768(2) Å. The U–N distances span the range from 2.690(8) to 2.772(7) Å.

In an attempt to grow crystals of 1 in another lattice setting, another product, namely [UCl(py)₄(μ-Cl)₃U(py)₂(μ-Cl)₃UCl₂(py)₃], 2, was observed in quantitative yield when crystals were prepared by the diffusion of hexane into a dilute solution of 1 in pyridine at room temperature. Notably, to the best of our knowledge, there is no precedent for a trimetallic complex of uranium(III) bridged by a (μ-Cl)₃ unit. In complex 2, the U⋯U distances are inequivalent at 4.061 Å (U1⋯U2) and 4.176 Å (U2⋯U3), respectively. The bridging U–Cl bond distances for U1⋯U2 are shorter and U1–Cl–U2 angles are contracted in comparison to those for U2⋯U3. Specifically, the bridging U–Cl bond distance for U1⋯U2 averages to 2.88 Å and 2.89 Å for U2⋯U3. Similarly, the U1–Cl–U2 angles span 88.68(2) to 90.57(2)°, while the U2–Cl–U3 angles span from 92.19(3) to 92.71(3)°. A similar trimetallic complex of uranium(IV) was presented by Cotton in 1986,^2,26 namely [(η⁶-C₆Me₆)UCl₂(μ-Cl)₃UCl₂(μ-Cl)₃UCl₂(η⁶-C₆Me₆)]. The U–Cl bond distances are considerably shorter (2.666(7) to 2.762(6) Å) and the U–Cl–U angles range from 92.4(2) to 93.6(2)° to yield similar U⋯U distances to those found in 2 (4.035(1) and 4.031(1) Å). However, in comparison to 2, the central uranium ion is equidistant from the other two uranium ions. The asymmetric bridging (μ-Cl)₃ moiety in 2 may be due to the different pyridine binding in U3 and U1 and crystal packing forces. However, the potential for antiferromagnetic coupling to perturb the ground state geometry cannot be discounted.

In conclusion, the first well-defined molecular complexes of uranium trichloride with practical solubility in common laboratory solvents were prepared and characterized. Reduction of [UCl₄] with magnesium turnings affords [UCl₃(py)₄] readily. Recrystallization from Et₂O/pyridine affords the dimeric [UCl₃(py)₄]₂ and recrystallization from hexane/pyridine yields the trimetallic complex, [UCl(py)₄(μ-Cl)₃U(py)₂(μ-Cl)₃UCl₂(py)₃]. These compounds should be widely employable reagents for further developments in uranium(III) inorganic coordination and organometallic chemistry. Magnetism studies on the unique trimetallic uranium(III) complex, [UCl(py)₄(μ-Cl)₃U(py)₂(μ-Cl)₃UCl₂(py)₃], 2, are on-going.

Financial support was provided the Bundesministerium für Bildung und Forschung (BMBF 2020+, 02NUK012B), the FAU Erlangen-Nuremberg, and COST Action CM1006. The authors thank Dr. Regine Herbst-Irmer (Georg-August-Universität Göttingen) for a helpful discussion of the twinning issue.

Notes and references

1. E.-M. Péligot, Ann. Chim. Phys., 1842, 5, 5.
2. J. Drożdżyński, Inorg. Chim. Acta, 1985, 109, 79.
3. A. Mech, M. Karbowiak, T. Lis and J. Drozdzynski, Polyhedron, 2006, 25, 2083.
4. D. C. Moody and J. D. Odom, J. Inorg. Nucl. Chem., 1979, 41, 533.
5. R. A. Andersen, Inorg. Chem., 1979, 18, 1507.
6. J. MacCordick and C. Brun, C. R. Chim., 1970, 270, 620.
7. D. L. Clark, A. P. Sattelberger, S. G. Bott and R. N. Vrtis, Inorg. Chem., 1989, 28, 1771.
8. L. R. Avens, S. G. Bott, D. L. Clark, A. P. Sattelberger, J. G. Watkin and B. D. Zwick, Inorg. Chem., 1994, 33, 2248.
9. I. A. Khan and H. S. Ahuja, Inorg. Synth., 1982, 21, 187.
10. J. L. Kiplinger, D. E. Morris, B. L. Scott and C. J. Burns, Organometallics, 2002, 21, 5978.
11. F. G. N. Cloke and P. B. Hitchcock, J. Am. Chem. Soc., 2002, 124, 9352.
12. W. J. Evans, S. A. Kozimor, J. W. Ziller, A. A. Fagin and M. N. Bochkarev, Inorg. Chem., 2005, 44, 3993.
13. C. D. Carmichael, N. A. Jones and P. L. Arnold, Inorg. Chem., 2008, 47, 8577.
14. D. D. Schnaars, G. Wu and T. W. Hayton, Dalton Trans., 2008, 6121.
15. L. Natrajan, M. Mazzanti, J. P. Bezombes and J. Pecaut, Inorg. Chem., 2005, 44, 6115.
16. S. Fortier, J. L. Brown, N. Kaltsoyannis, G. Wu and T. W. Hayton, Inorg. Chem., 2012, 51, 1625.
17. L. Natrajan, F. Burdet, J. Pecaut and M. Mazzanti, J. Am. Chem. Soc., 2006, 128, 7152.
18. G. Nocton, F. Burdet, J. Pecaut and M. Mazzanti, Angew. Chem., Int. Ed., 2007, 46, 7574.
19. B. Biswas, V. Mougel, J. Pecaut and M. Mazzanti, Angew. Chem., Int. Ed., 2011, 50, 5744.
20. Y. Suzuki, S. D. Kelly, K. M. Kemner and J. F. Banfield, Nature, 2002, 419, 134.
21. B. H. Gu, H. Yan, P. Zhou, D. B. Watson, M. Park and J. Istok, Environ. Sci. Technol., 2005, 39, 5268.
22. J. R. Dilworth and J. Zubieta, Inorg. Synth., 1986, 24, 193.
23. J. R. Dilworth and R. L. Richards, Inorg. Synth., 1980, 20, 121.
24. M. J. Monreal, R. K. Thomson, T. Cantat, N. E. Travia, B. L. Scott and J. L. Kiplinger, Organometallics, 2011, 30, 2031.
25. J. L. Stewart, PhD thesis, University of California, Berkeley, CA, 1988.
26. G. C. Campbell, F. A. Cotton, J. F. Haw and W. Schwotzer, Organometallics, 1986, 5, 274.

---

Footnote

† Electronic supplementary information (ESI) available: Experimental procedures and crystallographic data (PDF and CIF). CCDC 976568 (1) and 976569 (2). For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c3cc49452g

---
