Sebastijan Kovačič*a, Nadejda B. Matskob, Gregor Ferkc and Christian Slugovc*a
aGraz University of Technology, Institute for Chemistry and Technology of Materials, Stremayrgasse 9, A 8010 Graz, Austria. E-mail: s.kovacic@tugraz.at; slugovc@tugraz.at; Tel: +43 316 873 32280
bGraz Centre for Electron microscopy (FELMI-ZFE), Stremayrgasse 17, A 8010 Graz, Austria
cUniversity of Maribor, Faculty of Chemistry and Chemical Engineering, Smetanova 17, SI-2000 Maribor, Slovenia
First published on 9th May 2013
The high internal phase emulsion (HIPE) templating approach to macroporous poly(dicyclopentadiene) γFe2O3/Fe3O4 nanocomposite foams via ring opening metathesis polymerisation was elaborated and the influence of the formulation of the HIPE on structural and mechanical properties of the magnetic composite foams of 80% nominal porosity was studied. HIPEs solely stabilized with the nanoparticles resulted in considerably shrunken monolithic specimens characterized by an open cellular morphology with cavities bigger than 265 μm. Nanoparticles were situated in the bulk and on the surface of the polymeric foam skeleton. Precise control over the feature sizes could not be obtained in this case. In contrast, HIPE formulations co-stabilized with a surfactant yielded samples of good casting quality characterized by a fully open cellular morphology in all cases. The cavity and the window size could be controlled by the amount of surfactant in the emulsion. A low surfactant loading of 1.5 v% with respect to the monomer yielded diameters of the cavities of the order of 20 μm interconnected with windows with diameters in the order of 4 μm, while 10 v% surfactant resulted in smaller cavities (10 μm) and windows (2 μm). All these feature sizes are hardly affected by the nanoparticle loading which was varied from 1 to 30 wt%. Surfactant stabilized and cured HIPEs featured the nanoparticles predominantly on the surface of the cavities. Mechanical properties of the composite foams were assessed by stress–strain tests and revealed a strengthening of the foams prepared with 10 v% surfactant upon addition of the nanoparticles. Indicative of the strengthening is an increase of the Young's modulus from 13 ± 2 MPa in the case of a sample without nanoparticles to 104 ± 4 MPa in the case of the composite foam with 15 wt% nanoparticles. This trend was accompanied by a decrease of the elongation at break from 21 ± 4 to less than 1%. Specimens prepared with 1.5 v% surfactant are ductile and gave the same high Young's modulus (104 ± 9 MPa) irrespective of the nanoparticle loading and became stronger upon raising the nanoparticle amount reaching an ultimate strength of 3.4 ± 0.4 MPa at an elongation at break of 13 ± 4%.
Nano- or micrometer-scaled particles have also the ability to stabilize an emulsion, being a valuable alternative to surfactants, and composite materials derived from so-called Pickering emulsions,13i.e. emulsions which are solely stabilized by nanoparticles, have been intensely studied in the last few years.14 Suitable particles migrate to the interface between two liquid phases and form there a rigid structure slowing down coalescence.15 Important particle properties influencing the Pickering emulsion stability are the size and shape as well as the surface energy.16 Furthermore, the concentration of the particles in the emulsion plays an important role.17 Upon curing of Pickering HIPEs typically closed cell foam structures featuring large cavities (200–800 μm) are obtained. Accordingly the desirable features of HIPE derived foams, i.e. fully interconnected open cellular architectures with feature sizes in the low μm range, cannot be realized with this approach. However, using nanoparticles and additionally conventional surfactants, control over the openness and the feature sizes of the foam could be improved.18
Recently we disclosed porous foams prepared by curing surfactant stabilized dicyclopentadiene (DCPD)/water HIPEs by Ring Opening Metathesis Polymerisation (ROMP).19 Such derived foams offer unique mechanical properties (high toughness and strength) and at the same time a convenient possibility to perform post-polymerisation functionalization (because of the high amount of double bonds present in the foam scaffold) rendering them promising for many practical applications.
Herein we wish to report on the preparation, characteristics and possible applications of composite foams based on poly(dicyclopentadiene) (pDCPD) and magnetic oleic acid coated γFe2O3/Fe3O4 nanoparticles (FeOx-NPs) focusing on the foam morphologies which can be achieved. Particularly, the influence of additional surfactant on the foam morphology and the mechanical properties of the foams will be discussed and a way to achieve control over the location of the FeOx-NPs and the cavity and window sizes at the same time will be disclosed.
Sample | FeOx-NP [wt%] | Surf [v%] | dcav ± σa [μm] | dwin ± σa [μm] | |
---|---|---|---|---|---|
a Determined from SEM pictures of broken samples according to ref. 21; window and cavity size distributions can be found in the ESI. | |||||
System I | pDCPD-1w | 1 | — | n.d. | n.d. |
pDCPD-5w | 5 | — | 265 ± 100 | 24 ± 10 | |
pDCPD-10w | 10 | — | 950 ± 360 | 110 ± 60 | |
pDCPD-15w | 15 | — | 450 ± 170 | 70 ± 30 | |
pDCPD-20w | 20 | — | 280 ± 110 | 34 ± 20 | |
System II | pDCPD-1w-1.5v | 1 | 1.5 | 27 ± 10 | 3.6 ± 0.7 |
pDCPD-5w-1.5v | 5 | 1.5 | 31 ± 16 | 5.1 ± 2.0 | |
pDCPD-10w-1.5v | 10 | 1.5 | 30 ± 14 | 3.9 ± 1.0 | |
pDCPD-15w-1.5v | 15 | 1.5 | 23 ± 10 | 3.5 ± 1.5 | |
pDCPD-20w-1.5v | 20 | 1.5 | 23 ± 12 | 3.8 ± 1.0 | |
pDCPD-1w-10v | 1 | 10 | 10 ± 4 | 2.0 ± 0.5 | |
pDCPD-5w-10v | 5 | 10 | 9 ± 5 | 1.5 ± 0.7 | |
pDCPD-10w-10v | 10 | 10 | 9 ± 6 | 2.3 ± 0.7 | |
pDCPD-15w-10v | 15 | 10 | 7 ± 3 | 1.4 ± 0.5 | |
pDCPD-20w-10v | 20 | 10 | 12 ± 7 | 1.6 ± 0.9 | |
pDCPD-30w-10v | 30 | 10 | 5.2 ± 1.7 | 1.3 ± 0.4 | |
pDCPD-1.5v | — | 1.5 | 10 ± 3 | 2.0 ± 0.8 | |
pDCPD-10v | — | 10 | 5 ± 2 | 1.0 ± 0.5 |
Morphology investigations were done by scanning electron microscopy (SEMs were taken on a JWS-7515, JEOL Ltd. microscope). Micrographs were taken at several magnifications from 2500 to 7000 fold, at 7 mm working distance and at 20 kV acceleration voltage. The samples were broken and mounted on a carbon tab and a thin layer of gold was sputtered onto the samples. Evaluation of the feature sizes was done according to ref. 21.
For TEM and AFM analysis, samples were embedded in Araldite–Epon embedding mixture which was composed of 49% w/w Araldite–Epon stock solution, 49% w/w Hardener DDSA (Fluka) and 2% w/w Accelerator DMP-30 (Fluka). Infiltration was performed stepwise (impregnation at room temperature for 24 h, and polymerisation at 50 °C for 72 h.). The resin embedded specimens were mounted in special holders which at the same time fit the microtome and are suitable for the examination of the block face by AFM. Ultrathin sections (10–50 nm) were obtained using a Leica Ultracut E microtome (Leica, Austria) equipped with a diamond knife (Diatome, Switzerland). Sections for TEM analysis were collected on both: carbon and formvar coated 400-mesh copper TEM grids and examined using Philips CM 20 (Philips/FEI, Eindhoven) electron microscopes at 200 kV accelerating voltage. No staining has been applied. All EFTEM experiments were acquired in TEM mode. For the calculation of elemental distribution images, the jump ratio method was used. Experimental conditions for the acquisition of jump ratio map: energy slit width 50 eV, acquisition time 30 s for Fe L ionization edge (733 eV). The block faces of specimens after cryo-ultramicrotomy were investigated under ambient conditions using a Dimension 3100 AFM/SPM (Veeco, USA) atomic force microscope. AFM images were collected in tapping mode using silicon nitride cantilevers with natural frequencies in the 300 kHz range (force constant 20 N m−1, tip radius 10 nm (NT-MDT, Russia)). AFM image processing was performed using Nanoscope v720 software (Veeco, USA).
For mechanical testing the HIPEs were prepared as described and then transferred to stainless steel templates (shouldered tensile test specimens, of 9 mm width at breaking point, thickness of 9 mm, 35 mm gage length, 65 mm distance between shoulders and 140 mm overall length). Stretching tests were carried out at room temperature on an electromechanical universal testing machine (AGS-X by Shimadzu) equipped with a 50 kN load cell. Samples were tested at a test rate of 1 mm min−1. The mean Young's moduli were calculated from data obtained from the initial linear slope of the stress–strain plot with two to four samples of the same composition.
Porosity of the specimens was measured according to a literature protocol.22 Samples were cut with a knife into pieces with dimensions of about 0.9 × 0.4 × 0.4 cm, weighed and immersed into 1-pentanol for 24 h. Then the samples were removed from the liquid, the surfaces were dried using a filter paper and weighed again.
In system II, FeOx-NPs and surfactant (Pluronic®L-121) were used as stabilizers of the HIPEs. Pluronic®L-121 is a non-ionic poloxamer particularly suitable for the stabilization of DCPD/water HIPEs.19 Four formulations (containing 1 wt% FeOx-NP and 1.5 v% surfactant (DCPD-1w-1.5v) or 10 v% Pluronic®L-121 (DCPD-1w-10v) and 20 wt% FeOx-NP with 1.5 v% (DCPD-20w-1.5v) and 10 v% Pluronic®L-121 (DCPD-1w-20v)) were examined. The HIPE formulation DCPD-1w-1.5v showed some creaming after 3 h at 80 °C and pronounced creaming after 24 h. Accordingly, DCPD-1w-1.5v is considerably more stable than DCPD-1w. Increasing the surfactant amount to 10 v% in DCPD-1w-10v further increased the HIPE stability as creaming after 24 h at 80 °C was less pronounced as in the case of DCPD-1w-1.5v. Increasing the FeOx-NP loading to 20 wt% yielded the most stable formulations. Some sedimentation was observed in the case of DCPD-20w-1.5v after 24 h and DCPD-20w-10v did not show any sign of HIPE instability during storing for 24 h at 80 °C. Accordingly, the addition of surfactant is distinctly improving the kinetic stability of the HIPEs which is neither a surprising nor an unprecedented effect. Studies describing a so-called synergistic effect of nanoparticles and surfactants have been published recently.25
The assessment of the kinetic stability of the HIPE formulations revealed the reasonableness of using them for the preparation of foams via ROMP of DCPD/water HIPEs under the conditions established so far.19
Visual inspection of the specimens readily revealed a good casting quality for all samples prepared with additional surfactant. The casting quality of specimens prepared without surfactant (pDCPD-1w–pDCPD-20w) was rather poor in terms that the volume of foams collapsed to approx. 75% (to 50% in the case of pDCPD-1w) of the original volume and the foams exhibited big cavities apparent to the naked eye. Evaluation of the microstructure of the composite foam was then performed with scanning electron microscopy (SEM, see Fig. 1), transmission electron spectroscopic (TEM) techniques and atomic force microscopy (AFM) (cf. below). The porosity of the specimens was determined22 to be 78 ± 4% for the series prepared with 1.5 v% surfactant, and 70 ± 4% for the series prepared with 10v% surfactant (cf. ESI†).
![]() | ||
Fig. 1 SEM pictures of composite foams prepared without surfactant (upper row), prepared with 1.5 v% surfactant (middle row) and with 10 v% surfactant (bottom row) containing 5 wt% (1st column), 10 wt% (2nd column), 15 wt% (3rd column) and 20 wt% FeOx-NPs (4th column). |
During extraction hardly any FeOx-NPs were washed out as revealed by only slightly light brown coloured extracts. The extracts were dried in a vacuum and weighed. In cases where no or low surfactant amount was used the weight of the residue was negligible (approx. 2 wt% of the sum of the masses of DCPD, FeOx-NP and surfactant used). In the case of samples prepared with 10 v% surfactant the mass of the residue was higher. Investigation of the residues with NMR spectroscopy revealed the presence of DCPD-oligomers, oleic acid and cross-metathesis products of oleic acid in all cases. The extracts of pDCPD-1w-10v–pDCPD-30w-10v contained the same species and additionally the surfactant, which is responsible for the higher residue masses obtained in these cases. These results suggest that a great proportion of the FeOx-NP is contained in the samples.
Results from thermogravimetric investigations of aged, i.e. oxidized (cf. ESI† and ref. 19), composite foams corroborated the presence of a high proportion of the FeOx-NPs in the samples. Actually, slightly increased values for the weights of residues were determined for unknown reasons. However, the residual mass after having heated the samples in a pure oxygen atmosphere with a heating rate of 10 °C min−1 to 550 °C increased from 5% in the case of pDCPD-5w-10v to 22.3% in the case of pDCPD-30w-10v (cf.Fig. 2). A reference sample containing no FeOx-NPs lost 95% of its weight under these conditions and reached a weight loss of 99.3% after heating for further 15 min at 550 °C. In the presence of the FeOx-NPs the final mass was reached at lower temperatures e.g. at approx. 420 °C in the case of pDCPD-30w-10v.
![]() | ||

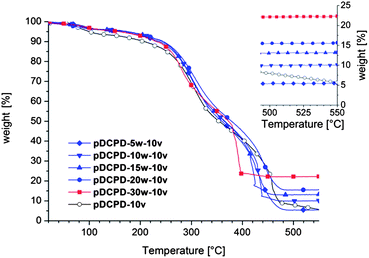

Fig. 2 TGA of the composite foams performed in an oxygen atmosphere; the inset shows the masses of the residues upon burning. |
Upon addition of 1.5 v% surfactant to the HIPE formulation (system II) the feature size of the cavities and the windows was distinctly decreased. The mean diameter of the cavities is about 23–31 μm and the cavity size distribution is rather broad (typical standard deviations of the cavity size diameters are 10–16 μm, cf.Table 1). Window sizes range on average from 3.5 to 5.1 μm (sigma = 0.7–2 μm). Upon variation of the FeOx-NP content no significant change of cavity or window sizes could be observed. However, when comparing these data with the cavity and window size of a sample prepared with surfactant but without FeOx-NP (pDCPD-1.5v) an influence of FeOx-NPs was apparent. The specimens pDCPD-1.5v were characterized by a cavity diameter of 10 ± 3 μm and window diameter of 2.0 ± 0.8, i.e. 2–3 fold smaller than in the case of the presence of FeOx-NPs. The same phenomenon was observed for the series containing 10 v% surfactant. Here average cavity diameters of 7 to 12 μm and average window diameters of 1.4 to 2.0 were found for the sample with FeOx-NP loading of 1–20 wt% (cf.Table 1), whereas the control sample without FeOx-NPs (pDCPD-10v) is characterized by mean diameters of 5 μm for cavities and 1 μm for windows. Accordingly, feature sizes of the composite foams can be intentionally adjusted upon variation of the surfactant loading. Feature sizes are bigger in cases where FeOx-NPs are used and the amount of FeOx-NPs does not have a big impact on the foam morphology.
Having established the skeleton morphology, further investigations clarifying the distribution of the FeOx-NPs within the composite materials were done by TEM and AFM analysis on representative samples. In system I (the Pickering HIPE derived foams) FeOx-NPs were found on the surface and in the bulk of the foam skeleton. FeOx-NPs located in the bulk are mainly concentrated in islands of about 2 μm in size (biggest dimension) and only minor amounts are evenly distributed within the pDCPD matrix (cf.Fig. 3). A closer evaluation of those islands revealed a hollow structure reminiscent of collapsed cavities. Most probably those islands originated from FeOx-NP surrounded water droplets formed at the early stage of the HIPE history. During coalescence of the HIPE the water of these droplets was expelled and gathered in the big “reservoirs” i.e. the big cavities observed in the composite foams (see Fig. 3 – first row) leaving the FeOx-NPs behind. This theory is supported by the TEM and AFM pictures of samples from system II. In place of the many foams prepared with FeOx-NPs and surfactant, the results for the samples pDCPD-15w-1.5v and pDCPD-15w-10v are discussed in detail. As evident from TEM and energy filtered TEM (EFTEM) investigations of pDCPD-15w-10v the vast majority of all FeOx-NPs can be found close to the surface of the cavities (cf.Fig. 4). As the TEM images of the thin section might be misleading because they are essentially 2D projections of the objects, i.e.FeOx-NPs and the pDCPD matrix are superimposed upon each other in the direction of the electron beam, additionally an AFM analysis was performed. From this it is clearly evident that the FeOx-NPs are embedded in the pDCPD matrix just beneath the actual surface. This observation might explain why hardly any FeOx-NPs were washed out during the purification of the foams by Soxhlet extraction with acetone. Furthermore, it is worth noting, that in all cases the original size and shape of the FeOx-NPs present in the composite foam is apparently conserved.20 In the case of pDCPD-15w-1.5v a part of the FeOx-NPs is found in the bulk of the skeleton (Fig. 5).
![]() | ||
Fig. 3 Elastic filtered TEM and AFM phase (phase variation: 0–25°) images of pDCPD-15w. |
![]() | ||
Fig. 4 Elastic filtered TEM pictures of pDCPD-15w-10v (first row and second row on the left) and pDCPD-15w-1.5v (third row on the right), the EFTEM jump ratio map of Fe L of pDCPD-15w-10v (iron rich regions appear bright; second row right) and the AFM phase (phase variation 0–10°) image of the block face of pDCPD-15w-10v (third row on the left). |
![]() | ||

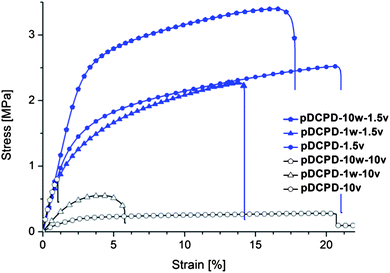

Fig. 5 Stress–strain diagram from mechanical testing of foams. |
Sample | E-module [MPa] | Rp0.2 [MPa] | ε @ break [%] | Ult. strength [MPa] |
---|---|---|---|---|
a Measured by stress–strain tests. | ||||
pDCPD-1.5v | 108 ± 5 | 1.24 ± 0.2 | 18 ± 3 | 2.5 ± 0.2 |
pDCPD-1w-1.5v | 104 ± 9 | 0.9 ± 0.2 | 12 ± 2 | 2.3 ± 0.2 |
pDCPD-10w-1.5v | 105 ± 9 | 2.2 ± 0.2 | 13 ± 4 | 3.4 ± 0.4 |
pDCPD-10v | 13 ± 2 | 0.11 ± 0.1 | 21 ± 4 | 0.3 ± 0.1 |
pDCPD-1w-10v | 25 ± 2 | 0.32 ± 0.1 | 6 ± 1 | 0.5 ± 0.1 |
pDCPD-10w-10v | 107 ± 4 | — | <1 | 0.8 ± 0.1 |
The FeOx-NP composite foams are still magnetic as expected and all samples are attracted to a permanent magnet. Additionally one exemplary sample (pDCPD-15w-1.5v) was tested in an inductive heating experiment. The specimen was exposed to an alternating magnetic field (field strength of 16 kA m−1) and the temperature rise was determined to be 18 °C. Accordingly, inductive heating of such composite foams is in principle feasible. However, as FeOx-NPs are prone to oxidation thereby loosing the self-heating capability, a possible exploitation of the self-heating capability of the composite foams disclosed here is limited.
Finally we briefly investigated the scope of the composite foams to serve as precursors for the preparation of macroporous Fe2O3 samples. For this purpose the residue from the TGA experiment with sample pDCPD-30w-10v was investigated with SEM. As evident from Fig. 6 the residue exhibited an open cellular structure with a cavity size of 3.7 ± 1.4 μm and a window size of 1.4 ± 0.4 μm reminiscent of the composite foam before burning. However, the resulting marcroporous α-Fe2O3 (identified by XRD, cf. ESI†) is brittle and the original macroscopic structure disintegrated upon touching. Such prepared α-Fe2O3 might find application as an anode material in lithium-ion batteries26 or as a photocatalyst for water splitting.27 Further investigations on the scope of macroporous α-Fe2O3 and the preparation of further macroporous metal oxides by this unprecedented approach are currently on-going in our laboratory.
![]() | ||
Fig. 6 SEM pictures of pDCPD-30w-10v before (left) and after thermal treatment under pure oxygen (right) showing macroporous α-Fe2O3. |
Footnote |
† Electronic supplementary information (ESI) available: Photographs taken while studying the emulsion stability, photographs illustrating the mould quality, elemental analyses, description for calculating the original nanoparticle content from TGA experiments, results of porosity measurements, additional SEM, TEM and AFM pictures, pore and window size distribution plots, EDX results, inductive heating and magnetization plot, XRD of porous α-Fe2O3. See DOI: 10.1039/c3ta11402c |
