Targeted nanoparticles in imaging: paving the way for personalized medicine in the battle against cancer

Abstract

The way we view cancer has advanced greatly in the past few decades from simplistic approaches to finely honed systems. This transition has been made possible because of advancements on two fronts: the first is the rapidly expanding knowledge base of the mechanisms and characteristics of cancer; the second is innovation in imaging agent design. Rapid advancements in imaging and therapeutic agents are being made through the evolution from one-dimensional molecules to multi-functional nanoparticles. Powerful new agents that have high specificity and minimal toxicity are being developed for in vivo imaging. Here we detail the unique characteristics of cancer that allow differentiation from normal tissue and how they are exploited in nanoparticle imaging development. Firstly, genetic alterations, either endogenous or induced through gene therapy, are one such class of characteristics. Proteomic differences such as overexpressed surface receptors is another targetable feature used for enhanced nanoparticle retention. Increased need for nutrients and specific growth signals to sustain proliferation and angiogenesis are further examples of how cancer can be targeted. Lastly, migration and invasion through a unique microenvironment are two additional traits that are exploitable, due to differences in metalloproteinase concentrations and other factors. These differences are guiding current nanoparticle design to better target, image and treat cancer.

---

Insight, innovation, integration

We review targeted nanoparticles that have provided an effective platform for a more efficient and specific delivery of imaging and therapeutic agents to cancer. These multifunctional nanoparticles enable detection, therapy, and monitoring that cannot be performed otherwise. While traditional anti-cancer approaches have focused on a single aspect of tumors, the nanoparticle's versatility allows for treatment strategies that target multiple characteristics simultaneously with non-invasive methodologies. With further development of multifunctional theragnostic nanoparticles, the ability to detect, type and treat the tumors may be soon become a reality.

1. Introduction

The past few decades have yielded an enormous amount of information on cancer, resulting in tremendous progress in the development of cancer therapies as well as revealing the complexity of the disease. The preponderance of data generated has been obtained in isolation – rarely taking into account how tumors and the environment interact. Because, it is now well established that the tumor and its microenvironment demonstrate considerable cross-talk, influencing signaling cascades as well as aggressiveness, it is important to understand the complex interactions in order to effectively treat cancer.

The current techniques used to detect and assess tumor cells and the microenvironment are limited, often invasive, and destructive. Cell culture experiments have contributed vastly to our knowledge of cancer; however, in vitro experiments do not take into account the microenvironment and the complex milieu that profoundly influence the tumor cells. In the case of a biopsy, only a limited section of the tumor is examined, giving the researcher a snapshot of what is happening but not the whole picture. Alternatively, tissue extraction can yield information on the whole tumor, but makes temporal studies difficult. In vivo imaging on the other hand can provide information on the tumor in context and its relationship to the body, while being noninvasive and providing the possibility of monitoring temporal progression.

Nanoparticle technology has emerged as a way to develop highly specific in vivo imaging agents that can target cancer specific molecules, structures such as vessels, and other components of the tumor microenvironment. Nanoparticles have several advantages as imaging agents as they have (1) large carrying capacities, which can be used to increase the sensitivity of modalities such as high-resolution MR, (2) can be used with multiple imaging modalities, first enable non-invasive imaging then intraoperative imaging to ensure complete tumor removal and cancer free margins, and (3) can be used as theragnostics to allow monitoring of drug to the tumor site.

In this review, we highlight the use of nanoparticles to study each of the tumor compartments in vivo as they are responding to signals from the other compartments and the body. The targetable characteristics of a tumor and its environment used here include: genetic mutations and expression patterns, protein misregulations, uncontrolled proliferation, increased angiogenesis, migration and invasion, and an abnormal microenvironment. By exploiting these characteristics, nanoparticle-mediated imaging has the potential to increase the pace of preclinical research, reshape the way we diagnose and monitor tumors as well as treat cancer.

2. Nanoparticle technologies

Table 1 shows a summary of the nanoparticle technologies discussed below:

Table 1 Summary of nanoparticle technologies discussed in the text

Discerning cancer characteristics	Targets	Nanoparticles	Imaging modality	Application	Nanoparticle status	Ref.
Genetic mutations	Mutated or overexpressed gene	Fluorophore-conjugated molecular beacon (MB) targeting survivin and cyclin D1 mRNA	Optical	Theragnostic	Preclinical (in vitro)	2
		Magnetofluorescent nanoparticle conjugated with miRNA-221 MB and AS1411 aptamer	MRI, Optical	Theragnostic	Preclinical (in vivo)	6
		Polyamidoamine dendrimer, conjugated with biotin and avidin with radiolabeled antisense oligonucleotide (RASON)	Scintigraphy	Theragnostic	Preclinical (in vivo)	7
		Caged paramagnetic nanoparticle activated by β-galactosidase reporter gene	MRI	Monitoring therapy	Preclinical (in vivo)	13
		Dextran-coated MION conjugated with holo-transferrin	MRI	Monitoring therapy	Preclinical (in vivo)	14
Protein misregulation	Overexpressed protein	Dextran-coated iron oxide nanoparticle conjugated with Trastuzumab	MRI	Theragnostic	Preclinical (in vivo)	15
		^99mTc labeled PEGylated dendrimer with folic acid	SPECT	Diagnostic	Preclinical (in vivo)	16
	Mislocalized protein	^111I-labeled tetrameric plectin-targeting peptidenanoparticle	SPECT, CT	Early detection	In development for clinical trial	19
		C2-Synaptotagmin I-conjugated SPION	MRI	Monitoring drug efficacy	Preclinical (in vivo)	20
		Annexin-V-targeted CLION	MRI	Monitoring drug efficacy	Phase II clinical trial	22
Proliferation	Uncontrolled cell division	mPEG-PCLnanoparticle encapsulated with cisplatin in combination with ^18F-FDG	MRI, PET	Theragnostic	Preclinical (in vivo)	28
	Transferrin overexpression	HK97-based viral nanoparticle conjugated with fluorescein-5-maleimide	Optical	Theragnostic	Preclinical (in vitro)	33
	Telomerase activity	CLIO-NH2nanoparticle conjugated with TTAGGG (telomerase synthesized)	MRI	Diagnostic	Preclinical (in vitro)	37
	Folate receptor	^99mTc labeled PEGylated dendrimer with folic acid	SPECT	Diagnostic	Preclinical (in vivo)	16
Angiogenesis	Integrin αvβ3	USPION coated with APTMS and conjugated with RGD peptides	MRI	Diagnostic	Preclinical (in vivo)	46
		αvβ3-targeted perfluorocarbon nanoparticle conjugated with fumagillin, modified with paramagnetic chelates	MRI, Optical	Theragnostic	Preclinical (in vivo)	48
		Paramagnetic liposomal nanoparticle with RGD and anginex	MRI	Diagnostic	Preclinical (in vivo)	49
	VEGF	Boronated dendrimers with VEGF121	Optical	Diagnostic	Preclinical (in vivo)	53
		T2-type MION with VEGF tyrosinase kinase inhibitors	MRI	Early detection	Preclinical (in vivo)	55
	Nucleolin	Vascular targeting nanoparticle conjugated with F3 peptide and photofrin	MRI	Theragnostic	Preclinical (in vivo)	56
Invasion & metastasis	Lymph node metastasis	Ferumoxtran-10 (USPION)	MRI	Early detection, Theragnostic	Phase III clinical trial	62–66
	MMP (ECM degradation)	Gadolinium metallofullerenol nanoparticles	MRI	Theragnostic	Preclinical (in vivo)	68
		Dendrimeric nanoparticles conjugated with gadolinium-labeled activatable cell penetrating peptides (ACPPs)	MRI	Diagnostic	Preclinical (in vivo)	69
Abnormal microenvironment	Low extracellular pH	Polymeric-micelle encapsulated with folate, Adriamycin, and hydrazone (for pH-dependent release)	NMR, Flow cytometry	Therapy	Preclinical (in vivo)	88
		Iron oxide nanoparticles conjugated with HER2/neu antibody and doxorubicin coated with pH-sensitive polymer	MRI	Theragnostic	Preclinical (in vivo)	89
	Hypoxia	Polystyrene nanoparticles with oxygen-sensitive palladium meso-tetraphenylporphyrin and herceptin	Optical imaging	Diagnostic	Preclinical (in vivo)	94
	Macrophage/leukocyte infiltration	Ferumoxytol (Second-generation USPION)	MRI	Diagnostic	Phase II clinical trial	85
		SPARC-targeted nanoparticle with an iron oxide core	Optical (FMT), CT	Diagnostic	Preclinical (in vivo)	79

---

2.1. Nanoparticles targeting genetic mutations and expression in cancer

One of the most well known characteristics and mechanisms of tumorigenesis is genetic alterations. This may be mutations in the genome, as with p53 or RAS, or misregulation of expression of signaling proteins, such as epidermal growth factor receptor (EGFR). Methods of exploiting these variations have been attempted for the diagnosis and treatment of cancer. Traditionally, the way to measure DNA and mRNA expression was in situ hybridization (ISH), which requires fixed samples, limiting its use to histology. However, new methods have recently emerged to monitor mRNA expression in vitro, in situ, and in vivo.

Molecular beacons (MB) were developed in 1996 and have since proven very efficient and successful at detecting real time mRNA levels in vitro.¹ Their design utilizes a looped oligonucleotide with a fluorophore to create fluorescence resonance energy transfer (FRET). Through this technique, a detectable signal is achieved only through perfect base pairing of the probe to its target as single nucleotide mismatch will not activate the probe.¹ One of the best examples of MBs in cancer has been their use in detecting the mRNA levels for survivin, an anti-apoptotic protein that is overexpressed in many cancers.² Peng et al. developed a MB to target survivin mRNA and were able to quantitatively measure the gene expression in cancer cells. The probe has subsequently been used in the detection of breast, bladder and cervical cancer, often with results within an hour.^2–4

Beacons have also been designed to utilize their specificity for single nucleotide polymorphisms (SNPs). Secondary mutations in EGFR in non-small cell lung carcinomas (NSCLC) are a common occurrence in EGFR inhibitor therapy resistance. Kim et al. developed a MB to rapidly detect this mutation in situ. Their results showed the probe had higher sensitivity than direct sequencing.⁵ Although these studies have been done in vitro or in situ, as the field develops, MBs are being used in more complex nanoparticles and for more applications. Upon MBs binding to their target mRNA, they prevent translation and the conjugate becomes flagged for degradation by RNase H¹, which opens the possibility of a therapeutic aspect to MBs. Kim et al. utilize this feature in a theragnostic nanoparticle that uses one aptamer to target and internalize the probe, then a second aptamer as a beacon to microRNA-221, which is responsible for proliferation in cancer. Upon binding, the MB is fluorescently detectable and its binding partner is degraded, significantly reducing tumor volume.⁶ These results show the possibilities of MBs to both diagnose and treat multiple types of cancer.

One of the most limiting aspects to MBs however is their reliance on fluorescence, preventing their use in non-optical applications. Alternatively, radiolabeled antisense oligonucleotides (RASONs) have been used for in vivo imaging of tumors. These probes also utilize the high specificity of base pair matching to mRNA but are designed to have a radiolabel for detection of deeper targets in vivo. Sato et al. have demonstrated this possibility by using RASONs in a polyamidoamine dendrimer conjugated with biotin and avidin to form a nanoparticle aggregate.⁷ Their results showed detectable tumor uptake through scintigraphy but noted the probe would benefit from a more stable form of oligonucleotide. Since stability issues are a major concern with antisense probes when used in vivo, several modifications to their molecular backbone have been attempted including the use of phosphodiester, a locked nucleic acid formation, and a phosphoramidate morpholino molecule, each having advantages and disadvantages but all greatly increasing their stability.⁸ Additionally, antisense probes have been used in combination with polymer and lipid-based nanoparticles and other means to improve their bioavailability and facilitate their entry into the cell.^9–11 Despite these improvements, the lack of a distinguishable difference between a bound probe and an unbound probe often results in high background, especially when the target mRNA is not highly expressed. This remains a challenge with this technology and will need to be addressed for RASONs to be an effective mRNA imaging agent.

One of the best applications of gene expression imaging occurs with gene therapies. Including a reporter with the target gene allows for new methods of detection not available with endogenous genes alone. Often, a reporter gene will also have an amplified signal since one mRNA can encode for multiple proteins, and each protein could have an amplifying effect.¹² A simple example of such a system would use green fluorescent protein (GFP) or luciferase as a reporter, which will be expressed with the target gene. Other approaches have been made for use with non-optical systems such as the use of a β-Galactosidase reporter to enzymatically react with a specialized nanoparticle for imaging. The nanoparticle uses a caged paramagnetic ion that is encapsulated by the cleavable substrate galactopyranose preventing the ion's interaction with water molecules, effectively dampening its detectable signal via MRI. When the substrate is cleaved by β-Galactosidase, the ion can interact with water and produce a much stronger MRI signal.¹³ Another reporter gene encodes a unique receptor based on a modified transferrin protein. By using monocrystalline iron oxide nanoparticles (MION) coated with a protecting layer of dextran and conjugated to holo-transferrin for targeting, the engineered receptor enhances internalization of the nanoparticle and allows for detection by the increased accumulation in the target cells¹⁴ (Fig. 1).

Fig. 1 In vivo MRI of engineered transferrin receptor (ETR) + (left arrowhead) and ETR − (right arrowhead) flank tumors. (A) T1-weighted coronal spin echo image showing similar signal intensities between ETR + and ETR− tumor. (B) T2-weighted gradient-echo image showing a substantial differences between ETR+ and ETR− tumors. ETR-mediated cellular accumulation of superparamagnetic probe decreases signal intensity. (C) Composite image of a T1-weighted spin-echo image detailed with R2 changes after Tf-MION administration. Reproduced from Weissleder et al.¹⁴

As the field of imaging gene expression develops, powerful new techniques will prove invaluable for the early diagnosis, monitoring, and treatment of cancer. As a relatively new class of imaging agents, mRNA monitors are still evolving. Several key challenges need to be overcome before they are used effectively in the clinic. Most notably, a bridge needs to be found for the gap between highly sensitive but optically limited beacons and radiolabeled antisense oligonucleotides, which have in vivo detectability but also a poor signal to noise ratio. Improvements in these areas will vastly increase the usefulness of RNA probes and therapies, especially with the emerging field of theragnostics.

2.2. Nanoparticles targeting protein overexpression, deregulation, and misregulation

As a result of genetic mutations and misregulations, cancer has a unique proteome providing yet another targeting mechanism for tumor imaging. Serum proteins such as PSA have strong benefits as markers because of their convenience, but these are also rare to find and often yield unreliable results. Additionally, serum markers do not indicate the locations of the tumor. Alternatively, proteins in the tumor cells are a much more reliable and abundant source of biomarkers. Intracellular proteins can serve as great tools with histology, but noninvasive imaging agents usually cannot enter the cytosol of cancer cells, rendering the markers inaccessible. Thus, the majority of imageable proteins are on the cell surface and in the extracellular matrix.

Cell surface proteins have allowed for one of the best methods of targeting cancer for molecular probes and nanoparticles. Detectable proteins can be absent/underexpressed, unnaturally present/overexpressed, or mutated/misregulated. Using these markers allows for several benefits with imaging and treatment, such as direct localization and demarcation of the tumor mass. Additionally, many of these proteins have a function in sustaining the tumor and targeting them can yield insight into the tumor's biology. Often, upon binding of the targeting agent, the protein-nanoparticle complex will internalize, enhancing the agent's imaging or therapeutic efficacy.

Early known markers have often included overexpressed receptors because they reside in the plasma membrane and initiate intracellular signaling for growth, proliferation, and survival. For example, human epidermal growth factor receptor 2 (HER2), EGFR, and vascular endothelial growth factor receptor 2 (VEGFR2) have all shown to be overexpressed in many forms of cancer such as breast, lung and colon. Monoclonal antibodies such as Herceptin, Erbitux and Avastin respectively, are used to target and therapeutically control these proteins with great success but they also provided a means for targeting the tumor for imaging and diagnostic purposes. Recently Rasaneh et al. used Trastuzumab, an antibody against HER2, in combination with a dextran-coated iron oxide to make modified magnetic nanoparticles for detection of breast cancer. Their findings showed significant uptake of the nanoparticles in the cancer cells compared to the untargeted nanoparticles. Biodistributions from mouse studies showed a higher density of nanoparticles in the tumor than any of the organs, including the liver.¹⁵

Because of the large size, cost, and immunogenic properties of antibodies, alternative targeting methods have been used for biomarkers such as receptors. One of the most obvious methods is to use the ligand that is specific for that protein. This has been used successfully with folate receptors, which are overexpressed is most cancers. Folic acid had been conjugated to Technetium-99m Labeled PEGylated Dendrimer Poly(amidoamine) (PAMAM) nanoparticles for detection of cancer via SPECT. By adding the folic acid to target its receptor on cancer, imaging results showed uptake in the cancer mass but not the surrounding tissue.¹⁶

In addition to receptors, other surface proteins have been used. Carcinoembryonic antigen (CEA) and epithelial cell adhesion molecule (EpCAM) are some of the most widely used proteins for targeting cancer.¹⁷ Another example, plectin, has been used for the detection of pancreatic cancer in animal models. Plectin is naturally expressed in almost all cell types, but intracellularly. In pancreatic cancer, plectin is localized on the cell surface, accessible to targeting nanoparticles. Kelly et al. discovered this phenomenon using a phage display screen comparing normal and cancerous cells. They subsequently developed a peptide that specifically targets the mislocalized plectin.¹⁸ The peptide has since been incorporated into a tetrameric nanoparticle (tPTP) and conjugated to a radiolabel for imaging. Because plectin is expressed in 100% of pancreatic cancer tumors and their subsequent metastases, but not normal pancreas, it has yielded great success as an imaging agent and is entering clinical trials¹⁹ (Fig. 2).

Fig. 2 In vivo imaging of plectin in orthotopic pancreatic cancer and liver metastases. (A) Mice bearing tumors from orthotopically implanted L3.6pl, AK134 cells, and saline (null) were injected with 111In-tPTP. Imaging via SPECT/CT 4 h post injection shows that tPTP accumulated in PDAC. Coronal (left) and axial (right) SPECT/CT slices through the tumor. T, tumor; K, kidney; M, peritoneal metastasis. (B) AK134 cells, or saline (null), were injected intrasplenically to produce liver metastases. Top, mice with liver metastasis (LM) from AK134 injection. Bottom, null animals without tumor cell injected. K, kidney. Adapted from Bausch et al.¹⁹

In addition to cancer detection and diagnosis, targeted nanoparticles have also been developed for monitoring response to chemotherapeutic drugs. When cells undergo apoptosis, numerous changes occur to their proteome, DNA becomes destroyed and the plasma membrane becomes “flipped” exposing the inner surface. These changes allow for imaging agents to selectively bind apoptotic cells. For example, Zhao et al. used the noninvasive MR contrast agent SPIONs conjugated to C₂ domain of synaptotagmin I,²⁰ which was shown to bind to the plasma membrane of apoptotic cells.²¹ They found that C₂-SPIONs were relatively non-toxic, and could detect apoptotic cells with high spatial resolution compared to magnetic resonance spectroscopy (MRS) and radionuclide techniques.²⁰ Annexin-V, which has a high specificity and affinity for phosphatidylserine in apoptotic cells, is another target being explored for imaging apoptosis viairon oxide nanoparticles. Annexin V-targeted crosslinked iron oxide nanoparticles (CLION) were able to identify cell suspensions containing apoptotic cells in vitro.²²

Proteomic differences are one of the most utilized mechanisms for molecularly targeting tumors. They provide a combination of imaging and therapy because many of the discovered targets have a functional role in tumor biology. Proteomics are being used to classify cancer as well. Screens for markers of sensitivity and resistance to therapies are one of the most promising examples.²³ The results of such studies will help guide treatments and direct the standard of medicine to a more personalize approach. Knowledge of one's tumor proteome will provide significant insight into the therapies that will be most effective on an individual basis, minimizing unnecessary, toxic treatments resulting in improved patient outlook and quality of life.

2.3. Nanoparticles targeting cancer cell proliferation and metabolism

One of the most fundamental signatures of cancer is its ability to sustain uncontrolled growth. In normal tissue, proliferative and apoptotic signals are tightly regulated to maintain tissue homeostasis and differentiation.^24,25 However, cancer cells deregulate genes involved in these processes to maintain cell survival.²⁶ Thus, noninvasive detection of cancer cell proliferation, metabolism, and resistance to apoptosis may be useful clinically for monitoring disease progression and for effectively assessing therapeutic response.

cis-Dichlorodiamminoplatinum (II) (cisplatin), which disrupts the cell division process, has demonstrated activities against a variety of solid tumors. However, the clinical efficacy of cisplatin is limited by its toxic profile.²⁷ To reduce the toxic effects and enhance circulation time, Li et al. designed nanoparticles from methoxy poly(ethylene glycol)-polycaprolactone (mPEG-PCL) with a core–shell structure that encapsulates cisplatin. This copolymer-based nanoparticle demonstrated sustained release of cisplatin and efficacy against BGC823 and H22 tumors in a dose and time-dependent manner. They reported that intratumoral delivery of cisplatin-loaded nanoparticles demonstrated delayed tumor growth compared with free cisplatin. The noninvasive imaging with ¹⁸F-fluorodeoxyglucose (¹⁸F-FDG)-positron emission tomography (¹⁸F-FDG-PET) combined with computed tomography (CT) for anatomical imaging showed that ¹⁸F-FDG uptake was lower in mice receiving cisplatin-loaded nanoparticles intratumorally (Fig. 3).²⁸ This study shows that polymeric nanoparticles with core–shell structures may be useful clinically in future as drug delivery carriers. Although this study did not incorporate an imaging agent together with the drug-delivering nanoparticle, polymeric nanoparticles can simultaneously encapsulate both imaging agents detectable by MRI and drugs for theragnostic applications.²⁹

Fig. 3 Male ICR mice bearing a subcutaneous H22 (murine hepatoma cell line) tumor at the left side of the thorax. (A) Coronal images of a mouse in the control group (saline). (B) Coronal images of a mouse in the group receiving intratumoral free cisplatin (5 mg kg⁻¹). (C) Coronal images of a mouse in the group receiving intratumoral cisplatin-loaded nanoparticles (5 mg kg⁻¹). Reproduced from Li et al.²⁸

Transferrin is a plasma protein that functions in iron transport.³⁰ Many studies have demonstrated that transferrin is expressed on proliferating cells and is an essential requirement for cellular proliferation.^30–32 Therefore, transferrin serves as a good target for imaging proliferating cancer cells. Huang et al. demonstrated the use of viral nanoparticle (VNP) that target transferrin. They were able to target cancer cells in vitro by covalently conjugating transferrin onto the surface of HK97-based VNPs. To visualize the target, they conjugated VNPs with fluorescein-5-maleimide and showed that the VNPs were internalized and localized to the endolysosomal compartment viaconfocal microscopy.³³ VNPs can be readily modified to incorporate MRI contrast agents as well because genetic modification or chemical conjugation can easily add new functionalities to VNPs.³⁴ Liepold et al. have shown that gadolinium chelating moieties can be fused to the VNP surface to yield high relaxivity, can result in improved sensitivity in MRI.³⁵ Furthermore, viruses naturally infect specific host cells and deliver encapsidated nucleic acids with great efficiency.³⁶ Therefore, VNPs may have potential for clinical applications in cancer therapy.

Telomerase is a DNA polymerase that maintains telomere length and function. It is almost undetectable in normal cells, but elevated levels of telomerase activity are found in spontaneously immortalized cells, including human cancer cells.²⁶ It has been shown that telomerase activity is correlated with a resistance to cellular senescence and apoptosis and therefore believed to play a critical role in tumorigenesis.^26,37 Grimm et al. developed a nanosensor that is capable of rapidly screening telomerase activity. This nanosensor system was designed by conjugating oligonucleotides (telomerase synthesized TTAGGG repeats) to amidated cross-linked iron oxide nanoparticles (CLION-NH₂). In addition to monitoring telomerase activity, they were able to determine the efficacy of different telomerase inhibitorsvia high-throughput MRI with ultrahigh sensitivities. In this application, magnetic nanoparticles and MRI served as a powerful tool for rapidly detecting telomerase activity.³⁷

There are many genes and proteins that are involved in maintaining the pro-proliferative state of cancer cells. For example, folate receptors are overexpressed in various types of cancers including ovarian, endometrial, breast, and renal cell carcinomas¹⁶ and were shown to play an essential role in cell proliferation and survival.³⁸ Targeting proliferation allows for the noninvasive detection of aggressive cancer cells. Development of nanoparticles that target biomarkers critical for cancer cell proliferation and apoptosis-evasion will have powerful clinical effects. Not only will these help monitor disease progression and therapeutic response, but also provide insights to which therapies will limit or even reverse tumor growth.

2.4. Nanoparticles targeting tumor vasculature and sustained angiogenesis

Angiogenesis plays a crucial role in normal embryonic vascular development and wound healing, but in cancer this process is deregulated to allow for growth, invasion, and metastasis of the tumor by providing necessary oxygen and nutrients.³⁹ Tumor angiogenesis typically involves vessel overgrowth, leaky vasculature, and vessel tortuosity by upregulating angiogenic factors like VEGF and integrin α_vβ₃.⁴⁰ Without angiogenesis, tumors cannot grow due to lack of oxygen and nutrients.⁴¹ Due to the significant role that angiogenesis has on tumor invasion and metastasis, targeting angiogenesis has become a major therapeutic avenue for cancer treatment. The limited endothelial pore size in the tissue is one of the main biological barriers for nanoparticles. Small molecules can readily diffuse into the tissue through the capillary wall due to their size, but nanoparticles rely on the gap junctions between endothelium to cross the barrier.⁴² However, tumor vasculature is primed for passive targeting because nanoparticles can spontaneously extravasate and accumulate in tumors with leaky vasculature by an enhanced permeability and retention (EPR) effect.⁴³

In the absence of passive targeting, the most highly studied protein is integrin α_vβ₃ due to its overexpression in a variety of cancers.^39,44Arg-Gly-Asp (RGD) peptide motifs have been known to facilitate binding to integrins on the cell surface and have subsequently been demonstrated to have a strong affinity for integrin α_vβ_3.^45,46 Zhang et al. designed integrin α_vβ₃-targeted ultrasmall superparamagnetic iron oxide nanoparticles (USPIONs) that are coated with 3-aminopropyltrimethoxysilane (APTMS) and conjugated with cyclic RGD peptides. They showed that RGD-USPIONs resulted in a significantly higher uptake in human umbilical vein endothelial cells (HUVECs) compared to unlabeled USPIONs. Moreover, these nanoparticles were shown to definitively distinguish between tumors with high and low integrin α_vβ₃ expression levels using a clinical 1.5-T MR scanner.⁴⁷ Winter et al. used α_νβ₃-targeted perfluorocarbon nanoparticles (α_νβ₃-PFC) encapsulating fumagillin, which was shown to suppress angiogenesis by inhibiting methionine aminopeptidase 2,⁴⁸ to target and image tumor angiogenesis in a rabbit tumor model. They modified the α_νβ₃-targeted nanoparticles with ultrahigh payloads of paramagnetic chelates for high resolution imaging and reported that treatment with α_νβ₃-PFC-fumagillin resulted in the inhibition VX2 adenocarcinoma development via quantitative MRI.⁴⁹ In a more novel approach, Kluza et al. used a bimodal system where they functionalized paramagnetic liposomal nanoparticle with two angiogenesis-specific targeting ligands, α_vβ₃-targeted RGD and galectin-1-targeted anginex. This synergistic targeting of the two ligands resulted in improved specificity of the liposomal MR contrast agent in a murine tumor model.⁵⁰

The process of angiogenesis is regulated by a variety of stimulating factors including VEGF,⁵¹ fibroblast growth factor (FGF),⁵² and angiopoietin.⁵³ The VEGF-A gene encodes ligands that are involved in forming new blood vessel during embryonic development, homeostatic survival of endothelial cells, and wound healing.²⁶ Thus, VEGF-targeted therapeutic strategies have undergone extensive research. In the study by Backer and colleagues, boronated dendrimers containing VEGF₁₂₁ successfully targeted VEGF receptors on tumor vasculature. Importantly, these dendrimers were conjugated with near-IR Cy5 dye to allow for near-IR fluorescent imaging of the tumor vasculature.⁵⁴ Dendrimers are advantageous due to their biocompatibility, solubility in water, small size with rapid blood and renal clearance, and modification flexibility.^29,55 Reichardt et al. reported that magnetic iron oxide nanoparticles (MIONs) and steady-state MRI enabled an early detection of tumor response to anti-angiogenic therapy with VEGF receptor tyrosinase kinase inhibitors in an animal model of drug-resistant colon carcinoma. They used T2-type MIONs because of their negligible extravasation into the tumor interstitium and therefore allow more precise measurement of vessel volume fraction. In addition, due to the ultralong blood half-life of MIONs, Reichardt et al. were able to perform quantitative analysis of changes in tumor vasculature at very early stage of anti-angiogenic treatment.⁵⁶

In a study by Reddy et al., multifunctional nanoparticles (MNPs) for in vivo MRI enhancement and photodynamic therapy (PDT) were used to treat brain cancer. This MNPs targeted tumor vasculature by conjugating with vascular homing peptide, F3. MNPs were also conjugated with the photoactivable agent Photofrin and the contrast agent iron oxide encapsulated by PEG. Reddy et al. showed that significant MRI contrast enhancement was achieved in intracranial 9L gliomas upon MNP administration. In addition, treatment with targeted nanoparticles followed by PDT showed a significant improvement in survival in tumor-bearing rats compared to rats that received non-targeted nanoparticles or systemic Photofrin (Fig. 4).⁵⁷

Fig. 4 Vascular targeted photodynamic therapy (PDT) with theranostic agents. (A) Schematic representation of the multifunctional nanoparticles. The core of the nanoparticle was synthesized from polyacrylamide, which was embedded with PDT dyes (Photofrin) and/or imaging agents (magnetite/fluorochrome). Polyethylene glycol linker and a molecular address tag (F3 peptide) were attached to target these nanoparticles to cancer cells. (B) Mean peak percentage change in tumor apparent diffusion coefficient values for each of the experimental groups; bars, SE. (C) T2-weighted MRI at day 8 after treatment from a representative control i.c. 9L tumor and (D) tumors treated with laser light only, (E) i.v. administration of Photofrin plus laser light, and (F) nontargeted nanoparticles containing Photofrin plus laser light and (G) targeted nanoparticles containing Photofrin plus laser light. The image shown in (H) is from the same tumor shown in G), which was treated with the F3-targeted nanoparticle preparation but at day 40 after treatment. The color diffusion maps overlaid on top of T2-weighted images represent the apparent diffusion coefficient (ADC) distribution in each tumor slice shown. Adapted from Reddy et al.⁵⁷

Despite many clinical studies involving VEGF-targeted nanoparticles have shown promising results, these therapies often failed when entering clinical trials. Although the reason for this is still unclear, Jain argues that a better approach would actually be to normalize vessels, as opposed to inhibiting them, to increase drug delivery efficacy.⁴⁰ Because of the complexity of tumor vasculature, again a personalized approach may be needed; methods to image angiogenesis and key markers will be necessary for this to be possible.

2.5. Nanoparticles targeting tissue invasion and metastasis

One of the greatest challenges in cancer is metastasis, the spread of cancer cells from a primary tumor to distant organs.⁵⁸ For example, most patients diagnosed with pancreatic cancer present with metastatic disease due to lack of specific symptoms and early detection methods.⁵⁹ In addition, surgical resection is seldom a remedy for metastatic cancer, and other treatment options are limited.⁶⁰ As a result, tremendous research efforts have been devoted to preventing metastasis.

Nanoparticle design including size and charge is especially important in metastases imaging. Traditional lipid and polymer-based nanoparticles are approximately 100 nm in size.⁶¹ To image metastases, smaller nanoparticles have an advantage because they can access areas such as lymph nodes and avoid the liver, which is a common site of metastasis. However, if drugs are not encapsulated in nanoparticles with appropriate size, they are prone to renal clearance as well as drug-metabolizing enzymes in the liver before they reach the metastasized tumor. A recent study has shown that the renal excretion threshold is approximately 5.5 nm.⁶² Due to this cutoff size, the nanoparticles need to be designed at a smaller size than liposomes, but larger size than small molecules to reduce renal filtration. In addition, drugs must be encapsulated to avoid liver metabolism before being released. This allows for extended blood circulation with higher accumulation in the target and metastatic tissue.⁶³

Nanoparticles have been used in clinical studies for detecting lymph node metastases. Preoperative nodal staging has been an important prognostic factor in the treatment of any patient with malignant tumors.⁶⁴ However, current techniques used for imaging lymph node metastases are still limited in accuracy because they primarily rely on node size; metastases can often result in non-enlarged lymph nodes or nodal enlargement may not be due to metastases.⁶⁵ This limitation has led to the development of lymphotropic nanoparticle enhanced magnetic resonance imaging (LNMRI) as a strategy for nodal evaluation.

Ferumoxtran-10, an USPION, has been used preoperatively in LNMRI of various cancers including head and neck,^66,67 urinary bladder cancer⁶⁸ and prostate cancer.⁶⁹ Deserno et al. reported that 10 of 12 normal-sized metastatic lymph nodes were detected with ferumoxtran-10 MRI in urinary bladder cancer patients which were not detected in precontrast imaging. They also found that ferumoxtran-10 MRI resulted in improved sensitivity (from 76% to 96%) and no significant difference in specificity (from 99% to 95%) compared to precontrast imaging.⁶⁸ In prostate cancer patients, Ross et al. showed that LNMRI using ferumoxtran-10 were able to detect lymph node metastases in patients that were previously negative for nodal involvement.⁶⁹ Stadnik et al. used USPION-MRI in combination with ¹⁸F-FDG-PET for preoperative axillary lymph node staging in breast cancer patients. They found that the combination of USPION-enhanced MR and FDG-PET achieved 100% sensitivity and specificity.⁷⁰

Several groups have focused on designing nanoparticles that target the matrix metalloproteinases (MMPs), which are involved in tumor invasion and metastasis by degrading extracellular matrix and increasing reactive oxygen species (ROS) activity.^26,71 ROS contributes to oxidative stress, which contributes to cancer aggression and invasion.⁷¹ Metallofullerenol has been shown to inhibit MMPs and subsequently reduced tumor invasion. Meng et al. reported that gadolinium metallofullerenol nanoparticles (f-NPs) targeted MMPs and exhibited anti-metastatic properties in human breast cancer in animal models. Moreover, bioluminescence imaging of f-NPs showed that animals treated with these nanoparticles resulted in significantly less metastasis of the primary breast tumor to the ectopic sites (Fig. 5).⁷² Olson et al. designed fluorescent dendrimeric nanoparticles conjugated with activatable cell penetrating peptides (ACPPs) to target and visualize MMPs by fluorescence imaging. In addition, ACPPs were labeled with gadolinium for MRI. They showed that, compared to free ACPPs, the ACPP conjugated dendrimeric nanoparticles resulted in a much higher uptake in tumors. Since these nanoparticles were labeled with fluorescent molecules, micrometastases as small as 200 μm were detectable. This approach has an advantage over single modality therapy because it is translatable to MRI. With relatively high levels of gadolinium accumulating in tumors, this approach could improve T1 contrast in MRI and be useful in MRI-guided clinical staging and intraoperative fluorescence-guided surgery.⁷³

Fig. 5 MMP-targeting f-NPs inhibit the tumorigenesis in the blood transfer model of MDA-MB-231-luc cancer mice. (A) 1 × 10⁶ MDA-MB-231-luc cells were injected into the tail vein of the nude mice. Seven days after injection, the mice received daily intraperitoneal doses of the f-NPs at 2.5 μmol kg⁻¹ for a duration of 6 weeks. Saline was used as control. Tumor metastases in lung were monitored weekly by bioluminescence imaging (BLI). (B) Quantification of the BLI intensity of tumor foci in the lungs of animals after different treatments. f-NPs treatment significantly inhibited tumor metastasis. *P < 0.05, compared to control. Reproduced from Meng et al.⁷²

Despite adjuvant therapies, most patients die of metastatic cancer. Hence, nanoparticles that enable early detection before tumors metastasize could vastly enhance a patient's therapeutic outcome. The discovery of novel biomarkers involved in cancer cell migration and invasion as well as development of nanoparticles that can effectively prevent further metastasis will greatly improve patient prognosis.

2.6. Nanoparticles targeting tumor microenvironment

To develop effective therapeutic strategies using nanoparticles for target-specific delivery of drugs to tumors, it is important to understand the microenvironment of the tumor. Cancer cells are surrounded by a complex milieu of extracellular matrix (ECM), leaky blood vessels, infiltrating immune cells, and stromal cells. While the normal cellular surroundings prevent malignant cell growth, the tumor surroundings support cell proliferation. Moreover, the tumor microenvironment is characterized by abnormal physiological conditions such as hypoxia and acidic extracellular pH⁷⁴ that may induce adaptive changes in both cancer and stromal cells.⁷⁵ The tumor microenvironment also creates barriers that prevent therapeutic agents from reaching cancerous cells and thus limits their efficacy.⁷⁶

An important factor in the tumor microenvironment is the ECM, which has a considerable effect on cancer cell proliferation, adhesion, migration, and metastasis.^77,78 Because proteases like MMPs are involved in degradation of the ECM, targeted imaging of MMP activity has been exploited to monitor tumor cell-ECM interaction⁷³ (See section 2.5 for examples).

Secreted protein acidic and rich in cysteine (SPARC), an ECM-associated glycoprotein that modulates cell-matrix interactions,⁷⁹ has been shown to play a role in various mechanisms including disruption of cell adhesion⁸⁰ and ECM remodeling.⁸¹ In addition, high SPARC expression levels correlated with poor prognosis in breast, lung, pancreas, and prostate cancer.⁸² Our group recently functionalized biocompatible, fluorescent nanoparticles with an iron oxide core and SPARC-targeted peptide sequence for in vivo imaging. Fluorescence-mediated tomography (FMT) revealed that the nanoparticles specifically bound to SPARC in prostate cancer cells both in vitro and in vivo. Moreover, bone and lung metastases were imaged using SPARC-targeted nanoparticles.⁸³ This approach provides prognostic information that could be clinically translated for designing personalized treatment strategies.

SPARC has also been shown to play an important role in macrophage infiltration and transmigration,^84–86 key components of the immune response. A high degree of macrophage infiltration is associated with a poor prognosis in many cancer types including breast, cervix, and bladder carcinomas.⁸⁷ In addition, tumor-associated macrophages (TAMs) were shown to increase tumor growth and metastasis by suppressing the activity of CD8 + T cells.⁸⁸ Therefore, TAMs have been considered as novel targets for anti-cancer therapy. One particular approach involves the use of MRI and ferumoxytol, a second generation USPION in phase II clinical trials, for non-invasive targeting and visualization of TAMs in breast cancer. In this study, Daldrup-Link et al. showed that iron oxide nanoparticles were phagocytosed by TAMs but not by tumor cells. In an animal breast cancer model, they were able to detect TAMs viairon oxide nanoparticle-enhanced MRI.⁸⁹ Since ferumoxytol is a clinically available nanoparticle, it can be applied for TAM imaging in patients with breast cancer.

Tumors are more acidic when compared to normal tissue.⁹⁰ Due to this pH gradient, cancer cells are more likely to accumulate drugs that are weak acids compared to drugs that are basic.⁹¹ Recent cancer treatment strategies have taken advantage of the tumor cell-microenvironment pH gradient. For example, Bae et al. designed polymeric micelle drug delivery systems that are designed to release drugs when they encounter the acidic environment in tumors. These lipid-based nanoparticles consist of a polymer shell (PEG) conjugated with a molecular promoter, folate, for enhancing intracellular transport, hydrazone, and an anticancer drugAdriamycin. Because many cancer cells overexpress folate-binding proteins, the folate-conjugated micelle nanoparticles specifically targeted cancer cells (see 2.2 for more on folate receptors). The hydrazone bonds were cleaved under acidic conditions and Adriamicin was released in a pH-controlled manner into the tumor microenvironment.⁹² Although this study used NMR and flow cytometry to analyze data, the nanoparticles can be easily modified to conjugate imaging agents that are more translatable to clinic. Lim et al. took a similar approach by using magnetic nanoparticles and MRI. They used α-pyrenyl-ω-carboxyl poly(ethylene glycol) to encapsulate doxorubicin (DOX) and iron oxide nanoparticles that are conjugated with anti-HER2/neu antibody. They demonstrated that these drug-delivering magnetic nanoparticles were pH-responsive and released DOX under low pH conditions. Additionally, these nanoparticles allowed for simultaneous tumor detection and drug delivery, real-time monitoring via MRI in vivo, and synergistic therapeutic efficacy between DOX and antibody-mediated suppression of the cell growth signals (Fig. 6).⁹³

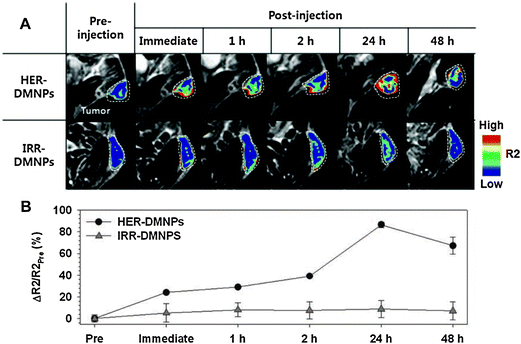

Fig. 6 (A) Color-coded T2-weighted MR images of tumor-bearing mice after the intravenous injection of HER2/neu antibody (herceptin)-modified pH-sensitive drug-delivering magnetic nanoparticles (HER-DMNPs) and DMNPs modified with an irrelevant antibody (IRR-DMNPs) at various time intervals, respectively. Tumor regions are indicated with a white dashed boundary. (B) ΔR2/R2Pre graph versus time after the injection of HER-DMNPs (black circle) and IRR-DMNPs (gray triangle). Reproduced from Lim et al.⁹³

Another major characteristic of tumor microenvironment is hypoxia. Hypoxia results from inadequate oxygen supply and abnormal tumor metabolism. In addition, hypoxic microenvironment of tumors often leads to drug resistance, resulting in poor clinical outcome.^94,95 Because of this, the development of imaging probes for monitoring tumor hypoxia has been of considerable interest for cancer diagnostics and evaluation of therapies. Recently, nitroimidazole and its derivatives have been used to image tumor hypoxia and monitor therapeutic progress.⁹⁶ Further, ¹⁸F-fluoromisonidazole (F-MISO) has been used commonly in PET imaging of hypoxia.⁹⁷Polymer-based nanoparticles have also been used in hypoxia imaging in cancer. Napp et al. conjugated polystyrene nanoparticles with oxygen-sensitive near-infrared (NIR) emissive palladium meso-tetraphenylporphyrin to image tumor hypoxia. The nanoparticle surface was functionalized with PEG and Herceptin to specifically target HER2/neu overexpressing cancer cells. They demonstrated that the use of oxygen-sensitive dye allowed for imaging tumor hypoxia and the nanoparticles were efficiently delivered both in vitro and in vivo.⁹⁸

These studies highlight the critical role the microenvironment plays in tumor progression, and thus cannot be dissociated from the cancer cells. Nanoparticles that target tumors and their surroundings may provide new insights on how we can treat the disease holistically, rather than focusing on cancer cells alone.

3. Conclusion

In recent years, a variety of nanoparticles have been developed exploiting the targetable characteristics of cancer, allowing for non-invasive imaging of tumors. Nanoparticles often utilize only one of the characteristics of cancer and to see their full potential, nanoparticles of the future should attack several of cancer's specific signatures. For example, cancer's unique proteome provides a mechanism for nanoparticles to deliver payloads with high specificity and enhancing efficacy while minimizing toxicity. The abnormal microenvironment of cancer can also be exploited to further attract or activate the nanoparticles, either releasing a therapeutic compound or amplifying the signal from an imaging agent. Additionally, the active proliferation of tumors provides a target that can be monitored to shed light on the tumors status. The patient's specific tumor profile, often classified by the genome and proteome, will help guide the specific moieties used to deliver therapeutic payloads. Because of their multifunctionality and customizability, nanoparticles will play a large role in the development of the personalized medicine necessary to combat the complexity and uniqueness of a patient's cancer.
