Catalyst-and solvent-free one-pot synthesis of some novel polyheterocycles from aryldiazenyl salicylaldehyde derivatives

Abstract

A catalyst-and solvent-free domino/Knoevenagel-hetero-Diels–Alder (DKHDA) reaction of two aldyhyde substrates, allyl/prenyl ether tethered aryldiazenylsalicylaldehydes with corresponding pyrazolones and heterocyclic 1,3-diketones is described. Subsequent reduction of aryldiazenylpolyheterocycles, thus obtained in high yields (70–86%), afforded analogues amino frameworks with anticipated biological activity. While in a conventional procedure, no reaction was observed without activation of an allyl-based substrate, an excellent yield was achieved at higher temperature. For a prenyl based substrate, however it underwent smoothly to form a desired cyclised product. The stereochemistry of the compound was confirmed by various NMR experiments and a single crystal X-ray diffraction analysis.

---

Introduction

In today's challenging complex heterocycle preparations,¹ a domino strategy is a highly efficient route to assess a wide range of polycyclic compounds.^2–3 On one hand the bond forming economy and stereo selectivity are more environment-friendly approaches, and the structure suitability with general applications is a main advantage of such cascade reactions on the other hand.^2a

A domino/Knoevenagel–hetero-Diels–Alder (DKHDA) approach has particularly evolved as an efficient route to many bioactive natural and unnatural compounds.^2a–c,4 Ring systems constructed so far include chromenopyran, pyrimidonedione, tetrahydroquinoline, benzopyrano-fused benzoprane, benzopyrano-fused napthopyran and pyranoxanthene.^2a–d,4f,5

The pyrano[2, 3-c]pyrazole unit has gained much prominence since it forms a central skeleton of many compounds which are known for their antimicrobial,⁶ insecticidal,⁷ anti-inflammatory,⁸ and molluscicidal activity.⁹ While a benzopyran ring system forms a core structure of many photochromic compounds, finding practical applications in data storage, optical filters, displays, sensor protection, waveguides, and ophthalmic plastic lenses,¹⁰ one of its class called aminochromene is the precursor to a wide range of bioactive compounds.¹¹

Also, annulations of aminochromene with heterocycles offer an interesting and useful way afford medicinal compounds.¹²

In view of these, it is of interest to incorporate all these basic units into polyheterocycles. So, we decided to afford chromeno-annulated pyrano-fused heterocycles, bearing an amino group or their precursors. Furthermore, many reports exist on prenyl ether-tethered aryl or heteroaryl aldehydes, but very little on the less reactive allyl dienophile.¹³ As a part of our previous work, we exploited some less reactive allyl-based substrates in refluxing solvent.^13d Nevertheless, the more evident improvements like reduced time of reaction, cleaner reaction due to fewer side reactions and of course no use of solvent make our present protocol more economic and environmentally friendly.

In the present work, we report the synthesis of some novel benzopyrane-annulated heterocycles from an allyl-based substrate via DKHDA reaction under catalyst-and solvent-free environment. Besides the synthesis of pyrazolones, we also extended this protocol to assemble other heterocyclic-1,3-diketones. An excellent yield was achieved in a relatively shorter time with the ease of a simple work-up procedure. All the synthesized compounds could be employed as templates for screening for biological activity.

Results and discussion

Solvent-free thermal processes are important transformations¹⁴ in terms of a reaction's yields, rates and safety aspects.¹⁵ Limited molecular movements and different interactions in such a micro-environment can sometimes change the reaction mechanism and selectivity dramatically.^15a Therefore, we desired to find in the present work the solvent-free thermal reaction of less active allyl based aldehyde substrates 3a–b as well as some active prenyl based substrates 3c–d. The reaction was also examined and compared with a conventional procedure.

O-Allylated (3a–b)/prenylated (3c–d)-5-aryl diazenylsalicyl aldehydes were obtained from 2a–b, following a reported method (Scheme 1).^16–17 DKHDA reactions of substrates 3a and 3c with 4a and 4d respectively were investigated as models to optimize the conditions. Several parameters like temperature, different refluxing solvents, microwave irradiation and with or without use of a common catalyst mediated thermal procedures were employed to evaluate the present methodology (Table 1).

Scheme 1 Reagents & conditions: (i) NaNO₂, HCl, 0–5 °C, (ii) 10% NaOH, salicylaldehyde, 0–5 °C, (iii) K₂CO₃, DMF, allyl/prenyl bromide, 12 h.

Table 1 Various conditions applied to DKHDA reaction of 3a/3c to 4a/4d

Entry	Substrate	Solvent	Catalyst (mol%)	Time^a	Temp.	Yield (%)
a Observed in the case of both the substrates, 3a and 3c. b For 3a (2 h and 140 °C for 3c). c From 3a. d From 3c, RT: room temperature, EDDA: ethylenediaminediacetate [or as a mixture with TEA: triethylamine], TBA-HS: tetrabutylammonium hydrogen sulfate.
1	3a/3c	Acetonitrile	—	24 h	RT	—/—
2	3a/3c	Acetonitrile	—	10 h	Reflux	—/Trace^d
3	3a/3c	Acetonitrile	EDDA(20)	12 h	RT	—/—
4	3a/3c	Toluene	—	6 h	Reflux	—/—
5	3a/3c	Xylene	EDDA(20)	8 h	Reflux	Trace^c/82^d
6	3a/3c	Acetonitrile	ZnCl2 (25)	8 h	Reflux	—/65^d
7	3a/3c	Acetonitrile	TBA-HS (20)	9 h	Reflux	Trace^c/70^d
8	3a	Water	Piperidine	6 h	RT	—/—
9	3a	Microwave	—	7 min	—	—/—
10	3a/3c	Solvent free	—	4 h^b	180 °C^b	78^c/84^d

---

The results of various conditions applied to DKHDA approach are summarized in Table 1. In a conventional procedure, while in the absence (entries 1, 2, and 4) and presence (entries 3, and 5–8) of a catalyst/catalytic mixture, substrate 3a gave only a Knoevenagel intermediate (entries 1–9) and except for a few conditions (entries 1, 8, and 9), an excellent yield was achieved under solvent-and catalyst-free thermal reaction (entry 10). The reaction completed in almost less than half the reaction time compared to the reported method,^2a,13d making it more advantageous over the conventional method. Other catalytic conditions gave no or only trace products (entries 3, 5, and 6–8). Further increase in the temperature, however, could not improve the result. Interestingly, it improved both the reaction time and temperature in the case of a prenyl-based substrate. So, this was considered an optimal condition for other domino products 7a–p (Scheme 2, Table 2). Results showed all pyrazolones afforded DKHDA cyclised products except pyrazolylarylsulphonic acids that could not yield quantitative products 7q–r (entries 17 and 18, Table 2). Instead, a black residue left on prolonged heating contained only non-separable traces of a domino product as monitored by TLC. The relatively higher temperatures required for 3a are ascribed to a larger energy gap between the HOMO (higher occupied molecular orbital's) of the allylic dienophile and the LUMO (lowest unoccupied molecular orbitals) of the Knoevenagel heterodiene in 3a. The results are well supported by a frontier orbital theory.

Scheme 2 Synthesis of aryldiazenylchromeno-annulated pyrano-fused pyrazoles 7a–p (i) solvent-free, 180 °C.

Table 2 Solvent-free one-pot synthesis of benzopyrane annulated pyrano fused pyrazoles 7a–p

Entry	Product	Ar	R1	R2	R	Yield (%)	Time (h)	M.P. (°C)^a
a Uncorrected.
1	7a	C6H5	CH3	C6H5	H	78	4.0	190–192
2	7b	C6H5	CH3	3-Cl-C6H4	H	75	4.2	191–193
3	7c	C6H5	C6H5	C6H5	H	80	4.1	202–204
4	7d	C6H5	CH3	2,5-Cl2-C6H3	H	83	5.0	96–98
5	7e	C6H5	CH3	4-CH3-C6H4	H	85	4.0	179–181
6	7f	C6H5	CH3	2-Cl-C6H4	H	82	5.1	114–115
7	7g	4-Cl-C6H4	CH3	C6H5	H	80	4.5	219–221
8	7h	4-Cl-C6H4	CH3	3-Cl-C6H4	H	84	4.7	180–181
9	7i	4-Cl-C6H4	C6H5	C6H5	H	86	5.0	209–210
10	7j	4-Cl-C6H4	CH3	2,5-Cl2-C6H3	H	70	5.7	222–224
11	7k	4-Cl-C6H4	CH3	4-CH3-C6H4	H	70	4.2	175–176
12	7l	4-Cl-C6H4	CH3	2-Cl-C6H4	H	73	4.4	108–110
13	7m	C6H5	CH3	2-Cl-C6H4	CH3	80	2.5	212–214
14	7n	C6H5	CH3	2,5-Cl2-C6H3	CH3	84	2.0	244–246
15	7o	4-Cl-C6H4	CH3	2-Cl-C6H4	CH3	79	2.1	118–120
16	7p	4-Cl-C6H4	CH3	2,5-Cl2-C6H3	CH3	75	2.4	276–278
17	7q	C6H5	CH3	3-SO3H-C6H4	H	—	6.0	—
18	7r	C6H5	CH3	4-SO3H-C6H4	H	—	6.0	—

---

¹H NMR of 7a shows a doublet in the δ 4.6–4.8 Hz range with a J value lying in the 2.0–4.8 Hz range, which is attributable to benzylic methane protons on a pyranyl ring suggesting its cis-geometry. The IR band centred around 1385 cm⁻¹ infers the presence of an azo group. The absorption bands appearing in the 270–352 nm range indicate a trans-aryldiazenyl moiety. The stereochemical outcome of the domino product was confirmed by 2D NMR experiments; nuclear Overhauser effect spectroscopy (nOes) and the double quantum filtered correlation spectroscopy (DQFCOSY). The proposed cis-geometry of bridging protons in compound 7a is fully agreed with 2D NMR experimental results (Fig. 1). The same was unambiguously confirmed by a single-crystal XRD analysis of representative compound 7a (Fig. 2–3). The crystallographic experimental data are summarized in Table 4. Packing arrangement of the molecules viewed down the a-axis is shown in Fig. 3. The crystallizing solvent chloroform is also shown along with a crystal structure of compound 7a.

Fig. 1 Characteristic nOes of 7a.

Fig. 2 ORTEP diagram of compound 7a.

Fig. 3 The packing arrangement of molecules 7a.

The orientation and attack of dienophiles determine the stereochemistry of the reaction products. Accordingly, we can assume four possible transition structures.^3b The exo-E-anti and endo-Z-anti would lead to a trans-adduct while the endo-E-syn and exo-Z-syn to a cis-one. In the present work, the endo-E-syn transition structure seems to be affording exclusively a cis-product even though two paths are possible (Scheme 3).

Scheme 3 Mechanism of DKHDA reaction; solvent-free 180 °C.

The scope of the present method was further extended to other heterocyclic diketones such as N-phenyl/methyl-4-hydroxy-2-quinolone, 4-hydroxy coumarin and Meldrum’s acid (Scheme 3). All heterocyclic diketones except meldrum acid gave the desired cyclised products 9b–d, and 9f–h in high yields (Table 3). In case of meldrum acid, Knoevenagel condensate formed a ketene via retro-Diels–Alder reaction which after water trapping, converted into a β-ketoacid. Finally, its decarboxylation yielded products 9a and 9e (Scheme 3).

Table 3 Solvent-free one-pot synthesis of other benzopyran-annulated pyrano-fused heterocycles 9a–h

Entry	Product	Ar	X	Yield (%)	Time (h)	M.P. (°C)^a
a Uncorrected.
1	9a	C6H5	—	78	4.2	195–196
2	9b	C6H5	O	70	4.1	210–212
3	9c	4-Cl-C6H4	N–CH3	72	4.5	240–241
4	9d	4-Cl-C6H4	N–Ph	76	4.7	220–223
5	9e	4-Cl-C6H4	—	73	4.3	212–214
6	9f	4-Cl-C6H4	O	78	4.4	210–211
7	9g	C6H5	N–CH3	77	4.1	220–222
8	9h	C6H5	N–CH3	72	4.3	230–231

---

For our new interesting approach, we exploited and extended present methodology to assess amino benzopyran-annulated pyrano-fused heterocycles. Accordingly, we were able to synthesize some novel aminochromene-annulated ring systems 10 from 7avia reduction of the diazenyl group (Scheme 4). The formation of 10 was also confirmed by spectroscopic data. Further useful derivatization is in progress.

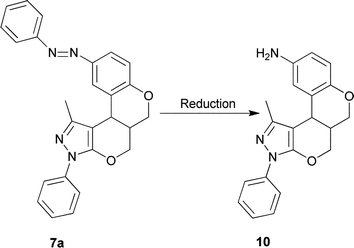

Scheme 4 The reduction of diazenyl group and formation of amino benzopyran 10; reagent and condition: conc. HCl, SnCl₂, 100 ˚C.

Experimental

General

All the compounds were characterized based on elemental analysis by Perkin-Elmer 2400 Series-II elemental analyzer, ESI mass spectra by SHIMADZU LCMS-2010 spectrometer and melting points, which are uncorrected, by open capillary tube TEMPO melting point apparatus. All the reactions were monitored by silica gel 60 F254 coated thin layer chromatography (TLC) plates (Merck). The structure and stereochemistry all the compounds were confirmed by ¹H NMR and ¹³C NMR spectra, ¹H–¹H COSY, NOESY spectra on BRUKER Avance (¹H: 400 MHz, ¹³C: 100 MHz), using CDCl₃ as both solvent and reference. IR spectra were recorded on a SHIMADZU FT-IR 8300 spectrophotometer, using KBr disc. UV-Visible spectra were taken on SHIMADZU UV-160 A spectrophotometer. Single crystal X-ray data were collected on Bruker CCD area-detector diffractometer equipped with graphite monochromated Mo-Kα radiation (λ = 0.71073 Å) (Table 4). The structure was solved by direct methods using SHELXS97.¹⁸ All non-hydrogen atoms of the molecule were located in the best E-map.

Table 4 Crystal and experimental data of compound 7a

CCDC No	820934
Crystal description	brown plate
Crystal size	0.3 × 0.2 × 0.1 mm
Empirical formula	C26H22N4O2·CHCl3
Formula weight	541.84
Radiation, Wavelength	Mo-Kα, 0.71073 Å
Unit cell dimensions	a = 8.0866(3), b = 12.1875(6), c = 13.9665(7) Å
	α = 83.079(4)° β = 80.504(4)° γ = 74.566(4)°
Crystal system	Triclinic
Space group	P1̄
Unit cell volume	1304.40(10) Å^3
Density (calculated)	1.380 mg m^−3
No. of molecules per unit cell, Z	2
Temperature	293(2) K
Absorption coefficient (μ)	0.384 mm^−1
Absorption correction	ψ-scan (Tmin = 0.91948 and Tmax = 1.00000)
Extinction coefficient	0.004(2)
F(000)	560
Refinement of unit cell	4556 reflections (3.50 < θ < 28.84°)
Scan mode	phi and omega scan
θ range for entire data collection	3.56 < θ < 25.00°
Reflections collected/unique	11 791/4535
Reflections observed (I > 2σ(I))	3089
Range of indices	h = −9 to 9, k = −14 to 14, l = −16 to16
R int	0.0237
R σ	0.0332
Structure determination	Direct methods
Refinement	Full-matrix least-squares on F^2
No. of parameters refined	358
Final R	0.0603
wR(F^2)	0.1572
Weight	1/[σ^2(Fo^2) + (0.1085P)^2 + 0.2339P]
	where P = [Fo^2 + 2Fc^2]/3
Goodness-of-fit	1.006
(Δ/σ)max in the final cycle	0.001 (for U33 C11a)
Final residual electron density	−0.302 < Δρ < 0.510 eÅ^−3
Measurement	Bruker SMART CCD area detector
	Diffractometer
Software for structure solution	SHELXS97 (Sheldrick, 1997)
Software for refinement	SAINT 6.45(Bruker, 2003)
Software for molecular plotting	ORTEP-3 for (WingX), PLATON (Spek, 1999)
Software for geometrical calculations	PARST (Nardelli, 1995), PLATON (Spek, 2003)

---

General procedure for domino reaction

Synthesis of O-allylated or prenylated-5-aryldiazenyl salicylaldehydes (3a–d). To a stirred solution of 10 mmol diazenylsalicylaldehyde 2 in 25 ml DMF, in the presence of 15 mmol anhydrous potassium carbonate, was added dropwise a solution of 1.5 mmol of allyl bromide in 5 ml DMF. The resulted mass was then further stirred at room temperature to complete the reaction as monitored by TLC (10–12 h). It was then poured into ice with constant stirring. The solid precipitates were filtered, washed with cold water, and dried at room temperature. The products 3a–b were received quantitatively. Similarly prenyl bromide was used to obtain O-prenylated salicylaldehyde derivatives 3c–d.

Synthesis of benzopyran derivatives (7a–p) & (9a–h). In a round-bottom flask, a mixture containing equal amount (3.7 mmol) of salicylaldehydes 3, 5-pyrazolones 4 or corresponding diketone 8a–d was heated at 180 °C until the substrate 3 disappeared as monitored by TLC. Remaining crude product was then subjected to column chromatography, employing an ethyl acetate/hexane (3 : 7) eluent, affording compounds 7a–p or 9a–h in pure product with excellent yields. All the products were characterized based on their elemental, mass, UV-visible NMR and IR spectroscopy.

Selected spectroscopic data of compounds

(5aR,11bS)-1-methyl-3-phenyl-10-[(E)-phenyldiazenyl]-3,5a,6,11b-tetrahydro-5H-chromeno[4′,3′:4,5]pyrano[2,3-c]pyrazole (7a). Isolated yield (1.23 g, 78%) as yellow crystals, mp 190–192 °C; λ_max (DMF)/nm 348 (ε/dm³ mol⁻¹ cm⁻¹ 17 721), 270 (12 552); ν_max/cm⁻¹ = 2957, 2927, 1490, 1467, 1241, 1092, 1026, 831, 758; ¹H NMR (CDCl₃, 400 MHz): δ = 2.42 (s, 3H, Me), 2.60 (s, 1H, C(5_a)H), 4.16 (t, 1H, J_b = 10.4 Hz, C(6)H), 4.33 (d, 1H, J = 4.8 Hz, C(11_b)H), 4.43 (m, 2H, C(5)H), 4.65 (dd, 1H, J = 2.4 Hz, C(6)H), 6.99 (d, 1H, J = 10.0 Hz, ArH), 7.22–7.87 (m, 12H ArH); ¹³C NMR (CDCl₃, 100 MHz): δ = 14.41 (CH₃), 29.51 (CH, benzylic methane), 30.12 (CH, benzylic methane), 66.20 (CH₂), 68.52 (CH₂), 118.10, 120.34, 122.73, 123.65, 125.66, 126.04, 129.56, 129.86, 131.36 (ArCH), 99.48, 125.15, 138.65, 145.11, 146.49, 146.77, 148.09, 149.24, 149.95, 152.40, 152.81 (ArC); m/z (ESI) 423.1 [M + H⁺]. Anal. Calcd. for C₂₇H₂₃Cl₃N₄O₂ (541.86): C, 59.85; H, 4.28; N, 10.34. Found: C, 61.01.; H, 4.80; N, 10.56;

(5aR,11bS)-3-(3-chlorophenyl)-1-methyl-10-[(E)-phenyldiazenyl]-3,5a,6,11b-tetrahydro-5H-chromeno [4′,3′:4,5]pyrano[2,3-c]pyrazole (7b). Isolated yield (1.29 g, 75%) as yellow crystals, mp 191–193 °C; λ_max (DMF)/nm 348 (ε/dm³ mol⁻¹ cm⁻¹ 17 628), 271 (15 803); ν_max/cm⁻¹ = 2950, 2930, 2890, 1490, 1481, 1235, 1092, 1089, 1030, 898, 822, 763; ¹H NMR (CDCl₃, 400 MHz): δ = 2.57 (m, 4H, Me, C(5_a)H), 4.24 (d, 1H, J = 4.8 Hz, C(11b)H), 4.35 (t, 1H, J_b = 10.8 Hz, C(6)H), 4.47 (m, 2H, C(5)H), 4.57 (dd, 1H, J = 2.8 Hz, C(6)H), 6.95 (d, 1H, J = 8.4 Hz, ArH), 7.18–7.94 (m, 11H, ArH); ¹³C NMR (CDCl₃, 100 MHz): δ = 14.12 (CH3), 30.11 (CH, benzylic methane), 30.77 (CH, benzylic methane), 66.12 (CH2), 68.49 (CH2), 117.72, 118.19, 120.29, 122.67, 123.37, 125.69, 125.84, 129.03, 130.00, 130.53 (ArCH), 99.42, 123.60, 134.69, 139.23, 147.21, 147.61, 149.41, 152.62, 154.88 (ArC); m/z (ESI) 457.1 [M + H⁺]; Anal. Calcd. for C₂₆H₂₁N₄O₂Cl (456.92): calcd. C 68.34, H 4.63, N 12.26; found C 68.25, H 4.58, N 12.06.

(5aR,11bS)-1,3-diphenyl-10-[(E)-phenyldiazenyl]-3,5a,6,11b-tetrahydro-5H-chromeno[4′,3′:4,5]pyrano[2,3-c]pyrazole (7c). Isolated yield (1.47 g, 80%) as yellow crystals, mp 202–204 °C; λ_max(DMF)/nm 348 (ε/dm³ mol⁻¹ cm⁻¹ 15 738), 275 (23 353); ν_max/cm⁻¹ 2957, 2920, 2890, 1491, 1471, 1238, 1094, 1028, 888, 817, 760; ¹H NMR (CDCl₃, 400 MHz): δ = 2.12 (m, 1H, C(5a)H), 4.42–4.62 (m, 5H), 6.92–8.06 (m, 18H, ArH); ¹³C NMR (CDCl₃, 100 MHz): δ = 30.75 (CH, benzylic methane), 31.09 (CH, benzylic methane), 66.64 (CH₂), 68.00 (CH₂), 117.38, 121.14, 122.58, 123.75, 125.64, 126.21, 127.33, 128.34, 128.84, 128.93, 128.96, 130.31 (ArCH), 98.44, 123.78, 134.13, 138.31, 147.42, 148.85, 149.81, 152.54, 154.55 (ArC); m/z (ESI) 485.0 [M + H⁺]; Anal. Calcd. for C₃₁H₂₄N₄O₂ (484.55): calcd. C 76.84, H 4.99, N 11.56; found C 76.70, H 4.87, N 11.48.

(4aR,10bS)-9-[(E)-phenyldiazenyl]-1,4a,5,10b-tetrahydro-2H,4H-pyrano[3,4-c]chromen-2-one (9a). Yellow crystals (0.91 g, 78%), mp 195–196 °C; Yellow crystals (0.77 g, 73%), mp 212–214 °C; IR (KBr): ν = 3050, 2990, 1670, 1600, 1380, 1250, 1000, 840, 650; ¹H NMR (CDCl₃, 400 MHz): δ = 2.58 (m, 2H, C(6)H), 2.98 (dd, J = 7.2 Hz, 1H, C(1)H), 3.62 (q, 1H, C(10_b)H), 4.37 (m, 2H, C(4)H), 4.12 (m, 2H, C(5)H), 6.91 (d, J = 8.4 Hz, 1H, Ar-H), 7.51–7.90 (m, 7H, Ar-H); ¹³C NMR (CDCl₃, 100 MHz): δ = 29.93, 31.55, 35.71, 65.24, 67.87, 118.31, 123.29, 123.93, 124.10, 129.34 (ArC) ; m/z (ESI) 309.1 [M + H⁺]; Anal. Calcd. for C₁₈H₁₆N₂O₃ (309.1): calcd. C 70.12, H 5.23, N 9.09; found C 70.20, H 5.20, N 9.12.

5-[(E)-phenyldiazenyl]-1,6b,14,14a-tetrahydro-7H,14H-cromeno[3′,4′: 5,6]pyrano[3,4-c]-chromen-7-one (9b). Yellow crystals (0.91 g, 70%), mp 210–212 °C; IR (KBr): ν = 3050, 2970, 1620, 1465, 1380, 1250, 1130, 750; ¹H NMR (CDCl₃, 400 MHz): δ = 2.52 (m, 1H, C(6)H), 4.38 (t, 1H, C(14_a)H), 4.56 (m, 4H, Me & C(14)H), 6.92–8.15 (m, 12H, Ar-H); ¹³C NMR (CDCl₃, 100 MHz): δ = 29.22, 29.70, 66.07, 103.31, 115.29, 116.73, 117.81, 120.53, 121.49, 122.72, 122.99, 124.03, 127.39, 128.51, 128.94, 130.38, 132.21, 147.73, 152.70, 154.38, 160.21, 164.14; m/z (ESI†) 411.1 [M + H⁺]; Anal. Calcd. for C₂₅H₁₈N₂O₄ (410.1): C 73.16, H 4.42, N 6.83; found: C 73.25, H 4.34, N 6.70.

5aR,11bS)-1-methyl-3-phenyl-3,5a,6,11b-tetrahydro-5H-chromeno [4′,3′:4,5]pyrano[2,3-c]pyrazol-10-amine (10). Isolated yield (0.52 g, 45%) as white powder, mp 230–234 °C; ¹H NMR (CDCl₃, 400 MHz): δ = 2.39 (s, 3H, Me), 2.60 (s, 1H, C(5a)H), 4.04 (m, 2H, C(6)H & C(11b)H), 4.22 (s, 2H, C(5)H), 4.58 (dd, J = 10.8 Hz, 1H, C(6)H), 4.72 (s, 2H, NH₂), 6.36 (d, J = 8.4 Hz, 1H, ArH), 6.46–7.69 (m, 7H ArH); ¹³C NMR (CDCl₃, 100 MHz): δ = 14.35, 29.57, 31.03, 65.55, 68.79, 100.24, 114.67, 115.46, 117.19, 120.16, 124.71, 125.80, 129.53, 138.79, 142.72, 143.60, 147.05, 149.33; Anal. Calcd. for C₂₀H₁₉N₃O₂ (333.3): calcd. C 72.05, H 5.74, N 12.60; found C 72.15, H 5.65, N 12.78.

Conclusion

In summary, we have demonstrated an efficient solvent-free thermal procedure for the one-pot synthesis of polyheterocycle via an intramolecular domino reaction. Out of the two types of aldehyde substrates employed, one contains unactivated type allyl dienophile and the second one an activated prenyl type dienophile. The former one underwent DKHDA reaction at a higher temperature. The findings highlighted the solvent-, and catalyst-free thermal procedure as more efficient than the conventional method.

Acknowledgements

We sincerely express our thanks to Head, Department of Chemistry, Sardar Patel University for providing necessary research facility. Two of us (R.A.P. and S.B.T.) are grateful to UGC, New Delhi for financial assistance under the UGC scheme of RFSMS. We also thank Vaibhav Analytical Lab., Ahmadabad and Nutan Dye Chem., Surat for their time and valuable services.
