Optimized Li and Fe recovery from spent lithium-ion batteries via a solution-precipitation method

Abstract

A new process is optimized and presented for the recovery and regeneration of LiFePO₄ from spent lithium-ion batteries (LIBs). The recycling process reduces the cost and secondary pollution caused by complicated separation and purification processes in spent LIB recycling. Amorphous FePO₄·2H₂O was recovered by a dissolution-precipitation method from spent LiFePO₄ batteries. The effects of different surfactants (i.e. CTAB, SDS and PEG), which were added to the solution on the recovered FePO₄·2H₂O, were investigated. Li₂CO₃ was precipitated by adding Na₂CO₃ to the filtrate. Then the LiFePO₄/C material was synthesized by a carbon thermal reduction method using recycled FePO₄·2H₂O and Li₂CO₃ as the Fe, P, and Li sources. The as-prepared LiFePO₄/C shows comparable electrochemical performance to that of commercial equivalents.

---

Introduction

With the rapid development of global economy, energy demand and consumption grows every day. There are many advantages of lithium-ion batteries (LIBs) due to their high working voltage, high energy density, small self discharge, long cycle life, convenient use and no memory effect reservoir.^1–3 LIBs have been widely used in consumer electronics and related electrical vehicles, and their production and consumption is increasing year by year.⁴ The rapid expansion of hybrid electric vehicles (EVs), plug-in hybrid electric vehicles (PHEVs) and pure EVs is now greatly increasing the consumption of LIBs. Large quantities of spent LIBs along with scrap will be generated due to their limited life spans and the rapid updating of electronic products. Disposed LIBs in the environment are a waste of resources (e.g. Li salts), lead to environmental pollution, and have a negative impact on the energy crisis. Therefore, the recovery of spent LIBs is necessary to prevent environmental pollution and resource depletion.

As for battery recovery, many efforts have been focused on the expensive and toxic metal containing cathodes, for example LiCoO₂ ^5–10 and LiNi_xCo_yMn_zO₂.^11–15 However, little attention has been paid to the recovery of LiFePO₄, which has been widely employed as a cathode of high-power LIBs. For example, in November 2015, LiFePO₄-based high-power LIBs shared 20.08% of Chinese market of pure electric passenger vehicles (i.e. 6230 cars have been selected to employ LiFePO₄-based high-power LIBs). More surprisingly, it shares 64.9% of the Chinese market of electric buses, that is, 14 143 electric buses employ LiFePO₄-based high-power LIBs.¹⁶

Under the circumstances, developing a LiFePO₄ recovery technique is undoubtedly necessary, which is the focus of this work. This paper presents the whole diagram for recovering a LiFePO₄ cathode, including the Li salt, iron salt and current collector. In addition, the high quality of the recovered materials was verified by using them as raw materials to synthesize high performance LiFePO₄/C (comparable to the commercial one). The optimized method presented in this work is environmental friendly, economically feasible, and scalable.

Experimental

Recovery of “cathode powder” from spent batteries

Prior to the recovery process, the spent LIBs were fully discharged and then disassembled. While the electrolyte was collected and recycled by a supercritical method, the diaphragm was recycled by wind sieving, which takes advantage of the weight difference between the electrodes and diaphragm. Then, LiFePO₄ cathode sheets were crushed into about 2 cm² and heated at different temperatures ranging from 450–650 °C for 1 h, which not only removes the binders and the carbon in the electrode, but also oxidized Fe²⁺ to Fe³⁺ (which favors the subsequent recovery of FePO₄). Powder can be separated from the aluminum current collector via oscillation sieving.

Recovery of FePO₄

The mixed powder was dissolved in sulphuric acid in a reactor with continuous stirring at a speed of 500 rpm. The dissolution efficiency was optimized via removing insoluble impurities (e.g. residual graphite) and tuning the liquid–solid concentration acid ratio, reaction time, and temperature.

Ammonia was added to the precursor solution in order to manipulate the pH value at 2. After filtration, the filter residue was washed with deionized water and then dried at 80 °C until it reached a constant weight. Then the amorphous hydrated FePO₄ (sample A, without adding any surfactant to the precursor solution) was obtained.

The surfactant effect on the phase and morphology of precipitated FePO₄·2H₂O was investigated by adding 1 wt% PEG-6000, CTAB and SDS in the precursor solution before adding ammonia, and the obtained amorphous hydrated FePO₄ was named as samples B, C, and D.

To form FePO₄ with an alpha quartz structure, the amorphous hydrated FePO₄ was then annealed at 700 °C for 5 h.

Recovery of Li₂CO₃

Li₂CO₃ was recovered according to the following steps: the filtrate was concentrated, brought to a boil, Na₂CO₃ was added, it was filtered, and the filter cake was washed thoroughly with deionized water.¹⁷ Finally, the filter cake was dried at 80 °C until a constant weight, and Li₂CO₃ was then obtained.

Re-synthesis of LiFePO₄ via a carbon thermal reduction method using recycled FePO₄ and Li₂CO₃ as raw materials

To re-synthesize LiFePO₄, the recycled Li₂CO₃ (Li source) and FePO₄ (both Fe source and P source) with a molar ratio of Li : Fe : P = 1.05 : 1 : 1 were used as raw materials, and an additional 20 wt% of sucrose (relative to the weight of the raw materials) was used as a carbon source, which not only reduces the Fe³⁺ to Fe²⁺, but also decomposes to a continuous carbon network for electrical conduction. These raw materials were first ball-milled together for 7 h with ethanol as a dispersant. The obtained mixture was heated to 300 °C under an argon atmosphere for 4 h. The mixture was then ground and heated to 700 °C under a reducing atmosphere for 10 h. The product (i.e. LiFePO₄/C) was ground in an agate mortar for later use.

Characterization of materials

The concentration of P, Fe and Li was determined using an inductively coupled plasma emission spectrometer (ICP-AES, American Perkin-Elmer Company Optima 5300 DV). X-ray diffraction (XRD) patterns were collected using a D/max-gamma B X-ray diffractometer (Rigaku, Japan) with Cu Kα radiation (λ = 0.15405 nm), a voltage of 45 kV, and a current of 50 mA. The patterns with 2θ ranging from 10 to 90° were collected using a scan rate and step of 10° min⁻¹ and 0.02°, respectively. The FePO₄ and LiFePO₄ products were characterized using an infrared spectrometer (IR Magna 560 Nicolet companies in the United States). The morphology was examined using a scanning electron microscope (QUANTA-200F American FEI Company) with a working voltage of 10 kV. To study the effect of the annealing temperature on the LiFePO₄ cathode electrode, TG-DSC analysis (STA449F3, NETZSCH) was carried out with temperatures ranging from room temperature to 800 °C at a heating rate of 5 °C min⁻¹ under a flow of air. XPS measurement was conducted using a PHI 5700 ESCA System (USA), using a monochromatised Mg-Ka radiation source. X-ray absorption near edge structure (XANES) spectroscopy of the Fe K-edge was conducted using the Soft X-ray beamlines and Variable Line Spacing Plane Grating Monochromator (VLS-PGM) beamlines at the Canadian Light Source (CLS). XANES was recorded in the surface sensitive Total Electron Yield (TEY) or Fluorescence Yield (FY) using a Silicon Drift Detector (SDD) at SXRMB and a Micro-Channel Plate (MCP) detector at PGM.

Battery assembly and electrochemical test

The as-synthesized LiFePO₄/C was mixed with acetylene black and polyvinylidene fluoride (PVDF) in a mass ratio of 8 : 1 : 1 to form a cathode slurry with N-methyl-2-pyrrolidone (NMP) as solvent. The slurry was coated on aluminum foil and vacuum dried at 100 °C for 10 h to obtain a cathode sheet. The dry cathode sheet was then punched into 16 mm wafers, and pressed at 1 MPa of pressure for 3–5 min. The pressed wafers were vacuum dried at 120 °C for 10 h, and transferred to a glove box for later use. The cathode sheet, lithium foil anode, and Celgard2300 microporous polypropylene diaphragm were assembled into CR2025-type coin cells in a glove box filled with high-purity argon. 1 mol L⁻¹ LiPF₆ in a mixture of ethylene carbonate (EC) and dimethyl carbonate (DMC) (with volume ratio of 1 : 1) solution was used as the electrolyte. The charge–discharge test was carried out using Neware Battery under different current densities (1C = 170 mA g⁻¹) in a voltage range of 2.5–4.2 V.

Results and discussion

Effect of heat treatment on the spent LiFePO₄ electrode

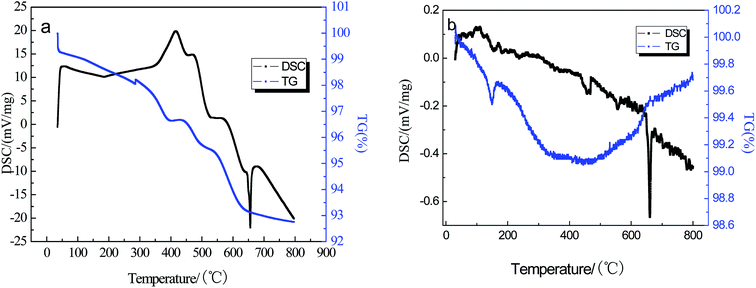

In order to find an appropriate temperature for annealing, TG-DSC analysis of the LiFePO₄ electrode was performed from room temperature to 800 °C under air flow at a heating rate of 5 °C min. As shown in Fig. 1(a), the TG curve shows a weight loss of about 6.68% as the temperature increases from room temperature to 600 °C. The DSC curves show several exothermic peaks, which are around 421.8 °C, 475.5 °C, and 579.2 °C, which can be due to decomposition of the binder and carbon in the electrode. According to the previous report,¹⁸ the decomposition of the PVDF begins at 350 °C under an oxygen atmosphere and 600 °C is ideal for PVDF decomposition. The weight of the electrode shows little change at temperatures above 600 °C, indicating the completion of pyrolysis of the binder and carbon. There is an obvious endothermic peak around 658.6 °C ascribed to the oxidation of aluminum foil, which is confirmed by the DSC/TG test of Al foil (shown in Fig. 1(b)). Thus, we conclude that the optimum temperature of the heat treatment is 600 °C.

Fig. 1 TG-DSC curves of waste LiFePO₄ cathode sheet (a) and aluminum foil (b).

Table 1 shows the effect of annealing temperature on the color of the electrode material and the degree of difficulty in separating the materials from the current collector via oscillating sieve separation. The separation effect of the active material in the collection fluid demonstrates that the decomposition of the binder is not complete when the annealing temperature is lower than 550 °C. Meanwhile, when the temperature reaches 600 °C, the binder is completely decomposed and the active material can be easily separated from the current collector. The color change is due to the pyrolysis of the binder and the oxidation of Fe²⁺ to Fe³⁺ during the annealing process in air. Fig. 2 shows XRD patterns of the electrode after the 1 h annealing process at different temperatures. Despite the annealing temperature, the major phases of the material after heat treatment are monoclinic Li₃Fe₂(PO₄)₃ and Fe₂O₃, thus the oxidation of the LFP was expected to follow eqn (1). When the temperature reaches 650 °C, diffraction peaks related to Al₂O₃ appear, indicating the oxidation of the Al current collector (which is consistent with the analysis of the TG-DSC curves) and exfoliation surface oxidized layer in the fluid flow. These results clearly demonstrate that the best annealing temperature should be 600 °C.

12LiFePO₄ + 3O₂ → 4Li₃Fe(PO₄)₃ + 2Fe₂O₃ (1)

Table 1 Effect of temperature on the color and separation effect of the electrode

Temperature (°C)	450	500	550	600	650
Color	Dark brown	Light brown	Maroon	Brick red	Brick red
Amount of active materials separated from current collector	72%	84%	96%	100%	100%

---

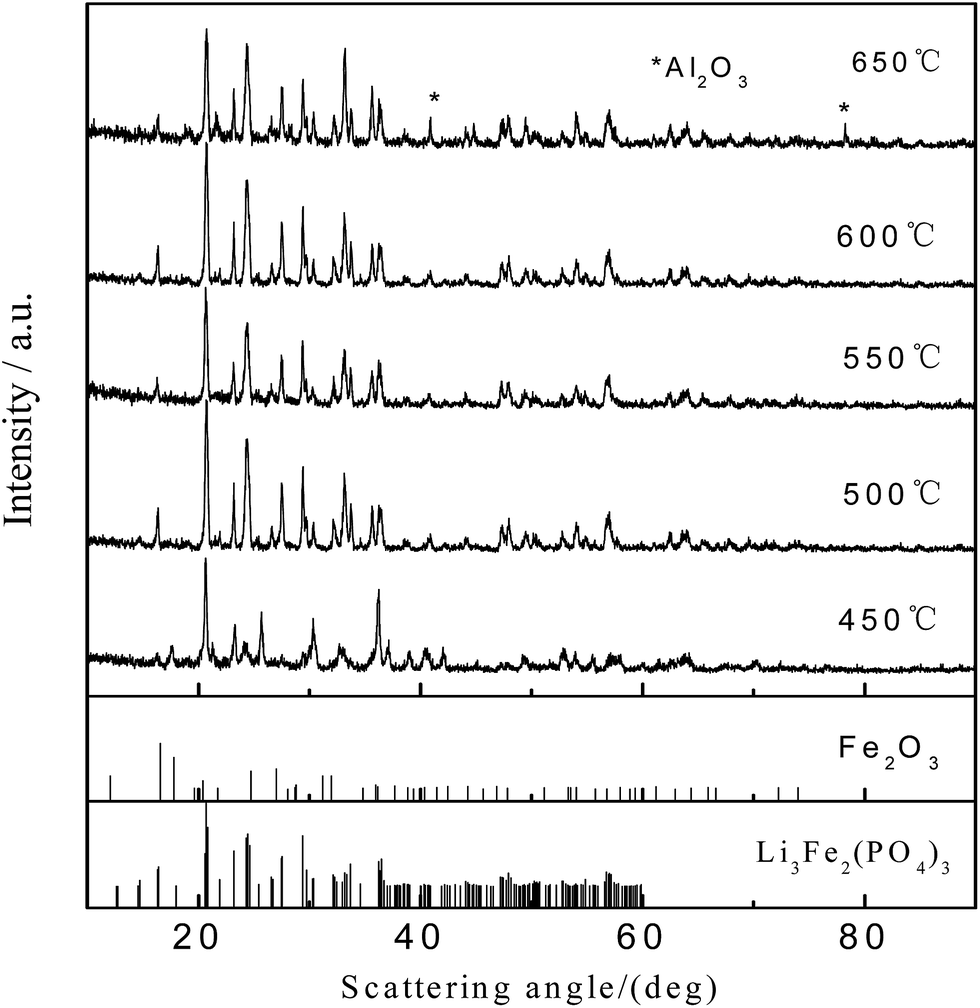

Fig. 2 XRD patterns of the mixed powder after annealing at different temperatures for 1 h.

The XPS spectrum (Fig. 3) of the mixed powder both before and after annealing at 600 °C for 1 h shows the existence of O, C, Li, Fe, and P. The Li curve peaks are at about 60 eV. The XPS Fe 2p3/2 spectra (Fig. 3(b)) of the mixed powder before and after annealing show binding energies of 709.7 and 711.3 eV, which correspond to valence numbers of +2 and +3, respectively.¹⁹ Therefore it can be assumed that Fe has been completely oxidized to Fe³⁺. Thus, it can concluded that the Fe²⁺ ion within LiFePO₄ can be completely oxidized to Fe³⁺ via annealing at 600 °C for 1 h, which is consistent with analysis of the XRD patterns before and after heat treatment.

Fig. 3 XPS spectra of the mixed powder before and after annealing at 600 °C for 1 h.

Optimization of the acid leaching process

In order to optimize the conditions for acid leaching of the mixed powder, the effects of sulfuric acid concentration, liquid to solid ratio, reaction time, and reaction temperature on the dissolution efficiency were investigated systematically.

With a temperature of 60 °C, a liquid to solid ratio of 10 : 1, and a reaction time of 4 h, the concentration of sulfuric acid was varied from 0.5 mol L⁻¹ to 5 mol L⁻¹. As shown in Fig. 4(a), with the increase in concentration of sulfuric acid from 0.5 to 2.5 mol L⁻¹, the leaching efficiency of Li and Fe increased from 25% to 97.2% and from 46% to 98.5%, respectively, while further increasing the concentration of sulfuric acid above 2.5 mol L⁻¹ shows a negligible effect on the leaching rate. Therefore, the best concentration of sulfuric acid for leaching is 2.5 mol L⁻¹.

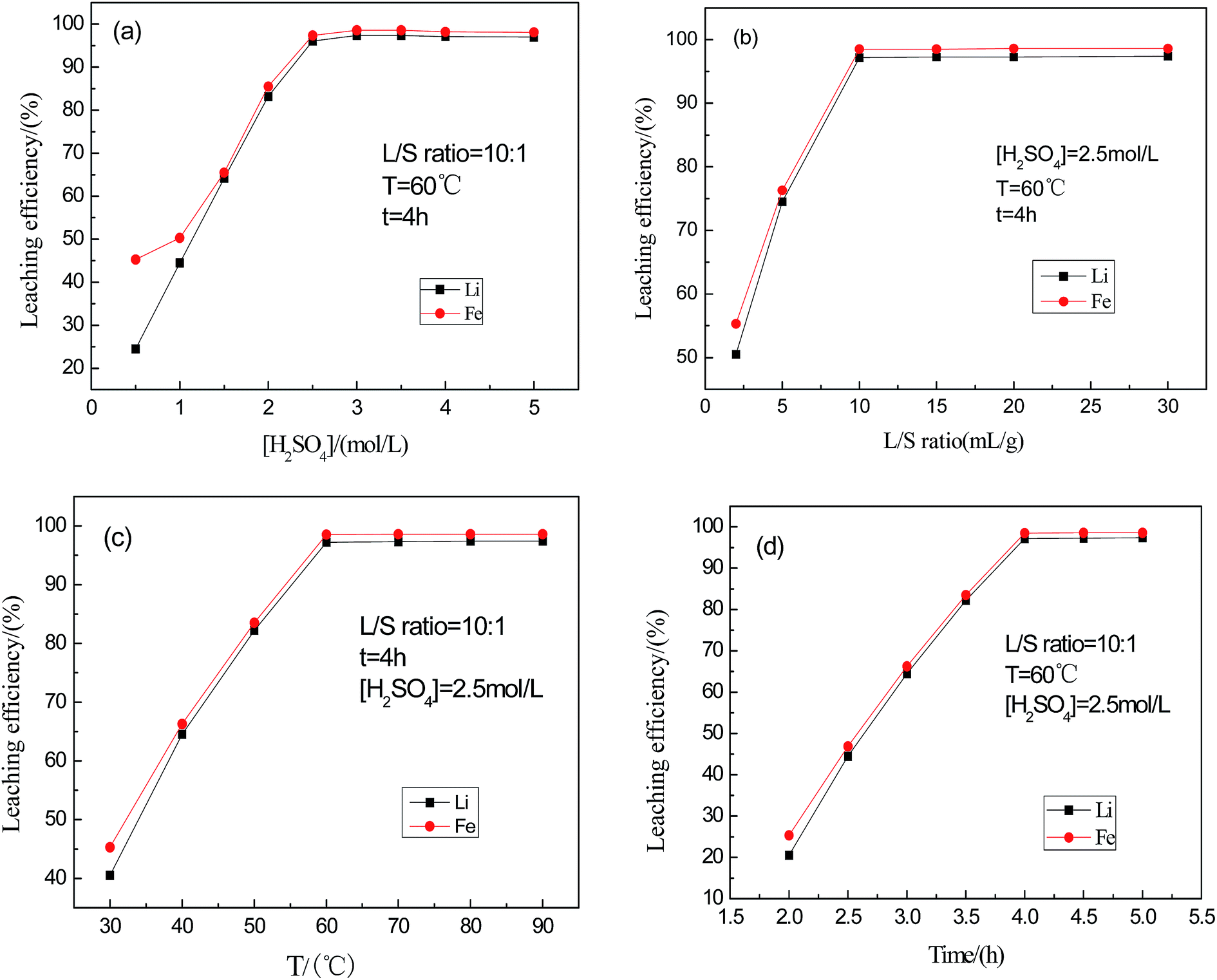

Fig. 4 Effect of sulfuric acid concentration, L/S ratio, temperature and time on the leaching of Fe and Li from the battery powder.

Fig. 4(b) shows the effect of the L/S ratio on the leaching rate when the concentration of sulfuric acid is 2.5 mol L⁻¹, the temperature is 60 °C, and the reaction time is 4 h. When the ratio of L/S reached 10, the leaching rates of Fe and Li were 97.4% and 96.1%, respectively. Since the leaching rate shows little increase with further increases of L/S, the optimal L/S (mL g⁻¹) ratio was determined to be 10.

Fig. 4(c) shows the effect of temperature on the leaching rate when the concentration of sulfuric acid is 2.5 mol L⁻¹, the L/S ratio is 10 : 1, and the reaction time is 4 h. When the temperature is lower than 60 °C, the leaching rate increases when the reaction temperature increases, while when the temperature reaches above 60 °C the leaching rate shows little change as the temperature increases. Therefore, the optimum leaching temperature is 60 °C.

Fig. 4(d) shows the effect of the reaction time on the leaching rate when the concentration of sulfuric acid is 2.5 mol L⁻¹, the temperature is 60 °C, and the L/S ratio is 10 : 1. Similar to previous discussions, the optimal extraction time was determined to be 4 h.

It can be concluded that the optimal leaching efficiency (i.e. 97% and 98% for Li and Fe, respectively) can be achieved when the sulfuric acid concentration, L/S, temperature and time are 2.5 mol L⁻¹, 10 mL g⁻¹, 60 °C and 4 h, respectively.

Compositional and structural analysis of the “FePO₄”

The pH value is known to be the key factor that controls the precipitation of FePO₄, and thus will be investigated in the following part. When the pH > 1, the solution begins to precipitate. As shown in Fig. 5, the Fe/P molar ratio (analyzed by ICP-AES) in the precipitation increases gradually accompanied with the increase of pH value. When the pH value was adjusted to between 1.9 and 2.1, the Fe/P molar ratio was analyzed as 0.961–1.008, which is consistent with the molar ratio in FePO₄. Therefore, the best pH value for “FePO₄” precipitation is tentatively set to be 2 ± 0.5 in the control experiment.

Fig. 5 Effect of pH value on the Fe/P molar ratio of recovered “FePO₄”.

Table 2 shows the products analyzed by detailed ICP-AES analysis of the precipitate obtained under a pH value of 2. The results show that the Fe/P molar ratio of the precipitate is 1.01, and the overall mass fraction of metal impurities in the products is less than 0.005%, and the sulfur content is less than 0.018%, which is in the standard range of values, indicating the high quality of the recovered “FePO₄”.

Table 2 Quality analysis of the recovered FePO₄ in the control experiment

	Fe (wt%)	Mg (wt%)	Na (wt%)	K (wt%)	Cu (wt%)	Al (wt%)	Pb (wt%)	S (wt%)	P (wt%)	P/Fe
Standard values^20	28–30	≤0.005	≤0.005	≤0.005	≤0.001	≤0.005	≤0.0015	≤0.05	15.5–17.0	0.99–1.03
Measured values	29.5	0.003	0.0035	0.0025	0.0006	0.0031	0.0010	0.018	16.6	1.01

---

Fig. 6 shows the XRD patterns of the products recovered from the solution with/without surfactants. Despite the addition of surfactants (including the one recovered without adding surfactant), the products show an amorphous nature, which is consistent with the literature when the pH value of the solution was adjusted to 2.²¹ The XRD result has hindered us in determining what the product is. Therefore, to clarify this point, infrared spectroscopy and DSC-TG of the as-precipitated products, and XRD data of the annealed products was collected and analyzed.

Fig. 6 XRD patterns of the recovered FePO₄ xH₂O with and without surfactants.

Infrared spectroscopy is a method to identify molecular structure and compounds according to the relative vibration and rotation of the atoms and molecules.²² Fig. 7 shows the infrared spectrum of the recycled FePO₄. The absorption peaks at 3389 and 1635 cm⁻¹ correspond to the stretching vibration and bending vibration of O–H in the H₂O molecules, which indicated the existence of crystallized water in the recovered sample. Meanwhile, the absorption peaks at 1050 and 600 cm⁻¹ correspond to telescopic vibration and symmetric bending vibration of P–O in PO₄³⁻, respectively. The results indicate that the recovered sample may be FePO₄·xH₂O.

Fig. 7 IR spectra of recovered FePO₄ xH₂O with and without surfactants.

Fig. 8 shows the DSC-TG curve of FePO₄·xH₂O. From the DSC curve we can see that there is an obvious endothermic peak at about 152.45 °C. The TG curve showed that there are obvious changes in this range of temperature between the slope curves of 90–200 °C, indicating that the loss of crystal water changes the mass percentage. From room temperature to 300 °C, the TG curve measured a weight loss of about 19.24%. Complimented by the Fe content from ICP (i.e. 29.9 wt%), the recovered sample can be identified as FePO₄·2H₂O. There appears to be an exothermic peak at 670.36 °C in the DSC curve, which may indicate a phase transition in the material (e.g. from amorphous to an alpha quartz structure).

Fig. 8 TG-DSC curves of the recycled FePO₄·xH₂O.

To further support the analysis from Fig. 8, XRD patterns of the recycled amorphous FePO₄·2H₂O after being annealed at 700 °C for 5 h were collected and are shown in Fig. 9. The diffraction patterns of the products match well with FePO₄ with an alpha quartz structure (PDF#29-0715); the phase transition is consistent with the expectation from the DSC-TG analysis. The unit cell parameters were calculated to be a = 0.50330 nm, b = 0.50330 nm, and c = 1.12470 nm, via a least squares fit. The complementary results presented above clearly prove that the precipitated products are amorphous FePO₄·2H₂O.

Fig. 9 XRD spectra of FePO₄ after heat treatment: (A) without surfactant, (B) with PEG-6000, (C) with CTAB, (D) with SDS.

The SEM images of the as-precipitated FePO₄·2H₂O are shown in Fig. 10. A severe degree of agglomeration occurred when there was no surfactant added during the phase precipitation process. Image C shows that CTAB is the surfactant for large particle size but agglomeration also exists. Image (D) shows when SDS was used as the surfactant, the precipitates tends to reunion although the primary particle size is small. Image (B) shows that with PEG-6000 as the surfactant, the particle size is smaller and distribution is more uniform.

Fig. 10 SEM images of the recovery of FePO₄·2H₂O: (A) without surfactant, (B) PEG-6000, (C) CTAB, and (D) SDS.

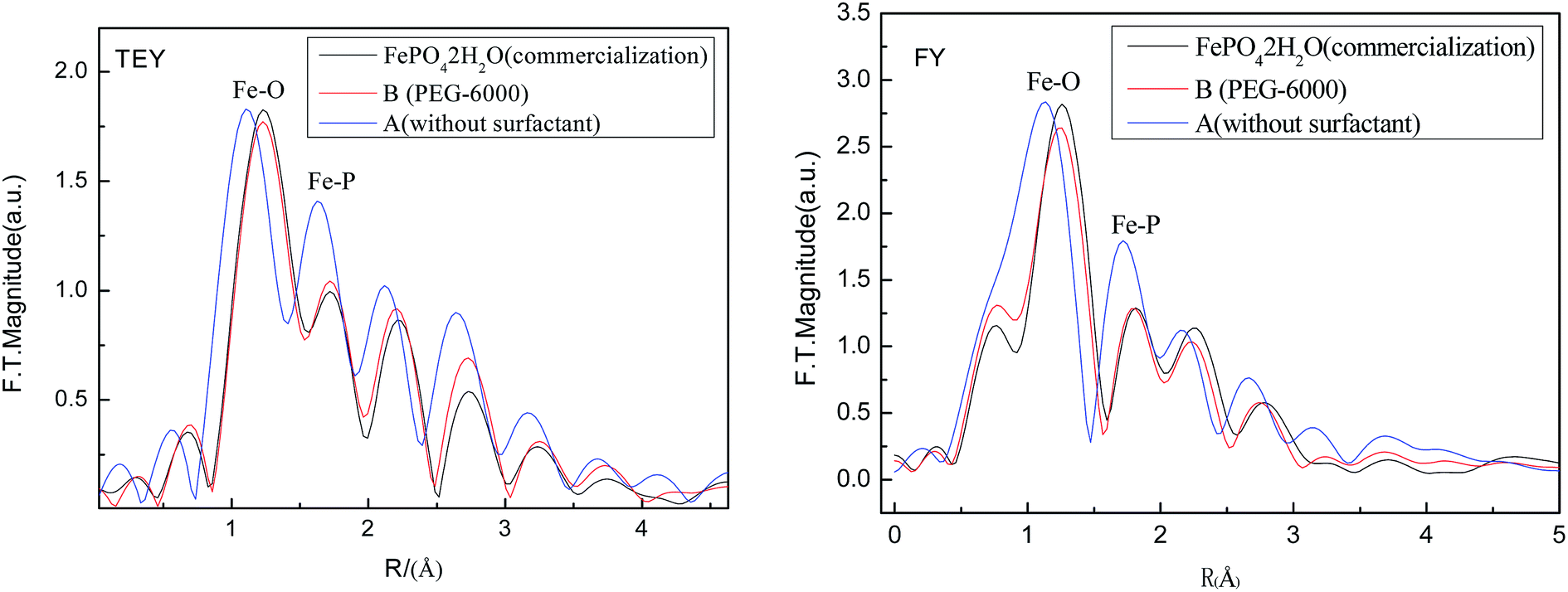

Fig. 11 shows the magnitudes of the Fourier transforms of the k²-weighted EXAFS spectra of Fe K-edge in both TEY and FY mode. While TEY shows information about the surface of the materials (i.e. 5–10 nm), FY depicts structural information of the bulk material (60 nm under the surface).²³ Clearly, when PEG-6000 surfactant was adding during phase precipitation, the recovered FePO₄·2H₂O is much more similar to the commercial one compared to the one precipitated without adding surfactant. This indicates the higher quality of the recovered FePO₄ when PEG-6000 surfactant was added.

Fig. 11 EXAFS analysis of the FePO₄·2H₂O material.

Fig. 12 illustrates the Fe K-edge XANES spectra within FePO₄·2H₂O. EXAFS curves of the recovered sample show similar characteristics to that of the commercial one. When PEG-6000 surfactant is added during phase precipitation, the recovered sample and the commercial FePO₄·2H₂O share almost the same spectrum.

Fig. 12 K-edge XANES spectrum for Fe in the FePO₄·2H₂O material. (a) is an enlargement of the first rectangle; (b) is the enlargement of the second rectangle.

The locations on the graph of XANES edge absorption and oxidation state are closely related. This relationship can be used to determine the valence number of the elements because an increase in oxidation state corresponds to a movement of higher energy in absorption. From Fig. 12, the absorption graph location of FePO₄·2H₂O and B are the same. This means that the iron element has the same valence number.

The recovered Li₂CO₃

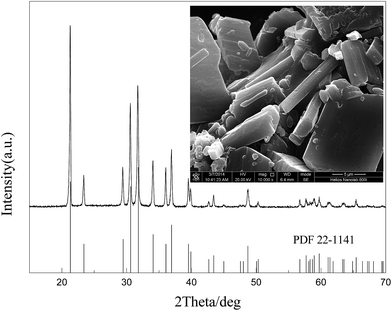

Fig. 13 clearly shows that the recovered Li₂CO₃ is pure and highly crystalline, as indicated by the well matched patterns to PDF#22-1141 and sharp diffraction peaks, respectively. The particle size ranges from several microns to about twenty microns.

Fig. 13 XRD pattern and SEM images of the recovered Li₂CO_3.

Synthesis of LiFePO₄/C via carbon thermal reduction using the recycled products as raw materials

The recycled FePO₄·2H₂O (A, B, C, D) and Li₂CO₃ are used as the raw material to synthesize LiFePO₄/C. The obtained LiFePO₄/C products were named A1, B1, C1, and D1, which correspond to using FePO₄·2H₂O precipitated under different conditions (i.e. A, B, C, and D). As shown in Fig. 14, all the synthesized samples can be indexed as LiFePO₄ with olivine structure (PDF# 40-1499). We cannot find the diffraction peaks of carbon in the XRD diagram, which may be associated with low carbon content and/or its amorphous nature.

Fig. 14 XRD spectra of the synthesized LiFePO₄/C.

Fig. 15 shows that the spectra of all the synthesized samples of LiFePO₄/C. These spectra are mainly distributed in two spectral bands, namely the strong absorption of 1120–940 cm⁻¹ and that of 650–540 cm⁻¹. We can see from Fig. 15 that the group of the PO₂ at 1140 cm⁻¹ is the stretching vibration and those at 1096 cm⁻¹ and 1054 cm⁻¹ are the PO anti-symmetric stretching vibration. Wavenumbers 968 cm⁻¹ and 638 cm⁻¹ are symmetric stretching vibrations in LiFePO₄ PO. 577 cm⁻¹ is the anti-symmetric bending vibration in PO₂, and 551 cm⁻¹ and 473 cm⁻¹ are symmetric bending vibrations in PO. Wavenumber 505 cm⁻¹ is the swing vibration peak in PO₂.²⁴ The existing carbon particles do not affect the spectral structure of LiFePO₄/C.

Fig. 15 IR spectra of the synthesized LiFePO₄/C.

As can be seen from Fig. 16, the morphology of the synthesized LiFePO₄/C can be affected by the different raw materials of FePO₄·2H₂O (i.e. A, B, C, and D), which are recovered with/without different surfactants. The synthesized LiFePO₄/C using FePO₄ B has the smallest particle sizes when compared to LiFePO₄/C synthesized using other FePO₄ samples, which is believed to be beneficial for the electrochemical performance due to the shorter diffusion length of Li⁺.

Fig. 16 SEM images of the synthesized FePO₄/C.

Fig. 17 compares the EXAFS graph of LiFePO₄/C resynthesized with the addition of surfactant (B1) and commercial LiFePO₄/C. From the perspective of fingerprint analysis, the oscillation peaks and intensity of B1 and LiFePO₄/C are very similar.

Fig. 17 EXAFS analysis of the LiFePO₄ material.

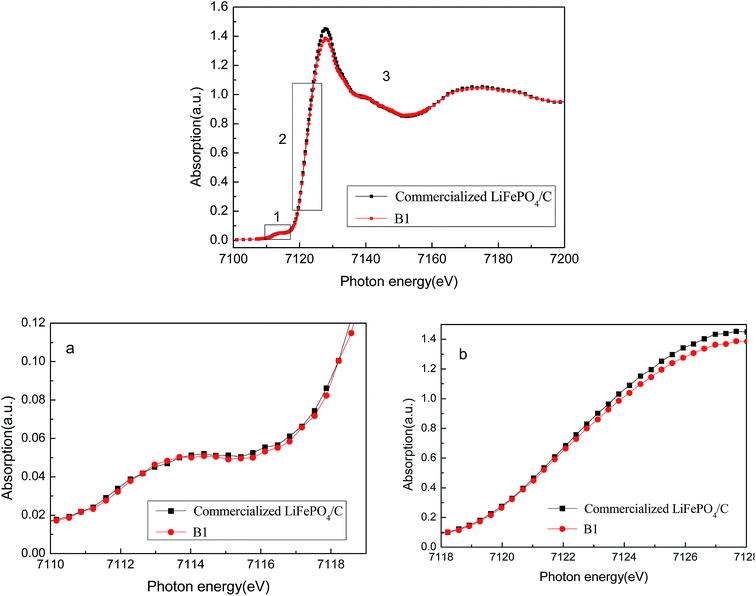

Fig. 18 shows that the samples have a weak inclination. This means that the 3d orbital of Fe and the 3p orbital or the p orbital of oxygen form a hybrid.²⁵ Thus, Fe atoms are from the distorted FeO₆ octahedron. The XANES absorption position and oxidation state are closely related. This information can be used to determine the valence number of elements. As the oxidation state increases, the absorption energy will also increase. From Fig. 18, the absorption position of LiFePO₄/C and B1 are the same. This means that the Fe element has the same valence number. XANES can offer qualitative information regarding the three-dimensional structures around the atomic absorption. Because XANES can only detect absorption to 200 eV, there is a better signal-to-noise ratio. Within the appropriate parameters of signal-to-noise ratio, as shown in Fig. 18, the LiFePO₄/C XANES data was consistent. This indicates that the Fe within the sample has the same structure, which all exist in the form of LiFePO₄/C.

Fig. 18 The K-edge XANES spectrum for Fe in the LiFePO₄/C material. ((a) is an enlargement of the first rectangle from the figure; (b) is the enlargement of the second rectangle from the figure.)

The electrochemical performance test of LiFePO₄/C

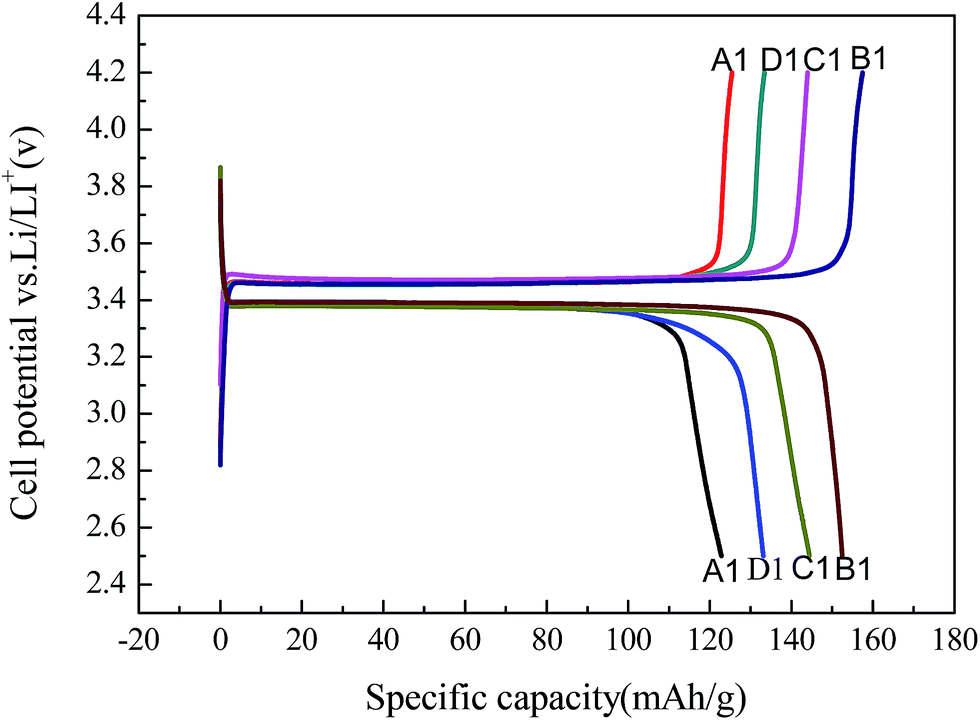

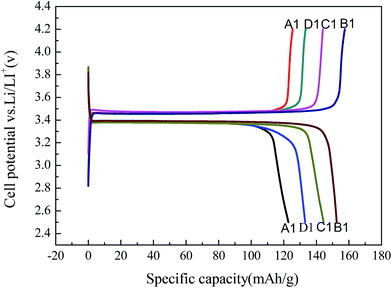

Fig. 19 shows the first charge/discharge curve of LiFePO₄/C (A1–D1) synthesized from the recycled FePO₄ precursors (A–D).

Fig. 19 Charge/discharge curves of LiFePO₄/C synthesized using different FePO₄·2H₂O samples: (A1) without surfactant, (B1) PEG-6000, (C1) CTAB, and (D1) SDS.

The first charge/discharge capacities of B1 are 155.4 mA h g⁻¹ and 153.3 mA h g⁻¹, respectively, which corresponds to an initial coulombic efficiency of 98.6%. These results are comparable to the performance of LiFePO₄ prepared via a carbon thermal reduction method using FePO₄ 2H₂O as the iron source from the previous literature.²⁶ With SDS and CTAB as the surfactants, the first discharge capacities are 147.5 mA h g⁻¹ and 133.4 mA h g⁻¹, respectively. However, without a surfactant the first discharge capacity was 122.8 mA h g⁻¹. These electrochemical results are consistent with the particle size analysis of the samples (shown in Fig. 16), that is, a smaller particle size leads to better Li⁺ diffusion kinetics, and thus a higher discharge capacity. To demonstrate the high quality of the regenerated LiFePO₄/C, B1 was selected as a example to compare with the commercial LiFePO₄/C in the following parts.

Fig. 20(a) presents the charge/discharge curve of B1 under different current densities. The discharge capacity under rates of 0.2, 0.5, 1, 2, and 5C are 152.2 mA h g⁻¹, 150.1 mA h g⁻¹, 137.8 mA h g⁻¹, 120.4 mA h g⁻¹ and 99.8 mA h g⁻¹, respectively. Fig. 20(b) presents the charge/discharge curve of a commercial sample under different current densities. The discharge capacity under rates of 0.2, 0.5, 1, 2, and 5C are 156.8 mA h g⁻¹, 151.3 mA h g⁻¹, 138.2 mA h g⁻¹, 121.5 mA h g⁻¹ and 100.6 mA h g⁻¹, respectively.

Fig. 20 The charge–discharge curves of (a) the regenerated LiFePO₄/C (B1) sample and (b) the commercial sample, between 2.5 and 4.2 V at rates of 0.2, 0.5, 1, 2 and 5C.

The capacity evolution during the whole rate test is shown in Fig. 21. It is observed that at 0.1C, 0.2C, and 0.5C charge/discharge rates, there is no capacity decay among the 20 cycles, while at 5C charge/discharge rate, the rate of capacity retention over the 20 cycles was 91.6% and 92.3%, respectively. One reason for this is the significant polarization effects. A larger current electrode also distorts the host structure and limits the extraction and insertion of Li⁺. Another noteworthy point is that when the current density was reset to 0.1C, the capacity was almost recovered, indicating the good electrochemical reversibility of the material.

Fig. 21 Rate capability comparison of the regenerated LiFePO₄/C (B1) sample and the commercial sample from the pure compound cycled between 2.5 and 4.2 V.

Both the capacity and cyclability of the regenerated sample are comparable to the commercial sample, while the cost is competitive with the market price for the same chemicals prepared from primary resources.

Conclusion

This paper presents a relatively simple recovery process for FePO₄ and Li₂CO₃ from waste lithium iron phosphate batteries and a preparation process for lithium iron phosphate battery cathode materials from the recycled material, as shown in Fig. 22. This process includes the following steps: (1) after crushing the discharged battery, recycle the membrane, battery shell and copper content, (2) heat treatment of the anode of 600 °C was conducted to remove the coating binder, surface active substances, and carbon. This also oxidizes Fe²⁺ to Fe³⁺ and aluminum foil is recycled using 0.5 mm sieve oscillation sieving, and the powders are mixed. (3) The mixed powder was then dissolved in 2.5 mol L⁻¹ sulfuric acid, with the L/S equal to 10, a temperature of 60 °C, and a time of 4 h. As a result, 98% of the iron and 97% of the lithium are leached from the mixed powder. (4) With PEG-6000 as the surfactant, the pH value was adjusted to 2, causing precipitation of FePO₄, and (5) the filtrate is concentrated and heated to boiling point. This results in the precipitation of Na₂CO₃ and Li₂CO₃. (6) The recycled FePO₄ is used as the iron source and phosphorus source. Li₂CO₃ is used as the lithium source, and sucrose was used as the carbon source. The molar ratio of lithium, iron and phosphorus was set at 1.05 : 1 : 1. Then, the ingredients were ball-milled, dried, and the resulting mixture was obtained. (7) The mixture was then pre-sintered under argon, at a temperature of 350 °C, and calcined at a temperature of 750 °C for 10 h to obtain the LiFePO₄/C cathode material.

Fig. 22 Proposed flow-sheet for the spent LIB recycling process.

Under the optimized conditions, the recovered FePO₄ and Li₂CO₃ crystals are high purity products, successfully reaching the standard of battery level.

The battery using regenerated LiFePO₄/C as cathode was then subjected to an electrochemical performance test, and its resulting electrochemical performance was superb.
