Cu-catalyzed C(sp2)–N-bond coupling of boronic acids and cyclic imides

Linn Neerbye Berntsen , Thomas Nordbø Solvi , Kristian Sørnes , David S. Wragg and Alexander H. Sandtorv *
Department of Chemistry, University of Oslo, Oslo N-0315, Norway. E-mail: a.h.sandtorv@kjemi.uio.no

Received 9th August 2021 , Accepted 19th October 2021

First published on 19th October 2021


Abstract

A general Cu-catalyzed strategy for coupling cyclic imides and alkenylboronic acids by forming C(sp2)N-bonds is reported. The method enables the practical and mild preparation of (E)-enimides. A large range of cyclic imides are allowed, and di- and tri-substituted alkenylboronic acids can be used. Full retention was observed in the configuration of the alkene double bond in the coupled products. The method is also applicable for preparing N-arylimides, using arylboronic acids as coupling partners. The usefulness of this strategy is exemplified by the convenient derivatization of the chemotherapy medication 5-flurouracil, the nucleoside uridine and the anti-epileptic drug phenytoin.


Enimides (Fig. 1) are functional groups found in N-sulfonylurea isosteres,1 biologically active structures,2,3 functional materials,4 and natural products such as the parazoanthines A–E.5 They are also building blocks in synthesis of complex structures,6 polycyclic architecture,7 and β-2-amino acid derivatives.8
image file: d1cc04356k-f1.tif

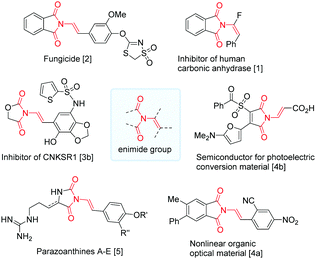

Fig. 1 Some examples of cyclic enimides.

The growing interest in the enimide moiety has catalyzed a recent spurt of attention for methodology appropriate for its construction (Fig. 2).9 In reactions where the enimidic C(sp2)–N-bond is formed, only a few strategies are known. The main access point is the Ru-catalyzed hydroimidation strategy, wherein imides and alkynes are condensed (Fig. 2, strategy 1).10 Drawbacks include the use of an expensive Ru-catalysts, and the structural limitations imposed. A second approach involves the Cu-mediated coupling of imides and vinylic halides (Fig. 2, strategy 2).11 This strategy is only applicable to phthalimide, and therefore specialized. Other examples are substrate specific.12,13


image file: d1cc04356k-f2.tif
Fig. 2 Prior developments in the area of C(sp2)–N-bond formation.

The Chan–Lam14 inspired Cu-catalyzed process using alkenylic boron coupling partners, is an attractive route to enimides for several reasons: (i) the availability of alkenylboronic reagents15 provide synthetic flexibility, (ii) the use of an inexpensive Cu-catalyst is attractive, and (iii) a potentially larger structural diversity of enimides is conceivable, compared to Ru-methods currently used. Thus far, only highly substrate dependent examples are known,16 but a general method has not been reported before now.

Our endeavors were initiated as shown in Table 1. Due to our ongoing interest17 in the pharmaceutically relevant hydantoin framework,18 hydantoin 1a was used as a model substrate, with styrylboronic acid 2a as reagent. The optimal conditions (entry #1) involved the use of excess reagent 2a (3.0 equiv.) with copper(II)triflate and pyridine in ethanol at 25 °C. Less expensive Cu-salts may also be effective (#2 and 3). The process was also effective using 2.0 equiv. of the reagent (entry #4), so less reagent can be employed if a slight reduction in yield is acceptable. Our investigations uncovered that the process was inefficient in aprotic solvents such as DMF and toluene (entries #6 and 7), and that the use of base/ligand was of paramount importance. Surprisingly, triethylamine (entry #8) performed poorly compared to pyridine. Strong, non-nucleophilic bases (entries #9 and 11) were also ineffective. The complete optimization study can be found in the ESI.

Table 1 Reaction optimization

image file: d1cc04356k-u1.tif

# Catalyst 2a (equiv.) Additive/base (equiv.) Solvent Time (h) Yielda (%)
Conditions: N-Methylhydantoin 1a (0.20 mmol, 1.0 equiv.), boronic acid 2a (as specified), catalyst (0.010 mmol, 0.050 equiv.), additive/base (as specified) in solvent (as specified, 1 mL).a 1H NMR yield using mesitylene as internal standard.b Isolated yield.c The (hemi)pentahydrate salt was used.d Reaction performed at 40 °C.
1 Cu(OTf)2 3.0 Py (1.0) EtOH 9/15 98/97b
2 Cu(NO3)2c 3.0 Py (1.0) EtOH 24 96
3 CuCl 3.0 Py (1.0) EtOH 24 95
4 Cu(OTf)2 2.0 Py (1.0) EtOH 24 94
5d Cu(OTf)2 1.0 Py (1.0) EtOH 24 71
6 Cu(OTf)2 3.0 Py (1.0) DMF 24 26
7 Cu(OTf)2 3.0 Py (1.0) PhMe 24 0
8 Cu(OTf)2 3.0 Et3N (1.0) EtOH 24 8
9 Cu(OTf)2 3.0 t-BuOK (1.0) EtOH 18 22
10 3.0 t-BuOK (2.0) EtOH 24 0
11 Cu(OTf)2 3.0 LiHMDS (1.0) EtOH 18 3


We next investigated the scope and limitations of the method, Scheme 1. Complete retention of the configuration of the alkene double bond was observed in all cases. The anti-epileptic drug phenytoin 1c was conveniently derivatized in excellent yield. Hydantoin 1e was also smoothly alkenylated. The aldol adduct 1h was smoothly N-3-alkenylated and not O-alkenylated, in excellent yield. We typically observed N-1,N-3-bisalkenylated hydantoins as byproducts in these reactions, such as the disubstituted hydantoin 3j′. Phtalimide 3m and glutarimide 3p were obtained in excellent yields. Uracils are privileged structures in drug discovery.19 Uracil 1q, the chemotherapy medication 5-fluorouracil 1r and the nucleoside uridine 1s were bis-alkenylated to 3q, 3r and 3s, respectively. These results show that the method can conjugate drugs and nucleosides and provide uracils cumbersome to access.20 Lastly, 2,4-thiazolidinedione 1n was unreactive, but the ferrocenyl derivative 3f was obtained in excellent yield.


image file: d1cc04356k-s1.tif

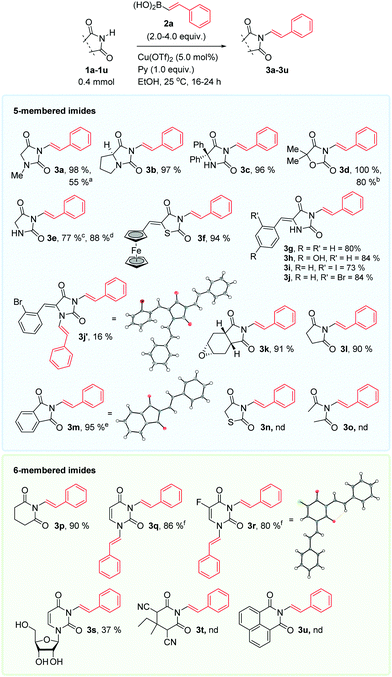

Scheme 1 Imide scope of the reaction. Conditions: imide 1a–1u (0.40 mmol, 1.0 equiv.), boronic acid 2a (1.2 mmol, 3.0 equiv.), Cu(OTf)2 (0.020 mmol, 0.050 equiv.), pyridine (0.40 mmol, 1.0 equiv.) and EtOH (2 mL). a[thin space (1/6-em)](E)-Styryl-9-BBN was used as coupling partner. b[thin space (1/6-em)]CuCl (5.0 mol%) was used as catalyst. c[thin space (1/6-em)]2.0 equiv. boronic acid 2a was used. d[thin space (1/6-em)]Reaction performed at 1.5 mmol scale. e[thin space (1/6-em)]Reaction performed at 0.40 and 1.0 mmol scale. f[thin space (1/6-em)]4.0 equiv. boronic acid 2a was used.

The method is applicable to cyclic imides, and not linear imides, as imide 1o failed to react under our conditions. As suggested by Wasielewski et al.21 the carbonyl groups can adopt a parallel, coplanar conformation22 and may chelate to Cu(II)-ions. The chelation is likely detrimental for the coupling reaction.

A selection of alkenylboronic acids 2b–2f were next investigated with some imides, Scheme 2. The performance of the coupling reaction varied. The 1-pentenyl reagent 2b transferred in good to moderate yields, depending on the imide substrate. The cyclopentenyl coupling partner 2c was challenging, likely imposing a high steric demand in relevant Cu-species in the catalytic cycle. The coupled product 4g was obtained in good yield, but the six membered product 4f was not detected. The 1,1,2-trisubstituted alkenes obtained, are not currently accessible employing the Ru-catalyzed methods mentioned in the introduction.


image file: d1cc04356k-s2.tif

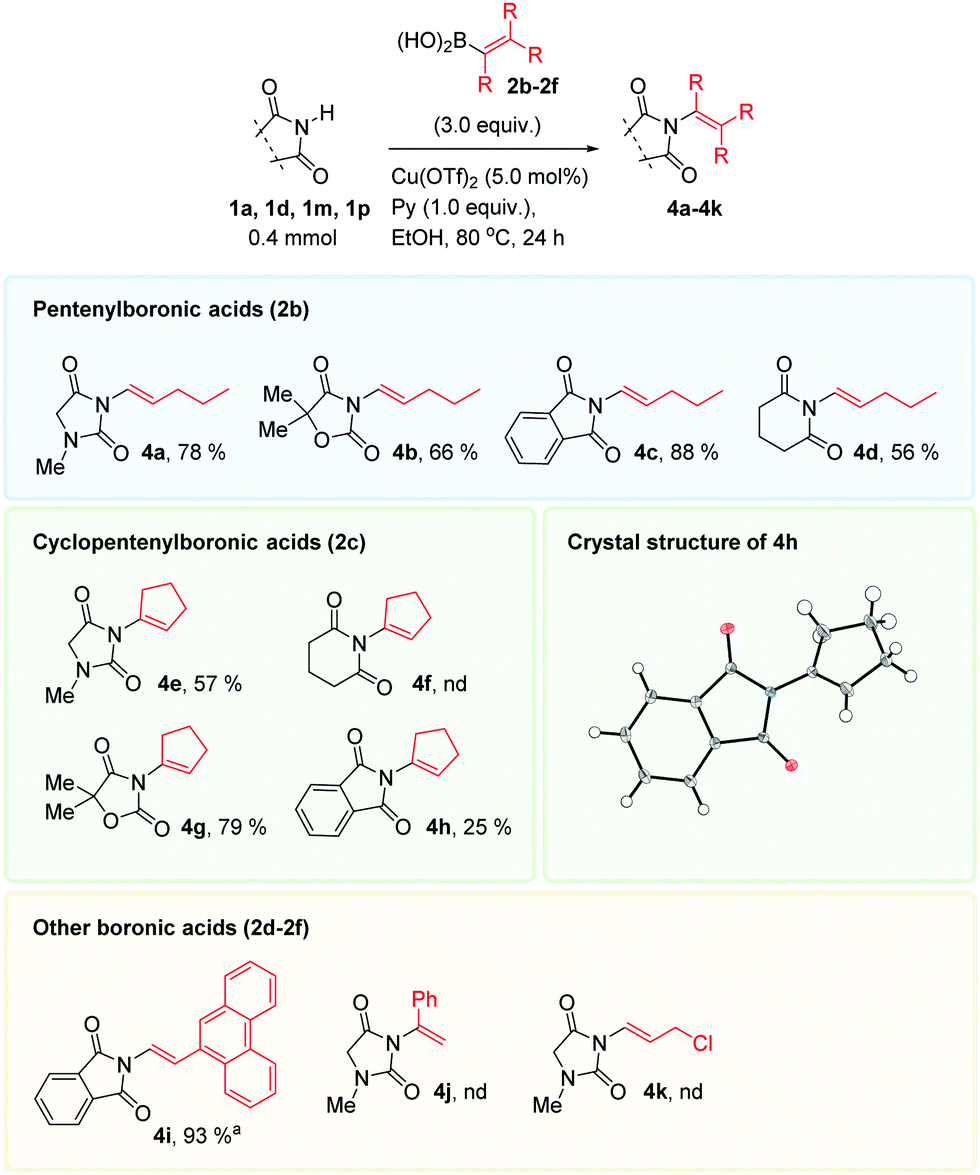

Scheme 2 Alkenylboronic acid scope. Conditions: imide 1a, 1d, 1m or 1p (0.40 mmol, 1.0 equiv.), boronic acid 2b–2f (1.2 mmol, 3.0 equiv.), Cu(OTf)2 (0.020 mmol, 0.050 equiv.), pyridine (0.40 mmol, 1.0 equiv.) and EtOH (2 mL). a[thin space (1/6-em)]Reaction performed at 0.18 mmol scale at 25 °C.

Our earlier work17 spurred an interest in employing arylboronic acids for N-arylation. Although the Cu-catalyzed or -mediated arylation of imides has been documented earlier,23 the use of such conditions is sparingly described24 using the pharmaceutically relevant hydantoin, 2,4-oxazolidinedione and related frameworks as substrates.

The method was high yielding and tolerable to diverse aryl groups, Scheme 3. The reaction performance varied if the arylboronic acid (method 1), or the corresponding anhydride (triarylboroxine, method 2) was employed. It is not possible to draw a conclusion as to which method operates best with which substrate. The pyridine likely has several key functions, such as being a Cu-ligand, acting as a base, and stabilizing boroxines in situ.25


image file: d1cc04356k-s3.tif

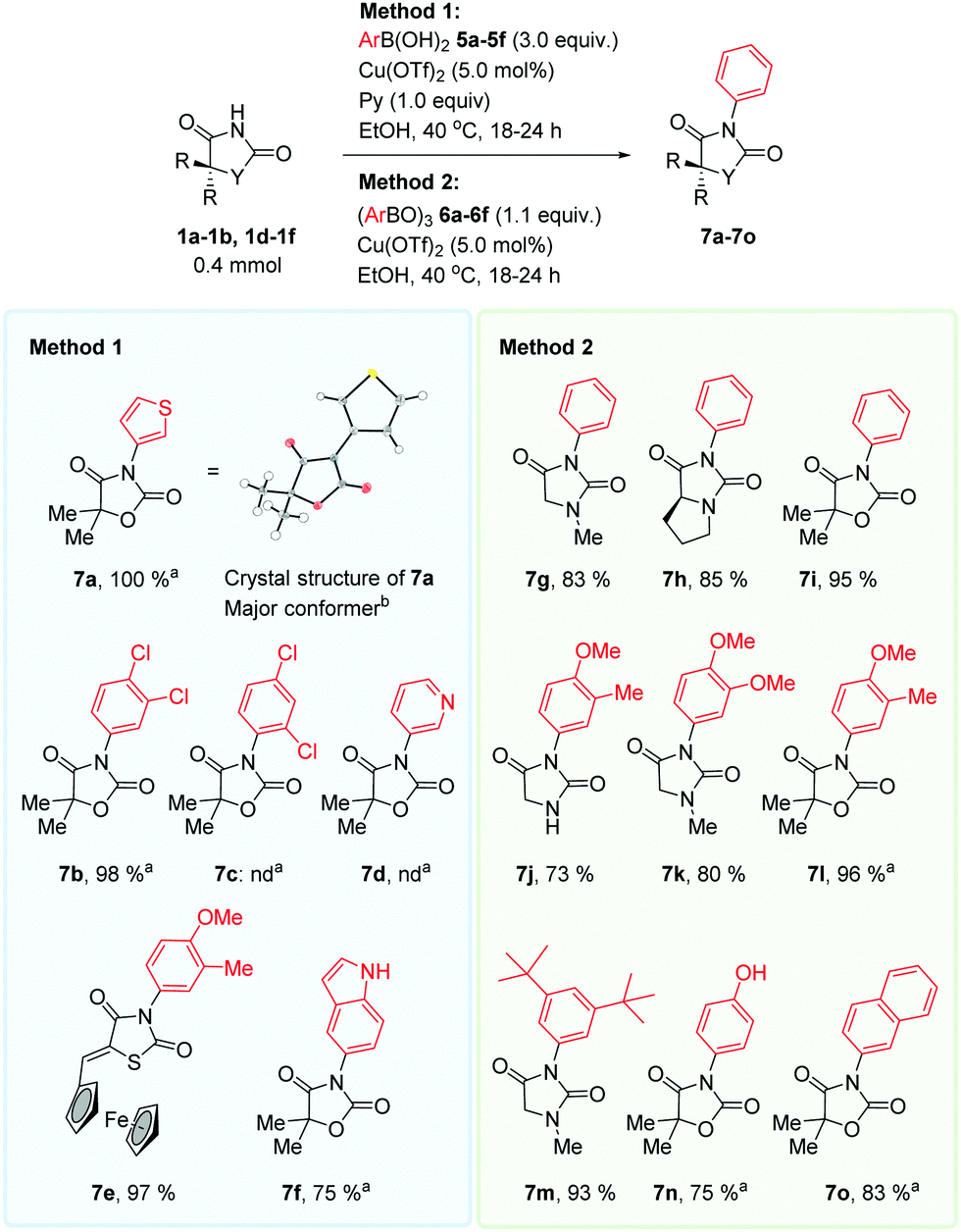

Scheme 3 Scope of N-arylation. Method 1: hydantoin 1a, b or 1d–1f (0.40 mmol, 1.0 equiv.), boronic acid 5a–5f (1.2 mmol, 3.0 equiv.), Cu(OTf)2 (0.020 mmol, 0.050 equiv.), pyridine (0.020 mmol, 1.0 equiv.) in EtOH (2 mL). Method 2: hydantoin 1a, b or 1d–1f (0.40 mmol, 1.0 equiv.), boroxine 6a–6f (0.44 mmol, 1.1 equiv.), Cu(OTf)2 (0.020 mmol, 0.050 equiv.). a[thin space (1/6-em)]Reaction performed on 0.14 mmol scale. b[thin space (1/6-em)]Only the major conformer of the thiophene-ring is shown.

The method smoothly transferred electron-rich aryl groups to form products such as 7j, 7k, 7l, 7m and 7n in mostly excellent yields. Electron-rich heterocyclic fragments were also efficiently coupled. The thiophenyl product 7a was obtained in excellent yield, and the indolyl product 7f was obtained in good yield. The pyridinyl product 7d was not obtained. The electron-poor 3,4-dichlorophenyl group coupled to afford product 7b in excellent yield, whereas the 2,4-dichlorophenyl group did not couple. We attribute this to the steric hinderance of the chlorine atom in the 2-position of the aryl group. Electronically neutral phenyl and naphthyl groups coupled in good yields.
