Effect of zirconium on the structure and activity of Cu/Ti_1−xZr_xO₂ catalysts for selective catalytic reduction of NO with C₃H₆

Abstract

Mixed oxides of 5 wt% Cu/Ti_1−xZr_xO₂ (x = 0, 0.3, 0.5, 0.7, 1.0) were synthesized using the impregnation–urea coprecipitation method and the catalysts prepared were assessed for the selective catalyst reduction (SCR) of NO with C₃H₆. A significant improvement of the catalytic activity was found over the Zr-doped catalysts with the highest N₂ yield of 67.2% achieved over Cu/Ti_0.7Zr_0.3O₂ at 275 °C. Based on the characterizations using BET, ICP, XRD, H₂-TPR, FTIR of adsorbed pyridine, XPS, and TEM, the enhanced SCR activity of Cu/Ti_0.7Zr_0.3O₂ was attributed to the large surface area, appropriate structural disorder, abundant Lewis acid sites, increase in the amount of active sites, and greater lattice oxygen mobility. The specific physico-chemical properties were caused by the distortion of the crystal structure and the change of the electron charge density (ECD) due to the introduction of Zr species. The generation of mixed Ti–O–Zr bond was beneficial for the adsorption of NO and the oxidation of NO to NO₂, which favored the SCR reaction.

---

1. Introduction

Due to its contributions to the formation of acid rain and photochemical smog, NO_x is regarded as one of the most dangerous atmospheric pollutants during the combustion of fossil fuels in the sectors of industry and transport.^1,2 The increasingly stringent environmental regulations limiting atmospheric NO_x emissions encourage research into the abatement of NO_x in more efficient ways. The selective catalytic reduction of NO_x by hydrocarbons (HC-SCR) under lean burn conditions, which can eliminate NO_x and unburnt hydrocarbons simultaneously, has proven to be an effective and economical technique for the removal of NO_x, especially NO_x originating from the mobile sources.³

As a support or a component, TiO₂ has been employed in a number of commercially important heterogeneous catalyst systems. It has been widely utilized as a support in the SCR of NO. Due to the unique physico-chemical properties and the possible synergistic effects of multicomponent systems, mixed oxides have been researched as novel catalysts with higher specific surface area, mechanical strength and thermal stability, which influence the efficiency and the durability of catalysts.⁴ The mixed oxide catalysts have exhibited potential in the field of catalysis, energy storage, and electronic applications.^5,6 In view of its good redox and acid–base amphoteric properties, ZrO₂ has been extensively used as co-catalyst or additive to inhibit the crystal transformation.⁷ Owing to the different ionic radii of Zr⁴⁺ (0.87 Å) and Ti⁴⁺ (0.64 Å), the incorporation of Zr⁴⁺ into TiO₂ lattice leads to the distortion of lattice and the formation of defects, which strongly impact the physical and redox properties of materials, and therefore benefits the process of NO reduction.^8,9 In addition, the ZrO₂ based catalysts have been shown to exhibit excellent sulfur tolerance in C₃H₆-SCR of NO.¹⁰

Among the options available, transition metal oxides are probably the best candidates for SCR of NO_x,^11,12 and the copper-based catalysts have become very attractive from the viewpoint of cost as well as efficacy.¹³ Catalysts that contain highly dispersed CuO on a variety of supports have demonstrated competitive levels of activity, stability, and durability under simulated operating conditions.¹⁴ There is much evidence that isolated copper ions are the active sites for the HC-SCR, and small CuO crystallites can accelerate the direct oxidation of hydrocarbons.^13,15 Moreover, due to the interaction between the supports and the active species, the properties of the supported active components are often different from those of the corresponding bulk metal oxides. Therefore, the catalytic properties of the active copper phase can be greatly influenced by the dispersion of copper species and the nature of the supports.^16,17 Owing to the advantages of mixed oxides mentioned above, many studies have been carried out to develop novel supports by adding additives to promote the dispersion of copper species.¹⁸

Based on the idea of combining the advantages of Cu-based catalysts and TiO₂–ZrO₂ mixed oxides support, we fabricated the Cu/Ti_1−xZr_xO₂ catalysts for C₃H₆-SCR, and the performance of the Cu/Ti_1−xZr_xO₂ catalysts with different Zr/(Ti+Zr) atomic ratios was investigated systematically. The present study focused on the influence of Zr introduction on the structure of the catalysts and the chemical state of copper species. Moreover, important information about the changes caused by the Zr-doping in the crystal structure and the electron charge density were investigated using the density functional theory (DFT) calculations, which offered a better understanding of the structure–activity relationship.

2. Experimental

2.1. Catalysts preparation

Ti_1−xZr_xO₂ with different amounts of Zr substitution (x = 0, 0.3, 0.5, 0.7, 1) were synthesized using a facile urea precipitation method with TiOSO₄·2H₂O and ZrOCl·8H₂O as the precursors and CO(NH₂)₂ as the precipitator. The mixed solution was continuously stirred at 90 °C for 8 h. After filtration and washing with deionized water and ethanol, the obtained precipitant was dried at 100 °C for 12 h and calcined at 500 °C for 4 h under static air conditions.

The Cu/Ti_1−xZr_xO₂ catalysts were prepared using the wet impregnation method with Cu(NO₃)₂ solution. The catalyst was dried at 100 °C for 12 h and calcined at 400 °C for 4 h in air condition. The Cu loading was 5 wt%.

2.2. Catalyst characterization

The Brunauer–Emmett–Teller (BET) surface areas of the catalysts were measured by physical adsorption of N₂ at −196 °C using NOVA 1200 (Quanta Chrome). The sample was degassed at 300 °C for 4 h under vacuum prior to the BET determination.

Inductively coupled plasma-optical emission spectrometry (ICP-OES) was performed to determine the actual copper loading of various catalysts on a Perkin-Elmer Optima 3300 DV apparatus.

The powder X-ray diffraction (XRD) was performed on a Rigaku D/Max 2550VB/PC X-ray powder diffractometer using a Cu-Kα radiation (λ = 0.154056 nm). The diffraction patterns of the samples were recorded at room temperature in the range of 2θ between 10 and 80°.

The temperature-programmed reduction of H₂ (H₂-TPR) was carried out on a Chembet PULSAR TPR/TPD (p/n 02139-1). Prior to the measurement, the sample (50 mg) was pretreated at 250 °C for 1 h in an Ar flow followed by cooling to room temperature. The TPR measurement was carried out from 50 °C to 700 °C at a heating rate of 10 °C min⁻¹ in a stream of 10 vol% H₂/Ar at 50 mL min⁻¹. The H₂ consumption was monitored by a TCD detector.

FTIR of adsorbed pyridine was performed to study the nature of surface acid sites using a VERTEX 70-FTIR spectrometer with a smart collector. Prior to each experiment, the sample (20 mg) was degassed at 250 °C for 1 h under vacuum. Pyridine molecules were adsorbed at room temperature, and the spectra were recorded at different temperatures desired.

X-ray photoelectron spectra (XPS) of the catalysts were recorded on a using Al-Kα radiation (1486.7 eV). Binding energies of Cu 2p, O 1s and Ti 2p were calibrated using C 1s (BE = 285.0 eV) as a standard.

TEM and high-resolution transmission electron microscopy (HR-TEM) measurements were carried out using a JEOL-2100 microscope.

The in situ FTIR experiments of NO adsorption over Cu/Ti_1−xZr_xO₂ catalysts were performed on a VERTEX 70-FTIR. Prior to NO adsorption, the sample (approximately 20 mg) was pretreated at 250 °C in a flow of He for 1 h. The spectra of NO adsorption at different temperatures were selected over various catalysts. The reaction condition was controlled as follows: 1000 ppm NO and He as balance, and the flow rate was 30 mL min⁻¹.

2.3. Catalytic performance test

The C₃H₆-SCR catalytic tests were performed in a fixed-bed quartz tube reactor. Prior to a experiment, a catalyst (200 mg) was pretreated at 250 °C for 1 h in an Ar stream, and the activity measurement was carried out from 150 °C to 350 °C at a heating rate of 10 °C min⁻¹. The reaction conditions were as follows: 1000 ppm NO, 1000 ppm C₃H₆, 2.5 vol% O₂ and He as balance, the total gas flow rate was 100 mL min⁻¹ and the GHSV was 30 000 h⁻¹. The concentrations of N₂ and C₃H₆ in the effluent gas were analyzed on-line using a gas chromatograph. The conversion of NO to N₂ and the C₃H₆ conversion were calculated as follows:

NO conversion to N₂ = 2[N₂]_out/[NO]_in × 100% (1)

C₃H₆ conversion = (1 − [C₃H₆]_out/[C₃H₆]_in) × 100% (2)

2.4. Computational details

The atomic positions of anatase TiO₂ and Ti_0.7Zr_0.3O₂ and the corresponding electronic structure were obtained by DFT calculation from the CASTEP code.¹⁹ The Perdew–Burke–Ernzerh of gradient corrected functional (PBE-GGA) was used.²⁰ The lattice parameters are a = 3.784 Å, c = 9.514 Å for anatase TiO₂, and a = 4.711 Å, b = 5.494 Å, c = 4.996 Å for Ti_0.7Zr_0.3O₂. Two different supercells of TiO₂ (1 × 1 × 1) and Ti_0.7Zr_0.3O₂ (2 × 1 × 1) were considered to test the possible interactions between the Ti and Zr atoms.

3. Results and discussion

3.1. Catalytic test

The N₂ yield and C₃H₆ conversion as a function of temperature over the Cu/Ti_1−xZr_xO₂ catalysts are shown in Fig. 1. The Cu/TiO₂ achieved the maximum N₂ yield of 36.7% at 250 °C, while the activity of ZrO₂ doped catalysts was enhanced significantly, though the temperature corresponding to the maximum N₂ yield shifted to a higher temperature of 275 °C. Among the tested catalysts, Cu/Ti_0.7Zr_0.3O₂ exhibited satisfactory catalytic performance, with a maximum N₂ yield of 67.2%. In addition, the Cu/ZrO₂ catalyst had poor activity based on both N₂ yield and C₃H₆ conversion. It has been suggested that oxygenated hydrocarbon formation is crucial to the production of NCO species, which have been considered as important intermediates for HC-SCR.²¹ The unsatisfactory performance of Cu/ZrO₂ may be attributed to the poor activity of activating C₃H₆. From Fig. 1(b), it can be observed that the Cu/TiO₂ catalyst showed the highest C₃H₆ conversion. Combining the result of N₂ yield, it can be assumed that the Zr-doping inhibited the side reaction of C₃H₆ oxidation, which occurred more readily over Cu/TiO₂, and facilitated the activation of C₃H₆ to react with NO, and therefore promoted the conversion of NO to N₂.

Fig. 1 N₂ yield (a) and C₃H₆ conversion (b) as a function of temperature over different Cu/Ti_1−xZr_xO₂ catalysts. Reaction conditions: [NO] = [C₃H₆] = 1000 ppm, [O₂] = 2.5 vol%, He as balance gas, total gas flow rate 100 mL min⁻¹, GHSV = 30 000 h⁻¹.

3.2. BET measurement and elemental composition analysis

The physical properties of various catalysts including specific surface areas, pore volumes, average pore diameters and the actual copper loading measured by ICP-OES are summarized in Table 1. The physical properties of the suite of catalysts demonstrate that the addition of Zr helped to increase the active surface area of catalyst significantly, which favored the heterogeneous reaction. Cu/Ti_0.7Zr_0.3O₂ showed the largest surface area of 327.2 m² g⁻¹, nearly twice that of Cu/TiO₂. The most dramatic losses of specific surface area and pore volume were observed on the Cu/ZrO₂ sample, and Cu/TiO₂ showed the largest average pore diameter. It has been reported that the large pore volume might be beneficial for the catalytic activity, while a large average pore diameter might be one of the reasons for the declining catalytic activity.²² Thus, the excellent performance of Cu/Ti_0.7Zr_0.3O₂ is considered to be related to the larger surface area and pore volume, and the moderate pore diameter.

Table 1 Physical properties of Cu/Ti_1−xZr_xO₂ serial catalysts

Catalyst	Surface area (m^2 g^−1)	Pore volume (m^3 g^−1)	Average pore diameter (nm)	Cu concentration (wt%)
Cu/TiO2	179.2	0.3022	6.746	4.873
Cu/Ti0.7Zr0.3O2	327.2	0.3668	4.484	4.786
Cu/Ti0.5Zr0.5O2	316.9	0.3156	3.984	4.772
Cu/Ti0.3Zr0.7O2	234.6	0.2662	4.540	4.441
Cu/ZrO2	17.8	0.0298	3.788	4.168

---

The concentrations of Cu in the different catalysts are also displayed in Table 1. The Cu contents were similar and almost identical to the theoretical content in Cu/TiO₂, Cu/Ti_0.7Zr_0.3O₂ and Cu/Ti_0.5Zr_0.5O₂, while a small amount of Cu was lost in the impregnation process for Cu/Ti_0.3Zr_0.7O₂ and Cu/ZrO₂. Since a larger surface area promotes the dispersion of copper species, it is rational to conclude that the high activity is related to the concentration of highly dispersed copper species, but not to the total content of copper.

3.3. XRD

The XRD patterns of the Cu/Ti_1−xZr_xO₂ catalysts are shown in Fig. 2. Cu/TiO₂ and Cu/ZrO₂ featured the typical anatase phase of titania (ICSD 009852) and tetragonal phase of zirconia (ICSD 070014). For the Zr-doping samples, a broad diffraction peak with weak intensity centering at 31.7° was evident, indicating that the mixed oxides were in highly amorphous or poorly crystalline states. Thus, it may be concluded that the Zr-doping inhibited the crystal nucleus growing of TiO₂, and consequently helped to increase the surface areas and the pore volumes, beneficial to the enhancement of the SCR activity.^23,24 Moreover, ZrO₂ can react with TiO₂ to form a discontinuous solid solution, which is demonstrated by the diffraction peaks pertaining to ZrTiO₄.²⁵ For the Cu/ZrO₂ catalyst, the diffraction peak attributed to CuO at 38.7° was observed, suggesting the formation of small CuO particles. However, no characteristic peaks of crystalline CuO were observed on the other catalysts, suggesting that the copper species were highly dispersed on the surface of the supports. According to the suggestion that more defect sites can exist when the crystallization degree is poor,²⁶ it is assumed that copper species have strong interactions with the Zr-doping supports which have a poor degree of crystallization, and the content of CuO in free form increased on the ZrO₂ support.

Fig. 2 X-ray diffraction patterns of Cu/Ti_1−xZr_xO₂ catalysts (▽ ZrTiO₄; ◇ CuO).

3.4. H₂-TPR

H₂-TPR is performed to investigate the reducibility of copper species supported on the different supports, and the results are summarized in Fig. 3. For the samples of x = 0.3, 0.5, and 0.7, the presence of two partially overlapped reduction peaks was observed in the range of 50–300 °C as denoted as α and β, respectively, indicating the existence of different copper species. The α peak split into two peaks on the Cu/TiO₂ catalyst, and only one peak noted as γ appears at 310 °C on Cu/ZrO₂. The α peak can be attributed to the reduction of highly dispersed copper oxide species strongly interacting with the support, and the β peak can be assigned to small two- and three-dimensional clusters of copper oxide weakly associated with the support.²⁷ In addition, the γ peak can be ascribed to the reduction of Cu²⁺ ions in the bulk-type CuO particles,²⁸ and the formation of bulk-type CuO particles can be attributed to the lower surface dispersion and the agglomeration of copper oxide caused by the limited surface area. Moreover, the δ reduction peak appearing at 450 °C on the Cu/Ti_0.7Zr_0.3O₂ sample was assigned to the reduction of the support. As the reduction of TiO₂ and ZrO₂ alone was difficult at temperatures below 600 °C,^13,29 the easy reduction of the support may be caused by the proper substitution of Ti by Zr, which increased the oxygen mobility, as proved by XPS in Section 3.6. The improvement in the reduction of copper species and the support was considered as one reason for the excellent activity of Cu/Ti_0.7Zr_0.3O₂ sample.

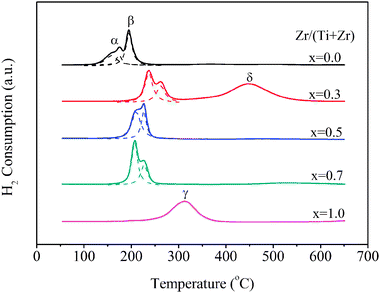

Fig. 3 H₂-TPR profiles of Cu/Ti_1−xZr_xO₂ catalysts.

The peak areas of H₂ consumption over the various catalysts calculated using Gaussian are listed in Table 2. Compared with Cu/TiO₂, the H₂ consumption according to the α peak increased and that of the β peak decreased significantly over the Zr-doping samples. This suggests that the addition of ZrO₂ increased the amount of highly dispersed copper oxide species acting as active sites, which can be attributed to the formation of defects and the promotion of oxygen mobility by Zr doping.¹³

Table 2 Quantitative analysis of H₂-TPR for Cu/Ti_1−xZr_xO₂ catalysts

Catalyst	T/°C			H2 consumption (a.u.)
	α	β	γ	α	β	γ
Cu/TiO2	174	195	—	7812	9556	—
Cu/Ti0.7Zr0.3O2	237	263	—	10 825	6478	—
Cu/Ti0.5Zr0.5O2	210	226	—	11 718	6371	—
Cu/Ti0.3Zr0.7O2	207	227	—	12 105	6459	—
Cu/ZrO2	—	—	310	—	—	23 486

---

3.5. Py-IR analysis

FTIR spectra of pyridine chemisorbed on the samples evacuated at different temperatures are presented in Fig. 4. The bands around 1444, 1579 and 1603 cm⁻¹ are attributed to the pyridine coordinated on Lewis acid sites, and the band around 1490 cm⁻¹ corresponds to the Lewis and Brønsted acid complex.^30,31 Moreover, no Brønsted acid site was observed emerging at 1545 cm⁻¹.³² It appears that the intensities of the above bands decreased with an increase in temperature, indicating the partial desorption of pyridine. The acidity of Cu/Ti_0.7Zr_0.3O₂ and Cu/Ti_0.5Zr_0.5O₂ was enhanced significantly compared with that of Cu/TiO₂, and Cu/Ti_0.7Zr_0.3O₂ appeared to possess the strongest concentration of Lewis acid sites. However, the acidity of catalysts decreased obviously with further doping of ZrO₂, in agreement with the result that the ZrO₂ possessed predominantly weak Lewis acid sites.³³ According to the previous reports,^34,35 the enhancement of surface acidity may be due to the increase in oxygen vacancy defect sites accompanying with the Zr doping and the growing charge imbalance based on the generation of Ti–O–Zr bonding. Moreover, considering the interaction between the active component and the acid sites,³⁶ it may be considered that the higher acidity would prevent the copper aggregation, improve the dispersion of copper species, and thus favor the SCR reaction. Several studies have concluded that the acid sites promote the oxidation of NO during HC-SCR, which is the first and rate-determining reaction step on a Ti–Zr mixed oxides support.^37,38 Therefore, the high catalytic performance of Cu/Ti_0.7Zr_0.3O₂ was believed to be related to the high surface acidity, which played a key role in the promotion of copper species dispersion and the oxidation of NO.

Fig. 4 FTIR spectra of pyridine adsorption at different temperature over (a) Cu/TiO₂, (b) Cu/Ti_0.7Zr_0.3O₂, (c) Cu/Ti_0.5Zr_0.5O₂, (d) Cu/Ti_0.3Zr_0.7O₂, (e) Cu/ZrO₂.

3.6. XPS

The representative peakfits of the Cu 2p core level and their corresponding shake-up satellites are shown in Fig. 5(a). The Cu²⁺ species can be characterized by a Cu 2p_3/2 binding energy of 934.6 eV with a shake-up or satellite peak located at 938.5–946.5 eV, and the binding energy at 933.0 eV is assigned to Cu⁺.^13,39 The ratio of the sum of the areas of peaks 2–4 to that of peak 1 was used as a measure of the relative amount of Cu²⁺ to Cu⁺ on the surface. As shown in Fig. 5(a), the ratio of Cu²⁺/(Cu²⁺+Cu⁺) was higher over Cu/Ti_0.7Zr_0.3O₂ with approximately 83.9%, while only 57.0% Cu²⁺ was found on the Cu/TiO₂ surface. It has been confirmed by in situ FTIR that the chemisorbed NO occurred on the Cu²⁺ species.⁴⁰ Iwamoto⁴¹ has proved rigorously that the Cu²⁺–O⁻ or Cu²⁺–O²⁻ species act as the active sites on the Cu-MFI zeolite catalyst for C₂H₄-SCR. Furthermore, a widely accepted interpretation in the literature is that an active center is a [Cu–O–Cu]²⁺ dimer species and a [Cu–O–Cu]²⁺/Cu⁺ redox cycle existed in the NO adsorption process at a high temperature (∼550 K),⁴² at which the maximum N₂ yield was obtained in the present study. Hence a reasonable hypothesis is that the Cu²⁺ species are able to adsorb and activate NO molecules on the catalyst surface, and the higher Cu²⁺ ratio favors the C₃H₆-SCR reaction.

Fig. 5 XPS spectra of (a) Cu 2p, (b) O 1s and (c) Ti 2p of Cu/TiO₂ and Cu/Ti_0.7Zr_0.3O₂ catalysts.

The XPS results of O 1s are shown in Fig. 5(b). The peak at 530.3 eV corresponds to the lattice oxygen O²⁻ (denoted as O_L), and the peak at 531.4 eV is attributed to the surface adsorbed oxygen (denoted as O_A), such as O₂²⁻ or O⁻ belonging to a defect oxide or hydroxyl-like group.^43–45 Compared to Cu/TiO₂, the relative concentration ratio of O_A/(O_A+O_L) on the Cu/Ti_0.7Zr_0.3O₂ catalyst increased from 18.7% to 33.8%. According to the previous study,⁴⁶ it can be assumed that the increase of surface adsorbed oxygen was attributed to the formation of defects, including the charge imbalance, vacancies, and unsaturated chemical bonds, caused by the corporation of Zr⁴⁺ cation into the TiO₂ lattice. In addition, the surface adsorbed oxygen was more highly active in the oxidation reaction due to its higher mobility compared with the lattice oxygen, and was beneficial to the NO oxidation to NO₂ in the SCR reaction.^47,48

Fig. 5(c) shows the XPS results of Ti 2p in the samples. The binding energy of Ti 2p_3/2 at 458.7 eV and Ti 2p_1/2 at 464.6 eV were observed, indicating that Ti exists in the Ti⁴⁺ oxidation state.^22,48,49 Moreover, the doping of Zr did not affect the redox behavior of TiO₂, as no shift in binding energies was apparent.

3.7. TEM studies of the catalysts

Fig. 6 shows the low and high resolution TEM images of Cu/TiO₂ and Cu/Ti_0.7Zr_0.3O₂. From the low magnification image, it can be seen that the Cu species was better dispersed on Cu/Ti_0.7Zr_0.3O₂ than Cu/TiO₂, which confirmed that the Zr-doping inhibited the agglomeration of catalyst efficiently. Further investigation of the crystal structure and exposed plane was performed using HR-TEM, and the results are present in Fig. 6(c) and (d). No lattice fringe of CuO was observed on either catalyst, suggesting the copper species were finely dispersing on the surface of the supports, in agreement with the XRD results. For Cu/TiO₂, lattice fringes with a spacing of 0.35 nm and 0.24 nm were observed, corresponding to the (101) and (001) planes of TiO₂, respectively.⁴⁰ The attached selective area electron diffraction (SAED) also confirms that the Cu/TiO₂ sample was in the highly crystallized anatase. For Cu/Ti_0.7Zr_0.3O₂, neither TiO₂ nor ZrO₂ related crystallite plane was observed, and the shape of the electron diffraction rings demonstrates the sample was in a noncrystalline structure, indicating that Zr doping destroyed the structure of anatase TiO₂ and led to the amorphous phase of the mixed oxides.

Fig. 6 TEM images of (a) Cu/TiO₂ and (b) Cu/Ti_0.7Zr_0.3O₂, HR-TEM images and the corresponding SAED patterns of (c) Cu/TiO₂ and (d) Cu/Ti_0.7Zr_0.3O₂ catalysts.

3.8. In situ FTIR of NO adsorption

Fig. 7 shows the results of in situ FTIR of NO adsorption on Cu/TiO₂ and Cu/Ti_0.7Zr_0.3O₂ catalysts at different temperatures. According to the literature, the bands of a bridging nitrate (1616 cm⁻¹), bidentate nitrate (1597, 1569, 1543 and 1284 cm⁻¹) and NO₂ stretch of a distorted [NO₃⁻]₂ adsorbed on Cu²⁺ (1385 and 1350 cm⁻¹) were observed over Cu/TiO₂ catalyst.^21,33,50 The bands of a bridging nitrate (1607 cm⁻¹), bidentate nitrate (1578 and 1547 cm⁻¹) and NO₂ stretch of a distorted [NO₃⁻]₂ (1390 and 1359 cm⁻¹) over Cu/Ti_0.7Zr_0.3O₂ were slightly shifted, and the bands assigned to the bidentate nitrate at 1597 and 1284 cm⁻¹ were not observed, suggesting the changes in the nitrate distribution were caused by the introduction of Zr. The intensity of nitrate adsorption decreased gradually with increasing temperature, indicating the desorption of nitrate species at high temperature. Compared with Cu/TiO₂ catalyst, the Cu/Ti_0.7Zr_0.3O₂ sample exhibited much stronger adsorption towards nitrate species. Besides, the negative peaks of nitrate species appeared at 300 °C over Cu/TiO₂, suggesting the instability of nitrate species at high temperature, while there were still obvious nitrate species on the surface of Cu/Ti_0.7Zr_0.3O₂. The in situ FTIR results indicated that the Zr addition accelerated the formation and accumulation of nitrate species on the surface of catalyst, meanwhile, the stability of nitrates was also improved. The enhancement in the NO adsorption may be attributed to the increase in the surface area, the Lewis acidity and the oxygen mobility caused by the Zr incorporation.

Fig. 7 FTIR spectra of nitrate adsorption species at different temperatures over (a) Cu/TiO₂ and (b) Cu/Ti_0.7Zr_0.3O₂ catalysts. Conditions: [NO] = 1000 ppm, He as balance.

3.9. Analysis of the Zr–O–Ti bond by quantum mechanics

Calculations based on density functional theory (DFT) were performed to analyze the changes in the crystal and electronic structure of TiO₂ due to the introduction of ZrO₂, which may give some insights into the higher dispersion of copper species and the improvement of SCR activity over Zr-doped TiO₂. Fig. 8 shows the optimized configuration of the TiO₂ and Ti_0.7Zr_0.3O₂ supports and the electron charge density (ECD) of pattern slice from the model. From Fig. 8, it is observed that the lattice type of anatase TiO₂ was tetragonal, while the lattice type changes to an orthorhombic one due to the Zr-doping. In addition, for the anatase TiO₂, each Ti atom was coordinated to six O atoms, two of which were along the c-axis and were distant from Ti by 1.99 Å. The other four Ti–O distances were all 1.93 Å. In the Zr-doping sample, each Ti or Zr atom was still coordinated to six O atoms, while the Ti–O distances changed to 2.00, 2.09, 1.88, 1.91, 1.88 and 2.11 Å, resulting in strong distortions in the nuclear structure caused by the substitution of smaller Ti⁴⁺ (0.64 Å) with larger Zr⁴⁺ (0.87 Å).

Fig. 8 Representation of the structure and electron density difference of (a) TiO₂ and (b) Ti_0.7Zr_0.3O₂ models.

From the map of ECD, a delocalization of ECD around the Zr⁴⁺ cation and an enrichment of the ECD around the Ti⁴⁺ cation were observed, resulted from the generation of a mixed Ti–O–Zr bond. The charge density concentration on the Ti–O band led to the enhancement of the interaction between the Cu²⁺ and the Ti–O bond on Ti_0.7Zr_0.3O₂. Consequently, the Cu–O bond of CuO in Ti_0.7Zr_0.3O₂ became weaker and the CuO species acting as active sites were easier to reduce, in agreement with the results of H₂-TPR. Moreover, the charge imbalance was confirmed according to the ECD map, providing one reason for the increase in the Lewis acidity. According to the modification in the ECD, the Ti–O–Zr link might have acted as an adsorption center for the catalytic reaction, and the NO_x⁻ bond would form on the Zr⁴⁺ ion, in agreement with the previous report.³⁸ And this inference was confirmed by the in situ FTIR of NO adsorption results. The improvement of NO adsorption would promote the SCR reaction of NO over the Cu/Ti_0.7Zr_0.3O₂ catalyst.

4. Conclusions

Serial Cu/Ti_1−xZr_xO₂ (x = 0, 0.3, 0.5, 0.7, 1.0) catalysts were facilely synthesized using the impregnation–coprecipitation method and tested for C₃H₆-SCR of NO. The coexistence of titanium and zirconium led to an increase in N₂ yield, and the highest catalytic activity was obtained over Cu/Ti_0.7Zr_0.3O₂. The introduction of ZrO₂ significantly enhanced the Lewis acidity and greatly increased the concentration of Cu²⁺ and surface adsorbed oxygen, which accelerated the oxidation of NO to NO₂ and/or NO₃⁻, and thus further benefited the SCR reaction.

On the other hand, the specific Ti–O–Zr bond led to the generation of defects, including charge imbalance, vacancies and unsaturated chemical bonds. The structural distortion of the support played a significant role in controlling the dispersion of the active copper species as well as the metal–support interaction, which was proposed as one possible reason for the improved catalytic activity of the Cu/Ti_0.7Zr_0.3O₂ catalyst for C₃H₆-SCR of NO.

Acknowledgements

This work was supported financially by the National Nature Science Foundation of China (NSFC-RGC 21061160495), the National High Technology Research and Development Program of China (863 Program) (2010AA064902), the Excellent Talents Program of Liaoning Provincial University (LR2010090), China's One Thousand Chinese Talents Award and the Australia Research Council under the Linkage Project Scheme (Project Number: LP0989368).
