Synthesis of piperitone-derived halogenated lactones and their effect on aphid probing, feeding, and settling behavior

Abstract

Five racemic and five enantiomeric pairs of new halolactones with the p-menthane system were obtained in two or three step synthesis from racemic and optically active cis- and trans-piperitols. The key steps of the syntheses were the Claisen-Johnson rearrangement of piperitols to γ,δ-unsaturated esters and haloloctonization of γ,δ-unsaturated esters or acids. The structures of the compounds were confirmed by spectroscopic and crystallographic data. Antifeedant activity of all iodo-, bromo- and chlorolactones and racemic piperitone against Myzus persicae was examinated. The effect of these compounds on probing, feeding, and settling behavior of M. persicae in vivo was studied.

---

Introduction

Naturally occurring and synthetic isoprenoid lactones are known for their broad variety of biological activity such as antifungal,^1,2 antibacterial,^2,3 antitumor^4–7 and antifeedant behavior.^8–13 Our interest in the synthesis of this group of compounds is connected with their feeding deterrent activity against insects.^14–21

The most well known antifeedants belong to different chemical groups and come from natural sources,^22–24 but the most widespread are those with an isoprenoid structure and lactone moiety, the sesquiterpenoid lactones.^8,11 However, the application of natural antifeedants for the protection of plants and stored products against insect pests is limited. The main constraint is the low content in natural sources. Moreover, natural antifeedants usually have complicated structures and their synthesis is complex and also very expensive. Therefore, the synthesis of natural antifeedants' analogues is one of the most promising ways leading to their practical use in insect pest population control.

Following this idea, we have synthesized a number of terpenoid lactones from natural terpenes^25,26 and terpenoid alcohols¹⁶ and ketones.^27–29 Being conscious of the effect of the chiral center configuration of a molecule on the compound activity, we have synthesized, whenever it was possible, all isomers of the final products. Some of the obtained lactones exhibited antifeedant activity comparable with the activity of the most known and active natural antifeedant – azadirachtin.^{14–16,19,20} Many of the lactones synthesized were also tested for antifeedant activity against aphids.^17,18

Aphids (Homoptera, Aphididae) are insects of significant economic importance. The direct damage by aphid feeding is responsible for approximately 2% of total world crop losses caused by insects.³⁰ At the same time, aphids transmit nearly 30% of all known plant virus species and 50% of insect-borne ones.³¹ Plant diseases caused by these viruses may destroy up to 80% of the yield of a given crop.³² Aphids may acquire and inoculate viruses during various stages of plant penetration with sucking-piercing mouthparts. During brief intracellular probes in epidermis and parenchyma (mesophyll in leaves) that precede feeding in phloem vessels, aphids may transmit non-persistent and semi-persistent viruses. When aphid stylets reach sieve elements, persistent viruses may be transmitted.^33–36 It is crucial then, to deter aphid probing or at least prevent feeding, to protect plants from pathogen infection and limit the virus spread within the field crops. Of over 190 aphid species that are known to transmit viruses, the peach-potato aphid Myzus persicae (Sulz.) is of exceptional importance to agriculture.³¹ It is cosmopolitan, highly polyphagous, and very effective as virus vector. It can infest plants of more that 40 families and transmit more than 100 plant viruses.³⁷

At present, aphid control depends mainly on the use of insecticides. Due to the repeated applications, many aphid species, especially M. persicae, have developed resistance to several aphicides. Therefore, an alternative method of aphid control is needed and the use of targeted chemicals that would repell aphids or deter their probing and feeding is one of the most promising approaches. For example, the sesquiterpenoid polygodial was successfully applied in the field against bird cherry-oat aphid Rhopalosiphum padi L., giving similar results to those obtained with cypermethrin.³⁸

Here we present the stereoselective synthesis of five racemic and five enantiomeric pairs of new halolactones with the p-menthane system. The lactones were obtained from racemic and enantiomerically enriched (ee = 91–98%) cis- and trans-piperitols, which were synthesized from piperitone as described earlier.³⁹ The final compounds were examined for antifeedant activity. The effect of piperitone and piperitone-derived lactones on probing, feeding, and settling behavior of M. persicae was studied in vivo and the physiological and behavioral outcomes were discussed in respect to epidemiological consequences.

Results and discussion

Chemistry

Five racemic and five enantiomerically enriched pairs of new halolactones with the p-menthane system were obtained in two or three step synthesis from racemic and optically active cis- (Scheme 1) and trans-piperitols (Scheme 2).

Scheme 1 Synthesis of iodolactones 4a–c and bromolactones 5a–c. Reagents: (i) CH₃C(OEt)₃, CH₃COOH, 138 °C; (ii) 1. KOH, MeOH, 2. HCl; (iii) I₂, KI, NaHCO₃, H₂O, Et₂O; (iv) Br₂, NaHCO₃, H₂O, Et₂O.

Scheme 2 Synthesis of iodolactones 9a–c, bromolactones 10a–c and chlorolactones 11a–c. Reagents: (i) CH₃C(OEt)₃, CH₃COOH, 138 °C; (ii) 1. KOH, MeOH, 2. HCl; (iii) I₂, KI, NaHCO₃, H₂O, Et₂O; (iv) Br₂, NaHCO₃, H₂O, Et₂O; (v) NCS, THF, H₂O.

The first step of the synthesis was the Claisen-Johnson rearrangement⁴⁰ of corresponding allylic alcohols (1a–c and 6a–c). The structures of the products obtained (2a–c, 7a–c) were determined on the basis of their spectral data. In the ¹H NMR spectra of 2a–c a triplet (J = 7.1 Hz, 1.25 ppm) and quartet (J = 7.1 Hz, 4.10 ppm) of ethoxy group and singlet (2.25 ppm) of methylene protons CH₂-2 were observed. The multiplets at 5.49–5.54 ppm of H-2′ and H-3′ confirmed the presence of the double bond in the esters 2a–c. In an analogous manner, the structures of esters 7a–c were proved. Unfortunately, spectroscopic data did not allow the determination of the configuration (cis or trans) of the carboethoxymethylene group in relation to the isopropyl group. However, taking into consideration the mechanism of Claisen-Johnson rearrangement of allylic alcohols the relative configuration of substitutents in the molecules of the γ,δ-unsaturated esters obtained can be proposed. According to the mechanism of Claisen-Johnson rearrangement starting from optically active (1a, 1b) and racemic cis-piperitols (1c) the esters (2a, 2b and 2c, respectively) with the cis-oriented carboethoxymethylene group in the relation to the isopropyl group should be obtained (Scheme 3). trans-Piperitols (6a, 6b and 6c) should be transformed into the esters (7a, 7b and 7c, respectively) with trans-orientation of the carboethoxymethylene group with respect to the isopropyl group (Scheme 3). These assumptions were confirmed by the X-ray structures of halolactones (Fig. 1–6), which were obtained in the next steps of the synthesis.

Scheme 3 The mechanism of Claisen-Johnson rearrangement of cis- (1c) and trans-piperitol (6c) with triethyl orthoacetate.

Enantiomeric excesses of esters 2a, 2b, 7a and 7b, determined by chiral GC, were the same as the starting alcohols (1a, 1b, 6a and 6b, respectively). These results indicate that the orthoester Claisen rearrangement proceeded in a highly stereospecific manner.^40–45 Knowing the absolute configuration of piperitols 1a, 1b, 6a and 6b and taking into consideration the mechanism of Claisen-Johnson rearrangement, it was possible to ascribe the absolute configuration at C-1′ in esters 2a and 7a as S and in esters 2b and 7b as R.

In the next step of the synthesis, the γ,δ-unsaturated esters 2a–c and 7a–c were hydrolyzed to the corresponding acids (3a–c, 8a–c) in methanolic KOH solution. In the IR spectra of the products, the characteristic absorption bands of carboxy group (2600–3500 cm⁻¹ of 3a–c and 8a–c) were observed. The lactonization of cis-γ,δ-unsaturated acids 3a–c with aqueous I₂/KI solution in diethyl ether under basic conditions⁴⁶ afforded corresponding iodolactones (4a–c, respectively). The structure of these products was confirmed by their spectral data. The presence of the γ-lactone ring was confirmed by the absorption band at ν = 1779 cm⁻¹ in the IR spectrum. The value (9.2 Hz) of the coupling constant between H-5 and H-6 protons in the ¹H NMR spectrum indicates trans-diaxial orientation of these protons and consequently the equatorial positions of C–I as well as C–O bonds. The presence of the large coupling constant of H-4 with neighboring axial proton H-5 (J = 11.9 Hz) proved its axial orientation and equatorial orientation of the isopropyl group. The X-ray structure of racemic iodolactone 4c (Fig. 1) confirmed the assignation presented above.

Fig. 1 One of two crystallographically unrelated molecules of the crystal structure of iodolactone 4c.

Similarly to the synthesis of racemic lactone 4c, the optically active iodolactones 4a and 4b from corresponding acids (3a and 3b, respectively) were obtained. Their enantiomeric excesses determined by chiral GC were 97% and 96% of isomer 4a and 4b, respectively. The absolute configurations of the products obtained (4a, 4b) were assigned on the basis of structure of substrates and taking into account the stereochemistry of the iodolactonization.^46–51 The absolute configurations of 4a and 4b, determined in this way, were fully confirmed by the X-ray crystal structures (Fig. 2).

Fig. 2 The crystal structures of iodolactones 4a (left) and 4b (right).

In a similar manner to the synthesis of iodolactones 4a–c, the lactonization of trans-γ,δ-unsaturated acids 8a–c afforded corresponding iodolactones (9a–c, respectively). Their structures were also confirmed by NMR and IR spectroscopic data. The absorption band characteristic for the γ-lactone ring is present in the IR spectra of 9a–c at 1775 cm⁻¹. In the ¹H NMR spectra of 9a–c two multiplets of H-5 and H-6 at 4.63 and 4.69 ppm were present. The small value of the coupling constants in these signals proved the trans-diequatorial orientation of coupled protons. Therefore, it can be concluded that C–I as well as C–O bonds are located in the axial positions. The HSQC (heteronuclear single quantum coherance) experiment showed that the signal at 4.69 correlates with the signal at 87.88 ppm of carbon atom directly connected to the oxygen atom. On the basis of these data the multiplets at 4.69 and 4.63 ppm were assigned to the protons H-6 and H-5, respectively. The full confirmation of the structure of 9c was provided by the X-ray crystal structure as shown in Fig. 3. The absolute configuration of enantiomerically enriched iodolactones 9a (ee = 98%) and 9b (ee = 94%), similarly to the lactones 4a and 4b, were assigned on the basis of the structure of the substrates used and taking into account the stereochemistry of the iodolactonization.

Fig. 3 The crystal structure of iodolactone 9c.

As a result of lactonization of γ,δ-unsaturated carboxylic acids 3a–c and 8a–c, using bromine as an electrophilic agent, the racemic and optically active bromolactones 5a–c and 10a–c were obtained, respectively (Scheme 1 and 2). The structures of the products obtained were determined on the basis of spectral data. In the IR spectra of lactones 5a–c and 10a–c, the characteristic absorption bands of the γ-lactone ring (1779 and 1780 cm⁻¹, respectively) were observed. The presence of doublet (δ = 4.33) of H-6 with coupling constant (J = 8.7 Hz) with neighboring proton H-5 in the ¹H NMR spectra of 5a–c proved their trans-diaxial orientation and consequently the equatorial positions of C-Br as well as C-O bonds. Additionally, the values (J_H4-H5 = 11.7 Hz, J_H6-H5 = 8.7 Hz) of two coupling constants found in doublet of doublets at 3.69 ppm of H-5 proton indicates the axial orientation of H-4 and therefore the trans-diequatorial positions of the bromine atom and the isopropyl group. The enantiomeric excesses of bromolactones 5a and 5b determined by chiral GC were 97% and 91%, respectively. Since the lactones 5a and 5b were nice crystals, the performing of the X-ray crystal structure analysis was possible. This analysis confirmed the absolute configurations of chiral centers which were assigned on the basis of the structure of substrates and taking into account the stereochemistry of the bromolactonization as (1S,4R,5R,6R) for the lactones 5a and as (1R,4S,5S,6S) for 5b (Fig. 4).

Fig. 4 The crystal structures of bromolactones 5a (left) and 5b (right).

The presence of two signals at 4.60 and 4.54 ppm in the ¹H NMR spectra of δ-bromo-γ-lactones obtained from trans-piperitols (10a–c) proved that both γ-lactone ring and C-Br bond were formed. The shapes of these signals suggests, that the multiplet like triplet at 4.60 ppm is from proton H-5 and doublet (J = 2.3 Hz) at 4.54 ppm is from H-6. These assignments were confirmed by HSQC experiment, which showed that the signal at 4.54 ppm correlates with the signal at 86.26 ppm of the carbon atom directly connected to the oxygen atom. Furthermore, the small values of the coupling constants in the multiplets of H-5 and H-6 proved trans-diequatorial orientation of these protons. All these data were clearly confirmed by the crystal structure obtained for 10c (Fig. 5). The enantiomeric excesses (according to chiral GC) of bromolactones 10a and 10b, obtained from corresponding acids (8a and 8b) (Scheme 2), were 94% and 96%, respectively.

Fig. 5 The crystal structure of bromolactone 10c.

To obtain chlorolactones, the reaction of γ,δ-unsaturated esters 2a–c and 7a–c with N-chlorosuccinimide (NCS) was carried out. In the reaction of cisesters 2a–c with NCS, a mixture (according to GC) of many products was formed. Unfortunately, it was impossible to separate them and consequently determine their structures. A similar situation was observed in the trials of the lactonization of these esters with NBS and NIS. However, in the reaction of trans-γ,δ-unsaturated esters 7a–c with NCS, the corresponding chlorolactones 11a–c were obtained as the only products. The structures of these lactones were determined on the basis of spectral data. The IR spectra of 11a–c (1785 cm⁻¹) confirmed that the γ-lactone ring was formed. The value (J = 2.3 Hz) of the coupling constant between protons H-5 (4.54 ppm) and H-6 (4.38 ppm) found in the ¹H NMR spectra indicates that they are in trans-diequatorial position. Our assignments were fully confirmed by X-ray crystallography (Fig. 6). Lactonization stereospecificity confirms that the enantiomeric excesses of lactones 11a (ee = 91%) and 11b (ee = 96%), determined by chiral GC, were identical to the enantiomeric excesses of esters (7a and 7b respectively) which were used for the reaction.

Fig. 6 One of two crystallographically unrelated molecules of the crystal structure of chlorolactone 11c.

Biology

The feeding process of insects can be restrained at three levels: preingestional (immediate effect associated with host finding and host selection processes involving gustatory receptors), ingestional (related to food transport and production, release, and digestion by salivary enzymes), and postingestional (long-term effects involving various aspects of digestion and absorption of food).⁵² In aphids, the alteration of behaviour during probing in epidermis and mesophyll before the first phloem phase points at the effect of a preingestional factor. The high proportion of short (<10 min) probes among all probes, the long periods of non-penetration, and a low success rate in finding sieve elements are the most important symptoms of preingestional deterrence. Similarly, any disturbances in sap uptake from sieve elements, such as the reduction of ingestion periods and long periods of salivation during the phloem phase can be attributed to ingestional effect of a sieve element-associated deterrent. The refusal to settle on plants even if the feeding process is not impeded may be a sign of postingestional deterrence.¹⁷ Beside the direct negative effect on aphid feeding, a deterrent that impedes preingestional and ingestional activities should also prevent the transmission of non-persistent and persistent viruses, respectively.

In the present study, the natural monoterpene ketone – piperitone appeared to be an attractant to the peach potato aphid Myzus persicae. The duration of probing and proportion of phloem phase in total probing were similar in aphids on control and piperitone-treated leaves. All aphids reached phloem vessels and almost all of them showed sustained phloem sap ingestion during the first probe. The salivation – ingestion ratio during probing in sieve elements was five times lower than in aphids on control leaves. The prolonged phloem salivation would have indicated the aphid response to negative chemical factors in the plant sap.¹⁷ 24 h after application, aphids were clearly attracted to settle on piperitone-treated leaves (Fig. 7–10; Tables 1 and 2).

Fig. 7 Effect of iodolactones (4a–c and 9a–c) on settling of Myzus persicae on plants. Deterrence indices after 1, 2, and 24 h. *Significant differences in aphid settling on lactone-treated vs. control leaves (P < 0.05).

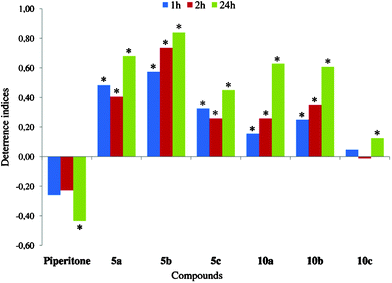

Fig. 8 Effect of bromolactones (5a–c and 10a–c) on settling of Myzus persicae on plants. Deterrence indices after 1, 2, and 24 h. *Significant differences in aphid settling on lactone-treated vs. control leaves (P < 0.05).

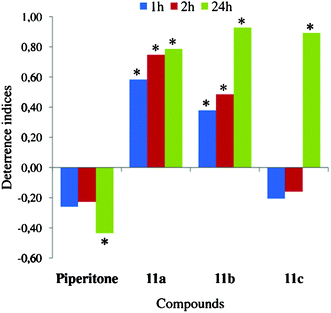

Fig. 9 Effect of chlorolactones (11a–c) on settling of Myzus persicae on plants. Deterrence indices after 1, 2, and 24 h. *Significant differences in aphid settling on lactone-treated vs. control leaves (P < 0.05).

Fig. 10 Frequency and duration of probes before the first phloem phase after application of piperitone and halolactones. Numbers represent number of probes that fall into three categories: shorter than 2 min, 2–10 min long, and longer than 10 min.

Table 1 Frequency and total duration of aphid probing activities after application of piperitone and halolactones. Values are means (±SE).

	Non-probing [h]	Pathway phase [h]	Phloem phase [h]	Number of probes	Number of probes with phloem phase
a A and B denote statistically significant differences in comparison to control and piperitone, respectively (ANOVA, P < 0.05).
Control	0.4 (±0.1)	4.0 (±0.7)	3.6 (±0.8)	6.8 (±1.6)	1.3 (±0.3)
Piperitone	0.6 (±0.1) A^a	4.2 (±0.5)	3.2 (±0.5)	19.1 (±3.9) A	1.7 (±0.2)
Iodolactones
4b	0.6 (±0.2)	3.5 (±0.6)	3.9 (±0.7)	7.3 (±1.6)	3.7 (±0.4) AB
9a	0.5 (±0.2)	2.7 (±0.4) B	4.7 (±0.5) B	4.5 (±0.9) B	1.9 (±0.3)
9c	3.0 (±0.7) AB	2.6 (±0.4) B	2.4 (±0.6)	10.7 (±1.8)	3.7 (±0.8) AB
Bromolactones
5a	0.5 (±0.3) B	5.7 (±0.5) B	1.8 (±0.5) B	7.2 (±3.7) B	3.0 (±1.7)
5b	1.4 (±0.7)	5.0 (±0.9)	1.6 (±0.7) AB	9.0 (±1.8) B	1.2 (±0.3)
5c	1.2 (±0.7)	6.0 (±0.7) B	0.8 (±0.5) AB	2.8 (±1.0) AB	1.1 (±0.2)
10a	1.6 (±0.9)	5.6 (±0.9)	0.8 (±0.5) AB	3.8 (±1.7) AB	0.7 (±0.2) B
Chlorolactones
11a	1.3 (±0.4) A	5.0 (±0.5)	1.7 (±0.5) B	14.1 (±3.2)	1.3 (±0.3)

---

Table 2 Frequency and proportion of aphid activities related to phloem sap ingestion after application of piperitone and halolactones. Values are means (±SE).

	Aphids with E^a[%]	Aphids with E>10 in 1st probe [%]	E2>10 min^b [#]	E/(C+E)^c^d [%]	E1/(E1+E2)^d^e [%]
a Aphids that reached phloem vessels during the 8-hour experiment. b Periods of sustained phloem sap ingestion. c Proportion of phloem phase during stylet penetration. d Aphids that did not reach phloem elements during 8-hour experiment were excluded from this analysis. e Proportion of phloem salivation to total phloem phase. f A and B denote statistically significant differences in comparison to control and piperitone, respectively (ANOVA, P < 0.05).
Control	92	50	1.8 (±0.3)	50.5 (±10,0)	12,1 (8.9)
Piperitone	100	92	2.2 (±0.3)	42,7 (±6.7)	2.5 (±1.1)
Iodolactones
4b	100	27	2.6 (±0.6)	53.5 (9.8)	25.9 (6.8)AB
9a	100	33	2.5 (±0.3)	62.4 (5.8) B^f	12.9 (4.0) B
9c	92	17	2.5 (±0.6)	46.1 (8.1)	27.4 (8.4) AB
Bromolactones
5a	92	17	0.9 (±0.3)	25.0 (6.6) A	32.5 (±12.0) AB
5b	75	33	0.5 (±0.2)	26.8 (11.9)	45.0 (±13.2)B
5c	83	25	0.3 (±0.1)	12.9 (6.7) AB	46.5 (±13.2) AB
10a	55	0	0.2 (±0.1)	15.4 (9.7) AB	57.4 (19.4) AB
Chlorolactones
11a	75	58	1.3 (±0.4)	31.9 (±7.7)	6.8 (±3.2)

---

The introduction of a lactone moiety and halogen atom into a piperitone molecule in the halogenation process dramatically changed its biological activity (Fig. 7–9). The chlorolactones (11a–c) had the strongest deterrent effect on aphid settling (DI₂₄: 0.78–0.93), the bromolactones (5a–c and 10a–c) were very strong (DI₂₄: 0.45–0.84), and the iodinated ones were the weakest ones (DI₂₄: 0.23–0.53) (Fig. 9, 8 and 7, respectively). All chloro- and bromolactones that originated from pure (‘+’ or ‘−’) enantiomers of either cis- or trans-piperitol had the strongest and the most durable deterrent effect. They deterred aphid settling from the onset of experiment up to at least 24 h (end of experiment) and their deterrence indices were relatively high. Chloro- (11c) and bromolactones (10c) that were obtained from racemic trans-piperitol showed a delayed deterrent effect. Compounds with chiral centres configurations: 1S,4S,5R,6R (chlorolactone 11a), 1S,4R,5R,6R (bromolactone 5a), and 1R,4S,5S,6S (bromolactone 5b) were the strongest deterrents in aphid settling bioassay. The indices of deterrence of iodinated compounds did not differ considerably among members of this group. Nevertheless, the iodolactones derived from trans-piperitol (9a–c) were slightly stronger deterrents than those obtained from the cis-isomer (4a–c) (Fig. 7).

The aphid probing behaviour was monitored using the EPG (Electrical Penetration Graph) technique after the application of piperitone and the following halogenated lactones: chlorolactone 11a, bromolactones 5a–c and 10a, and iodolactones 4b, 9a and 9c. These lactones combined three values discovered in the aphid settling bioassay: quickness of action (deterrent activity expressed as soon as 1 h after application), durability (deterrent activity expressed for as long as 24 h), and potency (relatively high value of DI₂₄ – deterrence index 24 h after application). The EPG recording revealed all kinds of aphid activities related to plant penetration: non-probing, pathway phase (‘C’), derailed stylet movements ‘F’, phloem salivation and sap ingestion ‘E1’ and ‘E2’, respectively, and xylem sap uptake ‘G’. ‘F’ and ‘G’ activities occurred sporadically irrespective of a treatment. Therefore, in statistical analysis, these activities were included in the pathway phase ‘C’ that represents stylet penetration in non-phloem plant tissues.

The aphid total probing time was significantly shorter on chlorolactone 11a- and iodolactone 9c-treated leaves than on control ones (Table 1). The number of probes was significantly lower on bromolactone-treated leaves. Among the probes before the first phloem phase on bromolactone-treated leaves, the short, 2 and 2–10 min probes, predominated. The very low number of probes longer than 10 min on 5c-treated leaves strongly suggests that deterrent factors located in epidermis and mesophyll caused the discontinuation of probing. In this experiment, aphids were tethered, which means that if they had been free to move, they would have probably walked away from the unsuitable feeding site. On control and 9a-treated leaves, the probes longer than 10 min comprised more than 50% of all probes (Fig. 10). The total duration of pathway, i.e. stylet activities in peripheral plant tissues was similar in all aphids irrespective of a treatment. However, in relation to aphids on piperitone-treated leaves, there was a tendency to shorten pathway time after application of iodolactones 9a and 9c and lengthen after application of bromolactones 5a and 5c.

The total duration of phloem phase was the longest in aphids on control, piperitone, and 9c-treated leaves (50, 62, and 43% of the probing time, respectively) (Table 2). The duration of phloem activities was significantly reduced in aphids on bromolactone-treated leaves (down to 13–27% of total probing) in relation to aphids on control as well as piperitone-treated leaves (Table 2). On bromolactone-treated leaves (esp. 10a-treated) there was the highest proportion of aphids that did not succeed in reaching phloem vessels during the 8-hour experiment and the lowest proportion of aphids that showed phloem activities during the 1st probe. In contrast, the number of periods of sustained sap ingestion was similar in all aphids. The proportion of salivation during sieve element-related aphid activities was the lowest on piperitone-treated leaves (2.5%) and the highest on bromolactone- and iodolactone-treated leaves (33–57 and 26–27%, respectively) (Tables 1 and 2).

In summary, the chlorolactones were in all probability not deterrent in a gustatory manner but had a postingestional and delayed effect on aphid behaviour. The total duration of probing and phloem phase was not reduced, the individual probes were not impeded, the salivation into sieve elements was limited, and almost all aphids that reached phloem vessels ingested sap in a sustained manner (i.e., for periods longer than 10 min) during the first probe. Nevertheless, all chlorolactones significantly prevented the aphids from settling on the treated leaves and the potency of the deterrent effect increased in the course of the 24 h experiment.

The bromolactones had most likely preingestional and ingestional deterrent effect on aphids. The phloem phase was 2–10 times shorter than in aphids on control as well as piperitone-treated leaves although total duration of probing was not reduced. Nevertheless, the probes made by aphids before the first phloem phase were relatively short (most of them not longer than 10 min), which means that they did not reach beyond mesophyll. The effect was the strongest in aphids on 5c-treated leaves. Many aphids did not reach phloem vessels during the 8-hour experiments, and very few aphids started feeding during the first probe. Phloem salivation made up 33–57% of all phloem activities. An increase in proportion of salivation during phloem phase was noteworthy: up to 5 times higher than in control and up to 23 times higher than on piperitone-trated leaves. At the same time, all bromolactones had a strong and durable settling deterrent effect on aphids. Moreover, its potency increased in the course of time.

Iodolactones were probably ingestional deterrents. Although the total duration of phloem phase was not reduced, the proportion of phloem salivation was relatively high as compared to aphids on control and piperitone-treated leaves. Aphids were deterred from settling on iodolactone-treated leaves.

Conclusion

In summary, a series of novel halolactones with the p-menthane system has been synthesized in order to investigate the antifeedant activity. The high stereoselectivity method of the Claisen rearrangement and halolactonization processes has been proved.

All of the iodo-, bromo-, and chlorolactones had a negative effect on probing, feeding, and settling behavior of Myzus persicae, which was in contrast to the natural compound, starting piperitone that showed weak attractant properties. However, the deterrent activity of individual compounds varied in potency, the time of expression, and the duration of the effect, depending, firstly, on the halogen atom that was built into the molecule and, secondly, on spatial structure of the lactone. In respect to epidemiological importance of aphids as virus vectors, the bromolactones, especially 5a and 10a, would be the most promising preingestional and ingestional deterrents to prevent non-persistent, semi-persistent and persistent plant virus transmission.

Experimental section

General methods

Bromine and N-chlorosuccinimide were purchased from Aldrich, triethyl orthoacetate from Fluka, and iodine from POCH S.A. Racemic and optically active cis- and trans-piperitols were synthesized as described earlier.³⁹ Enantiomerically enriched alcohols were obtained from racemic piperitols by their enzymatic (lipase Amano PS) esterification with vinyl propionate in solvent-free system. The enzymatic resolution of racemic cis- and trans-piperitols was performed several times. Enantiomeric excesses of optically active alcohols were as follows: 97–98% for 1a, 91–96% for 1b, 91–98% for 6a and 94–96% for 6b. Analytical TLC were performed on Fluka Kieselgel 60, F₂₅₄ plates with mixture of hexane, and diethyl ether in various ratios. Compounds were detected by spraying the plates with 1% Ce(SO₄)₂, 2% H₃[P(Mo₃O₁₀)₄] in 10% H₂SO₄, followed by heating to 120–200 °C. Column chromatography was performed on silica gel (Kieselgel 60, 230–400 mesh ASTM, Merck) with a mixture of hexane, methylene chloride and diethyl ether (in various ratio) as eluents. Gas chromatography analysis was carried out on an Agilent 6890N GC instrument (FID, carrier gas H₂) using the capillary columns Thermo TRACE^TM TR-5 (30 m × 0.32 mm × 1.0 μm). Chiral gas chromatography was carried out on the following columns: CP-Chirasil-DEX CB (25 m × 0.25 mm × 0.25 μm) for 2a–c, 4a–c, 7a–c, 9a–c, 10a–c, 11a–c and GAMMA DEX^TM 225 (30 m × 0.25 mm × 0.25 μm) for 5a–c. Enantiomeric excesses were determined with the following temperature programs: for 2a–c and 7a–c: 90 °C, 130 °C (1 °C min⁻¹), 200 °C (20 °C min⁻¹) (3 min), the total run time was 46.50 min, t_R2a = 30.71 min, t_R2b = 31.10 min, t_R7b = 32.92 min, t_R7a = 33.49 min; for 4a–c, 9a–c and 10a–c: 100 °C (1 min), 190 °C (1.6 °C min⁻¹) (1 min), 200 °C (50 °C min⁻¹) (2 min), the total run time was 60.45 min, t_R10a = 36.49 min, t_R10b = 38.85 min, t_R9a = 40.27 min, t_R9b = 40.58 min, t_R4b = 42.84 min, t_R4a = 43.24 min; for 5a–c: 140 °C, 180 °C (2 °C min⁻¹) (25 min), 200 °C (2 °C min⁻¹) (10 min), the total run time was 65.00 min, t_R5b = 46.49 min, t_R5a = 47.40 min; for 11a–c: 100 °C, 160 °C (1 °C min⁻¹), 200 °C (50 °C min⁻¹) (2 min), the total run time was 62.80 min, t_R11a = 42.22 min, t_R11b = 42.74 min. ¹H NMR, ¹³C NMR, DEPT 135 (distortionless enhancement by polarisation transfer), ¹H–¹H COSY (correlation spectroscopy) and HSQC (heteronuclear single quantum correlation) spectra were recorded for CDCl₃ solution on a Bruker Avance II 600 MHz spectrometer. Chemical shifts were referenced to the residual solvent signal (δ_H = 7.26, δ_C = 77.0). IR spectra were recorded for liquid films or plate in KBr on a Thermo-Nicolet IR300 FT-IR spectrometer. Melting points (uncorrected) were determined on a Boetius apparatus. Optical rotations were determined on an Autopol IV automatic polarimeter (Rudolph) in chloroform solutions, concentrations denoted in g 100 mL⁻¹. CH elemental analyses were performed on a CE Instruments EA-1110 elemental analyzer. X-ray data were collected on a Kuma KM4CCD diffractometer (Mo-Kα radiation; λ = 0.71073 Å) at 100 K using an Oxford Cryosystem device. Data reduction and analysis was carried out with the CrysAlice ‘RED’ program.⁵³ The space group was determined using the XPREP program. Structures were solved by direct methods using the XS program and refined using all F² data, as implemented by the XL program.⁵⁴Non-hydrogen atoms were refined with anisotropic displacement parameters. All H atoms were found in Δρ maps or placed at calculated positions. Before the last cycle of refinement all H atoms were fixed and were allowed to ride on their parent atoms. The Friedel pairs were merged before the final refinement.

Chemistry

Synthesis of γ,δ-unsaturated esters (2a–c, 7a–c). All γ,δ-unsaturated esters were obtained according to the following procedure:

The mixture of allylic alcohol (10 mmol), triethyl orthoacetate (70 mmol) and a catalytic amount of propionic acid (one drop) was heated at 138 °C for 3 h under the conditions for distillative removal of ethyl alcohol. When the reaction was completed (GC, TLC), the excess of triethyl orthoacetate was distilled off and the crude product was purified by column chromatography (hexane–methylene chloride–diethyl ether, 6 : 2 : 2). The yields of the reactions, physical and spectral data of the esters obtained are given below:

Ethyl (±)-cis-(4′-isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetate ((±)-2c). Racemic ester (±)-2c (light yellow liquid, 1.13 g, yield 78%) was obtained from racemic cis-piperitol ((±)-1c) (1.00 g, 6.49 mmol). ¹H NMR (CDCl₃) δ: 0.87 and 0.89 (two d, J = 6.8 Hz, 6H, (CH₃)₂CH-), 1.08 (s, 3H, CH₃-1′), 1.25 (t, J = 7.1 Hz, 3H, –OCH₂CH₃), 1.32–1.41 (m, 2H, one of CH₂-5′ and one of CH₂-6′), 1.54–1.63 (m, 2H, one of CH₂-5′ and (CH₃)₂CH–), 1.80 (m, 1H, one of CH₂-6′), 1.86 (m, 1H, H-4′), 2.25 (s, 2H, CH₂-2), 4.10 (q, J = 7.1 Hz, 2H, –OCH₂CH₃), 5.49–5.54 (m, 2H, H-2′ and H-3′); ¹³C NMR (CDCl₃) δ: 14.30 (–OCH₂CH₃), 19.40 and 19.76 ((CH₃)₂CH–), 21.80 (C-5′), 27.90 (CH₃-1′), 31.92 ((CH₃)₂CH–) 34.13 (C-1′), 34.53 (C-6′), 41.59 (C-4′), 45.55 (C-2), 59.93 (–OCH₂CH₃), 129.70 (C-2′), 135.54 (C-3′), 171.98 (C-1); IR (film, cm⁻¹): 2958 (s), 2871 (m), 1734 (s), 1462 (m), 1368 (m), 1245 (m).

Ethyl (–)-(1′S,4′R)-(4′-isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetate ((–)-2a). Ester (–)-2a (light yellow liquid, 0.82 g, yield 71%, ee = 98%) was obtained from alcohol (–)-1a (0.80 g, 5.19 mmol, ee = 98%). [α]²²_D −34.4 (c 1.05, CHCl₃). Its IR and NMR spectra were identical to those of (±)-2c.

Ethyl (+)-(1′R,4′S)-4′-isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetate ((+)-2b). Ester (+)-2b (light yellow liquid, 0.80 g, yield 73%, ee = 94%) was obtained from alcohol (+)-1b (0.75 g, 4.87 mmol, ee = 94%). [α]²²_D = +28.15 (c 1.00, CHCl₃). Its IR and NMR spectra were identical to those of (±)-2c.

Ethyl (±)-trans-(4′-isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetate ((±)-7c). Racemic ester (±)-7c (yellow liquid, 2.18 g, yield 75%) was obtained from racemic trans-piperitol ((±)-6c) (2.00 g, 12.98 mmol). ¹H NMR (CDCl₃) δ: 0.86 and 0.89 (two d, J = 6.8 Hz, 6H, (CH₃)₂CH–), 1.06 (s, 3H, CH₃-1′), 1.24 (t, J = 7.1 Hz, 3H, –OCH₂CH₃), 1.38 (m, 1H, one of CH₂-5′), 1.54-1.69 (m, 4H, one of CH₂-5′, CH₂-6′ and (CH₃)₂CH–), 1.88 (m, 1H, H-4′), 2.24 (s, 2H, CH₂-2), 4.10 and 4.11 (two q, J = 7.1 Hz, 2H, –OCH₂CH₃), 5.50–5.56 (dm, J = 10.7 Hz, 2H, H-2′ and H-3′); ¹³C NMR (CDCl₃) δ: 14.31 (–OCH₂CH₃), 19.22 and 19.59 ((CH₃)₂CH–), 21.90 (C-5′), 26.68 (CH₃-1′), 31.90 ((CH₃)₂CH–), 34.55 (C-1′), 34.66 (C-6′), 41.60 (C-4′), 47.60 (C-2), 59.92 (–OCH₂CH₃), 129.64 (C-2′), 135.10 (C-3′), 171.88 (C-1); IR (film, cm⁻¹): 2959 (s), 1734 (s), 1461 (m), 1367 (m), 1254 (m), 1158 (m), 1034(m);

Ethyl (+)-(1′S,4′S)-(4′-isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetate ((+)-7a). Ester (+)-7a (light yellow liquid, 1.60 g, yield 74%, ee = 95%) was obtained from alcohol (–)-6a (1.50 g, 9.74 mmol, ee = 95%). [α]²²_D = +24.9 (c 0.83, CHCl₃). Its IR and NMR spectra were identical to those of (±)-7c.

Ethyl (−)-(1′R,4′R)-(4′-isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetate ((−)-7b). Ester (−)-7b (light yellow liquid, 1.73 g, yield 71%, ee = 96%) was obtained from alcohol (+)-6a (1.68 g, 10.91 mmol, ee = 96%). [α]²²_D = –37.6° (c 0.8, CHCl₃). Its IR and NMR spectra were identical to those of (±)-7c.

Synthesis of γ,δ-unsaturated acids (3a–c, 8a–c). All γ,δ-unsaturated acides were obtained according to the following procedure:

γ,δ-Unsaturated ester (5 mmol) was dissolved in 15 mL of 2.5% KOH/MeOH solution and 1 mL of water and the mixture refluxed for 2 h. After evaporating the solvent, the residue was diluted with water and organic impurities were extracted with diethyl ether. The water layer was acidified with 0.5 M HCl solution (pH ≈ 4) and extracted with diethyl ether. The ethereal extract was washed with brine, dried over anhydrous MgSO₄ and concentrated in vacuo. The crude product was purified by column chromatography (hexane – diethyl ether, 2 : 1). The yields of the reactions, physical and spectral data of the acids obtained are given below:

(±)-cis-(4′-Isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetic acid ((±)-3c). Racemic acid (±)-3c (yellow liquid, 0.80 g, yield 91%) was obtained from racemic ester (±)-2c (1.00 g, 4.46 mmol). ¹H NMR (CDCl₃) δ: 0.87 and 0.90 (two d, J = 6.8 Hz, 6H, (CH₃)₂CH–), 1.12 (s, 3H, CH₃-1′), 1.35–1.43 (m, 2H, one of CH₂-5′ and one of CH₂-6′), 1.55–1.66 (m, 2H, one of CH₂-5′ and (CH₃)₂CH–), 1.83 (m, 1H, one of CH₂-6′), 1.89 (m, 1H, H-4′), 2.30 and 2.32 (two d, J = 13.5 Hz, 2H, CH₂-2, AB system), 5.55 and 5.57 (two d, J = 10.8 Hz, 2H, H-2′ and H-3′); ¹³C NMR (CDCl₃) δ: 19.36 and 19.74 ((CH₃)₂CH–), 21.78 (C-5′), 27.86 (CH₃-1′), 31.91 ((CH₃)₂CH–), 34.04 (C-1′), 34.63 (C-6′), 41.59 (C-4′), 45.32 (C-2), 130.08 (C-2′), 135.18 (C-3′), 178.28 (C-1); IR (film, cm⁻¹): 2600–3200 (b, s), 1705 (s), 1462 (m), 1408 (m).

(–)-(1′S,4′R)-(4′-Isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetic acid ((–)-3a). Acid (–)-3a (yellow liquid, 0.55 g, yield 90%) was obtained from ester (–)-2a (0.70 g, 3.12 mmol, ee = 98%). [α]²²_D −23.8 (c 0.79, CHCl₃). Its IR and NMR spectra were identical to those of (±)-3c.

(+)-(1′R,4′S)-4′-Isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetic acid ((+)-3b). Acid (+)-3b (yellow liquid, 0.61 g, yield 92%) was obtained from ester (+)-2b (0.75 g, 3.35 mmol, ee = 94%). [α]²²_D = +25.4 (c 0.82, CHCl₃). Its IR and NMR spectra were identical to those of (±)-3c.

(±)-trans-(4′-Isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetic acid ((±)-8c). Racemic acid (±)-8c (yellow liquid, 1.66 g, yield 95%) was obtained from racemic ester (±)-7c (2.00 g, 8.93 mmol). ¹H NMR (CDCl₃) δ: 0.87 and 0.89 (two d, J = 6.8 Hz, 6H, (CH₃)₂CH–), 1.10 (s, 3H, CH₃-1′), 1.40 (m, 1H, one of CH₂-5′), 1.56–1.64 (m, 4H, one of CH₂-5′, CH₂-6′ and (CH₃)₂CH–), 1.90 (m, 1H, H-4′), 2.29 (s, 2H, CH₂-2), 5.54 (d, J = 10.5 Hz, 1H, H-2′), 5.57 (dd, J = 10.5 and 1.7 Hz, 1H, H-3′); ¹³C NMR (CDCl₃) δ: 19.21 and 19.59 ((CH₃)₂CH–), 21.79 (C-5′), 26.56 (CH₃-1′), 31.87 ((CH₃)₂CH–), 34.45 (C-1′), 34.61 (C-6′), 41.50 (C-4′), 47.35 (C-2), 130.02 (C-2′), 134.72 (C-3′), 178.35 (C-1); IR (film, cm⁻¹): 2888–3500 (b, s), 2934 (s), 1705 (s), 1410 (m), 1368 (m), 1280 (m).

(+)-(1′S,4′S)-(4′-Isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetic acid ((+)-8a). Acid (+)-8a (yellow liquid, 1.13 g, yield 92%) was obtained from ester (+)-7a (1.40 g, 6.25 mmol, ee = 95%). [α]²²_D = +31.7 (c 1.25, CHCl₃). Its IR and NMR spectra were identical to those of (±)-8c.

(−)-(1′R,4′R)-(4′-Isopropyl-1′-methylcyclohex-2′-en-1′-yl)acetic acid ((−)-8b). Acid (−)-8b (yellow liquid, 1.17 g, yield 99%) was obtained from ester (−)-7b (1.35 g, 6.03 mmol, ee = 96%). [α]²²_D = −30.6° (c 1.60, CHCl₃). Its IR and NMR spectra were identical to those of (±)-8c.

Synthesis of δ-iodo-γ-lactones (4a–c, 9a–c). All δ-iodo-γ-lactones were obtained according to the following procedure:

A mixture of γ,δ-unsaturated acid (3 mmol) in 20 mL of diethyl ether and 20 mL of 0.5 M NaHCO₃ solution was stirred at room temperature for 20 min and then refluxed. To the refluxing mixture, a solution of I₂ (6 mmol) and KI (18 mmol) in 12 mL water was added dropwise. The mixture was stirred under reflux for 3 h. After cooling, it was diluted with diethyl ether and washed with saturated Na₂S₂O₃ solution. The separated ethereal solution was washed with 0.5 M NaHCO₃ solution, brine, dried over anhydrous MgSO₄ and concentrated in vacuo. The crude product was purified by column chromatography (hexane–diethyl ether–methylene chloride 6 : 1 : 1). The yields of the reactions, physical and spectral data of the iodolactones obtained are given below:

(±)-c-5-Iodo-t-4-isopropyl-r-1-methyl-7-oxa-cis-bicyclo[4.3.0]nonan-8-one ((±)-4c). Iodolactone (±)-4c (colourless crystals – recrystallization from acetone, m.p. 89–91 °C, 0.70 g, yield 85%) was obtained from acid (±)-3c (0.50 g, 2.55 mmol); ¹H NMR (CDCl₃) δ: 0.67 and 0.94 (two d, J = 6.9 Hz, 6H, (CH₃)₂CH–), 1.12 (m, 1H, H-3, axial), 1.20 (s, 3H, CH₃-1), 1.46 (ddd, J = 14.2, 13.5 and 4.2 Hz, 1H, H-2, axial), 1.48 (tt, J = 11.9 and 3.1 Hz, 1H, H-4), 1.63 (m like dq J = 14.2 and 3.5 Hz, 1H, H-3, equatorial), 1.87 (dt, J = 14.2 and 3.5 Hz, 1H, H-2, equatorial), 1.98 and 2.62 (two d, J = 17.1 Hz, 2H, CH₂-9), 2.20 (septet d, J = 6.9 and 3.1 Hz, 1H, (CH₃)₂CH–), 3.72 (dd, J = 11.9 and 9.2 Hz, 1H, H-5), 4.48 (d, J = 9.2 Hz, 1H, H-6); ¹³C NMR (CDCl₃) δ: 14.56 and 21.50 (CH₃)₂CH–), 19.98 (C-3), 28.49 (CH₃-1), 31.97 (CH₃)₂CH–), 32.65 (C-2), 37.69 (C-9), 40.57 (C-5), 41.33 (C-1) 47.30 (C-4), 92.85 (C-6), 175.14 (C-8); IR (KBr, cm⁻¹): 2955 (m), 2872 (w), 1779 (s), 1390 (w), 1374 (w), 1281 (w), 1004 (m), 990 (m), 493 (w); Crystal data: C₁₂H₁₉IO₂, M = 322.17, colourless block, crystal dimensions 0.35 × 0.25 × 0.20 mm, triclinic, space groupP1̄, a = 9.690(2), b = 11.404(2), c = 12.212(3) Å, α = 79.09(4), β = 84.20(3), γ = 86.93(3)°, V = 1317.5(5) ų, Z = 4, Dc = 1.624 Mg m-3, μ = 2.412 mm⁻¹T = 100(2)K, R = 0.022, wR₂ = 0.051 (3931 reflections with I > 2σ(I)) for 271 variables; Elemental analysis calcd (%) for C₁₂H₁₉IO₂ (322.17): C 44.74, H 5.94; found: C 45.17, H 6.29.

(+)-(1S,4R,5R,6R)-5-Iodo-4-isopropyl-1-methyl-7-oxabicyclo[4.3.0]nonan-8-one ((+)-4a). Iodolactone (+)-4a (colourless crystals - recrystallization from acetone, m.p. 116–118 °C, 0.70 g, yield 92%, ee = 97%) was obtained from acid (−)-3a (0.47 g, 2.38 mmol). [α]²²_D = +46.3 (c 0.96, CHCl₃); Crystal data: C₁₂H₁₉IO₂, M = 322.17, colourless block, crystal dimensions 0.28 × 0.21 × 0.18 mm, orthorhombic, space groupP2₁2₁2₁, a = 8.140(2), b = 8.211(2), c = 18.950(3) Å, V = 1266.6(5) ų, Z = 4, Dc = 1.690 Mg m-3, μ = 2.509 mm⁻¹T = 100(2)K, R = 0.017, wR₂ = 0.042 (2716 reflections with I > 2σ(I)) for 136 variables. Absolute configuration established by anomalous dispersion effects in diffraction measurements on the crystal. Its IR and NMR spectra were identical to those of (±)-4c.

(−)-(1R,4S,5S,6S)-5-Iodo-4-isopropyl-1-methyl-7-oxabicyclo[4.3.0]nonan-8-one ((−)-4b). Iodolactone (−)-4b (colourless crystals - recrystallization from acetone, m.p. 112–114 °C, 0.28 g, yield 86%, ee = 96%) was obtained from acid (+)-3b (0.20 g, 1.02 mmol). [α]²²_D = −42.4° (c 1.02, CHCl₃); Crystal data: C₁₂H₁₉IO₂, M = 322.17, colourless needle, crystal dimensions 0.48 × 0.17 × 0.06 mm, orthorhombic, space groupP2₁2₁2₁, a = 8.140(2), b = 8.210(2), c = 18.954(3) Å, V = 1266.7(5) ų, Z = 4, Dc = 1.689 Mg m-3, μ = 2.509 mm⁻¹, T = 100(2)K, R = 0.015, wR₂ = 0.038 (2726 reflections with I > 2σ(I)) for 136 variables. Absolute configuration established by anomalous dispersion effects in diffraction measurements on the crystal. Its IR and NMR spectra were identical to those of (±)-4c.

(±)-c-5-Iodo-c-4-isopropyl-r-1-methyl-7-oxa-cis-bicyclo[4.3.0]nonan-8-one ((±)-9c). Iodolactone (±)-9c (colourless crystals – recrystallization from acetone, m.p. 90–92 °C, 0.66 g, yield 81%) was obtained from acid (±)-8c (0.50 g, 2.55 mmol); ¹H NMR (CDCl₃) δ: 0.28 (m, 1H, H-4), 0.86 and 0.96 (two d, J = 6.6 Hz, 6H, (CH₃)₂CH-), 1.24-1.37 (m, 2H, (CH₃)₂CH- and one of CH₂-3), 1.42 (m, 1H, one of CH₂-2), 1.46 (s, 3H, CH₃-1), 1.61–1.67 (m, 2H, one of CH₂-3 and one of CH₂-2), 2.25 and 2.43 (two d, J = 16.7 Hz, 2H, CH₂-9, AB system), 4.63 (m, 1H, H-5), 4.69 (m, 1H, H-6); ¹³C NMR (CDCl₃) δ: 19.46 and 20.22 (CH₃)₂CH-), 21.74 (C-3), 25.26 (CH₃-1), 33.54 (CH₃)₂CH-), 34.21 (C-2), 34.24 (C-5), 38.22 (C-1), 43.19 (C-4), 46.42 (C-9), 87.88 (C-6); 174.00 (C-8); IR (KBr, cm⁻¹): 2960 (m), 1775 (s), 1373 (w), 1229 (m), 633 (m); Crystal data: C₁₂H₁₉IO₂, M = 322.17, colourless block, crystal dimensions 0.30 × 0.30 × 0.30 mm, monoclinic, space groupP2₁/c, a = 17.517(3), b = 10.774(2), c = 6.906(2) Å, β = 97.60(3)°, V = 1291.9(5) ų, Z = 4, Dc = 1.656 Mg m-3, μ = 2.460 mm⁻¹T = 100(2)K, R = 0.039, wR₂ = 0.104 (2465 reflections with I > 2σ(I)) for 136 variables; Elemental analysis calcd (%) for C₁₂H₁₉IO₂ (322.17): C 44.74, H 5.94; found: C 44.73, H 6.18.

(+)-(1S,4S,5R,6R)-5-Iodo-4-isopropyl-1-methyl-7-oxabicyclo[4.3.0]nonan-8-one ((+)-9a). Iodolactone (+)-9a (colourless crystals - recrystallization from acetone, m.p. 41–43 °C, 0.57 g, yield 81%, ee = 98%) was obtained from acid (+)-8a (0.43 g, 2.20 mmol). [α]²²_D = +24.5 (c 1.05, CHCl₃); Its IR and NMR spectra were identical to those of (±)-9c.

(–)-(1R,4R,5S,6S)-5-Iodo-4-isopropyl-1-methyl-7-oxabicyclo[4.3.0]nonan-8-one ((−)-9b). Iodolactone (−)-9b (colourless crystals – recrystallization from acetone, 0.67 g, yield 87%) with 94% ee was obtained from acid (−)-8b (0.47 g, 2.40 mmol). [α]²²_D −21.2 (c 1.42, CHCl₃); m.p. 59–60 °C. Its IR and NMR spectra were identical to those of (±)-9c.

Synthesis of δ-bromo-γ-lactones (5a–c, 10a–c). All δ-bromo-γ-lactones were obtained according to the following procedure:

A mixture of γ,δ-unsaturated acid (3 mmol) in 20 mL of diethyl ether and 20 mL of 0.5 M NaHCO₃ solution was stirred at room temperature for 20 min and then cooled in an ice bath. To the ice-cooling and stirring mixture, Br₂ (6 mmol) was added dropwise. The reaction temperature was gradually increased to room temperature and the mixture was stirred for 2 h. After this time the reaction mixture was diluted with diethyl ether and washed with saturated Na₂S₂O₃ solution. The separated ethereal solution was washed with 0.5 M NaHCO₃ solution, brine, dried over anhydrous MgSO₄ and concentrated in vacuo. The crude product was purified by column chromatography (hexane–diethyl ether–methylene chloride 8 : 1 : 1). The yields of the reactions, physical and spectral data of the bromodolactones obtained are given below:

(±)-c-5-Bromo-t-4-isopropyl-r-1-methyl-7-oxa-cis-bicyclo[4.3.0]nonan-8-one ((±)-5c). Bromolactone (±)-5c (colourless crystals - recrystallization from acetone, m.p. 64–66 °C, 0.77 g, yield 85%) was obtained from acid (±)-3c (0.68 g, 3.48 mmol); ¹H NMR (CDCl₃) δ: 0.75 and 0.98 (two d, J = 6.9 Hz, 6H, (CH₃)₂CH-), 1.18 (m, 1H, H-3, axial), 1.23 (s, 3H, CH₃-1), 1.47 (ddd, J = 14.5, 13.2 and 4.2 Hz, 1H, H-2, axial), 1.53 (tt, J = 11.7 and 3.2 Hz, 1H, H-4), 1.73 (dq, J = 14.2 and 3.6 Hz, 1H, H-3, equatorial), 1.89 (dt, J = 14.5 and 3.6 Hz, 1H, H-2, equatorial), 2.05 and 2.58 (two d, J = 17.1 Hz, 2H, CH₂-9), 2.33 (septet d, J = 6.9 and 3.2 Hz, 1H, (CH₃)₂CH-), 3.69 (dd, J = 11.7 and 8.7 Hz, 1H, H-5), 4.33 (d, J = 8.7 Hz, 1H, H-6); ¹³C NMR (CDCl₃) δ: 14.84 and 21.18 (CH₃)₂CH-), 20.06 (C-3), 28.43 (CH₃)₂CH-), 28.50 (CH₃-1), 32.50 (C-2), 38.17 (C-9), 41.41 (C-1), 47.08 (C-4), 58.71 (C-5), 91.48 (C-6), 175.31 (C-8); IR (KBr, cm⁻¹): 2955 (m), 1779 (s), 1371 (w), 1354 (w), 1282 (w), 667 (m); Elemental analysis calcd (%) for C₁₂H₁₉BrO₂ (275.18): C 52.38, H 6.96; found: C 52.28, H 7.21.

(+)-(1S,4R,5R,6R)-5-Bromo-4-isopropyl-1-methyl-7-oxabicyclo[4.3.0]nonan-8-one ((+)-5a). Bromolactone (+)-5a (colourless crystals – recrystallization from acetone, m.p. 98–99 °C, 0.12 g, yield 83%, ee = 97%) was obtained from acid (−)-3a (0.10 g, 0.51 mmol). [α]²²_D = +32.06 (c 1.02, CHCl₃); Crystal data: C₁₂H₁₉BrO₂, M = 275.18, colourless plate, crystal dimensions 0.52 × 0.19 × 0.08 mm, orthorhombic, space groupP2₁2₁2₁, a = 7.951(2), b = 8.165(2), c = 19.191(3) Å, V = 1245.9(5) ų, Z = 4, Dc = 1.467 Mg m-3, μ = 3.280 mm⁻¹T = 100(2)K, R = 0.024, wR₂ = 0.056 (2518 reflections with I > 2σ(I)) for 136 variables. Absolute configuration established by anomalous dispersion effects in diffraction measurements on the crystal. Its IR and NMR spectra were identical to those of (±)-5c.

(−)-(1R,4S,5S,6S)-5-Bromo-4-isopropyl-1-methyl-7-oxabicyclo[4.3.0]nonan-8-one ((−)-5b). Bromolactone (−)-5b (colourless crystals – recrystallization from acetone, m.p. 99–101 °C, 0.20 g, yield 82%, ee = 91%) was obtained from acid (+)-3b (0.17 g, 0.86 mmol). [α]²²_D −27.82 (c 1.10, CHCl₃); Crystal data: C₁₂H₁₉BrO₂, M = 275.18, colourless plate, crystal dimensions 0.17 × 0.14 × 0.05 mm, orthorhombic, space groupP2₁2₁2₁, a = 7.954(2), b = 8.158(2), c = 19.177(4) Å, V = 1244.4(5) ų, Z = 4, Dc = 1.469 Mg m-3, μ = 3.284 mm⁻¹T = 100(2)K, R = 0.049, wR₂ = 0.058 (2136 reflections with I > 2σ(I)) for 136 variables. Absolute configuration established by anomalous dispersion effects in diffraction measurements on the crystal. Its IR and NMR spectra were identical to those of (±)-5c.

(±)-c-5-Bromo-c-4-isopropyl-r-1-methyl-7-oxa-cis-bicyclo[4.3.0]nonan-8-one ((±)-10c). Bromolactone (±)-10c (colourless crystals - recrystallization from acetone, m.p. 90–92 °C, 0.59 g, yield 84%) was obtained from acid (±)-8c (0.50 g, 2.55 mmol); ¹H NMR (CDCl₃) δ: 0.94 and 0.97 (two d, J = 6.6 Hz, 6H, (CH₃)₂CH–), 1.18 (m, 1H, H-4), 1.41 (s, 3H, CH₃-1), 1.43–1.49 (m, 2H, one of CH₂-3 and one of CH₂-2), 1.57 (m, 1H, (CH₃)₂CH–), 1.63–1.68 (m, 2H, one of CH₂-3 and one of CH₂-2), 2.28 and 2.47 (two d, J = 16.7 Hz, 2H, CH₂-9, AB system), 4.54 (d, J = 2.3 Hz, 1H, H-6), 4.60 (m, 1H, H-5); ¹³C NMR (CDCl₃) δ: 19.55 and 20.55 (CH₃)₂CH–), 20.06 (C-3), 23.87 (CH₃-1), 30.69 (CH₃)₂CH–), 33.96 (C-2), 37.99 (C-1), 43.26 (C-4), 46.30 (C-9), 52.10 (C-5), 86.28 (C-6), 174.52 (C-8); IR (KBr, cm⁻¹): 2967 (m), 1780 (s), 1375 (w), 1268 (m) 653 (m); Crystal data: C₁₂H₁₉BrO₂, M = 275.18, colourless block, crystal dimensions 0.30 × 0.20 × 0.20 mm, monoclinic, space groupP2₁/c, a = 17.359(3), b = 10.889(2), c = 6.611(2) Å, β = 99.36(3)°, V = 1233.0(5) ų, Z = 4, Dc = 1.482 Mg m-3, μ = 3.314 mm⁻¹, T = 100(2)K, R = 0.023, wR₂ = 0.056 (3373 reflections with I > 2σ(I)) for 136 variables; Elemental analysis calcd (%) for C₁₂H₁₉BrO₂ (275.18): C 52.38, H 6.96; found: C 52.30, H 7.28.

(+)-(1S,4S,5R,6R)-5-Bromo-4-isopropyl-1-methyl-7-oxabicyclo[4.3.0]nonan-8-one ((+)-10a). Bromolactone (+)-10a (yellow oily liquid, 0.42 g, yield 85%, ee = 94%) was obtained from acid (+)-8a (0.35 g, 1.79 mmol). [α]²²_D = +7.8 (c 1.00, CHCl₃). Its IR and NMR spectra were identical to those of (±)-10c.

(–)-(1R,4R,5S,6S)-5-Bromo-4-isopropyl-1-methyl-7-oxabicyclo[4.3.0]nonan-8-one ((−)-10b). Bromolactone (−)-10b (colourless crystals – recrystallization from acetone, m.p. 36–38 °C, 0.24 g, yield 82%, ee = 96%) was obtained from acid (−)-8b (0.21 g, 1.07 mmol). [α]²²_D −8.57 (c 1.08, CHCl₃); Its IR and NMR spectra were identical to those of (±)-10c.

Synthesis of δ-chloro-γ-lactones (11a-c). All δ-chloro-γ-lactones were obtained according to the following procedure:

To the solution of γ,δ-unsaturated ester (5 mmol) in a mixture of THF (15 mL) and water (6 mL), N-chlorosuccinimide (7 mmol) was added. The mixture was stirred at room temperature for 24 h. Then the reaction mixture was diluted with diethyl ether and washed with 0.5 M NaHCO₃ solution. The separated ethereal solution was washed with brine, dried over anhydrous MgSO₄ and concentrated in vacuo. The crude product was purified by column chromatography (hexane–diethyl ether 9 : 1). The yields of the reactions, physical and spectral data of the chlorolactones obtained are given below:

(±)-c-5-Chloro-c-4-isopropyl-r-1-methyl-7-oxa-cis-bicyclo[4.3.0]nonan-8-one ((±)-11c). Chlorolactone (±)-11c (colourless crystals - recrystallization from acetone, m.p. 98–100 °C, 0.27 g, yield 88%) was obtained from ester (±)-7c (0.30 g, 1.34 mmol); ¹H NMR (CDCl₃) δ: 0.95 and 0.96 (two d, J = 6.8 Hz, 6H, (CH₃)₂CH-), 1.35 (s, 3H, CH₃-1), 1.36-1.52 (m, 3H, H-4, one of CH₂-3 and one of CH₂-2), 1.60–1.66 (m, 3H, (CH₃)₂CH-, one of CH₂-3 and one of CH₂-2), 2.27 and 2.46 (two d, J = 16.7 Hz, 2H, CH₂-9, AB system), 4.38 (d, J = 2.3 Hz, 1H, H-6), 4.54 (m, 1H, H-5); ¹³C NMR (CDCl₃) δ: 19.14 (C-3), 19.62 and 20.68 (CH₃)₂CH-), 23.07 (CH₃-1), 29.19 (CH₃)₂CH-), 33.75 (C-2), 37.76 (C-1), 43.11 (C-4), 46.14 (C-9), 58.02 (C-5), 85.85 (C-6), 174.76 (C-8); IR (KBr, cm⁻¹): 2968 (m), 1785 (s) 1376 (m), 1344 (w), 1012 (s) 687 (m); Crystal data: C₁₂H₁₉ClO₂, M = 230.72, colourless block, crystal dimensions 0.40 × 0.40 × 0.40 mm, monoclinic, space groupP2₁/c, a = 6.566(2), b = 10.890(3), c = 33.558(4) Å, β = 90.60(3)°, V = 2399.4(10) ų, Z = 8, Dc = 1.277 Mg m-3, μ = 0.298 mm⁻¹, T = 100(2)K, R = 0.037, wR₂ = 0.091 (3362 reflections with I > 2σ(I)) for 271 variables; Elemental analysis calcd (%) for C₁₂H₁₉ClO₂ (230.72): C 62.47, H 8.37; found: C 62.90, H 7.95.

(−)-(1S,4S,5R,6R)-5-Chloro-4-isopropyl-1-methyl-7-oxabicyclo[4.3.0]nonan-8-one ((−)-11a). Chlorolactone (−)-11a (colourless crystals – recrystallization from acetone, m.p. 43–45 °C, 0.24 g, yield 75%, ee = 91%) was obtained from ester (+)-7a (0.31 g, 1.39 mmol). [α]²²_D −3.7 (c 1.03, CHCl₃); Its IR and NMR spectra were identical to those of (±)-11c.

(+)-(1R,4R,5S,6S)-5-Chloro-4-isopropyl-1-methyl-7-oxabicyclo[4.3.0]nonan-8-one ((+)-11b). Chlorolactone (+)-11b (colourless oily liquid, 0.25 g, yield 90%, ee = 96%) was obtained from ester (−)-7b (0.27 g, 1.20 mmol). [α]²²_D = +6.1 (c 0.94, CHCl₃). Its IR and NMR spectra were identical to those of (±)-11c.

Bioassays

Cultures of aphids and plants. Laboratory clones of peach-potato aphid Myzus persicae (Sulz.) were maintained on Chinese cabbage Brassica pekinensis (Lour.) Rupr. in the laboratory at 20 °C, 65% r.h., and L16:8D photoperiod. One to five day old apterous females of M. persicae and 3 week old plants with 4–5 fully developed leaves were used for experiments. All experiments were carried out under the same conditions of temperature, relative humidity, and photoperiod. The bioassays were started at 10–11a.m.

Aphid settling. Aphids settle on a plant only when they accept it as a food source.⁵⁵ Therefore, the number of aphids that settle on a given substrate is a good indicator of its suitability. This bioassay allows a study of aphid host preferences under semi-natural conditions. Aphids are given free choice between control and treated leaves. The studied halogenated lactones were applied by immersing a leaf in 0.1% ethanolic solution of a given compound for 30 s. Control leaves of similar size were immersed in 70% ethanol that was used as a solvent for the tested halogenated lactones. Treated and control leaves were placed in a Petri dish and allowed to dry for 1 h to permit the evaporation of the solvent. Aphids were placed in the dish along the line that divided the arena into two halves so that aphids could choose between treated (on one half of a Petri dish) and control leaves (on the other half of the dish). Aphids that settled, i.e. they did not move and the position of their antennae indicated feeding⁵⁶ on each leaf were counted at 1 h, 2 h, and 24 h intervals after access to the leaf (8 replicates, 20 viviparous apterous females/replicate). Aphids that were moving or out of any of the leaves were not counted.

The data were analyzed using one way ANOVA (STATISTICA 6.1. package). If aphids showed clear preference for the leaf treated with the tested compound (P < 0.05), the compound was described as having attractant properties. If aphids settled mainly on the control half of the leaf (P < 0.05), the compound tested in the respective choice-test was stated a deterrent. From the data thus obtained the relative index of deterrence (DI) was calculated:

DI = (C − T)/(C + T) (1)

C – the number of aphids settled on control half of the leaf

T – the number of aphids settled on the treated with tested compound half of the leaf

The value of DI ranged between 1 (ideal deterrent) and –1 (ideal attractant).

Aphid probing and feeding behavior. Aphid probing and especially the phloem sap uptake by M. persicae was monitored using the technique of electronic registration of aphid stylet penetration in plant tissues known as EPG (Electrical Penetration Graph) that is frequently employed in insect–plant relationship studies.⁵⁷ In this experimental set-up, aphid and plant are made parts of an electric circuit, which is completed when the aphid inserts its stylets into the plant. Weak voltage is supplied in the circuit, and all changing electric properties are recorded as EPG waveforms that can be correlated with aphid activities and stylet position in plant tissues.⁵⁸ The parameters describing aphid behaviour during probing and feeding, such as total time of probing, proportion of phloem patterns E1 and E2, number of probes, etc., are good indicators of plant suitability or interference of probing by chemical or physical factors in individual plant tissues.⁵⁹ One leaf of experimental plant was immersed in 0.1% ethanolic solution of a given compound for 30 s. Control leaves of similar size were immersed in 70% ethanol that was used as a solvent for the halogenated lactones. Treated and control leaves were allowed to dry for 1 h before the start of the experiment to permit the evaporation of the solvent. Aphids were attached to a golden wire electrode with conductive silver paint and starved for 1 h prior to the experiment. Probing behaviour of 12 apterous females per studied lactone was monitored for 8 h continuously with a four-channel DC EPG recording equipment. Each aphid was given access to a freshly prepared leaf. Signals were saved on the computer and analysed using the PROBE 3.1 software provided by Dr W. F. Tjallingii (EPG-Systems; Dillenburg 12, 6703 CJ Wageningen, The Netherlands). The following aphid behaviours were distinguished: no penetration (waveform ‘np’ – aphid stylets outside the plant), pathway phase – penetration of non-phloem tissues (waveforms ‘ABC’), salivation into sieve elements (waveform ‘E1’), ingestion of phloem sap (waveform ‘E2’), and ingestion of xylem sap (waveform ‘G’) (Fig. 10). The parametres derived from EPGs were analysed according to their frequency and duration in configuration related to activities in peripheral and vascular tissues.

One-way analysis of variance (ANOVA) was carried out on the experimental results. All calculations were performed using STATISTICA 6.1 package (StatSoft, Tulsa, OK, USA).
