Biorenewable polyethylene terephthalate mimics derived from lignin and acetic acid

Abstract

Lignin-based vanillin and acetic anhydride are subjected to the Perkin reaction and then hydrogenation to afford acetyldihydroferulic acid. Polymerization of this monomer yields poly(dihydroferulic acid), which exhibits thermal properties functionally similar to those of polyethylene terephthalate (PET).

---

Polyethylene terephthalate (PET) is the third most common synthetic polymer and accounts for about 18% of world polymer production.¹ This aromatic/aliphatic polyester possesses very practical thermal properties that are not found in any all-aliphatic commodity thermoplastic: a glass transition temperature (T_g) near 67 °C and a melting temperature (T_m) of 265 °C.² The key aromatic component of PET, terephthalic acid, is derived from petroleum, while ethylene glycol is derived from petroleum or natural gas (Scheme 1).

Scheme 1 Polyethylene terephthalate derives from fossil fuel feedstocks terephthalic acid and ethylene glycol.

The design of sustainable PET mimics will probably also require aromatic components and the most abundant biorenewable source of aromatic compounds is lignin, which is found in all vascular plants, is the second most abundant naturally-occurring organic polymer, and makes up approximately 30% of wood.³ The extraction of lignin from wood is common in the paper pulping industry and can result in appreciable quantities of the aromatic aldehydes vanillin and syringaldehyde – up to 5% and 8%, respectively (Scheme 2).⁴

Scheme 2 Aromatic aldehydes vanillin and syringaldehyde are by-products of lignin extraction during the production of paper.

Hence, our initial design of a fully sustainable⁵ aliphatic/aromatic polyester focused on incorporating aromatics derived from vanillin and syringaldehyde into the main-chain, while also including a short aliphatic component that provides necessary flexibility. All-aromatic polyesters certainly exist, but their extremely high melting temperatures usually limit their processability (e.g., poly(p-hydroxybenzoic acid) with T_m = 350 °C).⁶ Also, several lignin-based polyesters have been synthesized, but these generally do not match the thermal properties of PET and employ an oxidized version of vanillin, vanillic acid, as the feedstock.⁷ While the use of lignin-derived aromatics for building polymers appears industrially sound, such materials have not yet achieved commercial significance.⁸ Interestingly, the pentose-derived aromatic furan-2,5-dicarboxylic acid has been used as a successful replacement of terephthalic acid in a recent PET analogue.⁹

Another important design strategy is the use of a single monomer instead of two co-monomers; this avoids the necessity of stoichiometric balance to achieve high molecular weights. A final aspiration is main-chain ester functionality built from aromatic alcohols instead of aliphatic alcohols (as in PET); in this case, hydrolytic degradation should be more facile because of the superior leaving group ability of aryloxides vs. alkoxides. An ideal monomer that meets our design criteria is acetyldihydroferulic acid.¹⁰Scheme 3 depicts the two-step synthesis of this monomer (69% and 85% yields, respectively) from vanillin.

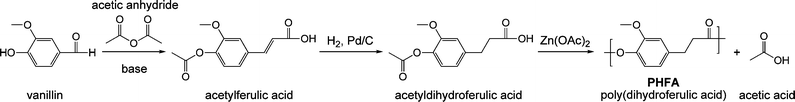

Scheme 3 Synthetic scheme for preparing the aromatic/aliphatic polyester poly(dihydroferulic acid), PHFA, from biorenewable feedstocks vanillin and acetic anhydride.

The first step employs acetic anhydride and sodium acetate—although other bases can be used—to effect a Perkin reaction on the aldehyde functional group of vanillin.¹¹ Most acetic acid currently derives from natural gas via carbonylation of methanol but the requisite C1 feedstocks for this process can readily be prepared from wood through anaerobic distillation—first yielding wood alcohol (methanol). Alternatively, acetic acid can be derived from sustainable fermentation processes.¹² Concomitant with the Perkin reaction is an acetylation of the hydroxyl group of vanillin. The obtained acetylferulic acid is conjugated and yellow, but facile hydrogenation yields a nearly colorless, aromatic/aliphatic monomer. Acetyldihydroferulic acid has been investigated as a minor component of an amorphous, liquid crystalline, random terpolymer,¹³ but its homopolymer, poly(dihydroferulic acid), PHFA, has not been reported.

Efficient polymerization was accomplished in the melt (200–220 °C) with Sb₂O₃ or Zn(OAc)₂·2H₂O as catalyst. Dynamic vacuum effected removal of acetic acid as the by-product of this condensation polymerization. Naturally, the evolved acetic acid could be recycled back to the anhydride form. Table 1 describes the various polymerizations as well as characterization data for the obtained polymers. Note that a catalyst is not required to achieve reasonable yields. But, a catalyst does appear to hasten the reaction, as indicated by the time transpired before viscosity impedes stirring.

Table 1 Polymerization and characterization of poly(dihydroferulic acid) from acetyl dihydroferulic acid (1–6) and dihydroferulic acid (7)

Entry	T p/°C	Catalyst (1 mol%)	Melt time/h	Vacuum time/h	Stirring stops/h	yield (%)	[η] ^a/mL g^−1	M v ^b	DP ^c	M n ^c	T g/°C	T m/°C	T 50%/°C ^d
a Intrinsic viscosity obtained with an Ubbelohde viscometer in a 1 : 2 solution of phenol/1,1,2,2-tetrachloroethane at 35 °C. b From [η]= 1.09 × 10^−2Mv^0.84, using Mark–Houwink–Sakurada parameters established for PET.^14 c Degree of Polymerization and Mn by ^1H NMR end group analysis. d The temperature at which 50% mass loss is observed by thermogravimetric analysis, under nitrogen. e Gel permeation chromatography analysis.
1	200–220	none	2	2	1.5	83	31	12 900	27	4 800	74	243	471
2	200–220	Sb2O3	2	2	0.5	67	29	12 000	23	4 100	73	234	462
3	200–220	Zn(OAc)2	2	2	0.5	82	27	11 000	38	6 800	73	234	461
4	200–220	Zn(OAc)2	2	6	0.5	91	36	15 500	50	8 900	67	231	464
5	220–250	Zn(OAc)2	2	6	0.5	68	35	14 800	100	17 800	67	216	456
6	200–220	Zn(OAc)2	2	0.17	—	75	17	6 300	17	3 000	65	240	452
7	200–220	Sb2O3	5	6	—	∼5	n.d.	n.d.	3.5^e	630^e	—	—	n.d.

---

The insolubility of the polymers in common organic solvents precluded gel permeation chromatography analysis. Instead, molecular weight information was obtained by viscometry. The intrinsic viscosity was determined with an Ubbelohde viscometer under conditions previously reported for PET analysis.¹⁴ Since the Mark–Houwink–Sakurada parameters have not been established for novel PHFA, the parameters reported for PET ([η]= 1.09 × 10⁻²M_v^0.84) were applied instead in order to convert intrinsic viscosity to molecular weight. While this transfer of MHS parameters from one polymer to another is not general, the associated error is typically much less than an order of magnitude when the polymeric structures are similar and the solvent and temperature are matched.¹⁵

Additionally, molecular weight information was obtained by ¹H NMR end group analysis. Fig. 1 shows the ¹H NMR spectrum of the PHFA from Table 1, entry 3. The methyl substituent of the acetyl end group was located at 2.40 ppm. Comparative integration suggests an average degree of polymeriation of 38. Note that the ¹H NMR end group analysis method provides number-average molecular weight values generally lower than the viscosity-average molecular weight values, as theoretically predicted for polydisperse samples.¹⁶

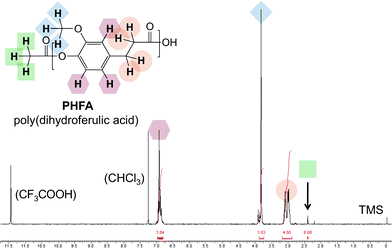

Fig. 1 ¹H NMR assignment and end group analysis of PHFA from Table 1, entry 3.

The most important factors that contribute to high molecular weight material are prolonged dynamic vacuum and the acetyl group of the monomer. When dynamic vacuum is limited to 10 min (Table 1, entry 6), comparatively low molecular weight polymer is obtained. When the acid/alcohol dihydroferulic acid is employed (Table 1, entry 7), the reaction is remarkably sluggish and yields only oligomers. Thus, the acetyl group installed by the Perkin reaction is deemed a necessity and it allows for molecular weights comparable to that of commercial PET (M_n = 15 000 to 40 000).

The T_m for a typical sample of PHFA is measured as 234 °C and its T_g is measured as 73 °C (Fig. 2; Table 1, entry 3). Thus, PHFA and PET have comparable glass transition temperatures, but PHFA has a melting temperature that is lower by about 30 °C. PHFA has a cooling-cycle crystallization temperature up to 17 °C higher (T_c = 207 °C for Table 1, entry 1) than that of PET (190 °C), suggesting a faster rate of crystallization.¹⁷ Additionally, PHFA typically exhibits a peak decomposition temperature near 462 °C (50% mass loss under nitrogen, as measured by thermal gravimetric analysis), which is comparable to that of PET (470 °C).¹⁸

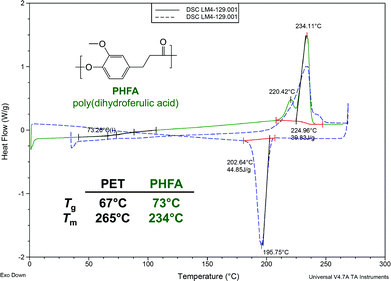

Fig. 2 Differential scanning calorimetry of PHFA from Table 1, entry 3.

The thermal properties of PHFA are arguably improved over those of PET. The limiting temperature for PET in the amorphous phase (e.g., plastic water bottles) is T_g and no compromise is made with PHFA. The limiting temperature for PET in the crystalline phase (e.g., polyester fibers) is T_m. Since most PET is rarely subjected to extremely high temperatures during routine use, the lower T_m of PHFA simply translates into more facile processability. Finally, preliminary crystallization temperature data suggests that the lamentably slow crystallization rate of PET is excelled by PHFA.

It should be noted that the cognate polymers derived from syringaldehyde (two –OCH₃ groups) and 4-hydroxybenzaldehyde (zero –OCH₃ groups) were seemingly heterogeneous since they were intractable even in the best solvents (e.g., trifluoracetic acid). With the present polymerization methods, it appears that the polymer derived from vanillin is synthetically optimal.

In conclusion, acetic acid and lignin-derived vanillin are readily converted into an aromatic/aliphatic A–B monomer that undergoes condensation polymerization with loss of acetic acid. The formed poly(dihydroferulic acid) (PHFA) is the first wholly biorenewable polymer that successfully mimics the thermal properties of polyethylene terephthalate.¹⁹ Future studies will determine important degradation characteristics of PHFA and target copolymers with tunable thermal properties.
