[¹⁸F]- and [¹¹C]-Labeled N-benzyl-isatin sulfonamide analogues as PET tracers for Apoptosis: synthesis, radiolabeling mechanism, and in vivo imaging study of apoptosis in Fas-treated mice using [¹¹C]WC-98

Abstract

The radiolabeled isatin sulfonamide caspase-3 inhibitor, [¹⁸F]2 (WC-II-89), is a potential PET radiotracer for noninvasive imaging of apoptosis. The radiolabeling mechanism was studied by ¹³C NMR, ESI/MS, and computational calculations. It was found that the high electrophilicity of the C3 carbonyl group in the isatin ring, which served as a trap for [¹⁸F]fluoride, was responsible for the failure of the radiolabeling via nucleophilic substitution of the mesylate group in 7a by [¹⁸F]fluoride. Once treated with a strong base, 7a opened the isatin ring completely to form an isatinate intermediate 16, which lost the ability to trap [¹⁸F]fluoride, thereby allowing the displacement of the mesylate group to afford the ¹⁸F-labeled isatinate 17. [¹⁸F]17 can be converted to isatin [¹⁸F]2 efficiently under acidic conditions. The ring-opening and re-closure of the isatin ring under basic and acidic conditions were confirmed by reversed phase HPLC analysis, ESI/MS and ¹³C NMR studies. Computational studies of model compounds also support the above proposed mechanism. Similarly, the ring-opening and re-closure method was used successfully in the synthesis of the ¹¹C labeled isatin sulfonamide analogue [¹¹C]4 (WC-98). A microPET imaging study using [¹¹C]4 in the Fas liver apoptosis model demonstrated retained activity in the target organ (liver) of the treated mice. Increased caspase-3 activation in the liver was verified by the fluorometric caspase-3 enzyme assay. Therefore, this study provides a useful method for radio-synthesis of isatin derivative radiotracers for PET and SPECT studies, and [¹¹C]4 is a potential PET radiotracer for noninvasive imaging of apoptosis.

---

Introduction

“Molecular imaging is the visualization, characterization and measurement of biological processes at the molecular and cellular levels in humans and other living systems.”¹Positron emission tomography (PET), one of the in vivo imaging techniques used in molecular imaging, is being used more frequently in clinical and research fields because of its high sensitivity, minimal physiological effect from PET tracers, good spatial resolution and ease of accurate quantification. One important application of molecular imaging is to study programmed cell death (apoptosis) at the molecular level. Apoptosis is critical for the normal development and function of multicellular organisms as a common and universal mechanism of cell death.² The abnormal regulation of cellular deathviaapoptosis is believed to play a key role in a variety of human diseases.³ In addition, the beneficial effect of chemotherapy, radiotherapy, and other antitumor therapies can be attributed to their activation of the apoptotic process.⁴ Therefore, the development of a noninvasive imaging procedure that can study the process of apoptosis in a variety of disease states and monitor the ability of a drug or other treatment either to induce or to halt apoptosis would be of tremendous value to the research and clinical community.

One of the most commonly used agents so far for imaging apoptosisin vivo is based on Annexin V, which is a 36 kDa protein that binds selectively with high affinity to phosphatidylserine, a protein that is externalized in the early stages of apoptosis after the activation of caspase-3. Annexin V has been labeled with different radioisotopes for PET and single photon emission computed tomography (SPECT) studies.^599mTc-labeled Annexin V using SPECT showed promising results and is undergoing evaluation in clinical trials.⁶ However, since the externalization of phosphatidylserine also occurs in necrosis, radiolabeled Annexin V is not specific for imaging apoptosisin vivo. An alternative strategy for visualizing cells and tissues undergoing apoptosis is the use of peptides or small molecules directed toward enzymes that are intrinsic to the biochemical pathways of apoptosis. The enzymes responsible for the regulation and execution of apoptosis are the caspases, which exist as inactive zymogens (pro-caspases) in the cytosol and become activated when cells receive an apoptotic signal. Caspases activated early in the process of apoptosis are known as initiator caspases, such as caspase-2, -8, -9, and -10. The function of the initiator caspases is to activate the executioner caspases, caspase-3, -6, and -7, which are responsible for the proteolytic cleavage of proteins that are necessary for cellular function. Cellular apoptosis can be initiated via two different pathways, extrinsic and intrinsic.⁷ Since both pathways converge at the level of caspase-3 activation, immunohistochemical staining for activated caspase-3 provides an unambiguous marker for apoptosis.

A number of isatin (1) sulfonamide analogues have been reported to have high inhibition potency for the executioner caspases, caspase-3 and -7, and high selectivity against other caspases.⁸ One of these isatin sulfonamide analogues, 1-[4-(2-fluoroethoxy)-benzyl]-5-(2-phenoxymethyl-pyrrolidine-1-sulfonyl)-1H-indole-2,3-dione, 2 (WC-II-89), has been labeled with ¹⁸F and evaluated in biodistribution studies with the cycloheximide liver injury model in rats, a well-established murine model of chemically-induced apoptosis. The biodistribution studies of [¹⁸F]2 revealed higher uptake in the liver and spleen in cycloheximide-treated rats when compared with untreated control rats. We also reported the first microPET imaging study directly measuring caspase-3 activation in tissues undergoing apoptosis using [¹⁸F]2 as a PET radiotracer.⁹ Given the central importance of apoptosis in a variety of disease states as well as in new drug development, the development of [¹⁸F]2 as a promising radiotracer for PET imaging of apoptosis is significant in studying apoptosisin vivo.

The requisite radiolabeling reactions usually take place via the nucleophilic substitution of a good leaving group such as mesylate, tosylate or triflate under basic conditions for ¹⁸F labeling¹⁰ or methylation using [¹¹C]CH₃I in the presence of a base for ¹¹C labeling.¹¹ These labeling reactions are very different from the normal chemical synthesis: the half lives of ¹⁸F (t_½ = 110 min) and ¹¹C (t_½ = 20.4 min) are short, limiting the reaction time; therefore, fast reaction times and simple procedures are required. Secondly, only tracer amounts of radioactive isotopes, such as [¹⁸F]fluoride and [¹¹C]CH₃I, are present to react with a large excess of substrate. The labeling reaction can benefit from the large amount of substrate to increase the rate of the reaction, but at the same time, any amount of reactive impurities or other reactive functional groups in the substrate might react with [¹⁸F]fluoride or [¹¹C]CH₃I, generating side-products slowing down or even stopping the desired radiolabeling reaction.

A variety of reactions can take place on the isatin ring in the isatin analogues.¹² One such reaction is the nucleophilic attack on the C3 carbonyl carbon of the isatin ring, the “warhead group” that is crucial to the inhibition of caspase-3 by isatin sulfonamide analogues.¹³ Although isatin sulfonamide analogues exhibit very good potency for inhibiting caspase-3, the preparation of radiolabeled isatin sulfonamide analogues with ¹⁸F or ¹¹C for PET imaging is limited because of the difficulty of radiolabeling with ¹⁸F or ¹¹C using the standard methods.¹⁴ In order to improve the synthesis of such compounds, we sought a better understanding of the radiolabeling reaction, and examined the mechanism through both experimental and modeling studies. Furthermore, related isatin derivatives have been reported as drug candidates for their inhibition of SARS Coronavirus 3C-like Protease,¹⁵GSK-3 protease,¹⁶ carboxylesterases¹⁷ and HIV-1 reverse transcriptase.¹⁸ They have also exhibited cytotoxicity to cancer cellsin vitro.¹⁹ This study could provide a useful method to synthesize isatin derivative radiotracers for both PET and SPECT studies. Here we report the radiolabeling reactions of N-benzyl-isatin sulfonamide analogues with ¹⁸F and ¹¹C, the mechanism and modeling studies of the labeling reactions and evaluation of the ¹¹C compound in an in vivo microPET imaging study with the Fas liver injury model in mice.

Results and discussion

Synthesis and Radiolabeling

The syntheses of standard compounds 2, 4 and precursors 7a, 7b and 12 for ¹⁸F labeling of 2 and 8, and 13 for ¹¹C labeling of 4, are shown in Scheme 1. The isatin nitrogen of 5-(2-phenoxymethyl-pyrrolidine-sulfonyl)-1H-2,3-dione 3 was alkylated by treatment of 3 with sodium hydride in DMF at 0 °C for 20 min and followed by addition of various alkyl halides to give compounds 2, 4, 5, and 6 respectively. Compound 5 was then heated to reflux with silver methanesulfonate or silver p-toluenesulfonate in CH₃CN to generate precursors 7a or 7b. Precursor 8 was prepared by hydrolysis of 6 with sodium hydroxide in aqueous methanol. For the synthesis of precursors 12 and 13, the C3 carbonyl group in 3 was first protected as 1,3-dioxane by refluxing 3 and 1,3-propanediol in benzene using p-toluenesulfonic acid as a catalyst to give 9, which was then alkylated with 4-bromoethyloxybenzyl bromide or 4-acetoxybenzyl chloride to give compounds 10 or 11 respectively. Then precursors 12 and 13 were prepared with the same procedure as for 7a and 8.

Scheme 1 Synthesis of standards and their precursors.

The methods for synthesis of [¹⁸F]2 are summarized in Scheme 2. First, precursor 7a or 7b was converted completely to the isatinate salt by treatment with strong base such as Bu₄NOH or K₂CO₃/Kryptofix 222 (K₂₂₂) in order to avoid the trapping effect due to the C3 carbonyl group in isatin; then the nucleophilic substitution reaction took place under standard labeling conditions to replace the mesylate or tosylate groups affording the ¹⁸F labeled isatinate salt of 2 in high yield, which was then converted quickly to [¹⁸F]2 in high yield with 1 N HCl under microwave irradiation. [¹⁸F]2 was confirmed by reversed phase HPLC co-eluting with non-radioactive standard 2. The synthesis time is 90 min, the labeling yield is high, the chemical and radiochemical purities are good and the specific activity is high (2600 ± 1276 mCi/mmol, n = 15). Alternatively, [¹⁸F]2 was synthesized from the C3 carbonyl-protected mesylate precursor 12, followed by hydrolysis of 14 using 1 N HCl. In a similar manner, [¹¹C]4 was synthesized as shown in Scheme 3. All of these reactions provide [¹⁸F]2 and [¹¹C]4 with high yield and high specific activity, suitable for use in a molecular imaging study of apoptosis.

Scheme 2 ¹⁸F labeling reactions of isatin analog 2.

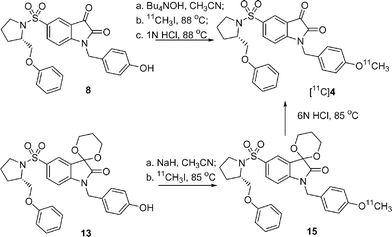

Scheme 3 ¹¹C labeling reactions of isatin analog 4.

Mechanism of the Radiolabeling Reaction

The typical procedure for ¹⁸F labeling of organic compounds via nucleophilic substitution of good leaving groups by [¹⁸F]fluoride is described as following: aqueous [¹⁸F]fluoride, produced by the nuclear reaction ¹⁸O(p,n)¹⁸F, is dried in the presence of Kryptofix 222 (K₂₂₂) and K₂CO₃viaazeotropic distillation with successive additions of CH₃CN to give free [¹⁸F]fluoride, which is a good nucleophile. Fluorination is then carried out in polar aprotic solvents, such as DMSO, DMF or CH₃CN under conventional heating or microwave irradiation.²⁰ However, the labeling reaction of mesylate precursor 7a using the standard method afforded either no labeling products or a more polar product in low yield according to TLC or HPLC analysis. Interestingly, if the precursor 7a was first treated with 2 equivalent of dried Bu₄NOH, then the labeling reaction took place efficiently to form a more polar product in high yields, which could then be converted to the desired product [¹⁸F]2 gradually at room temperature or quickly at elevated temperature under acidic conditions. These results suggest that the [¹⁸F]fluoride cannot displace the mesylate group directly in 7a, but it does displace the mesylate group from an intermediate formed under basic conditions. A proposed mechanism for this observation in the ¹⁸F labeling reaction of 2 is shown in Scheme 4.

Scheme 4 Labeling mechanism of [¹⁸F]2

In terms of nucleophilic addition on the isatin ring, nucleophiles such as H₂O, OH⁻ or F⁻ can add to the C3 carbonyl carbon easily to form the corresponding species in a reversible reaction. However, the OH⁻group can also attack the C2 carbonyl carbon resulting in the opening of the isatin ring. This reaction is irreversible under basic conditions. Therefore, the isatin might exist in different forms in solution, such as the reversible hydrated form, 18, and the irreversible ring-opened form, 16, depending on the pH of the solution and the solvent used. Isatin-5-sulfonate itself was reported to exist as an isatin and a hydrated form in a 3–4 : 1 ratio by NMR.²¹ In aqueous solution, the hydrate form is suggested by HPLC peak fronting observed in reversed phase C18 HPLC chromatography using CH₃CN and water (pH = 7 or 4) as solvents. The peak fronting should be due to the equilibrium of isatin and its more polar hydrated form, resulting from the interaction with water in the HPLC solvents. This peak fronting can be suppressed by addition of methanol to the HPLC solvent system. The formation of the hydrated form corroborates the high electrophilicity of the isatin ring at the C3 carbon. In the case of ¹⁸F labeling reactions of isatin analogues, free [¹⁸F]fluoride, as a good nucleophile, can add to the C3 carbonyl carbon to form an intermediate 20. Although the intermediate 20 is in equilibrium with 7a, the limiting amount of [¹⁸F]fluoride (<10⁻⁷ mol for 100 mCi [¹⁸F]fluoride with specific activity of >1000 mCi/μmol) used in the labeling reaction is only one twentieth or even one hundredth of the amount of the precursor substrate used (1 mg, 2 × 10⁻⁶ mol) in the reaction. Therefore, the C3 carbonyl group in isatin analogues serves as a trap for [¹⁸F]fluoride and results in the failure of the substitution of mesylate or tosylate groups by [¹⁸F]fluoride. When the precursor 7a was treated with strong base (OH⁻), either the ring opening form 16 or the hydrated intermediate 18 was formed completely so that the chance for [¹⁸F]fluoride to be trapped by the isatinC-3 carbonyl group was eliminated. Under these conditions, [¹⁸F]fluoride will substitute the mesylate group to give the radiolabeled product 17 or 19, which will be converted to [¹⁸F]2 under acidic conditions.

¹³C-NMR Studies

In order to distinguish which intermediate, 16 or 18, was involved in the following labeling reaction, a ¹³C NMR study was carried out on samples of 7a, under the conditions simulating the labeling reaction. The ¹³C chemical shift of the C3 carbonyl carbon should be around 90 ppm for the hydrated form 18 and 200 ppm for the ring-opening form 16.²¹ In DMSO, once precursor 7a was treated with 1 or 2 equivalent of 1 M Bu₄NOH in water, a clean formation of the ring-opened product isatinate 16 was observed based on the observation that a new set of ¹³C NMR peaks formed with the complete disappearance of those of 7a and that the chemical shift for C3 carbonyl carbon is shifted from 181.5 ppm for 7a to 200.6 ppm, which is the chemical shift expected for the ring-opened isatinate form 16. The ¹³C NMR peaks (around 90 ppm) of the C3 carbonyl carbon for the hydrated form 18 were not observed. (For example, the C3 of 12 is at 93.3 ppm). Similarly, the C3 of N-benzyl isatin 21, which was used for the modeling study, shifts from 183.1 ppm to 201.0 ppm in its ring-opened isatinate form 22 (ESI Figure S7–S14†). Therefore, intermediate 18 is not likely to be involved in the labeling reaction and the ring-opened isatinate form 16 should be the species that is being labeled. We also attempted to study the formation of the fluoride adduct with 21 by ¹³C and ¹⁹F NMR. The ¹³C NMR study of a reaction mixture of 21 and Bu₄NF in DMSO indicated the gradual formation of isatinate which should be due to the unavoidable OH⁻/H₂O in Bu₄NF solution. By comparison with a control reaction, in which no 21 was added, the signal-to-noise ratio in ¹⁹F NMR of Bu₄NF was reduced after addition of 21. This observation indicated that there is a fast exchange of fluoride with isatin and the observation supports our assumption that [¹⁸F]fluoride is trapped by the isatin C3 carbonyl group instead of substituting the mesylate group during the ¹⁸F labeling of 2 under standard conditions (ESI Figure S5–S6†).

Molecular Modeling Studies

In order to evaluate the electrophilicity of isatin and their isatinates, DFT calculations were performed using G98²² in order to compare the reactivity of the C3 carbon towards nucleophilic attack. Calculations were carried out on the simplified isatin precursor 23 and its analogues to obtain the nucleophilic reactivity Fukui function (FF).²³ The frontier electron theory or Fukui function has been widely used as a local density functional descriptors to model chemical reactivity and site selectivity. The atom with the highest FF is highly reactive compared to the other atoms in the molecule. As confirmed by the theoretical calculations, the C3 carbon of the simplified precursor 23 has the highest electrophilicity (FF= 0.24) in the molecule before the isatin ring opens; while its electrophilicity is lowered tremendously once it was converted into its isatinate form 24 (FF= 0.04). Its reactivity also decreases considerably in the hydrate form 25 (FF= 0.12), while the reactivity of the carbon attached to the mesylate group (C-OMs) undergoes no change. This is in good agreement with the proposed radiolabeling mechanism.

Optimization of Radiolabeling Conditions

Once the labeling mechanism was elucidated, the amount of K₂CO₃ used in the labeling reaction and the effect of water on the reaction yield were studied. When only K₂CO₃ was used in the labeling reaction, it was found that about 2 mg of K₂CO₃ was needed in order to obtain a high yield of the labeling product (Table 2, entry 4). When less than 1 mg of K₂CO₃ was used, there was no incorporation after initial microwave irradiation, and only after more K₂CO₃/K₂₂₂ in DMSO was added, the yield increased to a comparable value as when 2 mg K₂CO₃ used (Table 1, entry 3). When [¹⁸F]fluoride in the presence of K₂₂₂ and K₂CO₃ was dried very carefully, the yield was low. This is understandable because K₂CO₃/K₂₂₂ is a weaker base than Bu₄NOH and it doesn't provide OH⁻ in the absence of water to open the isatin ring. Therefore, if K₂CO₃ was used as a base in the labeling reaction, it needs a longer reaction time and a trace amount of H₂O to open the isatin ring completely in order to avoid the trapping effect from the C3 carbonyl group. Normally, water should be excluded in the labeling reaction because water can solvate [¹⁸F]fluoride, reducing its nucleophilicity, lowering its reactivity and resulting in the failure of the nucleophilic substitution. As expected when the isatin precursor was treated with wet Bu₄NOH, a very low yield of labeling product was obtained (Table 1, entry 2) in comparison to treatment with dry Bu₄NOH (Table 1, entry 1). Therefore, the labeling reaction conditions were optimized by using a large amount of K₂CO₃ to open the isatin ring completely and to consume trace amounts of water left during the drying of [¹⁸F]fluoride, affording [¹⁸F]2 in very high yields.

Table 1 Selected condensed Fukui functions of 23, 24, and 25

Condensed Fukui Function (FF)	Isatin form (23)	Isatinate form (24)	Ketal form (25)
C-3	0.24	0.04	0.12
C-2	0.04	−0.03	0.05
C–OMs	0.00	0.00	−0.01

---

Table 2 Summary of ¹⁸F labeling reaction of isatin analog 2

Reaction Entry	Substrate/mg	K2CO3/K222/mg	Solvent	Reaction Condition^b	% Incorporation Yield (product)^d
a Bu4NOH pre-treatment method: with 2 equivalents of Bu4NOH; b MW: Microwave (60 W) with an interval of 1 min between each irradiation; c The reaction mixture was treated further with K2CO3 (3mg) and K222 (15mg) in DMSO; d Incorporation yields were determined by radioTLC (silica gel, 20% MeOH, 80% CH2Cl2).
1	7a (1.1)^a	1.4/5.5	DMSO	30 + 25 s (MW)	90 (17)
2	7a (1.2) ^awet	1.6/5.5	DMSO	30 + 25 s (MW)	19 (17)
3	7a (1.0)	0.8/4	DMSO	30 (MW) 30 ^c(MW)	0 (17) 86 (17)
4	7a (1.1)	1.8/8.6	DMSO	30 + 30 Sec (MW)	89 (17)
5	12 (1.2)	1.4/5.0	DMSO	30 + 25 s (MW)	80 (14)
6	7b (1.0)	2.1/12	DMSO	30 (MW)	65 (17)

---

An alternative route to avoid the trapping of [¹⁸F]fluoride by the C3 carbonyl group in the isatin ring is to protect the C3 carbonyl group. Once protected, it loses the ability for nucleophilic addition by [¹⁸F]fluoride. The mesylate precursor 12 for [¹⁸F]2 was protected at the C3 position with 1,3-dioxane was stable to the basic labeling condition. Under standard labeling conditions, the mesylate group was replaced with [¹⁸F]fluoridevia nucleophilic substitution to form the ¹⁸F labeled intermediate 14 (Table 2, entry 5). Then 14 was deprotected with 1 N HCl under microwave irradiation to afford [¹⁸F]2. The successful labeling of the C3 carbonyl-protected precursor 12 again indicates the involvement of this carbonyl in the ¹⁸F labeling of 2 from the unprotected precursor 7a.

Hydrolysis of isatin and N-methyl isatin and recyclization of isatinates have been studied,²⁴ but the study of other N-substituted isatins is quite limited. The stability of N-benzylisatins towards base hydrolysis is expected to be better than that of isatin or N-methyl isatin because of the steric protection from the benzyl substitute on the nitrogen atom in the isatin ring. This stability enables N-benzyl-isatinsulfonamide analogues to function as potential tracers for imaging caspases-3/7 activity in vivo. The hydrolysis of N-benzyl-isatinsulfonamides was studied by reversed phase HPLC and ESI/MS. According to HPLC analysis of the reaction mixture, Bu₄NOH can hydrolyze isatin analogues to form isatinates exclusively and quickly; the hydrolysis by K₂CO₃/K₂₂₂ was quick, but the hydrolysis by NaHCO₃/H₂O was slow and in neutral solution the analogues were very stable. Once the isatinates were treated with 1 N HCl, they were converted back to isatin analogues gradually at room temperature or quickly under heating or microwave irradiation. The base hydrolyzed isatin analogues and acid recyclized isatinates were purified by reversed phase HPLC and the HPLC purified products were further analyzed by ESI/MS. Molecular ion plus H₂O was observed as the major peak for the hydrolyzed product in ESI/MS, together with the ¹³C NMR study, indicating the formation of isatinate; The formation of isatin analogues from acid recyclization of isatinates was confirmed by comparison of the retention time in HPLC and MS spectrum with the corresponding isatin analogues (ESI Figure S3, S4†).

For the classic alkylation of hydroxyl or nitrogen groups, NaH is commonly used as a base to deprotonate, and it was used in the N-alkylation of 3 during the synthesis of standard and precursor N-benzylisatin sulfonamides. However, in the ¹¹C methylation of 8 by [¹¹C]CH₃I, where excess of NaH was used, the ¹¹C labeling of 8 failed to afford the expected radiolabeled product [¹¹C]4, but led to the formation of numerous polar radioactive peaks as observed by reversed phase HPLC. To circumvent this problem, the ketal precursor 13 was prepared, and in the presence of NaH, 13 was labeled with [¹¹C]CH₃I in DMF or CH₃CN under standard conditions to afford 15. However, it was difficult to remove the dioxolane protecting group of 15 with 1 N HCl even under microwave irradiation, the condition which was used to remove the protecting group in 14 for the ¹⁸F labeling of 2. A 6 N HCl solution was needed to remove the dioxolane group in 15, and this harsh hydrolysis condition caused the labeling results to be inconsistent in terms of radiochemical yield and specific activity (Table 3).

Table 3 Summary of ¹¹C labeling reactions of isatin analog 4

Method	Substrate/mg	Base/Solvent	Hydrolysis (HCl)	Specific activity	Yield (%)
1	8 (0.2)	Bu4NOH/CH3CN	1 N	5600 ± 110	62 ± 12 (n = 4)
2	13 (1.0)	NaH/CH3CN	6 N	3920 ± 4400	< 10 (n = 4)

---

The ring-opening and reclosure method used in the ¹⁸F labeling of 2 was also used in the ¹¹C labeling of 4. Two equivalents of Bu₄OH in H₂O was used to treat as low as 0.2 mg of substrate 8, opening the isatin ring exclusively and quickly. Then the O-methylation took place under the standard condition to afford the ¹¹C labeled isatinate intermediate, which was converted to [¹¹C]4 by the treatment with 1 N HCl. This method is simple, the yield is very high, and the chemical and radiochemical purities are very good (Table 3). Therefore, the ring-opening/reclosure method can also be used in the ¹¹C methylation labeling reaction of isatin analogues with very good labeling results.

In vivo microPET study of Fas-treated liver injury apoptosis model

Once the radiolabeling conditions were established, [¹¹C]4 (WC-98) was evaluated in a well-characterized mouse model of liver apoptosis induced by administration of anti-Fas (Jo2) antibody, which results in massive caspase-3 activation in the liver. Both microPET imaging and biodistribution studies were performed.²⁵ The microPET imaging results are shown in Fig. 1. There is clearly retained activity in the liver in the Fas-treated mice compared to the control, with retention of the activity in the liver demonstrated on time-activity curves (Fig. 1). The ex vivo analysis of the liver is illustrated in Fig. 2. At 5 min, there is no difference in liver uptake between treated and control mice; however, at 30 min, there is clearly increased tracer activity in the liver samples taken from the treated mice compared with controls. Liver samples from the biodistribution study were taken and analyzed for caspase-3 activation by fluorometric enzyme analysis using the caspase-3 fluorogenic substrate Ac-DEVD-AMC (Biomol) (Fig. 3). Enzyme analysis verified increased caspase-3 enzymatic activity in the treated animals and correlated with the findings from the microPET imaging and biodistribution studies. Since [¹¹C]4 (WC-98) is a competitive inhibitor of caspase-3 and binds to the activated form of caspase-3 in tissues undergoing apoptosis, we see expected retention of the tracer in the liver of the treated mice. The results obtained with [¹⁸F]4 suggest again that radiolabeled N-benzyl-isatin sulfonamide analogues are potential radiotracers for imaging caspase-3 activity in vivo.

Fig. 1 MicroPET imaging with [¹¹C]4 (WC-98). Images were acquired dynamically over 60 min and summed. Single slice coronal summed images demonstrate increased retention of [¹¹C]4 (WC-98) in the treated animal, which is confirmed by time-activity curves generated from a volume of interest (in green) placed over the liver. Gallbladder (GB) activity is marked by yellow arrows.

Fig. 2 Ex vivo evaluation of [¹¹C]4 (WC-98) uptake in liver comparing mice treated with the Fas antibody to untreated controls. Error bars indicate the standard deviation. There is increased uptake of [¹¹C]4 (WC-98) at 30 min in the treated group. N= 3 in each group at 5 min, N= 5 in each group at 30 min.

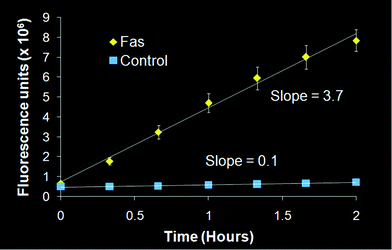

Fig. 3 Fluorometric caspase-3 enzymatic assay. Liver protein samples (200 μg) were loaded into each well of a 96-well plate in triplicate. Error bars indicate the standard deviation; error bars that are not visible are within the data point.

Conclusion

We have demonstrated that ¹¹C- and ¹⁸F-labeled isatin analogues can be synthesized by using the base/acid ring-opening/recyclization procedure or by protecting the C-3 carbonyl group as a 1,3-dioxane. It was found that the high electrophilicity of the C-3 carbonyl group in the isatin ring served as a trap for [¹⁸F]fluoride, resulting in the failure of ¹⁸F radiolabeling under typical conditions. Therefore, the protection of the C-3 carbonyl carbon in isatin analogues is critical to avoid unwanted nucleophilic attacks during the synthesis. The base/acid ring-opening/recyclization procedure proved to be a highly efficient method for this purpose. Utilizing this method, we have synthesized ¹⁸F and ¹¹C labeled isatin analogues with high chemical and radiochemical purities. In vivo evaluation of [¹¹C]4 (WC-98) in the Fas liver injury apoptosis model demonstrated increased uptake of the tracer in treated animals, with verification of caspase-3 activation by fluorometric caspase-3 enzymatic assay. The correlation of retaining tracer and caspase-3 enzyme activity in the liver of treated mice indicates that [¹¹C]4 (WC-98), a benzyl-isatin sulfonamide analogue caspase-3 inhibitor, is a potential radiotracer for imaging caspases3/7 activation in apoptosis. The methods described in this paper should be applicable to the radiolabeling of other isatin analogues.

Experimental

General methods and materials

All chemicals were obtained from standard commercial sources and used without further purification. All reactions were carried out by standard air-free and moisture-free techniques under an inert argon atmosphere with dry solvents unless otherwise stated. Flash column chromatography was conducted using Scientific Adsorbents, Inc. silica gel, 60A, “40 Micron Flash” (32–63 μm). Melting points were determined using MEL-TEMP 3.0 apparatus and are uncorrected. Routine ¹H NMR spectra were recorded on a Varian Unity-300 (300 MHz) NMR spectrometer. All chemical shifts were reported as a part per million (ppm) downfield from tetramethylsilane (TMS). All coupling constants (J) are given in Hertz (Hz). Splitting patterns are typically described as follows: s, singlet; d, doublet; t, triplet; m, multiplet. ¹⁹F NMR spectra were recorded at 282.2 MHz, and chemical shifts are reported as Hz upfield from an external CFCl₃ standard. High resolution ¹³C NMR was recorded on a Varian Unity Inova-600 at 150.9 MHz. ESI/MS was performed on a Waters ZQ 4000 single quadrupole mass spectrometer equipped with an electrospray ionization (ESI) LC-MS interface. Elemental analyses (C, H, N) were determined by Atlantic Microlab, Inc. High performance liquid chromatography (HPLC) was performed with an ultraviolet detector operating at 251 nm and a well-scintillation NaI (Tl) detector and associated electronics for radioactivity detection. Alltech Econosil C18 250 × 10 mm semi-preparative column and Altech Altima C18 250 × 4.6 mm analytical column were used for preparation and analysis respectively.

H₂¹⁸O was purchased from Rotem Industries (Israel). [¹⁸F]Fluoride was produced at Washington University by the ¹⁸O(p,n)¹⁸F reaction through proton irradiation of enriched (95%) ¹⁸O water using RDS111 cyclotron. Materials were heated using a custom-designed microwave cavity, model 420BX (Micro-Now Instruments, Skokie, IL). Screw-cap test tubes used for microwave heating were purchased from Fisher Scientific (Pyrex No. 9825). Classic C-18 Sep-Pak cartridges were purchased from Waters Corporation. For the TLC analyses, EM Science Silica Gel 60 F₂₅₄TLC plates were purchased from Fisher Scientific (Pittsburgh, PA). Radio-TLC was accomplished using a Bioscan 200 imaging scanner (Bioscan, Inc., Washington, DC). Radioactivity was counted with a Beckman Gamma 6000 counter containing a NaI crystal (Beckman Instruments, Inc., Irvine, CA). [¹¹C]CH₃I was produced from [¹¹C]CO₂ using a GE PETtrace MeI Microlab. [¹¹C]CO₂ was produced at the Cyclotron Facility of Washington University School of Medicine using a JSW BC-16/8 cyclotron by irradiating a gas target of 0.2% O₂ in N₂ for 15–30 min with a 40 μA beam of 16 MeV protons. [¹¹C]CO₂ was converted to [¹¹C]CH₃I by the GE PETtrace MeI Microlab using a nickel catalyst [Shimalite-Ni (reduced), Shimadzu, Japan P.N.221–27719] in the presence of H₂ at 360 °C and followed by reaction with iodine in the gas phase at 690 °C. [¹¹C]CH₃I was delivered in the gas phase with helium approximately 12 min following the end of bombardment.

(S)-1-[4-(2-Fluoroethoxy)-benzyl]-5-(2-phenoxymethyl-pyrrolidine-1-sulfonyl)-1H-indole-2,3-dione 2. NaH (10 mg, 0.25 mmol, 60% dispersion in mineral oil) was added to a solution of 3^8a (97 mg, 0.25 mmol) in DMF (3 mL) at 0 °C. After the mixture was stirred 15 min at 0 °C, 4-(2-fluoroethoxy)-benzyl bromide (125 mg, 0.5 mmol) was added and the mixture was stirred 1 h at room temperature. Then the mixture was diluted with ethyl acetate (50 mL), washed with water (30 mL), saturated NaCl (30 mL) and dried over Na₂SO₄. After evaporation of the solvent, the crude product was purified by silica gel chromatography using ether to afford 2 (112 mg, 83%) as a yellow solid, mp 161.5–163.7 °C (from diethyl ether) (Found: C, 62.01; H, 5.09; N, 5.13. C₂₈H₂₇FN₂O₆S·0.25H₂O requires C, 61.92; H, 5.10; N, 5.16%); δ_H(300 MHz, CDCl₃) 7.98 (d, J 1.5, 1H, isatin C4-H), 7.93 (dd, J 8.4 and 1.8, 1H, isatin C6-H), 7.27-7.19 (m, 4H, Ar-H), 6.94-6.79 (m, 5H, Ar-H, 1H, isatin C7-H), 4.85 (s, 2H, ArCH₂), 4.73 (dt, J 47.4 and 4.2, 2H, FCH₂), 4.18 (dt, J 28.8 and 4.2, 2H, FCH₂CH₂), 4.13 (m, 1H, pyrrole C2-H), 3.95-3.86 (m, 2H, ArOCH₂), 3.48 (m, 1H, pyrrole C5-H), 3.20 (m, 1H, pyrrole C5-H), 2.00 (m, 2H, pyrrole C3-H), 1.77 (m, 2H, pyrrole C4-H); δ_C(75 MHz, CDCl₃) 181.97, 158.81, 158.43, 157.99, 137.30, 134.30, 129.73, 129.37, 126.60, 124.49, 121.27, 117.69, 115.53, 114.57, 111.42, 69.36, 67.59, 67.31, 58.85, 49.73, 44.11, 29.24, 24.35.

(S)-1-(4–2-Methoxybenzyl)-5-(2-phenoxymethyl-pyrrolidine-1-sulfonyl)-1H-indole-2,3-dione 4. 4 was prepared according to the same procedure for compound 2 except using 4-methoxybenzyl bromide and being purified using hexane-ether (1 : 3) to afford 4 (87 mg, 69%) as a yellow solid, mp 125.9–127.4 °C (from diethyl ether) (Found: C, 64.05; H, 5.17; N, 5.50. C₂₇H₂₆N₂O₆S requires C, 64.02; H, 5.17; N, 5.53%); δ_H(300 MHz, CDCl₃) 8.00 (d, J 1.8, 1H, isatin C4-H), 7.95 (dd, J 8.25 and 1.8, 1H, isatin C6-H), 7.25 (m, 2H, Ar-H), 7.21 (d, J 7.5, 2H, Ar-H), 6.92-6.85 (m, 3H, Ar-H, 1H, isatin C7-H), 6.81 (d, J 7.5, 2H, Ar-H), 4.85 (s, 2H, ArCH₂), 4.15 (m, 1H, pyrrole C2-H), 3.95-3.89 (m, 2H, ArOCH₂), 3.80 (s, 3H, OCH₃), 3.49 (m, 1H, pyrrole C5-H), 3.22 (m, 1H, pyrrole C5-H), 2.02 (m, 2H, pyrrole C3-H), 1.78 (m, 2H, pyrrole C4-H); δ_C(75 MHz, CDCl₃) 182.00, 159.98, 158.42, 157.98, 153.57, 142.30, 137.30, 134.33, 129.73, 129.30, 125.88, 124.62, 124.50, 121.27, 117.69, 114.83, 114.57, 111.41, 69.35, 58.84, 55.56, 49.73, 44.17, 29.24, 24.36.

(S)-1-[4-(2-Bromoethoxy)-benzyl]-5-(2-phenoxymethyl-pyrrolidine-1-sulfonyl)-1H-indole-2,3-dione 5. 5 was prepared according to the same procedure for compound 2 except using 4-(2-bromoethoxy)-benzyl bromide and being purified using hexane-ether (1 : 2) to afford 5 (445 mg, 74%) as a yellow solid, mp 163.6-164.2 °C (from diethyl ether) (Found: C, 55.94; H, 4.50; N, 4.59. C₂₈H₂₇BrN₂O₆S requires C, 56.10; H, 4.54; N, 4.67%); δ_H(300 MHz, CDCl₃) 8.01 (s, 1H, isatin C4-H), 7.96 (dd, J 8.25 and 1.8, 1H, isatin C6-H), 7.28-7.20 (m, 4H, Ar-H), 6.96-6.80 (m, 5H, Ar-H, 1H, isatin C7-H), 4.86 (s, 2H, ArCH₂), 4.28 (t, J 6.0, 2H, BrCH₂), 4.15 (m, 1H, pyrrole C2-H), 3.93 (m, 2H, ArOCH₂), 3.63 (t, J 6.0, 2H, BrCH₂CH₂), 3.50 (m, 1H, pyrrole C5-H), 3.21 (m, 1H, Pyrrole C5-H), 2.02 (m 2H, pyrrole C3-H), 1.78 (m, 2H, pyrrole C4-H); δ_C(75 MHz, CDCl₃) 181.99, 158.53, 158.44, 158.01, 153.52, 147.59, 137.37, 134.37, 129.78, 129.45, 126.75, 124.59, 121.32, 117.72, 115.66, 114.59, 111.43, 69.35, 68.19, 58.87, 49.79, 44.15, 29.29, 29.18, 24.40.

Acetic acid (S)-4-[2,3-dioxo-5-(2-phenoxymethyl-pyrrolidine-1-sulfonyl)-2,3-dihydroindol-1-yl-methyl]phenyl ester 6. 6 was prepared according to the same procedure for compound 2 except using 4-(chloromethy)-phenyl acetate and being purified using hexane-ether (1 : 2) to afford 6 (167mg, 60%) as a yellow solid, mp 192.4–194.2 °C (from diethyl ether) (Found: C, 62.82; H, 4.89; N, 5.19. C₂₈H₂₆N₂O₇S requires C, 62.91; H, 4.90; N, 5.24%); δ_H(300 MHz, CDCl₃) 8.03 (s, 1H, isatin C4-H), 7.98 (d, J 8.4, 1H, isatin C6-H), 7.35 (d, J 8.4, 2H, Ar-H), 7.24 (t, J 7.8, 2H, Ar-H), 7.10 (d, J 8.7, 2H, Ar-H), 6.96-6.81 (m, 3H, Ar-H, 1H, isatin C7-H), 4.91 (s, 2H, ArCH₂), 4.16 (m, 1H, pyrrole C2-H), 3.93 (m, 2H, ArOCH₂), 3.50 (m, 1H, pyrrole C5-H), 3.21 (m, 1H, pyrrole C5-H), 2.30 (s, 3H, CH₃CO), 2.03 (m, 2H, pyrrole C3-H), 1.79 (m, 2H, pyrrole C4-H); δ_H(75 MHz, CDCl₃) 181.75, 169.60, 158.45, 158.00, 153.32, 151.10, 137.47, 134.50, 131.61, 129.78, 129.11, 124.70, 122.73, 121.30, 117.71, 114.60, 111.33, 69.37, 58.89, 49.79, 44.10, 29.28, 24.37, 21.36.

Methanesulfonic acid (S)-2-{4-[2,3-dioxo-5-(2-phenoxymethyl-pyrrolidine-1-sulfonyl)-2,3-dihydro-indol-1-ylmethyl]-phenoxy}-ether ester 7a. A solution of 5 (300 mg, 0.5 mmol) and AgOMs (1.01 g, 5 mmol) in CH₃CN (10 mL) was refluxed overnight. After filtration of the solid and evaporation of the solvent, the crude product was purified by silica gel chromatography using ether to afford 7a (108 mg, 70%) as a yellow solid, mp 150.4–152.1 °C (from diethyl ether) (Found: C, 56.54; H, 4.88; N, 4.66. C₂₉H₃₀N₂O₉S₂ requires C, 56.66; H, 4.92; N, 4.56%); δ_H(300 MHz, CDCl₃) 8.05 (s, 1H, isatin C4-H), 8.01 (dd, J 8.1 and 1.8, 1H, isatin C6-H), 7.33-7.25 (m, 4H, Ar-H), 7.00-6.84 (m, 5H, Ar-H, 1H, isatin C7-H), 4.90 (s, 2H, ArCH₂), 4.60 (t, J 4.8, 2H, MsOCH₂), 4.27 (t, J 4.8, 2H, MsOCH₂CH₂), 4.20 (m, 1H, pyrrole C2-H), 3.97 (m, 2H, ArOCH₂), 3.54 (m, 1H, pyrrole C5-H), 3.26 (m, 1H, pyrrole C5-H), 3.11 (s, 3H, Ms-CH₃), 2.06 (m, 2H, pyrrole C3-H), 1.83 (m, 2H, pyrrole C4-H); δ_C(150 MHz, DMSO-d6) 181.51, 158.50, 158.14, 157.47, 153.19, 136.48, 131.49, 129.50, 129.01, 127.45, 122.68, 120.77, 118.21, 114.69, 114.37, 111.58, 69.51, 68.69, 65.79, 58.24, 49.16, 42.64, 36.85, 28.43, 23.57.

Toluene-4-sulfonic acid (S)-2-{4-[2,3-dioxo-5-(2-phenoxymethyl-pyrrolidine-1-sulfonyl)-2,3-dihydro-indol-1-ylmethyl]-phenoxy}-ether ester 7b. 7b was prepared according to the same procedure for compound 7a except using AgOTs and being purified using hexane-ether (1 : 2) to afford 7b (122 mg, 71%) as a yellow solid, mp 71.7–72.9 °C (from diethyl ether) (Found: C, 60.68; H, 4.99; N, 3.59. C₃₅H₃₄N₂O₉S₂ requires C, 60.85; H, 4.96; N, 4.06%); δ_H(300 MHz, CDCl₃) 8.00 (s, 1H, isatin C4-H), 7.95 (d, J 8.4, 1H, isatin C6-H), 7.80 (d, J 8.4, 2H, Ar-H), 7.34 (d, J 8.1, 2H, Ar-H), 7.25-7.20 (m, 4H, Ar-H), 6.95-6.78 (m, 5H, Ar-H, 1H, isatin C7-H), 4.84 (s, 2H, ArCH₂), 4.34 (t, J 3.9, 2H, TsOCH₂), 4.15 (m, 2H, TsOCH₂CH₂, 1H, pyrrole C2-H), 3.92 (m, 2H, ArOCH₂), 3.49 (m, 1H, pyrrole C5-H), 3.20 (m, 1H, pyrrole C5-H), 2.44 (s, 3H, Ts-CH₃), 2.01 (m, 2H, pyrrole C3-H), 1.78 (m, 2H, pyrrole C4-H); δ_C(75 MHz, CDCl₃) 181.99, 158.44, 158.02, 153.51, 147.63, 145.34, 137.39, 134.37, 133.03, 130.16, 129.78, 129.35, 128.85, 128.27, 126.74, 124.59, 121.30, 117.72, 115.52, 114.91, 114.59, 111.44, 69.35, 68.19, 65.86, 58.88, 49.79, 44.13, 29.28, 24.39, 21.93.

(S)-1-(4-Hydroxybenzyl)-5-(2-phenoxymethyl-pyrrolidine-1-sulfonyl)-1H-indole-2,3-dione 8. To a solution of 6 (212 mg, 0.4 mmol) in methanol (10 mL) and water (2 mL) was added NaOH (18 mg, 4.5 mmol) at room temperature. The mixture was stirred overnight, acidified with 6 N HCl, and then extracted with ethyl acetate (75 mL). The ethyl acetate was washed with water (30 mL) and saturated NaCl solution (30 mL), dried over Na₂SO₄. After evaporation of ethyl acetate, the crude product was purified by silica gel chromatography using ether to afford 8 (64 mg, 52%) as a yellow solid, mp 161.6–162.7 °C (from diethyl ether) (Found: C, 63.11; H, 5.00; N, 5.49. C₂₆H₂₄N₂O₆S requires C, 63.40; H, 4.91; N, 5.69%); δ_H(300 MHz, CDCl₃) 8.00 (s, 1H, isatin C4-H), 7.96 (d, J 8.4, 1H, isatin C6-H), 7.26-7.19 (m, 4H, Ar-H), 6.95-6.79 (m, 5H, Ar-H, 1H, isatin C7-H), 5.11 (s, 1H, ArOH), 4.84 (s, 2H, ArCH₂), 4.15 (m, 1H, pyrrole C2-H), 3.93 (m, 2H, ArOCH₂), 3.50 (m, 1H, pyrrole C5-H), 3.21 (m, 1H, pyrrole C5-H), 2.02 (m, 2H, pyrrole C3-H), 1.79 (m, 2H, pyrrole C4-H); δ_C(75 MHz, CDCl₃) 181.98, 158.42, 156.12, 153.56, 137.36, 134.34, 129.78, 129.56, 126.04, 124.57, 121.32, 117.71, 116.35, 114.58, 111.47, 69.33, 58.88, 49.79, 44.20, 29.28, 24.40.

(S)-1-{[1′2′-dihydro-2′-oxospiro(1,3-dioxane-2,3′-[3H]indol)-5′-yl]sulfonyl}-2-(phenoxymethyl)-pyrrolidine 9. A solution of 3 (773 mg, 2 mmol) and 1,3-propanediol (2 mL) in benzene (50 mL) was added p-toluenesulfonic acid (95 mg, 0.5 mmol). The mixture was refluxed for 24 h with the formed water removed by azeotropic distillation, then washed with saturated Na₂CO₃ (20 mL), water (30 mL) and saturated NaCl solution (30 mL), and dried over Na₂SO₄. After evaporation of benzene, the crude product was purified by silica gel chromatography using ether to afford 9 (713 mg, 80%) as a white solid, mp 71.7–72.5 °C (from diethyl ether) (Found: C, 58.48; H, 5.83; N, 5.81. C₂₂H₂₄N₂O₆S·0.5H₂O requires C, 58.26; H, 5.56; N, 6.18%); δ_H(300 MHz, CDCl₃) 7.95 (s, 1H, NH), 7.91 (s, 1H, isatin C4-H), 7.80 (d, J 8.1, 1H, isatin C6-H), 7.30 (d, J 7.8, 2H, Ar-H), 6.98-6.87 (m, 3H, Ar-H, 1H, isatin C7-H), 4.92 (t, J 12.3, 2H, OCH₂), 4.30 (dd, J 9.15 and 3.3, 1H, pyrrole C2-H), 4.01-3.88 (m, 2H, OCH₂, 2H, ArOCH₂), 3.52 (m, 1H, pyrrole C5-H), 3.12 (m, 1H, pyrrole C5-H), 2.39 (m, 1H, OCH₂CH₂), 1.98 (m, 2H, pyrrole C3-H), 1.71 (m, 2H, pyrrole C4-H, 1H, OCH₂CH₂); δ_C(75 MHz, CDCl₃) 173.28, 158.66, 144.35, 132.19, 131.39, 129.80, 128.93, 124.67, 121.24, 114.76, 110.42, 93.55, 69.96, 61.53, 61.49, 58.68, 49.66, 29.12, 25.40, 24.19.

(S)-1-{[1′-[4-(2-Bromo-ethoxy)-benzyl]-(1′2′-dihydro-2′-oxospiro(1,3-dioxane-2,3′-[3H]indol)-5′-yl]sulfonyl}-2-(phenoxymethyl)-pyrrolidine 10. 10 was prepared according to the same procedure for compound 2 except using 9 and 4-(bromoethyl)-benzyl bromide and being purified using hexane-ether (1 : 2) to afford 10 (254 mg, 77%) as a white solid, mp 84.3–86.1 °C (from diethyl ether) (Found: C, 56.70; H, 5.11; N, 4.21. C₃₁H₃₃BrN₂O₇S requires C, 56.62; H, 5.06; N, 4.26%); δ_H(300 MHz, CDCl₃) 7.90 (s, 1H, isatin C4-H), 7.73 (d, J 8.1, 1H, isatin C6-H), 7.29 (d, J 8.4, 2H, Ar-H), 7.21 (d, J 9.00, 2H, Ar-H), 6.98-6.86 (m, 5H, Ar-H), 6.70 (d, J 8.4, 1H, isatin C7-H), 5.00 (t, J 12.3, 2H, OCH₂), 4.78 (s, 2H, ArCH₂), 4.30 (m, 1H, pyrrole C2-H), 4.27 (t, J 6.0, 2H, BrCH₂), 4.03-3.85 (m, 2H, OCH₂, 2H, ArOCH₂), 3.63 (t, J 6.00, 2H, BrOCH₂CH₂), 3.49 (m, 1H, pyrrol C5-H), 3.08 (m, 1H, pyrrole C5-H), 2.42 (m, 1H, OCH₂CH₂), 2.00 (m, 2H, pyrrole C3-H), 1.69 (m, 2H, pyrrole C4-H, 1H, OCH₂CH₂); δ_C(75 MHz, CDCl₃) 158.65, 131.38, 129.78, 128.99, 124.15, 121.20, 115.50, 114.75, 109.54, 68.16, 61.63, 58.55, 49.61, 43.05, 29.21, 29.10, 25.48, 24.14.

(S)-1-{[1′-[4-(Acetoxy)-benzyl]-(1′2′-dihydro-2′-oxospiro(1,3-dioxane-2,3′-[3H]indol)-5′-yl]sulfonyl}-2-(phenoxymethyl)-pyrrolidine 11. 11 was prepared according to the same procedure for compound 2 except using 9 and 4-(chloromethy)-phenyl acetate and being purified using hexane-ether (1 : 2) to afford 11 (189 mg, 64%) as a white solid, mp 67.5–69.1 °C (from diethyl ether) (Found: C, 63.10; H, 5.43; N, 4.66. C₃₁H₃₂N₂O₈S requires C, 62.82; H, 5.44; N, 4.73%); δ_H(300 MHz, CDCl₃) 7.91 (d, J 2.1, 1H, isatin C4-H), 7.75 (dd, J 8.1 and 1.8, 1H, isatin C6-H), 7.31-7.26 (m, 4H, Ar-H), 7.07 (d, J 8.7, 2H, Ar-H), 6.98-6.91 (m, 3H, Ar-H), 6.71 (d, J 8.4, 1H, isatin C7-H), 4.99 (t, J 12.3, 2H, OCH₂), 4.83 (s, 2H, ArCH₂), 4.29 (dd, J 8.7 and 2.7, 1H, pyrrole C2-H), 4.03-3.83 (m, 2H, ArOCH₂, 2H, OCH₂), 3.50 (m, 1H, pyrrole C5-H), 3.07 (m, 1H, pyrrole C5-H), 2.41 (m, 1H, OCH₂CH₂), 2.29 (s, 3H, CH₃CO), 1.97 (m, 2H, pyrrole C3-H), 1.71 (m, 2H, pyrrole C4-H, 1H, OCH₂CH₂); δ_C(75 MHz, CDCl₃) 158.67, 131.44, 129.78, 128.65, 124.24, 122.47, 121.19, 114.76, 109.46, 69.95, 61.65, 58.60, 49.62, 43.03, 29.10, 25.46, 24.15, 21.38.

(S)-1-{[1′-[4-(2-Methanesulfonyloxy-ethoxy)-benzyl]-(1′2′-dihydro-2′-oxospiro(1,3-dioxane-2,3′-[3H]indol)-5′-yl]sulfonyl}-2-(phenoxymethyl)-pyrrolidine 12. 12 was prepared according to the same procedure for compound 7a except using 10 and being purified using hexane-ether (1 : 2) to afford 12 (122 mg, 73%) as a white solid, mp 80.5–82.1 °C (from diethyl ether) (Found: C, 57.28; H, 5.47; N, 4.19. C₃₂H₃₆N₂O₁₀S₂ reqires C, 57.13; H, 5.39; N, 4.16%); δ_H(300 MHz, CDCl₃) 7.90 (s, 1H, isatin C4-H), 7.73 (d, J 8.1, 1H, isatin C6-H), 7.32-7.20 (m, 4H, Ar-H), 6.98-6.85 (m, 5H, Ar-H), 6.69 (d, J 8.1, 1H, isatin C7-H), 4.99(t, J 9.9, 2H, OCH₂), 4.78 (s, 2H, ArCH₂), 4.54 (t, J 4.8, 2H, MsOCH₂), 4.29 (m, 1H, pyrrole C2-H), 4.21 (t, J 4.8, 2H, MsOCH₂CH₂), 4.03-3.82 (m, 2H, OCH₂, 2H, ArOCH₂), 3.49 (m, 1H, pyrrole C5-H), 3.09 (m, 1H, pyrrole C5-H), 3.07 (s, 3H, Ms-CH₃), 2.41 (m, 1H, OCH₂CH₂), 1.97 (m, 2H, pyrrole C3-H), 1.68 (m, 2H, pyrrole C4-H, 1H, OCH₂CH₂); δ_C(75 MHz, CDCl₃) 171.84, 158.64, 157.99, 146.26, 132.30, 131.33, 129.74, 129.01, 128.50, 127.89, 124.11, 121.17, 115.34, 114.74, 109.48, 93.32, 69.92, 68.02, 66.13, 61.55, 58.55, 49.58, 42.98, 38.01, 29.08, 25.43, 24.12.

(S)-1-{[1′-[4-(Hydroxy)-benzyl]-(1′2′-dihydro-2′-oxospiro(1,3-dioxane-2,3′-[3H]indol)-5′-yl]sulfonyl}-2-(phenoxymethyl)-pyrrolidine 13. 13 was prepared according to the same procedure for compound 8 except using 11 and being purified using hexane-ether (1 : 2) to afford 13 (116 mg, 85%) as a yellow solid, mp 92.8–94.5 °C (from diethyl ether) (Found: C, 63.10; H, 5.67; N, 4.90. C₂₉H₃₀N₂O₇S requires C, 63.26; H, 5.49; N, 5.09%); δ_H(300 MHz, CDCl₃) 7.90 (s, 1H, isatin C4-H), 7.73 (d, J 8.7, 1H, isatin C6-H), 7.28 (d, J 8.7, 2H, Ar-H), 7.14 (d, J 8.4, 2H, Ar-H), 6.98-6.90 (m, 3H, Ar-H), 6.78 (d, J 8.7, 2H, Ar-H), 6.71 (d, J 8.1, 1H, isatin C7-H), 5.07 (s, 1H, ArOH), 5.00 (t, J 12.0, 2H, OCH₂), 4.76 (s, 2H, ArCH₂), 4.29 (dd, J 8.4 and 2.7, 1H, pyrrole C2-H), 4.03-3.85 (m, 2H, ArOCH₂), 3.51 (m, 1H, pyrrole C5-H), 3.06 (m, 1H, pyrrole C5-H), 2.42 (m, 1H, OCH₂CH₂), 1.97 (m, 2H, pyrrole C3-H), 1.68 (m, 2H, pyrrole C4-H, 1H, OCH₂CH₂); δ_C(75 MHz, CDCl₃) 171.90, 158.65, 155.68, 147.60, 146.37, 132.18, 131.38, 129.78, 129.09, 128.48, 126.91, 124.13, 121.21, 116.13, 114.76, 116.13, 114.76, 109.62, 93.37, 69.93, 61.65, 58.58, 49.62, 43.12, 29.10, 25.47, 24.15.

General procedure for ¹⁸F radiolabeling of isatin sulfonamides

Bu₄NOH pre-treatment method.
Pretreatment. Into a 10 mL Pyrex tube were added anhydrous CH₃CN (1 mL) and 1 M Bu₄NOH in H₂O (3.6 μL, 3.6 μmol). After the water was removed by azeotropic distillation at 80 °C under a gentle stream of nitrogen, a solution of 7a (1.1 mg, 1.8 μmol) in DMSO (300 μL) was added inside and the solution was vortexed and heated under microwave irradiation on medium power (60 W) for 30 s. The solution was allowed to cool down to ambient temperature for next step.
¹⁸F labeling . [¹⁸F]fluoride (100–200 mCi) in H₂¹⁸O (100–300 μL) was transferred to a glass tube containing K₂₂₂ (5 mg) and K₂CO₃ (1.1 mg). Water was removed by azeotropic distillation at 110 °C under a gentle stream of nitrogen with successive addition of three aliquots (1.0 mL) of CH₃CN. During the final evaporation, the container was removed from the oil bath when the final volume reached about 100 μL. Evaporation to dryness of the residue was conducted at room temperature. [¹⁸F]fluoride was resolubilized in anhydrous DMSO (300 μL) and the solution was transferred to the Pyrex tube containing the intermediate prepared in the first step. A 3 mm glass bead was also added to the tube for a more homogeneous heat distribution during the microwave irradiation and the tube was capped firmly. The mixture was vortexed and irradiated by microwave (60 W) for 30 and 25 s with 1 min between each irradiation. RadioTLC indicated that up to 85% [¹⁸F] fluoride was incorporated.
Hydrolysis . After the reaction solution was cooled down to ambient temperature, 1 N HCl (500 μL) was added and the mixture was heated under microwave irradiation on medium power (60 W) for 25 s. RadioTLC indicated that almost all [¹⁸F] intermediates were converted to [¹⁸F]2. The crude reaction mixture was diluted with water (20 mL) and the solid-phase extraction was performed using a Waters Oasis HLB cartridge previously rinsed with methanol (6 mL) and MilliQ water (2 × 6 mL). After the radioactive sample had been applied, the cartridge was rinsed with additional water (2 × 10 mL) to eliminate unreacted fluoride and salts. Then the radiolabeled product was eluted with CH₃CN (10 mL). Upon the completion of removal of CH₃CN under reduced pressure, the residue was taken up in CH₃CN (1.25 mL) and methanol (1.25 ml), followed by the addition of water (2 ml) for HPLC purification. The purification was carried out by semipreparative HPLC (Alltech Econosil C18 250 × 10 mm 10 μm) eluting with 25% CH₃CN, 45% MeOH and 30% 0.1 M ammonium formate buffer (pH = 4.5) at a flow rate of 5 mL min⁻¹ and UV at 251 nm. The radioactive peak corresponding to [¹⁸F]2 was detected at 13 to 16 min according to the radioactivity detector and was collected for further purification.

The HPLC collection of [¹⁸F]2 was diluted in water (200 mL), then the activity was collected in a Waters C18 Classic Sep-Pak by passing the above solution through it under pressure. After the Sep-Pak was washed with water (10 mL) to remove any trace of CH₃CN and dried by nitrogen, the activity was eluted with ethanol (2 mL). The ethanol solution was used for the preparation of final solution with saline for animal study. The total synthesis time is 100 min.

C3 dioxane method. ¹⁸F labeling: [¹⁸F]fluoride, dried with K₂₂₂ (5 mg) and K₂CO₃ (1.2 mg) in CH₃CN at 110 °C under nitrogen flow (see above), in DMSO (300 μL) was added to a 10 mL Pyrex tube containing a solution of 12 (1.2 mg, 1.8 μmol) in DMSO (200 μL). The tube was capped firmly and the reaction mixture was heated by microwave (60 W) for 25 and 30 s with an interval of 1 min between them. Then 1 N HCl (500 μL) was added and the capped tube was heated by microwave (60 W) for 30 s. The reaction mixture was diluted in water (40 mL) and passed through a Waters Oasis HLB cartridge to trap the product. After the product was eluted with CH₃CN (10 mL) from the Oasis cartridge, it was condensed to nearly complete dryness under reduced pressure and reconditioned in CH₃CN (0.8 mL), MeOH (1.2 mL) and water (2 mL) for HPLC injection. The HPLC purification and final workup are the same as above.

Optimized method. 100 mCi [¹⁸F]fluoride in 0.02 M K₂CO₃ solution (ca 200 μL) was dried in a 10 mL Pyrex tube with K₂₂₂ (10 mg) and K₂CO₃ (1.8 mg) by azeotropic distillation at 110 °C under a gentle stream of nitrogen with successive addition of three aliquots (1.0 mL) of CH₃CN. Then a solution of 7a (1.1 mg, 1.8 μmol) in anhydrous DMSO (600 μL) was added inside the tube, which was capped firmly afterwards. The reaction mixture was shaken well by hand to open the isatin ring. At this point, the solution color changed to a pale yellow and was heated by microwave (60 W) for 30 and 25 s with an interval of 1 min between the irradiations. Then 1 N HCl (500 μL) was added, and the mixture in the capped tube was heated by microwave (60 W) for 25 s. The reaction mixture was diluted in water (40 mL) and passed through a Waters classic C18 Sep-Pak cartridge to trap the product, which was eluted by back-flushing with CH₃CN (1.0 mL), MeOH (1.0 mL) and water (2.0 mL) for HPLC injection. The purification was carried out by a semipreparative HPLC (Alltech Econosil C18 250 × 10 mm 10 μm) eluting with 24% CH₃CN, 44% methanol and 32% 0.1 M ammonium formate buffer (pH= 4.5) at a flow rate of 4 mL min⁻¹ and UV at 251 nm. The radioactive peak corresponding to [¹⁸F]2 was detected at 20 to 23 min according to the radioactivity detector and was collected (0.5 min per tube). The majority of the collected activity (mainly in 4 tubes) was diluted in water (30 mL). Then a Waters C18 classic Sep-Pak was used to extract the activity. The Sep-Pak was washed with water (10 mL) to remove any trace of CH₃CN. [¹⁸F]2 was eluted by back-flushing with ethanol in a portion of 0.5mL (< 2 mL total). The portions containing the majority of the activity (in ca 1 mL) was used for final dose preparation. The total synthesis time is 90 min.

Radiochemical Purity and Specific Activity. The radiochemical purity of [¹⁸F]2 was determined by analytical HPLC column (Alltech Altima C18 250 × 4.6 mm 10 μm) eluting with 76% methanol and 24% water at a flow rate of 1.5 mL min⁻¹ and UV at 251 nm. [¹⁸F]2 was eluted at 5.8 min and confirmed by the coelution with nonradioactive standard 2 on the analytical HPLC system. By comparison of the integrated sample UV signal with a calibrated compound mass/UV absorbance curve, the specific activity was determined as at the end of synthesis. The radiochemical purity was > 99%.

General procedure for ¹¹C radiolabeling of isatin sulfonamides [¹¹C]4

C-3 dioxane method. A solution of 13 (1.0 mg, 1.8 μmol) in CH₃CN (200 μL) was added to NaH (1.0 mg, 25 μmol, 60% dispersion in mineral oil). The mixture was vortexed and cooled down to 0 °C. After [¹¹C]MeI was trapped by bubbling the activity through the solution at 0 °C, the reaction mixture was sealed and heated at 85 °C for 4 min, then 85 °C for 3 min with 6 N HCl (200 μL). Then the reaction mixture was diluted with 1 : 1 CH₃CN–water (1.5 mL). [¹¹C]4 was purified by a reversed phase HPLC (Alltech Econosil C18 250 × 10 mm 10 μm) eluting with 25% CH₃CN, 25% 0.1 M ammonium formate buffer (pH = 4.5) and 50% MeOH with UV at 237 nm and a flow rate at 4 mL min⁻¹. The corresponding radioactivity for [¹¹C]4 at 11–13 min of HPLC elution was diluted in water (150 mL), and extracted in a Water classic C18 Sep-Pak by passing the diluted solution through it under pressure. After the Sep-Pak was washed with water (10 mL), [¹¹C]4 was eluted from the Sep-Pak with ethanol (1.5 mL). The final doses for further studies were prepared in 10% ethanol/90% saline. Total preparation time was ca 60 min.

Ring opening-reclosure method. Into a solution of 8 (0.2 mg, 0.41 μmol) in CH₃CN (100 μL) was added a solution of 1 M Bu₄NOH in H₂O (0.83 μL, 0.83 μmol) in CH₃CN (100 μL). The mixture was vortexed and cooled down to 0 °C. After [¹¹C]MeI was trapped by bubbling the activity through the solution at 0 °C, the reaction mixture was sealed and heated at 88 °C for 4 min, then 88 °C for 4 min with 1 N HCl (200 μL). The HPLC purification and the workup are the same as above.

Radiochemical Purity and Specific Activity of [¹¹C]4. The above method in [¹⁸F]2 was used to determine the radiochemical purity and specific activity under the following conditions: Alltech Altima C18 250 × 4.6 mm 10 μm column; 75% MeOH, 25% 0.1 M ammonium formate buffer (pH = 4.5) at a flow rate of 1.5 mL min⁻¹ and UV at 251 nm; retention time of [¹¹C]4 was 6.5 min.

Fukui function (FF) calculations

23, 24, and 25 were built by hand and optimized at the B3LYP/6-31G* level in Gaussian98. Following the method of Thanikaivelan,²³ the CHELPG method was utilized to assign the electron populations used for the Fukui analysis.

Evaluation of Fas Induced Liver Apoptosis Model Using [¹¹C]4 (WC-98)

Female Balb/c mice (19.3 ± 1 g) were injected intravenously with anti-Fas (Jo2) antibody (10 μg) (BD Biosciences, San Jose, CA). Then injected with [¹¹C]4 90 min later. For the microPET imaging study, 60 min of imaging were acquired dynamically after obtaining a transmission scan for attenuation correction. Regions of interest were drawn over the left lobe of the liver to avoid spillover activity from the gallbladder. For the biodistribution study, animals were sacrificed at 5 min and 30 min after tracer injection, the liver was removed, weighed, and counted in a Beckman Gamma 6000 counter. The percent injected dose per gram of tissue (%ID/g) was presented as the mean ± standard deviation.

Fluorometric enzyme analysis of caspase-3 activity

Protein was extracted from liver samples obtained from the biodistribution study according to a previously published protocol.²⁶Protein (200 μg) was loaded in triplicate into a 96-well plate with Ac-DEVD-AMC substrate (20 μM) (Biomol International, LP, Plymouth Meeting, PA), with or without the caspase-3 inhibitor Ac-DEVD-CHO (1 μM) (Sigma-Aldrich, St. Louis, MO) in the assay buffer. The plate was read every 15 min for 4 h on a Victor³ V microplate reader (Model 1420, Perkin-Elmer, Fremont, CA). Background fluorescence was subtracted from each time point, and readings were plotted over time. Linear regression was performed on the linear portion of the curve (within 2 h of reading) to determine the slope, which is the rate of caspase-3 enzyme activity.

All animal experiments were conducted in compliance with the Guidelines for the Care and Use of Research Animals published by the Animal Studies Committee of Washington University in St. Louis, School of Medicine.

Electronic Supplementary Information (ESI) available. RadioTLCs and typical HPLC chromatograms for radiosynthesis of [¹⁸F]2, HPLC chromatograms and ESI/MS spectra of 2, 17, and 2 (recyclized from 17), ¹⁹F NMR spectra of 21 and ¹³C NMR spectra of 7a, 16, 21, and 22, and ¹H NMR spectra of 2, 4, 7a, 7b, 8, 12, and 13.
