Anion-templated assembly of [2]rotaxanes

Abstract

Anion templation is used to develop a general method for rotaxane synthesis. The anion-templated synthesis of three new [2]rotaxanes containing positively charged pyridinium axles and neutral isophthalamide macrocyclic components is described. The incorporation of electron withdrawing substituents, such as the nitro group, into the 5-position of an isophthalamide bis-vinyl acyclic precursor results in a significant improvement in [2]rotaxane assembly yields. Rotaxane anion binding strengths are also enhanced whilst the rotaxane's unique interlocked binding domain ensures selectivity for chloride – the templating anion – is maintained.

---

Introduction

Over the past couple of decades a number of assembling motifs have been established for the preparation of mechanically bonded supramolecular systems.¹ In particular, the use of metal–ligand coordination chemistry,² hydrogen bonding,³ π–π stacking interactions⁴ and solvophobic forces⁵ have become common-place. In spite of their diffuse nature, pH-dependence and relative high solvation energies, the field of anion templation is of intense current interest⁶ where many serendipitous examples of templated metal-based cages⁷ and macrocycles⁸ reveal the anion filling an internal void around which the structure is assembled.⁹ In sharp contrast, however, the much rarer use of anion templates in assembling interlocked molecules has focused on the use of rigorously designed hydrogen-bond donor anion recognition motifs.¹⁰ For example, Vögtle's anion-mediated rotaxane synthesis relies upon the complexation and orientation of a negatively charged phenoxide intermediate by a neutral macrocyclic lactam to form a semi-rotaxane.¹¹ This assembly, shielded on one side by a bulky group, subsequently reacts with a sterically demanding electrophile to form a rotaxane. This imaginative approach has been exploited by Smith's group in the preparation of rotaxanes with ion-pair binding macrocycles and rotaxinated squarine dyes¹² and in a related stoppering method of rotaxane formation by Schalley and co-workers.¹³

We have recently reported the use of spherical halide anions as templates for the construction of a number of [2]pseudorotaxane assemblies.¹⁴ A chloride anion that is tightly ion-paired to a cationic organic thread, e.g. a pyridinium amide cleft, has been found, in non-competitive solvents, to be coordinatively unsaturated and possess an empty meridian available for further complexation by a second, neutral, anion recognition site.¹⁵ Although not possessing the stereochemical preferences inherent in a transition metal centre, sterics force an orthogonal arrangement of the two ligands in a manner analogous to, for example, a [Cu(phen)₂]⁺ complex. Formation of an interpenetrated assembly, or [2]pseudorotaxane, was achieved by incorporation of a neutral amide cleft into a macrocyclic component (Fig. 1). Subsequent chloride anion recognition by this hydrogen-bond donor site results in threading of the organic pyridinium chloride ion-pair and formation of a [2]pseudorotaxane.¹⁶

Fig. 1 Anion-templated [2]pseudorotaxane assembly.

The conversion of these types of pseudorotaxanes to interlocked mechanically-bonded assemblies will produce novel rotaxane and catenane structures that contain unique, three-dimensional, topological binding domains for the specific recognition of anionic guest species. With the goal of using anion templation to develop a general method for rotaxane synthesis and to understand the factors that influence the yields and anion recognition properties of the assembled interlocked species, we report here the synthesis and anion coordination studies of three new [2]rotaxanes.

Results and discussion

Rotaxane construction strategy

We have recently reported the synthesis of a [2]rotaxane using an anion-templated approach, illustrated in Scheme 1.¹⁷ The axle component consists of a pyridinium chloride ion-pair motif with two bulky ‘stopper’ groups. In non-competitive solvent media, chloride anion association with a suitably designed neutral acyclic second component that contains an anion recognition site, such as isophthalamide, and is terminally functionalised with allyl groups produces an assembly that after a ring-closing metathesis (RCM) reaction affords the target [2]rotaxane (Scheme 1). RCM has proved an efficient method in the preparation of catenanes^18,19 and rotaxanes,²⁰ with the latter having also been accessed by related olefin metathesis strategies.²¹

Scheme 1 Anion-templated synthesis of a [2]rotaxane via ring-closing metathesis (RCM).

In an effort to demonstrate the generality and synthetic versatility of this anion-templated method of rotaxane assembly, an investigation into the effect of incorporating electron withdrawing substituents into the 5-position of an isophthalamide anion binding motif and changing the nature of the aryl spacer motif on the yields and anion binding properties of the resulting rotaxanes was undertaken.

Synthesis of bis-vinyl-functionalised isophthalamide derivatives

Condensation of the appropriate 5-substituted isophthalic acid chloride with two equivalents of the vinyl-functionalised amine derivative (1)¹⁹ in the presence of triethylamine in dry tetrahydrofuran solution afforded the corresponding bis-vinyl isophthalamide derivatives 3 and 4 in yields of 40–50% (Scheme 2). The naphthalene-containing isophthalamide derivative was prepared according to the synthetic pathway shown in Scheme 3.

Scheme 2 Synthesis of bis-vinyl-functionalised isophthalamide dervatives.

Scheme 3 Naphthalene ligand synthesis. Reagents and conditions: i) BrCH₂CN, K₂CO₃, acetone, reflux, 12 h, 69%; ii) LiAlH₄, Et₂O, 293 K, 1 h, 71%; iii) Boc-anhydride, CH₂Cl₂, 293 K, 12 h, 53%; iv) Pd/C, 1 atm H₂, DMF–MeOH (4 : 1), 293 K, 12 h, 61%; v) 2-allyloxyethanol-p-toluene sulfonate,²³ K₂CO₃, EtOH, reflux, 12 h, 64%; vi) TFA, CH₂Cl₂, 293 K, 12 h, CHCl₃, HCl_(g), 20 min, 47%; vii) isophthaloylcarbonylchloride, NEt₃, CH₂Cl₂, 0 °C, 1 h, 44%.

The starting material 1-benzyloxy-5-hydroxynaphthalene was prepared according to a literature procedure.²² Reaction with bromoacetonitrile in acetone using potassium carbonate as base afforded the nitrile compound 5 in moderate yield, which was subsequently reduced using lithium aluminium hydride to give the amine compound 6. Protection of the amine functionality using Boc-anhydride followed by the high yielding removal of the benzyl protecting group via hydrogenation afforded compound 8. The known compound 2-allyloxyethanol-p-toluene sulfonate²³ was reacted with compound 8 in the presence of base to give the allyl-appended naphthalene derivative 9. Removal of the Boc protecting group using trifluoroacetic acid (TFA) yielded the deprotected amine as an oil which was more easily handled after protonation to give the hydrochloride salt 10. Condensation of 10 with isophthalic acid chloride gave the naphthalene-containing isophthalmide derivative 11.

The terphenyl-functionalised pyridinium halide and hexafluorophosphate derivatives 12a–d (Fig. 2) was prepared according to literature procedure.¹⁷

Fig. 2 Terphenyl-functionalised pyridinium salts 12a–d investigated as potential [2]rotaxane thread components.

¹H NMR anion-binding studies of isophthalamide derivatives

In order to ascertain which anion may serve as the potential template in the ensuing rotaxane syntheses, ¹H NMR anion binding studies were undertaken with bis-vinyl-appended isophthalamide (2) and 5-nitroisophthalamide (3) compounds. The addition of tetrabutylammonium (TBA) halide, dihydrogen phosphate and hydrogen sulfate salts to dichloromethane-d₂ solutions of both derivatives resulted in significant downfield shift perturbations of the respective compounds' aryl b and amide c protons. WinEQNMR ²⁴ analyses of the resulting titration isotherms gave 1 : 1 association constant values as shown in Table 1.

Table 1 Association constants for ligands 2 and 3 with TBA salts determined by ¹H NMR (CD₂Cl₂, 293 K)

Anion	Association constants^a/M^−1
	2	3
a Estimated errors less than 10%.
Cl^−	330	3550
Br^−	140	1500
I^−	30	250
BzO^−	490	6400
H2PO4^−	150	1730
HSO4^−	180	600

---

With both derivatives, chloride anions are bound the most strongly of the halides, as a result of possessing the most effective hydrogen-bond acceptor ability and a potential size match with the amide cleft binding site. It is noteworthy that the presence of an electron withdrawing nitro group in the isophthalamide's 5-position substantially enhances the anion binding ability of the ligand for all anionic guests, without altering the selectivity trends. This increased affinity is postulated to be a result of a decrease in the pK_a of the amide protons and hence an increase in their hydrogen-bond donor ability. The 5-iodoisophthalamide ligand (4) was found to bind chloride with an association constant of 900 M⁻¹.

Taking into account these findings, chloride was chosen as the templating anion in subsequent rotaxane formation reactions.

Templated macrocyclisation reactions

As a test for the suitability of RCM macrocyclisation reactions using Grubbs' catalyst in the presence of a halide anion template, the isophthalamide derivative 2 was stirred with one equivalent of TBA chloride and 10% Grubbs' catalyst by weight. Macrocycle 13 was isolated by preparative TLC in 30% yield (Scheme 4).

Scheme 4 Anion-templated macrocyclisation facilitated by ring-closing metathesis (RCM).

A comparison of the ¹H NMR spectra of the acyclic and cyclised isophthalamide compound reveals the expected changes in the allyl proton environments as a result of a completed metathesis reaction (Fig. 3).

Fig. 3 Selected region of ¹H NMR of ligand 2 (bottom) and the related macrocycle 13 (top) in CDCl₃.

The alkene in the cyclised product can exist as either the cis or trans isomer, with the latter expected to dominate as the thermodynamic product of the equilibrium process. In addition, it is expected that no steric strain will be imposed on this functionality due to the large ring size. The trans : cis ratio is calculated from the isomeric olefinic protons in the ¹H NMR spectrum (trans = 5.84, cis = 5.77 ppm) to be 6 : 1.

Interestingly, in the absence of a chloride template, or in the presence of the non-coordinating PF₆⁻ anion, no cyclisation is observed, indicating the critical nature of the template in the RCM process. These results are in agreement with previously reported observations on related systems in which the lowest energy conformation of 3,5-isophthalamide systems has been determined to be the syn–anti.²⁵ Stabilisation of this conformation is through internal NH⋯O hydrogen bonding. In this conformation the two terminal allyl groups will be at a considerable spatial separation and therefore no cyclisation is observed. Upon addition of a suitable anion template, however, the higher energy syn–syn conformation becomes more favoured. In this conformation the allyl groups are in much closer proximity, thus favouring the RCM reaction (Scheme 5).

Scheme 5 Anion recognition forces a change in ligand conformation from syn–anti to syn–syn, thus facilitating ring-closing metathesis.

The chloride anion-templated RCM reaction was also attempted with the 5-nitroisophthalamide derivative 3 and the cyclic product (14) isolated in 60% yield after purification (Fig. 4). This higher macrocyclisation yield, as compared with the preparation of macrocycle 13, is a result of more effective chloride anion templation and complements the ¹H NMR association constant values shown in Table 1.

Fig. 4 Structure of the cyclic product 14.

Anion-templated assembly of [2]rotaxanes

Extension of this cyclisation strategy to the formation of [2]rotaxanes using the 5-nitro-, 5-iodo- and naphthalene-isophthalamide derivatives (3, 4 and 11) involved simply mixing the appropriate component with the pyridinium chloride-stoppered thread 12a in dichloromethane. Of note is the observed solubilisation of the neutral acyclic amide compounds being enhanced in the presence of the pyridinium chloride thread, indicative of association of the two components. Addition of Grubbs' catalyst (10% by weight) facilitates the RCM reaction, and isolation of the [2]rotaxanes was achieved by preparative TLC (Scheme 6).

Scheme 6 [2]Rotaxane synthesis.

[2]Rotaxane yields of up to 60% for the 5-nitroisophthalamide derivative 3 were achieved, which compares with the previously reported isophthalamide [2]rotaxane yield of 45%.¹⁷ This result is in agreement with the enhanced macrocyclisation yields and the increased strength of chloride anion binding by 3 in comparison to 2, suggesting that the predominant interaction driving the rotaxane assembly process is anion recognition.

Importantly, no [2]rotaxane formation was observed using pyridinium bromide, iodide and hexafluorophosphate salts 12b–d, indicating the crucial nature of the chloride anion template to the assembly process. Over an extended period of time no dissociation of the [2]rotaxane species was observed, indicating that the bulky stopper groups are large enough to prevent a deslipping process.

A comparison of the ¹H NMR spectra of 12a, 3 and the [2]rotaxane product 16a is given in Fig. 5. With 5-nitroisophthalamide derivative 3, downfield shift perturbations are observed for the aryl, n, and amide, o, proton environments as a result of chloride anion complexation. Correspondingly, an upfield perturbation in the pyridinium thread's aryl, b, and amide, c, proton environments is observed due to chloride anion polarisation as a result of complexation by the neutral component. Importantly, upfield shift perturbations are observed in the neutral component's hydroquinone proton environments, s and r, as a result of a π–π donor–acceptor interaction between these electron-rich functionalities and the electron-deficient pyridinium ring of the threading component.²⁶ The completed metathesis reaction is again observed by the loss of the characteristic terminal allyl splitting pattern. In addition, high resolution electrospray mass spectrometry and elemental analysis were used to characterise the new rotaxane systems (see the Experimental section).

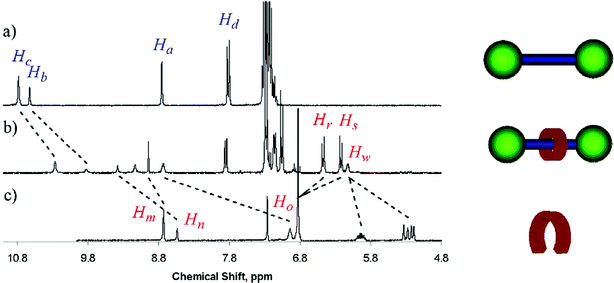

Fig. 5 Selected region of the ¹H NMR of (a) thread molecule 12a, (b) rotaxane 16a and (c) 5-nitroisophthalamide derivative 3 (CDCl₃, 298 K). For proton labelling see Scheme 6.

Despite the much poorer solubility of the naphthalene amide compound (11) solubilisation was observed in dichloromethane in the presence of pyridinium chloride ion-pair 12a. Addition of Grubbs' catalyst once again facilitated RCM and, after purification by preparative TLC, [2]rotaxane 18 (Fig. 6) was obtained in 15% yield. This lower [2]rotaxane product yield can be postulated to arise from both the greater flexibility afforded to the vinyl-terminated oxyethylene chain as a result of the unsymmetrical substitution of the naphthalene linker and the larger resulting macrocycle.

Fig. 6 Structure of the naphthalene-containing [2]rotaxane (18) as assembled though anion templation. Additional structural stabilisation is provided by π–π stacking interactions and N⁺CH₃⋯O hydrogen bonding.

Similar ¹H NMR shift perturbations to those noted with [2]rotaxanes 16a and 17a were observed for rotaxane 18, namely downfield shifts in environments n and m and upfield shifts in b and c as a result of anion binding (Fig. 7). Although inherently more crowded, the aromatic region of the ¹H NMR spectrum also revealed upfield shift perturbations in the electron-rich naphthalene proton environment, t, as a result of π–π donor–acceptor interaction with the electron-deficient pyridinium ring.

Fig. 7 Selected region of the ¹H NMR spectrum of rotaxane 18 (293 K, acetone-d₆). For proton labelling see Fig. 6.

Rotaxanes as anion hosts

Whilst the anion-templated assembly of [2]rotaxanes presents a novel approach to the preparation of interlocked species, the desire to incorporate a degree of functionality into the final system encouraged us to investigate their ability to function as anion hosts. Removal of the chloride anion template from the cavity of [2]rotaxanes 16a and 17a using silver hexafluorophosphate yielded the corresponding hexafluorophosphate [2]rotaxane salts 16b and 17b. Although perturbations in the ¹H NMR chemical shifts of the cleft-sited amide and aryl protons are observed, very few additional perturbations are seen, indicating a retention of the [2]rotaxane structure upon template removal. Titration of chloride, dihydrogen phosphate and acetate anions, as their TBA salts, gave rise to perturbations in the rotaxane amide and aryl protons surrounding the pocket previously occupied by the template. Analysis of the resulting binding curves using the WinEQNMR ²⁴ software program allowed determination of 1 : 1 association constants for complexation of the anionic guests by the host [2]rotaxane (Table 2). In order to determine the effect of rotaxanation upon binding phenomena, analogous association constant determinations were carried out with the hexafluorophosphate thread 12d. Owing to a limited supply of material, [2]rotaxane 18 was not investigated with regard to its anion binding properties.

Table 2 Association constants for PF₆ thread 12d and PF₆ rotaxanes 15b, 16b and 17b determined by ¹H NMR (CD₃OD–CDCl₃, 1 : 1)

Anion	Association constants^a/M^−1
	Thread 12d	Rot 15b ^17	Rot 16b	Rot 17b
a Estimated errors less than 10%.
Cl^−
K11	125	1130	4500	4500
H2PO4^−
K11	260	300	1500	1800
K12	—	—	—	180
AcO^−
K11	2200	100	725	930
K12	140	40	—	—

---

Despite the possibility of a complementary size match between the amide cleft of the thread and a chloride anion, the pyridinium hexafluorophosphate thread 12d displays a greater selectivity preference for both acetate and dihydrogen phosphate anions. The dominant factor in anion recognition by the free thread is therefore the oxobasicity of the guest anions, hence the much weaker coordination of the chloride anion. In sharp contrast, however, are the binding trends observed for all three hexafluorophosphate rotaxanes, which are completely reversed: Cl⁻ > H₂PO₄⁻ > OAc⁻. The selectivity change is postulated to be a result of a unique anion binding site formed by the two orthogonally arranged amide clefts. A chloride anion can be bound tightly in this pocket due to both complementary topography and the formation of four NH⋯Cl⁻ hydrogen bonds. Large anions such as dihydrogen phosphate and acetate bind weakly as a result of either having to penetrate the binding pocket, which would be sterically demanding, or forcing a displacement of the pyridinium thread from the macrocyclic cavity. Both of these binding mechanisms would be highly unfavourable and unlikely to be able to present a full complement of hydrogen-bond donors.

With rotaxanes 16b and 17b the dramatic increase in the magnitude of the association constants can be explained by considering the effect of the nitro and iodo substituents of the isophthalamide ring. As indicated by the ¹H NMR binding studies of 3 and 4, these electron withdrawing functionalities appear to increase the acidity and hydrogen-bonding ability of the amide protons and thus result in enhanced anion recognition. It is noteworthy that whilst the anion association constant values are larger for rotaxanes 16b and 17b relative to 15b (Table 2), the unique topology of the interlocked binding domain ensures that selectivity for chloride, the templating anion, is maintained.

Conclusions

Anion templation has been shown to be an effective route to the preparation of macrocycles and [2]rotaxanes. In particular, the synthesis of three new [2]rotaxanes has demonstrated the generality of this anion-templated approach to the assembly of interlocked species. Importantly, rotaxanes templated in this manner have a degree of functionality integral to their structure. The use of unique cavities at the centre of interlocked structures as host molecules has only recently begun to be explored despite the unique properties they possess.^12b,17,18,27 Dramatic changes in anion binding selectivities have been demonstrated to occur upon rotaxanation. Simple modification of just one component can improve both rotaxane assembly yields and anion binding strengths significantly. In this instance the incorporation of electron withdrawing substituents, such as the nitro group, into the 5-position of an isophthalamide anion binding motif increases the acidity of the amide protons which leads to impressive yields of up to 60% for [2]rotaxane formation, concomitant with the rotaxane binding domain both augmenting thermodynamic stability and conserving selectivity for chloride, the templating anion. We are currently seeking to exploit this anion templation methodology further in the design of mechanically interlocked species for anion sensing applications.

Experimental

The synthesis of compounds 12a–d, 1, 2 and 15a,b have been previously described.^17,19 2-Allyloxyethanol-p-toluene sulfonate and 5-iodoisophthalic acid were prepared according to literature procedures.^23,28 All starting materials were purchased from Aldrich Chemicals and used as received with the exception of thionyl chloride and triethylamine which were distilled from triethyl phosphite and over potassium hydroxide, respectively, and the latter stored over potassium hydroxide. All solvents were dried using standard laboratory procedures prior to use. ¹H and ¹³C NMR spectra were recorded on Varian 300 MHz VX Works and 500 MHz Unity Plus spectrometers. Mass spectrometry was carried out using a Micromass LCT electrospray mass spectrometer. Elemental analyses were performed by the Inorganic Chemistry Laboratory Microanalysis Service, Department of Chemistry, University of Oxford, and by the Elemental Analysis Service, London Metropolitan University.

Preparation of 5-nitroisophthalamide ligand 3

A solution of synthon 1 (0.82 g, 3.0 mmol) and triethylamine (8 ml) in THF (100 ml) was prepared and cooled to 0 °C. 5-Nitroisophthaloyl dichloride was added and the solution stirred for 1 h keeping the temperature below 5 °C. The resulting reaction mixture was filtered and the solvent removed to give an oil. The oil was then dissolved in dichloromethane (100 ml) and washed with aqueous 10% HCl solution (3 × 100 ml) and water (3 × 100 ml). The organic phase was then dried over magnesium sulfate and the solvent removed to give the product (0.49 g, 50%) as a yellow solid (Found: C, 62.9; H, 6.1; N, 6.6. Calc. for C₃₄H₃₉N₃O₁₀: C, 62.8; H, 6.05; N, 6.5%); δ_H(300 MHz, CDCl₃, Me₄Si) 3.89 (4H, t, J = 4.2 Hz, CH₂), 3.89 (4H, m, NHCH₂), 4.09 (12H, m, CH₂), 5.2–5.3 (2H, m, CH=CH₂), 5.93 (2H, m, CH=CH₂), 6.83 (8H, m, ArH), 6.94 (2H, br s, NH), 8.54 (1H, s, 4-H) and 8.73 (2H, s, 2-H); δ_C(300 MHz, CDCl₃, Me₄Si) 40.1, 68.0, 66.9, 68.6, 72.4, 115.3, 115.6, 117.5, 124.6, 131.2, 134.5, 136.3, 148.2, 152.5, 153.3, 164.6; m/z (ESI) 672.70 (M + H⁺ requires 672.25).

Preparation of 5-iodoisophthalamide ligand 4

Method as for compound 3, using synthon 1 (0.3 g, 1.15 × 10⁻³ mol) and 5-iodoisophthaloyl dichloride (0.10 g, 5.73 × 10⁻³ mol) to give the product (0.16 g, 40%) as a white solid (Found: C, 55.9; H, 5.4; N, 3.9. Calc. for C₃₄H₃₉IN₂O₈: C, 55.9; H, 5.4; N, 3.8%); δ_H(300 MHz, CDCl₃, Me₄Si) 3.75 (8H, m, CH₂), 4.01 (12H, m, CH₂), 5.16–5.30 (4H, m, CH=CH₂), 5.84–5.97 (2H, m, CH=CH₂), 6.77 (8H, s, ArH), 7.33 (2H, br t, J = 4.4 Hz, NH), 8.11 (1H, s, 4-H) and 8.13 (2H, s, 2-H); δ_C(300 MHz, CDCl₃, Me₄Si) 39.8, 66.8, 67.8, 68.4, 72.2, 94.2, 115.3, 115.4, 117.4, 134.3, 136.0, 138.8, 152.5, 153.1 and 165.6; m/z (ESI) 731.1259 (M + H⁺ requires 731.1829).

Preparation of compound 5

1-Benzyloxy-5-hydroxynaphthalene (1.8 g, 7.2 × 10⁻³ mol), bromoacetonitrile (0.95 g, 7.92 × 10⁻³ mol) and potassium carbonate (1.09 g, 7.92 × 10⁻³ mol) were heated under reflux in acetone (100 ml) for 12 h. The resulting reaction mixture was cooled to room temperature and filtered. The solvent was removed to give a brown oil that was redissolved in dichloromethane and filtered through a plug of silica. The solvent was removed to give the product (1.44 g, 69%) as a pale yellow solid; δ_H(300 MHz, CDCl₃, Me₄Si) 4.96 (2H, s, OCH₂Ph), 5.25 (2H, s, CNCH₂), 6.96 (1H, d, J = 7.5 Hz, ArH), 7.51–7.53 (2H, m, ArH), 7.33–7.45 (5H, m, ArH), 7.78 (1H, dt, J 8.7, J 0.8, ArH) and 8.07 (1H, dt, J 8.4, J 0.9, ArH); δ_C(300 MHz, CDCl₃, Me₄Si) 53.8, 70.2, 106.1, 106.5, 106.6, 114.0, 114.8, 117.2, 124.8, 125.3, 126.2, 127.5, 128.0, 128.7, 129.1, 137.0, 137.3, 152.2 and 154.4; m/z (ESI) 290.1233 (M + H⁺ requires 290.1181).

Preparation of compound 6

Compound 5 (0.5 g, 4.84 × 10⁻³ mol) was dissolved in diethyl ether (100 ml) and added carefully to a suspension of lithium aluminium hydride (0.1 g, 2.6 × 10⁻³ mol) in diethyl ether (150 ml) and stirred at room temperature for one hour. Aqueous 10% sodium hydroxide solution was added slowly (approx. 25 ml) until no further gas production was observed. Saturated aqueous sodium chloride solution was added (50 ml) and the organic layer decanted. Diethyl ether (80 ml) was added to the aqueous phase and stirred for 20 min before being decanted. This procedure was repeated once more. The organic phases were combined and dried over magnesium sulfate. Removal of the solvent gave the product (0.36 g, 71%) as a white solid; δ_H(300 MHz, CDCl₃, Me₄Si) 3.12 (2H, t, J = 5.1 Hz, CH₂), 4.05 (2H, t, J 5.1, CH₂), 5.13 (2H, s, CH₂ benzyl), 6.73 (1H, d, J 7.8, ArH), 6.81 (1H, d, J 7.5, ArH), 7.21–7.33 (5H, m, ArH benzyl), 7.41–7.43 (2H, m, ArH), 7.77 (1H, d, J 8.4, ArH) and 7.83 (1H, d, J 8.7, ArH).

Preparation of compound 7

Compound 6 (1.35 g, 4.60 × 10⁻³ mol) and Boc-anhydride (1.80 g) were dissolved in dichloromethane (100 ml) and stirred at room temperature for 12 h. The resulting reaction mixture was filtered through a plug of silica and the solvent was removed to give a pale yellow solid. After stirring in hexane (50 ml) for 20 min and filtering the product (0.96 g, 53%) was obtained as a white solid; δ_H(300 MHz, CDCl₃, Me₄Si) 1.40 (9H, s, ^tBu), 3.61 (2H, q, J = 5.1 Hz, NHCH₂), 4.08 (2H, t, J 5.1, OCH₂), 5.06 (1H, br s, NH), 6.62 (1H, br s, OH), 6.69 (1H, d, J 7.5, ArH), 6.81 (1H, d, J 7.5, ArH), 7.26 (2H, t, J 8, ArH) and 7.72 (2H, d, J 8.4, ArH); δ_C(300 MHz, CDCl₃, Me₄Si) 23.4, 40.2, 67.4, 70.1, 105.2, 109.3, 114.4, 124.9, 125.3, 126.7, 127.3, 127.9, 128.5, 151.8, 154.0 and 156.2; m/z (ESI) 304.1563 (M + H⁺ requires 304.1549).

Preparation of compound 8

Compound 7 (0.96 g, 2.44 × 10⁻³ mol) was dissolved in a suspension of 10% palladium on activated carbon (0.09 g) in DMF–methanol (100 ml, 4 : 1). The reaction mixture was stirred overnight under an atmosphere of hydrogen. Filtration through Celite followed by solvent removal gave a crude brown oil. Recrystallisation from water gave the product (0.45 g, 61%) as a white powder; δ_H(300 MHz, CDCl₃, Me₄Si) 1.40 (9H, s, ^tBu Boc), 3.61 (2H, q, J = 5.1 Hz, NHCH₂), 4.08 (2H, t, J 5.1, OCH₂), 5.06 (1H, br s, NH), 6.62 (1H, br s, OH), 6.69 (1H, d, J 7.5, ArH), 6.81 (1H, d, J 7.5, ArH), 7.26 (2H, t, J 8.0, ArH) and 7.72 (2H, d, J 8.4, ArH); δ_C(300 MHz, CDCl₃, Me₄Si) 28.4, 40.2, 67.4, 70.1, 105.2, 109.3, 113.9, 114.4, 124.9, 125.3, 126.7, 127.3, 127.9, 128.5, 151.8, 154.0 and 156.2; m/z (ESI) 304.1563 (M + H⁺ requires 304.1549)

Preparation of compound 9

A solution of compound 8 (0.43 g, 1.42 × 10⁻³ mol), 2-allyloxyethanol-p-toluene sulfonate (0.36 g, 1.42 × 10⁻³ mol) and potassium carbonate (0.22 g, 1.56 × 10⁻³ mol) in ethanol (50 ml) was heated under reflux for 12 h. After cooling to room temperature the reaction mixture was filtered and the solvent removed to give a brown oil. Chloroform (80 ml) was added and a fine precipitate observed which was subsequently removed by filtration. Removal of the solvent gave the product (0.35 g, 64%) as a brown oil; δ_H(300 MHz, CDCl₃, Me₄Si) 1.48 (9H, s, ^tBu), 3.7 (2H, q, J = 5.2 Hz, NHCH₂), 3.97 (2H, t, J 4.8, CH₂), 4.17–4.22 (4H, m, CH₂), 4.32 (2H, t, J 4.8, CH₂), 5.23–5.40 (2H, m, CHCH₂), 5.93–6.06 (1H, m, CHCH₂), 6.84 (1H, t, J 7.5, ArH), 6.88 (1H, d, J 7.5, ArH), 7.37 (1H, t, J 8.0, ArH), 7.39 (1H, t, J 8.0, ArH), 7.85 (1H, d, J 8.4, ArH) and 7.91 (1H, d, J 8.4, ArH); δ_C(300 MHz, CDCl₃, Me₄Si) 28.4, 40.2, 67.5, 67.6, 68.6, 70.1, 72.4, 105.5, 105.7, 114.2, 114.8, 117.3, 125.2, 127.3, 127.9, 128.5, 134.6 and 154.4; m/z (ESI) 410.1945 (M + H⁺ requires 410.1943).

Preparation of compound 10

Compound 9 (0.33 g, 8.52 × 10⁻³ mol) was dissolved in dichloromethane (100 ml) and TFA (5 ml) and stirred for 12 h. The resulting reaction mixture was washed with water (2 × 100 ml) and the combined aqueous layers back-extracted with dichloromethane (100 ml). The organic phases were combined, dried over magnseium sulfate and the solvent was removed to give a light brown oil. The oil was dissolved in chloroform (50 ml) and HCl_(g) was bubbled through the solution for 20 min or until no more precipitate was formed. Diethyl ether (50 ml) was added and the product (0.11 g, 47%) collected by filtration; δ_H(300 MHz, CD₃OD, Me₄Si) 3.63 (2H, m, CH₂), 3.95 (4H, m, CH₂), 4.17 (4H, br t, CH₂), 5.15–5.25 (2H, m, CH=CH₂), 5.77–5.87 (2H, m, CH=CH₂), 6.86 (2H, m, ArH), 7.79–7.93 (2H, m, ArH) and 7.33–7.45 (2H, m, ArH); m/z (ESI) 274.1574 (M⁺ − Cl⁻ requires 274.169).

Preparation of naphthalene ligand 11

A solution of compound 10 (0.27 g, 9.75 × 10⁻³ mol) and triethylamine (3 ml) in dichloromethane (50 ml) was prepared and cooled to 0 °C. Isophthaloylcarbonylchloride was added and the reaction mixture stirred for one hour, keeping the temperature below 5 °C, during which time a precipitate was observed to form. The product (0.15 g, 44%) was isolated by filtration; δ_H(300 MHz, CDCl₃, Me₄Si) 3.79–3.83 (8H, m, CH₂), 4.08 (4H, m, CH₂), 4.23–4.28 (8H, m, CH₂), 5.14–5.32 (4H, m, CH=CH₂), 5.86–5.98 (2H, m, CH=CH₂), 6.93 (2H, d, J = 7.2 Hz, ArH), 7.02 (2H, d, J 8.1, ArH), 7.27–7.44 (5H, m, ArH), 7.55 (2H, t, J 8.8, ArH), 7.71 (2H, d, J 9.3, ArH), 7.82 (2H, d, J 7.5, ArH), 8.032 (2H, d, J 8.4, ArH), 8.57 (1H, s, ArH), 9.13 (2H, br t, J 5.7, NH); m/z (ESI) 727.3250 (M + H⁺ requires 727.2995).

Preparation of isophthalamide macrocycle 13

Ligand 2 (75 mg, 0.124 mmol) and tetrabutylammonium chloride (56 mg, 0.2 mmol) were dissolved in dichloromethane (50 ml) and stirred for 15 min. Grubbs' catalyst (7.5 mg) was added and the resulting solution stirred for 12 h. The resulting reaction mixture was purified by preparative TLC (SiO₂) using dichloromethane–methanol (93 : 7) as eluent to give the product (21 mg, 30%) as a white powder (Found: C, 65.3; H, 6.3; N, 4.5. Calc. for C₃₂H₃₆N₂O₈·CH₃OH: C, 65.1; H, 6.6; N, 4.6%); δ_H(300 MHz, CDCl₃, Me₄Si) 3.76 (4H, m, OCH₂CH₂O), 3.85 (4H, m, NHCH₂), 4.08 (12H, m, CH₂), 5.84 (2H, s, CH=CH), 6.66 (2H, br s, NH), 6.80 (8H, m, ArH hydroquinone), 7.55 (1H, t, J = 7.6 Hz, Ar-5-H) and 7.99 (3H, m, ArH); δ_C(300 MHz, CDCl₃, Me₄Si) 40.0, 67.4, 68.4, 68.7, 71.1, 104.8, 115.6, 116.1, 129.5, 131.0, 134.9, 135.3, 152.9, 153.6 and 167.0; m/z (ESI) 577.69 (C₃₂H₃₆N₂O₈ + H⁺ requires 577.65).

Preparation of 5-nitroisophthalamide macrocycle 14

Method as for 13 using ligand 3 (100 mg, 1.5 × 10⁻⁴ mol), tetrabutylammonium chloride (42.7 mg, 1.5 × 10⁻⁴ mol) and Grubbs' catalyst (10 mg). Purification by preparative TLC using ethyl acetate as eluent furnished the product (52 mg, 54%) as a pale yellow powder (Found: C, 61.1; H, 6.1; N, 6.5. Calc. for C₃₂H₃₅N₃O₁₀: C, 61.8; H, 5.7; N, 6.8%); δ_H(300 MHz, CDCl₃, Me₄Si) 3.76 (4H, t, J = 4.2 Hz, CH₂), 3.86 (4H, m, NHCH₂), 4.04 (12H, m, CH₂), 5.84 (2H, t, J 2.9, CHCH), 6.73 (8H, m, ArH), 6.91 (2H, br s, NH), 8.35 (1H, s, ArH p-NO₂) and 8.78 (2H, s, ArH o-NO₂); δ_C(300 MHz, CDCl₃, Me₄Si) 40.2, 68.7, 67.1, 68.4, 71.0, 115.5–115.8 (four peaks), 125.4, 129.3, 136.3, 153.0 and 153.4; m/z (ESI) 622.2300 (M + H⁺ requires 622.2400).

Preparation of nitro-rotaxane chloride 16a

Ligand 3 (90 mg, 1.39 × 10⁻⁴ mol) and pyridinium chloride thread 12a (100 mg, 9.29 × 10⁻⁴mol) were dissolved in dichloromethane (50 ml) and stirred for 20 min. Grubbs' catalyst was added (18 mg, 10% by weight) and the reaction mixture stirred overnight. The solvent was removed and the crude reaction mixture seperated by preparative TLC (SiO₂) using dichloromethane–methanol (93 : 7) as eluent. The product (90 mg, 57%) was isolated as a yellow powder (Found: C, 75.0; H, 6.8; N, 4.8. Calc. for C₁₀₆H₁₁₃ClN₆O₁₂: C, 75.0; H, 6.7; N, 4.95%); δ_H(300 MHz, CDCl₃, Me₄Si) 1.31 (36H, s, ^tBu), 3.77 (12H, m, NHCH₂CH₂OArOCH₂), 4.11 (8H, m, CH₂OCH₂), 4.45 (3H, s, N⁺CH₃), 6.01 (2H, br s, CHCH), 6.18 (4H, d, J = 9.0 Hz, ArH), 6.43 (4H, d, J 9.0, ArH), 7.02 (8H, m, ArH), 7.19 (2H, m, ArH), 7.23 (12H, m, ArH), 7.81 (4H, d, J 9.0, ArH), 8.70 (2H, br s, NH mac), 8.90 (2H, s, ArH o-NO₂), 9.10 (2H, s, ArH o-N⁺), 9.34 (1H, s, ArH p-NO₂), 9.78 (1H, br s, ArH p-N⁺) and 10.23 (2H, br s, NH thread); m/z (ESI) 1662.85 (M⁺ − Cl⁻ requires 1161.8416).

Preparation of iodo-rotaxane chloride 17a

Method as for rotaxane 16a using ligand 4 (25 mg, 1.41 × 10⁻⁵ mol), pyridinium chloride thread 12a (69 mg, 6.39 × 10⁻⁵mol) and Grubbs' catalyst (7 mg) to furnish the product (43%) as a yellow powder; δ_H(300 MHz, CDCl₃, Me₄Si) 1.31 (36H, s, ^tBu), 3.74–3.82 (12H, m, CH₂), 4.06–4.11 (8H, m, CH₂), 4.37 (3H, br s, N⁺CH₃), 6.02 (2H, br s, CH=CH), 6.17 (4H, d, J = 8.7 Hz, ArH), 6.42 (4H, d, J 8.4, ArH), 7.07 (8H, d, J 7.8, ArH stopper), 7.16 (8H, d, J 7.8, ArH stopper), 7.21–7.26 (14H, m, ArH stopper), 7.81 (4H, d, J 7.5, NHArH), 8.43 (2H, ArH o-N⁺), 8.50 (2H, br s, ArH o-CI), 8.92 (1H, br s, ArH p-CI), 9.14 (2H, br s, NH mac), 9.71 (1H, br s, ArH p-N⁺) and 10.26 (2H, br s, NH thread); m/z (ESI) 1742.7482 (M⁺ − Cl⁻ requires 1742.7532).

Preparation of nitro-rotaxane hexafluorophosphate 16b

The nitro-rotaxane chloride (40 mg, 2.35 × 10⁻⁵ mol) was dissolved in dichloromethane and stirred with silver hexafluorophosphate (30 mg, 1.18 × 10⁻⁴mol) for 12 h in the absence of light. The resulting solution was filtered through Celite and the solvent removed to give the pure product (85%) as a yellow solid (Found: C, 70.3; H, 6.5; N, 4.8. Calc. for C₁₀₆H₁₁₃F₆N₆O₁₂P: C, 70.4; H, 6.3; N, 4.7%); δ_H(300 MHz, CDCl₃, Me₄Si) 1.31 (36H, s, ^tBu), 3.76–3.81 (12H, m, CH₂), 4.05–4.10 (8H, m, CH₂), 4.31 (3H, br s, N⁺CH₃), 6.01 (2H, br s, CH=CH), 6.19 (4H, d, J = 8.7 Hz, ArH), 6.47 (4H, d, J 8.7, ArH), 7.05–7.21 (14H, m, ArH), 7.78 (4H, d, J 7.8, NHArH), 8.57 (2H, br s, ArH o-N⁺), 8.96 (2H, m, ArH o-CI, p-CI), 9.04 (2H, br s, NH mac), 9.26 (1H, br s, ArH p-N⁺) and 10.19 (2H, br s, NH thread).

Preparation of iodo-rotaxane hexafluorophosphate 17b

Method as for 16b using the iodo-rotaxane chloride 17a (25 mg, 1.41 × 10⁻⁵ mol) and silver hexafluorophosphate (14 mg, 5.62 × 10⁻⁵mol) to give the product (18 mg, 100%) as a yellow powder (Found: C, 67.4; H, 6.2; N, 3.7. Calc. for C₁₀₆H₁₁₃F₆IN₅O₁₀P: C, 67.4; H, 6.0; N, 3.7%); δ_H(300 MHz, CDCl₃, Me₄Si) 1.28 (36H, ^tBu), 3.73 (8H, m, CH₂), 3.80 (4H, m, CH₂), 4.01 (8H, m, CH₂), 4.24 (3H, s, N⁺CH₃), 5.94 (2H, CH=CH), 6.23 (4H, d, J = 8.0 Hz, ArH), 6.45 (4H, d, J 8.5, ArH), 7.10 (8H, d, J 8.0, ArH), 7.21 (14H, m, ArH), 7.72 (4H, br s, ArHNH), 8.48 (2H, s, ArH o-N⁺), 8.71 (1H, br s, ArH p-CI), 8.98 (2H, br s, NH mac), 9.30 (1H, br s, ArH p-N⁺) and 10.05 (2H, br s, NH thread).

Preparation of naphthalene-rotaxane chloride 18

Method as for 16a using naphthalene ligand 11 (120 mg, 1.70 × 10⁻⁴ mol), pyridinium chloride thread 12a (120 mg, 1.12 × 10⁻⁴mol) and Grubbs' catalyst to furnish the product (30 mg, 15%) as a yellow solid (Found: C, 76.7; H, 6.7; N, 3.7. Calc. for C₁₁₄H₁₁₈ClN₅O₁₀: C, 78.1; H, 6.8; N, 4.0%); δ_H(300 MHz, acetone-d₆, Me₄Si) 1.37 (36H, s, ^tBu), 3.67–3.71 (4H, m, NHCH₂), 3.94–3.96 (4H, m, CH₂), 4.06–4.07 (4H, m, CH₂), 4.11 (4H, t, J = 4.5 Hz, CH₂), 4.24 (4H, m, CH₂CH), 4.66 (3H, s, N⁺CH₃), 6.24 (2H, br s, CHCH), 6.28 (2H, d, J 7.8), ArH_t), 6.40 (2H, d, J 7.5, ArH_q) 6.64 (2H, t, J 8.0, ArH_r), 6.84 (2H, t, J 8.3, ArH_u), 7.10 (2H, d, J 9.0, ArH_ν), 7.05–7.42 (31H, m, ArH_{e,f,g,h,i,j,k}), 7.54 (2H, d, J 8.4, ArH_s), 7.90 (4H, d, J 8.7, ArH_d), 8.05 (2H, d, J 7.8, ArH_l), 8.88 (2H, br s, NH_n), 8.95 (3H, ArH_a,m), 9.24 (1H, br s, ArH_b) and 9.70 (2H, br s, NH_c); m/z (ESI) 1716.8728 (M⁺ − Cl⁻ requires 1716.8878).
