Jelena
Bogdanovic
*a,
Inge M.
Wouters
a,
Ingrid
Sander
b,
Eva
Zahradnik
b,
Joanne
Harris-Roberts (nee Elms)
c,
Maria-José
Rodrigo
d,
Susana
Gómez-Ollés
d,
Dick J. J.
Heederik
a and
Gert
Doekes
a
aInstitute for Risk Assessment Sciences, Division Environmental Epidemiology, Utrecht University, PO Box 80178, 3508 TD, The Netherlands. E-mail: j.bogdanovic@iras.uu.nl; Fax: +31 30 253 9499; Tel: +31 30 253 1468
bBerufsgenossenschaftliches Forschungsinstitut für Arbeitsmedizin, Ruhr-Universität, Bochum, Germany
cHealth and Safety Laboratory, Buxton, United Kingdom SK17 9JN
dUniversity Hospital Vall D’Hebron, Barcelona, Spain
First published on 31st August 2006
Well-validated methods for measuring airborne occupational allergens are essential for effective control and reduction of allergen exposures. For wheat flour allergens, specific immunoassays are available, but there is a need for optimisation and standardization of sample processing procedures. Wheat flour allergen elution and storage were studied using airborne dust samples collected in bakeries with a new parallel sampler. Forty-eight series of 9 parallel filters were subjected to extraction procedures varying in elution medium, shaking method, extraction vial, and centrifugation speed. Wheat allergens were measured with enzyme immunoassays, and the effect of various procedures evaluated by mixed regression analyses. The stability of the eluted allergens was assessed after storage for 20 days and 4 months at −20 °C, in the presence or absence of casein in the medium. Only the type of elution medium had significant effects on allergen recovery: addition of Tween-20 resulted in 3- to 100-fold increased levels, an effect that was most pronounced at low concentrations. Allergen levels in extracts were stable for at least 4 months at −20 °C, irrespective of the presence of casein in the medium. Addition of Tween-20 to the elution medium is essential for optimal extraction of wheat allergen. The recommended procedure further includes the use of conventional polystyrene tubes, simple shaking methods, and centrifugation after extraction. Wheat dust extracts in PBS-Tween can be stored frozen for at least 4 months, and addition of a stabilising protein is not required.
As part of the European six-laboratory project MOCALEX (Measurement of Occupational Allergen Exposure), we investigated effects of differences in extraction protocols and immunoassay techniques11 on estimates of airborne wheat allergen levels. This paper describes the comparison of extraction methods using more than 400 filters with airborne flour dust sampled in bakeries and flour mills in four European countries. The following extraction parameters were investigated: elution medium, shaking method, type of extraction vial and centrifugation speed at which extracted proteins are separated from non-dissolved material. Furthermore, stability of wheat allergen after storage with and without a stabilising protein (casein) was assessed.
Airborne dust samples were collected at 8 locations—bakeries (traditional and industrial) and/or flour mills—in The Netherlands, Germany, Spain and United Kingdom (2 per country). The parallel sampler was situated in the bag-filling area of a flour mill or dough-making area of a bakery, near a known or suspected source of allergen exposure (Fig. 1). Sampling time varied from 30 min to 6 hours to obtain filters with a range of dust and allergen loads. The sampling heads were equipped with Teflon (PTFE) filters (Milipore, Falp2500), which had been coded and pre-weighed on an analytical balance at IRAS (Institute for Risk Assessment Sciences, Utrecht, The Netherlands) before distribution to the participating institutes. After sampling the filters were returned to IRAS for post-weighing and extraction. During transport and storage before and after weighing, the filters were kept dry in closed cassettes at ambient temperature.
![]() | ||
Fig. 1 Experimental setup of the parallel sampling unit (indicated by arrow) near mixing bowls in an industrial bakery. |
Elution medium—2.5 ml PBS (phosphate-buffered saline, pH 7.4), PBS with 0.05% (v/v) Tween-20 (Merck, Darmstadt, Germany), or PBS with 0.5% Tween-20;
Shaking method—incubation for 60 min in an end-over-end rotator, on a high-frequency shaking platform of a laboratory shaker (Gerhardt LS-20), or manual intermittent vortexing (3 × 5 seconds vortexing at 0, 30 and 60 minutes);
Tube—Minisorp™ (5 ml; 12 × 75 mm, Nunc, Uden, The Netherlands), characterized by polyethylene surfaces with low affinity for proteins, conventional polystyrene tube (5 ml; 12 × 75 mm, Greiner BV, Alphen aan den Rijn, The Netherlands), or a commonly used soda-lime glass tube (5 ml; 12 × 75 mm, Dispolab, Asten, The Netherlands);
Centrifugation—15 minutes at either 3000 g, 1000 g, or no centrifugation at all.
Duration of extraction was set at 60 min, as preliminary experiments had shown that longer agitation of PTFE filters does not improve wheat allergen recovery, and similar findings have been reported for other occupational allergens.7 All extractions were done at ambient temperature, i.e., between 18 and 25 °C, which in 60 minutes is not likely to permit bacterial or fungal growth in the elution medium, especially since dust samples had been stored dry, and in all extractions freshly prepared medium was used.
After centrifugation, 2 ml of fluid was harvested from each sample, divided into small aliquots and stored at −20 °C until analyses.
The half-random assignment was chosen to optimise the use of available filters. The 9 parallel filters from each run were extracted in 9 different ways, such that on each day two extraction parameters were varied, and the other two were kept fixed. When not varied, extraction medium was PBS with 0.05% (v/v) Tween-20, shaking method was incubation in an end-over-end-rotator, extraction tube was a conventional polystyrene tube, and centrifugation was performed at 3000 g. For example, on one day the elution medium and shaking method were varied (each with three options), and centrifugation speed and tube choice were kept fixed (3000 g and a polystyrene tube); on another day centrifugation speed and elution medium varied, while type of tube (polystyrene) and shaking method (end-over-end rotator) were fixed, etc. Thus, for each extraction parameter, 288 samples were extracted at the default setting, and 72 samples at the two other settings. In this way, all two-way but no higher interactions—which a priori seemed to be rather unlikely—between elution parameters could be assessed. The alternative, a completely random design, would have a high risk of uneven distribution (by chance) of filters over extraction parameter combinations and therefore a lower statistical power.
All two-way interactions between parameters (medium–shaking, shaking–tube, tube–centrifugation speed, etc.) were also investigated, but none appeared to contribute significantly to the variance in measured wheat allergen concentrations. Country of sampling was included as a fixed effect to account for possible confounding. Adjustments for dust levels and position of the PAS-6 sampling head within the parallel sampler did not affect the effect estimates, and were not included in the final analysis.
Extracts from most of the airborne dust samples (n = 432) showed detectable wheat allergen levels in each of the three EIAs. Approximately 86% of all samples were positive and 5% negative in all three assays. The highest number of samples > LOD was found with the rabbit IgG sandwich EIA (94.4%), while the human and the rabbit inhibition EIAs had about 87% of the tested extracts positive. Results of the assays correlated well (r > 0.95) and showed good agreement in absolute values.11
(a) | ||||||
---|---|---|---|---|---|---|
Human IgG4 inhibition EIA | Rabbit IgG inhibition EIA | Rabbit polyclonal sandwich EIA | ||||
Effect | Factor | CI | Factor | CI | Factor | CI |
PBS | 0.12a | (0.10–0.14) | 0.16a | (0.14–0.18) | 0.01a | (0.01–0.01) |
PBS + 0.5% Tween | 0.86c | (0.74–1.01) | 1.01 | (0.89–1.15) | 0.95 | (0.67–1.36) |
PBS + 0.05% Tween* | 1 | 1 | 1 | |||
Laboratory shaker | 1.06 | (0.91–1.24) | 0.99 | (0.88–1.12) | 1.03 | (0.72–1.48) |
Intermittent vortexing | 1.10 | (0.96–1.28) | 1.04 | (0.92–1.18) | 1.04 | (0.73–1.50) |
End-over-end rotator* | 1 | 1 | (0.88–1.12) | 1 | ||
Glass | 0.99 | (0.85–1.15) | 0.86b | (0.76–0.97) | 0.94 | (0.65–1.34) |
Minisorp | 1.08 | (0.93–1.26) | 1.02 | (0.90–1.16) | 1.00 | (0.69–1.43) |
Polystyrene* | 1 | 1 | 1 | |||
0 g | 1.00 | (0.86–1.16) | 1.01 | (0.89–1.14) | 1.08 | (0.75–1.55) |
1000 g | 1.05 | (0.91–1.23) | 1.05 | (0.93–1.19) | 1.06 | (0.74–1.51) |
3000 g* | 1 | 1 | 1 |
(b) | ||||||
---|---|---|---|---|---|---|
Human IgG4 inhibition EIA | Rabbit IgG inhibition EIA | Rabbit polyclonal sandwich EIA | ||||
Effect | Factor | CI | Factor | CI | Factor | CI |
a Significantly different from the referent parameter, p < 0.0001. b Significantly different from the referent parameter, 0.001 < p < 0.05. c On the borderline of statistical significance, 0.05 < p < 0.1. | ||||||
PBS | 0.29a | (0.24–0.35) | 0.31a | (0.27–0.36) | 0.28a | (0.24–0.32) |
PBS + 0.5% Tween | 0.83c | (0.69–1.02) | 1.03 | (0.89–1.18) | 0.90 | (0.78–1.03) |
PBS + 0.05% Tween* | 1 | 1 | 1 | |||
Laboratory shaker | 1.07 | (0.93–1.22) | 1.02 | (0.92–1.12) | 0.99 | (0.90–1.09) |
Intermittent vortexing | 1.07 | (0.94–1.23) | 1.01 | (0.91–1.11) | 0.95 | (0.86–1.04) |
End-over-end rotator* | 1 | 1 | 1 | |||
Glass | 0.98 | (0.86–1.11) | 0.85b | (0.77–0.93) | 0.91c | (0.83–1.00) |
Minisorp | 1.06 | (0.93–1.20) | 1.04 | (0.94–1.14) | 1.02 | (0.93–1.12) |
Polystyrene* | 1 | 1 | 1 | |||
0 g | 1.00 | (0.87–1.15) | 1.04 | (0.94–1.15) | 1.07 | (0.97–1.18) |
1000 g | 1.04 | (0.91–1.19) | 1.05 | (0.96–1.16) | 1.03 | (0.94–1.14) |
3000 g* | 1 | 1 | 1 |
The effects of other extraction parameters—shaking method, type of tube and centrifugation speed—were nearly all insignificant, with the effect on allergen yield not exceeding 10% (Fig. 2). Only when measured with the rabbit IgG inhibition EIA, the use of glass tubes resulted in 14% (model 1)–15% (model 2) lower allergen yields compared to the use of polystyrene tube (p < 0.05). This effect was not or hardly visible in other two assays (Table 1a and b).
![]() | ||
Fig. 2 Effect of Tween-20 in elution medium (0.05% (v/v)) on wheat allergen yields, with all samples (A) included, or only with samples with levels > LOD (B), as measured by the human IgG4 inhibition EIA, rabbit IgG inhibition EIA and rabbit sandwich EIA. The allergen levels are given as average values from the 24 parallel sampling runs where filters were eluted with varying media. Three filters of each run were eluted in PBS, and three in PBS + 0.05% Tween-20. Line in the figure represents the line of unity. |
![]() | ||

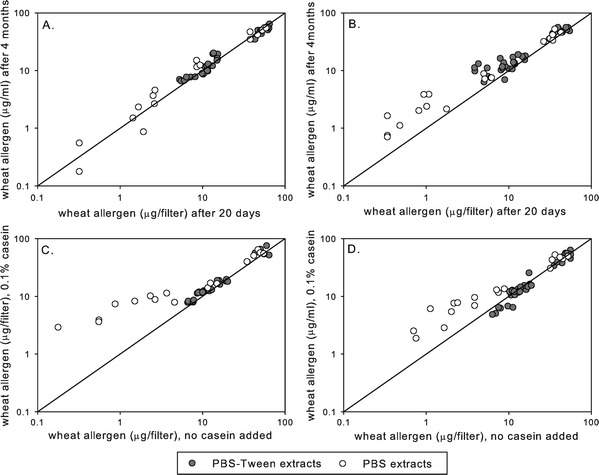

Fig. 3 Wheat allergen yields after 20 days and after 4 months of extract storage without any stabilizer, as measured by the human IgG4 inhibition EIA (A); Wheat allergen yields after 20 days and after 4 months of extract storage without any stabilizer, as measured by the rabbit IgG inhibition EIA (B); Effects of casein on wheat allergen yields after 4 months of extract storage, as measured by the human IgG4 inhibition EIA (C); Effects of casein on wheat allergen yields after 4 months of extract storage, as measured by the rabbit IgG inhibition EIA (D). |
A parallel sampling design was used with series of 10 identical dust samples, which would enable evaluation of different extraction options. Of the investigated parameters, the elution medium (PBS with or without 0.05% or 0.5% Tween-20) appeared to be the most important: the presence of Tween-20 resulted in a three- to 100-fold increase in wheat allergen recovery. The effect was strongly concentration-dependent and much larger at lower allergen levels. The effect estimates depended slightly on the type of wheat assay and the statistical model, but were not essentially different. Similar effects of Tween-20 with significantly improved recovery of eluted allergens or other agents have been found for rodent urinary allergens,7,9 outdoor allergens24 and endotoxins,25 but not for airborne potato antigens.26 Reason for these discrepancies may be that Tween-20 facilitates the release of partially hydrophobic agents, like LPS (i.e., endotoxins) and possibly some of the wheat flour proteins, while the effect for already highly water-soluble proteins from potato tubers26,27 is much less pronounced. Another reason may be the difference in the type of filters used in these studies. In some of the studies glass fiber filters were used, and in the others, including our study, PTFE filters. The structure of glass fiber filter may allow deeper penetration of allergens into filter pores, and in these cases Tween-20 might improve allergen release. The hydrophobic PTFE filters are, on the other hand, likely to retain protein molecules on the filter surface.7 Thus, the effect of Tween-20 in this study may be primarily due to an increased wettability of Teflon filters by detergent-containing medium, and more effective release of proteins from the non-dissolvable wheat flour matrix. Tween-20 may also increase recoveries by preventing protein losses due to non-specific binding of proteins to vial walls or pipette tips.
Higher concentrations of Tween in elution medium did not lead to increased allergen recovery, as found by Jensen and coworkers,24 who showed a dose-dependent effect of Tween-20 on the elution of Timothy grass pollen allergens from glass fibre filters. In fact, we found a tendency for higher wheat allergen yields with 0.05% (v/v) than with 0.5% Tween-20. Different types of filters used in these two studies might offer an explanation—higher Tween-20 concentrations may facilitate elution from inner structures of glass fibre filters, while not further enhancing elution of proteins from the wheat flour matrix and/or a Teflon filter surface.
The shaking method, type of tube and centrifugation speed had no or only minor effects on allergen yields. Use of glass tubes resulted in somewhat lower allergen yields, compared to conventional polystyrene tubes, especially when measured in the rabbit IgG inhibition EIA (up to 15% lower yields). Since working with glass always implicates enhanced risk of injury, and yields were not higher with the more expensive Minisorp™ tube with low protein-binding affinity, a conventional polystyrene tube may be recommended for routine use.
Inclusion of a centrifugation step after extraction had, surprisingly, no significant effect on allergen yields. In fact, we expected interference in the EIA by undissolved flour matrix particles in non-centrifuged extracts. Such interference may be more likely with heavily loaded filters (e.g., >10 mg dust), and would cause imprecision and poor reproducibility of EIA results. Since dust levels in that range were not found in our study, but are not exceptional in routine measurements in bakeries, we recommend inclusion of centrifugation step after extraction, with a speed of 1000 g that should be sufficient to avoid problems in the EIAs.
Wheat allergen levels in extracts were stable upon storage for at least 4 months at –20 °C, and no stabilisation effect of casein was found. The effects of casein were investigated since it had been found to prevent losses of another important bakery allergen that is often measured in the same airborne dust samples—fungal α-amylase.20 Although no major interference of casein with the measured wheat allergen levels was observed, at low allergen levels it showed a tendency to increase allergen yields. This effect was not due to cross-reactivity of casein with the anti-wheat antibodies, as found in preliminary experiments (data not shown), and it was observed practically only in extracts made in PBS without Tween-20. Thus, in the absence of Tween-20, casein seems to take over its role in preventing allergen losses.
