Coordination chemistry of phosphanyl amino acids: solid state and solution structures of neutral and cationic rhodium complexes

Abstract

Copper phosphide or arsenide complexes, [Cu(EPh₂)(neo)] (E = P, As, neo = 2,9-dimethyl-1,10-phenanthroline; trivial name: neocuprine) react selectively with the N-protected brominated serine derivatives, 2-(S)-(alkoxycarbonylamino)-3-bromomethylpropionates 1a–c (^ROCOSerBr, a: R = PhCH₂, b: tBu, c: Me) to give the corresponding phosphanylated or arsanylated amino acids, ^ROCOSerPhos (3a–c: Phos = PPh₂) and ^ZSerArs 7 (Ars = AsPh₂, Z = PhCH₂OCO). The dipeptide ^ZAlaSerPhos 3d was likewise prepared. The phosphanes 3a–d, and the arsane 7 reacted cleanly with [Rh₂(µ-Cl)₂(cod)₂] to give the rhodium(I) complexes [RhCl(cod)(^ZSerPhos)] 8, [RhCl(cod)(^BocSerPhos)] 9 (Boc = tBuOCO), [RhCl(cod)(^ZAlaSerPhos)] 10, and [RhCl(cod)(^ZSerArs)] 11 which were characterized by X-ray diffraction studies. A common structural feature is an intramolecular (N)H⋯Cl(Rh)-hydrogen bridge which according to NMR investigations remains intact in solution. The abstraction of chloride from the coordination sphere of Rh(I) in 8 or 10 has a profound structural impact. While in 8 and 10, the ligands bind in a monodentate fashion, via the phosphorus atom only, they serve as bidentate ligands via the phosphorus centre and the peptidic C=O group in [Rh(cod)(κ²-^ZSerPhos)]PF₆12 and [Rh(cod)(κ²-^ZAlaSerPhos)]PF₆13. This causes also the amino acid residue structures to change from α-helix type in 8 and 10 to a β-sheet type in 12 and 13. Addition of chloride to 12 and 13 fully re-establishes the structures of 8 and 10. The complexes [RhCl(cod)(^ZSerPhos)] 8 and [RhCl(cod)(^BocSerPhos)] 9 show good activities in homogeneously catalyzed hydrogenations of olefins while the dipeptide complex 10 is less active. Phosphane addition to 8 greatly diminishes the catalytic activity. The cationic complex [Rh(cod)(κ²-^ZAlaSerPhos)]PF₆ shows low activity which, however, is greatly increased by addition of one equivalent of phosphane.

---

1 Introduction

It is an attractive goal to incorporate the complexity of natural structures into ligands for transition metal complexes used in homogeneous catalysis.¹ Carbohydrates, peptides and proteins offer such structural diversity and hence are potential targets for further functionalization. In order to enhance the stability of the catalytic entities one needs to bind tightly the catalytically active late transition metal centres (i.e. Rh, Ir, Pd, Pt, etc.) and for that purpose non-natural donor centres may be introduced into the natural ligand framework. Among these, phosphanyl groups, R₂P–, are immediately evident because many phosphane complexes proved to be active catalysts (or precursors to such),² phosphanes show sufficiently high binding constants to metals,³ and phosphanyl groups itself can be sterically and electronically tuned via different substituents R. Phosphanes with carbohydrate backbones are meanwhile firmly established as rather easily accessible ligands in enantioselective catalysis.⁴ Phosphanyl-substituted peptides have been investigated in the last years mainly by Gilbertson and co-workers as ligands in homogeneously transition metal catalyzed reactions.¹ Especially, serine⁵ and proline⁶ based phosphanes proved to be suitable for this purpose and for the parallel syntheses of large ligand libraries.^1,7 The (phosphanyl)polypeptides were transformed into rhodium complexes and tested in catalytic hydrogenations. In some cases these experiments were performed with the catalyst precursors still attached to the support used for polypeptide synthesis. A further interesting development in this area is the possibility to incorporate the (phosphanyl)peptides in larger aggregates with some sort of tertiary structures.^7a This idea has been tested with some success with (phosphanyl)carbohydrates organized on the surface of micelles which led to an increase of the enantioselectivity in catalytic hydrogenations.^4c The attachment of achiral rhodium complexes to chiral carbohydrate or peptide amphiphiles is particularly interesting, but had little success so far.⁸

Some structural data for bis(phosphanyl)amino peptides and their complexes were obtained from NMR spectroscopic studies in solution and the structure of a dodecamer containing two (diphenylphosphano)serine (SerPhos) units in internal positions i and i + 4 could be determined by X-ray analyses.⁹ However, many fundamental aspects of the coordination chemistry of phosphanyl peptides remain to be investigated. In this paper we report: (i) the details of the synthesis of phosphanyl- and arsanyl-substituted amino acids using a method developed in our laboratory;¹⁰ (ii) the X-ray structure analyses of (phosphanyl)- and (arsanyl)-amino acid metal complexes, i.e. [RhCl(^RSerPhos) and [RhCl(^RSerArs)] with R = substituent at the N-terminus of the coordinated amino acid; (iii) a comparison of the solid state structures with the corresponding structures in solution (determined by NMR) and, specifically, how changes in the coordination sphere of the transition metal centre cause significant structural changes of the peptide residues. (vi) Finally, we report results concerning the performance of these complexes as precursors in catalytic hydrogenations.

2 Results and discussion

Syntheses

In contrast to Gilbertson's approach consisting in synthesizing a small phosphanyl-substituted amino acid building block which is used in subsequent coupling reactions in order to obtain larger peptides, we thought it might be an equally valuable alternative to find a selective reagent which allows the introduction of the phosphanyl group into the peptide as disclosing step of ligand synthesis. Indeed, copper phosphide complexes with heterocyclic nitrogen ligands like 2 are such reagents and allow the selective replacement of halogenide functionalities for Ph₂P groups.¹⁰ Other functional groups as carbonyl groups do not interfere (Scheme 1). Thus, the 3-bromo-2-N-carboxymethylpropionate derivatives 1a–c derived from serine react smoothly at room temperature with 2 under Br/Ph₂P exchange to give the phosphanyl amino acid copper complexes [CuBr(neo)(3a–c)] as orange–yellow substances (neo = 2,9′-dimethylphenanthroline).

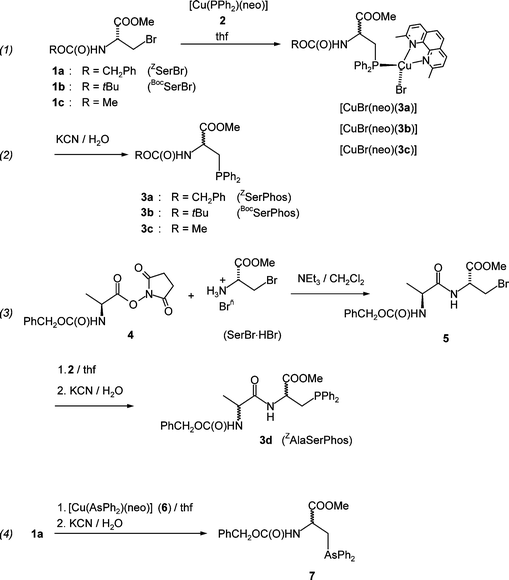

Scheme 1 Syntheses of ^ROCOSerPhos derivatives 3 [a: R = CH₂Ph (^ZSerPhos), b: R = tBu (^BocSerPhos), c: R = Me), ^ZAlaSerPhos 3d and ^ZSerArs 7.

As N-protecting groups, we used N-benzyloxy carbonyl, PhCH₂OCO = Z, N-tert-butoxycarbonyl, tBuOCO = Boc and N-methoxycarbonyl, MeOCO. The copper complexes can be isolated and [CuBr(neo)(3c)] was obtained in high yield (87%). Usually, however, the reaction mixtures were treated with KCN/H₂O in order to deliberate the free phosphanyl serine derivatives 3a–c in about 70% yields.

Starting from the Z-L-alanine hydroxysuccinimide ester 4 and (R)-2-amino-3-bromomethylpropionate hydrobromide (SerBr HBr), the dipeptide 5 was obtained in about 50% yield. Reaction with 2 gave, after work-up with aqueous KCN the desired ligand ^ZAlaSerphos 3d in good isolated yield (∼70%). In an analogous way, the arsanyl substituted serine derivative 7 (SerArs) is obtained when the copper arsenide complex [CuAsPh₂(neo)] 6 is used in the reaction with 1a. Unfortunately, the reactions proceed under racemization of the stereogenic centres which is a serious drawback of our method. While our work was in progress, Stelzer and co-workers reported a facile synthesis of SerPhos from N-Boc-3-iodo-L-alanine and Ph₂PH in DMF using K₂CO₃ as base.¹¹ However, this reaction proceeds also under racemization. Only Gilbertson and co-workers reported a short and elegant stereospecific synthesis of the P-sulfide of SerPhos using a copper/zinc reagent made from a commercially available iodo amino acid.¹²

Reaction of the phosphanes 3a,b,d or arsane 7 with [Rh₂(µ-Cl)₂₍cod)₂] in ethanol gave the complexes 8, 9, 10 and 11, respectively, in good yields (Scheme 2). All complexes were obtained in high yield as yellow to orange crystals after re-crystallization from saturated acetonitrile solutions. In the solid state, 8–11 are quite stable and can be handled on air.

Scheme 2 Syntheses of rhodium(I) complexes 8–11 with ^ZSerPhos 3a, ^BocSerPhos 3b, ^ZAlaSerPhos 3d and ^ZSerArs 7 as ligands.

Structures in the solid state

The single crystals contain the racemates of 8, 9 and 11 in each case and diastereomers of 10. One of the stereoisomers of 9, 10 and 11 is depicted in Fig. 1(A), (B) and (C). The ^ZSerphos complex 8 has a structure very similar to the one of the arsenic analogue 11 and is therefore not especially shown in Fig. 1. Selected bond angles and distances of all complexes are compiled in Table 1 and details on the data collection and refinement are given in Table 6 in the Experimental section.

Table 1 Selected bond lengths (Å) and angles (°) for 8, 9, 10 and 11. a = C_β–C_α, b = C_α–N, c = NH⋯Cl, d = Rh–Cl, e = Rh–P(As), f = P(As)–C_β

	a	b	c/N⋯Cl^b	d	e	f
8 ^a	1.52(1)	1.45(1)	2.59/3.42(1)	2.365(3)	2.295(3)	1.838(8)
9	1.536(6)	1.430(6)	2.183/3.276(6)	2.386(1)	2.285(2)	1.848(4)
10	1.529(6)	1.440(5)	2.504/3.299(5)	2.365(1)	2.323(1)	1.845(4)
11	1.530(8)	1.444(8)	2.48/3.269(7)	2.378(1)	2.426(1)	1.965(6)

---

	Cβ–Cα–N	P–Cβ–Cα	Rh–P(As)–Cβ	Cl–Rh–P(As)
a The average of the two independent molecules is given which have very similar structures. b The bridging hydrogen bonds c (NH⋯Cl) were calculated from the experimentally determined N⋯Cl distances assuming a NH distance of 0.9 Å.
8 ^a	112.0(7)	117.4(6)	118.1(3)	88.6(8)
9	110.5(4)	115.7(3)	110.2 (1)	86.70(5)
10	111.7(3)	117.7(3)	118.7(1)	90.13(4)
11	106.8(5)	116.5(4)	120.3(2)	88.60(4)

---

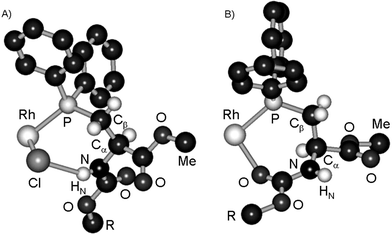

Fig. 1 Structure plots of R-[RhCl(cod)(^BocSerPhos)] R-9 (A), R,S-[RhCl(cod)(^ZAlaSerPhos)] R,S-10 (B) and R-[RhCl(cod)(^ZSerArs)] R-11 (C). Thermal ellipsoids are shown at 30% probability. Selected bond lengths (Å) and angles (°) are listed in Table 1.

For the ^BocSerphos complex 9 (Fig. 1(A)) and the ^ZSerArs complex 11 (Fig. 1(C)), respectively, the enantiomer with the natural R-configuration at the α-serine carbon atom is shown. For the dipeptide complex 10 (Fig. 1(B)), the stereoisomer with the non-natural S-configuration at the α-carbon of the serine residue is presented. In this compound, the S-stereogenic centre in the alanine residue, Ala, appears to be disordered as a consequence of crystal packing.

The most remarkable and common feature in the structures of 8–11 is the N–H⋯Cl bridge which leads to the formation of a distorted seven-membered ring including the Rh, P, C_β, C_α, N, H and Cl centres. The distance c between the N-hydrogen atom and the rhodium-coordinated chlorine atom varies between 2.18 Å (9) and 2.62 Å (8) and the N–H⋯Cl angle varies by about 7° from 153° (8) to 160° (9). The N–H⋯Cl bridges lead to an arrangement of the N-terminal protecting groups, Z or Boc, above one side of the square planar coordination sphere of the rhodium centres. The deviation from planarity given by the intersection φ of the plane running through Rh and the midpoints of the coordinated C=C_cod bonds with the plane running through Rh, P and Cl is small for all complexes: 8: φ = 13°, 9, 11 = 6°. All other structural data show values in the expected ranges and do not differ much within series 8–11. The phenyl groups bonded to phosphorus show the typical edge-to-face arrangements with interplane angles of 50–70°.^4g

In Table 2, the torsion angles Θ_a¹, Θ_a² and Θ_b (and Θ_h, Θ_j for 10) are listed which we will use in the following to discuss the coordination spheres created by the phosphanyl substituted amino acids. The corresponding values of the antipodes are simply obtained by multiplying the given data by minus one. As examples, Newman projections along the bonds C_βC_α = a and C_αN = b, are presented for the R-configured SerPhos unit in 9 in Fig. 2(A). For the dipeptide complex 10, projections for the R,S- and S,S-configured ^ZAlaSerPhos moieties are presented and the torsion angles along a and b and h and j are given. The conformations for the ^ZSerPhos and ^ZSerArs complexes 8 and 11, respectively, resemble closely the one presented for R,S-10.

Table 2 Torsion angles Θ_a¹, Θ_a² and Θ_b for 8–11 (and Θ_h, Θ_j for 10) in the solid sate: ϕ^Serphos = Θ_b + 60 (R-isomer) [Θ_b − 60 (S-isomer)]; ϕ^Ala = Θ_j + 60 (S-isomer) [Θ_j − 60 (R-isomer)]; ψ^Ala = Θ_h − 60 (S-isomer) [Θ_h + 60 (R-isomer)]

	Θ a ^1	Θ a ^2	Θ b	ϕ ^Serphos	Θ h	ψ ^Ala	Θ j	ϕ ^Ala
a Average of two independent molecules per unit cell.
R-8^a	−52.2	−168.0	−139.3	−79	—	—	—
R-9	−81.3	163.0	−120	−60	—	—	—
R,S-10	−55.7	−171.2	−130.5	−70	31.1	−28.9	−127.7	−67.7
R-11	−50.6	−166.6	−159.9	−100	—	—	—
S,S-10	55.7	171.2	130.5	70	110.3	50.3	−13.7	46.3

---

Fig. 2 (A) Newman projections along bonds a and b in the Serphos unit in R-[RhCl(cod)(^BocSerPhos)] (R-9). (B) and (C): Newman projections along bonds a, b, c and d in the AlaSerphos unit in the diastereomers R,S-[RhCl(cod)(^ZAlaSerPhos)] (R,S-10) and S,S-[RhCl(cod)(^ZAlaSerPhos)] (S,S-10). The torsion angles Θ_a¹, Θ_a², Θ_b, Θ_h and Θ_j. are indicated and the corresponding data are listed in Table 2. (D) Schematic presentation of the seven-membered chelate ring in 8–11.

With the exception of complex 9, similar torsion angles Θ_a¹ and Θ_a² are observed which define the position of the Ph₂PCH₂-side chain vs. the stereogenic centre C_α of the phosphanyl substituted serine residue. The angle Θ_b defining the orientation of the planar amide NHCO unit vs. C_α varies over a broader range from Θ_b(min.) −120.0 in 9 to Θ_b(max) −159.9 in 11 and indicates conformational flexibility. Commonly, the mutual orientation of the peptide planes is defined by the dihedral angles ϕ along the N–C_α bond b and ψ along the C_α–C=O bond. With the relations for α-helical conformations, ϕ^Serphos = Θ_b + 60 and ϕ^Ala = Θ_j + 60, the angles ϕ were calculated and listed in Table 2 for the R-configured isomers. For compound 10, the angle ψ^Ala = Θ_h − 60 is given for the R,S-diastereomer (entry 3) and S,S-isomer (entry 5).

In the IR spectra of 8–11, a shift of the N–H stretching vibration to smaller wavenumbers by more than 100 cm⁻¹ indicates the presence of the N–H⋯Cl bridge. Two characteristic amide modes I, II are observed in 8–11 [ν^I(CONH) ≈ 1700 cm⁻¹ and ν^II(CONH) ≈ 1500 cm⁻¹] and these are not significantly different from the ones seen in the free ligands (see Table 4 below).

Structures in solution

Coupling constants are frequently used to determine the mutual orientation given by ϕ and ψ of the individual peptide units in polypeptides, –CO–NH–C_αH_α(C_βH₂R)–C′O–N′H–, where H_α represents the hydrogen linked to the chiral C_α carbon of the amino acid residue, H_N indicates the amide proton and C_β is the first carbon centre of the side chain (see also Fig. 1).¹³ Additionally, NOE experiments can be performed to obtain more structural information. We used the ³J(H_α,H_N), ³J(H_α,H_β1) and ³J(H_α,H_β2) coupling constants in combination with the Karplus correlation in order to determine Θ_a¹, Θ_a² and Θ_b in solution. The resulting data for the racemates of the uncomplexed phosphanyl amino acid 3c, the dipeptide 3d and the complexes 8–10 are given in Table 3. The resonances for the R,S- and S,S-diastereomers of 3d could be partly distinguished in the NMR spectra of the complexes 10 (but not for the free ligand) and these are denominated as 10_{diastereomer_1} and 10_{diastereomer_2}. A more precise assignment of the stereochemistry cannot be made.

Table 3 Coupling constants ³J(H_αH_β1) and ³J(H_αH_N) and torsion angles Θ_a¹, Θ_a² and Θ_b for 3c,d, 8, 9 and both diastereomers of 10 in solution (3c,d: C₆D₆; 8: CD₃CN, 9: CDCl₃, 10: CD₂Cl₂); ϕ^Serphos = Θ_b + 60 (R-isomer) [Θ_b − 60 (S-isomer)]

	^3 J(Hα,Hβ1)/Hz	Θ a ^1/°	^3 J(Hα,Hβ2)/Hz	Θ a ^2/°	^3 J(Hα,HN)/Hz	Θ b/°	ϕ ^Serphos/°
3c					7.7	±150	±90
3d					7.3	±140	±80
8	3.0	±55	12.5	±170	7.5	±155	±95
9	3.5	±70	12.5	±170	7.4	±145	±85
10 diasteromer_1	2.8	±60	13.0	±170	6.8	±140	±80
10 diasteromer_2	3.0	±55	12.0	±160	6.8	±140	±80

---

Unfortunately, all ¹H NMR spectra of solutions containing the mixture of the diastereomers of compound 10 could not be sufficiently resolved and hence we were unable to determine the torsion angles for the alanine residue in 3d and 10.

A comparison of the data listed in Tables 2 and 3, respectively, shows that the structures of the central seven-membered rhodium chelates are very similar in the solid state and in solution. The values for the torsion angles ϕ^Serphos (|60|°–|100|° in the solid state, |80|°–|95|° in solution) compare reasonably well with the ones determined for dodecapeptides containing two SerPhos units in i and i + 4 positions (−73° in the solid, −60 to −80° in solution).⁹ These values fall within the range of −60 to −90° typically found in helical conformations of peptides.¹⁴ Importantly, we assume that the N–H⋯Cl bridge is conserved in solution as is clearly indicated by the significant high-frequency shifts (>1 ppm) of the H_N resonances of the SerPhos units in complexes 8 [δ(H_N) 7.18], 9 [δ(H_N) 6.82], 10 [δ(H_N) 8.46/8.16] and 11 [δ(H_N) 6.98] when compared to the corresponding free ligands 3a [δ(H_N) 5.48], 3b, [δ(H_N) 5.77], 3d [δ(H_N) 5.8] and 7 [δ(H_N) 5.51]. Such large coordination shifts were not observed with the larger peptides where the (i, i + 4)-bis(serphos)peptide binds via the two phosphane residues to a cationic rhodium norbornadiene fragment.⁹

Chloride abstraction reactions from complexes 8 and 10

How will the cleavage of the N–H⋯Cl bridges affect the structure of the ligand? To answer that question, the metal bonded chloride was exchanged for a weakly coordinating anion and 8 and 10 were reacted with TlPF₆ in toluene. The reactions are quantitative and the products 12 and 13 were obtained as yellow powders (Scheme 3). Complex 12 can also be prepared with AgPF₆ as reagent but the dipeptide complex 10 decomposes.

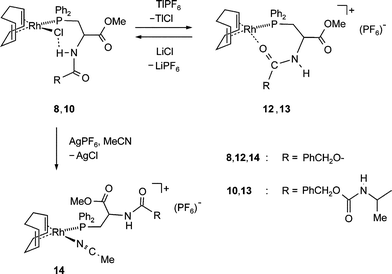

Scheme 3 Chloride abstractions from 8 or 10 with TlPF₆ to give 12 or 13, respectively. Reaction of 8 with AgPF₆ in MeCN gives 14.

That significant structural changes occur when the chlorine atom is removed from the coordination sphere of the rhodium atom is indicated by the change of some characteristic NMR and IR data of compounds 12–14 (see Table 4).

Table 4 Selected IR and ¹³C data of the free phosphanes 3a,d, the rhodium chloride complexes 8, 10 and the cationic complexes 12, 13

ν(C=O)/cm^−1	3a	3d	8	10	12	13
NH	3412	n.d.^a	3307	3250	3384	3330
COOMe	1742	n.d.^a	1741	1735	1724	1723
CONH (amide I)	1711	n.d.^a	1707	1717	1623	1613
CONH (amide II)	1502	1504	1507	1509	—	—

---

δ(^13C)^b
COOMe	171.4	≈172^c	171.9	172.7^d	171.9	169.2^d
CONH	155.1	≈172^c	155.8	171.8^d	158.5	179.3^d

---

δ(^1H)
a Broadened bands in the range 3450–3380 cm^−1, 1750–1710 cm^−1 due to overlapping absorptions which were not assigned. b Solvents: 3a,d: C6D6, 8: CD3CN, 9: CDCl3, 10: CD2Cl2, 12: CDCl3, 13: CD2Cl2. c The resonances for the COOMe and CONH groups overlap. d The average of the signals for both diastereomers is given which are very close.
H^N (SerPhos)	5.48	5.8	6.98	8.46/8.16	6.26	8.24/8.10

---

Unfortunately, none of the products gave suitable crystals for an X-ray analysis, however, reasonable structures for the coordination sphere around the rhodium centre can be proposed. Three different coordination spheres may be assumed for 12 and 13. (a) The NH group of the amide coordinates to Rh, (b) the C=O unit of the COOMe group binds to Rh, or (c) the C=O group of the carbobenzoxy or alanyl unit, respectively, is bonded. The first two coordination modes give rise to six-membered the third one to a seven-membered chelate ring. Possibility (a) is rather unlikely because NH units of amides are generally weakly coordinating, no ¹⁰³Rh¹⁵N coupling is observed and ν(NH) is not shifted to smaller and ν(C=O) not to higher wavenumbers as would have been expected. Also possibility (b) is unlikely because all spectroscopic data [ν(C=O) and δ(¹³C)] of the ester group remain unaffected by the chloride abstraction. We propose that 12 and 13 have the seven-membered ring structures as shown in Scheme 3 on the basis of the following observations: (i) both, ν(NH) and ν(C=O) are shifted to lower wavenumbers in 12 and 13 when compared to the rhodium chloride complexes 8 and 10; (ii) no amide II absorption band is observed in 12 and 13 which is characteristic for cyclic amides, (iii) the δ(¹³C) resonance of the CONH group which is supposed to be involved in the coordination is slightly shifted to higher frequencies by 3–7 ppm and (iv) importantly, the ²J(¹⁰³Rh¹³C) coupling (1.4 Hz) could be resolved for the carbon nucleus of the amide group in 12. Similar observations were made for comparable rhodium(I) complexes with seven-membered P,(C=O)-chelate rings.¹⁵

Further information about the structures of 12 could be extracted from the sufficiently resolved ³J(H_α,H_N) ³J(H_α,H_β1) and ³J(H_α,H_β2) coupling constants (8.3, 3.5 and 12.5 Hz, respectively). This results in Θ_b ≈ ±150°, Θ_a¹ ≈ ±70° and Θ_a² ≈ ±170 which define the torsion along the C_αN bond, b, and the C_βC_α bond, a, respectively. In contrast to the rhodium chloride complex 8, the methylene protons of the CH₂PPh₂ group show only one cross-peak with the phenyl protons in the NOESY spectrum. This indicates that the CH₂ group has a symmetric and hence eclipsed orientation to the phenyls. With these data, a structure model for the coordination sphere of the rhodium centre in 12 can be constructed and this is shown in Fig. 3(B). Fig. 3(A) shows the NMR structure of 8 in solution for comparison. While the conformation of the SerPhos unit in 8 has a structure resembling the one of serine residues in α-helical peptides, its conformation in 12 is closer to that one in a β-sheet. As in these, an amide proton, H^N, and a C=O group point to the outside of the molecule. This yet unexploited feature would make intermolecular donor–acceptor interactions possible. For 13, the NMR spectra are quite complex because in addition to the doubling of all signals due to the presence of two diastereomers, the fluxional behaviour of the cyclooctadiene ligand leads to line broadening and overlap of some signals. While the ³¹P NMR spectra at room temperature show two doublets [¹J(³¹P¹⁰³Rh) ≈ 152 Hz], one for each diastereomer, lowering the temperature to 200 K leads to a (reversible) splitting into four doublets. Also the ¹H NOESY spectra indicate that the alanine residue adopts at least two conformations. This is in contrast to the neutral rhodium chloride complex 10, where such phenomena were not observed. This finding indicates that the ^ZAlaSerPhos ligand 3d shows a higher flexibility in the cationic complex 13.¹⁶ Because of the almost identical characteristic bands in the IR spectra for both cationic complexes, 12 and 13, and the similar ³J(H_α,H_N) coupling constants (7.1 Hz in 13), we assume rather similar conformations of the ligands within the rhodium coordination sphere as well.

Fig. 3 Proposed structures for the [RhCl(^ZSerPhos)] fragment in 8 (A) and the [Rh(^ZSerPhos)]⁺-fragment in 12 (B) in solution based on NMR data.

Importantly, when solution of 12 and 13 are treated with lithium chloride, the structural changes caused by the chloride abstraction are reversed and the spectra of the neutral chloro complexes 8 and 10 are fully recovered (Scheme 3).

When the chloro substituent in 10 is abstracted with [Ag(MeCN)₂]PF₆ in acetonitrile, the cationic acetonitrile complex 14 is obtained as yellow powder after evaporation of the solvent. Equally, 14 results when 12 is dissolved in MeCN. That the coordinating C=O group in 12 is replaced by a MeCN in 14 is evident from the spectroscopic data: The NH stretching vibration is observed at 3400 cm⁻¹, two amide bands for the CONH group are observed at 1708 and 1503 cm⁻¹, and the δ(¹³C) resonance (156.5 ppm) equals almost the one in 3a and 8.

Catalytic hydrogenations with rhodium SerPhos complexes

The reactivity of the neutral chloro rhodium complexes 8, 9, 10 and 11 and the cationic complex 12 as catalyst precursors in homogeneously catalyzed hydrogenations was tested. For comparison, reactions with [RhCl(PPh₃)₃] and [RhCl(cod)(PPh₃)] were included in the investigation. All reactions were performed in EtOH as solvent with 0.1 mol% catalyst at room temperature under about 4.5 bar H₂ pressure. After two hours, the reaction mixtures were analyzed by gas chromatography (GC). As substrates, the olefins cyclohexene (ch), 1-hexene (1-h), acrylic acid methylester (am) and 2,3,-dimethyl-2-butene (dmb) were employed. The results are compiled in Table 5. It is generally assumed that monophosphane rhodium(I) complexes are not very reactive in catalytic hydrogenations² and by comparison of entries 1 [catalyst source: RhCl(cod)(PPh₃)] and 2 [catalyst source: [RhCl(PPh₃)₃] this is confirmed under our conditions. Interestingly, however, the monophosphane complex 8 (entry 3) shows a significant higher activity than the classical Wilkinson-catalyst [RhCl(PPh₃)₃]. As entry 4 shows, the activity is not dependent on the co-ligand in the pre-catalyst; that is the complex [RhCl(C₂H₄)₂(^ZSerPhos)] (prepared in situ) shows the same activity as 8 indicating the absence of any significant induction phase. The highest reactivity is found with complex 9 containing the Boc-protected SerPhos ligand 3b which is the only one who gives detectable amounts of 2,3-dimethylbutane as hydrogenation product of the tetrasubstituted olefin dmb. On the other hand, the dipeptide complex [RhCl(cod)(^ZAlaSerPhos)] (10) (entry 6) shows the lowest activity of the neutral phosphane complexes. The arsane complex 11 is inactive (entry 7).

Table 5 Catalytic hydrogenation of cyclohexene (ch), 1-hexene (1-h), acrylomethylate (am) and 2,3,-dimethylbutene (dmb) with various rhodium(I) complexes

			Conversion (%)
Entry	Catalyst precursor	t/h	ch	1-h	am	dmb
a After 18 h the following yields were obtained: [RhCl(PPh3)3]: 40 (ch), 90 (1-h), 100 (am), 0 (dmb); 8: 100 (ch), 100 (1-h), 100 (am), 0 (dmb). b Prepared in situ from equimolar amounts of ligand 3a and [Rh2(µ-Cl)2(C2H4)].
1	[RhCl(cod)(PPh3)]	2	4	20	0	0
2	[RhCl(PPh3)3]^a	2	25	86	100	0
3	[RhCl(cod)(^ZSerPhos)] (8)^a	2	50	100	100	0
4	[RhCl(C2H4)2(^ZSerPhos)]^b	2	55	100	100	0
5	[RhCl(cod)(^BocSerPhos)] (9)	2	92	100	100	5
6	[RhCl(cod)(^ZAlaSerPhos)] (10)	2	1	10	12.6	0
7	[RhCl(cod)(^ZSerArs)] (11)	2	0	1	0	0
8	[Rh(cod)(^ZSerPhos)](PF6) (12)	2	13.8	4.6	4.3	0
9	8 + 1 eq. PPh3	2	0.6	5.3	9.1	0
10	12 + 1 eq. PPh3	2	50	100	100	0

---

Although most often the activity of cationic rhodium(I) complexes with weakly coordinating anions (CF₃SO₃, BF₄, PF₆, etc.) is higher than with the neutral chloro complexes, this is not true for 12 (entry 8). The catalyst derived from this complex is much less active than the one obtained with 8, especially against the alkene 1-h and ester am. Remarkably, the activity of the neutral complex 8 drops dramatically when one equivalent PPh₃ is added (entry 9). On the other hand, addition of one equivalent PPh₃ to the cationic complex 12 increases the activity which becomes comparable to the one of the neutral complexes 8 and [RhCl(C₂H₄)₂(^ZSerPhos)] (entry 10).

We interpret these results as follows: (1) We assume that the seven-membered Rh–P–C–C–N–H⋯Cl ring remains intact and the solvated [RhCl(^RSerPhos)] fragment is the catalytically active species in reactions with 8, 9 and 10. Note, that the group R is orientated above the metal center in the structures of 8, 9 and 10 whereby the steric shielding increases in the order Boc < Z < ^ZAla (see Fig. 1). In the same order the activity decreases. (2) Adding PPh₃ to these complexes blocks a coordination site, further increases the steric shielding and makes olefin binding difficult. Low catalytic activity is the result. (3) When the chloro ligand in 8 is exchanged for PF₆⁻ and an ion pair like 12 is generated, the slower oxidative H₂ may be the reason for the lower catalytic activity. (4) In reactions with [Rh(cod)(^ZSerPhos)](PF₆), addition of PPh₃ likely leads to a “classical” solvated diphosphane complex fragment [Rh(PPh₃)(^RSerPhos)]⁺ in which only the phosphorus atom of the SerPhos ligand binds to Rh. This complex then shows the usual high catalytic activity for cationic rhodium bis(phosphane) complexes.²

Conclusions

In rhodium chloro complexes with phosphanyl- or arsanyl-substituted serine derivatives, SerPhos or SerArs, an intramolecular (N)H⋯Cl(Rh)-hydrogen bridge is observed in the solid state and in solution. As a result, the amino acid residue adopts a α-helix type structure. Removal of the chloro ligand from the coordination sphere and consequently cleavage of the NH–Cl bridge, leads to a structural change of the amino acid residue to a β-sheet type. This structural transformation which is triggered by a change in the coordination sphere of the transition metal is fully reversible.

In contrast to established rhodium hydrogenation catalysts, the neutral chloro [RhCl(cod)(SerPhos)] complexes give rise to significantly more active catalysts than the corresponding cationic complexes [Rh(cod)(κ²-^ZSerPhos)]⁺. Electronic and, especially, steric reasons may be responsible for this observation. These results encourage to use also larger mono-phosphanyl substituted peptides as ligands for catalysts instead of the formerly investigated disubstituted ones.

In view of the enormous potential of proteins as ligands for catalytically active-transition metal complexes, we also hope that the presented structural and spectroscopic data obtained with the small models discussed in this paper may serve for the design and better understanding of the interaction of metal complex fragments with peptides.

Experimental

General techniques

All syntheses were performed in flame-dried glassware under an atmosphere of argon using standard Schlenk techniques. Solvents were freshly distilled from sodium/benzophenone (thf), from sodium/tetraglyme/benzophenone (hexane, toluene) or calcium hydride (dichloromethane) prior to use. Air sensitive compounds were stored and weighed in an argon filled glovebox (Braun MB 150 B–G system) and reactions on small scale were performed directly in the glovebox.

NMR spectra were either taken on an AMX-500, Avance DRX-400, Avance DPX-300, or Avance DPX-250 system. The chemical shifts are given as dimensionless δ values. Spectra were referenced with external standards: for ¹H and ¹³C NMR with TMS, for ¹⁵N NMR with NH₃, for ¹⁹F NMR with CFCl₃, for ³¹P NMR with H₃PO₄ and for ¹⁰³Rh NMR with the frequency reference Ξ = 3.16 MHz. Coupling constants J are given in Hertz [Hz] as positive values regardless of their absolute signs. The multiplicity of the signals is indicated as s, d, t, q or m for singlets, doublets, triplets, quartets or multiplets, respectively. Quaternary carbons are indicated as C_quat, aromatic as C_ar, when not noted otherwise. IR-spectra were measured on a Perkin-Elmer 2000 FT-IR spectrometer using a KBr beamsplitter. The absorption bands are described as follows: very strong (ss), strong (s), middle (m), weak (w), or broad (br). The UV/Vis-spectra were measured with the UV-Vis Lambda 19 spectrometer in 0.5 cm-quartz cuvettes. Melting points were determined with an Büchi melting point apparatus and are not corrected.

Syntheses of 1a–c. The synthesis of 2-(S)-(benzyloxycarbonylamino)-3-bromomethylpropionate 1a follows closely the published methods for the preparation of (S)-3-bromo-2-(N-tert-butoxycarbonyl)methylpropionate 1b (^tBocSerBr)¹⁷ and (S)-3-bromo-2-(N-carbomethoxy)methylpropionate 1c.¹⁸

2-(S)-(Benzyloxycarbonylamino)-3-bromomethylpropionate 1a (^ZSerBr). Under cooling in an ice bath, a solution of 1.39 g dry LiBr (16 mmol) in 30 mL dry acetone was added slowly to a solution of 3.26 g (8.0 mmol) of the serine tosylate (S)-2-(benzyloxycarbonylamino)-3-(p-toluolsulfonyl)methylpropionate (^ZSerOTs)¹⁹ in 40 ml dry acetone. After the addition was complete, the reaction mixture was warmed up to room temperature and stirred for 2 h whereby lithium tosylate precipitated. To complete the substitution reaction, the mixture was heated under reflux for 1 h. Insoluble material was filtered off and the solution was concentrated under vacuum. First an almost colourless oil was obtained which solidified rapidly. The raw product was dissolved in CHCl₃, again filtered in order to remove residual salt, concentrated to dryness under vacuum and recrystallized from ethanol at 4 °C. Yield: 1.95 g (77%); mp 63 °C. ²⁵[α]₅₈₉ = −18.9 in DMF (20 mg/2 mL). ¹H NMR (CDCl₃): δ 7.37 (s, 5H, H_aromat), 5.70 (br, 1H, NH), 5.14 (s, 2H, OCH₂Ph), 4.83 (br, 1H, CH), 3.87–3.71 (br, 2H, CH₂Br), 3.8 (s, 3H, OCH₃). ¹³C NMR (CDCl₃): δ 169.3 (s, COOCH₃), 155.3 (s, ONH), 135.8 (s, C_ipso), 128.5 (s, C_ortho), 128.3 (s, C_para), 128.1 (s, C_meta), 67.3 (s, OCH₂Ph), 54.2 (s, COOCH₃), 53.1 (s, H), 33.7 (s, H₂Br). IR (KBr pellet) [ν/cm⁻¹]: 696, 751, 1067, 1059 (s), 1214.0 (s), 1279.0, 1320, 1532 [ss, (N–H) amide II] 1688 [ss, (C=O) amide I], 1732.0 (ss, C=O), 2941 (m, CH str.), 3324 (ss, NH str.).

Syntheses of (2,9′-dimethylphenanthroline)(diphenylphosphanide)copper(I) 2, [Cu(PPh₂)(neo)] and (2,9′-dimethylphenanthroline)(diphenylarsanide)copper(I) 6 [Cu(AsPh₂)(neo)]: General synthesis for [Cu(EPh₂)(N∩N)] complexes (E = P, As; N∩N = 2,2′-bipyridyl or 1,10-phenanthroline derivative). First, the coordination polymers, [Cu(PPh₂)]₈ and [Cu(AsPh₂)]₈ were prepared according to a method published by Caulton and co-workers.²⁰[Cu(PPh₂)]₈: 1.48 g (0.011 mol) copper(I) tert-butanolate was dissolved in 40 mL THF. Under vigorous stirring, a solution of 2.01 g (0.011 mol) diphenylphosphane, Ph₂PH, in 10 mL THF was added. It is important to adjust the addition at the beginning of the reaction such that the immediately formed precipitate re-dissolves in the reaction medium. After the addition was complete, a bright red precipitate formed which was filtered off, washed several times with Et₂O, and dried under high vacuum. Yield: 2.05 g (75.3%); mp (decomp.): 150 °C. IR (KBr pellet) [ν/cm⁻¹]: 3050.0 (m), 1576.0 (m), 1471.0 (s), 1428.0 (s), 1125.0 (br), 1022.0 (br), 803.0, 731.0 (s), 691.0 (s), 467.0.

[Cu(AsPh₂)] ₈ : 0.296 g (2.2 mmol) copper(I) tert-butanolate was dissolved in 60 mL THF and cooled to −40 °C. Under vigorous stirring, a solution of 0.5 g (2.2 mmol) diphenylarsane, Ph₂AsH, in 10 mL THF was added. After the addition was complete, the deeply coloured solution was stirred for 45 min. at T = −40 °C and subsequently warmed to room temp. Thereby a brown precipitate was formed which was filtered off and washed twice with 10 mL of pentane. Yield: 0.62 g (98%); mp (decomp.): 148 °C. IR (KBr pellet) [ν/cm⁻¹]: 471, 690, 728 (s), 800, 1019 (br), 1260 (m), 1428 (s), 1472 (s).

In the second part of the synthesis, 0.2 mmol copper pnictogenide [Cu(EPh₂)]₈ (E = P, As) were suspended in 40 mL thf and were vigorously stirred at room temp. Slowly an equimolar amount of the N∩N ligand in 10 mL thf was added and the mixture was stirred for another hour at room temp. The intensely green coloured solutions were concentrated to a few milliliters whereby the products precipitate as fine crystalline powders. These were filtered off, eventually re-crystallized from toluene, and dried under high vacuum. 2: Yield: 53%; mp (decomp.): 135 °C. ¹H NMR (C₆D₆): δ 8.1–6.8 (m, H_ligand, H_phenyl), 2.7–2.46 (br, 6H, CH₃). ³¹P NMR (C₆D₆): −24.0 (br). All ¹³C-resonances in the aromatic region were strongly broadened. IR (KBr pellet) [ν/cm⁻¹]: 475, 546, 694 (s), 727 (s), 845, 1040.0 (s), 1429.0 (s), 1469.0 (m), 1496 (m), 1574.0 (s), 3040–2860 (m). UV/VIS (toluene) λ_max/nm (ε/l mol⁻¹ cm⁻¹): 556 (3192). 6: Yield: 71%; mp (decomp.): 127 °C. ¹H NMR (C₆D₆): δ 7.78 (br, 1H, H_ligand), 7.57 (br, 1H, H_ligand), 7.32 (br, 1H, H_ligand), 7.25 (s, 3H, H_phenyl), 6.94 (br, 3H, H_phenyl), 2.83 (br, 3H, CH₃). All ¹³C-resonances in the aromatic region were strongly broadened. IR (KBr pellet) [ν/cm⁻¹]: 3039 (s, CH str.), 1614, 1569, 1494, 1471, 1427 (s), 1060, 1020, 846 (ss), 728, 695. UV/VIS (thf) λ_max/nm (ε/l mol⁻¹ cm⁻¹): 714.6 (217.4).

General method for the reaction of an organohalide with a [Cu(EPh₂)(N∩N)] complex. Syntheses of the phosphanyl amino acids 3a–d and the arsanyl amino acid 7. Oxygen has to be strictly excluded in the following manipulations. Air oxidation of phosphanes is greatly enhanced in the presence of copper. 0.81 mmol [Cu(EPh₂)(neo)] 2 (E = P) or 6 (E = As) were dissolved in a few mL of thf. Alternatively, these copper complexes can be prepared in situ from [Cu(EPh₂)]₈ and one aliquot of 2,9′-dimethylphenanthroline in thf. Subsequently, an equimolar amount of the organohalide 1a–c or 5 was added in 30 mL at room temperature. After stirring for about 12 h at room temp., an orange precipitate was formed and the supernatant solution had a bright red colour. All volatiles were removed in vacuum and 50 mL Et₂O was added. To this suspension, a saturated aqueous solution of KCN was added at room temp. until two almost colourless phases had formed. The organic layer was separated, extracted twice with H₂O, twice with 2 M aqueous HCl, and dried over Na₂SO₄. After evaporation of all volatiles, a colourless oil was obtained which was once again washed with n-pentane to give either a colourless oil or solid.
R(S)-3-Diphenylphosphanylmethyl-N-carbobenzyloxyserinate (^ZSerphos) (3a). Yield: 63.3%; mp 68 °C. ¹H NMR (C₆D₆): δ 7.48–7.26 (m, 10H, H_aromat), 7.2 (br, 5H, H_aromat), 5.48 (br, 1H, N–H), 5.1 (s, 2H, OH₂), 4.83 (br, 1H, CH), 3.19 (s, 3H, OCH₃), 2.65 (dd, 1H, ²J_HCH = 14.1 Hz, ³J_HCCH = 5.4 Hz, PH₂, 2.41 (dd, 1H, ²J_HCH = 14.1 Hz, ³J_HCCH = 5.4 Hz, PCH₂). ¹³C NMR (C₆D₆): δ 171.4 (d, ³J_CP = 5.8 Hz, COOCH₃), 155.1 (s, C_urethan), 136.6 (s, C_ipso), 133.8 (d, ¹J_PC = 17.0 Hz, C_ipso), 132.7 (d, ²J_PC = 19.8 Hz, C_ortho), 128.5 (C_ortho), 128.3 (C_para), 128.3 (d, ³J_PC = 14 Hz, C_meta), 128.1 (C_meta, C_para), 66.4 (OCH₂), 51.7 (d, ²J_CP = 17.4 Hz, CH) 51.2 (s, CO₂CH₃), 31.8 d, ¹J_PC = 16.6 Hz, CH₂P). ³¹P NMR (C₆D₆): δ −23.4. IR (KBr pellet) [ν/cm⁻¹]: 696 (s, monosub. arene), 741 (s, monosub. arene), 1036, 1176 (s, CO), 1205 (m, P–CH₂), 1222 (m, P–CH₂), 1431 (m, P–C str.), 1502.0 (ss, amide II), 1711 (ss, amide I), 1742.0 (ss, C=O), 2960 (w, CH str.), 3412 (ss, NH str.). Optical rotation [α]²⁰_D 0.3 (c 0.01, DMF). Anal. Calc. for C₂₄H₂₄NO₄P (421.42 g mol⁻¹) C: 68.4%, H: 5.74, N: 3.32. Found: C: 68.3%, H: 5.74%, N: 3.28%
R(S)-3-Diphenylphosphanylmethyl-N-(tert-butoxycarbonyl)serinate (^BocSerphos) (3b). Yield: 53%; Oil. ¹H NMR (C₆D₆): δ 7.47–7.42 (m, 4H, H_aryl), 7.13–7.07 (m, 6H, H_aryl), 5.77 (br, 1H, NH), 4.81 (m, 1H, CH), 3.24 (s, 3H, CH₃), 2.7 (m, 2H, PCH₂), 1.42 (s, 9H, C(CH₃)₃). ¹³C NMR (C₆D₆): δ 171.9 (d, ³J_CP = 7.3 Hz, C=O), 154.7 (s, C_urethan), 133.6 (d, ¹J_PC = 14.6 Hz, C_ipso), 132.7 (d, ²J_PC = 17.9 Hz, C_ortho), 128.5 (C_para), 128.3 (d, ³J_PC = 14 Hz, C_meta), 78.7 (s, C(CH₃)₃), 51.5 (d, ²J_PC = 14.9 Hz, CH), 51.1 (s, OCH₃), 31.5 (d, ¹J_PC = 10.05 Hz, PCH₂), 27.8 (s, C(CH₃)₃). ³¹P NMR (C₆D₆): δ −22.8 (s). Anal. Calc. for C₂₁H₂₆NO₄P (387.41 g mol⁻¹): C: 65.10%, H: 6.76%, N: 3.61%. Found: C: 65.08%, H: 6.63%, N: 3.63%.
R(S)-3-Diphenylphosphanylmethyl-N-(carbomethoxy)serinate (^MetSerphos) (3c). Yield: 67%; oil. ¹H NMR (C₆D₆): δ 7.47–7.42 (m, 4H, H_aryl), 7.13–7.07 (m, 6H, H_aryl), 5.34 (d, 1H, ³J = 7.7, NH), 4.75 (m, 1H, CH), 3.44 (s, 3H, CH₃), 3.19 (s, 3H, CH₃), 2.64 (dd, 1H, ²J = 14.0 Hz, ³J = 5.6 Hz, PCH₂), 2.38 (dd, 1H, ²J = 13.6 Hz, ³J = 8.0 Hz, PCH₂). ¹³C NMR (C₆D₆): δ 169.3 (d, ³J_PC = 6.5 Hz, COOCH₃), 154.4 (s, C_urethan), 133.6 (d, ¹J_PC = 13.6 Hz, C_ipso), 132.7 (d, ²J_PC = 17.9 Hz, C_ortho), 128.5 (d, ³J_PC = 7 Hz, C_meta), 128.1 (C_para), 53.1 (CO₂CH₃), 52.9 ppm (COOCH₃), 51.1 (s, CH), 32.4 (d, ¹J_PC = 14.3 Hz, CH₂P). ³¹P NMR (C₆D₆): δ −24.4 (s). ^ZAlaSerphos (3d): Yield: 65%; oil. ¹H NMR (C₆D₆): δ 7.64–7.11 (m, 15H, H_aryl), 6.1 (br, 1H, NH_ala), 5.8 (br, 1H, NH_ser), 5.17 (s, 2H, CH₂Ph), 4.99 (m, 1H, CH_Ser), 4.2 (m, 1H, CH_Ala), 3.22 (s, 3H, CH_3Ser), 2.77 (dd, 1H, ²J = 12.7 Hz, ³J = 5.7 Hz, CH₂P), 2.56 (dd, 1H, ²J = 13.8 Hz, ³J = 6.8 Hz, CH₂P), 1.21 (d, 3H, ³J = 6.9 Hz, CH_3ala). ¹³C NMR (C₆D₆): δ 171.5 (d, ³J = 7.5 Hz, COOCH₃), 156.5 (s, CONH), 156.1 (s, CONH), 136.7 (s, C_ipso), 134.6 (d, ¹J = 12 Hz, C_ipso), 132.3 (d, ³J = 17.4 Hz, C_ortho), 128.6–128.4 (s, C_ortho, C_meta, C_para, C_meta, C_para), 66.4 (s, CH₂O) 51.2 (s, CH₃O), 50.5 (s, CH_ala), 50.25 (d, ²J = 11.0 Hz, CH_ser), 31.7 (d, ¹J_PC = 17.4 Hz, CH₂P), 18.0 (s, CH_3ala). ³¹P NMR (C₆D₆): δ − 22.5. Anal. Calc. for C₂₇H₂₉N₂O₅P (492.51 g mol⁻¹): C: 66.85%, H: 5.93%, N: 5.69%. Found: C: 66.81%, H: 6.01%, N: 5.58%.
R(S)-3-Diphenylarsanylmethyl-N-carbobenzyloxyserinate (^ZSerars) (7). Yield: 62%; oil. ¹H NMR (C₆D₆): δ 7.47–7.29 (m, 4H, H_aromat), 7.19–7.09 (m, 11H, H_aromat), 5.51 (d, 1H, ³J = 8.1 Hz, NH), 5.11 (s, 2H, OCH₂), 4.81 (br, 1H, CH), 3.17 (s, 3H, OCH₃), 2.60 (dd, 1H, ²J_HCH = 12.9 Hz, ³J_HCCH = 5.7 Hz, PCH₂), 2.33 (dd, 1H, ²J_HCH = 14.1 Hz, ³J_HCCH = 5.4 Hz, PCH₂). ¹³C NMR (C₆D₆): δ 171.8 (s, COOCH₃), 155.2 (s, C_urethan), 139.7 (s, C_ipso), 136.6 (s, C_ipso), 132.8 (s, C_ortho), 132.8 (s, C_ortho), 128.7 (C_meta), 128.5 (C_meta), 128.3 (s, C_para), 128.2 (s, C_para), 66.5 (OCH₂), 51.7 (s, CH), 51.2 (s, CO₂CH₃), 31.2 (s, CH₂As).

Synthesis of 2-(N-Benzyloxycarbonyl)succinimidylpropionate (4). Our synthesis follows closely a method described in ref. 21. A solution of 2.3 g ^Zalanine in 180 mL of CH₂Cl₂ was cooled in an ice-bath and 1.52 g N-hydroxysuccinimide (13 mmol) were added under stirring. After 15 min under these conditions, 2.75 g dicyclohexylcarbodiimide (DCCI, 13 mmol) were added. After 48 h of stirring at 4 °C, the precipitate was filtered off and all volatiles were evaporated from the solution. The resulting oil was washed with n-pentane–CH₂Cl₂ (1 : 1), dried under vacuum and finally dissolved in a minimum amount of EtOH. Upon storing at about −20 °C, a colourless oil separated which was washed once with Et₂O and then vacuum dried. The colourless oil slowly starts to solidify. Yield: 66%; mp 115 °C. ¹H NMR (CDCl₃): δ 7.31 (s, 5H, H_aryl), 5.43 (d, 1H, ³J = 7.6 Hz, NH), 5.13 (m, 2H, CH₂OPh), 4.77 (m, 1H, CH), 2.80 (s, 4H, CH_2succin), 1.58 (d, 3H ³J = 7.2 Hz, CH₃). ¹³C NMR (CDCl₃): δ 168.47 (s, C=O_ester), 168.37 (s, C=O_succin), 155.03 (s, C_urethan), 135.7 (s, C_ipso), 128.25, 127.96, 127.9 (C_ortho, C_meta, C_para), 66.98 (s, CH₂O), 47.8 (s, CH), 25.25 (s, CH_2succin), 18.30 (s, CH₃).

Synthesis of ^Z-AlaSerBr (5). 0.67 g (2.6 mmol) (S)-2-amino-3-bromomethylpropionate hydrobromide and 0.36 g triethylamine (3.4 mmol, 1.3 equivalents) were stirred for 15 min. at room temp. Subsequently, 0.83 g 2-(N-Benzyloxycarbonyl)succinimidyl propionate (4) in 20 mL CH₂Cl₂ were added and the mixture was stirred for 12 h. After extraction with 2 M aqueous HCl, H₂O and saturated aqueous Na₂CO₃, all volatiles were evaporated and the residue was treated with Et₂O. Remaining Et₃NHCl was separated and the filtrate concentrated to dryness. Yield: 47.6%; oil. ¹H NMR (CDCl₃): δ 7.36 (m, 5H, H_aryl), 6.26 (s, 1H, NH_ala), 5.79 (s, 1H, NH_ser), 5.43 (d, 1H, ³J = 4 Hz, CH_ser), 5.11 (s, 2H, CH₂OPh), 4.39 (m, 1H, CH_ala), 3.80 (s, 2H, CH₂Br), 3.74 (s, 3H, OCH₃), 1.41 (d, 3H, ³J = 7.25 Hz, CH_3ala). ¹³C NMR (CDCl₃): δ 164.1 (s, COOCH₃), 155.5 (s, CONH), 155.1 (s, CONH), 136.7, 128.6, 128.5, 128.1 (s, C_ipso, C_ortho, C_meta, C_para), 66.9 (s, CH₂O) 52.7 (s, CH_ser), 52. 4 (s, CH₃O), 49.5 (s, CH_ala), 32.9 (s, CH₂Br), 18.6 (s, CH_3ala). This compound was used in the synthesis of ^ZAlaSerphos (3d) as described above.

General synthesis for [RhCl(cod)(SerE)] complexes (8: SerE = ^ZSerPhos; 9: SerE = ^BocSerPhos; 11: SerE = ^ZSerArs). To a solution of 63 mg (0.13 mmol) [Rh₂(µ-Cl)₂(cod)₂] in 10 mL EtOH, a solution of 26 mmol ^ZSerphos 3a (10.9 mg), or ^BocSerphos 3b (10.1 mg) or ^ZSerArs 7 (12.1 mg) in 10 ml EtOH was slowly added at room. temp. under vigorous stirring. After the addition was complete, the mixture was stirred for 1 h and then several times shortly heated with a heat-gun. Subsequently, the solution was concentrated to about 10% of its initial volume. The formed precipitate was filtered off and recrystallized from acetonitrile to give bright yellow products.
Chloro(η⁴-1,5-cyclooctadiene)[R(S)-3-diphenylphosphanylmethyl-N-(carbobenzyloxy)serinate]rhodium(I) [RhCl(^ZSerphos)(cod)] (8). Yield: 93%; mp 138 °C. ¹H NMR (CD₃CN): δ 7.93 (m, 2H, H_aryl), 7.51–7.34 (m, 13H, H_aryl), 7.18 (d, 1H, ³J = 7.45 Hz, NH), 5.41 (br, 4H, –CH=), 5.17 (m, 2H, OCH₂), 4.70 (m, 1H, CH), 3.72 (s, 3H, OCH₃), 2.98–2.90 (m, 2H, PCH₂), 2.26 (m, –CH₂–), 2.02 (m, –CH₂–). ¹³C NMR (CD₃CN): δ 171.9 (s, COOCH₃), 155.8 (s, CONH), 136.8 (s, C_ipso), 134.5 (d, ¹J_PC = 12.1 Hz, C_ipso) 132.1 (d, ⁴J_PC = 9.6 Hz, C_ortho), 130.8 (s, C_ortho), 130.1 (s, C_meta), 128.4 (s, C_para), 128.6 (s, C_para), 127.9 (d, ³J_PC = 6.5 Hz, C_meta), 71.2 (br, CH=CH), 66.4 (s, CH₂O), 52.1 (s, CH₃), 51.6 (s, CH), 32.0 (br, CH₂ (cod)), 28.3 (d, ¹J_PC = 26.2 Hz, PCH₂). ³¹P NMR (CD₃CN): δ 20.6 (d, ¹J_RhP = 151.7 Hz). IR (KBr pellet) [ν/cm⁻¹]: 3307 (s, NH str.), 2915, 2877 (s, CH str.), 1741 (s, C=O), 1707 (ss, (C=O) amide I), 1507 (ss, (N–H) amide II), 1430 (m), 1381, 1354, 1260, 1212, (ss), 1041 (s), 1028, 797, 757, 699. UV/VIS (thf) λ_max/nm (ε/l mol⁻¹ cm⁻¹): 402.2 (2174), 279.1 (5042). Anal. Calc. for C₃₂H₃₆ClNO₄PRh (667.96 g mol⁻¹): C: 57.54%, H: 5.43%, N: 2.09%, P: 4.64. Found: C: 57.3%, H: 5.4%, N: 2.3%, P: 4.6%.
Chloro(η⁴-1,5-cyclooctadiene)[R(S)-3-diphenylphosphanylmethyl-N-(tert-butoxycarbonyl)serinate]rhodium(I) [RhCl(^BocSerphos)(cod)] (9). Yield: 62%; mp 105 °C. ¹H NMR (CDCl₃): δ 7.88 (m, 2H, H_aryl), 7.53–7.26 (m, 8H, H_aryl), 6.82 (d, 1H, ³J = 7.14 Hz, NH), 5.54 (br, 2H, –CH=), 4.72 (m, 1H, CH), 4.24 (br, 2H, CH=), 3.73 (s, 3H, OCH₃), 3.18–3.03 (m, 2H, PCH₂), 2.43 (m, –CH₂–), 2.04 (m, –CH₂–), 1.52 (s, 9H, C(CH₃)₃). ¹³C NMR (CDCl₃): δ 172.1 (d, ³J_PC = 13.1 Hz, COOCH₃), 155.5 (s, CONH), 134.5 (d, ¹J_PC = 11.8 Hz, C_ipso) 132.1 (d, ⁴J_PC = 9.7 Hz, C_ortho), 129.6 (s, C_para), 128.2 (d, ³J_PC = 8.2 Hz, C_meta), 104.5 (m, CH=), 78.4 (s, C(CH₃)₃), 70.5 (dd, ¹J_RhC = 53.7 Hz, ²J_CP = 13.7 Hz, CH=CH), 66.4 (s, CH₂O), 52.2 (s, CH₃), 51.1 (s, CH), 32.9, 32.2, 30.5 (s, CH₂ (cod)), 29.1 (d, ¹J_PC = 26.1 Hz, PCH₂), 28.6 (s, CH₂ (cod)), 28.14 (s, C(CH₃)₃). -³¹P NMR (CDCl₃): δ 20.8 (d, ¹J_RhP = 150.0 Hz). IR (KBr pellet) [ν/cm⁻¹]: 3296 (s, NH str.), 2962–2830 (s, CH str.), 1754 (ss, C=O), 1697 [ss, (C=O) amide I], 1504 [ss, N–H amide II], 1431 (m, P–C str.), 1362, 1258 (m, P–CH₂), 1214, (m), 1160 (s, C–O), 1096 (s), 1017, 801 (s, monosub. arene), 744 (s, monosub. arene), 691. UV/VIS (thf) λ_max/nm (ε/l mol⁻¹ cm⁻¹): 400.1 (1681), 287.1 (5500). Anal. Calc. for C₂₉H₃₈ClNO₄PRh (633.95 g mol⁻¹): C: 54.94%, H: 6.04%, N: 2.21%. Found: C: 54.3%, H: 5.97%, N: 2.3%.
Chloro(η⁴-1,5-cyclooctadiene)[R(S)-3-diphenylarsanylmethyl-N-(carbobenzyloxy)serinate]rhodium(I) [RhCl(^ZSerars)(cod)] (11). Yield: 35.5%; mp 126 °C. ¹H NMR (CD₃CN): δ 7.70–7.66 (m, 2H, H_aryl), 7.49–7.2 (m, 13H, H_aryl), 6.98 (d, 1H, ³J = 7.62 Hz, NH), 5.11 (dd, 2H, ²J = 16.3 Hz, OCH₂), 4.59 (m, 1H, CH), 4.27 (s, 4H, –CH=), 3.68 (s, 3H, OCH₃), 2.89–2.77 (m, 2H, AsCH₂), 2.7 (m, –CH₂–), 1.86–1.79 (m, –CH₂–). ¹³C NMR (CD₃CN): δ 172.4 (s, COOCH₃), 156.2 (s, CONH), 137.4 (s, C_ipso), 134.3 (s, C_ipso) 130.6 (s, C_ortho), 130.35 (s, C_para), 129.4 (s, C_meta), 128.9 (s, C_ortho), 128.5 (s, C_para), 128.3 (s, C_meta), 82.2 (br, CH=CH), 66.8 (s, CH₂O), 52.6 (s, CH₃), 52.1 (s, CH), 31.0 (s, CH₂ (cod)), 28.0 (s, AsCH₂). IR (KBr pellet) [ν/cm⁻¹]: 3272 (s, NH str.), 2911, 2872 (s, CH str.), 1743 (ss, C=O), 1710 (s, amide I, C=O), 1527 (s, amide II), 1431 (m), 1211 (ss), 1044, 1025, 734, 693. UV/VIS (thf) λ_max/nm (ε/l mol⁻¹ cm⁻¹): 374.8 (1242), 277.1 (5000). Anal. Calc. for C₃₂H₃₆AsClNO₄Rh (711.91 g mol⁻¹): C: 53.99%, H: 5.10%, N: 1.97%. Found: C: 47.5%, H: 5.14%, N: 1.3%.

Synthesis of chloro(η⁴-1,5-cyclooctadiene)[2-R(S)-2′-S(R)-(benzyloxycarbonylamino)propionylamino)-3-(diphenylphosphanyl)methylpropionate]rhodium(I) [RhCl(cod)(^ZAlaSerphos)] (10). To a solution of 80 mg [Rh₂(µ-Cl)₂(cod)₂] (0.15 mmol) in 10 mL benzene, 160 mg ^ZAlaSerphos (3d) (0.31 mmol) in 10 mL benzene were added dropwise. The reaction mixture was strirred for 1 h at room temp. and then all volatiles were evaporated. The residue was recrystallized from EtOH: yield: >95%; mp 108–110 °C. ¹H NMR (CD₂Cl₂): δ 8.46/8.16 (d, ³J = 6.7/6.8 Hz, 1H, NH_Ser), 8.06/7.90 (m, 2H, H_aryl), 7.55–7.33 (m, 13H, H_aryl), 5.75/5.50 (br, NH_Ala), 5.57/5.31 (br, 4H, –CH=), 5.17/5.13 (s, 2H, OCH₂Ph), 4.84/4.70 (dddd, ³J_α,β = 2.8/3.0 Hz, ³J_α,β′ = 13.0/12.0 Hz, ³J_α,NH = 6.7/6.8 Hz, ³J_α,P = —/8.8 Hz, 1H, CH_Ser), 4.60/4.09 (m, 1H, CH_Ala), 3.72/3.69 (s, 3H, OCH₃), 3.27/3.01 (ddd, ²J_β,P = 6.6/3.8 Hz, ³J_α,β = 12.0/13.0 Hz, ²J_β,β′ = 14.7 Hz/—, 1H, CH₂P), 2.87/2.85 01 (ddd, ²J_β′,P = 12.2/14.2 Hz, ³J_α,β′ = 3.0/2.8 Hz, ²J_β,β′ = 14.7 Hz/—, 1H, CH₂P), 2.45/2.09 (br, 4H, –CH₂– (cod)), 2.34/1.90 (br, 4H, –CH₂– (cod)), 1.49/1.44 (d, ³J_H,H = 7.0/7.0 Hz, CH_3Ala). ¹³C NMR (CD₂Cl₂): δ 173.0/172.5 (s, COOCH₃), 171.9/171.7 (s, CONH), 156.1/155.9 (s, CONH), 137.3/137.3 (s, C_ipso), 135.4/134.8 (d, ¹J_P,C = 12.3/12.3 Hz, C_ipso), 133.1/132.6 (d, ²J_P,C = 9.9/9.9 Hz, C_ortho), 128.6/128.2 (d, ³J_P,C = 7.0/7.0 Hz, C_meta), 131.5/131.1 (s, C_ortho), 130.7/130.7 (s, C_meta), 128.9/128.8 (s, C_para), 128.7/128.7 (s, C_para),73.3/72.2/71.5 (d, J = 13.5 Hz, CH (cod)), 66.9/66.9 (s, CH₂Ph), 58.5/58.5 (s, OCH₃), 51.0/51.0 (s, CH_Ala), 50.7/50.4 (s, CH_Ser), 33.5/33.2/32.7 (br, CH₂ (cod)), 29.1/28.7 (d, ¹J_C,P = 23.2/23.2 Hz, CH₂P), 20.1/19.7 (s, CH_3(Ala)). ³¹P NMR (CD₂Cl₂) δ 20.3/18.4 (d, ¹J_P,Rh = 150.7/150.7 Hz). ¹⁰³Rh NMR (CD₂Cl₂) δ 372/365. IR (KBr pellet) [ν/cm⁻¹]: 3258 (s, NH str.), 1735 (ss, C=O), 1717 [ss, (C=O) amide I], 1509 [ss, (N–H) amide II]. Anal. Calc. for C₃₅H₄₁ClN₂O₅PRh (739.05 g mol⁻¹): C: 56.88%, H: 5.59%, N: 3.79%. Found: C: 56.90%, H: 5.61%, N: 3.78%.

Synthesis of (η⁴-1,5-cyclooctadiene)[R(S)-3-diphenylphosphanemethyl-N-(carbobenzyloxy)serinate)rhodium(I) hexafluorophosphate [Rh(cod)(κ²-^ZSerphos)]PF₆ (12). 0.31 g [RhCl(cod)(^ZSerphos)] 10 (0.46 mmol) was dissolved in 30 mL benzene. To this yellow solution, 148 mg [Ag(MeCN)₂]PF₆ (0.46 mmol) was added under exclusion of light. After 1 h stirring at room temp., the formed precipitate (AgCl) was filtered off and the filtrate was slowly concentrated to dryness dried under vacuum to give a yellow solid. Yield: 97%; mp 74 °C. ¹H NMR (CDCl₃): δ 7.93–7.34 (m, 15H, H_aryl), 6.26 (d, 1H, ³J = 8.2 Hz, NH), 5.37 (br, 2H, –CH=), 5.01 (m, 2H, OCH₂), 4.84 (m, 1H, CH), 4.33 (br, 2H, –CH=), 3.85 (s, 3H, OCH₃), 3.23–2.80 (m, 2H, PCH₂), 2.47 (m, –CH₂–), 2.08 (m, –CH₂–). ¹³C NMR (CDCl₃): δ 171.9 (s, COOCH₃), 158.5 (s, CONH), 136.3 (d, ¹J_PC = 10.1 Hz, C_ipso), 134.5 (s, C_ipso), 133.7 (d, ⁴J_PC = 12.4 Hz, C_ortho), 131.8 (s, C_ortho), 131.7 (s, C_meta), 130.98 (s, C_para), 129.1 (s, C_para), 128.8 (d, ³J_PC = 6.8 Hz, C_meta), 108.5 (m, CH=CH), 71.3 (br, CH=CH), 68.3 (s, CH₂O), 53.9 (s, CH₃), 52.55 (s, CH), 31.9 (br, CH₂ (cod)), 27.5 (d, ¹J_PC = 26.8 Hz, PCH₂). ³¹P NMR (CDCl₃): δ 25.7 (d, ¹J_PRh = 148.5 Hz, RhPCH₂), −143.0 (sept, ¹J_PF = 713 Hz, PF₆⁻). IR (KBr pellet) [ν/cm⁻¹]: 3384 (br, NH str.), 2918, 2876 (s, CH str.), 1725 (s, C=O), 1623 (ss, amide I), 1432 (m), 1382, 1259, 1218, 1096 (s), 1026, 839 (ss, PF str.), 695. Anal. Calc. for C₂₉H₃₈F₆NO₄P₂Rh (777.48): C: 49.43%, H: 4.67%, N: 1.8%. Found: C: 50.4%, H: 4.9%, N: 2.0%.

Synthesis of (η⁴-1,5-cyclooctadiene)-[2-R(S)-2′-S(R)-(benzyloxycarbonylamino)propionylamino)-3-(diphenylphosphanyl)methylpropionate]rhodium(I) hexafluorophosphate [Rh(cod)(κ²-^ZAlaSerphos)]PF₆ (13). 42 mg [RhCl(cod)(^ZAlaSerphos)] 10 (0.06 mmol) were dissolved in 5 mL benzene and 23 mg TlPF₆ (1.1 eq.) were added. The reaction mixture was treated for 15 min under ultra-sonication and subsequently the precipitate (TlCl) was removed by filtration. The clear filtrate was evaporated under vacuum to give 13 as a yellow solid in quantitative yield. ¹H NMR (CD₂Cl₂): δ 8.24/8.10 (d, ³J = 7.1/7.1 Hz, 1H, NH_Ser), 8.04–7.12 (m, 15H, H_aryl), 5.76/5.73 (m, 1H, CH_Ser), 5.47/5.33 (br, 2H, –CH=), 5.10/5.08 (s, 2H, OCH₂Ph), 5.14/4.90 (d, 6.6/5.9 Hz, 1H, NH_Ala), 4.04/3.75 (m, 1H, CH_Ala), 4.00/3.97 (s, 3H, OCH₃), 3.41/3.35 (br, 2H, –CH= trans to P), 3.21/3.16 (br, 2H, –CH= trans to O), 3.05/2.95 (m, 2H, CH₂P), 2.70–1.90 (br, 8H, CH₂ (cod)), 0.82/0.75 (d, ³J = 7.3/7.0 Hz, 3H, CH_3Ala). ¹³C NMR (CD₂Cl₂): δ 179.4/179.3 (br, C_AlaONH), 169.3/169.1 (d, ³J_CP = 17.2/18.3 Hz, C_SerONH), 156.3/156.3 (s, C=O_cbz), 136.1/136.1 (s, C_ipso), 134.7/134.4 (d, ²J_PC = 13.0/13.3 Hz, C_ortho), 129.6/129.4 (d, ¹J_PC = 11.1/7.5 Hz, C_ipso), 136–126 (C_aryl), 110.1/109.5 (m (br), CH (cod) trans to P), 71.0/69.9 (m (br), CH (cod) trans to O), 67.3/67.2 (s, OCH₂Ph), 54.3/54.3 (s, OCH₃), 52.9/52.9 (s, CH_Ser), 51.8/51.2 (s, CH_Ala), 35.0/35.4 (m, CH₂P), 34.0/32.1/28.7/27.1 (CH₂ (cod)), 15.9/15.9 (s, CH_3(Ala)). ³¹P NMR (CD₂Cl₂): δ 27.9/27.9 (d, ¹J_PRh = 151.8 Hz, PPh₂), −144.4 (sept, ¹J_PF = 712 Hz, PF₆⁻). ¹⁰³Rh NMR (CD₂Cl₂): δ 426/413. IR [ν/cm⁻¹]: 3330 (s, NH str.), 1723 (ss, C=O), 1613 (ss, (C=O) amide I). Anal. Calc. for C₃₅H₄₁F₆N₂O₅P₂Rh (848.55 g mol⁻¹): C: 49.54%, H: 4.87%, N: 3.30%. Found: C: 49.67%, H: 4.88%, N: 3.29%.

Synthesis of acetonitrile(η⁴-1,5-cyclooctadiene)[R(S)-3-diphenylphosphanemethyl-N-(carbobenzyloxy)serinate)rhodium(I) hexafluorophosphate [Rh(cod)(^ZSerphos)]PF₆ (14). To a solution of 0.31 g [RhCl(cod)(^ZSerphos)] 8 (0.46 mmol) in 30 mL acetonitrile a solution of 148 mg [Ag(MeCN)₂]PF₆ (0.46 mmol) in 10 mL acetonitrile was added under exclusion of light. After 1 h stirring at room temp., the white precipitate (AgCl) was removed by filtration and the clear filtrate was concentrated under vacuum. The yellow oily residue was washed twice with small amounts of n-hexane and than dried in vacuum to give a yellow solid. Yield: 67%. ¹H NMR (CDCl₃): δ 7.93–7.32 (m, 15H, H_aryl), 7.08 (br, 1H, NH), 5.47 (br, 2H, –CH=), 5.21 (m, 2H, OCH₂), 4.77 (m, 1H, CH), 4.23 (br, 2H, –CH=), 3.75 (s, 3H, OCH₃), 3.17–2.88 (m, 2H, PCH₂), 2.48–1.75 (m, 8H, –CH₂–), 2.01 (s, 3H, CH₃CN). ¹³C NMR (CDCl₃): δ 171.8 (d, ³J_PC = 13.1 Hz, COOCH₃), 156.5 (s, ONH), 136.05 (s, C_ipso), 134.4 (d, ¹J_PC = 11.6 Hz, C_ipso), 132.0 (d, ⁴J_PC = 9.44 Hz, C_ortho), 130.6 (s, C_ortho), 129.9 (s, C_meta), 128.3 (d, ³J_PC = 5.4 Hz, C_meta), 128.1 (s, C_para),127.6 (s, C_para), 117 (N), 104.9 (m, CH=CH), 71.0 (br, CH=CH), 66.7 (s, CH₂O), 52.5 (s, CH₃), 51.34 (s, CH), 32.8, 32.1, 30.56 (br, CH₂ (cod)), 29.1 (d, ¹J_PC = 26.5 Hz, CPH₂), 28.27 (br, CH₂ (cod)) 1.73 (s, CH₃CN). ³¹P NMR (CDCl₃): δ 20.4 (d, ¹J_PRh = 149.4 Hz, RhPCH₂), −143.0 (sept, ¹J_PF = 711 Hz, PF₆⁻). IR (KBr pellet) [ν/cm⁻¹]: 3400 (br, NH str.), 2951, 2877 (s, CH str.), 1727 (s, C=O), 1708 (ss, amide I), 1503 (s, amide II), 1430 (m), 1381, 1258, 1094 (s), 1027, 800 (s, PF str), 695.

X-Ray crystallography (see Table 6)

Single crystals were selected in an argon filled glovebox. The data were collected on a Picker four-circle, Stoe upgraded, diffractometer (8, 9) and a Siemens CCD (10, 11) diffractometer. For 8 and 9 an experimental absorption correction (integration from crystal shape) was performed. For 10 and 11, an absorption correction was applied using the program SADABS. The structures were solved by direct methods, all non-hydrogen atoms were refined against F² (G. M. Sheldrick, SHELXL-97, Göttingen, 1993, 1997) with anisotropic temperature factors while the hydrogen atoms were constrained using a riding model.

Table 6 Details concerning the data collection and refinement of the structures of 8, 9, 10 and 11

	8	9	10	11
Formula	C32H36ClNO4PRh	C29H38ClN1O4PRh·0.5CH3CN	C35H40ClN2O5PRh	C32H36AsClNO4Rh
Crystal system	Monoclinic	Monoclinic	Triclinic	Triclinic
Space group	P21/c	P21/c	P1̄	P1̄
Z	8	4	2	1
T/K	293(2)	293(2)	293(2)	293(2)
D c/g cm^−3	1.428	1.391	1.301	1.511
a/Å	21.339(2)	15.575(8)	10.7543(3)	8.3011(2)
b/Å	30.582(2)	10.255(5)	11.7575(2)	9.7422(3)
c/Å	9.520(5)	19.57(1)	16.8367(4)	10.7146(3)
α/°	90	90	104.312(1)	87.201(1)
β/°	90.55(5)	90.06(4)	91.873(1)	76.277(1)
γ/°	90	90	112.649(1)	68.507(1)
V/Å^3	6212(7)	3126(3)	1884.17(8)	782.54(4)
µ/mm^−1	6.015	5.965	0.606	1.716
Crystal size/mm	0.2 × 0.1× 0.1	0.2 × 0.15 × 0.1	0.2 × 0.1 × 0.1	1.0 × 0.6 × 0.4
Radiation (λ/Å)	Cu-Kα; graphite monochromator (1.54178)		Mo-Kα; graphite monochromator (0.71073)
2θ range/°	4.14 ≤ 2θ ≤ 85.00	5.68 ≤ 2θ ≤ 99.96	2.52 ≤ 2θ ≤ 56.56	3.92 ≤ 2θ ≤ 65.40
Index ranges, hkl	−18 to 18, 0 to 26, 0 to 8	−15 to 11, 0 to 10, 0 to 19	−14 to 13, −12 to 15, −22 to 17	−11 to 12, −14 to 13, −15 to 8
No. of rflns total	4357	2998	15731	8075
No. of unique rflns	4357	2998	9127	6090
No. of parameters/restraints	649/0	356/0	433/0	361/3
R 1 (rflns I > 2σ(I))	0.0440	0.0445	0.0557	0.0423
wR 2 (all data)	0.1216	0.1193	0.1714	0.1076
Max., min. residual electron density/e Å^−3	0.563, −0.406	1.002, −0.553	1.301, −0.766	1.068, −1.015

---

The asymmetric unit of 9 contains half a molecule of acetonitrile, disordered over two positions which were refined with an occupancy factor of 0.5 for each site. Two diastereotopic molecules were found in the elementary cell of 10. While the racemic SerPhos residue fulfils the symmetry properties of the centrosymmetric space group, this is not the case for the alanine. Hence the methyl group of the alanine was found on two different positions and was refined as a disordered group with an occupancy factor of 0.5 for each site.

CCDC reference numbers 178294, 178295, 283233 and 283234.

For crystallographic data in CIF or other electronic format see DOI: 10.1039/b512653c
