Glycosylation with in situ separation: carbohydrate chemistry on a TLC plate

Abstract

Iodine vapour promotes thioglycoside-based glycosylation chemistry on TLC plates, which in turn permits in situ separation by conventional elution with solvent.

---

Over the past twenty years, the largely neglected biological function of carbohydrates and glycoconjugates has received much attention. However, the precise molecular detail of the role of such biomolecules remains to be established in many, perhaps most, cases.¹ There is, therefore, a need for methodologies to provide rapid access to structurally diverse carbohydrate structures. Synthetic procedures have developed substantially of late,² with orthogonal glycosylation strategies offering scope for minimising manipulations at the anomeric centre during multi-step synthesis,³ as does the application of reactivity tuning⁴ based on the concept of ‘armed’ and ‘disarmed’ glycosylation reagents.⁵ Further extension of this strategy has led to ‘programmable’ oligosaccharide synthesis.⁶ Perhaps the ultimate in oligosaccharide target synthesis has been achieved by Seeberger and co-workers, who adapted technologies from peptide synthesis to develop instrument-based, automated oligosaccharide synthesis.⁷ Further work from the same group has explored microreactors for optimisation of glycosylation chemistry.⁸ On a more general front, “random” strategies for preparing carbohydrate libraries have been explored.⁹

This laboratory has a long-standing interest in the use of iodine in carbohydrate chemistry,¹⁰ particularly in relation to glycosyl donor activation.¹¹ Since iodine is readily vapourised and is often used to detect organic compounds on TLC plates, we reasoned that thioglycosides co-spotted with sugar alcohols onto TLC plates might give rise to glycosides on exposure to iodine vapour. We were encouraged to follow this line by literature reports of low-tech chemistries for accessing compound libraries¹² and by studies showing silica-supported, solvent-free synthesis of nucleosides,¹³ the impact of silica on the AgNO₃/NCS-mediated cyclisation of an alcohol onto a dithioketal¹⁴ and on NBS-promoted glycosylation reactions,¹⁵ and the established use of silver silicate as a heterogeneous promoter of S_N2-like glycosylation processes.¹⁶ Here we report a proof-of-concept for iodine vapour-promoted glycosylation on TLC plates employing armed thioglycosides as donors.^17,18

In initial experiments, armed thiogalactoside donor 1 and primary alcohol acceptor methyl 2,3,4-tri-O-benzyl-β-D-galactopyranoside 2 were co-spotted on a standard analytical silica TLC plate and exposed to iodine vapour.¹⁹ After 30 min, the plate was removed from the reaction vessel and developed with organic solvent. Subsequent charring of the plate with ethanolic sulfuric acid showed only the conversion of the thioglycoside donor to the corresponding hemiacetal, 3 (Fig. 1);²⁰ no glycoside formation was apparent, as judged by comparison with authentic α/β-disaccharide, 4, produced by conventional solution phase coupling. It was evident that the moisture present in the silica caused the hydrolysis of the donor. When a similar reaction was carried out on pre-dried silica gel plates, traces of disaccharide products, 4, became apparent, but we were unable to produce useful quantities of material for characterisation. The principle product of the reaction still proved to be hemiacetal 3,²⁰ along with smaller amounts of a compound that co-ran with authentic per-O-benzylated 1,1′-linked Gal–Gal disaccharide 5.²¹ Repetition of the experiment (fifteen 1.5 × 10 cm plates) and extraction of relevant material from the silica (with CHCl₃) produced sufficient material for accurate mass characterisation, confirming formation of the 1,1′-linked sugar.²² NMR and mass spectral data for all disaccharides isolated are included in the electronic supplementary information.

Fig. 1 Glycosylation on TLC plates. A–C on a silica plate, D–F on an alumina plate. A – Hemiacetal 3; B – reaction of donor 1 and acceptor 2; C – donor 1 and acceptor 2; D – donor 1 and acceptor 2; E – reaction of donor 1 and acceptor 2 on an alumina plate; F – authentic α/β-disaccharides 4.

Thorough drying of silica TLC plates is not straightforward; when heated at more than 100 °C for a couple of hours, the silica gel on the plate detached from the glass surface. Considering this point, and taking into account that hydrogen iodide generated in situ might lead to acid-catalysed product hydrolysis, we were minded to investigate alumina as an alternative to silica. Glass-backed alumina TLC plates are robust and remain intact after drying at 200 °C for 3 h. The result changed dramatically when pre-dried alumina plates were employed in on-plate glycosylation reactions; reaction between thioglycoside 1 and galactoside primary alcohol 2 led to approximately 40% conversion to the desired disaccharides 4 (Fig. 2). In an attempt to increase the conversion, reaction times were varied. However, for donor 1 the most productive results were obtained from approx. 30–60 min reactions. In the reaction of thioglycoside 1 and alcohol 2, repetition of the on-plate experiment (fifteen 1.5 × 10 cm plates) and extraction of relevant material from the TLC plates¹⁹ produced sufficient material for accurate mass measurement as well as for ¹H and ¹³C NMR characterisation. The disaccharide obtained proved to be an approx. 2 : 1 α : β-mixture, as judged by integration of ¹H NMR signals for the methyl groups of the reducing terminal sugars (assignment assisted by the relative intensity of anomeric carbon signals in the ¹³C NMR data).

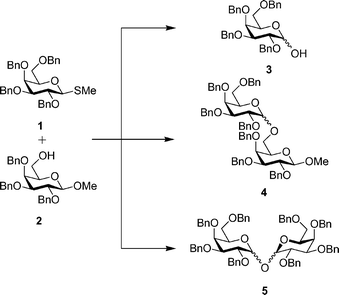

Fig. 2 Model glycosylation reaction conducted on TLC plates and promoted by iodine vapour.

In light of the above success, a range of armed donor thioglycosides and variously protected acceptor sugar alcohols were also investigated. A combination of 3 donors (1, 6, 7) and 4 acceptors (2, 8, 9, 10) was assessed (Table 1); in 6 of the 12 reactions investigated, conversion was sufficient (30–60%) to enable characterisation of the disaccharide products formed. In some of the other reactions investigated, disaccharide formation was evident but tlc separation was poor.²³ The relatively mild nature of these on-plate reactions is evident from their compatibility with potentially acid labile protecting groups in all of the acceptor alcohols investigated. Reactions with the ‘armed’ thioglycosides of deoxysugar L-fucose, 7, gave maximum conversion within 15–30 minutes. These observations can be rationalized considering the higher reactivity of the thioglycosides of deoxy-sugars. Of a number of secondary alcohol acceptors investigated (not shown), only the 6-deoxy acceptor 9 gave identifiable disaccharide products, consistent with the greater reactivity of 6-deoxysugar acceptors. In experiments with diol 11, only disaccharide products were identifiable. On the basis of NMR assignment after acetylating the disaccharide obtained (downfield shift of H-2 of galactose from 3.65 to 5.03 ppm upon acetylation), these were identified as the anomeric 1,6-linked sugars, as it to be expected given the greater reactivity of Gal 6-OH over 2-OH.²⁴

Table 1 Results of on-plate glycosylation reactions with armed thioglycoside donors and assorted sugar alcohol acceptors. In all cases conversion to disaccharide was in the 30–60% range. Anomeric ratios, as judged by NMR spectroscopy, are given below

	Acceptors
Donors
N.i. - no disaccharide isolable from tlc plate.
	(4) 2 : 1	N. i.	(11) 1:1	(12) 2 : 1
	N. i.	(13) 3 : 1	N. i.	N. i.
	(14) 1 : 1	N. i.	N. i.	(15) 1 : 1

---

In conclusion, armed thioglycoside donor substrates spotted onto TLC plates can be activated in situ by iodine vapour. Whilst poor results were obtained on silica, alumina plates gave rise to coupling efficiencies of up to ca. 50–60%, enabling the synthesis of a range of disaccharides and their subsequent separation and characterisation on the tens of micrograms scale. This microscale, iodine-mediated glycosylation strategy on a TLC plate minimizes the time and labour of the glycosylation reaction and subsequent purification process. With further optimisation, this approach offers scope for multiple parallel synthesis of glycoside libraries; alternative formats for scale-up are currently being investigated.

Acknowledgements

This work was supported by the EPSRC, the Weston Foundation, the Wellcome Trust and the University of St Andrews. We thank Dr Alan Haines for useful discussions during the course of this work and Colin Macdonald for assistance with acquiring NMR spectra. We gratefully acknowledge the EPSRC Mass Spectrometry Service Centre, Swansea for invaluable support.
