Selective metal promoted hydrolysis of nitrile groups in the side chain of tetraazamacrocyclic Cu²⁺-complexes

Abstract

The metal promoted hydrolysis of nitrile groups in the side chains of tetraazamacrocyclic Cu²⁺ complexes has been studied by stopped-flow techniques. It is shown that the reaction proceeds by an intramolecular attack of an axially coordinated OH⁻ onto the nitrile group to give the corresponding amide. In alkaline solution the amide then deprotonates and binds to the axial position of the Cu²⁺ thus preventing further coordination of an OH⁻. This explains mechanistically that in the Cu²⁺ complexes of macrocycles carrying two nitrile functions only one is selectively hydrolysed. The nitrile hydrolysis has also been used on a preparative scale to synthesize tetraazamacrocycles with two different side chains. X-Ray diffractions of several products are presented to confirm the structures and the results from the kinetics and equilibria measurements.

---

Introduction

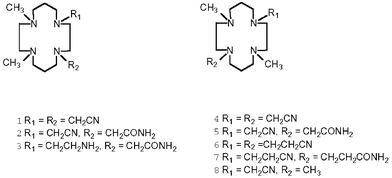

The functionalisation of azamacrocycles has been developed in the last 20 years to produce a large variety of new ligands.¹ By introducing pendant arms with donor groups, chelators have been synthesized, which give metal complexes with new structures and interesting new properties, such as for example contrast agents for NMR-imaging.² The functionalisation can also be done with the purpose to attach macrocycles through the side chain to a solid support to produce ion exchangers³ or to monoclonal antibodies to give tumour selective diagnostica and therapeutica.⁴

A third type of modification consists in designing side chains with a reactive group so that this group can come close to the metal ion and thus be activated in a similar way as found in metallo enzymes.⁵ Such low molecular metal complexes have been used for example as models for hydrolases, with the aim to clarify the reaction mechanism and to find structure–reactivity relationships which can only be studied in model compounds by chemical modifications, but not in natural systems. In this way a large amount of information has been gathered.⁶ Two main reaction pathways have thereby been observed: (a) attack of an external nucleophile onto the coordinated and thus activated group, or (b) attack of an internal coordinated nucleophile onto the organic substrate, which is in close proximity. The differentiation between the two mechanisms is generally easier in the case of inert metal complexes,⁷ whereas for labile ones it becomes more difficult to prove which reaction path takes place, since in solution rapid equilibria between different species are present. However, if one incorporates such labile metal ions into a macrocyclic ring, one can fix to a certain degree the structure of the species and thus study structure–reactivity relationship in detail.

Beside ester, amide and phosphate ester hydrolysis, the reactivity of the nitrile group is also an interesting reaction. Nitrile groups have been incorporated into azamacrocycles and it has been shown that they either point away from the metal ion and do not participate to the metal ion coordination⁸ or they can bridge to a second metal ion to give polymeric structures in the crystalline state.⁹ The reactivity of the nitrile group in such complexes was also studied in regard to its methanolysis¹⁰ or hydrolysis.^9,11 After the observation that in compounds carrying more than one nitrile group a selective reaction with methanol takes place, it was interesting to investigate what would happen in the hydrolysis if more than one nitrile group is present in the macrocyclic complex. We now present a study on the reactivity of the dinitrile derivatives 1, 4, and 6.

Experimental

Materials and methods

¹H and ¹³C NMR spectra were run on a Varian Gemini 300 instrument. δ-values are relative to SiMe₄ as internal standard for CDCl₃ or to sodium (3-trimethylsilyl)propanesulfonate for D₂O solutions. FAB-MS: VG 70-250 with nitrobenzyl alcohol as matrix. Elemental analyses were performed by the analytical laboratory of CIBA AG, Basel. IR spectra were run on a Perkin-Elmer 1600 using KBr pellets.

The following compounds were prepared according to the literature: 8,11-dimethyl-1,4,8,11-tetraazacyclotetradecane-1,4-diacetonitrile (1),¹¹ 4,11-dimethyl-1,4,8,11-tetraazacyclotetradecane-1,8-diacetonitrile (4),¹² 4,11-dimethyl-1,4,8,11-tetraazacyclotetradecane-1,8-dipropionitrile (6).¹²

1,4-Dimethyl-8-(carbamoylmethyl)-1,4,8,11-tetraazacyclotetradecane-11-acetonitrile (2)

In a first test a solution of 1 in DMF (1 ml, 5 × 10⁻² M) was mixed with a solution of Cu(ClO₄)₂·6H₂O also in DMF (1 ml, 5 × 10⁻² M) and to it a KOH solution (8 ml, 0.1 M) was added. After 1 h the Cu²⁺ complex was destroyed with KCN (5 ml, 0.1 M) and the aqueous phase extracted with CH₂Cl₂. The organic phase was dried and chromatographed on a alumina 60 F₂₅₄ (type E) plastic foil using CHCl₃–petroleum ether–MeOH (9 ∶ 1 ∶ 0.5) as solvent. Beside a small spot of the starting compound (R_f = 0.88) the main spot on the chromatogram is the product 2 (R_f = 0.48).

Compound 1 (1.0 g, 3.26 mmol) and Cu(ClO₄)₂·6H₂O (1.24 g, 3.27 mmol) were dissolved in DMF (each 3 ml). The two solutions were mixed whereby a blue colour appeared, then NaOH (0.1 M, 10 ml) was added. The mixture was stirred at RT and after 1 h KCN (2.12 g, 32.6 mmol) dissolved in a little water was added, whereby a colour change was observed. The mixture was diluted with water (10 ml) and then extracted with CH₂Cl₂. The organic phase dried over Na₂SO₄ was evaporated and the residue taken up with petroleum ether and a few drops CH₂Cl₂. After filtration the product was precipitated by addition of more petroleum ether. The crude product was recrystallized from petroleum ether. Yield 61%. Mp. 84–86 °C (Found: C, 58.50; H, 10.02; N, 25.54; O, 6.15%. C₁₆H₃₂N₆O·0.25 H₂O (328.98) requires: C, 58.42; H, 9.96; N, 25.55; O, 6.08%). IR (KBr)/cm⁻¹: 2240 (CN), 1685, 1640 (CONH₂). ¹H NMR (CDCl₃): δ 1.60 (q, 2 CH₂CH₂CH₂), 2.15 (s, 2 NCH₃), 2.20–3.0 (m, 8 NCH₂CH₂), 3.05 (s, NCH₂CONH₂), 3.60 (s, NCH₂CN).

1,4-Dimethyl-8-(carbamoylmethyl)-11-aminoethyl-1,4,8,11-tetraazacyclotetradecane (3)

To 2 (1.0 g, 3.1 mmol) dissolved in abs. EtOH (30 ml), Raney-Ni and liquid NH₃ (about 30 ml) were added and the solution was hydrogenated in a Parr reactor at 60 atm during 70 h. After removing the ammonia, the mixture was filtered and evaporated. The oily residue was dissolved in a small quantity of HCl (0.1 M) and so much EtOH added that the hydrochloride precipitated. The product was recrystallized from EtOH–HCl. Yield 1.3 g, 59%. Mp. 226 °C (Found: C, 34.97; H, 8.36; N, 15.24; Cl, 32.16%. C₁₆H₄₁N₆OCl₅·2.2H₂O (550.44) requires: C, 34.91; H, 8.31; N, 15.26; Cl, 32.20%). IR (KBr)/cm⁻¹: 1700, 1630 (CONH₂). ¹H NMR (D₂O): δ 2.1 (q, 2 CH₂CH₂CH₂), 3.0 (s, 2 NCH₃), 3.10–3.90 (m, 10 NCH₂CH₂), 4.0 (s, NCH₂CONH₂).

1,8-Dimethyl-4-(carbamoylmethyl)-1,4,8,11-tetraazacyclotetradecane-11-acetonitrile (5)

The ligand was prepared in analogy to 2 starting from 4. Yield 0.45 g, 43%. Mp. 122–113.5 °C. MS (FAB): 326 (M⁺ + 2), 325 (M⁺ + 1), 324 (M⁺) (Found: C, 59.16; H, 10.19; N, 25.80%. C₁₆H₃₂N₆O (324.47) requires: C, 59.23; H, 9.94; N, 25.90%). ¹H NMR (CDCl₃): δ 1.58, 1.63 (q, 2 CH₂CH₂CH₂), 2.14, 2.19 (s, 2 NCH₃), 2.3–2.7 (m, 8 NCH₂CH₂), 3.05 (s, NCH₂CONH₂), 3.60 (s, NCH₂CN); ¹³C NMR (CDCl₃): δ 24.91, 25.26 (CH₂CH₂CH₂), 41.60 (NCH₂), 42.30, 42.88 (NCH₃), 50.68, 51.11, 52.66, 53.42, 53.61, 53.80, 55.05, 56.58, 58.40 (NCH₂CH₂), 114.81 (NCH₂CN), 175.89 (NCH₂CONH₂); IR (KBr)/cm⁻¹: 2226 (CN), 1676, 1611 (CONH₂).

[1,8-Dimethyl-4-(carbamoylmethyl)-1,4,8,11-tetraazacyclotetradecane-11-acetonitrile]copper(II) diperchlorate, Cu(5)(ClO₄)₂

To 4 (0.1 g, 0.33 mmol) suspended in water (5 ml) a solution of Cu(ClO₄)₂·6H₂O (0.12 g, 0.32 mmol) in water (10 ml) was added. The mixture turned blue and 4 went into solution by complexation with Cu²⁺. The solution was left at pH 6–7 for a few days during which cubic crystals formed. Yield 0.02 g, 10%. IR (KBr)/cm⁻¹: 3602, 3382, 2256 (CN), 1678, 1617 (CONH₂), 1102 (ClO₄⁻) (Found: C, 33.43; H, 5.51; N, 14.92; Cu, 10.95; Cl, 11.85%. C₁₆H₃₂N₆O·0.96Cu(ClO₄)₂ (576.42) requires: C, 33.34; H, 5.60; N, 14.58; Cu, 10.58; Cl, 11.81%).

[1,8-Dimethyl-4-(carbamoylethyl)-1,4,8,11-tetraazacyclotetradecane-11-propionitrile]copper(II) diperchlorate, Cu(7)(ClO₄)₂

Compound 6 (0.66 g, 1.97 mmol) and Cu(ClO₄)₂·6H₂O (0.74 g, 1.96 mmol) were dissolved in DMF (each 2 ml) and mixed to give a deep blue solution. To it NaOH (0.1 M, 15 ml) was added. The reaction mixture was stirred for 2 h, then the blue precipitate was filtered and dried at high vacuum. Yield 0.6 g, 50%. IR (KBr)/cm⁻¹: 2256 (CN), 1663, 1602 (CONH₂), 1098 (ClO₄⁻) (Found: C, 35.14; H, 5.90; N, 13.47; Cu, 10.40; Cl, 11.28%. C₁₈H₃₆N₆O·Cu(ClO₄)₂ (614.97) requires: C 35.16; H 5.90; N 13.67; Cu, 10.33; Cl, 11.53%).

Copper(II) complexes of 1,4-dimethyl-8-(carbamoylmethyl)-11-aminoethyl-1,4,8,11-tetraazacyclotetradecane

(a) [Cu(3)]₂(ClO₄)_2.5Cl_3.5·C₂H₅OH·0.75H₂O. To the pentahydrochloride salt of 3 (111 mg, 0.2 mmol) dissolved in water (5 ml) Cu(ClO₄)₂·6H₂O (74.1 mg, 0.2 mmol) was added, whereby the solution turned to blue. The pH was adjusted to ∼5 with NaOH (0.4 M). The solutions was first left at RT for 1 day and then put in a desiccator over EtOH to yield deep blue crystals, which were suitable for X-ray analysis. IR (KBr)/cm⁻¹: 2585, 2746 (NH⁺), 1666, 1604 (CONH₂), 1072 (ClO₄⁻).

(b) Cu(3)(ClO₄)₂·H₂O. The pentahydrochloride salt of 3 (111 mg, 0.2 mmol) was dissolved in water (5 ml) and changed to the free base by running it over the basic form of a Dowex-2 ion exchanger (4×8). Cu(ClO₄)₂·6H₂O (74.1 mg, 0.2 mmol) was added, whereby the solution turned blue. The pH was adjusted to ∼9 with NaOH (0.4 M). The solution was left at RT for 1 day to afford blue crystals suitable for X-ray analysis. IR (KBr)/cm⁻¹: 1681, 1612 (CONH₂), 1064 (ClO₄⁻).

Measurements

Spectrophotometric pH-titrations. These were run on the fully automated titration set up,¹³ consisting of a Philips PU8800 spectrophotometer equipped with a thermostatted (25 °C) 1 cm cell with magnetic stirrer and a micro pH-electrode (Metrohm), a pH-meter (Metrohm 605), a dosimat (Metrohm 665), and a PC 286-AT. For the titrations 2.5 ml of an acidified (pH 3) solution of the Cu²⁺ complex of 3 (1.24.10⁻³ M) with I = 0.5 M (KNO₃) were titrated with NaOH (0.1 M, I = 0.5) so that the pH range 5–12 was covered. The titrations were calculated with the program SPECFIT.¹⁴

X-Ray diffraction. The crystal data and parameters for the structure determinations of the four compounds are given in Table 1. The crystals were mounted on the diffractometer at 173 K applying the oildrop-method. Data were collected at 173 K on a Bruker-Nonius KappaCCD area detector using Mo-Kα radiation (λ = 0.71073 Å). The usual corrections were applied. The structures were solved using the program SIR92.¹⁵ Anisotropic refinement on all non-hydrogen atoms was carried out using the program CRYSTALS.¹⁶ All hydrogen atoms bonded to carbon atoms are in calculated positions. Hydrogen atoms bonded to nitrogen atoms were localized in the difference map and refined isotropically. In the structure Cu(3)(ClO₄)₂·H₂O (obtained at pH = 9), all hydrogen atoms are in calculated positions. Scattering factors were taken from the International Tables (Vol. IV table 2.2B). The plots were created using ORTEP-3 for Windows.¹⁷ The structure of [Cu(3)]₂(ClO₄)_2.5Cl_3.5·C₂H₅OH·0.75H₂O shows disorder in counterions and solvent molecules. Treatment of disorder has been done using standard methods. The structure of Cu(7)(ClO₄)₂ is twinned by a centre of inversion and has been refined using the Flack enantiopole parameter.

Table 1 Crystal data and parameters of data collection for Cu(5)²⁺, Cu(7)²⁺ and Cu(3)²⁺ (at pH = 9 and pH = 5)

	Cu(5)(ClO4)2·H2O	Cu(7)(ClO4)2	Cu(3)(ClO4)2·H2O	[Cu(3)]2(ClO4)2.5Cl3.5·C2H5OH·0.75H2O
Formula	C16H34Cl2CuN6O10	C18H36Cl2CuN6O9	C16H38Cl2CuN6O10	C34H81.5Cl6Cu2N12O13.75
M	604.93	614.97	608.96	1217.40
Crystal system	Monoclinic	Orthorhombic	Triclinic	Monoclinic
Space group	P21/c	P212121	P1̄	P21/n
a/Å	12.6801(8)	9.4996(11)	13.2769(3)	21.4405(2)
b/Å	12.7062(14)	12.3999(15)	16.8427(3)	9.6080(1)
c/Å	15.2062(12)	21.391(2)	19.9307(4)	26.1887(3)
α/°	90	90	105.1318(11)	90
β/°	92.868(6)	90	94.3250(9)	92.7027(7)
γ/°	90	90	112.9723(11)	90
Z	4	4	6	4
V/Å^3	2446.9(4)	2519.7(5)	3881.53(4)	5388.9(1)
D c/kg dm^−3	1.642	1.621	1.558	1.499
T/K	173	173	173	173
µ/cm^−1	1.174	1.139	1.111	1.154
F(000)	1260	1284	1902	2548
No. of measured refl.	95325	13644	32488	24391
No. of indep. refl	8492	4394	17659	12341
No. of refl. in ref.	5348	3319	9247	7210
No. of variables	378	326	973	704
Final R value	0.0287	0.0609	0.0538	0.0386
Final Rw value	0.0298	0.0631	0.0539	0.0304
R int	0.09	0.15	0.02	0.02

---

CCDC reference numbers 248566–248569.

See http://www.rsc.org/suppdata/dt/b4/b412857p/ for crystallographic data in CIF or other electronic format.

Kinetics. The kinetics of the hydrolysis reactions were studied using a stopped-flow Durrum D110 instrument with a 2 cm cell or a Hitech stopped-flow unit with a 1 cm cell equipped with a Zeiss MC512 photodiode array and a HP9133A computer at 25 °C and I = 0.5 M (KNO₃). The Cu²⁺ complexes were first prepared in DMF to give a 10⁻² M stock solution and then diluted with water to the desired concentration (4.6 × 10⁻⁴–4.8 × 10⁻³ M) at pH 6 and I = 0.5 M (KNO₃). They were mixed in the stopped-flow instrument with buffer solutions (0.2 M tert-butylaminoethanol, or 2,6-dimethylpyridine, or N-methylmorpholine) or KOH to reach pH values between 5 and 13, at which the hydrolysis and the protonation or deprotonation of the amide group could be followed. Whereas with the Zeiss MCS 512 spectrometer spectra between 350 and 775 nm could be registered, in the case of the Durrum instrument we had to work at single wavelengths: 640 nm for Cu(4) and 620 nm or 780 nm for Cu(1). The single wavelength experiments were fitted either with one or two exponentials, whereas those of the Zeiss instrument were calculated with KINFIT.¹⁸ The obtained k-values are mean values of at least five experiments. The pH dependences were fitted using the non-linear least-squares program Microcal Origin 6.0.¹⁹

Results and discussion

Synthetic and structural aspects of the mononitrile monoamide derivatives

If the Cu²⁺ complexes of the ligands 1, 4, and 6 incorporating two nitrile groups are made alkaline, hydrolysis to the amide occurs, as already observed with analogous mononitrile derivatives.⁹ The central question is whether both nitrile groups would be hydrolysed to the diamide, or whether only one would react. To check this, the Cu²⁺ complex of 1 was mixed under conditions typical for the kinetic measurements with 0.1 M KOH, then treated with KCN to destroy the Cu²⁺ complex of the product, and finally extracted with CH₂Cl₂. The TLC-chromatogram of the CH₂Cl₂ extract was run together with the dinitrile starting compound (1). The result was that beside a little spot of the unreacted starting compound the reaction solution contained only the monoamide mononitrile 2.

Similar results were obtained when we run reactions for the Cu²⁺ complexes of 1, 4, and 6 on a preparative scale. The isolated products were always the monoamide mononitriles (Scheme 1). In addition, if one does not destroy the Cu²⁺ complex with KCN, crystals of good quality for an X-ray diffraction study were obtained for the complexes Cu(5)²⁺ and Cu(7)²⁺.

Scheme 1

The Cu²⁺ complex of the mononitrile monoamide 5 has the expected structure for a tetra-N-substituted 1,4,8,11-tetraazacyclotetradecane derivative. The macrocycle is in the trans-I configuration,²⁰ in which all four N-substituents are pointing to one side of the N₄ plane (Fig. 1) and the Cu²⁺ ion is coordinated by the four nitrogens of the macrocycle and the carbonyl oxygen of the amide group in the side chain. The exact geometry around the Cu²⁺ is either distorted trigonal bipyramidal or distorted square pyramidal, the N₁–Cu–N₃ and N₂–Cu–N₄ angles being 175.9 and 156.4°, respectively. Cu–N bond lengths are in the normal range (2.03–2.07 Å), whereas the bond length Cu–O (carbonyl) is, at 2.17 Å, somewhat longer than the Cu–N bonds. The side chain with the nitrile group points away from and does not interact with the metal centre. However, it is involved in a hydrogen bond to the NH₂-group of the amide of a second molecule, which itself forms an additional hydrogen bond to a water molecule. The net of hydrogen bonds goes even further since the water molecule is also hydrogen bonded to two perchlorates, one of which is disordered. Thus in the crystals a dimeric structure results (Fig. 2), which, however, dissociates in solution into monomers.

Fig. 1 ORTEP plot of the Cu²⁺ complex with 5. Typical bond lengths (Å): Cu–N(1) 2.063(1), Cu–N(2) 2.063(1), Cu–N(3) 2.078(1), Cu–N(4) 2.033(1), Cu–O(1) 2.174(1). Typical angles (°): N(2)–Cu–N(4) 157.07(6), N(1)–Cu–N(3) 175.58(5), N(1)–Cu–O(1) 79.37(5), N(2)–Cu–O(1) 98.10(5), O(1)–Cu–N(3) 96.37(5), O(1)–Cu–N(4) 104.61(6).

Fig. 2 H-Bond net in the structure of the Cu²⁺ complex with 5. Typical bond lengths (Å): nitrileN(6)⋯amideH(2) 2.176, amideH(1)⋯waterO(2) 1.997, waterH(4)⋯perchlorateO(5) 1.978, waterH(3)⋯perchlorateO(7) (O(17)) 2.157 (2.042).

The structure of Cu(7)²⁺ (Fig. 3) closely resembles that of Cu(5)²⁺. The macrocycle is in the trans-I configuration, the Cu²⁺, coordinated by the four nitrogens of the macrocycle (Cu–N 2.05–2.14 Å) and the carbonyl oxygen of the amide group (Cu–O 2.14 Å), has a distorted trigonal bipyramidal or square pyramidal structure with angles of 178 and 153° for N(1)–Cu–N(3) and N(2)–Cu–N(4), respectively. Again the nitrile group points away and is not involved in the coordination of the metal ion, but does not form any hydrogen bonds.

Fig. 3 ORTEP plot of the Cu²⁺ complex with 7. Typical bond lengths (Å): Cu–N(1) 2.105(6), Cu–N(2) 2.066(6), Cu–N(3) 2.143(6), Cu–N(4) 2.046(6), Cu–O(1) 2.143(5). Typical angles (°): N(1)–Cu–N(3) 178.1(2), N(2)–Cu–N(4) 153.1(2), O(1)–Cu–N(1) 89.3(2), O(1)–Cu–N(2) 105.0(2), O(1)–Cu–N(3) 89.3(2), O(1)–Cu–N(4) 101.9(2).

Kinetics of the hydrolysis of the dinitrile derivatives

The kinetics of the hydrolysis reaction of the Cu²⁺ complexes with the dinitriles 1 and 4 in alkaline solution can be fitted with one or two exponentials depending on the wavelength at which the reaction is followed. In general the first and faster step has a relatively small amplitude, whereas the second and slower step exhibits a large amplitude. In this the dinitriles resemble the mononitriles described previously.⁹ The first step (k_1,obs) is the hydrolysis of the nitrile group to the amide and the second step (k_2,obs) is the typical change of the O- to the N-coordination of the amide group, which takes place at alkaline pH.

The pH dependences of log k_1,obs are linear below pH = 12 and show a plateau at higher pH values, indicating that a maximal rate is then reached (Fig. 4). In order to explain these observations we propose Scheme 2.

Fig. 4 pH Dependences of the nitrile hydrolysis (log k_1,obs) for the Cu²⁺ complexes with 1(■ experimental points, — curve calculated with the values of Table 2) and 4 (▲ experimental points, — curve calculated with the values of Table 2).

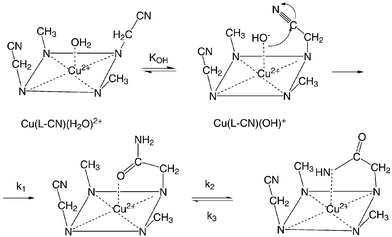

Scheme 2

The starting complexes Cu(L–CN)(H₂O)²⁺ are five coordinated species, as indicated by their typical spectra with λ_max = 647 and 640 nm for L = 1 and for L = 4, respectively, and are in a fast equilibrium with the hydroxo species Cu(L–CN)(OH)⁺, in which the OH⁻ group is bound in the axial position. If we assume that Cu(L–CN)(OH)⁺ is the reactive species we obtain for the rate expression eqn. (1),

k_{1, obs} = k₁K_OH[OH⁻]/(1 + K_OH[OH⁻]) (1)

in which K_OH describes the equilibrium with OH⁻ and k₁ is the rate constant of the hydrolysis. The pH dependences, shown in Fig. 4, were fitted with eqn. (1) and the results are given in Table 2.

Table 2 Rate and equilibrium constants for the Cu²⁺ induced nitrile hydrolysis of 1, 4 and 8 at 25 °C and I = 0.5 M (KNO₃).

Cu^2+ complex with	k 1/s^−1	K OH/M^−1
a Ref. 9.
1	23(1)	1.3(1) × 10^2
4	68(3)	5.1(2) × 10
8 ^a	13(1)	1.0(1) × 10^2

---

The fast hydrolysis reaction in the two complexes Cu(L–CN)(OH)⁺ with half-life times of 10–30 ms at pH = 11 results from the very favourable topology of the reactive species (Scheme 2), in which in a five-membered transition state the coordinated OH⁻ group attacks as a nucleophile the nitrile function of the side chain. The role of the metal ion is to organize and orient the reactants so that they are in close vicinity to each other and so that a very effective nucleophilic attack can take place.

The second step (k_2,obs) is the deprotonation of the amide group and its interconversion from the O- to the N-coordinated form. The rate constants are pH dependent as expected for such amide deprotonation reactions (Fig. 5) and can be fitted by eqn. (2), where k₀ describes the pH independent (eqn. (3)) and k₂ the OH⁻ dependent (eqn. (4)) term. The results of the fitting are given in Table 3.

k_2,obs = k₀ + k₂[OH⁻] (2)

Table 3 Rate constants for the O- to N-interconversion of the amide group after the hydrolysis of the Cu²⁺ complexes with 1, 4 and 8 at 25 °C and I = 0.5 M (KNO₃)

Cu^2+ complex with	k 0/s^−1	k 2/M^−1 s^−1	k 3/M^−1 s^−1
a Ref. 9.
1	8.1(4) × 10^−3	1.3(1) × 10^−12	4.8(5) × 10^4
4	2.6(1) × 10^−2	7.1(1) × 10^−13
8 ^a	4.5 × 10^−2	1.1 × 10^−12	4.2 × 10^5

---

Fig. 5 pH dependences of the O- to N-interconversion of the amide group (log k_2,obs) for the Cu²⁺ complex with 2 (▲ experimental points starting from 1, ■ experimental points starting from 2, — curve calculated with the values of Table 3) and 5 (◆ experimental points, — curve calculated with the values of Table 3).

In the case of the Cu²⁺ complex with 1 we have also studied the O- to N-interconversion starting from the monoamide mononitrile 2 and have obtained the same results as from the hydrolysis experiments of the dinitrile (Fig. 5). In addition also the kinetics of the protonation (k₃) of the Cu(L–CONH)⁺ species described by eqn. (5) was determined.

This is an additional proof for the identification of the second step observed during the hydrolysis of the nitrile. It is this second step, which is of paramount importance for the selective hydrolysis of only one of the two nitrile groups. In fact the amide group binds in its deprotonated form to the axial position of the Cu²⁺ and thus prevents the formation of a new hydroxo complex, which could react with the second nitrile group. In the language of enzymology we would speak of product inhibition.

Cu²⁺Complexes with the monoamide monoamine derivative 3

Based on the results of the kinetics of the Cu²⁺ induced nitrile hydrolysis we have used this selective reaction for synthetic applications to give the mononitrile monoamide derivatives either as Cu²⁺ complexes or as free ligands (Scheme 1). Generally the syntheses of macrocycles with two different side chains are rather difficult and require selective protection and deprotection with two orthogonal protecting groups. In our case the reaction is simple and selective because of the dual role of the Cu²⁺ ion, which on one hand activates the hydrolysis according to the mechanism described above, and on the other binds the so formed amide in its deprotonated form, thus inhibiting the further hydrolysis of the second nitrile.

Such new products can be used for the preparation of additional disubstituted derivatives since the nitrile group can, for example, be reduced to an amine. In the case of 2 this gives the difunctionalized derivative 3 with an interesting complexation potential. Ligand 3 reacts with Cu²⁺ to give a 1 ∶ 1 species, which depending on the pH, shows different spectral properties. To quantitatively study the effect of pH on the spectra we have run spectrophotometric pH-titrations of the Cu²⁺ complex starting from pH ∼ 5, at which the complex is fully formed. Increasing the pH shifts the absorption maximum first from 633 nm to 663 nm, then to 774 nm (Fig. 6). The first change is associated with a protonation constant log K_H,1 = 7.85(1), whereas the second one has log K_H,2 = 10.98(2) as obtained by fitting the experimental data with the two reactions described by eqns. (6) and (7) with L = 3.

CuLH³⁺ ⇋ CuL²⁺ + H⁺; K_H,1 (6)

CuL²⁺ ⇋ CuLH₋₁⁺ + H⁺; K_H,2 (7)

Fig. 6 Spectrophotometric pH titration of the Cu²⁺ complex with 3 at 25 °C and I = 0.5 M (KNO₃). [CuL²⁺] = 2.40 × 10⁻³ M; (top) original data; (bottom) absorbance as a function of pH at (a) λ = 560 nm, (b) λ = 740 nm and (c) λ = 810 nm. The curves were calculated using the two equilibria described by eqns. (6) and (7) and show the quality of the fitting.

The pH dependent spectral changes in the Cu²⁺ complex with 3 can be understood by assuming that the side chains of the ligand interact with the axial position of the Cu²⁺ coordinated by the macrocycle (Scheme 3). In acidic solution the amino group is protonated so that only the amide group can interact with its carbonyl oxygen. Increasing the pH deprotonates the ammonium group to an amine, which being a better donor displaces the amide and binds in the axial position. The shift from 633 to 663 nm is an indication that a stronger donor binds in the axial position. A comparison with the Cu²⁺ complex of 1,4,8-trimethyl-11-(2-aminoethyl)-1,4,8,11-tetraazacyclotetradecane, in which a shift from 640 to 684 nm is observed,²¹ when the amino group axially coordinates, shows that a similar reaction also takes place in the Cu²⁺ complex with 3. Further increase of the pH allows to deprotonate and coordinate the amide group through the nitrogen. Again a shift to longer wavelength is a clear indication that an even stronger donor axially interacts with Cu²⁺ and replaces the amino group. The spectral properties can be compared to those of the Cu²⁺ complex with 1,4,8-trimethyl-11-carbamoylmethyl-1,4,8,11-tetraazacyclotetradecane with λ_max = 735 nm.²¹ The equilibria in solution and the structures of the species involved in them are additionally confirmed by the following X-ray diffraction studies.

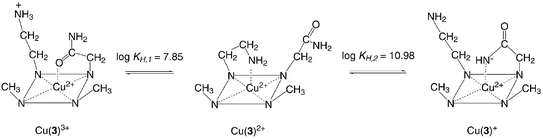

Scheme 3

The structure of the Cu²⁺ complex with 3, which was crystallized at pH ∼ 5, consists of two Cu(3)³⁺ cations of very similar geometry, of 3.5 Cl⁻, and 2.5 ClO₄⁻ ions per unit cell. In the two cations the Cu²⁺ is pentacoordinated by the four nitrogens of the macrocycle and the carbonyl oxygen of the amide group (Fig. 7). The amino group of the second side chain is protonated and cannot interact with the metal ion. Cu–N and Cu–O bond lengths are in the normal range and comparable to those of other Cu²⁺ complexes described in this paper. The macrocycle is as expected in the trans-I conformation.

Fig. 7 ORTEP plot one of the two species of the unit cell of the Cu²⁺ complex with 3 crystallized at pH 5. Typical bond lengths (Å): Cu(1)–N(1) 2.081(3), Cu(1)–N(2) 2.106(3), Cu(1)–N(3) 2.049(3), Cu(1)–N(4) 2.076(3), Cu(1)–O(1) 2.191(2). Typical angles (°): N(1)–Cu(1)–N(3) 178.11(12), N(2)–Cu(1)–N(4) 153.58(11), O(1)–Cu(1)–N(1) 79.5(1), O(1)–Cu(1)–N(2) 101.1(1), N(3)–Cu(1)–O(1) 98.72(11), N(4)–Cu(1)–O(1) 104.77(10).

When the same complex is crystallized at pH ∼ 9 a new species with a pentacoordinate Cu²⁺ (three per unit cell) is found. The difference to the previous structure is that now the amino group of the side chain is coordinated to the metal ion and has replaced the carbonyl oxygen of the amide (Fig. 8). Bond lengths Cu–N are in the normal range (2.07–2.12 Å), with a somewhat longer Cu–N bond (2.18–2.21 Å) for the amino group in the side chain. The macrocycle is in the trans-I configuration.²⁰ The amide group is pointing away from the metal ion and is not involved in a coordinative bond.

Fig. 8 ORTEP plot of one of the three species of the unit cell the Cu²⁺ complex with 3 crystallized at pH 9. Typical bond lengths (Å): Cu(1)–N(1) 2.084(3), Cu(1)–N(2) 2.138(3), Cu(1)–N(3) 2.076(4), Cu(1)–N(4) 2.110(3), Cu(1)–N(5) 2.214(4). Typical angles (°): N(1)–Cu(1)–N(3) 177.18(15), N(2)–Cu(1)–N(4) 147.32(14), N(1)–Cu(1)–N(5) 82.33(14), N(2)–Cu(1)–N(5) 109.37(14), N(3)–Cu(1)–N(5) 100.49(14), N(4)–Cu(1)–N(5) 102.94(14).

Conclusions

The selective hydrolysis of only one nitrile group in the dinitrile derivatives 1, 4 and 6 is possible in the corresponding Cu²⁺ complexes, since on one hand the Cu²⁺ ion can axially coordinate an OH⁻ group, which as a nucleophile can attack the nitrile group and on the other can bind the deprotonated amide group which is the end product. Through coordination of the amide nitrogen the hydrolysis of the second nitrile group is inhibited so that the monoamide mononitrile becomes the end product of the reaction. In this case the synthesis of macrocycles with two different side chains is an easy process with no necessity of protection and deprotection steps at all. In addition the monoamide mononitrile derivatives are valuable intermediates for further modification of the side chain. An example of this is given through the reduction of the nitrile group to an amine. Such difunctionalized macrocycles are interesting ligands, since depending on the pH, one or the other group is coordinated. This allows to modify the properties of the metal ion by controlling the pH of the solution.
