Nanoscale Borromean links for real

Abstract

Borohydride reduction of a Borromean Ring (BR) complex containing six zinc(II) ions and 12 imine bonds has resulted in its demetallation, producing a neutral BR compound and also its free macrocycle, following cleavage of at least one of the imine bonds in the ethanolic reaction mixture.

---

The synthesis of topologically distinctive molecular compounds,¹ which has taxed the intellects and tested the dexterity of chemists for some time now, has led to the emergence recently^2,3 of nanoscale Borromean Rings (BRs) in addition to the much more common molecular catenanes and knots.⁴ The production of the nanoscale BRs has been accomplished using an approach in which a collection of molecular recognition elements, including six metal–ligand coordination sites and six donor–acceptor–donor interactive units, act in unison with supreme efficiency.

The template-directed synthesis⁵ of the nanoscale BRs (Fig. 1a,b) relies upon (i) the dynamic covalent chemistry⁶ associated with the formation of 12 imine bonds⁷ from six 2,6-diformylpyridine molecules and six diaminobipyridine ligands, (ii) the dynamic coordination chemistry⁸ involving six exo-oriented bipyridine ligands and six endo-oriented tridentate bis-Schiff bases in the formation of 30 dative bonds and (iii) the dynamic supramolecular chemistry⁹ surrounding the stabilisation afforded by 12 donor–acceptor interactions between pairs of para-disubstituted phenolic residues and 2,2′-bipyridine ligands chelated to six zinc(II) ions. Even when the nanoscale BRs have reached molecular fruition, there is still the opportunity for them to exchange their 2,6-diformylpyridine components under the appropriate conditions. Although we have recognised¹⁰ this scrambling ability, following experiments where the pyridine diimine precursors are labelled with chlorine and bromine atoms in their 4-positions, we believe the overall structural integrity of the molecules is largely maintained during the exchange process. Bearing in mind that one of the fundamental properties of the Borromean link topology is the fact that, as soon as one of the three rings is severed, the other two rings part company, no evidence was found at all in the scrambling experiments¹⁰ for this level of disassembly. It is clear that, in order to produce real Borromean links (Fig. 1c) on a molecular scale from the BR compounds already described in the literature,^2,10 we have to achieve two goals simultaneously – one is to remove all six zinc(II) ions from the molecule and the other is to reduce all 12 imine bonds in the molecules to secondary amine functions. In this communication, we report the realisation of the fully demetallated‡ molecular Borromean links, and also provide a chemical proof§ of their structure, i.e., when one of the three rings is cleaved, the other two can fall apart (Scheme 1).

Fig. 1 (a) Crystal structure of the BR complex 1. Graphical representations of (b) the Zn(II)-containing complex 1 and (c) the metal-free BR compound 2. The red, blue and green macrocycles have identical constitutions. The thinner regions of the tubular rings in (b) represent the dynamic imine bonds present in 1.

Scheme 1 Graphical representation of the cleavage of one of the macrocycles (blue) during the borohydride reduction reaction of 1 resulting in the disassembly of the BRs to produce two macrocycles, which fall apart spontaneously to give 3 and a linear component 4.

The production of the demetallated BRs 2 was accomplished (Scheme 2; Conditions A) by treating a 1.4 mM ethanolic solution of 1 with an excess of NaBH₄ at 22 °C in an inert atmosphere. After stirring the solution at this temperature for 5 days, the reaction mixture was quenched with H₂O, followed by the addition of an excess of EDTA in order to remove the Zn(II) ions. After work-up of the reaction and isolation of the product (see Electronic Supplementary Information†), characterisation was achieved by high resolution electrospray ionisation (HR-ESI) mass spectrometry and ¹H NMR spectroscopy. A preliminary ¹H NMR spectroscopic investigation in CD₃SOCD₃ of the crude product isolated from the reaction mixture revealed (Fig. 2b) the absence of the peak for imine protons which were present (Fig. 2a) as a singlet (δ = 9.02 ppm) in the ¹H NMR spectrum of 1. Analysis of the spectrum (Fig. 2b) revealed, however, that there were two sets of seven resonances, indicating that more than one highly symmetrical product had been formed¶ during the borohydride reduction. Although the corresponding peaks in each of the two sets displayed the same coupling constants, one set of peaks was shifted slightly upfield with respect to the other set. By comparing the ¹H NMR spectra shown in Figs. 2a and 2b, one of the products of the reaction can be assigned to one set of seven signals centred on δ = 6.36 (H-g), 6.59/7.01 (H-e/f), 7.21 (H-b), 7.46 (H-i), 7.62 (H-a) and 7.89 (H-h) ppm, while the other product can be associated with another set of seven signals centred on δ = 6.87 (H-g′), 7.04/7.41 (H-e′/f′), 7.32 (H-b′), 7.64 (H-i′), 7.74 (H-a′) and 8.34 (H-h′) ppm. In a second demetallation in which a 1.0 mM ethanolic solution of 1 was heated with an excess of NaBH₄ at 80 °C for 16 h in an inert atmosphere (Scheme 2; Conditions B), the ¹H NMR spectrum, which was recorded after work-up of the reaction, revealed (Fig. 2c) the presence of only one of the two sets of seven signals – namely, the downfield set – identified in the product of the first demetallation.

Fig. 2 Partial ¹H NMR spectra (600 MHz) recorded in CD₃SOCD₃ of (a) the BR complex 1 and the contents of reaction mixtures containing (b) the fully reduced, demetallated BR compound 2 plus free macrocycle 3 and (c) the free macrocycle 3.

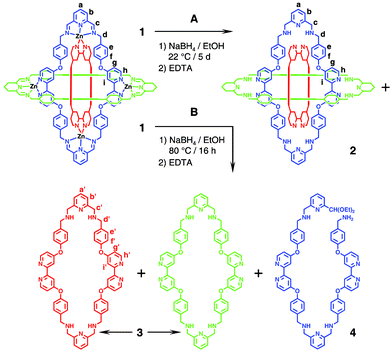

Scheme 2 Schematic representation of 1 and 2, in which only the blue ring depicts all of the atoms and bonds present in the macrocycles that make up the BR structure. Reduction of the imine bonds in 1 followed by demetallation of the BR complex in an ethanolic solution (A) at 22 °C, produces the demetallated BR 2 along with 3 and 4, and (B) at 80 °C, only the macrocycle 3 and linear fragment 4.

Further investigation by HR-ESI mass spectrometry helped to reveal the identity of the two products: addition of one drop of TFA to the first reaction mixture (Conditions A), prior to recording its HR-ESI-MS, revealed (Fig. 3a) the presence of three major peaks at m/z of 1505.6834, 1004.1120, and 753.3363, corresponding to [M + 2H]²⁺, [M + 3H]³⁺ and [M + 4H]⁴⁺ respectively, an observation which is consistent with the product being the fully reduced, completely demetallated BRs, i.e., 2. The HR-ESI-MS of the product from the second demetallation (Conditions B), treated likewise with a drop of TFA, revealed (Fig. 3b) one major singly-charged peak for [M + H]⁺ at 1003.4418, an m/z value which correlates exactly with the mass of only one ring fully reduced, viz., 3, for which the calculated [M + H]⁺ is 1003.4402, in keeping with the molecular formula, C₆₂H₅₄N₁₀O₄. The result indicates that, in the second demetallation, where the borohydride reduction was carried out at an elevated temperature (80 °C), the three rings have indeed fallen apart during the reaction. We suggest that, under basic conditions, the imines can react with trace amounts of ethoxide ions to form a tetrahedral O-ethyl hemiaminal intermediate that produces, after work-up of the reaction, the free aldehyde from the hydrated one or the diethyl acetal 4.|| The result of the irreversible scission of one of the rings allows, once the demetallation reaches completion, the other two rings to fall apart and hence to be isolated as their fully reduced derivatives, i.e., 3, along with a linear fragment which we suggest could be the diethyl acetal 4. There is evidence from the HR-ESI-MS of the TFA-treated ethanolic solution of the reaction mixture for the presence of the linear fragment containing the diethyl acetal 4 (see Electronic Supplementary Information†). A singly charged peak with a m/z of 1093.5147 for [M + H]⁺ equates with a calculated [M + H]⁺ of 1093.5083 for M = C₆₆H₆₄N₁₀O₆. Although it is possible that other linear fragments are formed during the borohydride reduction, there is no evidence for them in the mass spectrum.

Fig. 3 HR-ESI-MS of reaction mixtures (a) A in methanol plus TFA showing the presence of peaks corresponding to the reduced BRs 2 and (b) B in ethanol plus TFA showing the presence of peaks corresponding to the macrocycle 3 and linear fragment 4.

The information obtained from mass spectrometry provides further insight into the ¹H NMR spectroscopic data (Fig. 2b) acquired from the first (Conditions A) of the two borohydride reductions performed on 1. It indicated the presence of two highly symmetrical products, namely the fully reduced, demetallated BRs 2 and the component macrocycle 3 in which all four imine bonds have been reduced to secondary amine functions. In Fig. 2b, we attribute (see Electronic Supplementary Information†) the upfield set of seven signals to 2 and the downfield set to 3. The fact that the resonances for 2 appear at higher field than those for 3 suggests that there are π–π stacking interactions present in the BR compound that are absent in its ring components when they become free from each other.

Aside from this piece of research providing the intellectually satisfying chemical proof§ for the Borromean link topology in 1, it has produced a real BR compound, minus its metal ion templates, where the three rings are genuinely mechanically interlocked according to the expected topology.
