Carbazole-fused calixarene cavities: single and mixed AIEgen systems for NO detection

Abstract

Novel oxygen-depleted calix[4]arenes containing fused carbazole moieties demonstrate AIEgen behavior in aqueous solutions. This phenomenon leads to highly sensitive detection of nitric-oxide guest molecules because it affects intra- and intermolecular energy transfer within aggregates.

---

Nitric oxide (NO) is an important gaseous signaling molecule.^1–3 Other diamagnetic members of this family can be conveniently detected by various fluorescent probes,^4–7 but direct fluorescent detection of the radical NO represents a significant challenge due to its rapid oxidation to form higher nitrogen oxides. In fact, this oxidation is commonly used to indirectly measure the concentration of NO gas in biological systems.⁸ Direct detection by transition metal-based fluorescent NO probes has also been reported, but selectivity issues and compatibility with biological media remain.^9–11 Rathore and colleagues, and later Rudkevich and co-workers, demonstrated that oxidized calix[4]arene (calixarene) scaffolds can trap the NO molecule within a hydrophobic cavity (1a, Fig. 1), accompanied by a color change,^12–15 thus becoming supramolecular colorimetric NO probes. Such trapping is accompanied by charge transfer from NO to the oxidized host to give a stable diamagnetic donor–acceptor complex.^15,16 We showed that conjugated 5,5′-bicalixarene hosts¹⁷ behave as fluorescent NO probes as they undergo blue fluorescence quenching by NO gas in organic solvents or in water, while insensitive to common gases (O₂, CO, CO₂) or ions (1b, Fig. 1).^18,19 Incorporating these scaffolds into conjugated polymers led to a molecular wire-type signal amplification.¹⁹ Attachment of fluorophores at the termini of the conjugated fragment (Ar groups in 1b) gave access to new fluorescent scaffolds operating at longer wavelengths.²⁰ However, using this approach to make water-soluble polymers emitting at longer wavelengths would add more steps to an already complex multistep synthesis. In addition, long wavelength-emitting poly(aryleneethynylenes) tended to exhibit diminished quantum yields in aqueous solutions.²¹

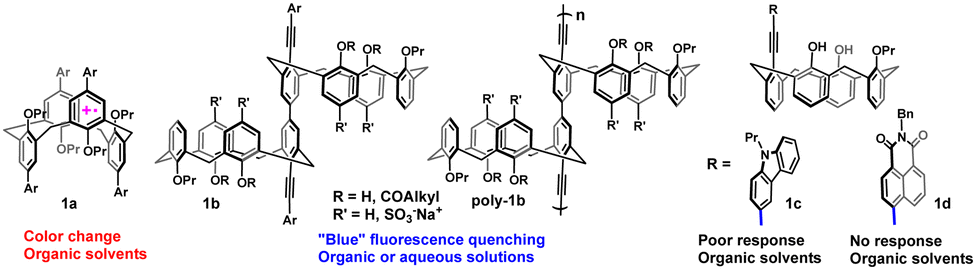

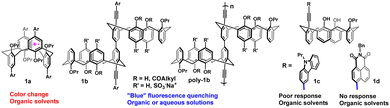

Fig. 1 Examples of calixarene hosts for the encapsulation and sensing of NO gas.

Thus, we decided to explore a different signal-amplification strategy for fluorescent supramolecular NO detection at longer wavelengths in aqueous media which was based on aggregation-induced emission (AIE).²² Recent studies have demonstrated the ability of guest intercalation to affect the luminescence properties of hosts exhibiting AIE.^23–26 However, despite a great deal of attention in AIE-based sensing, such molecular probes utilizing a three-dimensional host–guest sensing mechanism are undeveloped in general,²⁷ and for NO sensing, in particular.^28,29 Here, we present the first examples of such supramolecular AIE-based probes for NO detection in aqueous solutions (Fig. 2).

Fig. 2 New design of supramolecular AIE-based calixarene probes.

Considering the weak emission response of small mono-calixarene compounds in organic solvents (1c,d, Fig. 1), we hypothesized that their aggregation in aqueous solutions could effectively increase the overall conjugation and, as a result, increase sensitivity. After the initial screening, we found that a carbazole-containing calixarene host 1c behaves as an AIE luminogen (AIEgen), showing strong AIE changes from blue emission in pure DMF solution to cyan (λ_em 450 nm) in a 60% water–DMF mixture. To our chagrin, the new aggregates did not show significant fluorescence changes after NO gas was passed through the solution for 5 min, implying weak interactions of the guest with a single aromatic ring of a calixarene cavity (ESI,† Fig. S52). To facilitate a stronger response, we chose to imbed an electron-rich polycyclic aromatic fragment into the calixarene cavity. It has been reported that polycyclic aromatic compounds interact with NO gas,³⁰ but polycyclic conjugated calix[4]arenes are scarce and have not been employed in host–guest sensing.^31–37

The synthetic routes toward compounds 2a and b incorporating a fused carbazole-calixarene unit are shown in Scheme 1a. Importantly, the calixarene intermediate 7 showed fluorescence in organic solvents, but an AIE effect in aqueous solutions was not observed until the phenolic oxygen was replaced by another fluorophore (compounds 2).

Scheme 1 Synthesis of the calixarenes (a) 2a and 2b and (b) 3a and 3b.

Unlike 1c, which showed a moderate fluorescence response upon bubbling of NO gas in a dichloroethane (DCE) solution, a solution of 2a demonstrated nearly complete quenching in the same solvent.³⁸ More interestingly, when aggregated in an 80% water–DMF mixture, compound 2a exhibited strong fluorescence at longer wavelengths (λ_em = 495 nm). Contrary to 1c, upon the exposure to NO gas, aggregates of 2a demonstrated nearly complete fluorescence quenching (Fig. 3a). This observation provided evidence that the remote host–guest NO complexation had a pronounced effect on the fluorescent properties of the aggregates. In light of this encouraging fluorescence response, we decided to establish whether aggregates of 2a could be used in quantitative measurements of NO in aqueous solutions. To this end, we prepared stock solutions of a commercial NO source, diethylammonium (Z)-1-(N,N-diethylamino)diazen-1-ium-1,2-diolate (Et₂N–N(N=O)O-Et₂NH₂⁺, DEA NONOate, 10), and studied the fluorescence response of aggregates of 2a to NO generated in situ. Gratifyingly, these aggregates showed very strong fluorescence quenching even at concentrations of 10 as low as 15 μM, 1.5 equiv. relative to 2a (Fig. 3b), which is within the concentration range found in human blood.^39,40 A comparable sensitivity was observed previously for a conjugated polymer incorporating a water-soluble 5,5′-bicalixarene scaffold (poly-1b, Fig. 1).¹⁹ Thus, aggregation of 2a provided the fluorescence response to NO host–guest complexation on a par with the molecular wire-amplification mechanism, but at significantly longer wavelengths.

Fig. 3 Emission spectra of 2a (10 μM): (a) in an 80% H₂O–DMF solution before and after passing NO gas; (b) before and after addition of 10 in an 80% H₂O–DMF solution. Emission spectra of 2b (10 μM): (c) at different DMF:H₂O ratios; (d) before and after addition of 10 in an 80% H₂O–DMF solution.

A combination of an electron-rich cavity with an electron-poor conjugated fluorophore can lead to probes exhibiting intramolecular effects through transfer of bond energy.^41,42 5,5′-bicalixarene scaffolds containing a combination of donor–acceptor fluorophores have demonstrated a ratiometric response to NO gas in organic solvents.²⁰ Interestingly, while compounds 1d or 1b (Aryl = naphthalimide, Fig. 1)²⁰ did not show fluorescence quenching upon passing NO through their DCE solutions, the fluorescence intensity of a carbazole-fused calixarene 2b containing an electron-poor naphthalimide fluorophore decreased by ∼37% from the original value under identical conditions.³⁸ Similar to 2a, compound 2b gave aggregates in water–DMF mixtures (Fig. 3c). Upon exposure to NO, generated in situ from 1.5 equiv. of 10, these aggregates showed ∼33% of fluorescence quenching (Fig. 3d). This decrease in intensity was accompanied by a noticeable blue-shift of emission, indicating loss of donor–acceptor interaction between the electron-rich cavity and naphthalimide fluorophore. A carbazole or naphthalimide fluorescent moiety at the lower rim was essential to observe AIE in the carbazole-fused calixarenes 2a and b, so these flat fragments likely had a key role in aggregate formation.

However, the presence of a calixarene fragment was also crucial because an AIE effect was not observed for simple arylacetylene-substituted carbazole or naphthalimide compounds. Thus, we envisioned the formation of co-aggregates incorporating both, donor and acceptor, groups upon mixing of 2a and 2b in an 80% water-DMF. Such co-aggregates could exhibit strong donor–acceptor π-stacking and longer wavelength emission due to intermolecular energy transfer.⁴³ In the presence of NO, host–guest interactions between the guest and the cavity of a donor (2a) would lead to attenuation of such intermolecular energy transfer and emission shift to shorter wavelengths. Indeed, a 1 : 1 mixture of 2a and 2b in 80% water–DMF demonstrated the properties expected from strongly interacting donor–acceptor aggregates. In particular, excitation in the carbazole absorption region (345 nm) led to a weak emission signal from the carbazole fluorophore, whereas the naphthalimide signal became stronger at a slightly longer wavelength (560 nm vs. 550 nm in pure 2b aggregates, Fig. 4a and 3c). For comparison, the same excitation of a 1 : 1 mixture of 2a and 2b in pure DMF solution showed the expected two separate signals for the carbazole fluorophore and naphthalimide fluorophore.³⁸ These findings indicated intermolecular energy transfer between the donor (carbazole) and acceptor (naphthalimide) taking place upon aggregation. Importantly, the largest red-shift and highest fluorescence intensity was obtained when 2a and 2b were mixed in a 1 : 1 ratio (Fig. 4a) suggesting that ordered co-aggregate structures involving electron-donating and electron-accepting fluorophores were formed.⁴³ When these co-aggregates were mixed with 10, substantial fluorescence quenching (70% with 7.5 equiv. of 10) and blue-shift of the remaining fluorescence was observed (Fig. 4b). The residual fluorescence intensity was similar to that obtained from the partly quenched fluorescence of 2b aggregates in an 80% water–DMF mixture (cf.Fig. 3d). These data indicated that NO complexation fully quenched the fluorescence of the electron-rich 2a, thereby making it incapable of transferring energy to 2b in a co-aggregate, and also partially quenched the fluorescence from the electron-poor 2b (vide supra). To obtain further information on the energy-transfer process in calixarene AIE co-aggregates, we prepared calixarenes 3a and 3b, isomeric to 2a and 2b, respectively (Scheme 1b). The carbazole-fused calixarene scaffold in compounds 3 contained the heterocyclic nitrogen atom in the para-position to the lower-rim fluorophore, allowing more efficient conjugation with this donor group than in compounds 2. Because of that, the emission of 3b was red-shifted noticeably compared with that of 2b in organic solvents and a water–DMF mixture (e.g., 585 nm for 3bvs. 550 nm for 2b in 80% water-DMF). Stronger donor–acceptor interactions in 3b also make it more responsive to the presence of low quantities of NO. For example, addition of 1.5 equiv. of 10 in an 80% water–DMF mixture led to ∼70% quenching of fluorescence of the aggregate (Fig. 5a), whereas only ∼33% was quenched in the aggregates of 2b (Fig. 3c). Similar to the isomeric 2, an 80% water–DMF solution containing a 1 : 1 mixture of 3a and 3b gave co-aggregates with the strongest emission and red-shift than solutions prepared with the other ratios, indicating ordered structures. This co-aggregate showed emission at 585 nm, ∼25 nm red-shifted compared with the 1 : 1 co-aggregate of 2a and 2b. When the former was treated with a 15-μM solution of 10 (1.5 equiv.), nearly 60% fluorescence quenching was observed, with the remaining fluorescence signal undergoing a blue shift of 10 nm (Fig. 5b). In comparison, only 43% fluorescence quenching was observed for the co-aggregate of 2a and 2b under identical conditions. These results showed that, by tuning the donor–acceptor properties of the peripheral three-dimensional host, it was possible to further This tuning influenced the fluorescence properties of supramolecular aggregates. leading to more efficient utilization of intra- and intermolecular energy transfer. Incorporation of the NO guest within the cavity of 3a affected the intermolecular energy transfer between 3a and 3b in the co-aggregate, whereas additional NO complexation within the cavity of 3b further diminished the intramolecular energy transfer between the carbazole–calixarene cavity and naphthalimide fluorophore (Fig. 6a). Normalized emission spectra of the aggregates of 2a and b and 3a and b and their corresponding 1 : 1 mixtures demonstrated higher sensitivity of compounds 3 to NO, especially at low concentrations (Fig. 6b).

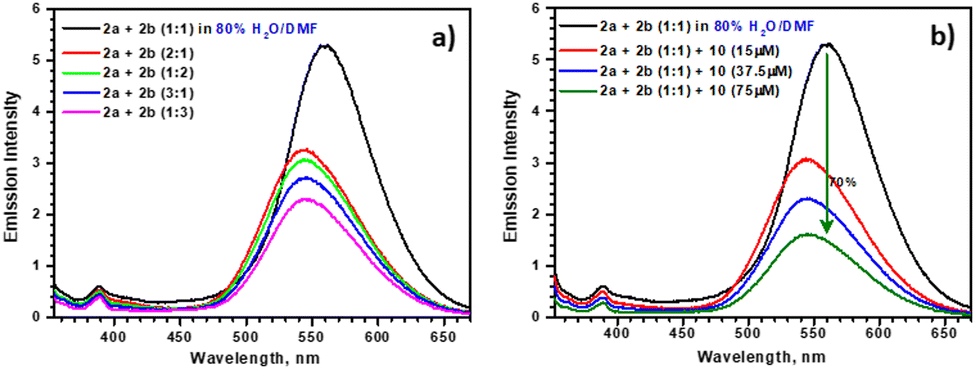

Fig. 4 (a) Emission spectra of 2a + 2b mixtures at different ratios in 80% H₂O–DMF (λ_ex 345 nm); (b) emission spectra of a 2a + 2b (1 : 1) mixture in 80% H₂O–DMF before and after addition of different concentrations of 10.

Fig. 5 (a) Emission spectra of 3b in 80% H₂O–DMF before and after addition of different concentrations of 10; (b) emission spectra of a 1 : 1 3a + 3b mixture in 80% H₂O–DMF before and after addition of different concentrations of 10.

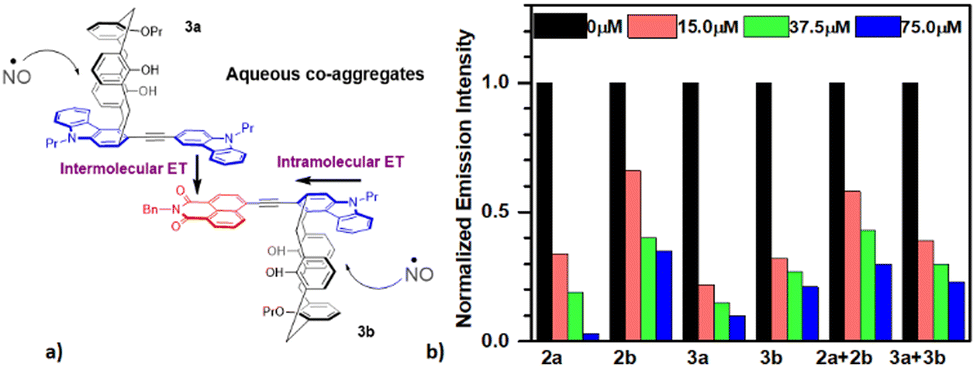

Fig. 6 (a) Proposed effect of NO host–guest complexation on the intra- and intermolecular energy transfer in calixarene co-aggregates. (b) Normalized fluorescence quenching for the aggregates and co-aggregates of 2a and b and 3a and b (10 μM in 80% H₂O–DMF) at different concentrations of 10.

To further investigate the aggregation properties of carbazole-fused calixarenes, we undertook scanning electron microscopy (SEM). Accordingly, samples of 3b were dissolved in two solvents (80% H₂O–DMF and in 100% DMF) at the same concentration (10 μM). The resulting solutions were drop-cast on a silicon wafer, and the aggregation properties of both samples were examined by SEM. Compound 3b exhibited highly aggregated particles in the sample drop-cast from 80% H₂O–DMF (Fig. 7a), whereas negligible aggregation was observed in the SEM image of the sample obtained from pure DMF solvent (Fig. 7b).

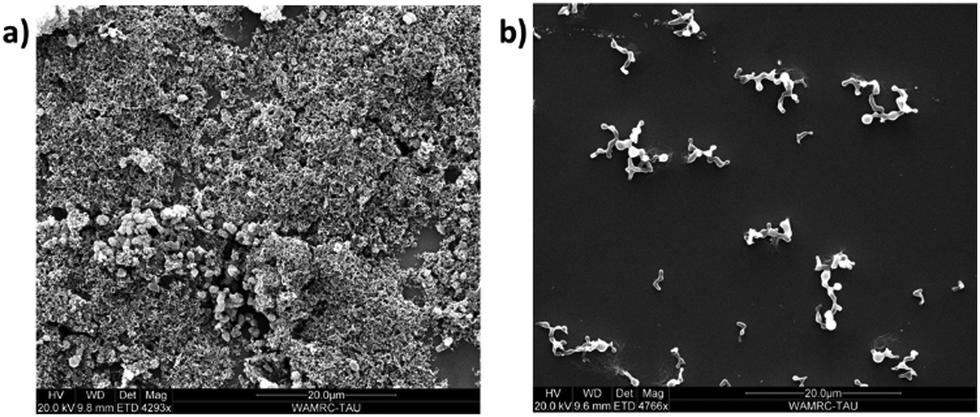

Fig. 7 SEM images of 3b at 10 μM in: (a) 80% H₂O–DMF solvent mixture; (b) 100% DMF.

Overall, we showed that the fluorescence of aqueous AIEgen aggregates could be affected by the host–guest complexation occurring at the peripheral conjugated cavity, as demonstrated by the detection of NO gas at micromolar concentrations. A combination of an electron-rich and electron-poor AIEgens led to ordered co-aggregates which allow shifting the analyte detection to longer wavelengths using intra- and intermolecular energy transfer.

This work was supported by the Israel Science Foundation grant (1328/20). We thank Professor Ehud Gazit for help with SEM measurements.

Conflicts of interest

There are no conflicts of interest to declare.
