In situ-polymerized lithium salt as a polymer electrolyte for high-safety lithium metal batteries

Abstract

Polymer electrolytes offer advantages of leak-proofing, excellent flexibility, and high compatibility with lithium metal, enabling the highly safe operation of lithium metal batteries (LMBs). However, most current polymer electrolytes do not meet the requirements for the practical applications of LMBs. Herein, to resolve this issue, employing thermal-induced in situ polymerization of lithium perfluoropinacolatoaluminate (LiFPA), we present a novel interface-compatible and safe single-ion conductive 3D polymer electrolyte (3D-SIPE-LiFPA). It is demonstrated that 3D-SIPE-LiFPA with a unique polyanion structure promoted the formation of a protective electrode/electrolyte interface and inhibited the dissolution–migration–deposition of transition metals (TMs). 3D-SIPE-LiFPA endowed LiNi_0.8Co_0.1Mn_0.1O₂ (NCM811, 3.7 mA h cm⁻²)/Li (50 μm) LMBs with a long cycle life at both the coin-cell level (80.8% after 236 cycles) and pouch-cell level (437 W h kg⁻¹, 95.4% after 60 cycles, injected electrolyte 2 g A h⁻¹). More importantly, pouch-type NCM811/Li LMBs using 3D-SIPE-LiFPA delivered significantly enhanced onset temperature for heat release (T_onset) and thermal runaway temperature (T_tr) by 34 °C and 72 °C, respectively. Our strategy of polymerizing lithium salt as a polymer electrolyte opens up a new frontier to simultaneously enhance the cycle life and safety of LMBs.

---

Broader context

The gravimetric energy density of large-format pouch-type lithium metal batteries (LMBs) can exceed 500 W h kg⁻¹ and has great potential to overcome the endurance mileage anxiety of electric vehicles. Nevertheless, the hitherto reported LMBs under practical conditions always suffer from poor cycle life and safety concerns, compared to conventional lithium-ion batteries (LIBs). Polymer electrolytes offer advantages of leak-proofing, excellent flexibility, and high compatibility with lithium metal. However, the hitherto reported polymer electrolytes constructed by ex situ or in situ methods cannot meet the requirements for the practical applications of LMBs. In this work, unprecedentedly through the in situ solidification of lithium salt anion (LiFPA), a single-ion polymer electrolyte (SIPE) with a 3D network (3D-SIPE-LiFPA) is successfully prepared. The as-prepared 3D-SIPE-LiFPA with a unique polyanion structure enables the construction of practical LiNi_0.8Co_0.1Mn_0.1O₂ (NCM811)/Li and high-voltage LCoO₂/Li batteries with long cycling stability and high thermal safety under extreme conditions. Our work sets a precedent of polymerizing lithium salt anions as polymer electrolyte, which will guide future polymer electrolyte innovations in both LMBs and LIBs.

1. Introduction

To reach the battery goal of 500 W h kg⁻¹, lithium metal batteries (LMBs) consisting of an ultrathin Li anode (≤50 μm, 3860 mA h g⁻¹) and high areal capacity cathode (≥3.5 mA h cm⁻², such as nickel-rich layered LiNi_xCo_yMn_1−x−yO₂, NCM, x + y + z = 1, x ≥ 0.8) are promising candidates.^1–5 However, parasitic reactions between the Li anode and electrolytes will cause a series of severe problems, such as Li dendrites growth and Li anode pulverization, deteriorating the safety and cycle life of LMBs.^6–9 Moreover, the Li anode stability issue can be exacerbated by an uncontrollable cross-talking of the byproducts from the cathode/electrolyte reactions.^7,10 To resolve these issues, representative strategies, such as liquid electrolyte engineering (Table S1, ESI†),^11–13 designing polymer electrolytes (Tables S2 and S3, ESI†),^14–16 Li metal hosts fabrication,¹⁷ and artificial solid–electrolyte interface (SEI) layer construction,^3,6 have already been explored. Among these approaches, varied polymer electrolytes, including solid polymer electrolytes (SPEs) and gel polymer electrolytes (GPEs), have aroused increasing interest due to their flexibility, leak-proofing, and excellent compatibility with the Li anode.^14–16 Specifically, polymer electrolytes with a high Li⁺ transference number (t_Li⁺)¹⁵ can alleviate Li dendrites growth and polymer electrolytes can suppress parasitic reactions between the Li anode and free solvent molecules.^18–21 Moreover, some polymer electrolytes with a fluorinated main chain can enhance the thermal stability of the electrolyte to reduce the thermal abuse hazards.²² Thus, developing polymer electrolytes is imperative to simultaneously enhancing the cycle life and safety characteristics of LMBs.

Generally, there are two methods to fabricate polymer electrolytes: ex situ and in situ methods.^23,24 As for ex situ methods (SPE, such as casting,²⁵ electrospinning,²⁶ phase inversion/separation²⁷), these polymer electrolytes have consistently underperformed in terms of ionic conductivity, interface compatibility, and processability.²³ Many efforts have been devoted to performing the in situ solidification of liquid electrolytes for preparing GPEs, to overcome these drawbacks.²⁴ Nevertheless, the extra nonelectrolytic monomers (such as acrylates/methacrylates,²⁴ 1,3-dioxolane^28,29) and additional initiators are invariably highly chemically reactive and highly voltage vulnerable.³⁰ Differently, as the intrinsic material of an electrolyte, the Li salt anion is an ideal polymerization monomer. Previous reports suggest that Li salt anions can be fixed on a polymer chain to fabricate a conventional single-ion polymer electrolyte (SIPE), which is currently limited by its poor processability.¹⁵ Hitherto, there are no methods to construct polymer electrolytes by polymerization of the Li salt anion. Taken together, we envision that an SIPE could be fabricated through a simple one-step in situ polymerization of Li salt anions, without any additional monomer or initiator.

Herein, we unprecedentedly explored an aluminum (Al)-based lithium salt (perfluoropinacolatoaluminate (LiFPA)) as a monomer precursor for constructing an SIPE (also belonging to GPE, abbreviated as 3D-SIPE-LiFPA) in LMBs by a thermal-induced one-step in situ polymerization. The as-constructed 3D-SIPE-LiFPA possessed exclusive characteristics compared with conventional GPEs and conventional SIPEs (Fig. 1a): (1) Al serves as the central atom of the 3D cross-linked polymerized FPA⁻ (poly-FPA) anion chain; (2) parts of the ethyl methyl carbonate (EMC) and fluoroethylene carbonate (FEC) molecules were fixed on the poly-FPA chain in a unique solvation structure. These unique structures could promote the formation of a protective and robust SEI layer enriched on LiF and Al-containing substances. Moreover, the as-constructed 3D-SIPE-LiFPA provided a high t_Li⁺ of 0.915 and high ionic conductivity of 2.48 mS cm⁻¹ at 30 °C. It should be noted that the hitherto reported polymer electrolytes, constructed by either ex situ or in situ methods, could barely be used in practical LMBs (cathode ≥ 3.5 mA h cm⁻², Li ≤ 50 μm) (Tables S2 and S3, ESI†). Inspirationally, the electrochemical tests showed that 3D-SIPE-LiFPA enabled coin-type (80.8% after 236 cycles) and pouch-type (437 W h kg⁻¹, 95.4% after 60 cycles, injected electrolyte 2 g A h⁻¹) NCM811 (3.7 mA h cm⁻²)/Li (50 μm) LMBs to enjoy long cycle life. Encouragingly, accelerating rate calorimetry (ARC) measurements showed that 3D-SIPE-LiFPA enabled a significantly enhanced thermal safety characteristic of pouch-type 437 W h kg⁻¹ NCM811/Li LMBs, delivering an increase in heat-releasing onset temperature (T_onset) and thermal runaway temperature (T_tr) by 34 °C and 72 °C, respectively. Our work will be an important milestone for polymer electrolytes, thus boosting the development of LMBs.

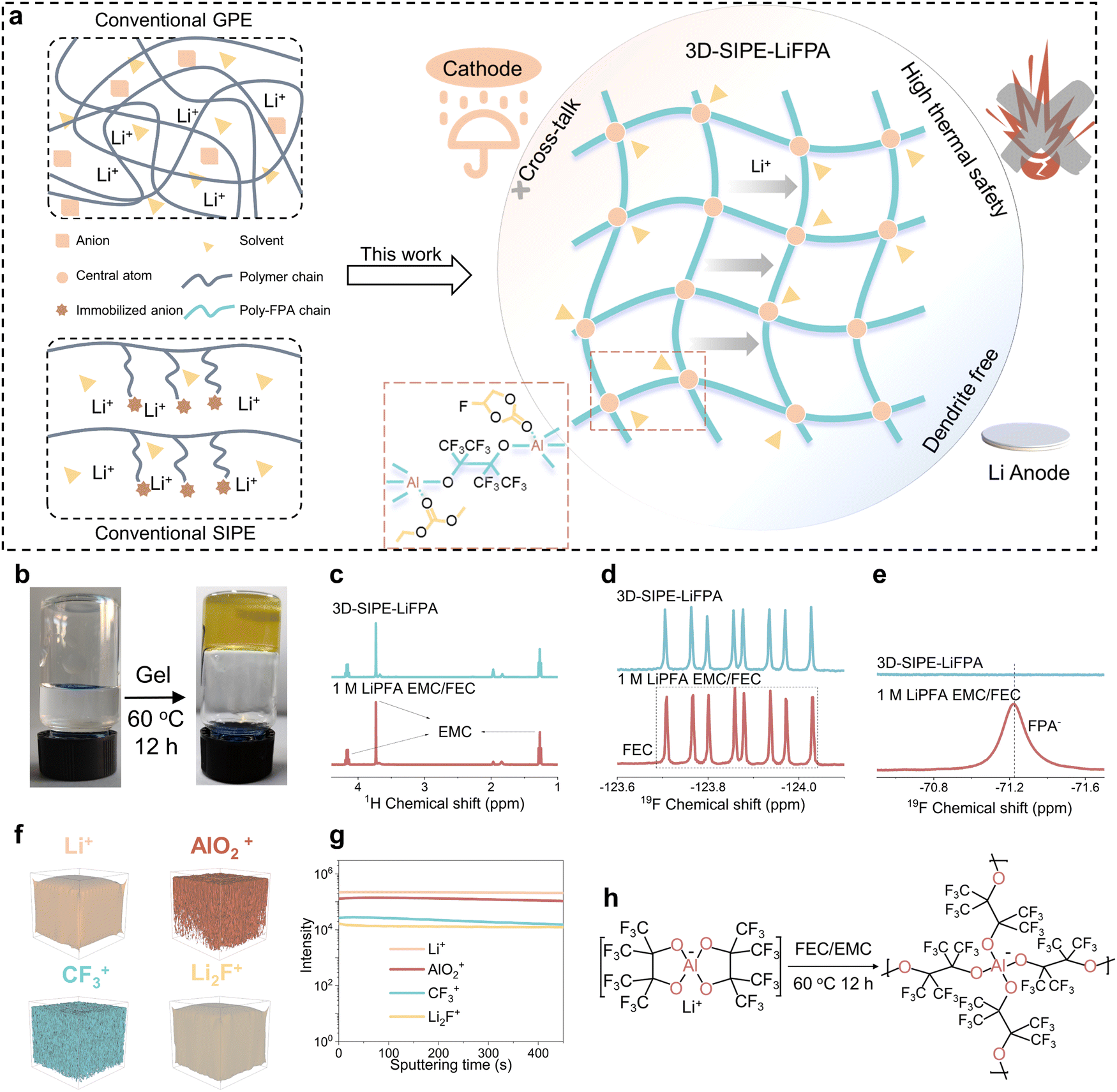

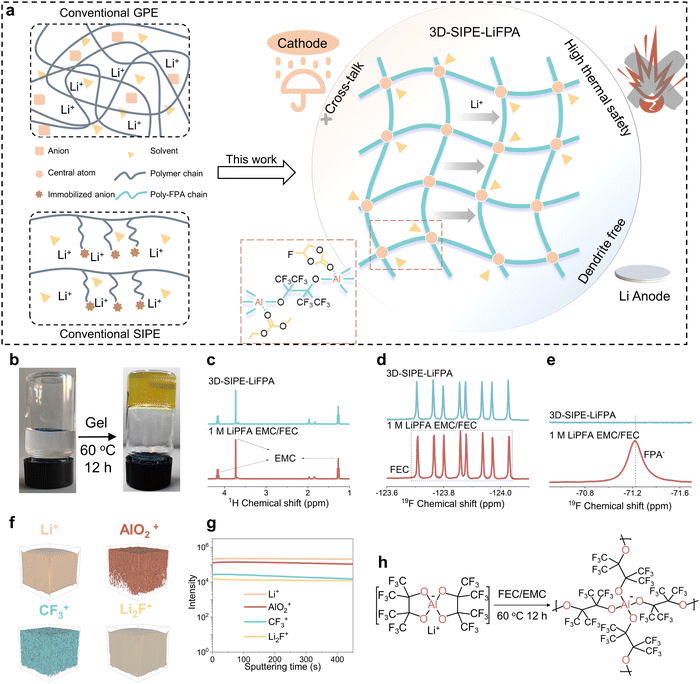

Fig. 1 Schematic illustration and characterizations of 3D-SIPE-LiFPA. (a) Conceptual sketch of a conventional GPE, conventional SIPE and as-constructed 3D-SIPE-LiFPA. (b) Optical images showing the liquid state electrolyte (1 M LiFPA EMC/FEC) and 3D-SIPE-LiFPA. (c) ¹H NMR, (d) ¹⁹F NMR (−123.6 to −124.1 ppm), and (e) ¹⁹F NMR (−70.5 to −71.7 ppm) spectra of 1 M LiFPA EMC/FEC and 3D-SIPE-LiFPA. ToF-SIMS, (f) 3D element reconstruction and (g) corresponding depth profiles of dry polymer powder obtained from 3D-SIPE-LiFPA. (h) Schematic illustration of the possible polymerization process of LiFPA.

2. Results and discussion

2.1. Fabrication of 3D-SIPE-LiFPA

After heating at 60 °C for 12 h, the liquid-state 1 M LiFPA EMC/FEC electrolyte changed to gel state and its fluidity disappeared (Fig. 1b and Fig. S1, ESI†). The ¹H nuclear magnetic resonance (NMR) (Fig. 1c and Fig. S2a, ESI†) and ¹⁹F NMR (Fig. 1d and Fig. S2b, ESI†) spectra showed that the peaks corresponding to EMC and FEC molecules remained unchanged during the gelation, suggesting that the EMC and FEC solvents did not participate in the polymerization process. From the ¹⁹F NMR spectra (Fig. 1e and Fig. S2c, ESI†), the peak of FPA⁻ disappeared after the gelation. These results indicate that the gelation originated from the polymerization of FPA⁻ rather than the solvents. To further validate this conclusion, dry polymer powder obtained from 3D-SIPE-LiFPA was studied by X-ray diffraction (XRD, Fig. S3, ESI†), ¹⁹F NMR (Fig. S4, ESI†), energy dispersive spectrometry (EDS) mapping (Fig. S5, ESI†), X-ray photoelectron spectroscopy (XPS) (Fig. S6, ESI†), and ToF-SIMS (Fig. 1f and g). Fig. S3 (ESI†) demonstrates that the dry polymer powder was amorphous, differentiated from the crystalline LiPFA powder. In the ¹⁹F NMR spectra (Fig. S4, ESI†), the chemical shift of –CF₃ in the dry polymer powder and LiFPA was also different. The EDS-mapping results (Fig. S5 and Table S4, ESI†) revealed that C, O, F, and Al elements were homogenously distributed in the dry polymer powder. The existence of the species, e.g., C–O, C–C, C–F, LiF, Al–O, etc., could be corroborated by their characteristic XPS peaks (Fig. S6, ESI†). Additionally, as shown in the ToF-SIMS 3D element reconstruction (Fig. 1f) and corresponding depth profiles (Fig. 1g), Li⁺, AlO₂⁺, CF₃⁺, and Li₂F⁺ species were evenly distributed in the dry polymer powder. Finally, the obtained dry polymer powder was dispersed in THF but could hardly be dissolved, suggesting its 3D cross-linked nature (Fig. S7, ESI†).^31,32 The possible polymerization process of LiFPA is illustrated in Fig. 1h. In summary, it was successfully confirmed that the gelation of the liquid-state electrolyte (1 M LiFPA EMC/FEC) could be ascribed to the 3D cross-linked polymerization of LiFPA, rather than the polymerization of EMC and FEC solvents.

2.2. Solvation structure of the as-constructed 3D-SIPE-LiFPA

The solvation structure of an electrolyte has great influence on electrode/electrolyte interfaces and Li dendrites growth.^33,34 To unveil the bulk structure of the as-constructed 3D-SIPE-LiFPA, Fourier transform infrared spectroscopy (FTIR), NMR, and diffusion ordered spectroscopy (DOSY) NMR characterizations were conducted. ⁷Li NMR is sensitive to the coordinating environment of Li⁺ in the solvation structure. Due to either a stronger solvent binding or stronger anion binding, the electron density around Li⁺ will increase, leading to an up-field shift (more negative) of ⁷Li NMR.³⁵ In the ⁷Li NMR results (Fig. 2a), the liquid electrolyte of 1 M LiFPA EMC/FEC displayed a more negative chemical shift (−0.875 ppm) than 1 M LiPF₆ EMC/FEC (−0.650 ppm), indicating a stronger interaction between the FPA⁻ anion and Li⁺. Moreover, the chemical shift decreased further from −0.875 ppm to −0.920 ppm after gelation, suggesting that the poly-FPA chain in 3D-SIPE-LiFPA possessed the strongest coordination ability with Li⁺. This was indicative of increased contact ion pairs (Li⁺ and poly-FPA), which are ubiquitous in high (or locally high) salt concentration electrolytes and are favorable for forming protective solid–electrolyte interface (SEI) layers enriched with inorganic species.^4,5,33,36 Molecular dynamics (MD) simulation is always conducted to reveal the solvation structure of electrolytes.³⁴ Due to the large molecular weight of poly-FPA, the MD simulation for 3D-SIPE-LiFPA is quite difficult. Therefore, the MD simulations of 1 M LiFPA EMC/FEC and 1 M LiPF₆ EMC/FEC were conducted for comparison of the solvation structures. Fig. S8 (ESI†) presents snapshots of the solvation structure of 1 M LiFPA EMC/FEC and 1 M LiPF₆ EMC/FEC. From the radical distribution function (RDF), one can note that in the Li⁺ solvation shell of 1 M LiFPA EMC/FEC, the number of anions (FPA⁻vs. PF₆⁻) was increased and the amount of EMC/FEC was decreased compared with that for 1 M LiPF₆ EMC/FEC (Fig. 2b and c). These MD simulation results were well consistent with the ⁷Li NMR results. The self-diffusion coefficients (obtained by DOSY NMR) of Li⁺ and solvent molecules had larger gaps in 3D-SIPE-LiFPA (e.g., 1.04; 1.62 of EMC vs. 0.58 of Li⁺) than 1 M LiPF₆ EMC/FEC (e.g., 0.46; 1.46 of EMC vs. 1.0 of Li⁺), suggesting the weaker coordination between the Li⁺ and solvents in 3D-SIPE-LiFPA (Fig. 2d), confirming the MD simulation results. The FTIR results provided further solvation structure information of these electrolytes. In Fig. 2e and f, the peaks located at 1750 and 730 cm⁻¹ could be attributed to the C=O stretching vibration of free EMC³⁷ and C=O breathing vibration of free FEC,³⁸ respectively. From 1 M LiPF₆ EMC/FEC, 1 M LiFPA EMC/FEC to 3D-SIPE-LiFPA, the coordination of Li⁺–EMC (1718 cm⁻¹, Fig. 2e) and Li⁺–FEC (738 cm⁻¹, Fig. 2f) gradually decreased, also demonstrating the weaker coordination between the Li⁺ and solvents in 3D-SIPE-LiFPA. Interestingly, apart from free EMC (1750 cm⁻¹), Li⁺–EMC (1718 cm⁻¹), free FEC (730 cm⁻¹), and Li⁺–FEC (738 cm⁻¹), the distinctive novel peaks centered at 1670 and 742 cm⁻¹ could be ascribed to the coordination of EMC–FPA (EMC-Al) (Fig. 2e) and FEC–FPA (FEC-Al) (Fig. 2f), respectively. Moreover, after gelation, the EMC–FPA and FEC–FPA interactions become stronger. The MD simulations indicated that EMC/FEC solvent molecules had direct interaction with the Al of the FPA⁻ anion (Fig. 2g–i). The EMC–FPA and FEC–FPA interactions were also illustrated by the Raman spectra (Fig. S9, ESI†). The density functional theory (DFT) simulations showed that LiFPA possessed the lowest LUMO energy compared with EMC, FEC, and LiPF₆ (Fig. S10a, ESI†), and the anion-solvent coordination (FPA–EMC, PFA–FEC) further decreased the LUMO energy of the FPA anion (Fig. S10b, ESI†). In addition, due to having the lowest bond-breaking energy (−5.32 eV), FPA⁻ in the FPA–EMC coordination was more inclined to be reduced to form an SEI enriched with inorganic species (Fig. S11, ESI†). In summary, 3D-SIPE-LiFPA possessed a unique solvation structure, in which the Li⁺ solvation shell was enriched with poly-FPA anions and some EMC and FEC molecules were fixed on the poly-FPA chain. Given its high ionic conductivity (2.48 mS cm⁻¹, Fig. S12, ESI†), high t_Li⁺ (0.915, Fig. S13, ESI†), and excellent SEI forming ability, the as-constructed 3D-SIPE-LiFPA is a good potential candidate for Li anode protection.

Fig. 2 Solvated structure of the as-constructed 3D-SIPE-LiFPA. (a) ⁷Li NMR of 1 M LiPF₆ EMC/FEC, 1 M LiFPA EMC/FEC, and 3D-SIPE-LiFPA. RDF in MD simulations of the (b) 1 M LiFPA EMC/FEC and (c) 1 M LiPF₆ EMC/FEC. (d) Self-diffusion coefficients of EMC, FEC, and Li⁺ measured by ¹H, ¹⁹F, and ⁷Li DOSY NMR. FTIR spectra of (e) C=O stretching vibration of EMC and (f) C=O breathing vibration of FEC. (g) RDF of the 1 M LiFPA EMC/FEC. MD simulation snapshots of 1 M LiFPA EMC/FEC representing (h) FPA–EMC and (i) FPA–FEC.

2.3. Cycle life and thermal safety of NCM811/Li LMBs using 3D-SIPE-LiFPA

The as-constructed 3D-SIPE-LiFPA was evaluated in Li metal-based cells. First, Li/Cu and Li/Li cells using 3D-SIPE-LiFPA demonstrated excellent Li plating/stripping behaviors (Fig. S14 and S15, ESI†). To validate its potential applications, the as-constructed 3D-SIPE-LiFPA was then evaluated in practical LMBs composed of a high areal capacity NCM811 cathode (3.7 mA h cm⁻², 210 mA h g⁻¹) and ultrathin (50 μm) Li anode. Encouragingly, when charged/discharged at 0.2C/0.3C rate for 236 cycles, NCM811/Li LMBs (2.8–4.3 V) using 3D-SIPE-LiFPA delivered a high-capacity retention of 80.8% (169.7 mA h g⁻¹/210.0 mA h g⁻¹) and a high average CE of 99.9% (Fig. 3a and Fig. S16a, ESI†). In contrast, NCM811/Li LMBs using 1 M LiPF₆ EMC/FEC (Fig. 3a and Fig. S16b, ESI†), 1 M LiPF₆ EC/EMC (Fig. S17a and b, ESI†), and 1 M LiFPA EMC/FEC (Fig. S17c and d, ESI†) suffered from sudden capacity failure within 80 cycles. Upon cycling, the NMC811/Li LMBs delivered a lower and more stable interfacial resistance when using 3D-SIPE-LiFPA (Fig. S18, ESI†). Moreover, due to the higher t_Li⁺ (0.915, Fig. S12, ESI†), lower interfacial impedance (Fig. S18 and S19, ESI†), and the lower activation energy of Li⁺ diffusion through the SEI layers (Fig. S20, ESI†), NCM811/Li LMBs using 3D-SIPE-LiFPA exhibited a slightly better rate capability than their counterpart (Fig. S21, ESI†). Fig. S22 (ESI†) shows that NCM811/Li LMBs using 3D-SIPE-LiFPA could also be operated under harsh temperature conditions, such as high temperatures (50 °C and 90 °C) and subzero temperatures (0 °C and −15 °C). The NCM811/Li LMBs using 3D-SIPE-LiFPA also demonstrated excellent moisture tolerance (Fig. S23, ESI†). Additionally, in the working voltage range of LMBs, 3D-SIPE-LiFPA possessed superior oxidative stability than its counterpart of 1 M LiPF₆ EMC/FEC (Fig. S24, ESI†). When the charge cut-off voltage was increased to 4.4 V, NCM811/Li LMBs using 3D-SIPE-LiFPA still showed high cycling stability (81.3% capacity retention after 100 cycles, 176.9 mA h g⁻¹/217.5 mA h g⁻¹; average CE of 99.5%) (Fig. 3b and Fig. S25, ESI†). The universality of the as-constructed 3D-SIPE-LiFPA was also verified by the long cycling stability of LiCoO₂/Li (3–4.45 V, 1.9 mA h cm⁻², 180 mA h g⁻¹; 3–4.6 V, 2.2 mA h cm⁻², 210 mA h g⁻¹) LMBs (Fig. S26, ESI†). More importantly, assembled pouch-type NCM811/Li prototype cells also presented excellent cycling stability (222 mA h, 300 W h kg⁻¹, 90.0% after 120 cycles; 2.8 A h, 437 W h kg⁻¹, 95.4% after 60 cycles) at a current density of 0.2C/0.3C rate (Fig. 3c and Fig. S27a–c, Table S6, ESI†). To the best of our knowledge, as-constructed 3D-SIPE-LiFPA could serve as the best polymer electrolyte for LMBs, considering the cycle life, areal capacity, safety, and energy density (Tables S2 and S3, ESI†).

Fig. 3 Cycle life and thermal safety of NCM811/Li LMBs. (a) Cycling performances of NCM811/Li LMBs (2.8–4.3 V, 3.7 mA h cm⁻², 50 μm Li) using 3D-SIPE-LiFPA and 1 M LiPF₆ EMC/FEC. (b) Cycling performance of NCM811/Li LMBs (2.8–4.4 V, 3.7 mA h cm⁻², 50 μm Li) using 3D-SIPE-LiFPA. (c) Cycling performance of 2.8 A h (437 W h kg⁻¹) NCM811/Li pouch cells (2.8–4.3 V, 3.7 mA h cm⁻², 50 μm Li) using 3D-SIPE-LiFPA. (d) Thermal runaway features of 100% SOC NCM811/Li pouch cells in ARC tests.

Great efforts have been devoted to enhancing the cycle life of LMBs, but the thermal safety evaluation of LMBs with ultrahigh energy density is usually neglected.^39,40 Here, accelerating rate calorimetry (ARC, heat-wait-search (HWS) mode) was adopted to investigate the thermal features of pouch-type 2.8 A h NCM811/Li (3.7 mA h cm⁻², 50 μm Li) cells using the as-constructed 3D-SIPE-LiFPA (Fig. 3d and Fig. S28, ESI†). The heat-releasing onset temperature (T_onset) and thermal runaway temperature (T_tr) of a 100% SOC (state of charge) pouch cell using 3D-SIPE-LiFPA were 120 °C and 185 °C, respectively. In sharp contrast, the T_onset and T_tr of the control cell using 1 M LiPF₆ EMC/FEC were 86 °C and 113 °C, respectively. Also, the interval times between T_onset and T_tr were 1268 min and 652 min for 3D-SIPE-LiFPA and 1 M LiPF₆ EMC/FEC, respectively. In addition, the self-heating rate (SHR) after thermal runway increased more slowly when using 3D-SIPE-LiFPA (insets in Fig. 3d and Fig. S28, ESI†). The pouch cells using two electrolytes were both severely damaged after thermal runaway (insets in Fig. 3d). Nevertheless, improving the critical temperatures (T_onset and T_tr) and prolonging the self-heating time by 3D-SIPE-LiFPA could reduce potential damage when LMBs experience thermal runaway. Subsequently, differential scanning calorimetry (DSC) (Fig. S29, ESI†) and ARC (Fig. S30 and S31, ESI†) experiments were conducted to uncover the underpinning mechanisms of 3D-SIPE-LiFPA in improving the safety of LMBs. The significantly enhanced safety characteristics of 100% SOC NCM811/Li pouch cells mainly originated from the greatly alleviated Li anode heat released by 3D-SIPE-LiFPA. All these encouraging results underlie the superiority of using the in situ-polymerized FPA⁻ anion for obtaining long cycle life and high thermal safety LMBs. Furthermore, the ARC data of LMBs with different electrolytes in previous reports are summarized in Table S7 (ESI†) for reference.

2.4. Synchrotron X-ray computed tomography of NCM811/Li LMBs using 3D-SIPE-LiFPA

In situ SXCT was employed to reveal the crucial role of 3D-SIPE-LiFPA in enabling the superior cycling performance of NCM811/Li LMBs. A digital photograph and corresponding illustration of the customized electrochemical tomography cell (tomo-cell) are shown in Fig. S32a (ESI†), along with a schematic demonstration of the employed synchrotron X-ray imaging beamline in Fig. S32b (ESI†).^41–43 It was noteworthy that the reconstructed grayscale SXCT images possessing distinct contrasts were correlated with the different X-ray absorbing capabilities of the constituent atoms in the measured samples. Specifically, the bright and dark region corresponded to high-z atom-containing components (e.g., NCM811) and low-z atom-containing components (e.g., Li and separator), respectively.^44,45 The uncycled state of NCM811/Li tomo-cell is given in Fig. S33 (ESI†), from which different cell components, such as the NCM811 cathode, glass fiber separator (GF-A), and Li anode are clearly discernable. At the fully charged state in the first cycle, the electrochemically deposited metallic Li layer was much thinner and denser in the NCM811/Li tomo-cell using 3D-SIPE-LiFPA (Fig. S34a₁–a₃, ESI†) compared with that using 1 M LiPF₆ EMC/FEC (Fig. S34b₁–b₃, ESI†).

On the basis of the different X-ray absorbing capabilities of each component, internal views of NCM811/Li tomo-cells using either 3D-SIPE-LiFPA or the control 1 M LiPF₆ EMC/FEC after 10 cycles in the fully discharged state (Fig. 4a₁ and b₁) are shown in Fig. 4a₂ and b₂. The gray values of each component along with the white specific dashed lines in Fig. 4a₂ and b₂ are shown in Fig. 4a₃ and b₃, respectively. A closer look at the Li/separator interface was obtained from the enlarged area (Fig. 4a₄, 2D cross-section) of the red rectangle in Fig. 4a₂. Also, 3D volume renderings of the cropped yellow rectangle region (in Fig. 4a₄) are illustrated in Fig. 4a₅ (horizontal view) and Fig. 4a₆ (3D view), revealing a thin and homogeneous corrosion layer (a mixture of SEI, dead Li, other byproducts, and voids/cracks, etc.). In sharp contrast, a thick and heterogeneous corrosion layer was observed in the control cell (Fig. 4b₂ and b₄–b₆).^46,47 As shown in Fig. 4a₇ (2D cross-section) and Fig. 4a₈ (3D volume rendering), the NCM811 electrode maintained a high integrity without cracking when using 3D-SIPE-LiFPA. However, severe electrode cracking was observed in the control cell (Fig. 4b₇, 2D cross-section; Fig. 4b₈, 3D volume rendering). These great differences are believed to be associated with the electrode/electrolyte interface properties, which will be deeply discussed in the following sections. With a further look at the Li anode side in the 10-times cycled tomo-cell using 1 M LiPF₆ EMC/FEC in Fig. 4b₂, one can notice some unusual red regions appearing within the corrosion layer. By analyzing the gray values of these red regions as shown in Fig. 4b₃, one can note the same extent of X-ray absorbing capability of these red regions to that of the NCM811 cathode. These results confirmed the dissolution–migration–deposition of TMs from the NCM811 cathode to Li anode when using 1 M LiPF₆ EMC/FEC. Moreover, the 2D cross-section (Fig. 4b₄) and 3D volume renderings (Fig. 4b₅ and b₆) demonstrated that large amounts TMs were distributed within the corrosion layer (white regions in Fig. 4b₄ and red regions in Fig. 4b₅ and b₆). The situation was even more severe at the 50th cycle (Fig. S35b₂ and b₃, ESI†). In contrast, no such scenario was observed when using 3D-SIPE-LiFPA (Fig. 4a₂, a₄–a₆ and Fig. S35a₂, a₃, ESI†). The inhibited TMs dissolution was further verified by ToF-SIMS (Fig. S36, ESI†), XPS (Fig. S37, ESI†), and ICP-MS (Fig. S38, ESI†). In summary, inhibiting TMs dissolution from the NCM811 cathode and blocking TMs deposition on the Li metal anode may contribute to homogeneous Li plating/stripping, ensuring the long cycle life of NCM811/Li LMBs.

Fig. 4 Synchrotron X-ray tomography of NCM811/Li LMBs. Representative charge–discharge curves of the 10-times cycled tomo-cells of NCM811/Li using 3D-SIPE-LiFPA (a₁) and 1 M LiPF₆ EMC/FEC (b₁). (a₂ and b₂) 3D volume renderings of the reconstructed X-ray tomography datasets. (a₃ and b₃) Line profiles of the X-ray absorption intensity along the white dashed arrow lines in (a₂) and (b₂), respectively. Cross-sections of tomo-cells at the Li anode side (a₄ and b₄) and cathode side (a₇ and b₇). (a₅, a₆ and b₅, b₆) 3D volume renderings of the cropped yellow rectangle region in (a₄) and (b₄), respectively. (a₈ and b₈) 3D rendering images of the enlarged view of the green rectangle region in (a₇) and (b₇), respectively.

2.5. Characterization of the cycled Li anode

Further characterizations, such as ToF-SIMS and on-line deuterium-oxide (D₂O) titration, were conducted to decipher the crucial role of 3D-SIPE-LiFPA in protecting the Li anode, which was disassembled from NMC811/Li (3.7 mA h cm⁻², 50 μm) LMBs after 50 cycles. From the top-view SEM image, it could be seen that the Li anode surface was more compact and smoother when using 3D-SIPE-LiFPA compared with 1 M LiPF₆ EMC/FEC (Fig. S39, ESI†). The cross-section SEM of the Li anode cycled in 3D-SIPE-LiFPA showed negligible thickness change (53 μm), while that cycled in 1 M LiPF₆ EMC/FEC displayed a pulverized feature with a maximum thickness of 73 μm (Fig. 5a–c). To uncover the origins behind these differences, the SEI components of the cycled Li anodes were identified. By comparing the ToF-SIMS 3D element reconstruction of Li anodes cycled in both electrolytes (Fig. 5d and Fig. S40, ESI†), one can note that the SEI layer derived from 3D-SIPE-LiFPA was enriched in inorganic Al-containing species (Al⁺ and AlF₄⁻, through the SEI) and LiF (Li₂F⁺, through the SEI), and some organic C–F species (CF₃⁻ and C₃F₅O⁻, outer layer of SEI). Moreover, from the depth-profiling XPS spectra, the formation of other organic species (such as C–C, C–H, C–O) in the SEI of the Li anode was suppressed when cycled in 3D-SIPE-LiFPA (Fig. S41 and S42, ESI†). These results were in accordance with the calculation results that poly-FPA was more inclined to decompose to generate an inorganic-species-enriched SEI layer, which could inhibit the decomposition of the solvents. In addition, the formed unique SEI layer provides extra benefits besides protecting the Li anode: (1) the out layer enriched in C–F species can act as effective Lewis bases to absorb Li⁺, lowering the local fluctuation of Li⁺;⁴⁸ (2) Al-containing species and LiF with a high interfacial energy and low Li⁺ diffusion barrier can facilitate reversible Li⁺ stripping/plating without dendrites growth. In previous reports,^49–51 it was suggested that the accumulation of LiH contributes to Li anode failure. Here, on-line D₂O titration gas analysis mass spectrometry (MS) was employed to quantify LiH (Fig. 5e).⁵² When cycled in 1 M LiPF₆ EMC/FEC, the D₂/HD ratio was 8.66, suggesting that large amounts of LiH were formed in the cycled Li anode (Fig. 5f). Encouragingly, the formation of LiH was greatly suppressed (D₂/HD ratio was 236.18) when using 3D-SIPE-LiFPA (Fig. 5g). Additionally, the lower generation of CO₂ and CH₃D indicated the inhibited solvents decomposition on the Li anode (Fig. S43, ESI†).⁵² In summary, the suppressed TMs deposition, inhibited electrolyte decomposition, alleviated LiH formation, together with the unique SEI layer and high t_Li⁺ collectively contributed to protecting the Li anode from rapid failure when using 3D-SIPE-LiFPA.

Fig. 5 Characterizations of the cycled Li anode. (a–c) Typical cross-section SEM of (a) pristine Li anode and that cycled in (b) 3D-SIPE-LiFPA and (c) 1 M LiPF₆ EMC/FEC. (d) ToF-SIMS 3D reconstruction and corresponding depth profiles of Li anode cycled in 3D-SIPE-LiFPA. (e) Schematic illustration of the on-line D₂O titration gas analysis MS system. The D₂ and HD evolution rate curves after D₂O titration on the Li anode cycled in (f) 1 M LiPF₆ EMC/FEC and (g) 3D-SIPE-LiFPA. The Li anode was disassembled from NMC811/Li (3.7 mA h cm⁻², 50 μm) LMBs after 50 cycles.

2.6. In-depth analysis of the cathode/electrolyte interface

It is also necessary to unveil the important role of 3D-SIPE-LiFPA in stabilizing the NCM811 cathode. There were less micro-cracks and micro-pores with the NCM811 particles when cycled in 3D-SIPE-LiFPA (Fig. S44a–c, ESI†). Then, depth-profiling XPS and ToF-SIMS were conducted to disclose the components of the CEI layer. For 3D-SIPE-LiFPA and 1 M LiPF₆ EMC/FEC, an M–O bond signal from the O 1s XPS spectra appeared after 60 s and 120 s etching, respectively (Fig. S45a and c, ESI†). This confirmed that 3D-SIPE-LiFPA favored the formation of a much thinner CEI layer, consistent with the high-resolution transmission electron microscopy (HRTEM) images (Fig. 6a, b and Fig. S46, ESI†). The HRTEM images also indicated that the surface crystal structure of the NCM811 cathode was better preserved when cycled in 3D-SIPE-LiFPA (Fig. 6a, b and Fig. S46 (ESI†), Fast Fourier transform). Additionally, there were many high-valence-Al-containing species (AlF₃ 76.2 eV, AlF₄ 75.3 eV, Al₂O₃ 74.5 eV; Al 2p, Fig. 6c) and LiF (684.8 eV, F1s, Fig. S45b, ESI†), some of which were also identified by ToF-SIMS (Fig. S47, ESI†). These high-valence-Al-containing species derived from 3D-SIPE-LiFPA could be expected to improve the stability of the CEI layer and bulk structure of NCM811.⁷ In contrast, the large formation amounts of LiF, P–O, and P–F species (Fig. S45c, d and S48, ESI†) in the CEI layer indicated the severe decomposition of 1 M LiPF₆ EMC/FEC.^7,53 The XRD pattern also revealed that the bulk crystal structure of NCM811 cathode was better preserved when cycled in 3D-SIPE-LiFPA (Fig. 6d and Fig. S49, ESI†), confirming the protective effect of the as-formed CEI layer.

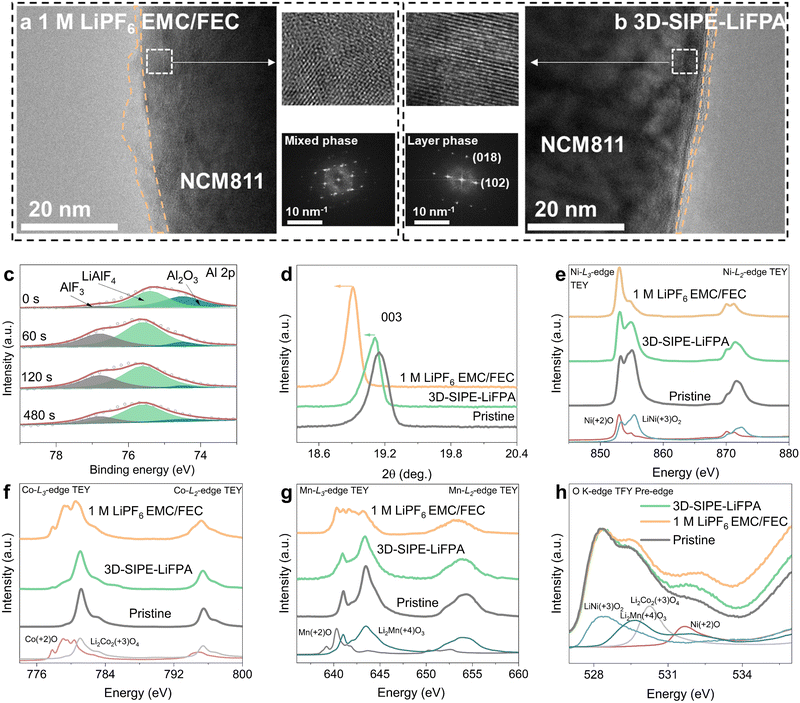

Fig. 6 Characterizations of the cycled NCM811 cathodes. HRTEM analyses of the cycled NCM811 after 50 cycles using different electrolytes: (a) 1 M LiPF₆ EMC/FEC, (b) 3D-SIPE-LiFPA. (c) Al 2p XPS spectra of the NCM811 cathode. (d) XRD of NCM811 before and after 50 cycles. (e–g) Ni, Co, Mn L_2,3-edge XAS spectra in the TEY mode and (h) O K-edge XAS spectra in the TFY mode of the measured NCM811 cathodes: pristine (black line), cycled in 3D-SIPE-LiFPA (green line), and cycled in 1 M LiPF₆ EMC/FEC electrolyte (yellow line). The measured NCM811 cathodes were harvested from NCM811/Li LMBs (50 μm, 3.7 mA h cm⁻², 2.8–4.3 V) after 50 cycles.

The electronic structures of Ni, Co, and Mn ions in the NCM811 cathode were studied by measuring soft XAS at the L_2,3-edge of 3d elements. XAS is a powerful tool to determine the valence states,^54–56 local bonding environment,^57,58 and spin state^59,60 of the studied system. Fig. 6e shows the Ni-L_2,3 XAS spectra measured by the total electron yield (TEY) mode (surface sensitive, with a probing depth of approximately 4 nm) for the pristine NCM811, and NCM811 cycled in 3D-SIPE-LiFPA and 1 M LiPF₆ EMC/FEC. The XAS of NiO and LiNiO₂ served as references of Ni²⁺ and Ni³⁺, respectively. When cycled in 3D-SIPE-LiFPA, the decrease in the oxidation state of Ni ions from Ni³⁺ to Ni²⁺ was significantly suppressed. Similarly, the transition of Co³⁺ to Co²⁺ (Fig. 6f), as well as the transition of Mn⁴⁺ to Mn³⁺ and Mn²⁺ (Fig. 6g) were also obviously inhibited when using 3D-SIPE-LiFPA.^61–63 The O K-edge XAS spectra in the total fluorescence yield mode (TFY, bulk-structure sensitive, several microns beneath the sample surface)^64–67 showed a lower Ni²⁺ content when using 3D-SIPE-LiFPA (Fig. 6h), in line with the Ni-L_2,3 XAS result. It is noted here that low valence TMs will be easily dissolved into the electrolytes.⁶⁸ Thus, when using 3D-SIPE-LiFPA, a thin and homogeneous CEI layer inhibits the decrease in the oxidation state of TMs, eventually suppressing its dissolution from the NCM811 cathode.

3. Conclusions

In this work, a single-ion conductive polymer electrolyte 3D-SIPE-LiFPA was successfully fabricated by the thermal-induced in situ polymerization of LiFPA. The Li⁺ solvation shell of 3D-SIPE-LiFPA was enriched in poly-FPA, upon which were fixed some EMC and FEC molecules. The as-constructed 3D-SIPE-LiFPA endowed practical NCM811/Li LMBs with both excellent cycle life and high safety. Specifically, the successful protection of the Li anode by 3D-SIPE-LiFPA was ascribed to the suppressed TMs deposition, inhibited electrolyte decomposition, and alleviated LiH generation, together with the formation of a unique SEI layer enriched in inorganic Al-containing species. As for the NCM811 cathode, the 3D-SIPE-LiFPA-derived CEI layer prevented the decrease in the TM ions valence state and in turn blocked TMs dissolution and the crystal structure destruction. Our work sets a precedent of a strategy for polymerizing lithium salt as a polymer electrolyte, which simultaneously enables obtaining practical LMBs with excellent cycle life and high thermal safety.

Author contributions

S. Z. was the first author of this work. G. C., Z. C., and G. X. conceived the idea for the project. S. Z., Z. C. and G. X. designed the electrochemical experiments. S. Z., L. L., and B. X. performed the electrochemical experiments. P. H. provided the cathode materials. X. D. and S. Z. conducted the theoretical calculations. J. L. and S. D. conducted on-line D₂O titration experiments. X. Z. and L. H. performed the ARC experiments and processed the corresponding data. F. S., A. H., I. M. and S. Z. performed the SXCT measurement. J. M., Z. H., A. C. K., H. J. L., C. Y. K., and C. T. C. contributed to the XAS measurement. G. X., Z. C. and S. Z. wrote the manuscript with the help from all co-authors, and all authors contributed to interpretation of the data.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (22102206, U22A20440, 21901248, 52037006), Natural Science Foundation of Shandong Province (ZR2021QB030), the Strategic Priority Research Program of Chinese Academy of Sciences (XDA22010600). The authors acknowledge Helmholtz-Zentrum Hereon (Geesthacht, Germany) for provision of the PETRA III P05 beamline and conducting the synchrotron X-ray tomography measurements as well as DESY (Hamburg, Germany) for operating the PETRA III synchrotron facility. We would like to thank Dr Fabian Wilde for technical assistance during the experiment at the P05 beamline. The authors also acknowledge BESSY II operated by the Helmholtz-Zentrum Berlin für Materialien und Energie for provision of the BAMline for conducting the synchrotron X-ray tomography measurements. We would like to thank Dr Henning Markötter for technical assistance during the experiment at the BAMline beamline. In addition, we acknowledge support from the Max Planck-POSTECH-Hsinchu Center for Complex Phase Materials.

References
