N-Pyrrolyl phosphine ligands: an analysis of their size, conformation and supramolecular interactions

Andrew D. Burrows
Department of Chemistry, University of Bath, Claverton Down, Bath, UK BA2 7AY. E-mail: a.d.burrows@bath.ac.uk

Received 28th September 2001, Accepted 16th October 2001

Abstract

Analysis of the Cambridge Structural Database confirms the assertion that tri(N-pyrrolyl)phosphine, P(NC4H4)3, is isosteric with triphenylphosphine and reveals that N-pyrrolyl rings have a greater propensity to exist in the solid state in certain conformations. Tri(N-pyrrolyl)phosphine ligands are able to interact with each other in a similar manner to PPh3 giving rise to six-fold and four-fold pyrrolyl embraces. However, as a consequence of the five-membered pyrrolyl rings, vertex-to-face interactions are more common for P(NC4H4)3 than for PPh3.


It has been recognised recently that C–H⋯π interactions involving multiple aryl groups can be an important factor in determining solid state structures.1 Dance and Scudder have shown that these interactions, which they denote as multiple phenyl embraces, can occur in triphenylphosphine complexes,2 and in addition to linking individual molecules together they can form the basis of extended networks such as hexagonal arrays.3 Although the energy of a single C–H⋯π interaction is small, calculations show that the energy of a six-fold phenyl embrace (6PE) can be as high as 11.3 kcal mol−1.2

Recently, we have become interested in N-pyrrolyl phosphine ligands,4 in part due to the strong π-acceptor character of these ligands which ensures they are excellent electron-withdrawing ligands.5 In this paper, the Cambridge Structural Database (CSD)6 is used to investigate the size and conformation of N-pyrrolyl phosphines, and to determine whether the N-pyrrolyl groups can act in a similar manner to phenyl groups in forming supramolecular interactions.

Steric requirements

It has been reported previously that tri(N-pyrrolyl)phosphine, P(NC4H4)3, is isosteric with PPh3, and this is supported by comparison of individual compounds such as [Rh{(PPh2SiMe2)2N}{P(NC4H4)3}] and [Rh{(PPh2SiMe2)2N}(PPh3)].7 However, since the observed cone angle of a phosphine can vary considerably in the solid state, it was felt that a statistical analysis of a greater number of examples was needed to confirm that the two ligands are indeed isosteric. The crystallographic cone angle provides a means of obtaining a cone angle for a phosphine in a particular crystal structure.8 Thus, the cone angle Θ can be obtained from the three half angles θi through the equation

ugraphic, filename = .gif (1)
where

ugraphic, filename = .gif (2)
α being the P–M–H angle, rH the radius of the hydrogen atom and d the M–H distance (Fig. 1). For each N-pyrrolyl group, the hydrogen atom giving the greatest value of θi is identified and used in calculating Θ. In this manner the cone angle Θ can be obtained solely from the structural data. The value of rH used in the calculations was 1.00 Å in order to facilitate comparison with PPh3 (see below), though it should be noted that the original report on this method used rH⊕=⊕1.20 Å.

Parameters involved in the calculation of crystallographic cone angles.
Fig. 1 Parameters involved in the calculation of crystallographic cone angles.

The CSD contains 14 compounds of P(NC4H4)3, including 23 independent P(NC4H4)3 ligands.9 The crystallographic cone angle was calculated using the method above for each of the P(NC4H4)3 ligands, and the results are summarised in Table 1. The mean value was found to be 147(4)° with a range of 136–152°. This can be compared with a mean value obtained by Müller and Mingos for PPh3 based on 2388 phosphines of 148(5)°, with a range of 129–168°.17 The crystallographic data from the CSD therefore clearly support the assertion that P(NC4H4)3 is isosteric with PPh3.

Table 1 Cone angles, torsion angles and conformations of the P(NC4H4)3 ligands
CSD codeComplexCone angle, ΘTorsion angles/°ConformationRef.
CEHQIP (P1)cis-[PtMe2{P(NC4H4)3}2]14981.0, 24.2, 4.6Orthogonal flipper10
CEHQIP (P2)cis-[PtMe2{P(NC4H4)3}2]15078.2, 16.1, 11.1Orthogonal flipper10
GEQVUT[RuH35-C5Me5){P(NC4H4)3}]14944.1, 41.1, 32.8Rotor11
GIZFOK[Rh{(PPh2SiMe2)2N}{P(NC4H4)3}]14978.5, 32.2, 4.0Irregular7
GIZGEB[Rh{(PPri2SiMe2)2N}{P(NC4H4)3}]15070.4, 35.4, 3.4Irregular7
HAQWAX[Ru(CN)(η5-C5Me5)(CNBut){P(NC4H4)3}]·0.5EtOH14849.7, 45.8, 24.3Rotor12
HAQWEB[RuH25-C5Me5)(SiMe2Ph){P(NC4H4)3}]14177.8, 40.4, 21.5Irregular12
MAZBUK[Co2(μ-HC2Ph)(CO)5{P(NC4H4)3}]15253.5, 38.4, 25.8Rotor13
MAZCAR (P1)[Co2(μ-HC2Ph)(CO)4{P(NC4H4)3}2]14662.6, 41.7, 32.0Rotor13
MAZCAR (P2)[Co2(μ-HC2Ph)(CO)4{P(NC4H4)3}2]14667.3, 40.5, 30.9Rotor13
NATCIU[Rh(acac)(CO){P(NC4H4)3}]15167.2, 25.8, 21.8Rotor14
NATCOA (P1)[Rh(acac){P(NC4H4)3}2]15062.0, 25.7, 24.6Rotor14
NATCOA (P2)[Rh(acac){P(NC4H4)3}2]14972.9, 31.0, 25.6Irregular14
PULTEV[RuCl26-p-cymene){P(NC4H4)3}]14476.9, 31.2, 12.2Orthogonal flipper15
TORJUF (P1)[RuCl(η5-C5Me5){P(NC4H4)3}2]14056.3, 47.1, 26.0Rotor16
TORJUF (P2)[RuCl(η5-C5Me5){P(NC4H4)3}2]13686.7, 44.2, 10.8Irregular16
ZAVYEA (P1)trans-[RhCl(CO){P(NC4H4)3}2]15075.6, 26.8, 12.0Orthogonal flipper5
ZAVYEA (P2)trans-[RhCl(CO){P(NC4H4)3}2]15177.9, 15.2, 14.9Orthogonal flipper5
ZAVYEA (P3)trans-[RhCl(CO){P(NC4H4)3}2]15177.6, 6.7, 3.8Orthogonal flipper5
ZAVYEA (P4)trans-[RhCl(CO){P(NC4H4)3}2]15073.9, 19.6, 10.7Orthogonal flipper5
ZAVYOK (P1)[N(PPh3)2][Rh(CO){P(NC4H4)3}3]·THF14547.7, 43.4, 31.9Rotor5
ZAVYOK (P2)[N(PPh3)2][Rh(CO){P(NC4H4)3}3]·THF14641.3, 39.5, 32.1Rotor5
ZAVYOK (P3)[N(PPh3)2][Rh(CO){P(NC4H4)3}3]·THF14249.9, 45.1, 30.9Rotor5


Data for the mixed N-pyrrolyl–phenyl phosphines PPh(NC4H4)2 and PPh2(NC4H4) are less abundant, with only three independent phosphines of each type in the CSD (Table 2). The mean calculated cone angles are 141(4)° for PPh(NC4H4)2 and 141(7)° for PPh2(NC4H4), neither of which is significantly different from the value obtained for P(NC4H4)3.

Table 2 Cone angles, torsion angles and conformations of the PPh(NC4H4)2 and PPh2(NC4H4) ligands
CSD codeComplexCone angle, ΘTorsion angles/°ConformationRef.
PULTIZ[RuCl26-p-cymene){PPh(NC4H4)2}]14484.7, 31.2, 14.4Orthogonal flipper15
TORKAM (P1)[RuCl(η5-C5Me5){PPh(NC4H4)2}2]14176.2, 40.5, 18.4Orthogonal flipper16
TORKAM (P2)[RuCl(η5-C5Me5){PPh(NC4H4)2}2]13683.1, 53.9, 9.5Irregular16
DORVAH[Rh(acac)(CO){PPh2(NC4H4)}]14962.5, 37.1, 36.0Rotor18
TORKEQ (P1)[RuCl(η5-C5Me5){PPh2(NC4H4)}2]13587.2, 56.1, 2.3Irregular16
TORKEQ (P2)[RuCl(η5-C5Me5){PPh2(NC4H4)}2]14066.8, 51.3, 6.5Irregular16


Conformations of P(NC4H4)3 ligands

Although the most favourable conformation for an isolated triarylphosphine ligand is a ‘propeller’, or rotor, a recent analysis of the CSD by Dance and Scudder showed that for PPh3 only 40% of phosphines adopted this conformation.2 In their analysis, Dance and Scudder used M–P–C–C torsion angles (T) to characterise each phenyl ring on a PPh3 ligand as orthogonal (0⊕≤⊕|T|⊕<⊕20°), parallel (70⊕<⊕|T|⊕≤⊕90°), or staggered (20⊕≤⊕|T|⊕≤⊕70°), with the average value of the two M–P–C–C torsion angles for each phenyl ring used. A rotor conformation for a PPh3 ligand was defined on the basis of the ligand having three staggered phenyl rings with the same sign for the torsion angles.

A similar procedure, based on M–P–N–C torsion angles, was used to analyse the P(NC4H4)3 ligands and the results are summarised in Table 1. Eleven of the 23 independent P(NC4H4)3 ligands were characterised in this manner as rotors, the same proportion within experimental error as for PPh3. An example of this conformation is illustrated in Fig. 2. The number of P(NC4H4)3 ligands containing orthogonal pyrrolyl rings (12 of the 23) is considerably higher than for PPh3 (34.4%), this difference being significant at the 95% probability level. Furthermore, for six of these orthogonal pyrrolyl groups the phosphorus atom lies out of the plane of the pyrrolyl ring, as evidenced by a pyramidal distortion at the nitrogen atom with the sum of angles at the nitrogen atom being less than 358°. Consideration of individual structures suggests a number of reasons for these distortions, such as involvement in C–H⋯π hydrogen bonds and π–π interactions (Fig. 3). Although such distortions from planarity appear small and are of relatively low energy, they are significant as their occurrence can lead to the displacement of the far end of a pyrrolyl group by ca. 0.5 Å.

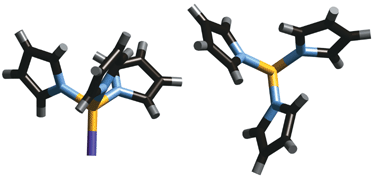

Rotor conformation of the P(NC4H4)3 ligand in [RuH3(η5-C5Me5){P(NC4H4)3}]
(GEQVUT)
(side and top views).
Fig. 2 Rotor conformation of the P(NC4H4)3 ligand in [RuH35-C5Me5){P(NC4H4)3}] (GEQVUT) (side and top views).

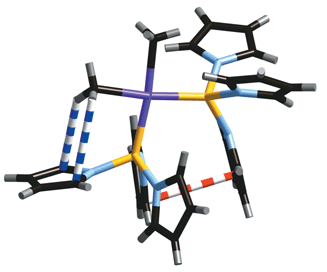

Intramolecular C–H⋯π
(shown in blue and white candystripe) and π–π interactions (shown in red and white) involving the orthogonal N-pyrrolyl groups in cis-[PtMe2{P(NC4H4)3}2]
(CEHQIP).
Fig. 3 Intramolecular C–H⋯π (shown in blue and white candystripe) and π–π interactions (shown in red and white) involving the orthogonal N-pyrrolyl groups in cis-[PtMe2{P(NC4H4)3}2] (CEHQIP).

Of the 12 non-rotors, three are in the conformation denoted by Dance and Scudder as orthogonal flippers. This conformation contains one orthogonal ring, with the other two possessing torsion angles of similar magnitude (±20°) but opposite sign. An example of this conformation is illustrated in Fig. 4. Given the level of occurrence of orthogonal pyrrolyl groups in structures containing P(NC4H4)3, it is somewhat surprising that in the two crystal structures containing PPh(NC4H4)2 ligands – [RuCl26-p-cymene){PPh(NC4H4)2}] (PULTIZ) and [RuCl(η5-C5Me5){PPh(NC4H4)2}2] (TORKAM) (Table 2) – both contain an orthogonal phenyl group and a parallel pyrrolyl group.


Orthogonal flipper conformation of the P(NC4H4)3 ligand in trans-[RhCl(CO){P(NC4H4)3}2]
(ZAVYEA)
(side and top views).
Fig. 4 Orthogonal flipper conformation of the P(NC4H4)3 ligand in trans-[RhCl(CO){P(NC4H4)3}2] (ZAVYEA) (side and top views).

Supramolecular interactions

Triphenylphosphine ligands are able to interact through multiple phenyl embraces to give extended structures. Having established the similarities in size and conformation of tri(N-pyrrolyl)phosphine to PPh3, the existence of multiple pyrrolyl embraces has been investigated.

Dance and Scudder used three criteria to define a six-fold phenyl embrace:1



rotor conformations;
a P⋯P separation of less than 7.5 Å;
both M–P⋯P angles in the range 160–180°.

Of the 23 independent tri(N-pyrrolyl)phosphine ligands, three fulfil all these criteria and can be said to contain six-fold pyrrolyl embraces. These are the phosphine ligand in [Rh(acac)(CO){P(NC4H4)3}] (NATCIU) and the two phosphine ligands in [Co2(μ-HC2Ph)(CO)4{P(NC4H4)3}2] (MAZCAR). In the former the embrace occurs to link molecules into dimers (Fig. 5), whereas in the latter, the two embraces serve to link the molecules into one-dimensional chains (Fig. 6). None of these three six-fold pyrrolyl embraces involves the six edge-to-face arrangements that are observed in regular six-fold phenyl embraces.1 In each case there are four interactions with C⋯C⊕<⊕4.0 Å, two of which are edge-to-face, the other two vertex-to-face. The occurrence of the latter is a consequence of the five-membered pyrrolyl ring and the resultant relative orientations of the CH vectors. It is noteworthy that vertex-to-face interactions are more frequent in interactions between P(NC4H4)3 ligands than in those between PPh3 ligands, for which edge-to-face interactions are more prevalent.


Six-fold pyrrolyl embraces in [Rh(acac)(CO){P(NC4H4)3}]
(NATCIU) linking the molecules into dimers (side and end views).
Fig. 5 Six-fold pyrrolyl embraces in [Rh(acac)(CO){P(NC4H4)3}] (NATCIU) linking the molecules into dimers (side and end views).

Six-fold pyrrolyl embraces in [Co2(μ-HC2Ph)(CO)4{P(NC4H4)3}2]
(MAZCAR) linking the molecules into one-dimensional chains.
Fig. 6 Six-fold pyrrolyl embraces in [Co2(μ-HC2Ph)(CO)4{P(NC4H4)3}2] (MAZCAR) linking the molecules into one-dimensional chains.

Distorted six-fold phenyl embraces are possible for PPh3 ligands in conformations other than rotors. This is also observed for P(NC4H4)3 ligands, with [Rh{(PPh2SiMe2)2N}{P(NC4H4)3}] (GIZFOK) and one of the phosphines in cis-[PtMe2{P(NC4H4)3}2] (CEHQIP) providing examples (Fig. 7). In [Rh{(PPh2SiMe2)2N}{P(NC4H4)3}] the distorted six-fold N-pyrrolyl embrace links the molecules into dimers, whereas in [PtMe2{P(NC4H4)3}2] the extended structure is more complex as the second phosphine ligand does not show a regular multiple pyrrolyl embrace.


Distorted six-fold pyrrolyl embraces in [Rh{(PPh2SiMe2)2N}{P(NC4H4)3}]
(GIZFOK).
Fig. 7 Distorted six-fold pyrrolyl embraces in [Rh{(PPh2SiMe2)2N}{P(NC4H4)3}] (GIZFOK).

Two classes of four-fold phenyl embrace have been identified for PPh3 compounds, defined as orthogonal (O4PE) or parallel (P4PE) depending on the relative orientations of the C–P–C planes. Dance and Scudder reported the latter to be more common for PPh3, and for the offset face-to-face interaction component observed for PPh4+ cations to not always be present.2 Very similar observations are made for the tri(N-pyrrolyl)phosphine structural series. Six of the 23 independent P(NC4H4)3 ligands are involved in parallel four-fold pyrrolyl embrace interactions, whereas none are involved in orthogonal four-fold pyrrolyl embrace interactions. Of these six, only one – [Ru(CN)(η5-C5Me5)(CNBut){P(NC4H4)3}] (HAQWAX), Fig. 8 – contains a face-to-face interaction of pyrrolyl rings in addition to a pair of edge-to-face interactions. The others – [Rh{(PPri2SiMe2)2N}{P(NC4H4)3}] (GIZGEB), [RuH25-C5Me5)(SiMe2Ph){P(NC4H4)3}] (HAQWEB), [RuCl26-p-cymene){P(NC4H4)3}] (PULTEV) and [RuCl(η5-C5Me5){P(NC4H4)3}2] (TORJUF), Fig. 9 – contain only a pair of vertex-to-face interactions. In the case of [RuCl(η5-C5Me5){P(NC4H4)3}2] (TORJUF), parallel four-fold pyrrolyl embraces serve to link the molecules into chains.


Parallel four-fold pyrrolyl embrace present in [Ru(CN)(η5-C5Me5)(CNBut){P(NC4H4)3}]
(HAQWAX). The shortest H⋯C interactions are marked in blue and white and the shortest π⋯π interactions are marked in red and white.
Fig. 8 Parallel four-fold pyrrolyl embrace present in [Ru(CN)(η5-C5Me5)(CNBut){P(NC4H4)3}] (HAQWAX). The shortest H⋯C interactions are marked in blue and white and the shortest π⋯π interactions are marked in red and white.

Parallel four-fold pyrrolyl embraces comprising vertex-to-face interactions present in (a)
[Rh{(PPri2SiMe2)2N}{P(NC4H4)3}]
(GIZGEB), (b)
[RuH2(η5-C5Me5)(SiMe2Ph){P(NC4H4)3}]
(HAQWEB), (c)
[RuCl2(η6-p-cymene){P(NC4H4)3}]
(PULTEV) and (d)
[RuCl(η5-C5Me5){P(NC4H4)3}2]
(TORJUF). The shortest H⋯C interactions are marked in blue and white.
Fig. 9 Parallel four-fold pyrrolyl embraces comprising vertex-to-face interactions present in (a) [Rh{(PPri2SiMe2)2N}{P(NC4H4)3}] (GIZGEB), (b) [RuH25-C5Me5)(SiMe2Ph){P(NC4H4)3}] (HAQWEB), (c) [RuCl26-p-cymene){P(NC4H4)3}] (PULTEV) and (d) [RuCl(η5-C5Me5){P(NC4H4)3}2] (TORJUF). The shortest H⋯C interactions are marked in blue and white.

Despite containing seven independent P(NC4H4)3 ligands between them, neither trans-[RhCl(CO){P(NC4H4)3}2] (ZAVYEA) nor [N(PPh3)2][Rh(CO){P(NC4H4)3}3]·THF (ZAVYOK) contain any good multiple aryl embraces. The supramolecular structure of trans-[RhCl(CO){P(NC4H4)3}2] is complex, with edge-to-face or vertex-to-face interactions involving all four independent P(NC4H4)3 ligands. The most noteworthy of these interactions are a five-fold embrace involving P(2) and P(3), and pairs of four-fold embraces involving P(1) and P(2), and P(3) and P(4), which link the independent molecules into dimers. However, none of the edge-to-face or vertex-to-face interactions involved in these multiple N-pyrrolyl embraces comprise particularly short or directional C–H⋯π interactions. The structure of [N(PPh3)2][Rh(CO){P(NC4H4)3}3]·THF is dominated by interactions between the cations and anions. These include C–H⋯π interactions in which the N-pyrrolyl groups act as both donors and acceptors, though no regular multiple embraces between tri(N-pyrrolyl)phosphine and triphenylphosphine groups are observed.

Although not all of the P(NC4H4)3 complexes have PPh3 analogues that have been structurally characterised, a comparison for those that do with these compounds reveals the intermolecular interactions to be largely similar in both structures. Thus [Rh(acac)(CO)(PPh3)] (ACRHCP), like [Rh(acac)(CO){P(NC4H4)3}] (NATCIU), shows a six-fold embrace, whereas [RuCl(η5-C5Me5)(PPh3)2] (GOLTAC) and [Rh{(PPri2SiMe2)2N}(PPh3)] (GIZGAX), like [RuCl(η5-C5Me5){P(NC4H4)3}2] (TORJUF) and [Rh{(PPri2SiMe2)2N}{P(NC4H4)3}] (GIZGEB), show parallel four-fold embraces. The biggest exception is [Rh{(PPh2SiMe2)2N}(PPh3)] (GIZFIE) for which a P4PE is observed: its P(NC4H4)3 analogue – [Rh{(PPh2SiMe2)2N}{P(NC4H4)3}] (GIZFOK) – shows an irregular six-fold pyrrolyl embrace.

Of the six independent phenyldi(N-pyrrolyl)phosphine or diphenyl(N-pyrrolyl)phosphine ligands, one ([Rh(acac)(CO){PPh2(NC4H4)}], DORVAH) fulfils the criteria for a six-fold embrace, and the mixed pyrrolyl–phenyl embrace links the molecules into dimers (Fig. 10).


Six-fold phenyl–pyrrolyl embrace in [Rh(acac)(CO){PPh2(NC4H4)}]
(DORVAH)
(side and end views).
Fig. 10 Six-fold phenyl–pyrrolyl embrace in [Rh(acac)(CO){PPh2(NC4H4)}] (DORVAH) (side and end views).

In conclusion, despite the large difference in the electronic properties of the two ligands, the size, conformation and supramolecular structure observed for P(NC4H4)3 are broadly similar to those previously reported for PPh3. However, for P(NC4H4)3 there is an increased frequency in the occurrence of conformations containing orthogonal rings, which is in part a consequence of the greater propensity of the pyrrolyl ring to bend away from the P–N vector. In addition, vertex-to-face C–H⋯π hydrogen bonds are a greater factor in the interactions between P(NC4H4)3 ligands than they are for PPh3, for which edge-to-face C–H⋯π hydrogen bonds dominate.
