Polymeric versus monomeric and tetrahedral versus octahedral coordination in zinc(II) pyridine complexes

---

Abstract

The first one-dimensional chain polymers of the type [Zn(μ-Cl)₂py]_∞ (py⊕=⊕3,5-dichloropyridine and 3,5-dibromopyridine) were synthesized by reaction of the 3,5-dihalopyridines with ZnCl₂. In the resulting linear coordination polymer octahedral zinc(II) centres are linked in an edge-sharing fashion by halogen bridges in their pseudo-equatorial plane. In contrast to these findings the analogous reaction between ZnBr₂ and the 3,5-dihalopyridines results in the formation of mononuclear tetrahedral complexes. Both of the zinc dihalides react with 3,4,5-trichloropyridine with formation of isotypic molecular crystals which show relatively short halogen⋯halogen contacts; their projections along the [001] direction exhibit a remarkable similarity to those of the chain polymers. From ZnX₂ (X⊕=⊕Cl, Br) and 4,4′-bipyridyl (bpy) a zigzag chain coordination polymer of composition [ZnX₂(μ-bpy)]_∞ was obtained.

---

Introduction

Over the past few years considerable efforts have been devoted to the synthesis and structural characterization of coordination polymers. Studies involving zinc(II) resulted in reports on chain polymers,^1–5 two-dimensional layer structures^6,7 and three-dimensional frameworks.⁸

A general search of the Cambridge Structural Database (CSD)⁹ for zinc complexes of any nuclearity confirms that coordination numbers of 4, 5 and 6 are commonly encountered.¹⁰ Here, we report eight new crystal structures involving the coordination of pyridine derivatives to zinc(II) halides (Scheme 1).

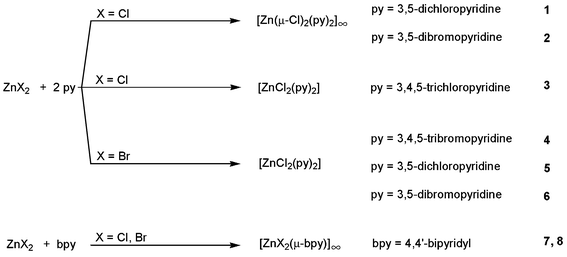

Scheme 1

Our selection is intended to demonstrate the interplay between coordination geometry, steric requirements of the ligands, and intermolecular interactions. Issues of packing and space filling will be addressed.

Experimental

Chemicals and reagents

All chemicals were used as purchased without purification: ZnCl₂ (98%, Merck), ZnBr₂ (98%, Fluka), 3,5-dichloropyridine (3,5-Cl₂py) (98%, Aldrich), 3,5-dibromopyridine (3,5-Br₂py) (99%, Aldrich), 3,4,5-trichloropyridine (3,4,5-Cl₃py) (98%, Aldrich), 4,4′-bipyridyl (4,4′-bpy) (99%, Merck).

Synthesis of [Zn(μ-Cl)₂(3,5-Cl₂py)₂]_∞ (1)

Reaction of ZnCl₂ (4 mmol, 0.545 g) and 3,5-Cl₂py (8 mmol, 1.184 g) in 50 ml EtOH gave a colourless solution and a white precipitate. Colourless crystals of 1 were obtained by evaporation of the filtrate in air. A second crop of crystals can be obtained by evaporating a solution of the original precipitate in acetone. Overall yield quantitative. ¹H NMR (200 MHz, d₆-acetone): δ 8.09 (m, 1H, H₄), 8.58 (d, 2H, H_2,6).

Synthesis of [Zn(μ-Cl)₂(3,5-Br₂py)₂]_∞ (2)

Similar to the synthesis of 1, the reaction of ZnCl₂ (4 mmol, 0.545 g) and 3,5-Br₂py (8 mmol, 1.896 g) in 100 ml EtOH gave colourless crystals of 2 in quantitative yield. ¹H NMR (200 MHz, d₆-acetone): δ 8.37 (m, 1H, H₄), 8.71 (d, 2H, H_2,6).

Synthesis of [ZnCl₂(3,4,5-Cl₃py)₂] (3)

Reaction of ZnCl₂ (2 mmol, 0.273 g) and 3,4,5-Cl₃py (4 mmol, 0.730 g) in 50 ml EtOH gave colourless crystals of 3 in quantitative yield. ¹H NMR (200 MHz, d₆-acetone): δ 8.67 (s, 2H, H_2,6).

Synthesis of [ZnBr₂(3,4,5-Cl₃py)₂] (4)

Reaction of ZnBr₂ (2 mmol, 0.450 g) and 3,4,5-Cl₃py (4 mmol, 0.730 g) in 50 ml EtOH occurred without obvious phenomenon. Colourless crystals of 4 were grown by slow evaporation of the solution. Yield quantitative. ¹H NMR (200 MHz, d₆-acetone): δ 8.68 (s, 2H, H_2,6).

Synthesis of [ZnBr₂(3,5-Cl₂py)₂] (5)

By analogy to the synthesis of 4, reaction of ZnBr₂ (4 mmol, 0.901 g) and 3,5-Cl₂Py (8 mmol, 1.184 g) in 100 ml EtOH occurred without obvious phenomenon. Colourless crystals of 5 were crystallized by slow evaporation of the solution. Yield quantitative. ¹H NMR (200 MHz, d₆-acetone): δ 8.18 (m, 1H, H₄), 8.63 (d, 2H, H_2,6).

Synthesis of [ZnBr₂(3,5-Br₂py)₂] (6)

Similar to the syntheses of 4 and 5, reaction of ZnBr₂ (4 mmol, 0.901 g) and 3,5-Br₂py (8 mmol, 1.896 g) in 100 ml EtOH gave colourless crystals of 6 in quantitative yield. ¹H NMR (200 MHz, d₆-acetone): δ 8.40 (m, 1H, H₄), 8.73 (d, 2H, H_2,6).

Synthesis of [ZnCl₂(μ-4,4′-bpy)]_∞ (7)

Reaction of ZnCl₂ (6 mmol, 0.818 g) and 4,4′-bpy (6 mmol, 0.937 g) in 50 ml EtOH gave a white solid. Crystals of 7 were obtained in quantitative yield by evaporating a solution of the solid in DMSO. Alternatively, crystals of 7 may be grown by sublimation of the powder at ca. 310 °C in vacuo. ¹H NMR (200 MHz, d⁶-DMSO): δ 7.83 (dd, 4H, H_{3,5,3′,5′}), 8.72 (dd, 4H, H_{2,6,2′,6′}).

Synthesis of [ZnBr₂(μ-4,4′-bpy)]_∞ (8)

Similar to the synthesis of 7, reaction of ZnBr₂ (6 mmol, 1.351 g) and 4,4′-bpy (6 mmol, 0.937 g) in 50 ml EtOH gave a white solid in quantitative yield. Crystals of 8 were obtained from DMSO–acetone solution. ¹H NMR (200 MHz, d₆-DMSO): δ 7.83 (dd, 4H, H_{3,5,3′,5′}), 8.72 (dd, 4H, H_{2,6,2′,6′}).

Crystallographic studies

Compounds 1–8 are air-stable and colourless. Crystals were mounted on glass fibers. Geometry and intensity data were obtained using a Bruker SMART Apex CCD area detector diffractometer. Preliminary lattice parameters and orientation matrices were obtained from three sets of frames. They were re-refined during the integration process of the intensity data. All data were collected using graphite-monochromated Mo-Kα radiation (λ⊕=⊕0.71073 Å) at 293(2) K with the ω scan method.¹¹ Data were processed using the SAINT+ program.¹² Empirical absorption corrections were applied to all data sets by using the SADABS program for area detector data.¹³ All structures were solved by direct methods and refined using SHELXTL.¹⁴ Non-hydrogen atoms were refined with anisotropic displacement parameters, and hydrogen atoms were placed in idealized positions (C–H⊕=⊕0.98 Å) and included as riding with U_iso(H)⊕=⊕1.3 U_eq(non-H). Crystal data, data collection parameters and refinement results for 1–8 are listed in Tables 1 and 2.

Table 1 Crystal data, data collection parameters and refinement results for 1–4^a

Parameter	1	2	3	4
a Click b103378f(a).txt for full crystallographic data (CCDC 162045–162048).
Empirical formula	C10H6Cl6N2Zn	C10H6Cl2Br4N2Zn	C10H4Cl8N2Zn	C10H4Br2Cl6N2Zn
Crystal dimensions/mm	0.42⊕×⊕0.12⊕×⊕0.10	0.50⊕×⊕0.22⊕×⊕0.19	0.58⊕×⊕0.22⊕×⊕0.16	0.50⊕×⊕0.12⊕×⊕0.06
M	432.24	610.08	501.12	590.04
Crystal shape	Rod	Rod	Rod	Needle
Crystal system	Tetragonal	Tetragonal	Tetragonal	Tetragonal
Space group (no.)	P4̄b2 (117)	P4̄b2 (117)	P42nm (102)	P42nm (102)
a/Å	13.846(3)	13.888(3)	12.6282(11)	12.527(4)
c/Å	3.6542(10)	3.7300(12)	5.2467(7)	5.549(2)
V/Å^3	700.5(3)	719.5(3)	836.70(15)	870.8(5)
Z	2	2	2	2
D c/g cm^−3	2.049	2.816	1.989	2.250
μ/mm^−1	28.80	131.69	27.35	69.10
F(000)	424	568	488	560
Scan range (θ)/°	2–28	3–28	3–28	3–28
Total reflections	4037	9405	10 972	6991
Unique reflections	820	890	1098	1127
Variables refined	52	52	60	60
Flack parameter	0.02(2)	0.015(17)	0.028(14)	0.07(3)
R 1 [I⊕>⊕2σ(I)]	0.0268	0.0207	0.0223	0.0631
wR 2 (all reflections)	0.0593	0.0460	0.0614	0.1480
Residual electron density/e Å^−3	0.396	0.675	0.465	−1.528 (close to Br)

---

Table 2 Crystal data, data collection parameters and refinement results for 5–8^a

Parameter	5	6	7	8
a Click b103378f(b).txt for full crystallographic data (CCDC 162049–162052).
Empirical formula	C10H6Br2Cl4N2Zn	C10H6Br6N2Zn	C10H8Cl2N2Zn	C10H8Br2N2Zn
Crystal dimensions/mm	0.42⊕×⊕0.27⊕×⊕0.13	0.45⊕×⊕0.30⊕×⊕0.20	0.35⊕×⊕0.08⊕×⊕0.06	0.67⊕×⊕0.12⊕×⊕0.08
M	521.16	699.00	292.45	381.37
Crystal shape	Block	Prism	Needle	Needle
Crystal system	Monoclinic	Triclinic	Monoclinic	Monoclinic
Space group (no.)	P21/c (14)	P1̄ (2)	C2/c (15)	C2/c (15)
a/Å	12.547(2)	8.0886(9)	15.830(2)	15.989(5)
b/Å	11.0055(19)	9.6282(11)	5.1132(8)	5.4211(7)
c/Å	13.142(2)	11.1754(12)	14.5963(18)	15.0100(19)
α/°	—	88.184(3)	—	—
β/°	117.262(3)	82.233(2)	110.265(2)	113.440(3)
γ/°	—	82.338(2)	—	—
V/Å^3	1613.1(5)	854.56(16)	1108.3(2)	1193.6(3)
Z	4	2	4	4
D c/g cm^−3	2.146	2.717	1.753	2.122
μ/mm^−1	71.24	154.51	26.62	87.19
F(000)	992	640	584	728
Scan range (θ)/°	2–28	2–28	2–28	2–28
Total reflections	21 739	6589	7088	4195
Unique reflections	4005	4171	1374	1476
Variables refined	173	173	69	69
Extinction coefficient/Å^−3	0.0215(5)	0.0175(4)	—	—
R 1 [I⊕>⊕2σ(I)]	0.0309	0.0341	0.0529	0.0470
wR 2 (all reflections)	0.0645	0.0694	0.1292	0.1271
Residual electron density/e Å^−3	0.619	0.681	0.640	−0.933

---

Results and discussion

When ZnCl₂ or ZnBr₂ are reacted with pyridine derivatives the formation of mononuclear tetrahedral complexes can be expected. The original interest of our work in this field was the comparison of packing modes, intermolecular interactions and space filling properties for these presumably simple complexes of zinc(II) with pyridine derivatives. In addition to published examples^15–26 we indeed obtained and fully characterized products of this type from reactions with unsubstituted pyridine or its derivatives 2-halopyridine, 3-halopyridine, 4-halopyridine or 3,5-dimethylpyridine. As they do not exhibit exceptionally short intermolecular interactions and do not show obvious structural relationships with the compounds discussed in the following section, their crystal and molecular structures will be reported in a forthcoming contribution. To our surprise, reaction between ZnCl₂ and 3,5-dichloropyridine or 3,5-dibromopyridine resulted in the formation of the coordination polymers 1 and 2. A section of polymer 1 is represented in Fig. 1.²⁷

Fig. 1 Displacement ellipsoid plot²⁷ of a section of coordination polymer [Zn(μ-Cl)₂(3,5-Cl₂py)₂]_∞, 1. Ellipsoids are scaled to 50% probability, H atoms are represented with arbitrary radius. Click image or 1.htm to access a 3D representation.

Although this type of polymeric chain is commonly encountered for complexes of the higher homologue cadmium(II),^28–31 to the best of our knowledge 1 and 2 represent the first examples of a one-dimensional coordination polymer based on halogen-bridged edge-sharing zinc(II) octahedra. The only precedents for an arrangement similar to that described above are represented by the two-dimensional layer structures [ZnCl₂(py)] (py⊕=⊕pyrazine, pyrimidine)⁷ which are isotypic to the corresponding Cd derivatives.^29,30 In the structure of 1 chains of chloro-bridged Zn(II) octahedra extend along the [001] direction with the short, tetragonal c-axis of 3.6542(10) Å representing the Zn⋯Zn vector. The apical positions in the pseudo-octahedron around each metal center are occupied by the nitrogen atoms of the donor ligands. The ring planes between the pyridine ligands bonded to the same Zn cation are tilted by an angle of 36°. This ensures a short contact of 2.69 Å between the ortho hydrogen atom of the pyridine ring and its closest metal-bridging Cl neighbor. A similar geometry has been observed in the structure of [CdCl₂(py)] (py⊕=⊕pyrazine) by Bailey and Pennington²⁹ who attributed this deviation from a hypothetical mmm symmetry to non-classical C–H⋯Cl hydrogen bonds.³² An important feature of our coordination polymer are the contacts between neighboring pyridine rings along the same chain which amount to a lattice translation along [001], i.e. a distance of 3.6542(10) Å. They involve stacking of the aromatic rings as well as close interchlorine contacts. For the spherical van der Waals (vdW) radius of chlorine, values of 1.76³³ and 1.8 Å³⁴ have been proposed; if the concept of polar flattening is accepted, a radius of 1.78 Å applies.³⁵ In agreement with these numbers the intramolecular Cl⋯Cl distances in 1 may be interpreted as favourable vdW interactions.

Fig. 2(a) ³⁶ illustrates the packing of the polymeric chains in the projection on the ab plane.

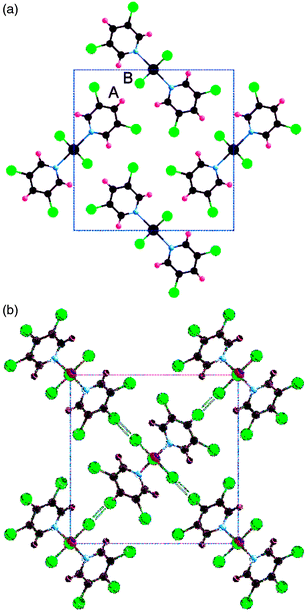

Fig. 2 Projection³⁶ of the unit cells of (a) the polymer [Zn(μ-Cl)₂(3,5-Cl₂py)₂]_∞, 1, and (b) [ZnCl₂(3,4,5-Cl₃py)₂], 3, along [001].

Two types of relatively short intermolecular interactions are worth mentioning: interactions between chlorine substituents, bonded to adjacent polymer strands and symmetry-related by action of the fourfold inversion axis, occur at a distance of 3.77 Å; and C–H⋯Cl contacts of 2.82 Å exist between the para hydrogen atom of the pyridine ring and the closest metal-bridging Cl ligands of a neighboring chain. The latter interactions, translated along [001], result in a zipper-like, interchain arrangement of the C–H groups of one [marked as ‘A’ in Fig. 2(a)] and the chloro ligands (marked ‘B’) of an adjacent polymer strand.

In the isotypic compound 2 the translation period along the chain is slightly longer and amounts to 3.7300(12) Å, as might be expected when the carbon-bonded chlorine substituents are replaced by the higher homologue bromine (vdW radius 1.85,³³ 1.9,³⁴ or 1.84 Å³⁵). The tilt angle of 42° between the two pyridine rings bonded to each metal and the interchain C–H⋯Cl contacts of 2.87 Å are similar to the values found for 1.

Space filling in the coordination polymers is highly efficient. When Gavezzotti's sampling method³⁷ is applied, packing coefficients of 0.767 for 1 and 0.793 for 2 are calculated. The favourable packing may also be visualized with the help of a model of a polymer chain of 2 in which the atoms are represented by their vdW spheres (Fig. 3).

Fig. 3 Space-filling model³⁶ of the polymer [Zn(μ-Cl)₂(3,5-Br₂py)₂]_∞, 2. Color code: C, black; H, magenta; N, blue; Br, yellow; Cl, green; Zn, grey.

Zinc dichloride and zinc bromide react with 3,4,5-trichloropyridine resulting in the formation of mononuclear tetrahedral complexes. The resulting isotypic products 3 and 4 crystallize in space group P4₂nm with the metal in special positions 2a, corresponding to an arrangement of objects with 2mm (C_2v) site symmetry which are packed according to the symmetry operations in subgroup P2₁. Projections of 3 and 4 along the principal symmetry direction show remarkable similarity to those of the polymers 1 and 2 (Fig. 2). All four complexes crystallize in tetragonal space groups. The special projections along [001] for P4̄b2 (coordination polymers 1 and 2) and P4₂nm (mononuclear complexes 3 and 4) belong to the plane group p4gm, albeit with different origin,³⁸ and hence comparable intermolecular arrangements with a component in the ab plane occur. The relatively short interhalogen contacts around the fourfold rotation points are similar in both structures and are in agreement with expectations for vdW crystals. However, the H⋯Cl interactions in 1 and 2 have their equivalents in Cl⋯Cl [3.26 Å, 3, emphasized as hollow green ‘bonds’ in Fig. 2(b)] or Cl⋯Br (3.40 Å, 4) interactions which are considerably shorter than the sum of the vdW radii. Interhalogen contacts of this type are attractive according to Desiraju and Parthasarathy.³⁹

In contrast to the above-mentioned formation of coordination polymers 1 and 2 from ZnCl₂ and the 3,5-dihalopyridines, the analogous reactions between these ligands and ZnBr₂ result in formation of the mononuclear tetrahedral complexes 5 and 6. A search in the CSD revealed that no structures involving six coordinated zinc(II) centers with more than two bromo ligands coordinated to the same metal cation have been reported: probably, structures equivalent to 1 and 2, i.e. hypothetical bromo-bridged one-dimensional coordination polymers, cannot form for steric reasons. The mononuclear reaction products 5 and 6 are represented in Fig. 4.

Fig. 4 Displacement ellipsoid plot²⁷ of (left) [ZnBr₂(3,5-Cl₂py)₂], 5 and (right) [ZnBr₂(3,5-Br₂py)₂], 6. Ellipsoids are scaled to 50% probability, H atoms are represented with arbitrary radius.

Non-classical C–H⋯Br interactions represent the shortest intermolecular contacts in both structures with the H atom in a position para to one of the pyridine ligands approaching a bromo ligand of a neighboring molecule. The intermolecular distances associated with these interactions are 2.94 Å in 5 and 2.74 Å in 6. No short halogen⋯halogen contacts occur in these structures. Packing coefficients amount to 0.633 for 5 and 0.708 for the bis(3,5-dibromopyridine) complex 6 and cannot compete with the high numbers found for the polymers 1 and 2.

In structures 1–6 octahedral coordination of zinc(II) is associated with the formation of polymeric species whereas tetrahedral geometry is observed for mononuclear complexes. Reaction of the zinc dihalides ZnCl₂ and ZnBr₂ with 4,4′-bipyridyl results in quantitative formation of the coordination polymers 7 and 8, respectively. In these isotypic compounds bipyridyl ligands bridge ZnX₂ moieties with an essentially tetrahedral arrangement at the metal. Fig. 5 shows a section of the resulting zigzag chain in [ZnCl₂(μ-bpy)]_∞, 7.

Fig. 5 Displacement ellipsoid plot²⁷ of a section of the coordination polymer [ZnCl₂(μ-bpy)]_∞, 7. Ellipsoids are scaled to 50% probability, H atoms are represented with arbitrary radius. Click image or 5.htm to access a 3D representation.

The coordination polymer extends along the [101] direction, with the Zn atoms on twofold crystallographic axes and the midpoints of the C3–C3′ bonds on centers of inversion. Slightly elongated displacement ellipsoids for the carbon atoms C1, C2, C4 and C5 indicate either librational movement or static disorder with respect to the dihedral angle between the two aromatic rings of the bipyridine ligand. Structures of similar connectivity have been described for thiolato⁴ and dithiophosphato¹ groups as monoanionic ligands, and in the case of [Zn(NCS)₂(μ-bpy)]_∞³ an isotypic coordination polymer has been obtained. We note that crystals of 7 may be grown via both sublimation and isothermic evaporation of a saturated solution in DMSO.

In this article we have communicated a series of crystal structures for pyridine complexes of zinc(II) halides comprising two very different types of coordination polymer: for 7 and 8 with the rigid bridging 4,4′-bipyridyl moiety the formation of chain polymers can be predicted, whereas the existence of coordination polymers based on octahedral zinc(II), 1 and 2, seems to be limited to the special combination of chlorine as bridging atoms and 3,5-dihalogen pyridine ligands in the apical positions. Replacement of the (μ)-Cl ligands by bromine bridges, insertion of an additional halogen substituent in the 4-position, or removal of one or both of the 3- and 5-halogen atoms of the pyridine ring as well as exchange of these halogen moieties for methyl groups will result in mononuclear species. We note that reaction of the zinc dihalides with 2,6-dichloropyrazine, a ligand which cannot bridge due to the steric congestion around the nitrogen atom at the 1-position and which might be expected to have approximately the same steric requirements as 3,5-dichloropyrdine, also gives mononuclear complexes.⁴⁰ When compared to the analogous cadmium complexes, a more subtle balance between steric requirements of the ligands and intermolecular interactions has to be met than is the case for formation of octahedral zinc(II) coordination polymers.

Acknowledgements

Support from Deutsche Forschungsgemeinschaft and Fonds der Chemischen Industrie is gratefully acknowledged. The authors wish to thank Mrs X. Liu for friendly help.
