New highly active chiral phosphapalladacycle catalysts. First isolation and characterization of a Pd(IV) intermediate

Abstract

The synthesis and characterization of a new active P*-active phosphapalladacycle and its successful use in the asymmetric hydroarylation of norbornene with turnover numbers (TONs) of up to 10¹⁰ is described.

---

C–C coupling reactions using numerous transition metals are of fundamental interest in modern synthetic chemistry.¹ Thus, the arylation and vinylation of olefins catalyzed by Pd complexes (Heck reaction) has been extensively studied to achieve industrial scale technical application during the last decade.² In this area, Herrmann et al. discovered in 1995 highly efficient palladacycle catalysts in Heck and related reactions of aryl halides with catalyst turnover numbers (TONs)³ up to 500000.^4,5 On the other hand, because of the excellent control of regio- and stereo-selectivity in Heck reactions, intra- and inter-molecular asymmetric variations were developed.⁶ Nevertheless, all of the results reported in the literature suffer from insufficient catalyst turnover frequencies (TOF<10 h⁻¹ and TON<100) and are limited in the use of aryl triflates and aryl iodides as arylating agents.⁷ Thus, few syntheses of chiral palladacycle catalysts have been envisioned and all these attempts failed.⁸ To our knowledge, only Dunina et al. have successfully reported the synthesis of an optically active P^*-chiral phosphapalladacycle via resolution of diastereomeric (S)-prolinate derivatives of the racemic dimer.⁹ In the context of our studies, we have recently described the potentialities of oxaza- and diazaphospholidine ligands in various catalytic enantioselective reactions¹⁰ as well as the synthesis of a new class of highly efficient new phosphapalladacycle catalysts for hydroarylation of norbornene with TON levels > 10¹⁰.¹⁴ Here, we report the synthesis and use of a new chiral phosphapalladacycle catalyst, as well as the isolation of an intermediate palladium complex involved in the hydroarylation of norbornene.

Fig. 1 X-Ray structure of 5, with labeling scheme (for clarity the iodine ion has been omitted). Selected bond distances (Å) and angles (°): P1–Pd2 2.321(3), Pd2–O22 2.1810(1), Pd2–C27 1.221(2), Pd2–C26 2.195(3), C23–O22 1.212(4), P1–N3 1.662(4), P1–N4 1.662(3), P1–C6 1.790(2); Pd2–C27–O22, 115.2(1), P1–Pd2–N3 140.8(1), P1–Pd2–N4 105.7(2), P1–N3–N4 94.5(2), P1–N4–C5 122.1(2), P1–N4–C11 111.4(3), P1–N4–C5 122.1(3), Pd2–C26–C7 132.2(1), Pd2–C26–O22 84.0(1), P1–N3–C14 117.4(4), P1–N3–N4 94.5(3), Pd2–P1–C27 138.4(2), Pd2–P1–C26 86.6(1).

The synthesis of the chiral o-tolyldiazaphospholidine ligand 3 was readily achieved in 89% yield by an exchange reaction in refluxing toluene from bis(dimethylamino)(o-tolyl)phosphine 1 and (S)-anilinomethylpyrrolidine 2 (readily obtained from L-glutamic acid) [eqn. (1)].¹⁵ The structure of this ligand was

unambiguously established by ¹H, ¹³C, ³¹P NMR spectroscopy and also by X-ray structure analysis (Fig. SI 1, ESI†).¹⁶

Treatment of palladium(II) acetate with ligand 3 in refluxing toluene afforded the expected phosphapalladacycle complex 4 in 75% yield as a thermally, air and moisture stable yellow solid [eqn. (2)]. The structure of this cyclometallated compound,

resulting from simple C–H activation of ortho-methyl group in the aryl phosphine part, was established by NMR spectroscopy and elemental analysis. However, all attempts to crystallize this phosphapalladacycle complex have so far failed. This phosphapalladacycle catalyst mediates arylation of norbornene under reductive conditions (NEt₃/HCO₂H) [eqn. (3)] and the reactions of phenyl triflate or iodobenzene with norbornene affording the corresponding exo-phenylnorbornane were investigated (ESI†).^17,18Table 1 summarizes the results.

Table 1 Catalytic hydroarylation of norbornene using palladacycle 4

Entry	Ar–X	Catalyst 4 (mol% Pd)	Conv. (%)^a	Yield (%)^b	TON	Ee (%)^c
a Conversion determined by GC.b Isolated yield.c Enantiomeric excess determined by GC on a fused silica gel column (25 m × 0.25 mm) coated with 10% heptakis(2,3,6-tri-O-methyl)-β-cyclodextrin at 100 °C, tR(−) 39.30 min; tR (+) 40.58 min.
1	Ph–I	0.5	100	99	1.9 × 10^2	14
2	Ph–I	5 × 10^−6	100	98	1.9 × 10^7	4
3	Ph–I	5 × 10^−7	100	98	1.96 × 10^8	2
4	Ph–I	5 × 10^−9	100	84	1.68 × 10^10	2
5	Ph–OTf	0.5	100	99	1.9 × 10^2	25
6	Ph–OTf	5 × 10^−4	100	99	1.98 ×10^5	14

---

As already observed using achiral catalysts, an extraordinary high activity of complex 4 was observed at 120 °C in DMSO.¹⁴ Consequently, exceptional turnover numbers up to 1.96 × 10⁸ mol product (mol Pd)⁻¹ and yields of 98% were achieved (Table 1, entries 1–4). In addition, turnover frequencies up to 1.6 × 10⁷ mol product (mol Pd h)⁻¹ were encountered. To our knowledge, these values are the highest TOF reported to date for palladium catalysis involving chiral palladacycle complexes. On the other hand, whatever the experimental conditions, low enantiomeric excesses (ee) up to 25% using phenyl triflate as arylating agent were observed (Table 1, entry 5). Nevertheless, these results constitute the first example of the use of an active chiral P*-phosphapalladacycle catalyst in an enantioselective hydroarylation reaction.

In the course of our investigations on the mechanism (Scheme 1) of this reaction,¹⁹ we were able to isolate an intermediate Pd(IV) complex 5 which was fully characterized by X-ray structure analysis (Fig. 1).^16,20 Isolation of this intermediate suggests a mechanism for the Heck reaction involving Pd^II–Pd^IV species and suggests that the first step of the catalytic cycle is oxidative addition of a haloarene to a palladium(II) compound to form a palladium(IV) species. In the next step, an alkene molecule is coordinated and inserts into the Pd–Ar bond. The insertion process occurs via a four-centered transition state which requires a planar assembly of the alkene and Pd–Ar bond. Hence, insertion proceeds in a syn manner to generate a σ-alkylpalladium complex. The formate anion reacts subsequently with the intermediate 7 producing the norbornyl palladium formate 8 from which exo-phenylnorbornane 9 is generated through decarboxylation and Pd(II) deinsertion.

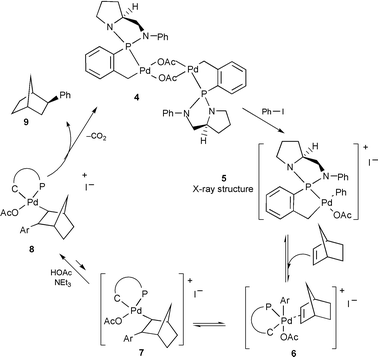

Scheme 1

In conclusion, we have described the synthesis of a new active P*-chiral phosphapalladacycle and its successful use in the asymmetric hydroarylation of norbornene, with TON up to 10¹⁰. On the other hand, although the enantiomeric excesses are low (up to 25% ee) they constitute, to our knowledge, the first results in asymmetric catalysis using a chiral phosphapalladacycle catalyst. Further studies relating to structural modification of the chiral ligand are now underway and will be reported in due course.
