Solvent-free approach for the synthesis of heterometallic Fe–Zn-ZIF glass via a melt-quenched process

Abstract

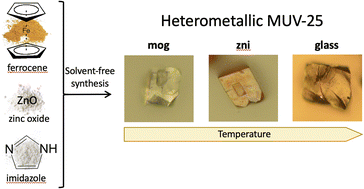

We report the solvent-free synthesis of a crystalline heterometallic imidazolate derivative with formula [Fe₁Zn₂(im)₆(Him)₂], designated MUV-25, incorporating both iron and zinc. The structure imposes strict positional constraints on the metal centres due to the lattice containing distinct geometric coordination sites, tetrahedral and octahedral. As a consequence, each metal is exclusively directed to its specific coordination site, ensuring precise spatial organization within the lattice. Atom locations were meticulously monitored utilizing X-ray diffraction (single crystal and total scattering) and XAS techniques, demonstrating that the tetrahedral sites are occupied exclusively by zinc, and the octahedral sites are occupied by iron. This combination of metal centres results, upon heating, in a structural phase transformation to the zni topology at a very low temperature. Further heating causes the melting of the solid, yielding a heterometallic MOF-derived glass. The methodology lays the groundwork for tailoring crystalline structures to advance the development of novel materials capable of melting and forming glasses upon cooling.
