Issue 8, 2024

Effective transport properties of porous composites applied to MIEC SOC electrodes

Abstract

Semi-analytical models describing transport phenomena governed by the Laplace equation (like conduction of charge carriers or heat) are presented for the case of a porous composite with two solid phases and one pore-phase (i.e., two conducting and one insulating phase), closing the existing gap in the literature for fast and accurate predictions for this particular case. The models allow for an efficient screening of promising concepts and material combinations, as they are computationally much more efficient compared to numerical simulations on a 3D geometry. Three different semi-analytical models (Maxwell, Xu and MST models) are compared and validated using a microstructure dataset of perovskite–CGO solid oxide cell electrodes obtained by stochastic modeling. Based on the results from both numerical and semi-analytical models, the effects of the resulting composite transport properties are discussed for the application example of these fully ceramic electrodes. CGO and the used LSTN perovskite are both mixed ionic and electronic conductors (MIECs), which leads to different reaction mechanisms and associated requirements for the microstructure design compared to, e.g., Ni–YSZ. Due to the MIEC-property of both solid phases, the transport of neither electrons nor oxygen ions is limited to a single phase. Consequently, the composite conductivity, which is inherent to MIEC electrodes, opens a much larger design space for microstructure optimization compared to the single-phase conductivity of conventional electrodes, which are prone to percolation failure.

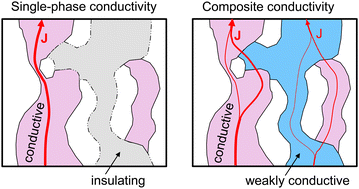

Graphical abstract: Effective transport properties of porous composites applied to MIEC SOC electrodes

Supplementary files

Article information

Article type
Paper
Submitted
02 Feb 2024
Accepted
29 Jun 2024
First published
03 Jul 2024
This article is Open Access
Creative Commons BY license

Energy Adv., 2024,3, 2013-2034

Effective transport properties of porous composites applied to MIEC SOC electrodes

P. Marmet, L. Holzer, T. Hocker, G. K. Boiger and J. M. Brader, Energy Adv., 2024, 3, 2013 DOI: 10.1039/D4YA00074A

This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. You can use material from this article in other publications without requesting further permissions from the RSC, provided that the correct acknowledgement is given.

Read more about how to correctly acknowledge RSC content.
