Reaction strategies of bisphenol A derivatives to regulate the microstructure of polyarylates: synthesis of bisphenol S/bisphenol A random polyarylates and block polyarylates

Abstract

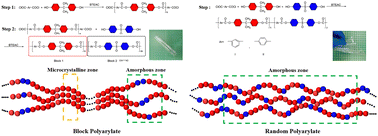

A series of linear block polymers and random polymers were synthesized by interfacial polycondensation using two bisphenols with similar structures, bisphenol S (BPS) and bisphenol A (BPA), and terephthaloyl chloride and isophthaloyl chloride. Random polymers and block polymers with the expected topology were structurally characterized by ¹H NMR, FTIR, GPC, WAXD, and Raman spectroscopy. The results demonstrated that there was no significant difference in the thermal stability of the block and random polyarylates, which was due to the fact that the covalent bonds of the linked monomers did not change substantially, and the bond energies were the same. However, due to the alteration of the molecular sequence structure, the block polymer exhibited a lower glass transition temperature, a pronounced melting peak, and better solubility. With physical cross-linking points consisting of microcrystalline phases formed by the relatively regular molecular chain structure, the block polyarylates exhibited a higher modulus of elasticity than the random polyarylates. This illustrated that it is possible to prepare new functional polyarylates without changing the monomer composition, but only by manipulating the reaction process.
