Modified Cu–Zn–Al mixed oxide dual function materials enable reactive carbon capture to methanol

Abstract

Reactive carbon capture (RCC), an integrated CO2 capture and conversion process that does not require generating a purified CO2 stream, is an attractive carbon management strategy that can reduce costs and energy requirements associated with traditionally separate capture and conversion processes. Dual function materials (DFMs) comprised of co-supported sorbent sites and catalytic sites have emerged as a promising material design to enable RCC. DFMs have been extensively studied for methane production, but the noncompetitive economics of methane necessitates the development of DFMs to target more valuable, useful, and versatile products, like methanol. Herein, we report the development of modified Cu–Zn–Al mixed oxide (Alk/CZA, Alk = K, Ca) DFMs for combined capture and conversion of CO2 to methanol. CO2 chemisorption, in situ DRIFTS characterization, and co-fed hydrogenation performance revealed that K and Ca have different effects on the CO2 capture and catalytic behavior of the parent CZA. K-modification resulted in the greatest promotional effect on capture capacity but the most detrimental effect on co-fed hydrogenation catalytic activity. Interestingly, when used in a cyclic temperature-and-pressure-swing RCC operation, K/CZA exhibited a greater conversion of adsorbed CO2 (94.4%) with high methanol selectivity (46%), leading to greater methanol production (59.0 μmol gDFM−1) than the parent CZA or Ca/CZA (13.2 and 18.9 μmol gDFM−1, respectively). This study presents the foundational methodology for the design and evaluation of novel DFMs to target renewable methanol synthesis, highlighted by a critical learning that co-fed CO2 hydrogenation performance is not an effective indicator of RCC performance.

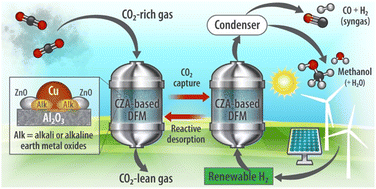

Graphical abstract: Modified Cu–Zn–Al mixed oxide dual function materials enable reactive carbon capture to methanol

Supplementary files

Article information

Article type
Communication
Submitted
27 Oct 2023
Accepted
02 Nov 2023
First published
08 Nov 2023
This article is Open Access
Creative Commons BY license

EES. Catal., 2024,2, 253-261

Modified Cu–Zn–Al mixed oxide dual function materials enable reactive carbon capture to methanol

C. Jeong-Potter, M. A. Arellano-Treviño, W. W. McNeary, A. J. Hill, D. A. Ruddy and A. T. To, EES. Catal., 2024, 2, 253 DOI: 10.1039/D3EY00254C
