Issue 34, 2023

Double cross-linked transparent superhydrophilic coating capable of anti-fogging even after abrasion and boiling

Abstract

The commercial application of surfaces with superhydrophilic (SHPL) properties is well known as an efficient strategy to address problems such as anti-fogging, anti-frosting, and anti-biological contamination. However, current SHPL coatings are limited by their poor water and abrasion resistances. Thus, herein, to solve these problems active glass was employed as a substrate, and a stable and transparent SHPL solution was prepared via the spraying process. Aqueous polyacrylic resin (PAA), SiO2 nanoparticles (NPs), tetraethyl orthosilicate (TEOS), and sodium allyl sulfonate (SDS) were utilized as the four main components of the PAA-TEOS-SiO2 coating. The durability properties including anti-abrasion, resistance to water, and contact component loss were investigated via the Taber abrasion test, boiling water immersion test, and anti-fogging test, respectively. Furthermore, the structure, composition, and wettability of the coating before and after the friction and water immersion tests were compared via water contact angle (WCA) measurements. Furthermore, the effect of the type of resin on the properties of the coating was investigated. The surface morphology of the blended water-based polyacrylic acid (PAA) resin was uniform and flat and its adhesion to the substrate was the highest (4.21 MPa). Considering the durability and optical properties of the coating, the optimal blend was 3 wt% PAA resin, which exhibited a transmittance of 90%. When the content of TEOS, which enhanced the crosslinking in the coating, was increased to 2 wt%, the results showed that the SHPL coating maintained good anti-friction, boiling resistance, and anti-fogging properties under the conditions of 300 cycle Taber friction with 250 g load and soaking in hot water at 100 °C for 1 h. In particular, the excellent durability of strong acid and alkali resistance, heat resistance, and long-term aging resistance will facilitate the commercial viability and expand the application of SHPL coating in various research fields.

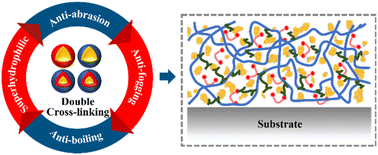

Graphical abstract: Double cross-linked transparent superhydrophilic coating capable of anti-fogging even after abrasion and boiling

Associated articles

Supplementary files

Article information

Article type
Paper
Submitted
10 May 2023
Accepted
04 Jul 2023
First published
04 Aug 2023
This article is Open Access
Creative Commons BY-NC license

RSC Adv., 2023,13, 23409-23418

Double cross-linked transparent superhydrophilic coating capable of anti-fogging even after abrasion and boiling

X. Liu, L. Xu, S. Zhao, H. Hua, Y. Su, X. Yu, J. Wang, G. Li and Y. Zhang, RSC Adv., 2023, 13, 23409 DOI: 10.1039/D3RA03113F
