Two-ring chirality generated by the alignment of two achiral phenylacetylene macrocycles

Abstract

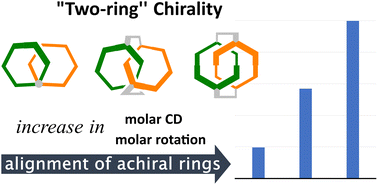

When two achiral rings are bound mechanically, a chiral source is generated in the assembly. The chiroptical properties could be modulated according to the relative occupation of each ring in the assembly. In fact, we have found that two isomeric assemblies (1 and 2) show unique properties in each assembly with two achiral rings of phenylacetylene macrocycle (PAM). When considering the difference in the chiroptical properties of these two isomeric assemblies (6PAM × 2), no comparison was available based on no activity of the achiral component element itself (6PAM). In this work, we synthesized a two-ring chiral analog (4) by the ring-fusion of two 6PAMs to an 11PAM, and examined the chiroptical properties of 4, since the single helix was imparted as a chiral source. By comparison of the chiroptical properties (molar circular dichroism and molar optical rotation) of 1 and 2 to those of 4, we demonstrated that the disparity was related to the alignment of the two achiral rings.
