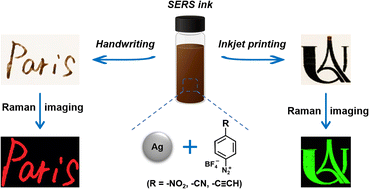

Anti-counterfeiting SERS security labels derived from silver nanoparticles and aryl diazonium salts

Abstract

The development of anti-counterfeiting inks based on surface-enhanced Raman scattering (SERS) labels have attracted great interest in recent years for their use as security labels in anti-counterfeiting applications. Indeed, they are promising alternatives to luminescent inks, which suffer from several limitations including emission peak overlap, toxicity and photobleaching. Most of the reported SERS security labels developed so far rely on the use of thiolate self-assembled monolayers (SAMs) for the immobilization of Raman reporters on metallic nanoparticle surface. However, SAMs are prone to spontaneous desorption and degradation under laser irradiation, thereby compromising the ink long-term stability. To overcome this issue, we develop herein a new generation of SERS security labels based on silver nanoparticles (Ag NPs) functionalized by aryl diazonium salts, carrying various substituents (–NO₂, –CN, –CCH) with distinguishable Raman fingerprints. The resulting SERS tags were fully characterized by scanning electron microscopy (SEM), transmission electron microscopy (TEM), UV-vis absorption and SERS. Then, they were incorporated into ink formulations to be printed on polyethylene naphthalate (PEN) substrates, using handwriting or inkjet printing. Proof-of-concept Raman imaging experiments confirmed the remarkable potential of diazonium salt chemistry to design Ag NPs-based SERS security labels.
