A series of dynamic single crystals of [MII(en)3]SO4 (M = Ni, Mn, and Cd) shows tunable dielectric properties and anisotropic thermal expansion

Abstract

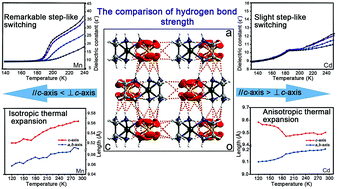

A series of dynamic single crystals with a chemical formula of [M^II(en)₃]SO₄ (en = ethylene and M^II = Ni^II, Mn^II, and Cd^II) was synthesized. As the temperature decreases, these materials exhibit dielectric switching in the vicinity of the phase transition point accompanied by anisotropic thermal expansion in the cell parameters as a consequence of the order–disorder structural change of SO²⁻₄ in a cavity surrounded by five [M^II(en)₃]²⁺ complex cations. Because the variation of metal centers with different ionic radii changes the shape of the complex cation, which affects the distribution of hydrogen-bond interactions around the SO²⁻₄, the dynamic motion of SO²⁻₄ is substantially tuned. Correspondingly, the dielectric properties and anisotropic thermal expansion of materials were largely shifted, especially in the single crystals of [Mn^II(en)₃]SO₄, whose structural change is distinctly different from the crystals of Ni(II) and Cd(II). The detailed structural mechanism accounting for the different physical properties of these materials was discussed.
