Shape-selective one-step synthesis of branched gold nanoparticles on the crystal surface of redox-active PdII-macrocycles

Abstract

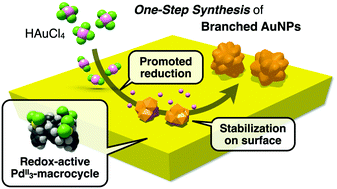

The synthesis of branched gold nanoparticles (AuNPs) with shape- and size-specific optical properties requires effective control of the particle formation mechanism using appropriate reducing agents and protective agents that prevent particle aggregation in solution. In this context, the heterogeneous synthesis of AuNPs using solid surfaces of graphene oxides and metal–organic frameworks has attracted much attention. These materials are characterized by their ability to immobilize and stabilize the particles grown on the surface without the need for additional protective agents. However, the shape- and size-selective synthesis of AuNPs using solid surfaces remains challenging. Herein, we report the shape-selective one-step synthesis of monodisperse branched AuNPs using a metal–macrocycle framework (MMF), a porous molecular crystal of Pd^II₃-tris(phenylenediamine) macrocycle. Konpeito-Shaped branched AuNPs with uniform size were obtained on the surface of MMF by mixing HAuCl₄·4H₂O, L-ascorbic acid and MMF microcrystals. Spectroscopic and microscopic observations confirmed that MMF promoted the reduction of gold by its reductive activity as well as acted as a solid support to electrostatically immobilize the pseudo-seed particles for further growth on the crystal surface. In addition, the MMF also served as a substrate for in situ high-speed AFM imaging due to the effective immobilization of AuNPs on the surface, allowing direct visualization of the particle growth. Since the chemical structural features of MMF allow the growth of branched AuNPs via pseudo-seeding, this approach would provide new synthetic methods for obtaining a variety of gold nanostructures.
