Issue 6, 2021

Electron/hole blocking layers as ionic blocking layers in perovskite solar cells

Abstract

Theoretical studies of ion migration have thus far focused on migration within the perovskite layer only. This reflected a “hidden” assumption that the electron/hole blocking layers also function as ion blocking. Following experimental evidence, we study the effect of ion migration into the blocking layers and as a case study we compare our simulations to experimental results of device degradation under storage conditions (V = 0, dark), obtained by others. Good agreement is found between the simulated ion accumulation at the electrode interface with the experimental device degradation dynamics. Also, we find that the migration into the blocking layers dominates the effects on the device energy level diagram and that it may also turn the intrinsic perovskites into either p or n type solar cells. Although our simulations do not include the chemistry of degradation, they show two potential mechanisms associated with ion out-diffusion. First, the electron/hole balanced solar cell structure becomes imbalanced (should be reversible). Second, ions reaching the electrode may react with it (i.e. irreversible).

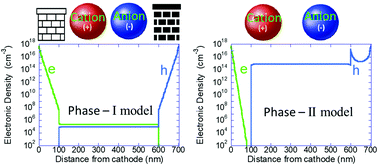

Graphical abstract: Electron/hole blocking layers as ionic blocking layers in perovskite solar cells

Article information

Article type
Paper
Submitted
03 Oct 2020
Accepted
21 Dec 2020
First published
19 Jan 2021
This article is Open Access
Creative Commons BY license

J. Mater. Chem. C, 2021,9, 1888-1894

Electron/hole blocking layers as ionic blocking layers in perovskite solar cells

S. Bitton and N. Tessler, J. Mater. Chem. C, 2021, 9, 1888 DOI: 10.1039/D0TC04697C

This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. You can use material from this article in other publications without requesting further permissions from the RSC, provided that the correct acknowledgement is given.

Read more about how to correctly acknowledge RSC content.
